TOYOTA TUNDRA 2008 2.G Owners Manual

581
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 3Vehicle capacity weight
Regular5.7 L V8 (3UR −FE)
Tw o −wheel drive models
StandardUSK50L− TRTDKA
750 (1660)
715 (1585)∗
1
LongUSK51L− THTDKA
895 (1975)
860 (1900)∗
1
925 (2045)∗ 2
Four −wheel drive models
StandardUSK55L− TRTDKA
725 (1605)
690 (1530)∗
1
LongUSK56L− THTDKA
865 (1910)
830 (1835)∗
1
∗1: With towing package∗ 2: Without option∗3: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

582
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 2Vehicle capacity weight
Double
4.0 L V6 (1GR −FE)Tw o −wheel drive modelsStandardGSK51L− CRASKA585 (1300)
4.7 L V8 (2UZ −FE)
Tw o −wheel drive models
Standard
UCK51L− CRASKA
640 (1415)
605 (1340)∗1
UCK51L−CRALKA
655 (1450)
620 (1375)∗1
LongUCK52L−CHASKA590 (1305)∗1
Four−wheel drive models
Standard
UCK56L− CRASKA
600 (1330)
565 (1255)∗1
UCK56L−CRALKA
615 (1360)
580 (1285)∗1
LongUCK57L−CHASKA550 (1220)∗1
∗
1: With towing package∗ 2: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

583
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 2Vehicle capacity weight
Double5.7 L V8 (3UR −FE)
Tw o −wheel drive models
Standard
USK51L− CRTSKA
700 (1550)
665 (1475)∗1
USK51L−CRTLKA
720 (1590)
685 (1515)∗1
LongUSK52L−CHTSKA655 (1455)∗1
Four−wheel drive models
Standard
USK56L− CRTSKA
665 (1470)
630 (1395)∗1
USK56L−CRTLKA
680 (1505)
645 (1430)∗1
LongUSK57L−CHTSKA615 (1365)∗1
∗
1: With towing package∗ 2: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

584
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 3Vehicle capacity weight
Crew Max4.7 L V8 (2UZ −FE)
Tw o −wheel drive models
Short
UCK51L− PSASKA
605 (1335)
570 (1260)∗1
555 (1225)∗2
UCK51L−PSALKA
615 (1360)
580 (1285)∗1
565 (1250)∗2
Four−wheel drive models
UCK56L− PSASKA
570 (1260)
535 (1185)∗1
520 (1150)∗2
UCK56L−PSALKA
580 (1280)
545 (1205)∗1
530 (1170)∗2
∗
1: With towing package or electric moon roof∗ 2: With towing package and electric moon roof∗3: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

585
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 3Vehicle capacity weight
Crew Max5.7 L V8 (3UR −FE)
Tw o −wheel drive models
Short
USK51L− PSTSKA
665 (1470)
630 (1395)∗1
615 (1360)∗2
USK51L−PSTLKA
690 (1530)
655 (1455)∗1
640 (1420)∗2
Four−wheel drive models
USK56L− PSTSKA
635 (1400)
600 (1325)∗1
585 (1290)∗2
USK56L−PSTLKA
640 (1420)
610 (1345)∗1
590 (1310)∗2
∗
1: With towing package or electric moon roof∗ 2: With towing package and electric moon roof∗3: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

586
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 4Towing capacity∗1
Regular
4.0 L V6 (1GR −FE)Tw o −wheel drive modelsStandardGSK50L− TRADKA2310 (5100)
LongGSK51L−THADKA2265 (5000)
4.7 L V8 (2UZ −FE)
Tw o −wheel drive models
StandardUCK50L− TRADKA3175 (7000)
3855 (8500)∗
2
LongUCK51L− THADKA3125 (6900)
3810 (8400)∗
2
Four −wheel drive models
StandardUCK55L− TRADKA3035 (6700)
3715 (8200)∗
2
LongUCK56L− THADKA2990 (6600)
3670 (8100)∗
2
5.7 L V8 (3UR −FE)
Tw o −wheel drive models
StandardUSK50L− TRTDKA
4035 (8900)
4715 (10400)∗
2
4490 (9900)∗2,3
LongUSK51L− THTDKA3990 (8800)
4895 (10800)∗
2
Four −wheel drive models
StandardUSK55L− TRTDKA
3945 (8700)
4580 (10100)∗
2
4350 (9600)∗2,3
LongUSK56L− THTDKA3900 (8600)
4760 (10500)∗
2
∗1: Trailer weight + cargo weight∗ 2: With Towing package∗3: With P275/55R20 tires∗ 4: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.
Towing capacity∗ 1

587
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 3Towing capacity∗1
Double
4.0 L V6 (1GR −FE)Tw o −wheel drive modelsStandardGSK51L− CRASKA2175 (4800)
4.7 L V8 (2UZ −FE)
Tw o −wheel drive modelsStandard
UCK51L− CRASKA3035 (6700)
3670 (8100)∗
2
UCK51L− CRALKA2990 (6600)
3670 (8100)∗
2
LongUCK52L− CHASKA3625 (8000)∗
2
Four −wheel drive modelsStandard
UCK56L− CRASKA2900 (6400)
3535 (7800)∗
2
UCK56L− CRALKA2855 (6300)
3535 (7800)∗
2
LongUCK57L− CHASKA3490 (7700)∗
2
5.7 L V8 (3UR −FE)
Tw o −wheel drive modelsStandard
USK51L− CRTSKA3900 (8600)
4805 (10600)∗
2
USK51L− CRTLKA3900 (8600)
4805 (10600)∗
2
LongUSK52L− CHTSKA4760 (10500)∗
2
Four −wheel drive modelsStandard
USK56L− CRTSKA3760 (8300)
4670 (10300)∗
2
USK56L− CRTLKA3760 (8300)
4670 (10300)∗
2
LongUSK57L− CHTSKA4625 (10200)∗
2
∗1: Trailer weight + cargo weight∗ 2: With Towing package∗3: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

588
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 3Towing capacity∗1
Crew Max
4.7 L V8 (2UZ −FE)
Tw o −wheel drive models
Short
UCK51L− PSASKA2945 (6500)
3625 (8000)∗
2
UCK51L− PSALKA2945 (6500)
3625 (8000)∗
2
Four −wheel drive models
UCK56L− PSASKA2810 (6200)
3490 (7700)∗
2
UCK56L− PSALKA2810 (6200)
3490 (7700)∗
2
5.7 L V8 (3UR −FE)
Tw o −wheel drive models
USK51L− PSTSKA3810 (8400)
4715 (10400)∗
2
USK51L− PSTLKA3810 (8400)
4715 (10400)∗
2
Four −wheel drive models
USK56L− PSTSKA3670 (8100)
4580 (10100)∗
2
USK56L− PSTLKA3670 (8100)
4580 (10100)∗
2
∗1: Trailer weight + cargo weight∗ 2: With Towing package∗3: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

589
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Model:
4.0 L V6 (1GR −FE), 4.7 L V8 (2UZ −FE)
and 5.7 L V8 (3UR −FE) engine
Type: 4.0 L V6 (1GR −FE) engine
6 cylinder V type, 4 cycle, gasoline
4.7 L V8 (2UZ −FE) engine
8 cylinder V type, 4 cycle, gasoline
5.7 L V8 (3UR −FE) engine
8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 4.0 L V6 (1GR −FE) engine
94.0 95.0 (3.70 3.74)
4.7 L V8 (2UZ −FE) engine
94.0 84.0 (3.70 3.31)
5.7 L V8 (3UR −FE) engine
94.0 102.0 (3.70 4.02)
Displacement, cm
3 (cu. in.):
4.0 L V6 (1GR −FE) engine
3956 (241.4)
4.7 L V8 (2UZ −FE) engine
4664 (284.5)
5.7 L V8 (3UR −FE) engine
5663 (345.4) Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
Fuel tank capacity, L (gal., Imp. gal.): 100 (26.4, 22.0) ENGINE
Valve clearance (engine cold), mm (in.):
4.0 L V6 (1GR −FE) engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.29—0.39 (0.011—0.015)
4.7 L V8 (2UZ −FE) engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
5.7 L V8 (3UR −FE) engine
Automatic adjustment
Spark plug type: 4.0 L V6 (1GR −FE) engine
DENSO K20HR −U11
NGK LFR6C11
4.7 L V8 (2UZ −FE) engine
DENSO SK20R11
NGK IFR6A11
5.7 L V8 (3UR −FE) engine
DENSO SK20HR11
Spark plug gap, mm (in.): 1.1 (0.043)
Engine FuelService specifications

590
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
ENGINE LUBRICATION
Oil capacity (drain and refill),
L (qt., Imp. qt.):
4.0 L V6 (1GR −FE) engine
With filter 5.2 (5.5, 4.6)
Without filter 4.9 (5.2, 4.3)
4.7 L V8 (2UZ −FE) engine
With filter 6.2 (6.6, 5.5)
Without filter 5.7 (6.0, 5.0)
5.7 L V8 (3UR −FE) engine
With filter 7.0 (7.4, 6.2)
Without filter 6.6 (6.9, 5.8)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.

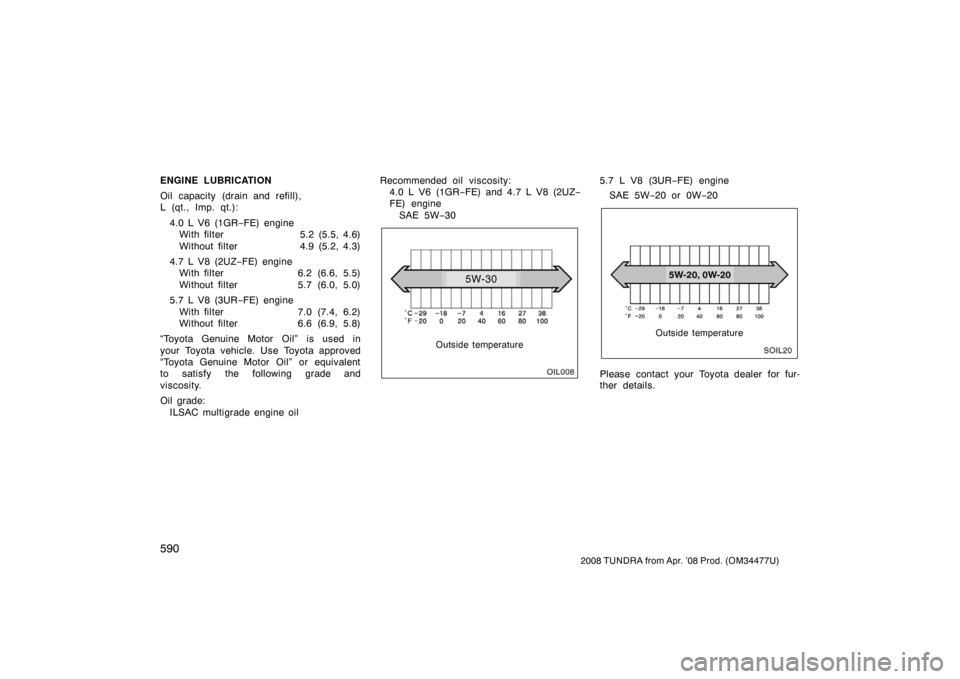

Oil grade: ILSAC multigrade engine oil Recommended oil viscosity:
4.0 L V6 (1GR −FE) and 4.7 L V8 (2UZ −
FE) engine
SAE 5W −30
OIL008
Outside temperature
5.7 L V8 (3UR −FE) engine
SAE 5W −20 or 0W −20
SOIL020
Outside temperature
Please contact your Toyota dealer for fur-
ther details.
