This information has been prepared in ac-
cordance with regulation issued by the Na-
tional Highway Traffic Safety Administra-
tion of the U.S. Department of
Transportation. It provides the purchasers
and/or prospective purchasers of Toyota
vehicles with information on truck −camper
loading. Your Toyota dealer will help an-
swer any questions you may have as you
read this information.

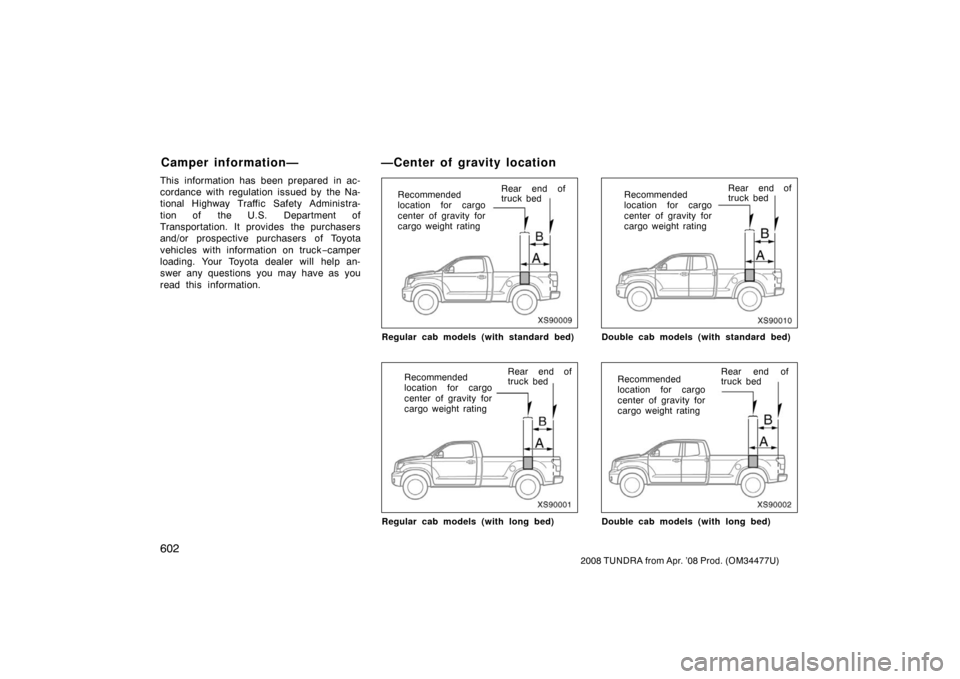

XS90009
Rear end of
truck bedRecommended
location for cargo
center of gravity for
cargo weight rating
Regular cab models (with standard bed)
XS90001
Rear end of
truck bedRecommended
location for cargo
center of gravity for
cargo weight rating
Regular cab models (with long bed)
XS90010
Rear end of
truck bedRecommended
location for cargo
center of gravity for
cargo weight rating
Double cab models (with standard bed)
XS90002
Rear end of
truck bed
Recommended
location for cargo
center of gravity for
cargo weight rating
Double cab models (with long bed)
Camper information—
—Center of gravity location

603
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

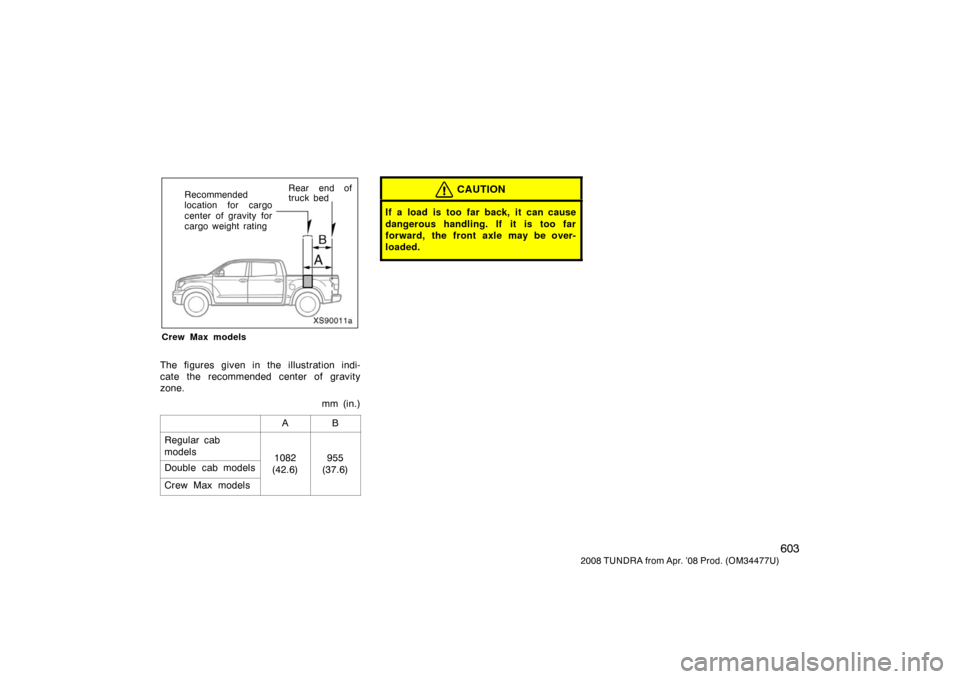

XS90011a
Rear end of
truck bed
Recommended
location for cargo
center of gravity for
cargo weight rating
Crew Max models
The figures given in the illustration indi-
cate the recommended center of gravity
zone.
mm (in.)
AB
Regular cab
models
1082
(42.6)955
(37.6)Double cab models
Crew Max models
CAUTION
If a load is too far back, it can cause
dangerous handling. If it is too far
forward, the front axle may be over-
loaded.

604
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS90004
Camper center of gravity
Recommended center of
gravity location zone
Passenger numberDrive Cab Bed Grade
1GR
C.W.R
(kg) (lb.)
2UZ
3UR
2WD 2WD
4WD
2WD
4WDRegular
Standard Long474
CWR: Cargo Weight Rating
— 1045
Engine
3510 1125
3
547 1205
3
592 1305
3
519 1145
3
562 1240
3
515 1135
3
658 1450
3
490 1080
3
628 1385
3
Standard
Long
Standard
Long
Standard Long
Standard Long
—Cargo weight rating and
proper matching

605
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Passenger
numberDrive Cab Bed Grade
1GR
C.W.R
(kg) (lb.)
2UZ
3UR
2WD
2WD
4WD
2WD
4WD
Double Standard
181
CWR: Cargo Weight Rating
SR5 400
Engine
6200 440
6
284 625
5
184 405
6
161 355
6
243 535
5
145 320
6
261 575
6
347 765
5
252 555
6
Standard
Long
Standard Long
225 495
6
308 680
5
211 465
6
SR5
SR5
SR5
SR5
Limited
Limited
SR5
Limited SR5
SR5
Limited
SR5
Standard Long
Standard
Long

606
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
When the truck is used to carry a slide −in
camper, the total cargo load of the truck
consists of the manufacturer ’s camper
weight figure, the weight of installed addi-
tional camper equipment not included in
the manufacturer ’s camper weight figure,
the weight of camper cargo, and the
weight of passengers in the camper.
The total cargo load should not exceed
the truck’s cargo weight rating and the
camper ’s center of gravity should fall with-
in the truck’s recommended center of
gravity zone when installed.
CAUTION
Be careful—overloading can cause
dangerous braking and handling prob-
lems, and can damage your vehicle
and its tires.
Passenger numberDrive Cab Bed GradeC.W.R
(kg) (lb.)
2UZ
3UR
2WD
4WD
2WD
Crew Max
CWR: Cargo Weight Rating
Engine
227 500
6
113 250
5
191 420
6
209 460
304 670
5
177 390
6
254 560
5 147 325
5
6
Short SR5
SR5
SR5
Limited
Limited
Limited SR5
Limited
4WD

607
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS90006

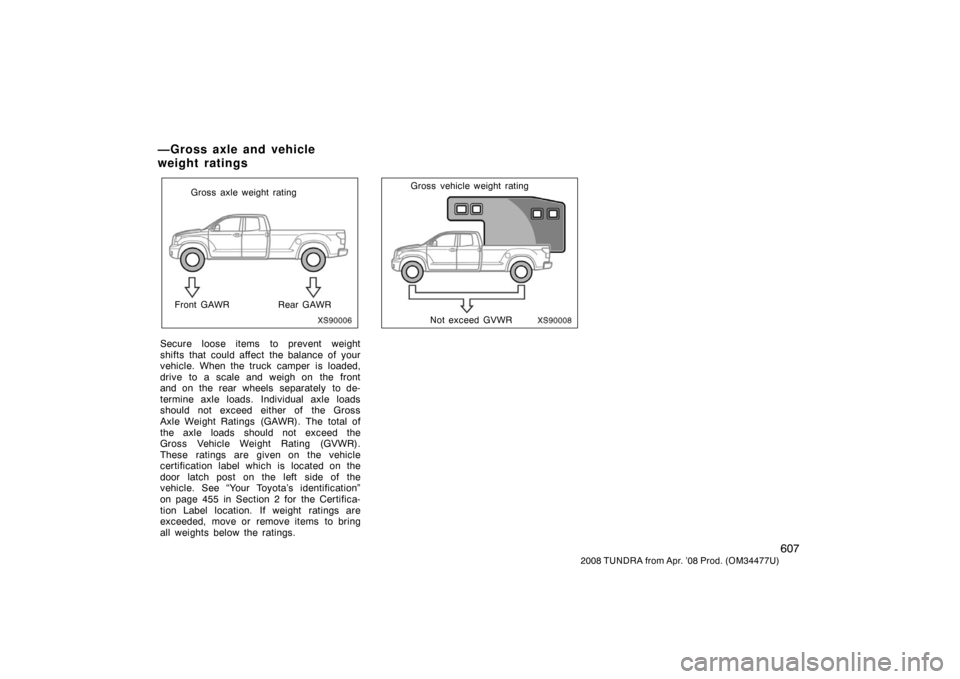

Gross axle weight rating
Front GAWR Rear GAWR
Secure loose items to prevent weight
shifts that could affect the balance of your
vehicle. When the truck camper is loaded,
drive to a scale and weigh on the front
and on the rear wheels separately to de-
termine axle loads. Individual axle loads
should not exceed either of the Gross
Axle Weight Ratings (GAWR). The total of
the axle loads should not exceed the
Gross Vehicle Weight Rating (GVWR).
These ratings are given on the vehicle
certification label which is located on the
door latch post on the left side of the
vehicle. See “Your Toyota’s identification”
on page 455 in Section 2 for the Certifica-
tion Label location. If weight ratings are
exceeded, move or remove items to bring
all weights below the ratings.
XS90008
Gross vehicle weight rating
Not exceed GVWR
—Gross axle and vehicle
weight ratings

608
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
GAWR, GVWR
kg (lb.)
Cab type
EngineDriving
systemBed typeModel code∗GAWRGVWRFrontRear
Regular
4.0 L V6
(1GR −FE)2WDStandardGSK50L− TRADKA1765 (3900)1675 (3700)2810 (6200)
LongGSK51L−THADKA1765 (3900)1720 (3800)2900 (6400)
4.7 L V8
(2UZ −FE)
2WDStandardUCK50L− TRADKA1765 (3900)1790 (3950)2990 (6600)
LongUCK51L−THADKA1765 (3900)1835 (4050)3080 (6800)
4WDStandardUCK55L−TRADKA1810 (4000)1835 (4050)3080 (6800)
LongUCK56L−THADKA1810 (4000)1880 (4150)3175 (7000)
5.7 L V8
(3UR −FE)
2WDStandardUSK50L− TRTDKA1765 (3900)1790 (3950)2990 (6600)
LongUSK51L−THTDKA1765 (3900)1880 (4150)3175 (7000)
4WDStandardUSK55L−TRTDKA1810 (4000)1835 (4050)3080 (6800)
LongUSK56L−THTDKA1810 (4000)1880 (4150)3265 (7200)
∗: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

609
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving
systemBed typeModel code∗GAWRGVWRFrontRear
Double
4.0 L V6
(1GR −FE)2WDStandardGSK51L− CRASKA1765 (3900)1720 (3800)2900 (6400)
4.7 L V8
(2UZ −FE)
2WDStandardUCK51L− CRASKA1765 (3900)1810 (4000)3035 (6700)
UCK51L−CRALKA1765 (3900)1810 (4000)3035 (6700)
LongUCK52L−CHASKA1765 (3900)1835 (4050)3080 (6800)
4WDStandardUCK56L−CRASKA1810 (4000)1855 (4100)3125 (6900)
UCK56L−CRALKA1810 (4000)1855 (4100)3125 (6900)
LongUCK57L−CHASKA1810 (4000)1880 (4150)3175 (7000)
5.7 L V8
(3UR −FE)
2WDStandardUSK51L− CRTSKA1765 (3900)1855 (4100)3125 (6900)
USK51L−CRTLKA1765 (3900)1855 (4100)3125 (6900)
LongUSK52L−CHTSKA1765 (3900)1880 (4150)3175 (7000)
4WDStandardUSK56L−CRTSKA1810 (4000)1880 (4150)3220 (7100)
USK56L−CRTLKA1810 (4000)1880 (4150)3220 (7100)
LongUSK57L−CHTSKA1810 (4000)1880 (4150)3265 (7200)
∗: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

610
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving
systemBed typeModel code∗GAWRGVWRFrontRear
Crew Max
4.7 L V8
(2UZ −FE)
2WD
Short
UCK51L− PSASKA1765 (3900)1835 (4050)3080 (6800)
UCK51L−PSALKA1765 (3900)1835 (4050)3080 (6800)
4WDUCK56L−PSASKA1810 (4000)1880 (4150)3175 (7000)
UCK56L−PSALKA1810 (4000)1880 (4150)3175 (7000)
5.7 L V8
(3UR −FE)
2WDUSK51L− PSTSKA1765 (3900)1880 (4150)3175 (7000)
USK51L−PSTLKA1765 (3900)1880 (4150)3175 (7000)
4WDUSK56L−PSTSKA1810 (4000)1880 (4150)3265 (7200)
USK56L−PSTLKA1810 (4000)1880 (4150)3265 (7200)
∗: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.
