COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
4.0 L V6 (1GR −FE) engine
9.6 (10.1, 8.4)
4.7 L V8 (2UZ −FE) engine
9.7 (10.3, 8.5)
5.7 L V8 (3UR −FE) engine
With towing package
13.0 (13.7, 11.4)
Without towing package 12.1 (12.8, 10.6)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details. BATTERY
Open voltage
∗ at 20
°C (68 °F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes after the key is removed with all the
lights turned off
Charging rates: 5 A max. AUTOMATIC TRANSMISSION
Fluid capacity, L (qt., Imp. qt.):
4.0 L V6 (1GR −FE) engine
10.5 (11.1, 9.2)
∗
4.7 L V8 (2UZ −FE) engine
With towing package 11.1 (11.7, 9.8)
∗
Without towing package10.5 (11.1, 9.2)∗
5.7 L V8 (3UR−FE) engine
With towing package 11.7 (12.4, 10.3)
∗
Without towing package 11.1 (11.7, 9.8)∗
∗
: The fluid capacity is the quantity of ref- erence. If replacement is necessary,
contact your Toyota dealer.
Fluid type: Toyota Genuine ATF WS
Change automatic transmission fluid only
as necessary.

592
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF WS” (ATF
JWS3324 or NWS9638) to aid in assuring
optimum transmission performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle.
Please contact your Toyota dealer for fur-
ther details. TRANSFER
Oil capacity, L (qt., Imp. qt.):
1.12 (1.2, 1.0)
Oil type: Gear Oil API GL−4 or GL−5
Recommended oil viscosity: SAE 75W −90
DIFFERENTIAL
Oil capacity, L (qt., Imp. qt.): Front differential
(four −wheel drive models)
2.05 (2.2, 1.8)
Rear differential 4.0 L V6 (1GR −FE) and 4.7 L V8
(2UZ −FE) engine
Regular cab models
Standard bed 4.05 (4.3, 3.6)
Long bed 4.60 (4.9, 4.0)
Double cab and Crew Max models 4.60 (4.9, 4.0)
5.7 L V8 (3UR −FE) engine
Regular cab models Standard bed 3.50 (3.7, 3.1)
Long bed 3.60 (3.8, 3.2) Double cab models
Standard bed 3.60 (3.8, 3.2)
Long bed 3.75 (4.0, 3.3)
Crew Max models Tw o −wheel drive model
3.75 (4.0, 3.3)
Four −wheel drive model
3.60 (3.8, 3.2)
Oil type and viscosity: Toyota Genuine Differential Gear Oil LT
75W −85 GL− 5 or equivalent
“Toyota Genuine Differential Gear Oil” is
filled in your Toyota vehicle at factory fill.
Use Toyota approved “Toyota Genuine
Differential Gear Oil” or an equivalent of
matching quality to satisfy the above
specification. Please contact your Toyota
dealer for further details.
CHASSIS LUBRICATION
Propeller shafts:
SpidersLithium base chassis grease, NLGI
No.2
Slide yokes Lithium base chassis grease, NLGI
No.2 or Molybdenum −disulfide lithium
base chassis grease, NLGI No.2

593
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
104 (4.1)
Pedal free play, mm (in.): 1—5 (0.04—0.20)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment:
Pedal type—when depressed with the
force of 300 N (30.6 kgf, 67.1 lbf)6—9 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

594
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Tire size, cold tire inflation pressure and wheel size:
Ti r e siz e
Cold tire inflation pressurekPa (kgf/cm2 or bar, psi)Temporary spareWheel size
FrontRear
P255/70R18 112T210 (2.1, 30)230 (2.3, 33)230 (2.3, 33)18 8J
P275/65R18 114T210 (2.1, 30)230 (2.3, 33)230 (2.3, 33)18 8J
P275/55R20 111H210 (2.1, 30)230 (2.3, 33)230 (2.3, 33)20 8J
Wheel nut torque, N·m (kgf·m, ft·lbf):
Steel wheels 209 (21.3, 154)
Aluminum wheels 131 (13.4, 97)
NOTE: For complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Wheel precautions”, pages 553 through 562, in Section 7 −2.
Tires

595
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Engine compartment
Fuses (type A)
1. A/F 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
2. HORN 10 A: Horn
3. EFI NO.1 25 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
4. IG2 MAIN 30 A: “INJ”, “MET”, “IGN”
fuses
5. DEICER 20 A: Front windshield wiper
de− icer
6. TOW TAIL 30 A: Trailer lights (tail
lights)
7. POWER NO.2 30 A: Power back win-
dow
8. FOG 15 A: Front fog lights
9. STOP 15 A: Stop lights, high mounted
stop light, vehicle stability control sys-
tem, anti− lock brake system, shift lock
system, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, towing converter
10. TOW BRK 30 A: Trailer brake control-
ler
11. IMB 7.5 A: Engine immobilizer system
12. AM2 7.5 A: Starting system
13. TOWING 30 A: Towing converter
Fuses

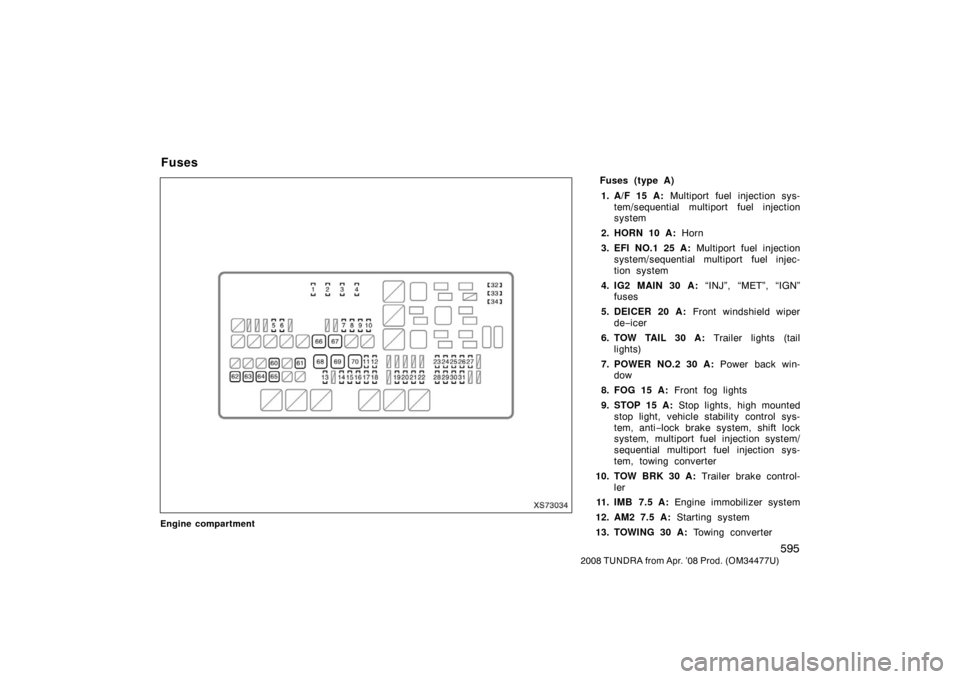

XS73034

596
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS73028
Instrument panel
14. ALTS 5 A: Charging system
15. TURNHAZ 15 A: Turn signal lights,
emergency flashers, towing converter
16. F/PMP 15 A: No circuit
17. ETCS 10 A: Multiport fuel injection
system/S equential multiport fuel injec-
tion system, electric throttle control
system
18. METB 5 A: Gauges and meters
19. AMP 30 A: Audio system, rear view
monitor, navigation system, rear seat
entertainment system 20. RAD NO.1 15 A:
Audio system, rear
view monitor, navigation system, rear
seat entertainment system
21. ECUB1 7.5 A: Multiplex communica-
tion system, Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, auto anti− glare inside rear
view mirror, power outlets, power front
drivers seat, power tilt and telescopic
system
22. DOME 7.5 A: Interior lights, personal
lights, vanity lights, engine switch light,
foot light, door courtesy lights, acces-
sory meter
23. HEAD LH 15 A: Left−hand headlight
(high beam)
24. HEAD LL 15 A: Left−hand headlight
(low beam)
25. INJ 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, ignition system
26. MET 7.5 A: Gauges and meters
27. IGN 10 A: SRS airbag system, multi-
port fuel injection system/sequential
multiport fuel injection system, engine
immobilizer system, cruise control sys-
tem
28. HEAD RH 15 A: Right−hand headlight
(high beam) 29. HEAD RL 15 A:
Right−hand headlight
(low beam)
30. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, leak detection pump
31. DEF I/UP 5 A: No circuit
32. SPARE 5 A: Spare fuse
33. SPARE 15 A: Spare fuse
34. SPARE 30 A: Spare fuse
35. INVERTER 15 A: Power outlet No cir-
cuit(115 V)
36. FR P/SEAT LH 30 A: Power front driv-
ers seat
37. DR/LCK 25 A: Multiplex communication
system
38. OBD 7.5 A: On−board diagnosis sys-
tem
39. PWR OUTLET 15 A: Power outlets
40. CARGO LP 7.5 A: Cargo lamp
41. AM1 7.5 A: Shift lock system, starting
system
42. A/C 7.5 A: Air conditioning system
4

3. MIR 15 A: Outside rear view mirror
control, outside rear view mirror heat-
ers
44. FR P/SEAT RH 30 A: Power front pas-
senger seat

597
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
45. TI&TE 15 A: Power tilt and power tele-
scopic
46. S/ROOF 25 A: Electric moon roof
47. ECUIG NO.1 7.5 A: Anti−lock brake
system, vehicle stability control system,
multiplex communication system, intu-
itive parking assist system, power front
drivers seat, power tilt and power tele-
scopic, shift lock, tire pressure warning
system, accessory meter, trailer towing,
power outlet, electric moon roof
48. LHIG 7.5 A: Back−up lights, charging
system, g auge and meters, turn signal
lights, air conditioning system, seat
heaters, back window defogger
49. 4WD 20 A: Four−wheel drive control
system
50. WSH 20 A: Window washer
51. WIPER 30 A: Wiper and washer
52. ECUIG NO.2 7.5 A: Multiplex commu-
nication system
53. TAIL 15 A: Tail lights, trailer lights (tail
lights), parking lights, outside rear view
mirror lights
54. A/C IG 10 A: Air conditioning system
55. SEATHTR 20 A: Seat heaters 56. PANEL 7.5 A:
Instrument panel lights,
glove box light, ashtray, accessory me-
ter, audio system, rear view monitor,
navigation system, rear seat entertain-
ment system, gauges and meters, air
conditioning system
57. ACC 7.5 A: Accessory meter, audio
system, rear seat entertainment sys-
tem, rear view monitor, navigation sys-
tem, back −up lights, trailer lights
(back −up lights), multiplex communica-
tion system, power outlet, outside rear
view mirror
58. BK/UP LP 10 A: Back−up light, gauges
and meters
59. CIG 15 A: Cigarette lighter
Fuses (type B)
60. HTR 50 A: Air conditioning system
61. LHJ/B 150 A: “AM1”, “TAIL”, “PANEL”,
“ACC”, “CIG”, “LH −IG”, “4WD”,
“ECU −IG NO.1”, “BK/UP LP”,
“SEAT −HTR”, “A/C IG”, “ECU −IG
NO.2”, “WSH”, “WIPER”, “OBD”, “A/C”,
“TI&TE”, “FR P/SEAT RH”, “MIR”,
“DR/LCK”, “FR P/SEAT LH”, “CARGO
LP”, “PWR OUTLET”, “POWER NO.1”
fuses 62. ALT 180 A (3URFE engine with
towing package), 140 A (others):
“LH−J/B”, “HTR”, “SUB BATT”, “TOW
BRK”, “STOP”, “FOG”, “TOW TAIL”,
“DEICER” fuses
63. A/PUMP NO.1 50 A: Multiport fuel in-
jection system/sequential multiport fuel
injection system
64. A/PUMP NO.2 50 A: Multiport fuel in-
jection system/sequential multiport fuel
injection system
65. MAIN 40 A: “HEAD LL”, “HEAD RL”,
“HEAD LH”, “HEAD RH” fuses
Fuses (type C)
66. DEFOG 40 A: B
ack window defogger
67. SUB BATT 40 A: Trailer towing
68. ABS1 50 A: Anti−lock brake system,
vehicle stability control system
69. ABS2 40 A: Anti−lock brake system,
vehicle stability control system
70. ST 30 A: Starting system
71. POWER NO.1 30 A: Power windows,
power back window

598
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

599
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
FOR OWNERS
For owners
Reporting safety defects for U.S. owners 600
. . . . . . . . . . . . . . . . . . . . . .
Seat belt instructions for Canadian owners (in French) 600
. . . . . . . . . .
Camper information 602
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION 9

600
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc. (Toll−free:
1 −800 −331 −4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc. To contact NHTSA, you may call
the Vehicle Safety Hotline toll
−free
at 1 −888 −327 −4236 (TTY:
1 −800 −424 −9153); go to
http://www.safercar.gov ; or write
to: Administrator, NHTSA, 1200
New Jersey Ave, S.E.,
Washington, DC 20590. You can
also obtain other information about
motor vehicle safety from
http://www.safercar.gov.The following is a French explanation
of seat belt instructions extracted from
the seat belt section in this manual.
See the seat belt section for more de-
tailed seat belt instructions in English.
Reporting safety defects for
U.S. owners Seat belt instructions for
Canadian owners
(in French)—
