TOYOTA TUNDRA 2009 2.G Navigation Manual

BASIC FUNCTIONS
32

To set the cursor position as a des-
tination
A specific point on the map can be set as
a destination using the one −touch scroll
function.
1U5017F
Touch “Enter ”.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 63.)
If there is already a set destination, “Add
to
” or “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
To register the cursor position as a
memory point
Memory point registration enables easy
access to a specific point.
1U5018F
Touch “Mark”.
When you touch “Mark” , the following
screen appears for a few seconds, and
then the map screen returns.
1U5019F
The registered point is shown by on the
map.
To change the icon or name, etc., see “ —
Editing memory points” on page 96.
Up to 106 memory points can be regis-
tered. If there is an attempt to register
more than 106, a message appears for
confirmation.
1U5020F

BASIC FUNCTIONS
33

To see information about the icon
where the cursor is set
1U5021F
To display information about an icon, set
the cursor on it.
POI INFORMATION
When the cursor is set on a POI icon, the
name
and “Info.” are displayed on the top
of the screen.
1U5022F
Touch “Info.”.
1U5023F
Information such as the name, address,
and phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.
If there is already a set destination, “Add
to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
To register this POI as a memory point,
touch “Mark” . (See page 95.)
If
is touched, the registered tele-
phone number can be called.
INFORMATION
The desired Point of Interest can be
displayed on the map screen. (See “
— Display POI icons” on page 80.)

BASIC FUNCTIONS
34
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and “Info.” are displayed
on the top of the screen.
1U5024F
Touch “Info.”.
1U5025F
Information such as the name, address,
and phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.
If there is already a set destination, “Add
to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
To edit a memory point, touch “Edit”. (See
“ — Editing memory points” on page 96.)
To delete a memory point, touch “Delete”.
If
is touched, the registered tele-
phone number can be called. DESTINATION INFORMATION
When the cursor is set on a destination
icon, the name and “Info.”
are displayed
on the top of the screen.
1U5026F
Touch “Info.”.
1U5027F
Information such as the name, address,
and phone number are displayed.
To delete a destination, touch “Delete”.
If
is touched, the registered tele-
phone number can be called.

BASIC FUNCTIONS
35
Any one of the screen configurations can
be selected.
1U5028F
1. Touch this touchscreen button to
display the following screen.
1U5029F
2. To select the desired screen config-
uration, touch one of the following
touchscreen buttons.Depending on the conditions, certain
screen configuration buttons cannot be
selected.
:
To display the single map screen.
(See page 36.)
: To display the dual map screen.
(See page 36.)
: To display the compass mode
screen. (See page 37.)
: To display the turn list screen.
(See page 70.)
: To display the arrow screen. (See
page 70.)
: To display the freeway information
screen. (See page 68.)
: To display the intersection guid-
ance screen or the guidance
screen on the freeway. (See page
69.)
— Switching the screens

BASIC FUNCTIONS
36

Screen configurations
SINGLE MAP
This is a regular map screen.
While on a dif ferent screen, touching
will display the single map screen.
1U5030F
The screen shows the single map. DUAL MAP
A map can be displayed split in two.
While on a different
screen, touching
will display the dual map screen.
1U5031F
The screen shows the dual map. The map
on the left is the main map.
The right side map can be edited by touch-
ing any specific point on the right side map.
1U5032F
This screen can perform the following pro-
cedures:
1. Changing the map scale
2. Displaying the POI icon
3. Changing the orientation of the map
Touch “OK” when you complete edi-
ting.
The screen returns to the dual map screen.

BASIC FUNCTIONS
37
COMPASS MODE
Current vehicle position is indicated with a
compass, not with a map.
While on a different screen, touching
will display the compass mode screen.
1U5033F
Information about the destination and cur-
rent position, as well as a compass, is dis-
played on the screen.
The destination mark is displayed in the di-
rection of the destination. When driving,
refer to the longitude and latitude coordi-
nates and the compass, to make sure that
your vehicle is headed in the direction of
the destination.
INFORMATION
When the vehicle travels out of the
coverage area, the guidance screen
changes to the compass mode
screen.
— Map scale
1U5034F
Touch or to change the scale
of the map display. The scale bar and indi-
cator at the bottom of the screen indicates
the map scale menu. The scale range is
150 feet (50 m) to 250 miles (400 km).
Touch
or until the scale bar
changes normally. By continuing to touch
the touch−screen button, the scale bar
changes smoothly.
The scale of the map display can be
changed by touching the scale bar directly.
It is not available while driving.
The map scale is displayed under the
north−up symbol or heading −up symbol at
the top left of the screen.
INFORMATION
When the map scale is at the
maximum range of 250 miles (400
km), is not shown. When the map
scale is at the minimum range of 150
feet (50 m), is not shown. In areas
where the foot print map is available
the map scale changes from to
when at the minimum range.

BASIC FUNCTIONS
38
— Foot print map
For the area which is covered by the foot
print map (Some areas in the following cit-
ies; Detroit, Chicago, N.Y., L.A), you can
switch to the foot print map on a scale of 75
feet (25 m).
To switch to the foot print map
changes into when the map is
scaled down to 150 feet (50 m).
1U5035F
To display the foot print map, touch
.
To delete the foot print map display, touch
.
INFORMATION
If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the
screen scale automatically
changes to 150 feet (50 m).
On the foot print map, a one way
street is displayed by .
It is not possible to perform scroll-
ing on the foot print map (one
touch scroll) while driving.
To display building information
Information is available only for buildings
for which information is recorded on the
map disc.
1U5036F
1. Touch “Info.” while the foot print
map is displayed.
If the map is displayed by a split screen,
the map will change into a single map dis-
play.
1U5037F
2. Using an eightdirection arrow,
move the cursor to the position of the
building to display building informa-
tion.
3. Touch “Building Info.”.

BASIC FUNCTIONS
39
1U5038F
Details of POIs in some buildings may be
displayed.
For detailed POI information, touch the
building name. You can see details of the
selected POIs.
— Orientation of the map
1U5039F
Northup screen
1U5040F
Headingup screen
The orientation of the map can be changed
from North− up to Heading −up by touching
the orientation symbol at the top left of the
screen.
Northup symbol
Regardless of the direction of vehicle trav-
el, North is always up.
Headingup symbol
The direction of vehicle travel is always up.
A red arrow indicates North.

BASIC FUNCTIONS
40
—Map icons
Iconname
Freeway (Level 1, 2)
(Red)
(Turquoise)Main Street (Level 3, 4)
(Gray)Residential (Level 5)
(Yellow−green)IPD (In− Process Data)
Railroad
Border
Park/Recreation
Airport
Military base
Higher education
Hospital
Sports complex
Shopping center
Golf course

SECTION 2
DESTINATION SEARCH
41

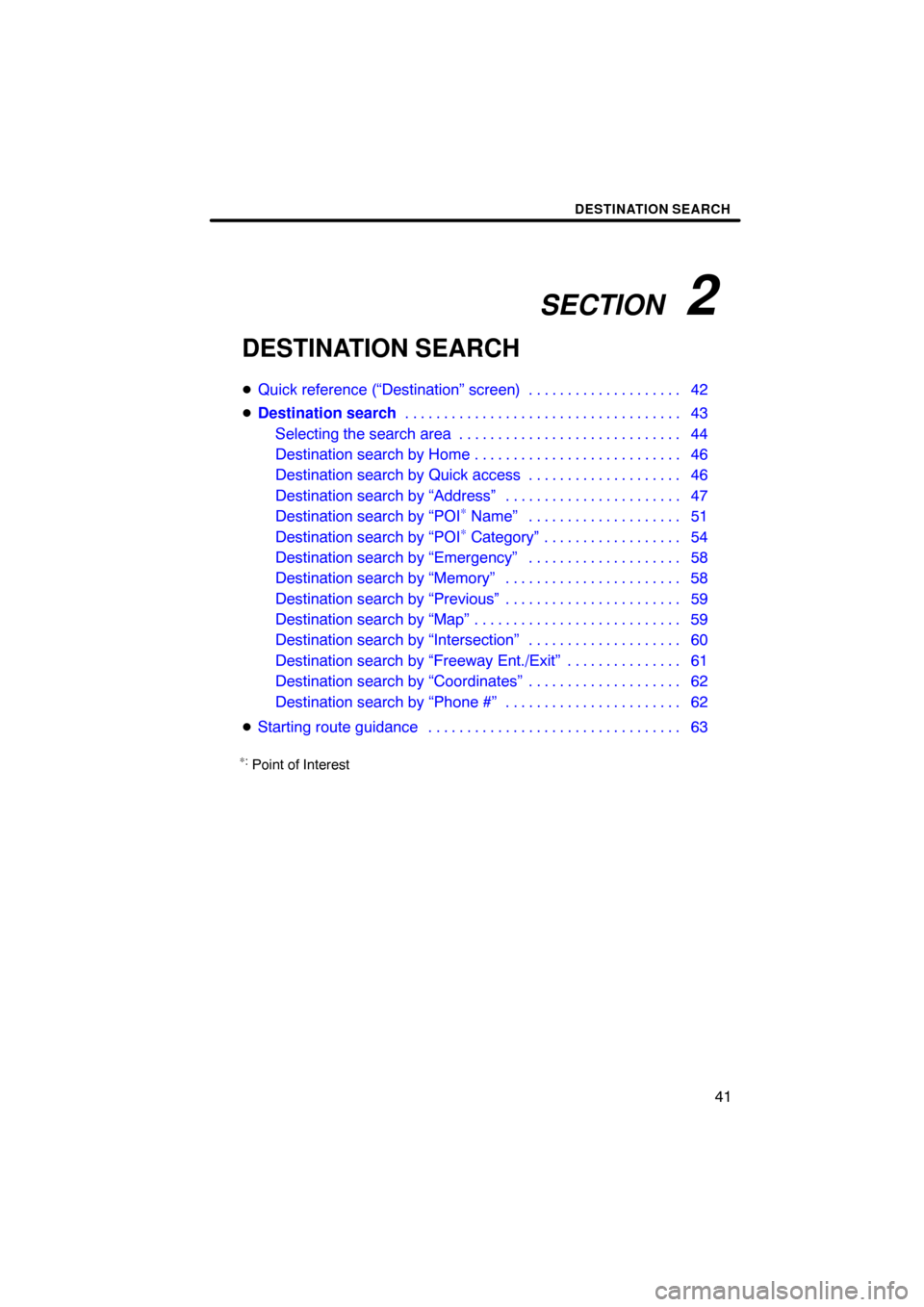

DESTINATION SEARCH
Quick reference (“Destination” screen) 42 . . . . . . . . . . . . . . . . . . . .
 Destination search 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the search area 44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Home 46 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Quick access 46 . . . . . . . . . . . . . . . . . . . .
Destination search by “Address” 47 . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI
∗ Name” 51
. . . . . . . . . . . . . . . . . . . .
Destination search by “POI∗ Category” 54
. . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 58
. . . . . . . . . . . . . . . . . . . .
Destination search by “Memory” 58
. . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Previous” 59
. . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Map” 59
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Intersection” 60
. . . . . . . . . . . . . . . . . . . .
Destination search by “Freeway Ent./Exit” 61
. . . . . . . . . . . . . . .
Destination search by “Coordinates” 62
. . . . . . . . . . . . . . . . . . . .
Destination search by “Phone #” 62
. . . . . . . . . . . . . . . . . . . . . . .
 Starting route guidance 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
∗
: Point of Interest
