TOYOTA TUNDRA 2009 2.G Navigation Manual

DESTINATION SEARCH
62
1. Push the “DEST” button.
2. Touch “Coordinates” on the
“Destination” screen.
2U5056F
3. Input the latitude and the longitude.
4. When the input is finished, touch
“OK”.
By touching the touch− screen button of the
desired point, the screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 63.) 1. Push the “DEST” button.
2. Touch “Phone #” on the “Destina-
tion” screen.
2U5057F
3. Input a telephone number.
4. After inputting a telephone number,
touch “OK”.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 63.)
If there is more than one site having the
same number, the following screen will be
displayed.
2U5066F
INFORMATION
If there is no match for the tele-
phone number inputted, a list of
identical numbers with different
area codes will be displayed.
To set a memory point as a destina-
tion using the phone number, the
number must be registered pre-
viously. (See page 101.)
— Destination search by
“Coordinates”
— Destination search by
“Phone #”

DESTINATION SEARCH
63
After inputting the destination, the screen
changes and displays the map location of
the selected destination and the route pref-
erence.
2U5059F
1. When an arrow facing the desired
point is touched, the map scrolls in that
direction.
Releasing the finger from the arrow will
stop the scrolling.
2. Touch “Enter”.
The system starts route search and dis-
plays recommended routes.
If there is already a set destination, “Add
to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
“Route Preference”: To change the route
preference. (See page 64.)
“Info.”: If this touch− screen button is dis-
played on the top of the screen, touch it to
view items such as name, address, and
phone number.
2U5060F
1Current position
2Destination point
3Type of the route and the distance
4Distance of the entire route
3. To start guidance, touch “Guide”.
“3 Routes”: To select the desired route
from three possible routes. (See page 65.)
“Route”: To change the route. (See
pages 74 and 76.)
Starting route guidance

DESTINATION SEARCH
64
INFORMATION
Guidance can be suspended or
resumed. (See “Suspending and
resuming guidance” on page 90.)
If “Guide” is touched until a beep
sounds, Demo mode will start.
Push the “MAP/VOICE” button to
finish Demo mode.
The route for returning may not be
the same as that for going.
The route guidance to the destina-
tion may not be the shortest route
nor a route without traffic conges-
tion.
Route guidance may not be avail-
able if there is no road data for the
specified location.
When setting the destination on a
map with a scale larger than 0.5
miles (800 m), the map scale
changes to 0.5 miles (800 m) auto-
matically. Set the destination
again.
If a destination is entered, the road
nearest to the point you selected is
set as the destination.
CAUTION
Be sure to obey traffic regulations
and keep road conditions in mind
while driving. If a traffic sign on the
road has been changed, the route
guidance may provide wrong infor-
mation.
To change the route before starting
guidance
ROUTE PREFERENCE
2U5061F
1. You can change route preference by
touching “Route Preference”.
2U5062F
2. Turn the indicator on or off by touch-
ing the touchscreen button.
When searching for a route, the system
functions to avoid routes where the indica-
tor is dimmed.
3. After choosing conditions, touch
“OK”.
INFORMATION
Even if the “Allow Freeway” indica-
tor is dimmed, the route cannot
avoid including a freeway in some
cases.
If the calculated route includes a
trip by ferry, the route guidance
shows a sea route. After you travel
by ferry, the current vehicle posi-
tion may be incorrect. Upon recep-
tion of GPS signals, it is automati-
cally corrected.

DESTINATION SEARCH
65
3 ROUTES SELECTION
2U5063F
1. To select the desired route from
three routes, touch “3 Routes”.
2U5064F
2. Touch “Quick1”, “Quick2” or
“Short” to select the desired route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Other route.
This route is indicated by a purple line.
“Short”: A route by which you can reach
the destination in the shortest distance.
This route is indicated by a green line.
“Info.”: To display the following informa-
tion about each of the 3 routes.
2U5065F
1Time necessary for the entire trip
2Distance of the entire trip
3Toll road
4Freeway
5Ferry

DESTINATION SEARCH
66

SECTION 3
ROUTE GUIDANCE
67

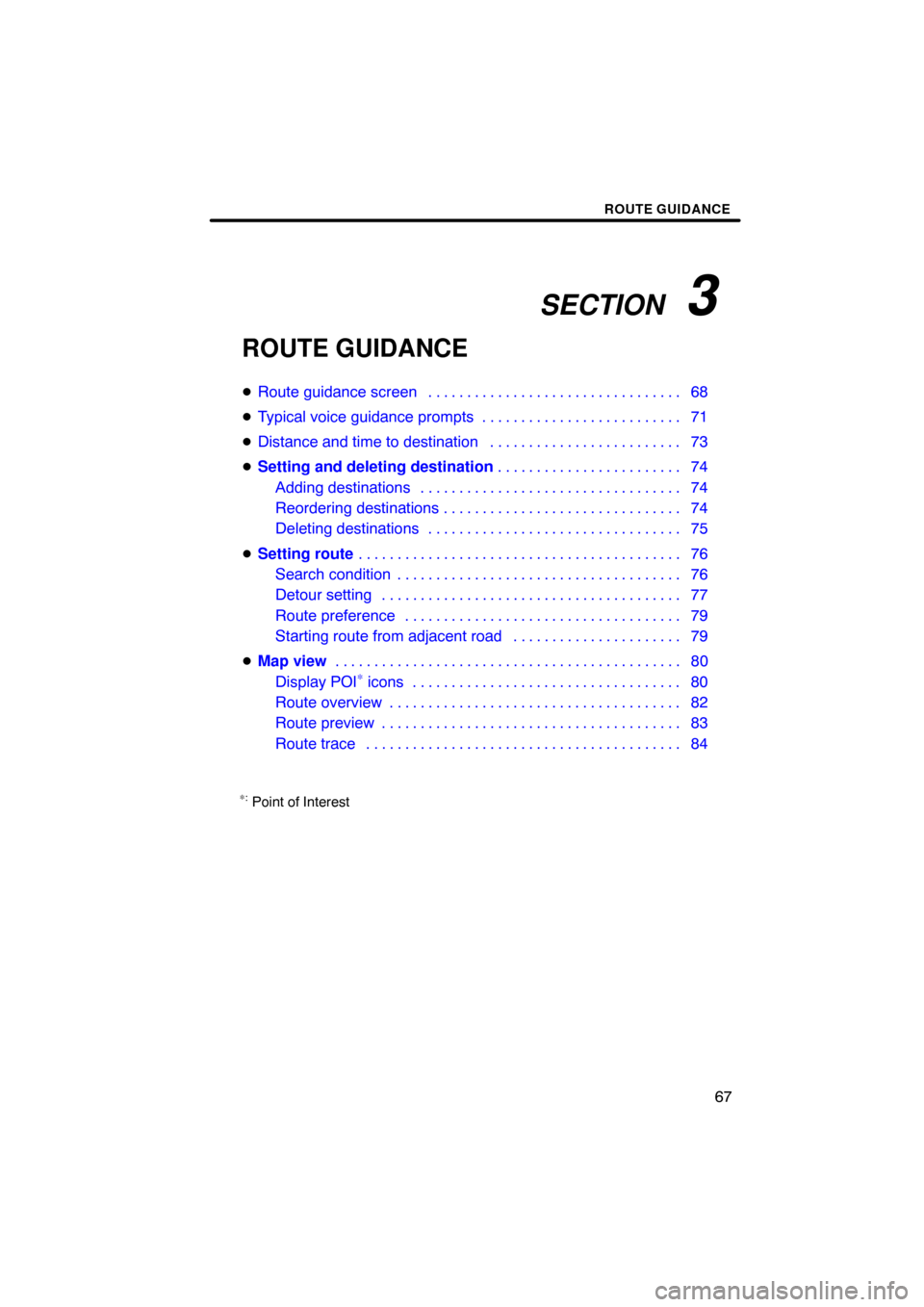

ROUTE GUIDANCE
Route guidance screen 68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Typical voice guidance prompts 71 . . . . . . . . . . . . . . . . . . . . . . . . . .
 Distance and time to destination 73 . . . . . . . . . . . . . . . . . . . . . . . . .
 Setting and deleting destination 74
. . . . . . . . . . . . . . . . . . . . . . . .
Adding destinations 74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reordering destinations 74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting destinations 75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Setting route 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Search condition 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Detour setting 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Route preference 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route from adjacent road 79
. . . . . . . . . . . . . . . . . . . . . .
 Map view 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Display POI
∗ icons 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route overview 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Route preview 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Route trace 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
∗: Point of Interest

ROUTE GUIDANCE
68
During route guidance, various types of
guidance screens can be displayed de-
pending on conditions.
Screen layout
3U5001F
1Distance to the next turn and the
arrow indicating turning direction
2Current street name
3Distance and travel/arrival time to
the destination
4Current position
5Guidance route
INFORMATION
If the vehicle goes off the guidance
route, the route is searched again.
For some areas, the roads have not
been completely digitized in our
database. For this reason, the route
guidance may select road that
should not be traveled on.
When you arrive at your destina-
tion, destination name will be dis-
played on the top of the screen.
Touching “OFF” clears the display.
During freeway driving
During freeway driving, the freeway infor-
mation screen will be displayed.
This screen displays the distance to the
next junction and exit, or POIs in the vicin-
ity of the freeway exit.
3U5002F
1Current position
2Points of Interest that are close to
a freeway exit.
3Exit number and junction name
4Distance from the current position
to the exit or junction
5Current street name
: To display the selected map of the
exit vicinity.
: To scroll for farther junctions or ex-
its.
:To scroll for closer junctions or ex-
its.
:To scroll for the closest three junc-
tions or exits.
Route guidance screen

ROUTE GUIDANCE
69

When
approaching a freeway exit or
junction
When the vehicle approaches an exit or
junction, the guidance screen for the free-
way will be displayed.
3U5003F
1Road/area name
2Distance from the current position
to the exit or junction
3Current position
“OFF”: The guidance screen on freeway
disappears and the map screen appears.
When touching
or pushing the
“MAP/VOICE” button, the guidance
screen on freeway reappears.
When approaching an intersection
When the vehicle approaches an intersec-
tion, the intersection guidance screen will
be displayed.
3U5004F
1Next street name
2Distance to the intersection
3Current position
“OFF”: The intersection guidance screen
disappears and the map screen appears.
When touching
or pushing the
“MAP/VOICE” button, the intersection
guidance screen reappears.

ROUTE GUIDANCE
70

Other screens
TURN LIST SCREEN
On this screen, the list of turns on the guid-
ance route can be viewed.
Touching
during guidance displays
the turn list.
3U5005F
1Next street name or destination
name
2Turn direction
3Distance between turns
4Current street name ARROW SCREEN
On this screen, information about next
turns on the
guidance route can be viewed.
Touching
during guidance displays
the arrow screen.
3U5006F
1Exit number, street name contain-
ing number or next street name
2Turn direction
3Distance to the next turn
4Current street name

ROUTE GUIDANCE
71
The voice guidance provides various mes-
sages as you approach an intersection, or
other point where you need to maneuver
the vehicle.
3U5119a
4.7 miles
0.25 miles
+ α
1“Proceed about 5 miles.”
2“In a quarter of a mile, right
turn.”
3“Right turn.”
4(Beep sound only)
INFORMATION
On freeways, interstates or other
highways with higher speed limits,
the voice guidance will be made at
earlier points than on city streets in
order to allow time to maneuver.
3U5120X
4.2 miles
0.25 miles
1“Proceed about 4 miles to the
traffic circle.”
2“In a quarter of a mile, traffic
circle ahead, and then 3rd exit
ahead.”
3“The 3rd exit ahead.”
4“The exit ahead.”
5(Beep sound only)
Typical voice guidance
prompts
