TOYOTA TUNDRA 2009 2.G Navigation Manual

ROUTE GUIDANCE
82

To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination
and use it for route guidance.
3U5038F
1. Directly touch the Point of Interest
icon that you want to set as a destina-
tion.
The map will shift so that the icon is cen-
tered on the screen and overlaps with the
cursor
. At this time, the distance from
the current position is displayed on the
screen. The distance shown is measured
as a straight line from the current vehicle
position to the POI.
2. When the desired Point of Interest
overlaps with the cursor, touch “Enter
”.
The screen changes and displays the map
location of the selected destination and
route preference. (See
“Starting route
guidance” on page 63.)
3U5039F
1. Touch “Map View”.
3U5040F
2. Touch “Route Overview”.
3U5041F
The entire route from the current position
to the destination is displayed.
“Guide”: To start guidance.
“Route”: To change the route. (See
pages 74 and 76.)
“Turn List”: The following screen displays
the list of the roads up to the destination.
— Route overview

ROUTE GUIDANCE
83
3U5042F
You can scroll through the list of roads by
touching
or . However, not all road
names in the route may appear on the list.
If a road changes its name without requir-
ing a turn (such as on a street that runs
through two or more cities), the name
change will not appear on the list. The
street name closest to the starting point will
be displayed with the mileage to the next
turn.
These marks indicate the
direction in which you should
turn at an intersection.
Touch “Map” on the “T urn List” screen.
The point which you choose is displayed
on the map screen.
3U5043F
3U5044F
1. Touch “Map View”.
3U5045F
2. Touch “Route Preview”.
— Route preview

ROUTE GUIDANCE
84
3U5046F
:To indicate the next destination.
:To preview the route to the next
destination.
: To preview the route to the next
destination in fast −forward mode.
: To stop the preview.
:To review the route to the previous
destination or starting point.
: To review the route to the previous
destination or starting point in fast −
forward mode.
: To indicate the previous destina-
tion or starting point. It is possible to store the traveled route up
to 124 miles (200 km) and retrace the route
on the display.
INFORMATION
This feature is available on the map
with
more detailed map scale than 30
miles (50 km).
3U5047F
Touch “Map View”.
3U5048F
“Record”: To start recording the route
trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
— Route trace

ROUTE GUIDANCE
85
3U5049F
Touching “Yes” stops recording and the
route trace remains displayed on the
screen.
Touching “No” stops recording and the
route trace is erased.

ROUTE GUIDANCE
86

SECTION 4
ADVANCED FUNCTIONS
87

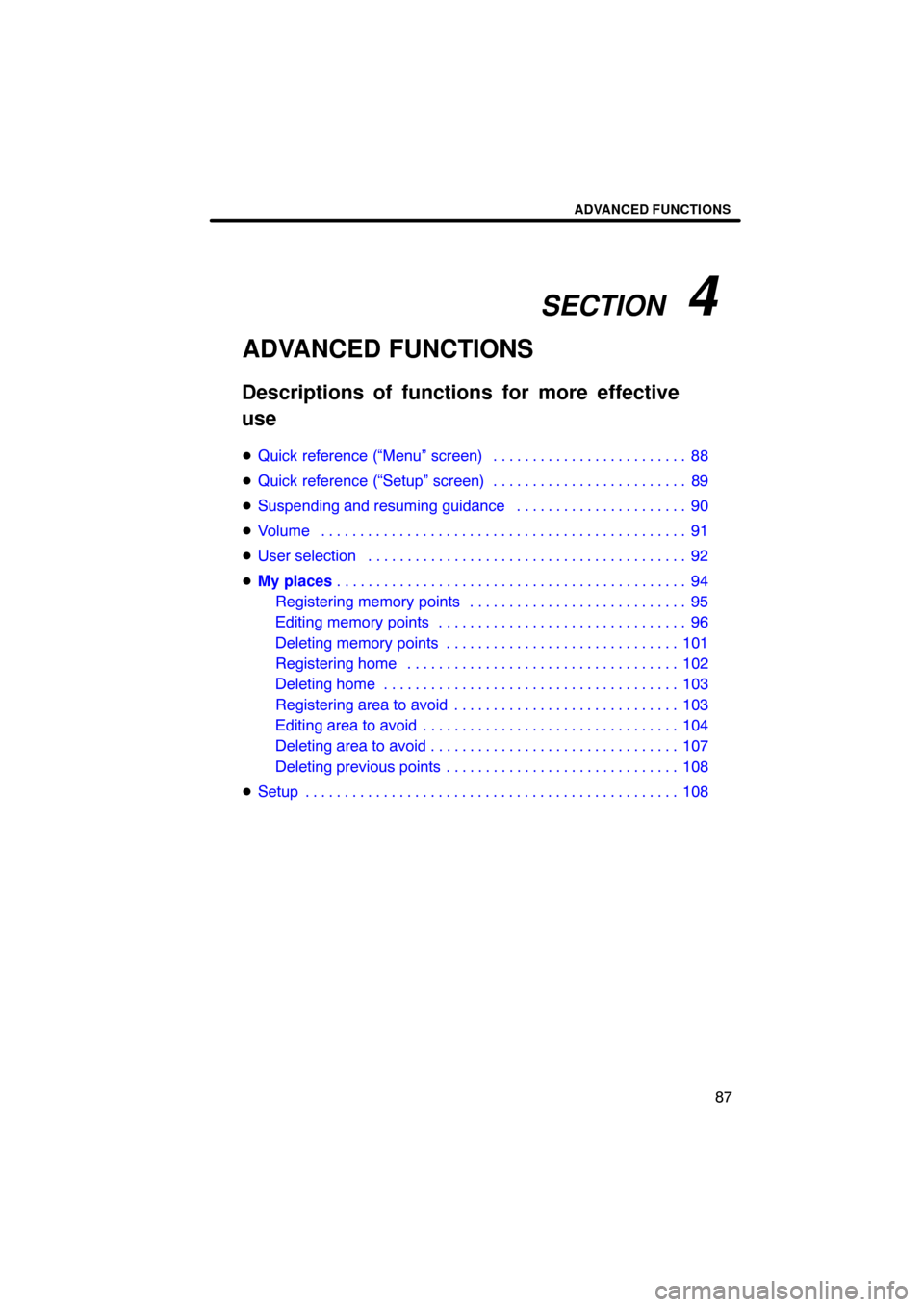

ADVANCED FUNCTIONS
Descriptions of functions for more effective
use
Quick reference (“Menu” screen) 88 . . . . . . . . . . . . . . . . . . . . . . . . .
 Quick reference (“Setup” screen) 89 . . . . . . . . . . . . . . . . . . . . . . . . .
 Suspending and resuming guidance 90 . . . . . . . . . . . . . . . . . . . . . .
 Volume 91 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
 User selection 92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
 My places 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Registering memory points 95 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing memory points 96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting memory points 101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering home 102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting home 103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Registering area to avoid 103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing area to avoid 104 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting area to avoid 107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous points 108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Setup 108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .

ADVANCED FUNCTIONS
88
The “Menu” screen allows effective use of the navigation system. To display the “Menu”
screen, push the “MENU” button.
0U5087X
1“Suspend Guidance” and
“Resume Guidance”
Suspends or resumes guidance 90 . . . .
2“Volume”
Sets the volume for voice guidance. 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3“?”
Function help for the “Menu” screen can be
viewed on this screen. 30 . . . . . . . . . . . .
4“Map DVD”
Displays information regarding the disc
version or covered area. 258 . . . . . . . . . .
5“Select User”
Up to 3 different settings for dif ferent users
can be memorized. 92 . . . . . . . . . . . . . . .
6“Setup”
Enables various settings for the navigation
system. 89,108 . . . . . . . . . . . . . . . . . . . . . .
7“My Places”
Enables changes to “Memory points”,
“Home” and “Areas to avoid”. Enables
deletion of the previous point. 94 . . . . . .
Quick reference (“Menu” screen)

ADVANCED FUNCTIONS
89
The items shown on the “Setup” screen can be set. To display the “Setup” screen, push
the “MENU” button and touch “Setup”.
0U5079X
1“Distance”
The distance units “km” or “miles” can be
selected. 109 . . . . . . . . . . . . . . . . . . . . . . .
2“Estimated Travel Time”
The system to display the travel time and
the arrival time to the destination on the
route guidance screen can be set. 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3“Keyboard Layout”
Key layout can be changed. 110 . . . . . . .
4“Time Zone”
The desired time zone can be selected. 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“ Function”
The choice whether to display each touch −
screen button and current street name on
the map screen can be set. 112 . . . . . . .
6“Display POI Icons”
A selection of 6 icons displayed on the
“Display POI Icons” top screen is possible.
11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Display Building Shapes”
Selection of either ON or OFF to display
the building shape on the map screen is
possibl 113 . . . . . . . . . . . . . . . . . . . . . . . . .
8“Traffic Restrict. Notification”
Notification of seasonal restrictions can be
selected. 114
. . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

ADVANCED FUNCTIONS
90
9“Voice Recognition Guidance”
Voice recognition guidance can be set. 11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10“Voice Guidance in All Modes”
Voice guidance can be set in all modes. 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11“Auto Voice Guidance”
Automatic voice guidance can be set. 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12“Popup Message”
Selection of either ON or OFF to display
the pop− up message is possible.
11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13“Calibration”
Adjustment of the current vehicle position
mark can be done manually, or mis −cal-
culation by changing tire will be adjusted.
11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Default”
This touch−screen button initializes all of
the settings. 108
. . . . . . . . . . . . . . . . . . . .
15“?”
Function help for the “Setup” screen can
be viewed. 30 . . . . . . . . . . . . . . . . . . . . . .
To suspend guidance
XS00401
1. Push the “MENU” button.
4U5001aF
2. Touch “Suspend Guidance”.
INFORMATION
Without route guidance, “Suspend
Guidance” cannot be used.
4U5002F
The screen will return to the current posi-
tion map without route guidance.
Suspending and resuming
guidance

ADVANCED FUNCTIONS
91

To resume guidance
1. Push the “MENU” button.
4U5003aF
2. Touch “Resume Guidance”.
4U5004F
The screen will change to the current posi-
tion map with route guidance. The voice guidance volume can be ad-
justed or switched off.
XS00401
1. Push the “MENU” button.
4U5005aF
2. Touch “Volume”.
Volume
