TOYOTA TUNDRA 2009 2.G Navigation Manual

ADVANCED FUNCTIONS
92
4U5006F
To adjust the volume, select the desired
level by touching the appropriate number.
If voice guidance is unneeded, touch
“OFF” to disable the feature.
The selected item is highlighted.
3. Touch “OK” to confirm your selec-
tion.
INFORMATION
During route guidance, the voice
guidance continues even if the navi-
gation screen is changed to other
screens.
“Adaptive Volume Control”: By turning
“Adaptive V olume Control” on, the volume
is turned up automatically when the ve-
hicle speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control”
system on, touch the button. The indicator
will be highlighted. The system can memorize the following
settings for up
to three users.
Map direction
Map scale
Map configuration
Guidance mode
Setup
Volume
Language
Route trace
Travel time/arrival time
Right screen of dual map
Road preference
Maintenance notification
XS00401
1. Push the “MENU” button.
4U5007aF
2. Touch “Select User”.
User selection

ADVANCED FUNCTIONS
93

To register
4U5008F
1. Touch “Memorize”.
The confirmation screen will be displayed.
4U5009F
2. To register
, touch “Yes”. To return to
the previous screen, touch “No” or
.
When a touch−screen button that is al-
ready registered is touched, the following
screen appears.
4U5010F
To replace, touch “Yes” . To cancel the re-
placement, touch “No” or
.
To change user
4U5011F
Touch “User number”.
4U5012F
The above message appears, then the
map screen will be displayed.

ADVANCED FUNCTIONS
94

To delete user
4U5013F
1. Touch “Delete”.
The confirmation screen will be displayed.
4U5014F
2. To delete, touch “Yes”. To return to
the previous screen, touch “No” or
.
Points or areas on the map can be regis-
tered.
The registered points can be used on the
“Destination”
screen. (See “ — Destination
search by Home” on page 46 and “ —
Destination search by Quick access” on
page 46.)
Registered areas are avoided at the time of
route search.
XS00401
1. Push the “MENU” button.
4U5015aF
2. Touch “My Places”.
My places —

ADVANCED FUNCTIONS
95
4U5016F
On this screen, the following operations
can be performed.
1Registers memory points. (See “ —
Registering memory points” on page
95.)
2Edits memory points. (See “ —
Editing memory points” on page 96.)
3Deletes memory points. (See “ —
Deleting memory points” on page
101.)
4Registers or deletes home. (See “
— Registering home” or “ — Deleting
home” on pages 102 or 103.)
5Registers areas to avoid. (See “ —
Registering area to avoid” on page
103.)
6Edits areas to avoid. (See “ —
Editing area to avoid” on page 104.)
7Deletes areas to avoid. (See “ —
Deleting area to avoid” on page 107.)
8Deletes previous points. (See “ —
Deleting previous points” on page
108.)
9Number of remaining memory
points
10Number of remaining areas to
avoid 1. Push the “MENU” button.
2. Touch “My Places”.
4U5017F
3. Touch “Register”.
4U5018F
4. Enter the location in the same way
as for a destination search. (See
“Destination search” on page 43.)
After memory point registration is com-
pleted, the “Memory Point” screen will be
displayed.
— Registering memory
points

ADVANCED FUNCTIONS
96
4U5019F
5. Touch “OK”.
To edit registered information, see “ —
Editing memory points” on page 96.
INFORMATION
Up to 106 memory points can be reg-
istered.
The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.
1. Push the “MENU” button.
2. Touch “My Places”.
4U5020F
3. Touch “Edit”.
4U5021F
4. Touch the desired memory point
button.
— Editing memory points

ADVANCED FUNCTIONS
97
4U5022F
5. Touch the touchscreen button to
be edited.
“Icon”: To select icons to be displayed on
the map. (See page 97.)
“Quick Access”: To set an attribute.
Memory points with a set attribute can be
used as a “Quick access” or “Home” but-
ton. (See page 98.)
“Name”: To edit memory point names.
The names can be displayed on the map.
(See page 99.)
“Location”: To edit location information.
(See page 100.)
“Phone #”: To edit telephone numbers.
(See page 101.)
6. Touch “OK”.
To change “Icon”
1. Touch “Icon” on the “Memory
Point” screen.
4U5023F
2. Touch the desired icon.
Turn the page by touching “Page 1”,
“Page 2” or “with Sound”.

ADVANCED FUNCTIONS
98
SOUND ICONS
When the vehicle approaches the memory
point, the selected sound will be heard.
1. Touch “with Sound” on the “Change
Icon” screen.
4U5024F
2. Touch the desired sound icon.
The next screen appears when “Bell (with
Direction)” is touched.
4U5025F
Touch either or to adjust the
direction. Touch “Enter”.
The bell sounds only when the vehicle ap-
proaches this point in the direction that has
been set.
To change “Quick Access”
It is possible to change attributes of the
quick access points. Memory points with
a set attribute can be used as a “Quick
Access” or “Home” touch−screen button.
(See “ — Destination search by Home” on
page 46 and “ — Destination search by
Quick access” on page 46.)
1. Touch “Quick Access” on the
“Memory Point” screen.
4U5026F
2. Touch the desired attribute.
It is possible to replace a registered attrib-
ute.
4U5027F
3. To replace the attribute, touch
“Yes”. To return to the previous screen,
touch “No” or
.
INFORMATION
One “Home” and five “Quick Access”
can be set.

ADVANCED FUNCTIONS
99

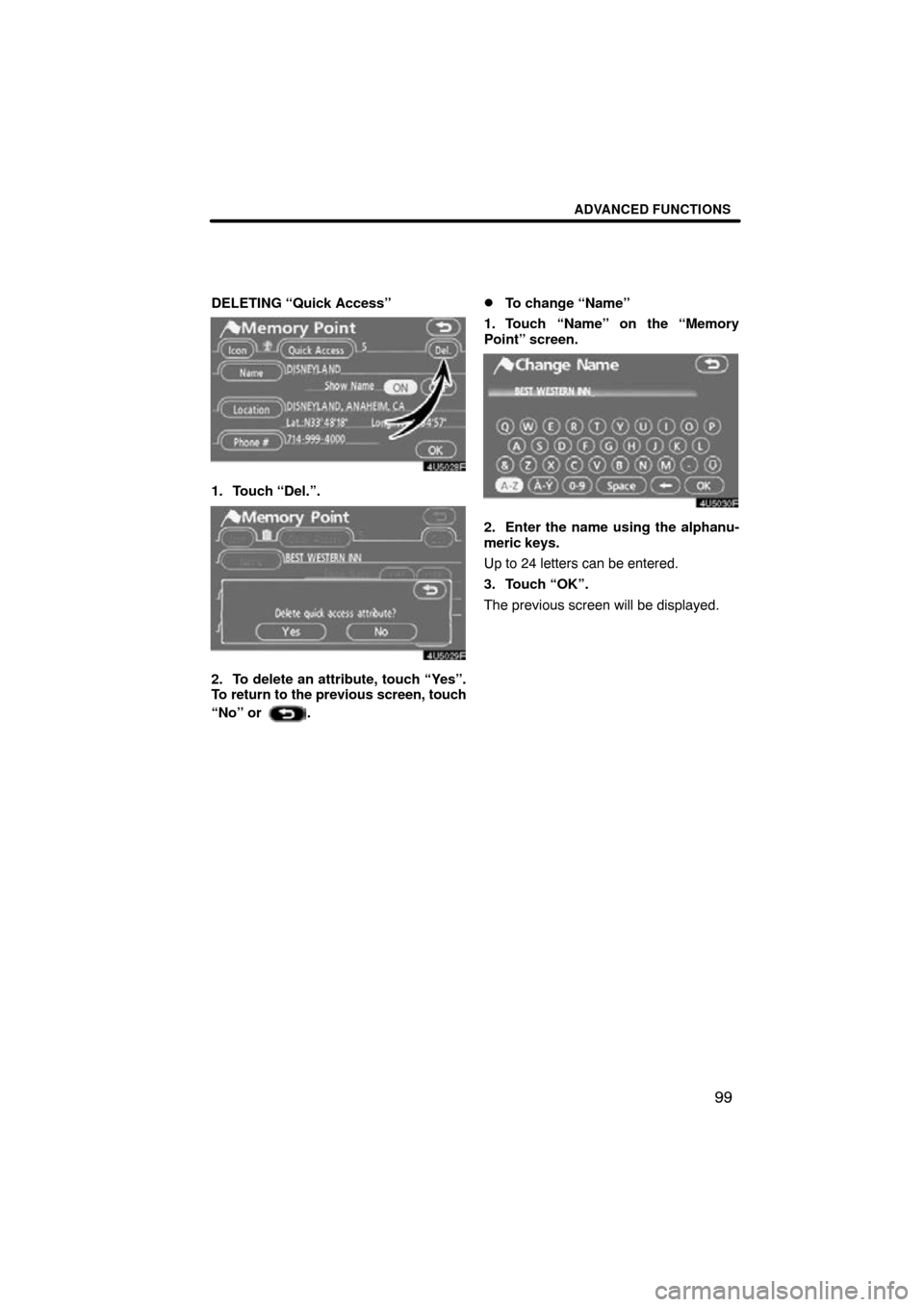

DELETING “Quick Access”
4U5028F
1. Touch “Del.”.
4U5029F
2. To delete an attribute, touch “Yes”.
To return to the previous screen, touch
“No” or
.
To change “Name”
1. Touch “Name” on the “Memory
Point” screen.
4U5030F
2. Enter the name using the alphanu-
meric keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.

ADVANCED FUNCTIONS
100

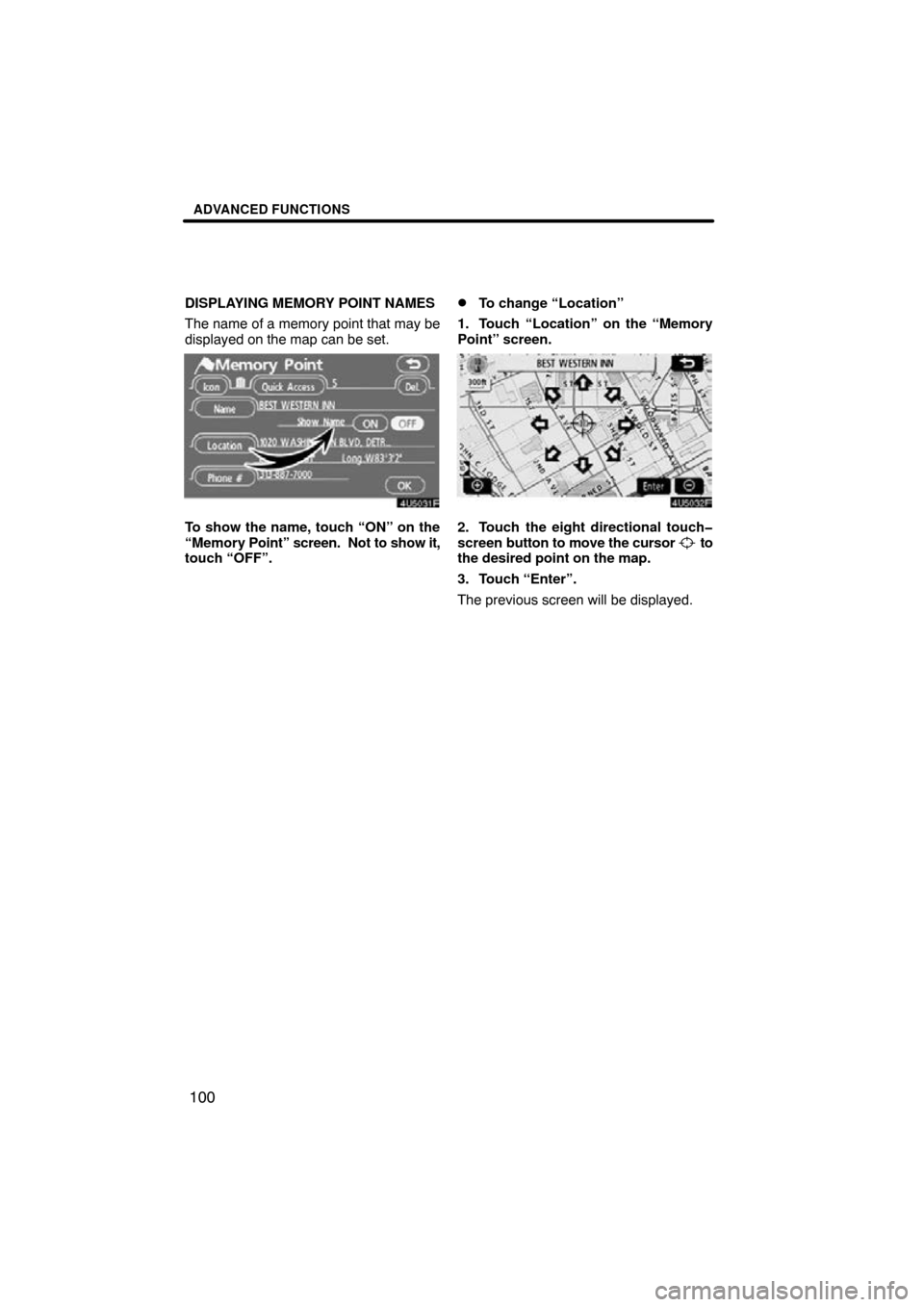

DISPLAYING MEMORY POINT NAMES
The name of a memory point that may be
displayed on the map can be set.
4U5031F
To show the name, touch “ON” on the
“Memory Point” screen. Not to show it,
touch “OFF”.
To change “Location”
1. Touch “Location” on the “Memory
Point” screen.
4U5032F
2. Touch the eight directional touch
screen button to move the cursor
to
the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

ADVANCED FUNCTIONS
101

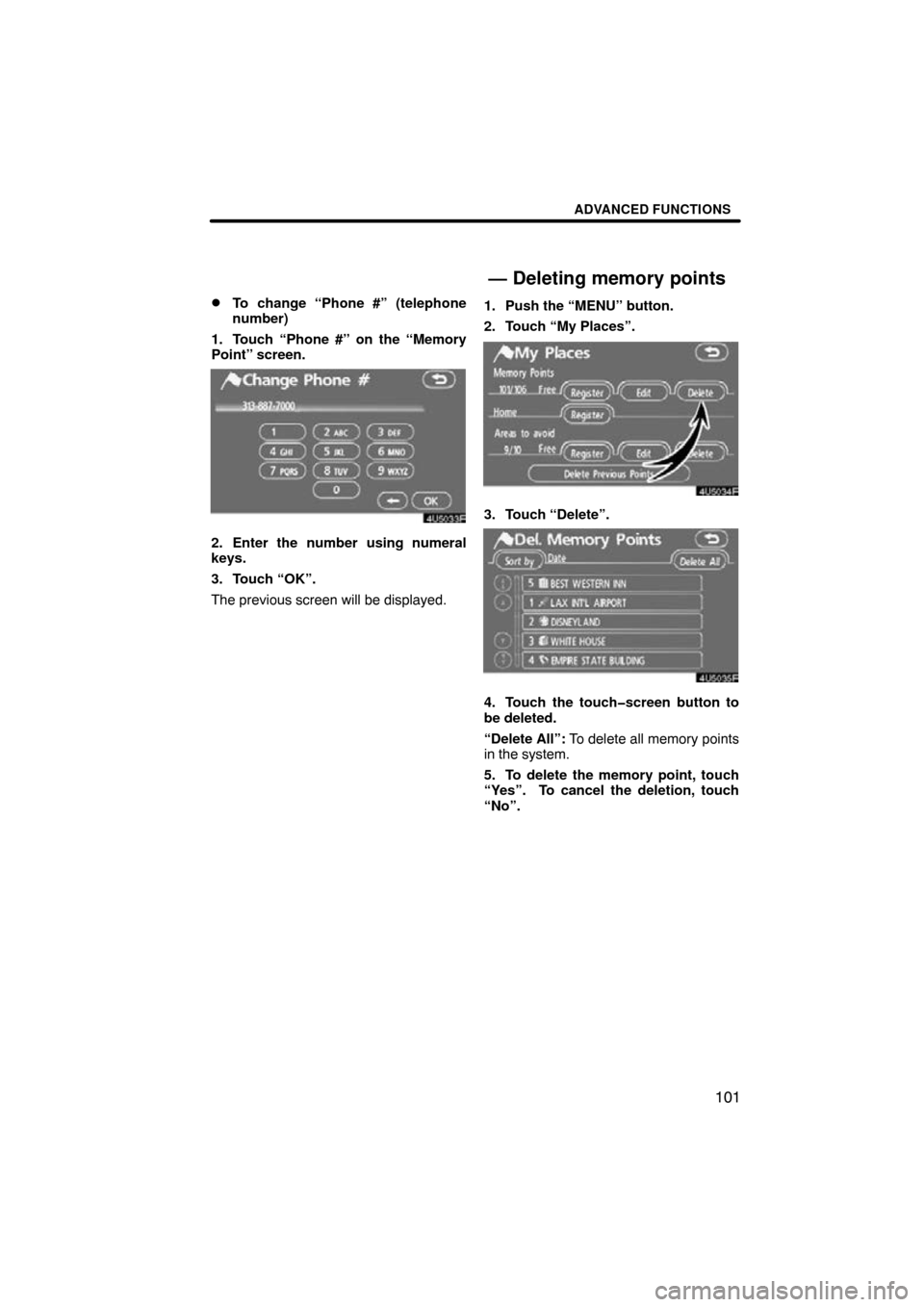

To change “Phone #” (telephone
number)
1. Touch “Phone #” on the “Memory
Point” screen.
4U5033F
2. Enter the number using numeral
keys.
3. Touch “OK”.
The previous screen will be displayed. 1. Push the “MENU” button.
2. Touch “My Places”.
4U5034F
3. Touch “Delete”.
4U5035F
4. Touch the touchscreen button to
be deleted.
“Delete All”: To delete all memory points
in the system.
5. To delete the memory point, touch
“Yes”. To cancel the deletion, touch
“No”.
— Deleting memory points
