Introduction
Thank you for your purchase of the Navigation System. Please read
this manual carefully to ensure proper use. Keep this manual in your
vehicle at all times.
The Navigation System is one of the most technologically advanced
vehicle accessories ever developed. The system receives satellite sig-
nals from the Global Positioning System (GPS) operated by the U.S.
Department of Defense. Using these signals and other vehicle sen-
sors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your
present starting location to your destination. The system is also designed
to direct you to a destination that is unfamiliar to you in an ef ficient manner.
The system uses DENSO maps. The calculated routes may not be the
shortest nor the least traffic congested. Your own personal local knowl-
edge or “short cut” may at times be faster than the calculated rou\
tes.
The navigation system’s database includes about 75 Point of Interest
categories to allow you to easily select destinations such as restaurant\
s
and banks. If a destination is not in the database, you can enter the stre\
et
address or a major intersection close to it and the system will guide yo\
u
there. The system will provide both a visual map and audio instructions.
The audio instructions will announce the distance remaining and the di-
rection to turn in approaching a fork or intersection. These voice instruc-
tions will help you keep your eyes on the road and are timed to provide
enough time to allow you to maneuver, change lanes or slow down.

2
2009 TUNDRA Navigation from Aug.08 Prod.(OM34476U)
Please be aware that all current vehicle navigation systems have
certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s
position depends on the satellite con-
dition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to
pages 256 through 258.

3
2009 TUNDRA Navigation from Aug.08 Prod.(OM34476U)
For safety reasons, this manual indicates
items
requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or
must not do in order to reduce the
risk of injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
0U5020F
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch −screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination and route selection be
done.
Important information about
this manualSafety Instruction

4
2009 TUNDRA Navigation from Aug.08 Prod.(OM34476U)
CAUTION
For safety, the driver should not
operate the navigation system
while he/she is driving.
Insufficient attention to the road
and traffic may cause an accident.
 While driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions.
If a traffic sign on the road has
been changed, route guidance
may provide wrong information
such as the direction of a one way
street.
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for reference. If the sys-
tem cannot determine the current vehicle
position correctly, there is a possibility of
incorrect, late, or non −voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street clo-
sures, etc.) frequently change. Therefore,
before following any instruction from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency ser-
vices. If unsure about the safety of an
area, do not drive into it. Under no cir-
cumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.

5
2009 TUNDRA Navigation from Aug.08 Prod.(OM34476U)
Table of Contents
Quick Guide —
— Overview buttons and guidance screen 10. . . . . . . . . .
— Registering home 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Registering preset memory point
(Quick access) 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Operation flow: guiding the route 17 . . . . . . . . . . . . . . . .
— Setting home as the destination 18 . . . . . . . . . . . . . . . . .
Navigation system function index 19 . . . . . . . . . . . . . . . . . .
1 Basic Functions
〈 Basic information before operation 〉
Initial screen 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Touch screen operation 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Inputting letters and numbers/list screen operation 26
. . . . . . . . . . . . . .
Function help 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Map screen operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Current position display 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the screens 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Foot print map 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Orientation of the map 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map icons 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
2 Destination Search
Quick reference (“Destination” screen) 42
. . . . . . . . . . . . . . . . . . . . . . . .
Destination search 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Selecting the search area 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Home 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Quick access 46
. . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Address” 47
. . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI
∗ Name” 51
. . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI∗ Category” 54
. . . . . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 58
. . . . . . . . . . . . . . . . . . . . . . . .
∗
: Point of Interest
Quick
Guide

7
2009 TUNDRA Navigation from Aug.08 Prod.(OM34476U)
My places
94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Registering memory points 95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing memory points 96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting memory points 101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering home 102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Deleting home 103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Registering area to avoid 103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing area to avoid 104 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting area to avoid 107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous points 108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup 108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
5 Other Functions
Maintenance information 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance information setting 120 . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer setting 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Calendar with memo 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Adding a memo 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Editing a memo 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Memo list 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Handsfree system (for cellular phone) 129
. . . . . . . . . . . . . . . . . . . .
Enter a Bluetooth
 phone 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth phone 137
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receive on the Bluetooth phone 143
. . . . . . . . . . . . . . . . . . . . . . . . .
Talk on the Bluetooth phone 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Change the settings of the Bluetooth phone 146
. . . . . . . . . . . . . . .
Set a Bluetooth phone 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speech command system 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Help screen 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Screen adjustment 179
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Screen setting 181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Delete personal data 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Beep setting 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Select a language 185
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .

8
2009 TUNDRA Navigation from Aug.08 Prod.(OM34476U)
6 Audio/video System
Quick reference188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Using your audio/video system 189
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Some basics 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Radio operation 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
CD changer operation 205
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD player operation 217
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video remote controls 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 241
. . . . . . . . . . . . . . . . . . . . . . . . . .
7 Rear View Monitor System
Rear view monitor system 252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Appendix
Limitations of the navigation system 256
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 258
. . . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 267
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Index269
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
For information about the optional “Rear seat entertainment
system” , please refer to the Owner’s Manual .

12
2009 TUNDRA Navigation from Aug.08 Prod.(OM34476U)
17
“GPS” mark
(Global
Positioning
System)Whenever your vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.256
18
Speech
command system
indicatorThis indicator is shown by pushing the
talk switch. The speech command sys-
tem can be operated while this indicator
is shown.
175

17
2009 TUNDRA Navigation from Aug.08 Prod.(OM34476U)
XS00402
0U5014F
0U5015F
0U5016F

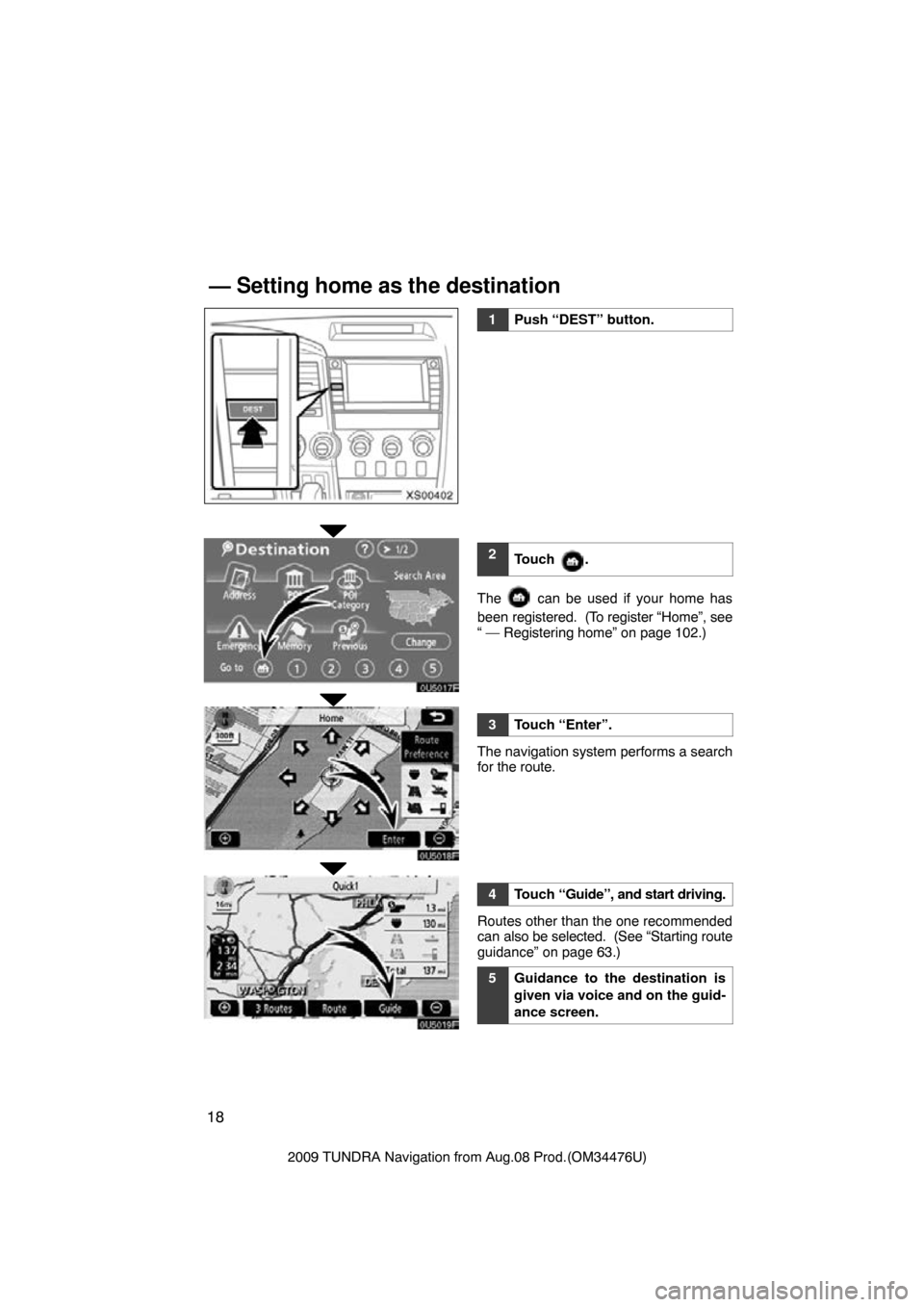

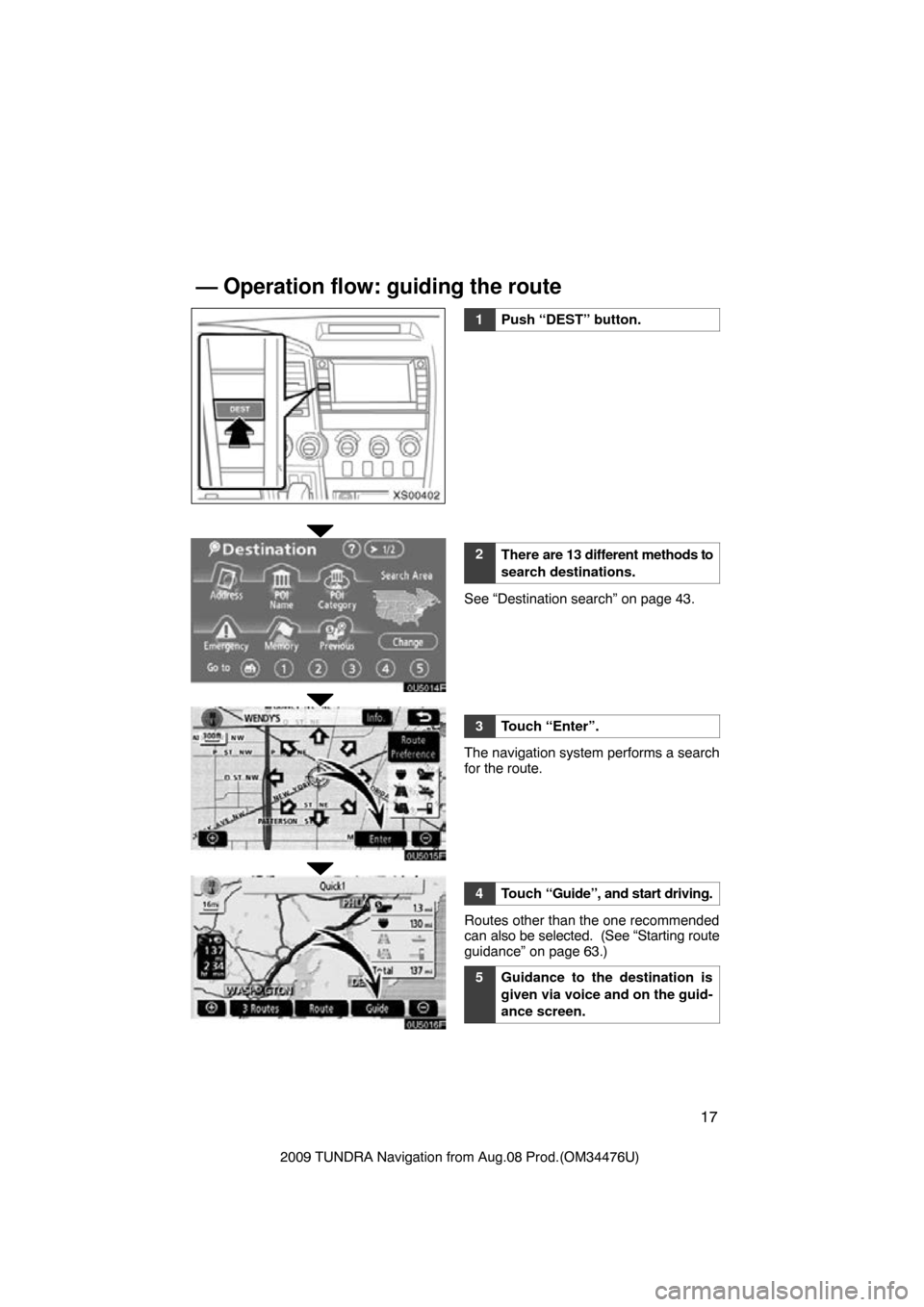

1Push “DEST” button.
2There are 13 different methods to
search destinations.
See “Destination search” on page 43.
3Touch “Enter”.
The navigation system performs a search
for the route.
4Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 63.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Operation flow: guiding the route

18
2009 TUNDRA Navigation from Aug.08 Prod.(OM34476U)
XS00402
0U5017F
0U5018F
0U5019F
1Push “DEST” button.
