2-5. Driving information
2
When driving
Weight limits
Confirm that the gross trailer weight, gross combination weight, gross
vehicle weight, gross axle weight and trailer tongue load are all within
the limits.

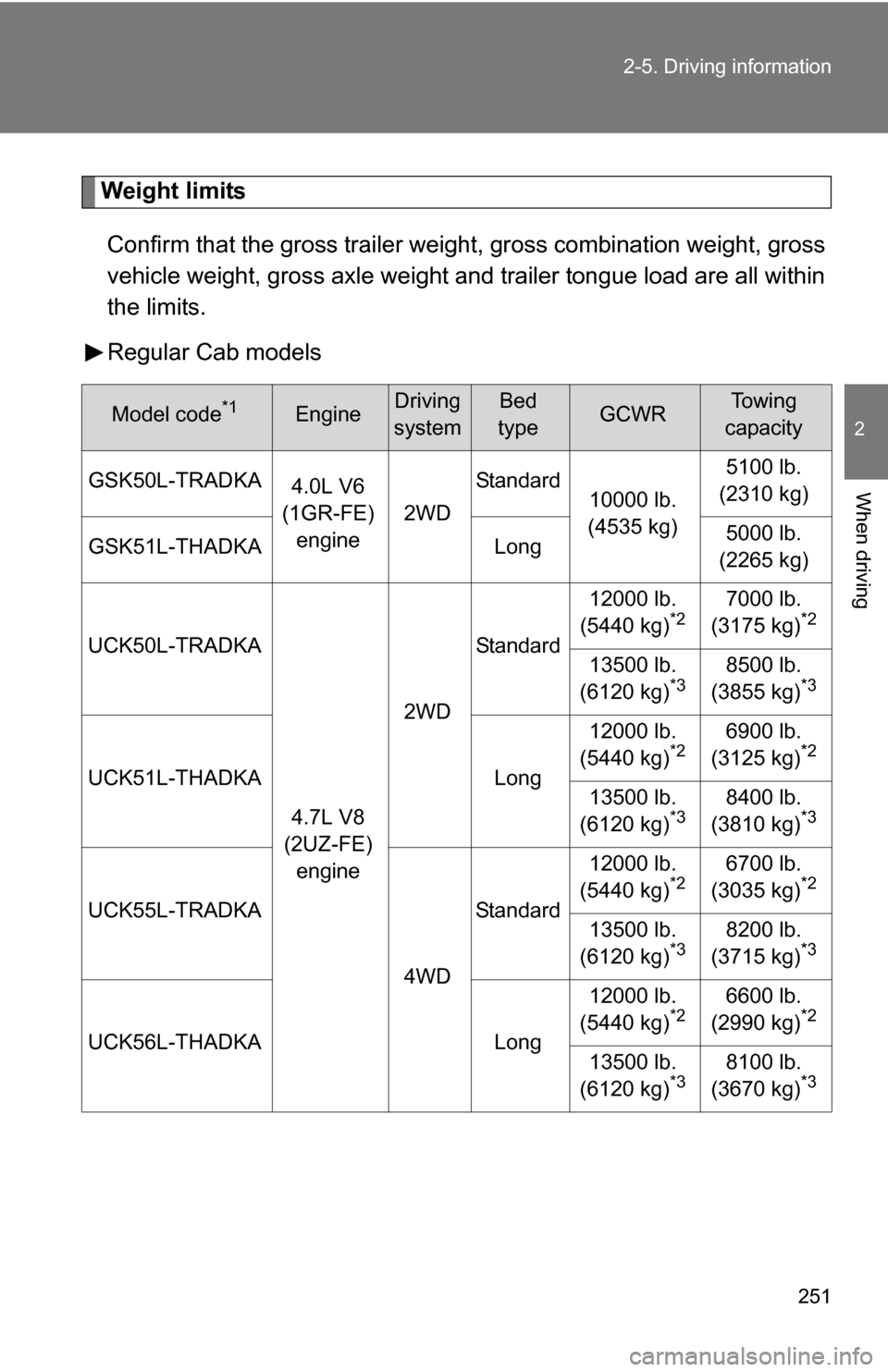

Regular Cab models
Model code*1EngineDriving
systemBed
typeGCWRTowing
capacity
GSK50L-TRADKA 4.0L V6
(1GR-FE) engine 2WDStandard
10000 lb.
(4535 kg) 5100 lb.
(2310 kg)
GSK51L-THADKA Long 5000 lb.
(2265 kg)
UCK50L-TRADKA
4.7L V8
(2UZ-FE) engine 2WD
Standard
12000 lb.
(5440 kg)
*27000 lb.
(3175 kg)*2
13500 lb.
(6120 kg)*38500 lb.
(3855 kg)*3
UCK51L-THADKA Long12000 lb.
(5440 kg)
*26900 lb.
(3125 kg)*2
13500 lb.
(6120 kg)*38400 lb.
(3810 kg)*3
UCK55L-TRADKA
4WDStandard
12000 lb.
(5440 kg)
*26700 lb.
(3035 kg)*2
13500 lb.
(6120 kg)*38200 lb.
(3715 kg)*3
UCK56L-THADKA Long12000 lb.
(5440 kg)
*26600 lb.
(2990 kg)*2
13500 lb.
(6120 kg)*38100 lb.
(3670 kg)*3

252 2-5. Driving information

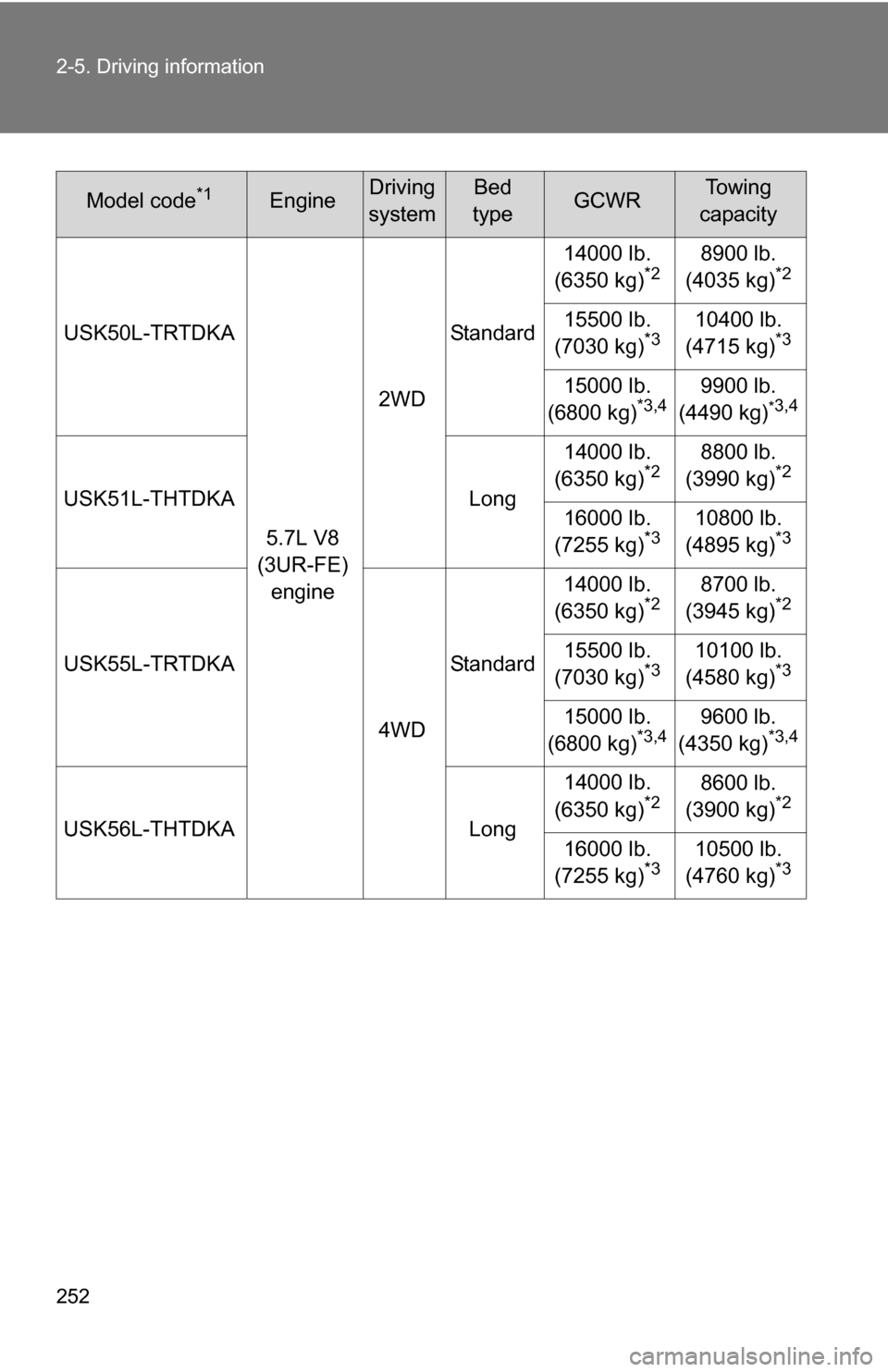

USK50L-TRTDKA5.7L V8
(3UR-FE) engine 2WD
Standard 14000 lb.
(6350 kg)
*28900 lb.
(4035 kg)*2
15500 lb.
(7030 kg)*310400 lb.
(4715 kg)*3
15000 lb.
(6800 kg)*3,49900 lb.
(4490 kg)*3,4
USK51L-THTDKA Long14000 lb.
(6350 kg)
*28800 lb.
(3990 kg)*2
16000 lb.
(7255 kg)*310800 lb.
(4895 kg)*3
USK55L-TRTDKA
4WDStandard 14000 lb.
(6350 kg)
*28700 lb.
(3945 kg)*2
15500 lb.
(7030 kg)*310100 lb.
(4580 kg)*3
15000 lb.
(6800 kg)*3,49600 lb.
(4350 kg)*3,4
USK56L-THTDKA Long14000 lb.
(6350 kg)
*28600 lb.
(3900 kg)*2
16000 lb.
(7255 kg)*310500 lb.
(4760 kg)*3
Model code*1EngineDriving
systemBed
typeGCWRTowing
capacity

253
2-5. Driving information
2
When driving
*1: The model code is indicated on the Certification Label. (P. 603)*2: Without towing package*3: With towing package*4: P275/55R20 tires
Model code*1EngineDriving
systemBed
typeGCWRTowing
capacity

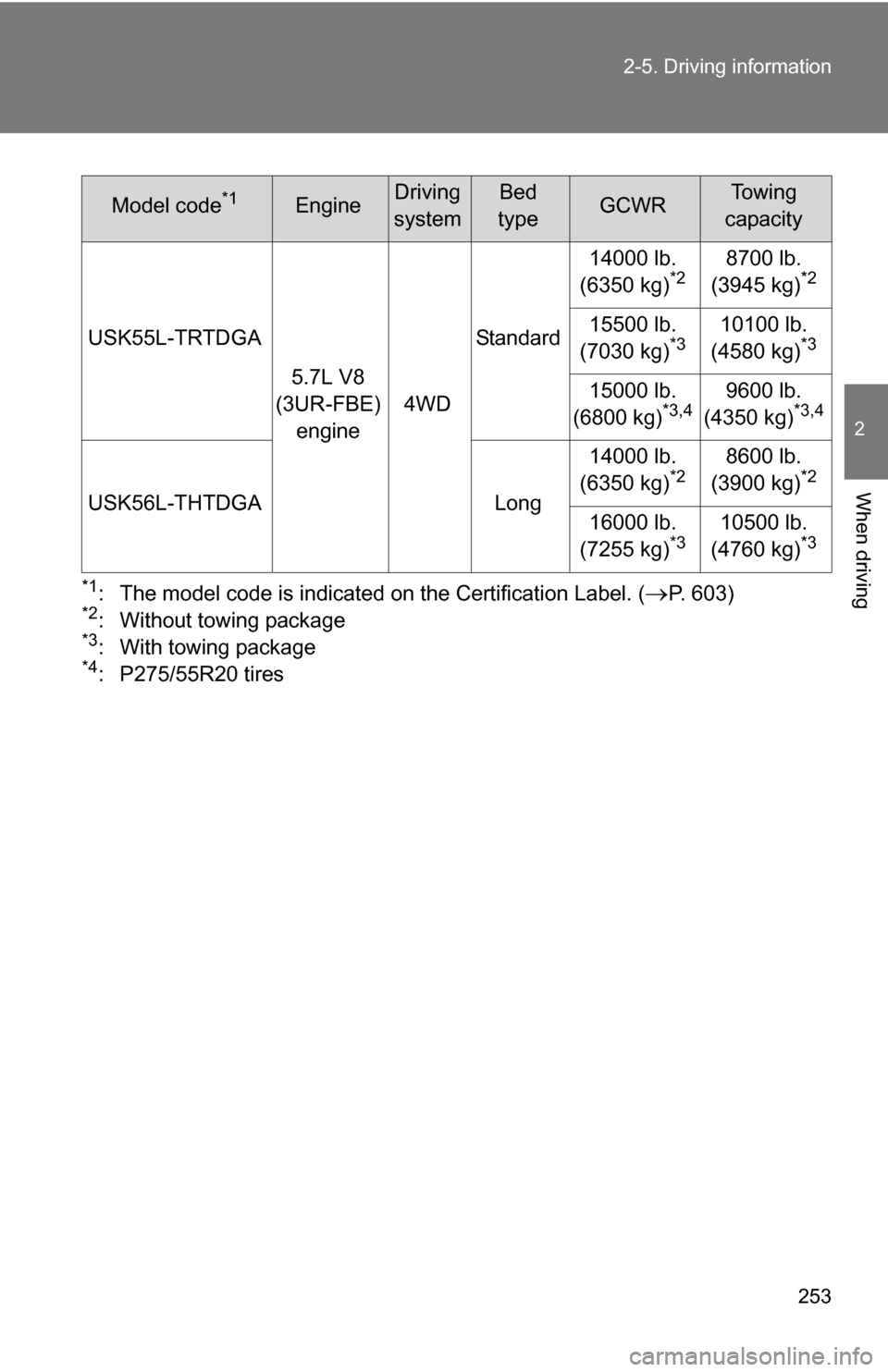

USK55L-TRTDGA 5.7L V8
(3UR-FBE) engine 4WDStandard 14000 lb.
(6350 kg)
*28700 lb.
(3945 kg)*2
15500 lb.
(7030 kg)*310100 lb.
(4580 kg)*3
15000 lb.
(6800 kg)*3,49600 lb.
(4350 kg)*3,4
USK56L-THTDGA Long14000 lb.
(6350 kg)
*28600 lb.
(3900 kg)*2
16000 lb.
(7255 kg)*310500 lb.
(4760 kg)*3

254 2-5. Driving information

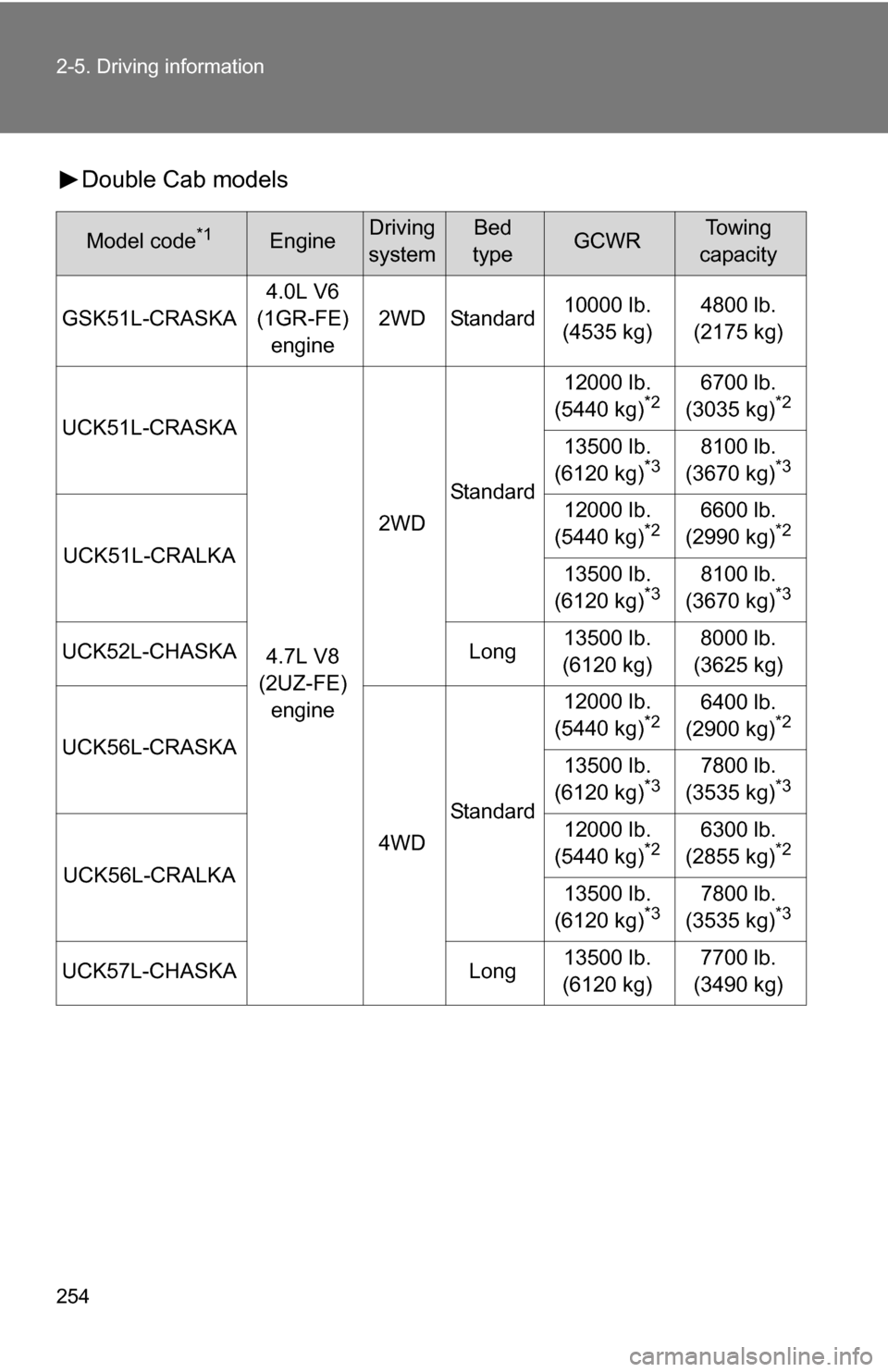

Double Cab models
Model code*1EngineDriving
systemBed
typeGCWRTowing
capacity
GSK51L-CRASKA 4.0L V6
(1GR-FE) engine 2WD Standard
10000 lb.
(4535 kg) 4800 lb.
(2175 kg)
UCK51L-CRASKA
4.7L V8
(2UZ-FE) engine 2WD
Standard 12000 lb.
(5440 kg)
*26700 lb.
(3035 kg)*2
13500 lb.
(6120 kg)*38100 lb.
(3670 kg)*3
UCK51L-CRALKA 12000 lb.
(5440 kg)
*26600 lb.
(2990 kg)*2
13500 lb.
(6120 kg)*38100 lb.
(3670 kg)*3
UCK52L-CHASKA Long13500 lb.
(6120 kg) 8000 lb.
(3625 kg)
UCK56L-CRASKA
4WDStandard 12000 lb.
(5440 kg)
*26400 lb.
(2900 kg)*2
13500 lb.
(6120 kg)*37800 lb.
(3535 kg)*3
UCK56L-CRALKA 12000 lb.
(5440 kg)
*26300 lb.
(2855 kg)*2
13500 lb.
(6120 kg)*37800 lb.
(3535 kg)*3
UCK57L-CHASKA Long13500 lb.
(6120 kg) 7700 lb.
(3490 kg)

255
2-5. Driving information
2
When driving
*1: The model code is indicated on the Certification Label. (P. 603)*2: Without towing package*3: With towing package

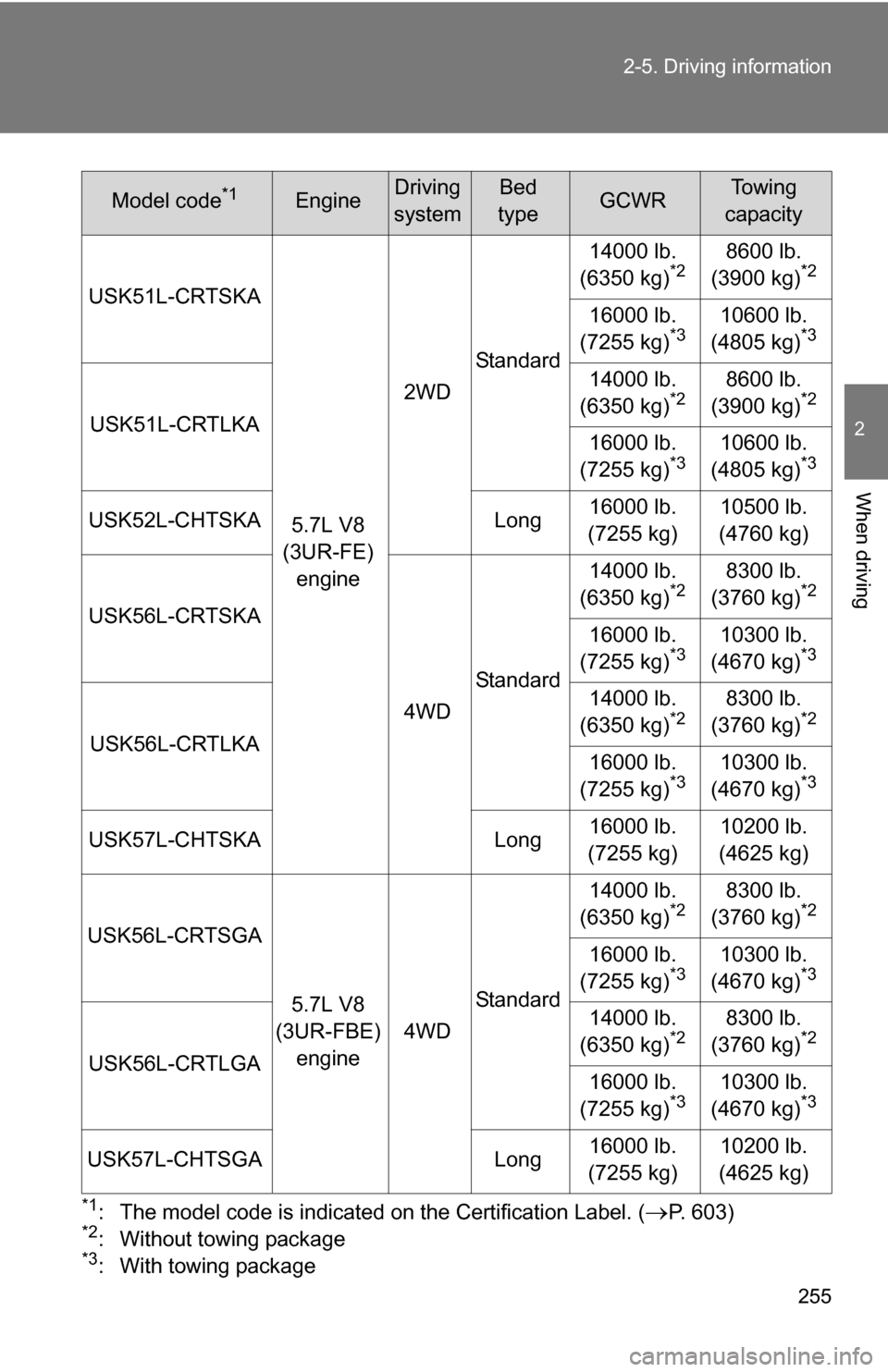

USK51L-CRTSKA
5.7L V8
(3UR-FE) engine 2WD
Standard 14000 lb.
(6350 kg)
*28600 lb.
(3900 kg)*2
16000 lb.
(7255 kg)*310600 lb.
(4805 kg)*3
USK51L-CRTLKA 14000 lb.
(6350 kg)
*28600 lb.
(3900 kg)*2
16000 lb.
(7255 kg)*310600 lb.
(4805 kg)*3
USK52L-CHTSKA Long16000 lb.
(7255 kg) 10500 lb.
(4760 kg)
USK56L-CRTSKA
4WDStandard 14000 lb.
(6350 kg)
*28300 lb.
(3760 kg)*2
16000 lb.
(7255 kg)*310300 lb.
(4670 kg)*3
USK56L-CRTLKA 14000 lb.
(6350 kg)
*28300 lb.
(3760 kg)*2
16000 lb.
(7255 kg)*310300 lb.
(4670 kg)*3
USK57L-CHTSKA Long16000 lb.
(7255 kg) 10200 lb.
(4625 kg)
USK56L-CRTSGA 5.7L V8
(3UR-FBE) engine 4WDStandard 14000 lb.
(6350 kg)
*28300 lb.
(3760 kg)*2
16000 lb.
(7255 kg)*310300 lb.
(4670 kg)*3
USK56L-CRTLGA 14000 lb.
(6350 kg)
*28300 lb.
(3760 kg)*2
16000 lb.
(7255 kg)*310300 lb.
(4670 kg)*3
USK57L-CHTSGA Long16000 lb.
(7255 kg) 10200 lb.
(4625 kg)
Model code*1EngineDriving
systemBed
typeGCWRTowing
capacity

256 2-5. Driving information

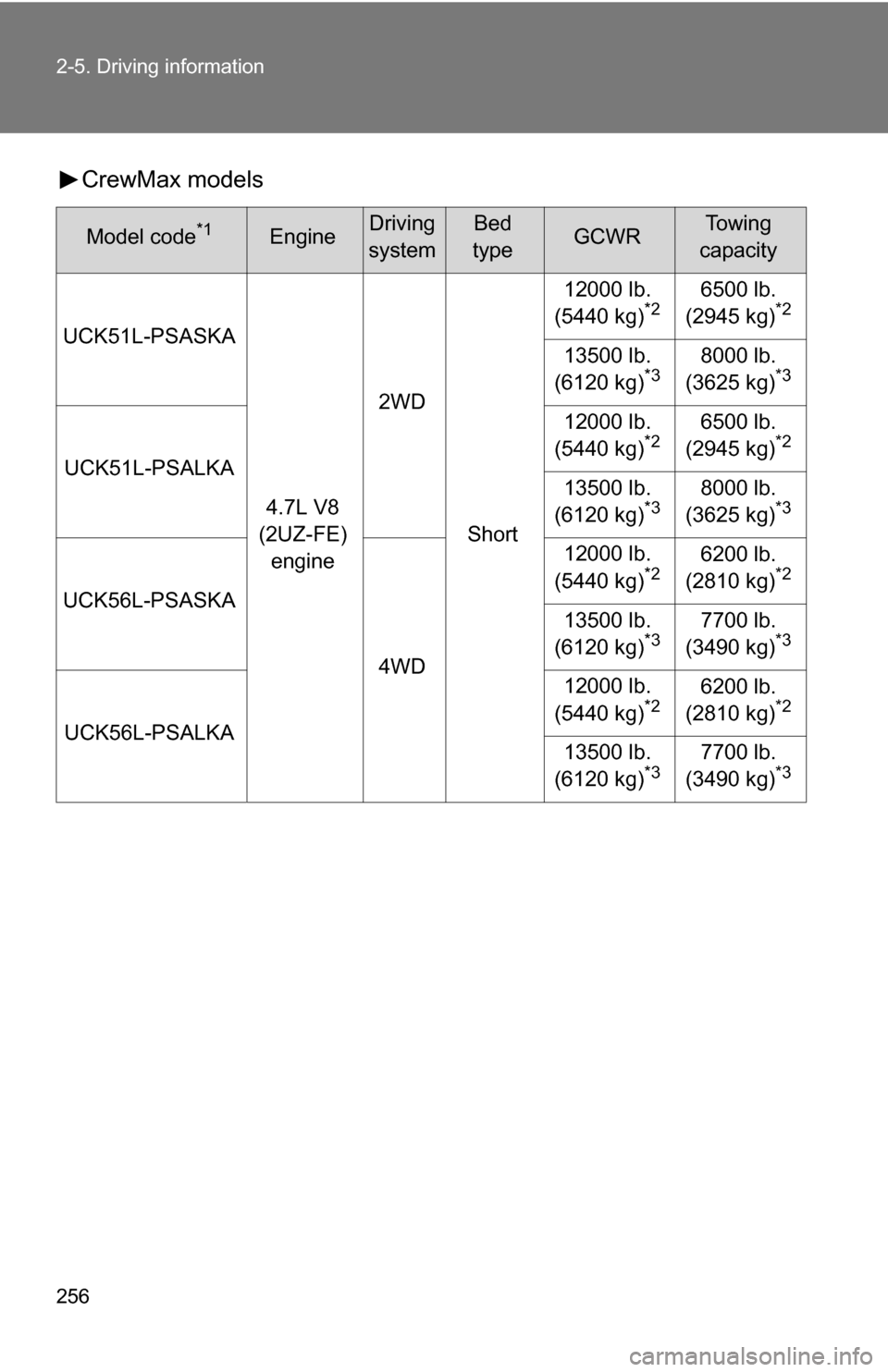

CrewMax models
Model code*1EngineDriving
systemBed
typeGCWRTowing
capacity
UCK51L-PSASKA
4.7L V8
(2UZ-FE) engine 2WD
Short 12000 lb.
(5440 kg)
*26500 lb.
(2945 kg)*2
13500 lb.
(6120 kg)*38000 lb.
(3625 kg)*3
UCK51L-PSALKA 12000 lb.
(5440 kg)
*26500 lb.
(2945 kg)*2
13500 lb.
(6120 kg)*38000 lb.
(3625 kg)*3
UCK56L-PSASKA
4WD12000 lb.
(5440 kg)
*26200 lb.
(2810 kg)*2
13500 lb.
(6120 kg)*37700 lb.
(3490 kg)*3
UCK56L-PSALKA 12000 lb.
(5440 kg)
*26200 lb.
(2810 kg)*2
13500 lb.
(6120 kg)*37700 lb.
(3490 kg)*3

257
2-5. Driving information
2
When driving
*1: The model code is indicated on the Certification Label. (P. 603)*2: Without towing package*3: With towing package

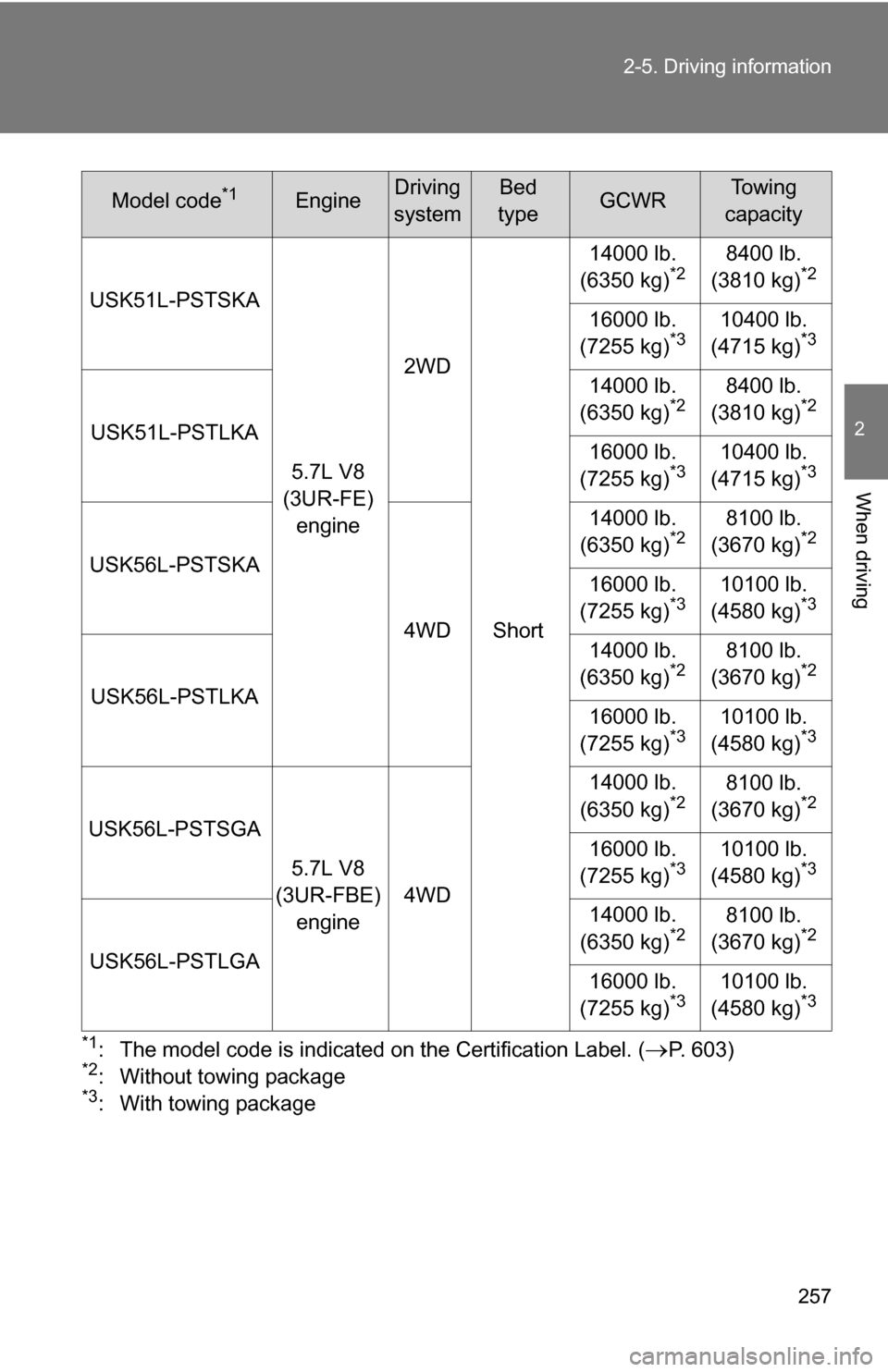

USK51L-PSTSKA
5.7L V8
(3UR-FE) engine 2WD
Short 14000 lb.
(6350 kg)
*28400 lb.
(3810 kg)*2
16000 lb.
(7255 kg)*310400 lb.
(4715 kg)*3
USK51L-PSTLKA 14000 lb.
(6350 kg)
*28400 lb.
(3810 kg)*2
16000 lb.
(7255 kg)*310400 lb.
(4715 kg)*3
USK56L-PSTSKA
4WD14000 lb.
(6350 kg)
*28100 lb.
(3670 kg)*2
16000 lb.
(7255 kg)*310100 lb.
(4580 kg)*3
USK56L-PSTLKA 14000 lb.
(6350 kg)
*28100 lb.
(3670 kg)*2
16000 lb.
(7255 kg)*310100 lb.
(4580 kg)*3
USK56L-PSTSGA
5.7L V8
(3UR-FBE) engine 4WD 14000 lb.
(6350 kg)
*28100 lb.
(3670 kg)*2
16000 lb.
(7255 kg)*310100 lb.
(4580 kg)*3
USK56L-PSTLGA 14000 lb.
(6350 kg)
*28100 lb.
(3670 kg)*2
16000 lb.
(7255 kg)*310100 lb.
(4580 kg)*3
Model code*1EngineDriving
systemBed
typeGCWRTowing
capacity

258 2-5. Driving information

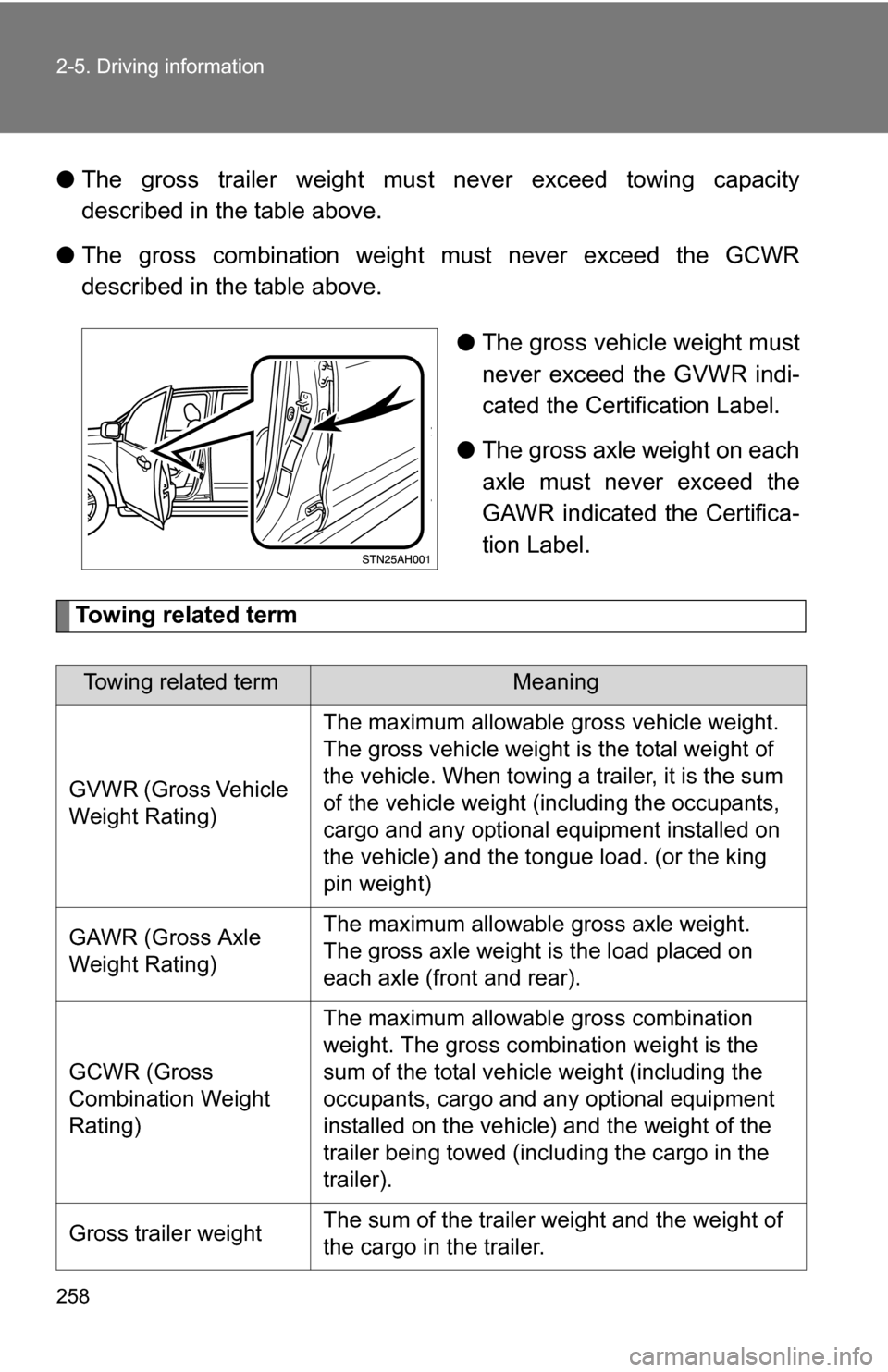

●The gross trailer weight must never exceed towing capacity
described in the table above.
● The gross combination weight must never exceed the GCWR
described in the table above.
●The gross vehicle weight must
never exceed the GVWR indi-
cated the Certification Label.
● The gross axle weight on each
axle must never exceed the
GAWR indicated the Certifica-
tion Label.
Towing related term
Towing related termMeaning
GVWR (Gross Vehicle
Weight Rating)
The maximum allowable gross vehicle weight.
The gross vehicle weight is the total weight of
the vehicle. When towing a trailer, it is the sum
of the vehicle weight (including the occupants,
cargo and any optional equipment installed on
the vehicle) and the tongue load. (or the king
pin weight)
GAWR (Gross Axle
Weight Rating)The maximum allowable gross axle weight.
The gross axle weight is the load placed on
each axle (front and rear).
GCWR (Gross
Combination Weight
Rating)
The maximum allowabl e gross combination
weight. The gross combination weight is the
sum of the total vehicle weight (including the
occupants, cargo and any optional equipment
installed on the vehicle) and the weight of the
trailer being towed (including the cargo in the
trailer).
Gross trailer weightThe sum of the trailer weight and the weight of
the cargo in the trailer.

259
2-5. Driving information
2
When driving

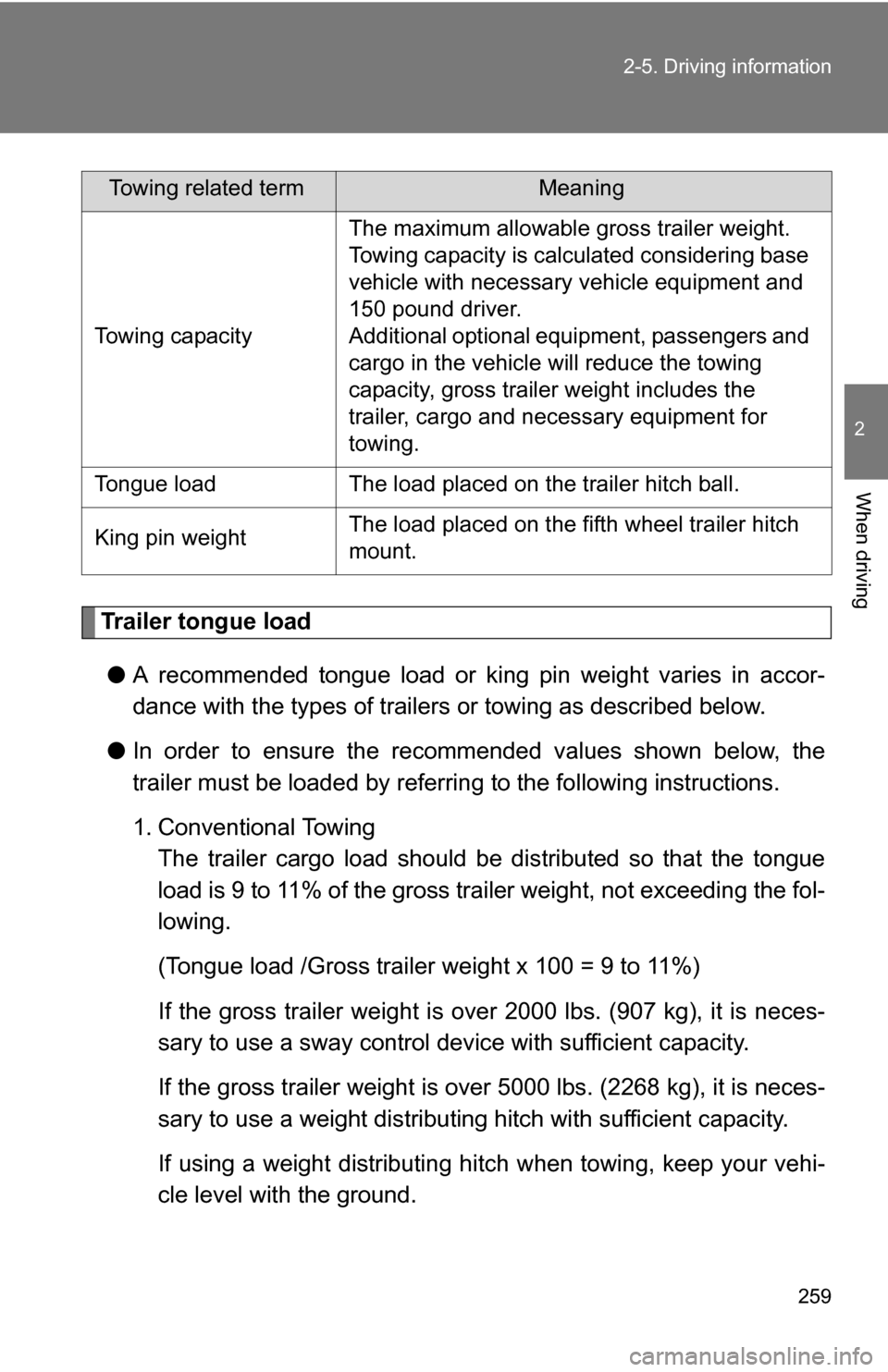

Trailer tongue load
● A recommended tongue load or king pin weight varies in accor-
dance with the types of trailers or towing as described below.
● In order to ensure the recommended values shown below, the
trailer must be loaded by referring to the following instructions.
1. Conventional Towing
The trailer cargo load should be distributed so that the tongue
load is 9 to 11% of the gross trailer weight, not exceeding the fol-
lowing.
(Tongue load /Gross trailer weight x 100 = 9 to 11%)
If the gross trailer weight is over 2000 lbs. (907 kg), it is neces-
sary to use a sway control device with sufficient capacity.
If the gross trailer weight is over 5000 lbs. (2268 kg), it is neces-
sary to use a weight distributing hitch with sufficient capacity.
If using a weight distributing hi tch when towing, keep your vehi-
cle level with the ground.
Towing related termMeaning
Towing capacity
The maximum allowable gross trailer weight.
Towing capacity is calculated considering base
vehicle with necessary vehicle equipment and
150 pound driver.
Additional optional equipment, passengers and
cargo in the vehicle will reduce the towing
capacity, gross trailer weight includes the
trailer, cargo and necessary equipment for
towing.
Tongue loadThe load placed on the trailer hitch ball.
King pin weightThe load placed on the fifth wheel trailer hitch
mount.

260 2-5. Driving information

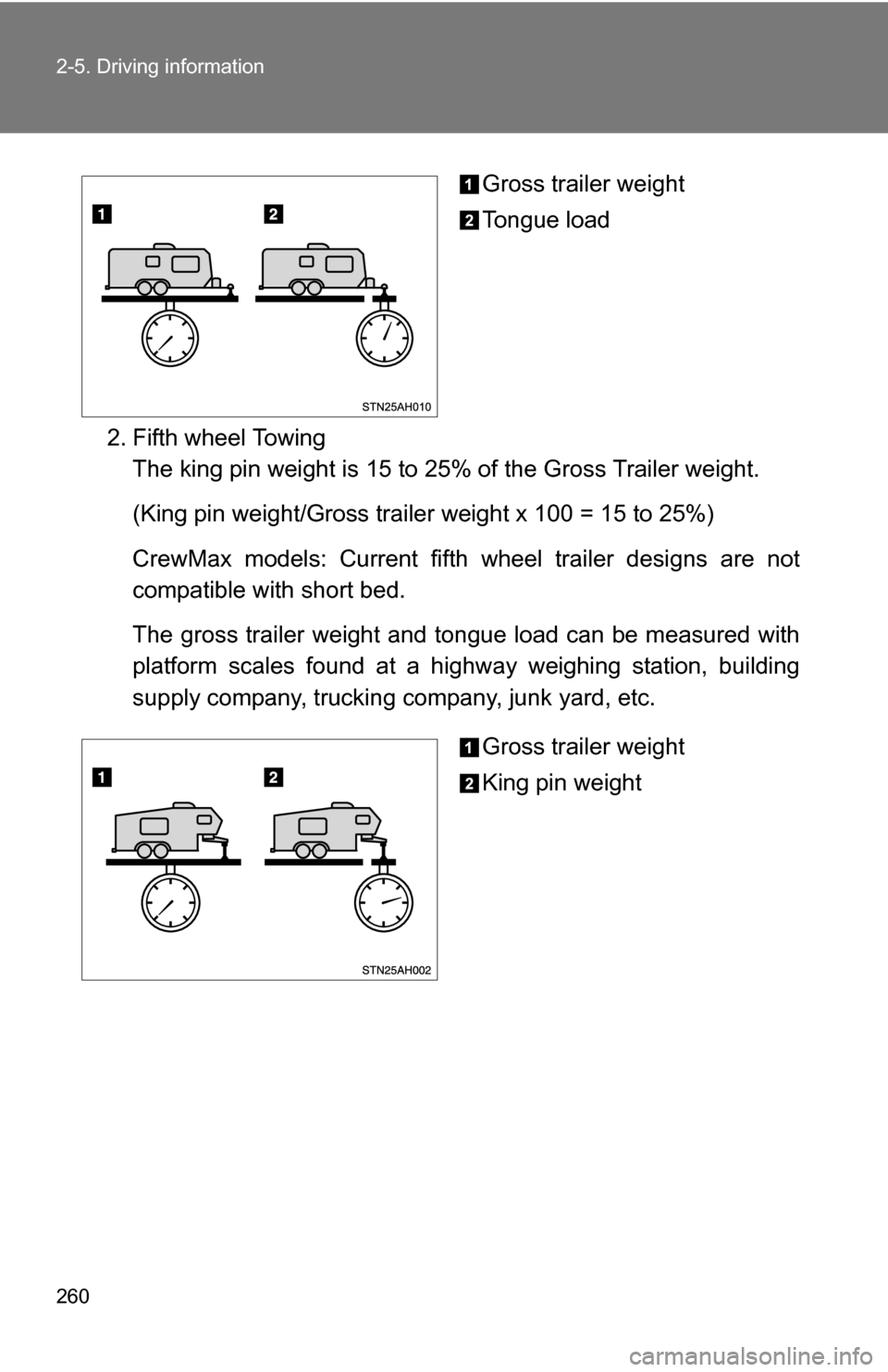

Gross trailer weight
Tongue load
2. Fifth wheel Towing The king pin weight is 15 to 25% of the Gross Trailer weight.
(King pin weight/Gross trailer weight x 100 = 15 to 25%)
CrewMax models: Current fifth wheel trailer designs are not
compatible with short bed.
The gross trailer weight and tongue load can be measured with
platform scales found at a high way weighing station, building
supply company, trucking company, junk yard, etc.
Gross trailer weight
King pin weight
