TOYOTA TUNDRA 2009 2.G Owners Manual

391
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior and exterior features

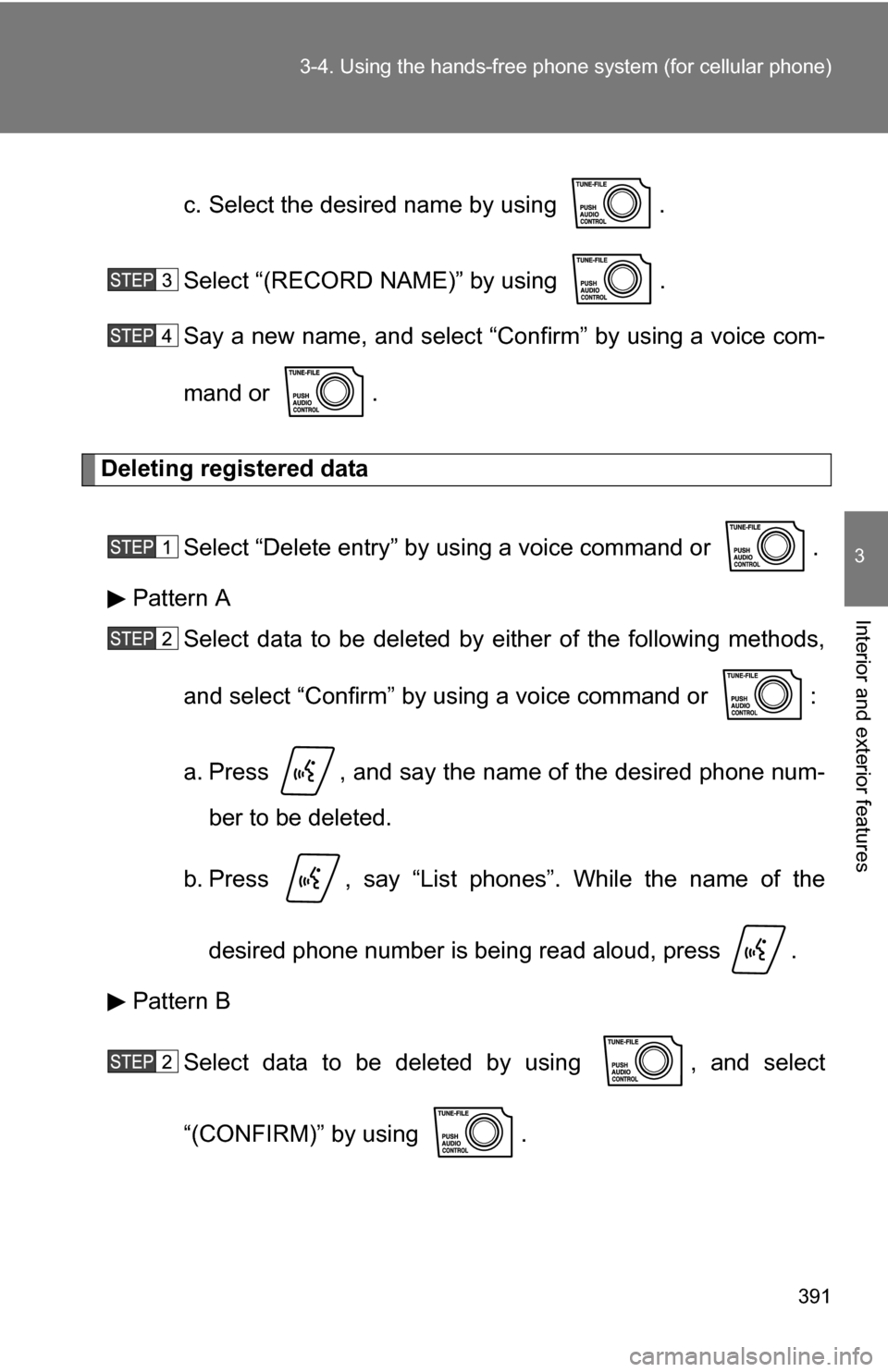

c. Select the desired name by using .
Select “(RECORD NAME)” by using .
Say a new name, and select “Con firm” by using a voice com-
mand or .
Deleting registered data
Select “Delete entry” by using a voice command or .
Pattern A Select data to be deleted by either of the following methods,
and select “Confirm” by using a voice command or :
a. Press , and say the name of the desired phone num-
ber to be deleted.
b. Press , say “List phones”. While the name of the
desired phone number is being read aloud, press .
Pattern B
Select data to be deleted by using , and select
“(CONFIRM)” by using .

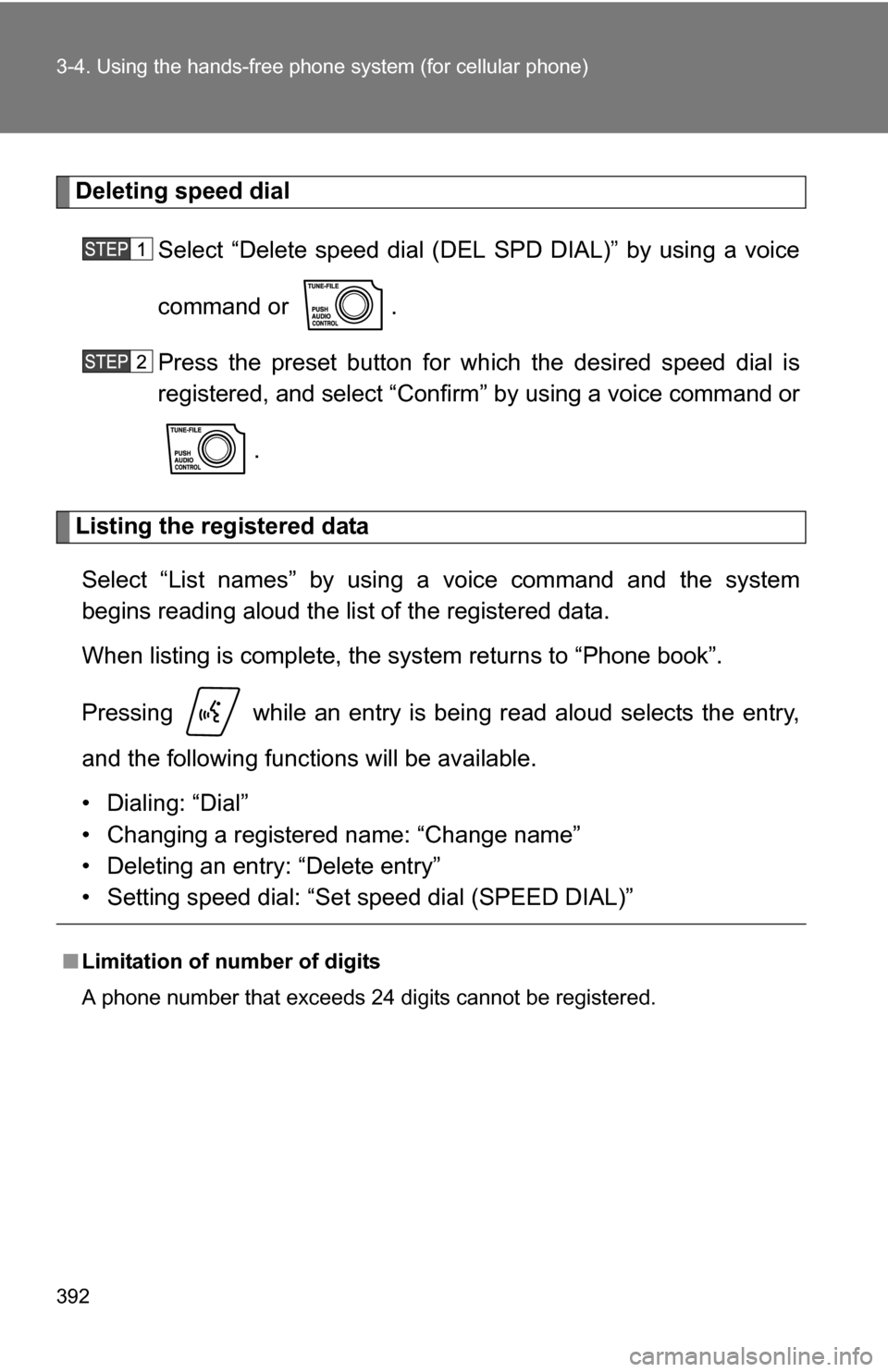

392 3-4. Using the hands-free phone system (for cellular phone)
Deleting speed dial
Select “Delete speed dial (DEL SPD DIAL)” by using a voice
command or .
Press the preset button for wh ich the desired speed dial is
registered, and select “Confirm” by using a voice command or
.
Listing the registered dataSelect “List names” by using a voice command and the system
begins reading aloud the list of the registered data.
When listing is complete, the system returns to “Phone book”.
Pressing while an entry is being read aloud selects the entry,
and the following functions will be available.
• Dialing: “Dial”
• Changing a registered name: “Change name”
• Deleting an entry: “Delete entry”
• Setting speed dial: “Set speed dial (SPEED DIAL)”
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.

393
3
Interior and exterior features

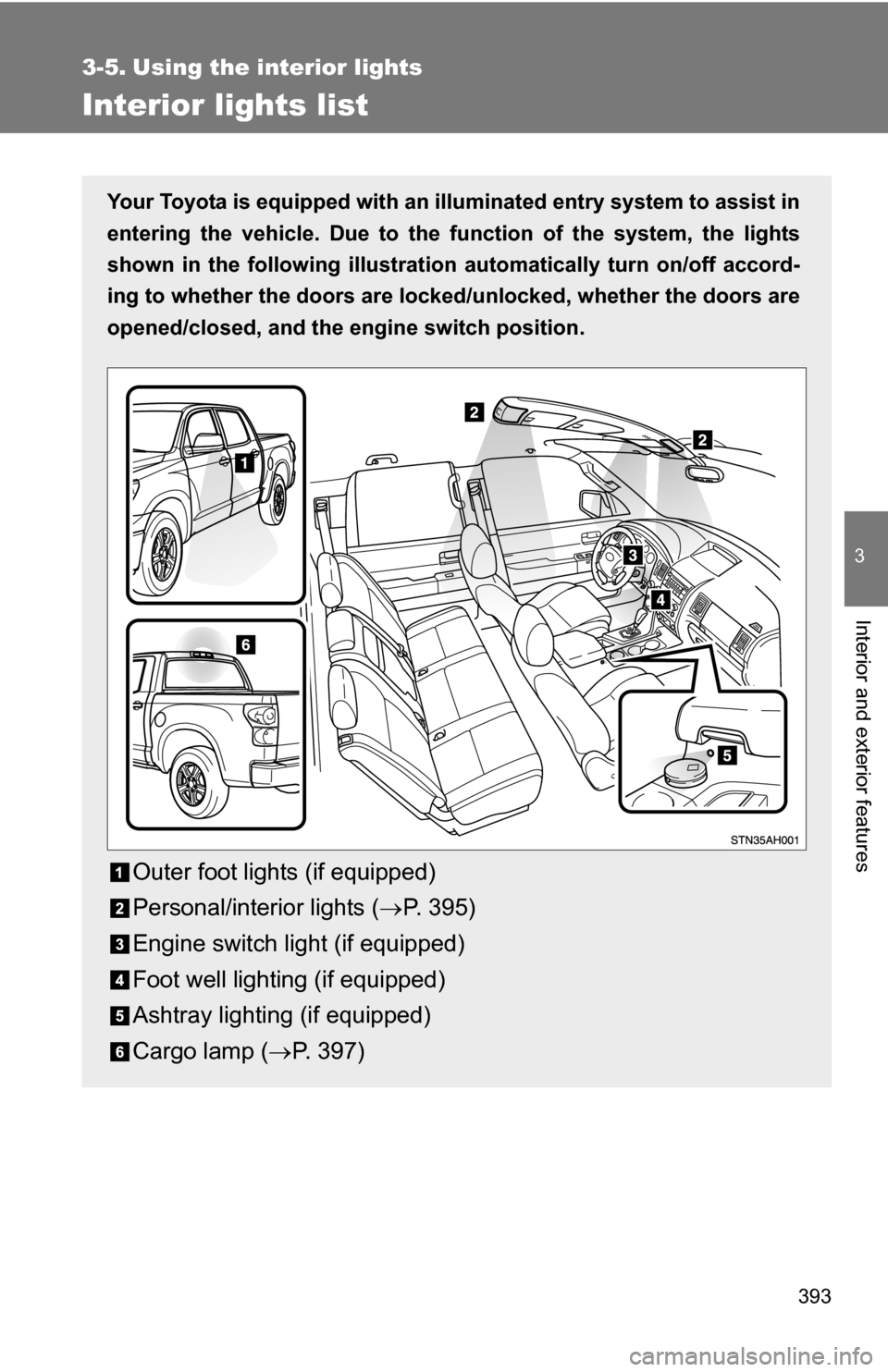

3-5. Using the interior lights
Interior lights list
Your Toyota is equipped with an illuminated entry system to assist in
entering the vehicle. Due to the function of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to whether the doo rs are locked/unlocked, whether the doors are
opened/closed, and the en gine switch position.
Outer foot lights (if equipped)
Personal/interior lights (P. 395)
Engine switch light (if equipped)
Foot well lighting (if equipped)
Ashtray lighting (if equipped)
Cargo lamp ( P. 397)

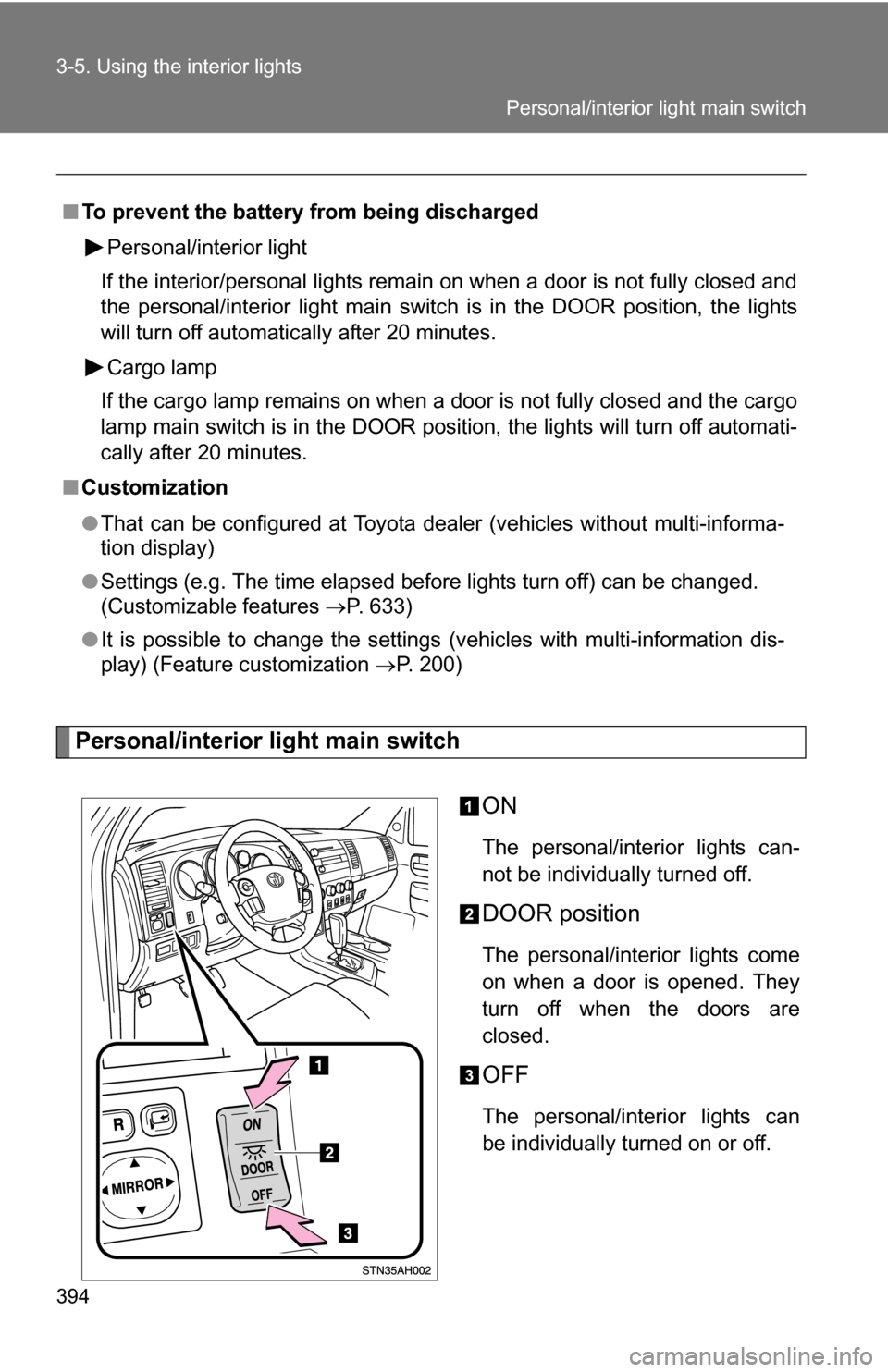

394 3-5. Using the interior lights
Personal/interior light main switchON
The personal/interior lights can-
not be individually turned off.
DOOR position
The personal/interior lights come
on when a door is opened. They
turn off when the doors are
closed.
OFF
The personal/interior lights can
be individually turned on or off.
■
To prevent the battery from being discharged
Personal/interior light
If the interior/personal lights remain on when a door is not fully closed and
the personal/interior light main switch is in the DOOR position, the lights
will turn off automatically after 20 minutes.
Cargo lamp
If the cargo lamp remains on when a door is not fully closed and the cargo
lamp main switch is in the DOOR position, the lights will turn off automati-
cally after 20 minutes.
■ Customization
●That can be configured at Toyota dealer (vehicles without multi-informa-
tion display)
● Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 633)
● It is possible to change the settings (vehicles with multi-information dis-
play) (Feature customization P. 200)
Personal/interior light main switch

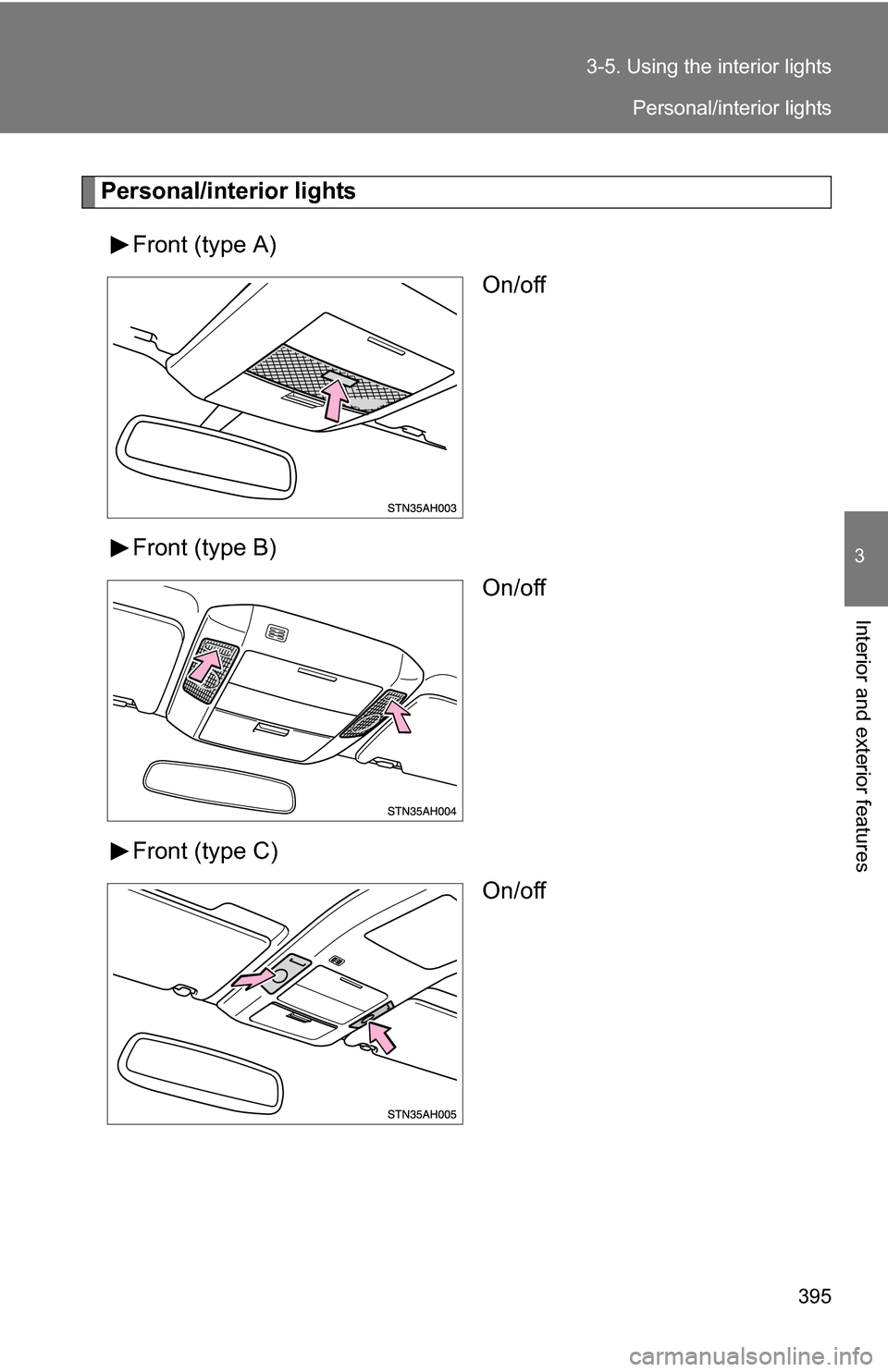

395
3-5. Using the interior lights
3
Interior and exterior features
Personal/interior lights
Front (type A) On/off
Front (type B) On/off
Front (type C) On/off
Personal/interior lights

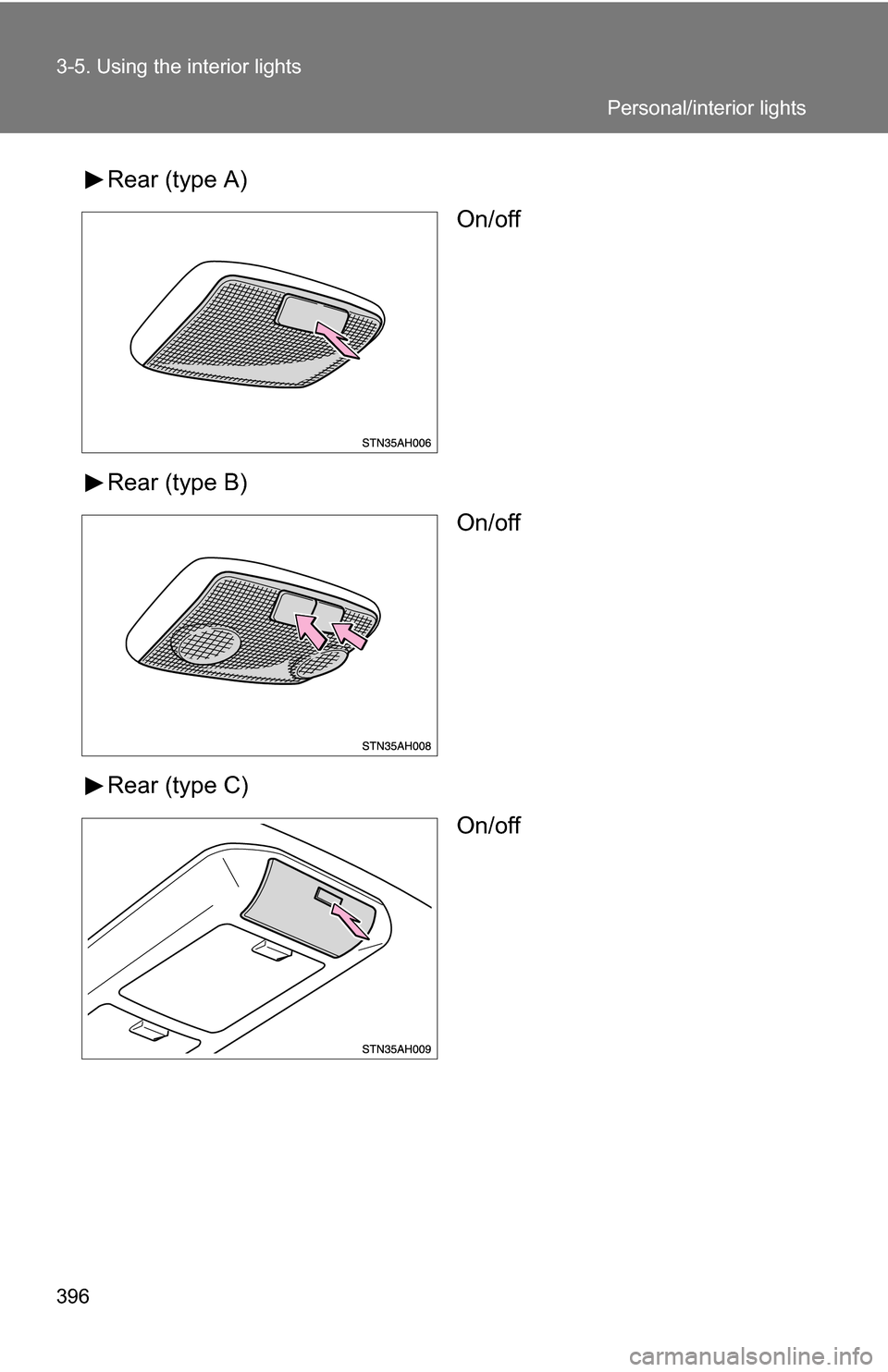

396 3-5. Using the interior lights
Rear (type A)On/off
Rear (type B) On/off
Rear (type C) On/off
Personal/interior lights

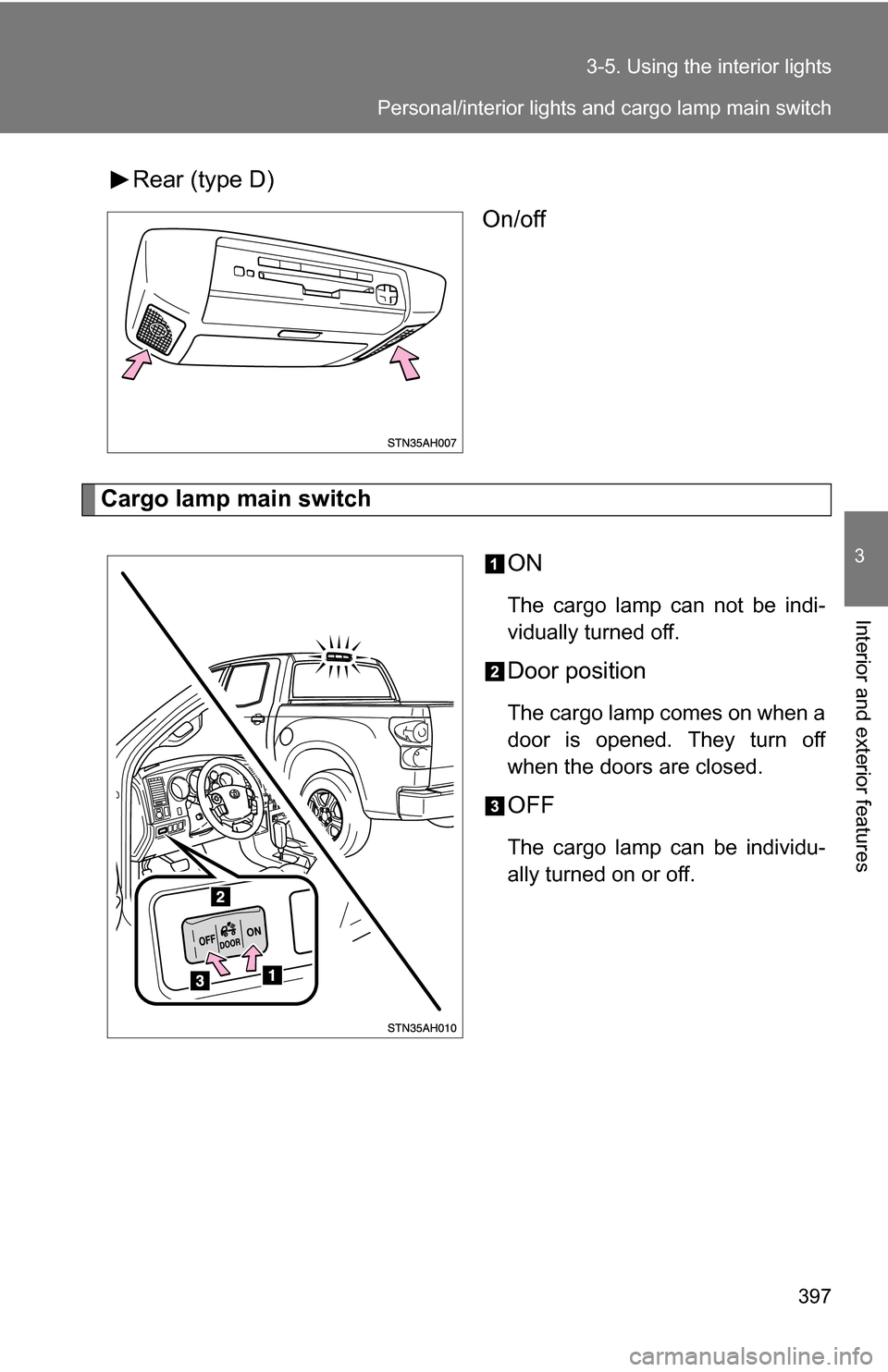

397
3-5. Using the interior lights
3
Interior and exterior features
Rear (type D)
On/off
Cargo lamp main switch
ON
The cargo lamp can not be indi-
vidually turned off.
Door position
The cargo lamp comes on when a
door is opened. They turn off
when the doors are closed.
OFF
The cargo lamp can be individu-
ally turned on or off.
Personal/interior lights and cargo lamp main switch

398

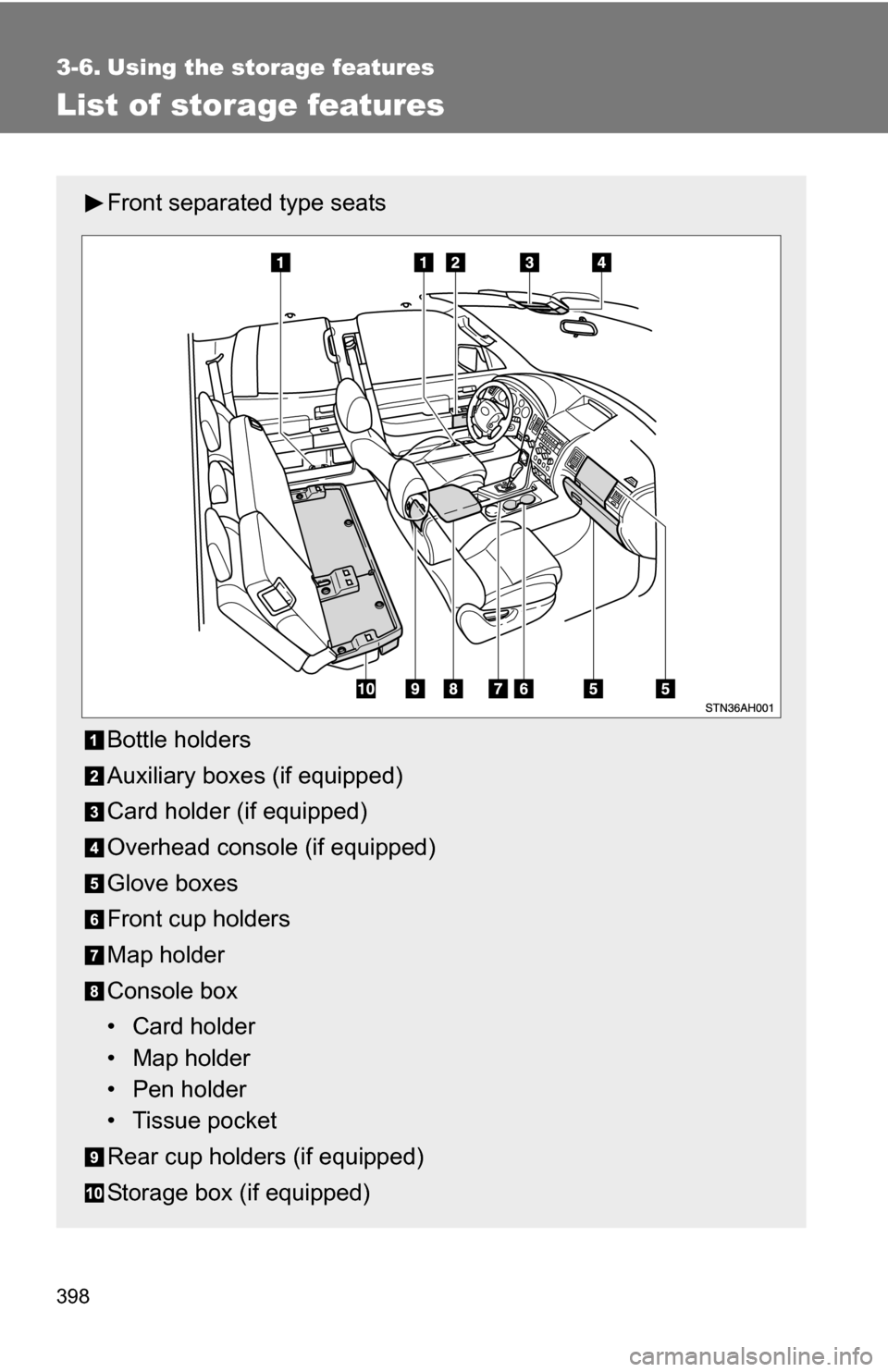

3-6. Using the storage features
List of storage features
Front separated type seats
Bottle holders
Auxiliary boxes (if equipped)
Card holder (if equipped)
Overhead console (if equipped)
Glove boxes
Front cup holders
Map holder
Console box
• Card holder
• Map holder
• Pen holder
• Tissue pocket
Rear cup holders (if equipped)
Storage box (if equipped)

399
3-6. Using the
storage features
3
Interior and exterior features

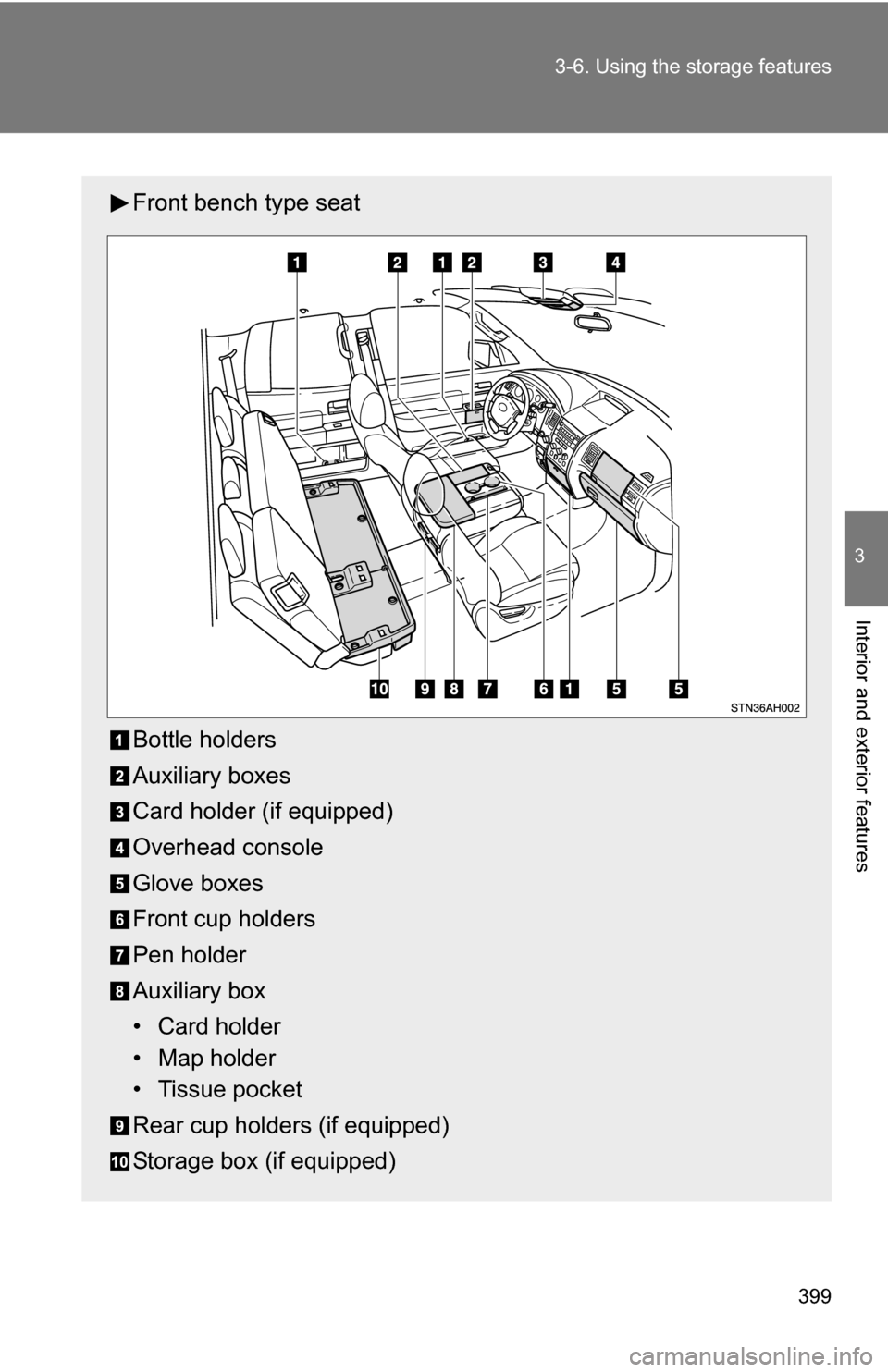

Front bench type seat
Bottle holders
Auxiliary boxes
Card holder (if equipped)
Overhead console
Glove boxes
Front cup holders
Pen holder
Auxiliary box
• Card holder
• Map holder
• Tissue pocket
Rear cup holders (if equipped)
Storage box (if equipped)

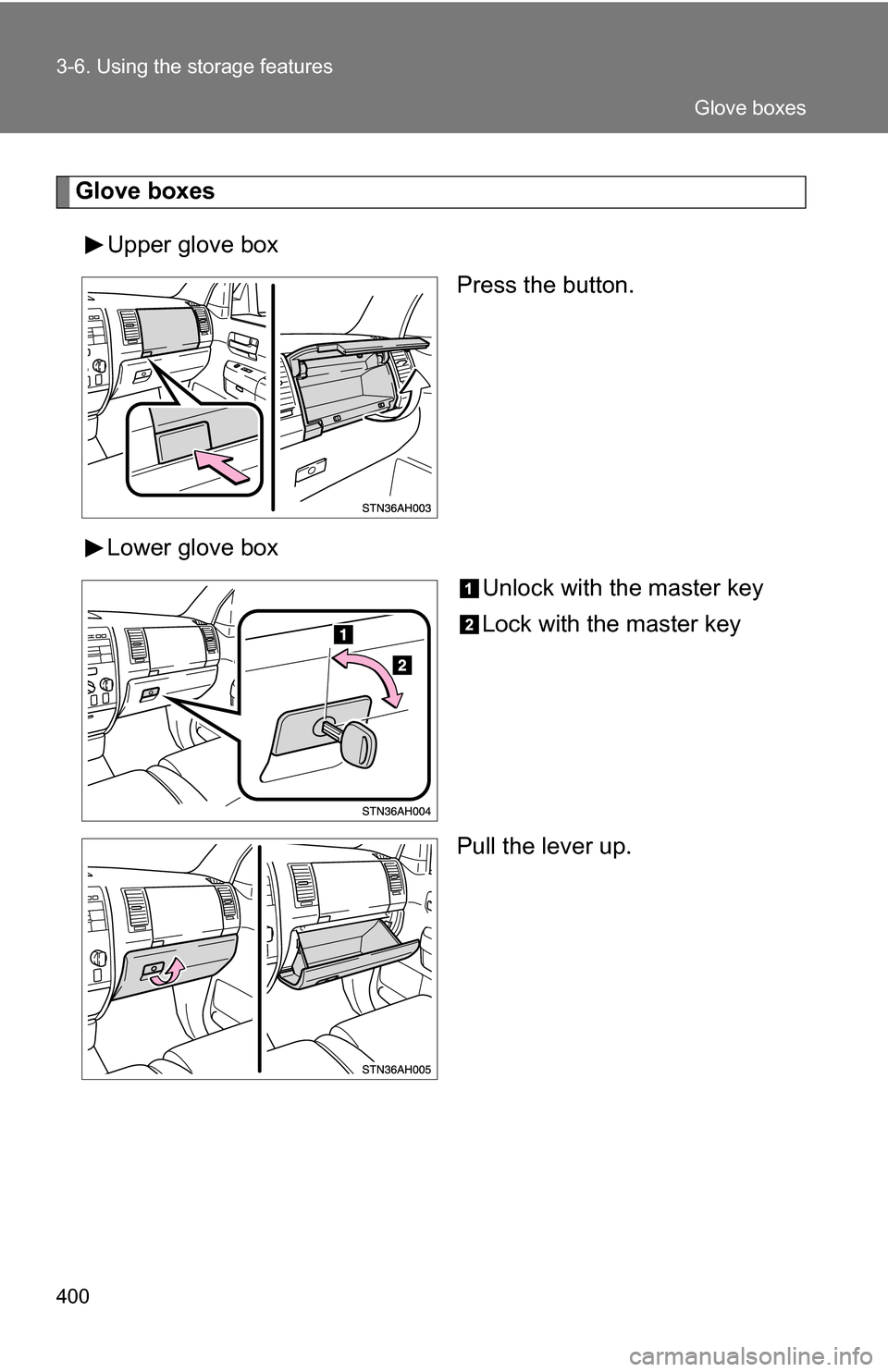

400 3-6. Using the storage features
Glove boxesUpper glove box Press the button.
Lower glove box Unlock with the master key
Lock with the master key
Pull the lever up.
Glove boxes
