TOYOTA TUNDRA 2016 2.G Owners Manual

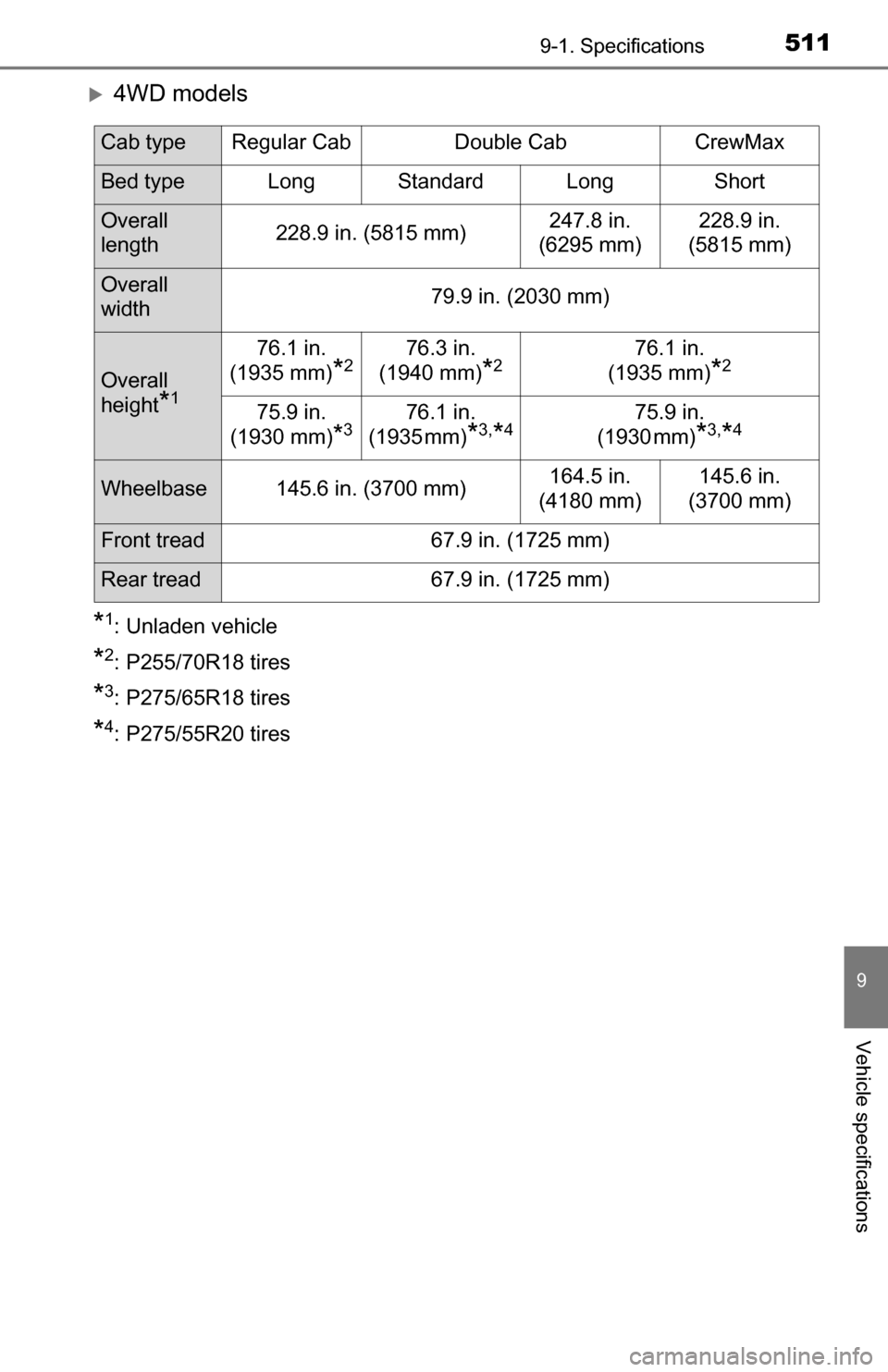

5119-1. Specifications
9
Vehicle specifications
4WD models
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab type Regular Cab Double CabCrewMax
Bed type Long Standard Long Short
Overall
length228.9 in. (5815 mm) 247.8 in.
(6295 mm) 228.9 in.
(5815 mm)
Overall
width 79.9 in. (2030 mm)
Overall
height
*1
76.1 in.
(1935 mm)
*276.3 in.
(1940 mm)
*276.1 in.
(1935 mm)
*2
75.9 in.
(1930 mm)
*376.1 in.
(1935 mm)
*3,*475.9 in.
(1930 mm)
*3,*4
Wheelbase 145.6 in. (3700 mm) 164.5 in.
(4180 mm) 145.6 in.
(3700 mm)
Front tread 67.9 in. (1725 mm)
Rear tread 67.9 in. (1725 mm)

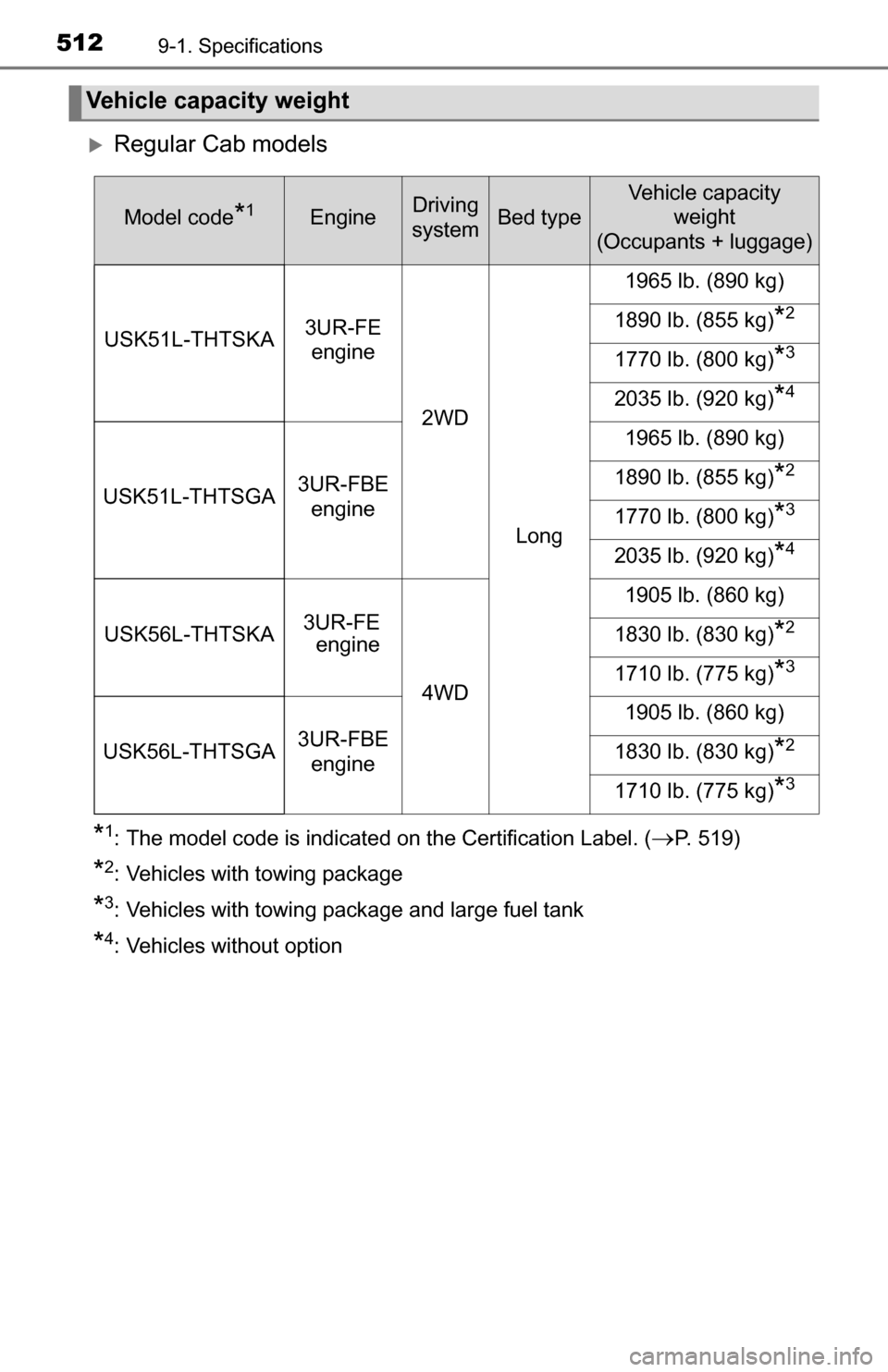

5129-1. Specifications
Regular Cab models
*1: The model code is indicated on the Certification Label. (P. 519)
*2: Vehicles with towing package
*3: Vehicles with towing package and large fuel tank
*4: Vehicles without option
Vehicle capacity weight
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
USK51L-THTSKA 3UR-FE
engine
2WD
Long
1965 lb. (890 kg)
1890 lb. (855 kg)*2
1770 lb. (800 kg)*3
2035 lb. (920 kg)*4
USK51L-THTSGA 3UR-FBE
engine
1965 lb. (890 kg)
1890 lb. (855 kg)*2
1770 lb. (800 kg)*3
2035 lb. (920 kg)*4
USK56L-THTSKA 3UR-FE
engine
4WD
1905 lb. (860 kg)
1830 lb. (830 kg)*2
1710 lb. (775 kg)*3
USK56L-THTSGA 3UR-FBE
engine
1905 lb. (860 kg)
1830 lb. (830 kg)*2
1710 lb. (775 kg)*3

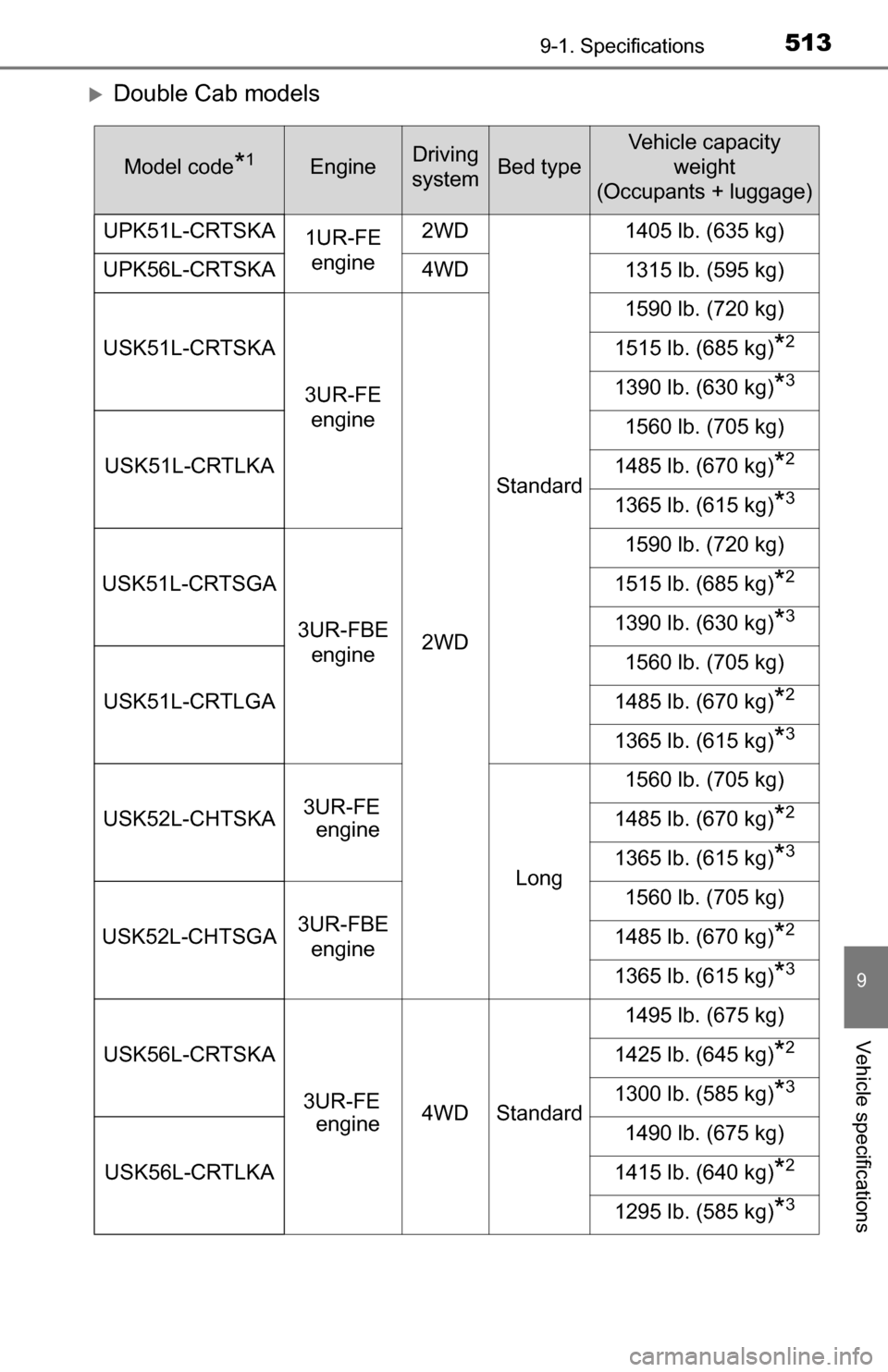

5139-1. Specifications
9
Vehicle specifications
Double Cab models
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
UPK51L-CRTSKA 1UR-FE
engine 2WD
Standard
1405 lb. (635 kg)
UPK56L-CRTSKA 4WD
1315 lb. (595 kg)
USK51L-CRTSKA 3UR-FE engine
2WD
1590 lb. (720 kg)
1515 lb. (685 kg)*2
1390 lb. (630 kg)*3
USK51L-CRTLKA
1560 lb. (705 kg)
1485 lb. (670 kg)*2
1365 lb. (615 kg)*3
USK51L-CRTSGA 3UR-FBE engine
1590 lb. (720 kg)
1515 lb. (685 kg)*2
1390 lb. (630 kg)*3
USK51L-CRTLGA
1560 lb. (705 kg)
1485 lb. (670 kg)*2
1365 lb. (615 kg)*3
USK52L-CHTSKA 3UR-FE
engine
Long
1560 lb. (705 kg)
1485 lb. (670 kg)*2
1365 lb. (615 kg)*3
USK52L-CHTSGA3UR-FBE
engine
1560 lb. (705 kg)
1485 lb. (670 kg)*2
1365 lb. (615 kg)*3
USK56L-CRTSKA
3UR-FE engine 4WD Standard
1495 lb. (675 kg)
1425 lb. (645 kg)*2
1300 lb. (585 kg)*3
USK56L-CRTLKA
1490 lb. (675 kg)
1415 lb. (640 kg)*2
1295 lb. (585 kg)*3

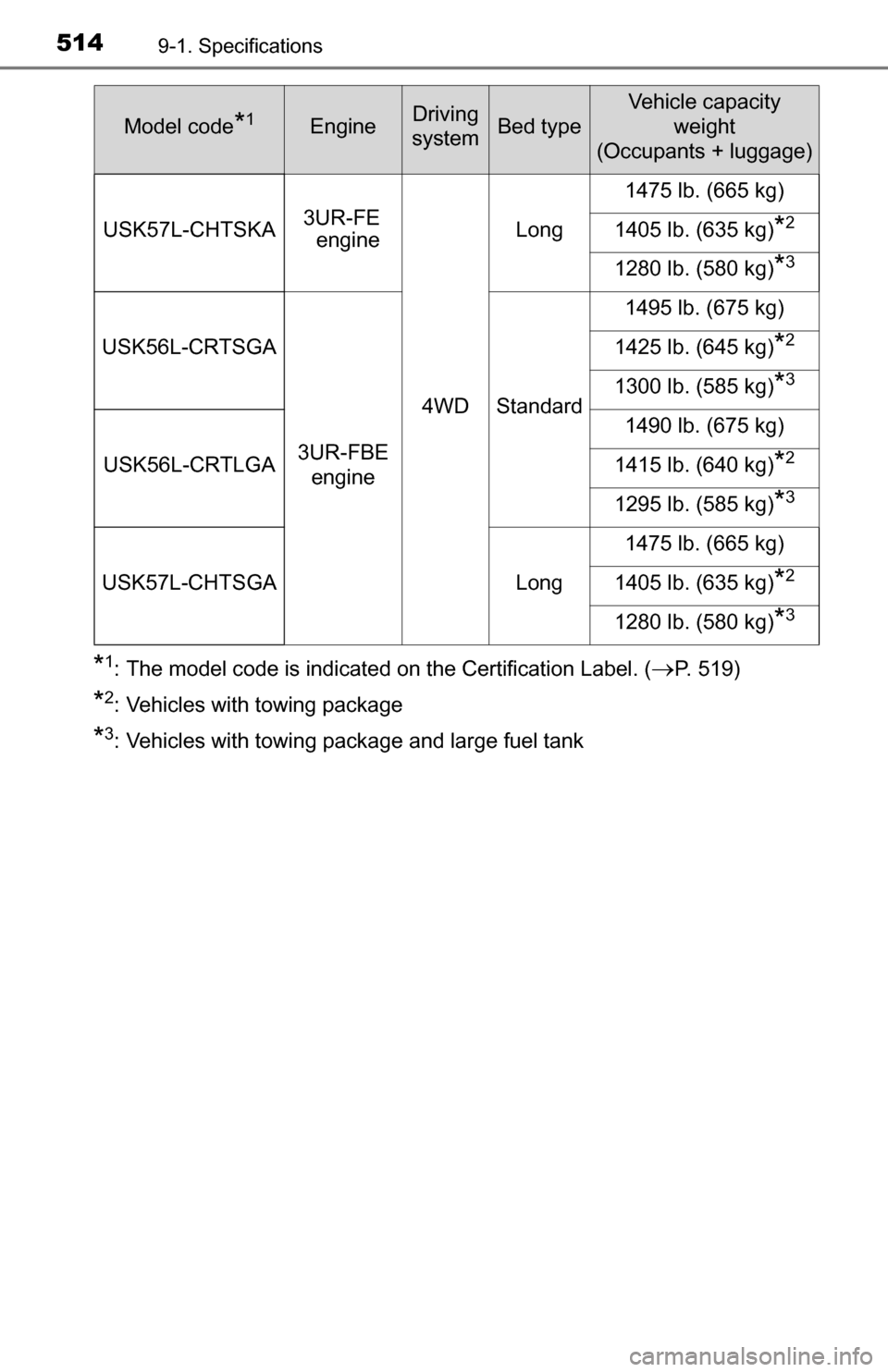

5149-1. Specifications
*1: The model code is indicated on the Certification Label. (P. 519)
*2: Vehicles with towing package
*3: Vehicles with towing package and large fuel tank
Model code*1EngineDriving
systemBed type
Vehicle capacity
weight
(Occupants + luggage)
USK57L-CHTSKA 3UR-FE
engine
4WDLong
1475 lb. (665 kg)
1405 lb. (635 kg)*2
1280 lb. (580 kg)*3
USK56L-CRTSGA
3UR-FBE engine Standard
1495 lb. (675 kg)
1425 lb. (645 kg)*2
1300 lb. (585 kg)*3
USK56L-CRTLGA
1490 lb. (675 kg)
1415 lb. (640 kg)*2
1295 lb. (585 kg)*3
USK57L-CHTSGA
Long
1475 lb. (665 kg)
1405 lb. (635 kg)*2
1280 lb. (580 kg)*3

5159-1. Specifications
9
Vehicle specifications

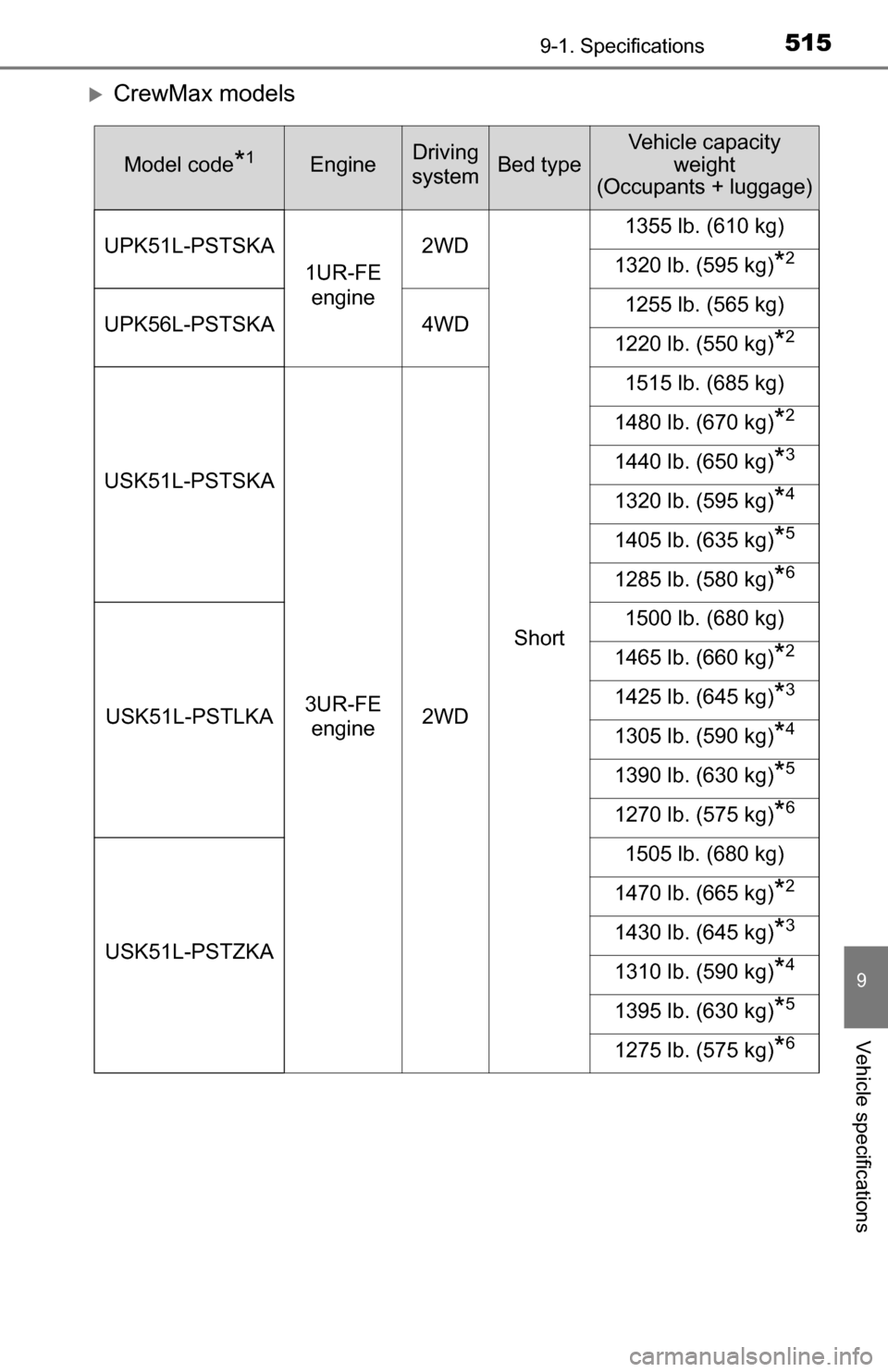

CrewMax models
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
UPK51L-PSTSKA 1UR-FE engine 2WD
Short
1355 lb. (610 kg)
1320 lb. (595 kg)*2
UPK56L-PSTSKA 4WD1255 lb. (565 kg)
1220 lb. (550 kg)*2
USK51L-PSTSKA
3UR-FE engine 2WD
1515 lb. (685 kg)
1480 lb. (670 kg)*2
1440 lb. (650 kg)*3
1320 lb. (595 kg)*4
1405 lb. (635 kg)*5
1285 lb. (580 kg)*6
USK51L-PSTLKA
1500 lb. (680 kg)
1465 lb. (660 kg)*2
1425 lb. (645 kg)*3
1305 lb. (590 kg)*4
1390 lb. (630 kg)*5
1270 lb. (575 kg)*6
USK51L-PSTZKA
1505 lb. (680 kg)
1470 lb. (665 kg)*2
1430 lb. (645 kg)*3
1310 lb. (590 kg)*4
1395 lb. (630 kg)*5
1275 lb. (575 kg)*6

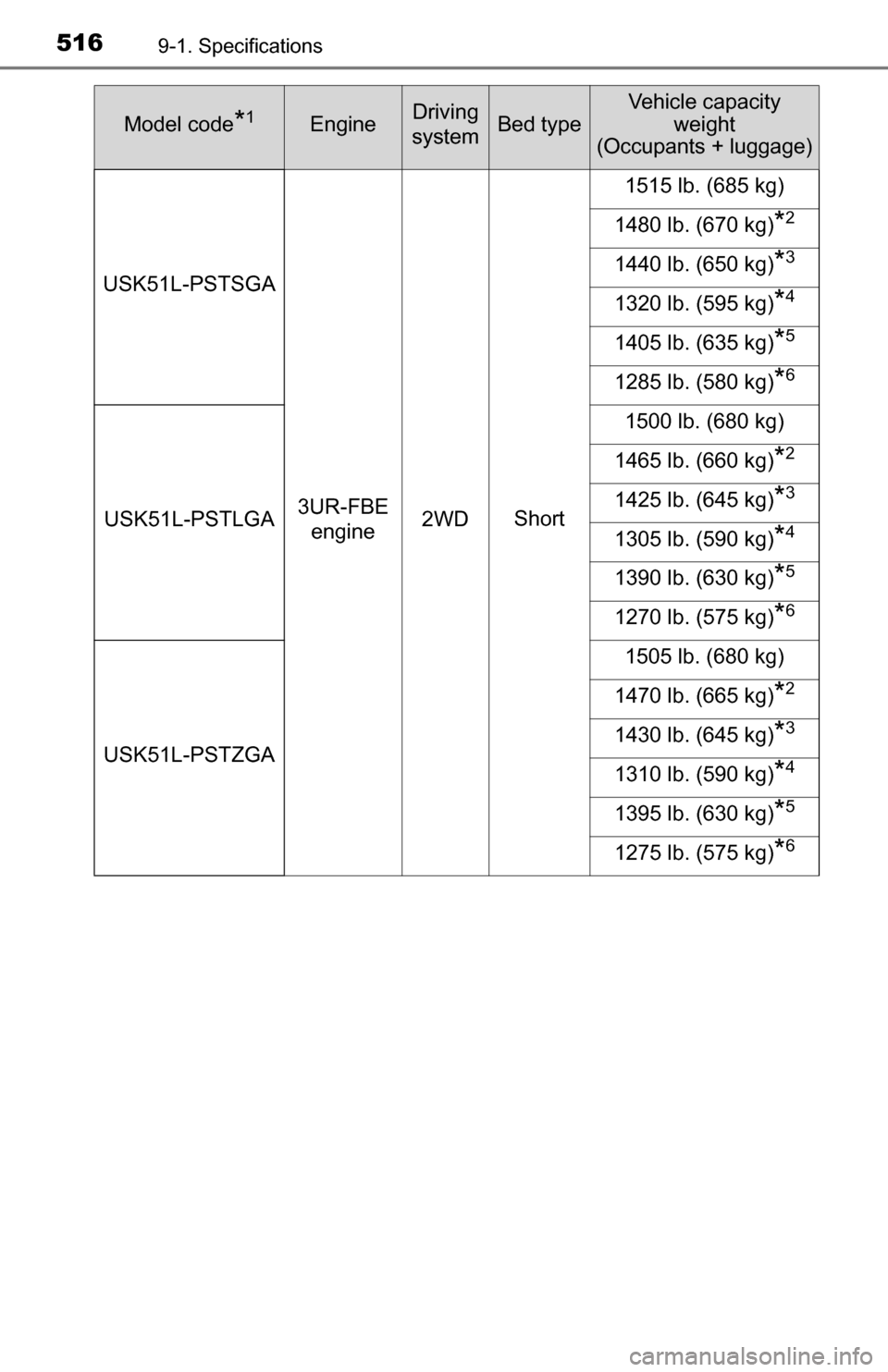

5169-1. Specifications
USK51L-PSTSGA3UR-FBE engine 2WD
Short
1515 lb. (685 kg)
1480 lb. (670 kg)*2
1440 lb. (650 kg)*3
1320 lb. (595 kg)*4
1405 lb. (635 kg)*5
1285 lb. (580 kg)*6
USK51L-PSTLGA
1500 lb. (680 kg)
1465 lb. (660 kg)*2
1425 lb. (645 kg)*3
1305 lb. (590 kg)*4
1390 lb. (630 kg)*5
1270 lb. (575 kg)*6
USK51L-PSTZGA
1505 lb. (680 kg)
1470 lb. (665 kg)*2
1430 lb. (645 kg)*3
1310 lb. (590 kg)*4
1395 lb. (630 kg)*5
1275 lb. (575 kg)*6
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)

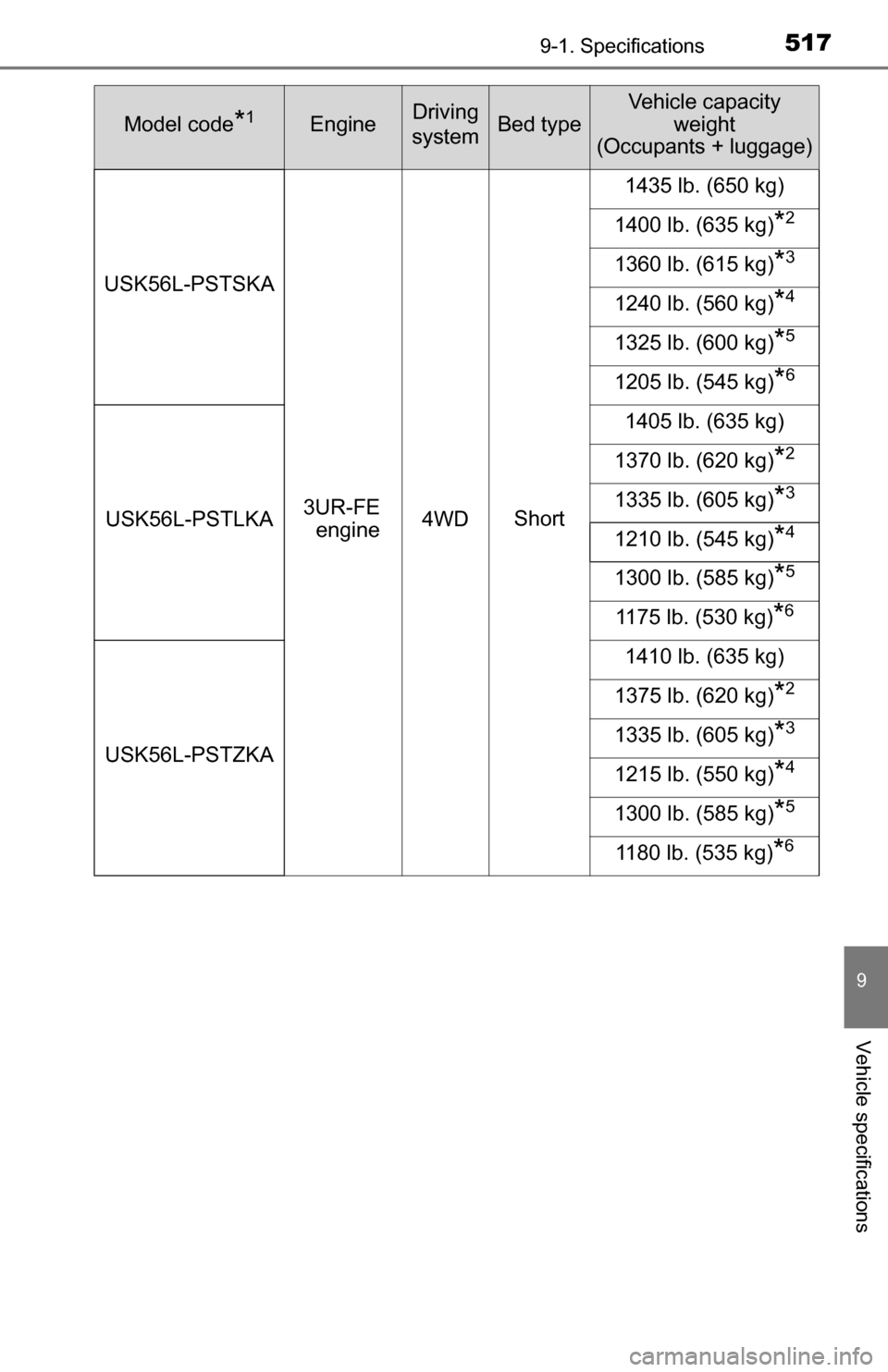

5179-1. Specifications
9
Vehicle specifications
USK56L-PSTSKA3UR-FE engine 4WD
Short
1435 lb. (650 kg)
1400 lb. (635 kg)*2
1360 lb. (615 kg)*3
1240 lb. (560 kg)*4
1325 lb. (600 kg)*5
1205 lb. (545 kg)*6
USK56L-PSTLKA
1405 lb. (635 kg)
1370 lb. (620 kg)*2
1335 lb. (605 kg)*3
1210 lb. (545 kg)*4
1300 lb. (585 kg)*5
1175 lb. (530 kg)*6
USK56L-PSTZKA
1410 lb. (635 kg)
1375 lb. (620 kg)*2
1335 lb. (605 kg)*3
1215 lb. (550 kg)*4
1300 lb. (585 kg)*5
1180 lb. (535 kg)*6
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)

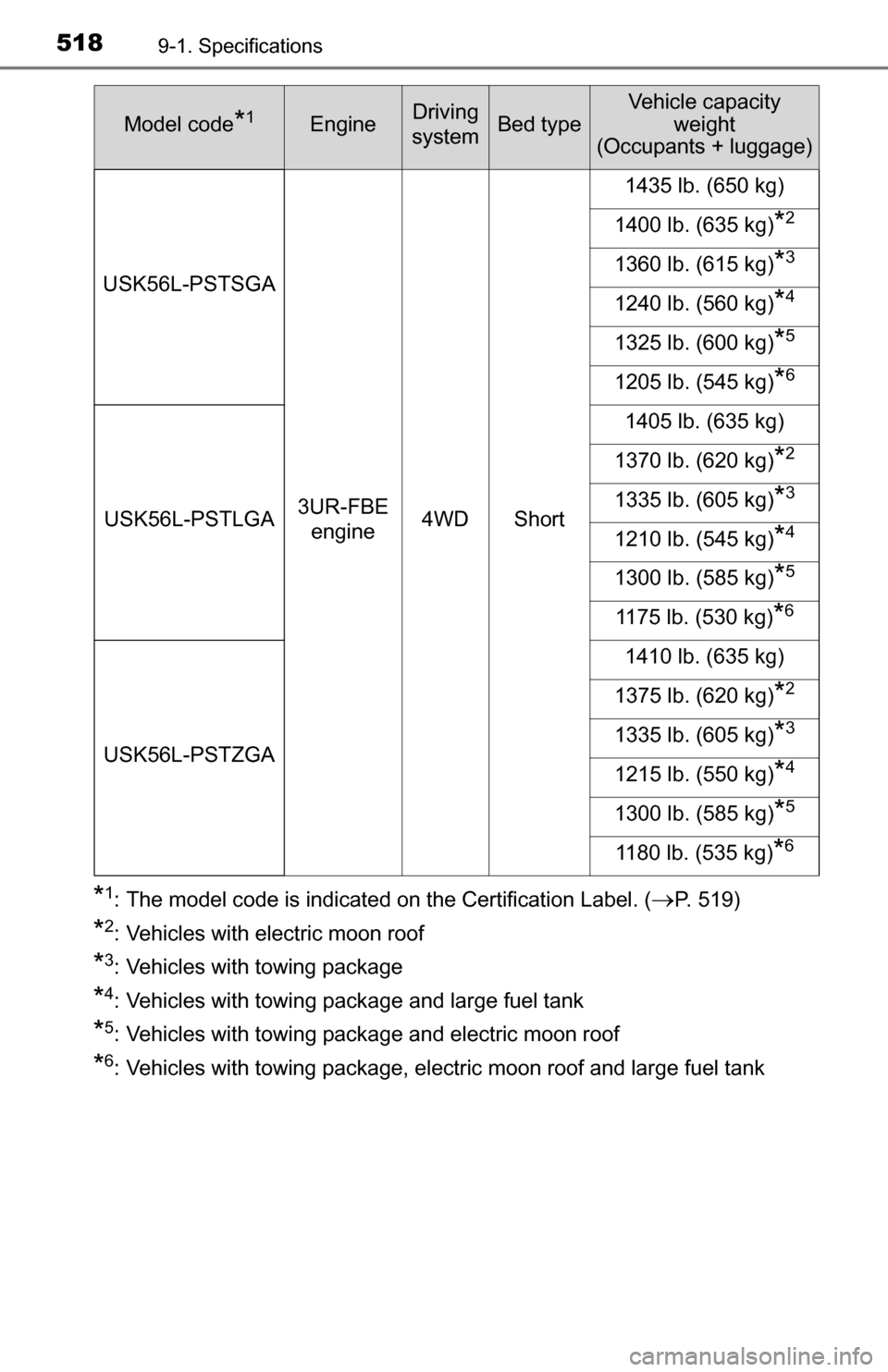

5189-1. Specifications
*1: The model code is indicated on the Certification Label. (P. 519)
*2: Vehicles with electric moon roof
*3: Vehicles with towing package
*4: Vehicles with towing package and large fuel tank
*5: Vehicles with towing package and electric moon roof
*6: Vehicles with towing package, electric moon roof and large fuel tank
USK56L-PSTSGA
3UR-FBE engine 4WD
Short
1435 lb. (650 kg)
1400 lb. (635 kg)*2
1360 lb. (615 kg)*3
1240 lb. (560 kg)*4
1325 lb. (600 kg)*5
1205 lb. (545 kg)*6
USK56L-PSTLGA
1405 lb. (635 kg)
1370 lb. (620 kg)*2
1335 lb. (605 kg)*3
1210 lb. (545 kg)*4
1300 lb. (585 kg)*5
1175 lb. (530 kg)*6
USK56L-PSTZGA
1410 lb. (635 kg)
1375 lb. (620 kg)*2
1335 lb. (605 kg)*3
1215 lb. (550 kg)*4
1300 lb. (585 kg)*5
1180 lb. (535 kg)*6
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)

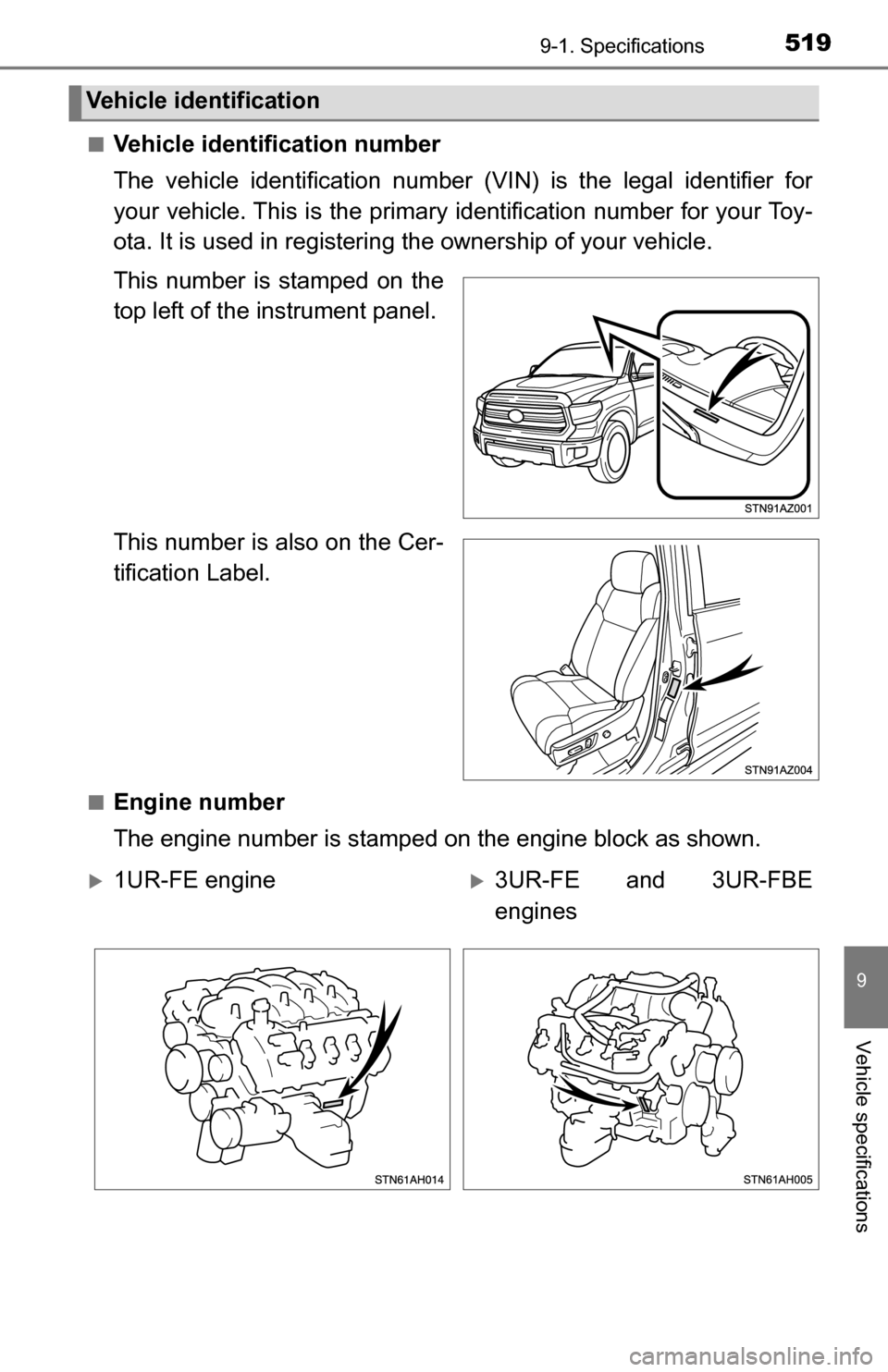

5199-1. Specifications
9
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your Toy-
ota. It is used in registeri ng the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.
■Engine number
The engine number is stampe d on the engine block as shown.
Vehicle identification
1UR-FE engine3UR-FE and 3UR-FBE
engines

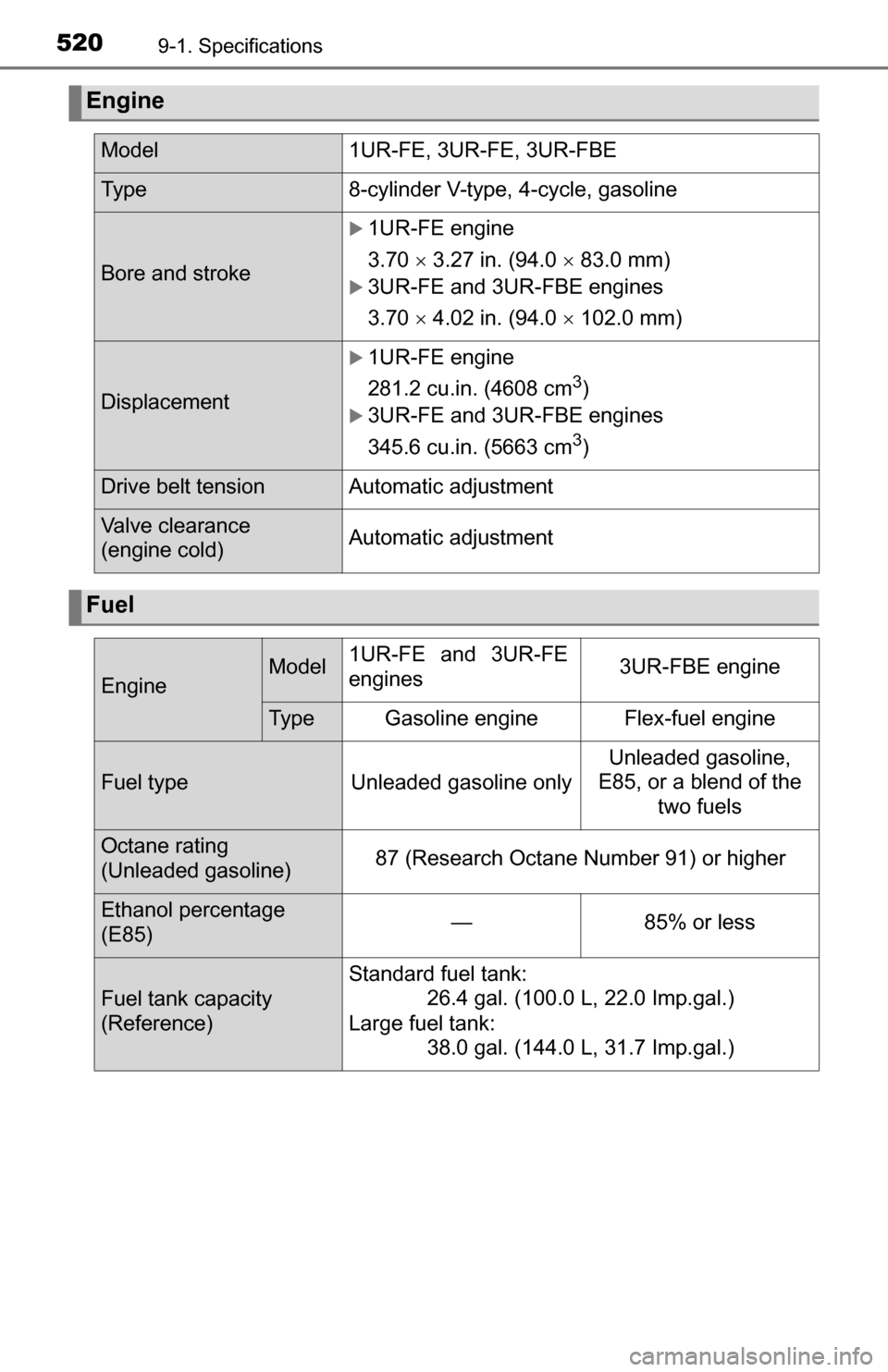

5209-1. Specifications
Engine
Model1UR-FE, 3UR-FE, 3UR-FBE
Ty p e8-cylinder V-type, 4-cycle, gasoline
Bore and stroke
1UR-FE engine
3.70  3.27 in. (94.0  83.0 mm)
3UR-FE and 3UR-FBE engines
3.70  4.02 in. (94.0  102.0 mm)
Displacement
1UR-FE engine
281.2 cu.in. (4608 cm
3)
3UR-FE and 3UR-FBE engines
345.6 cu.in. (5663 cm
3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment
Fuel
EngineModel1UR-FE and 3UR-FE
engines3UR-FBE engine
Ty p eGasoline engineFlex-fuel engine
Fuel typeUnleaded gasoline only
Unleaded gasoline,
E85, or a blend of the two fuels
Octane rating
(Unleaded gasoline)87 (Research Octane Number 91) or higher
Ethanol percentage
(E85)—85% or less
Fuel tank capacity
(Reference)
Standard fuel tank: 26.4 gal. (100.0 L, 22.0 Imp.gal.)
Large fuel tank: 38.0 gal. (144.0 L, 31.7 Imp.gal.)
