Light bulbs
Check the wattage of the light bulb to be replaced. ( P. 609)
■Front
You may replace the following bul bs by yourself. The difficulty
level of replacement varies depending on the bulb. If neces-
sary bulb replacement seems difficult to perform, contact your
To y o t a d e a l e r.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement

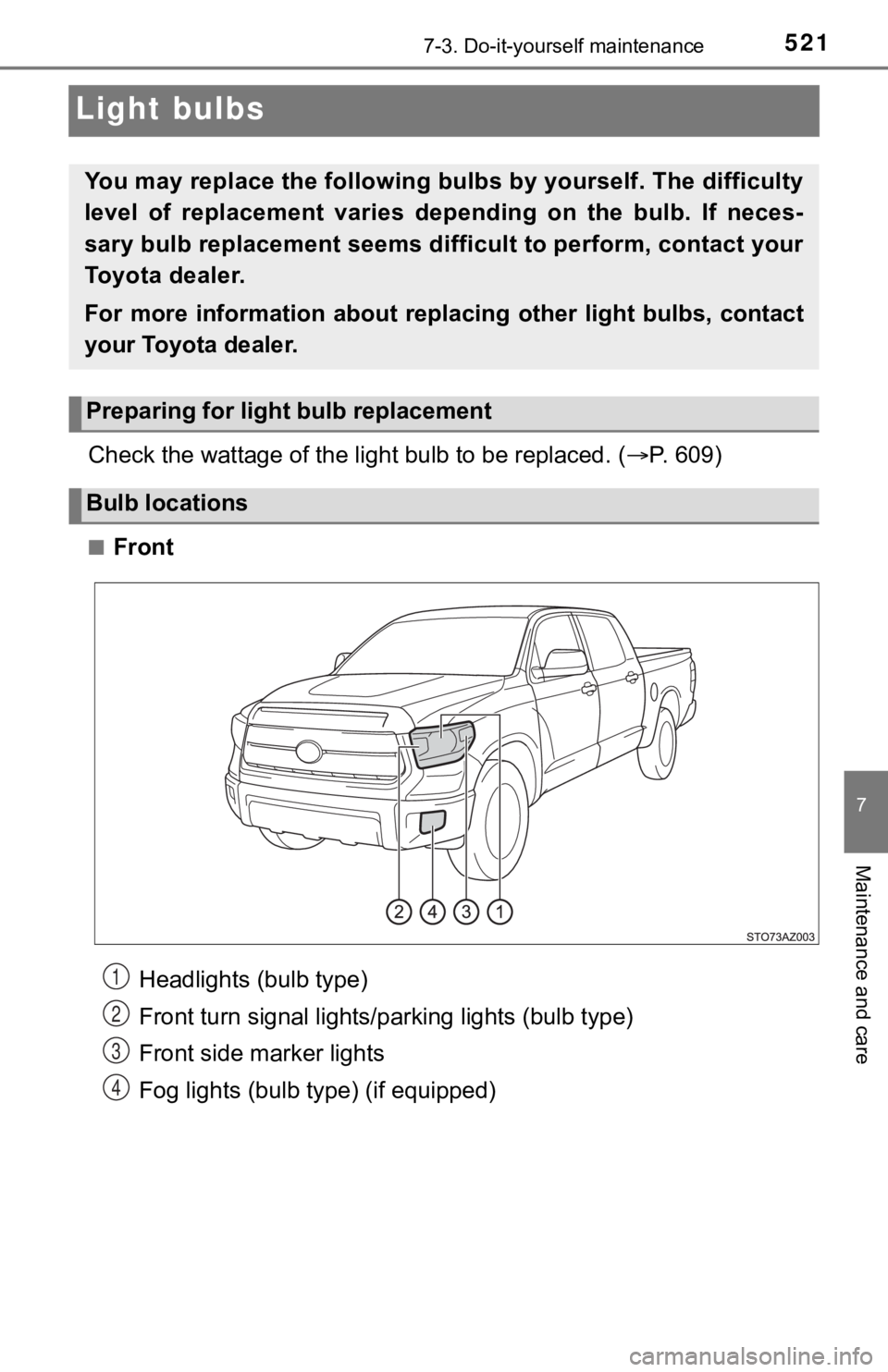

Bulb locations
Headlights (bulb type)
Front turn signal lights/parking lights (bulb type)
Front side marker lights
Fog lights (bulb type) (if equipped)1
2
3
4

5227-3. Do-it-yourself maintenance

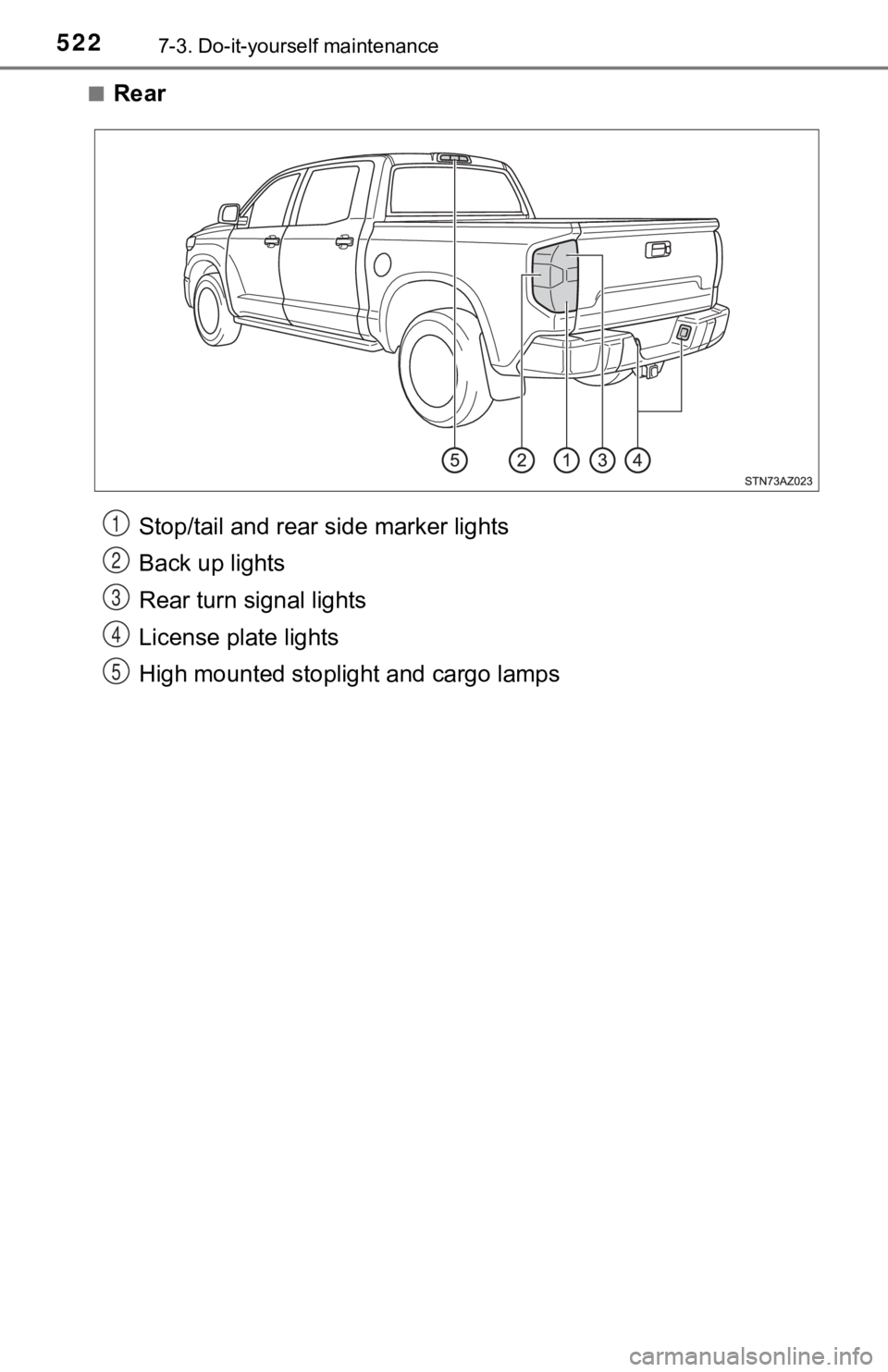

■Rear
Stop/tail and rear side marker lights
Back up lights
Rear turn signal lights
License plate lights
High mounted stoplight and cargo lamps1
2
3
4
5

5237-3. Do-it-yourself maintenance
7
Maintenance and care

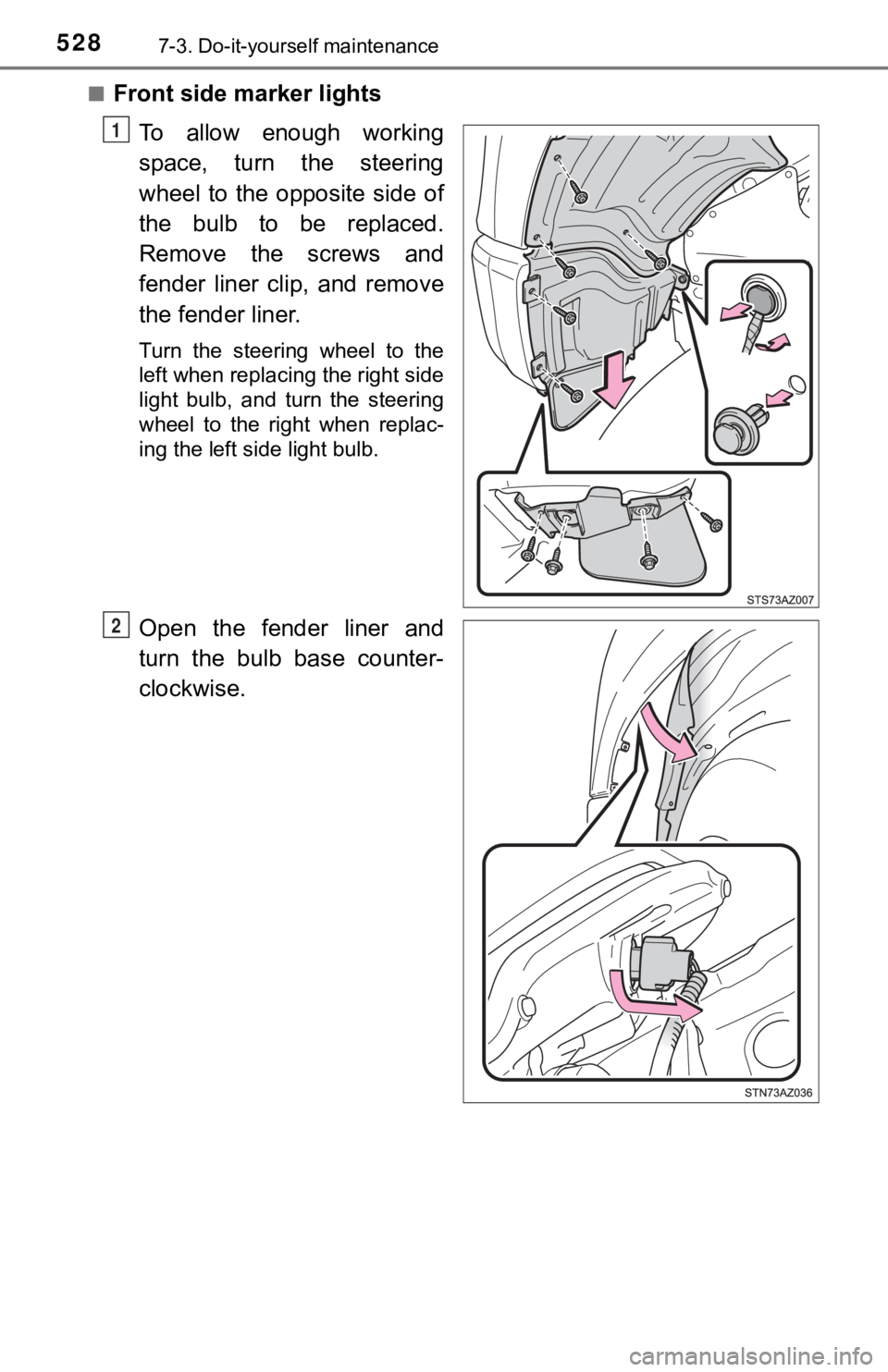

■Headlights (bulb type)To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the screws and
fender liner clip, and remove
the fender liner.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
unplug the connector.

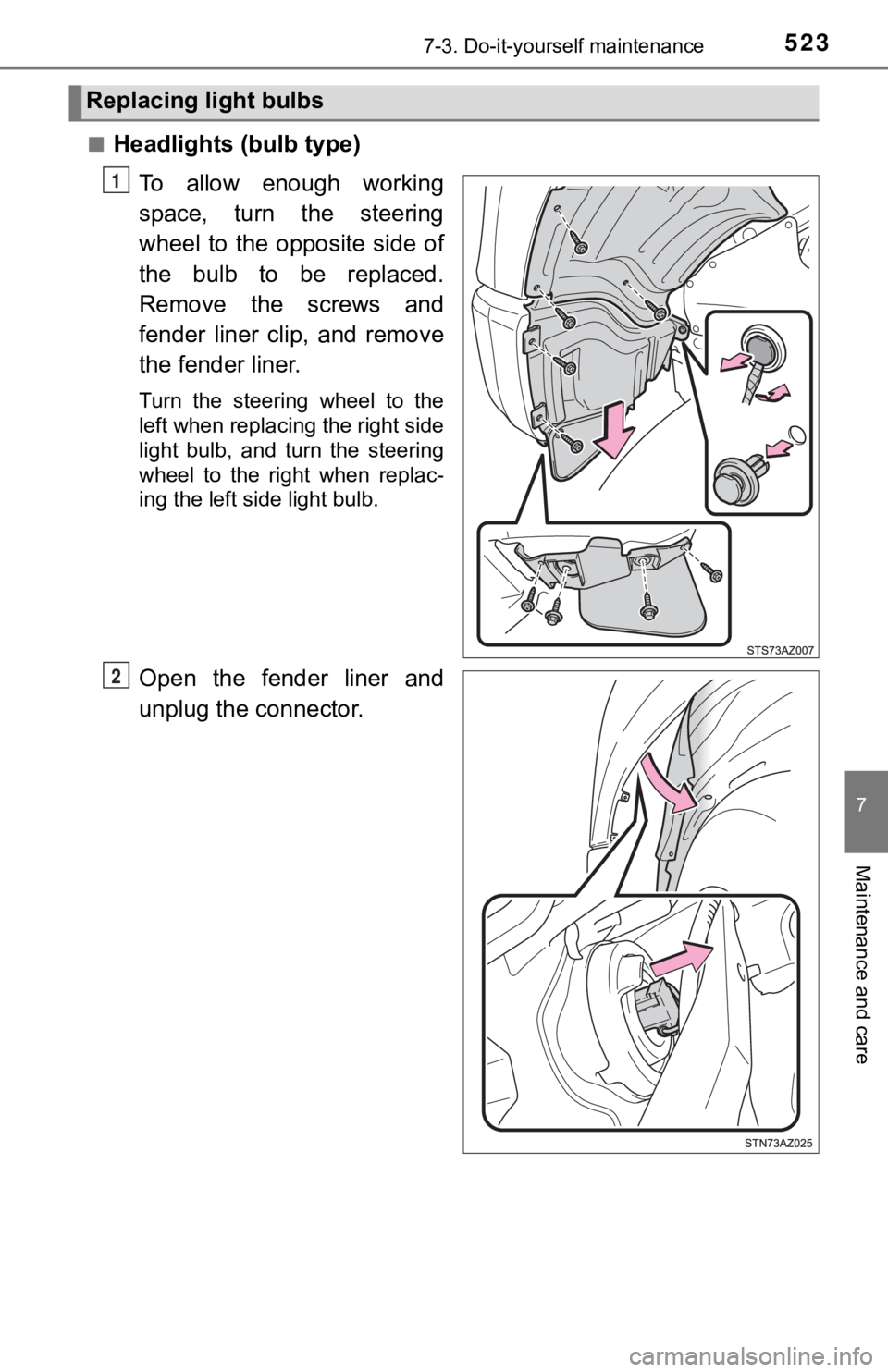

Replacing light bulbs
1
2

5247-3. Do-it-yourself maintenance

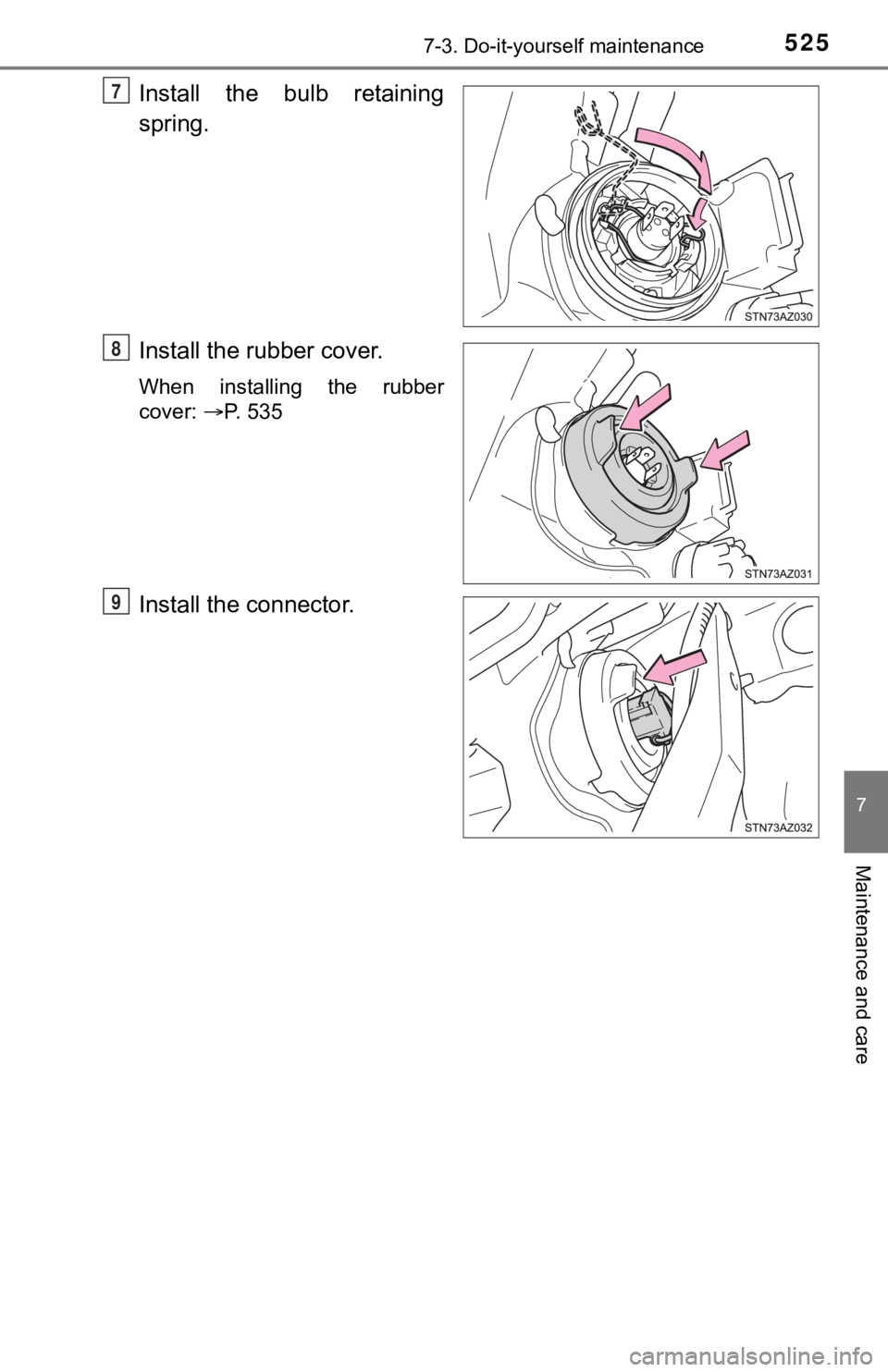

Remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.

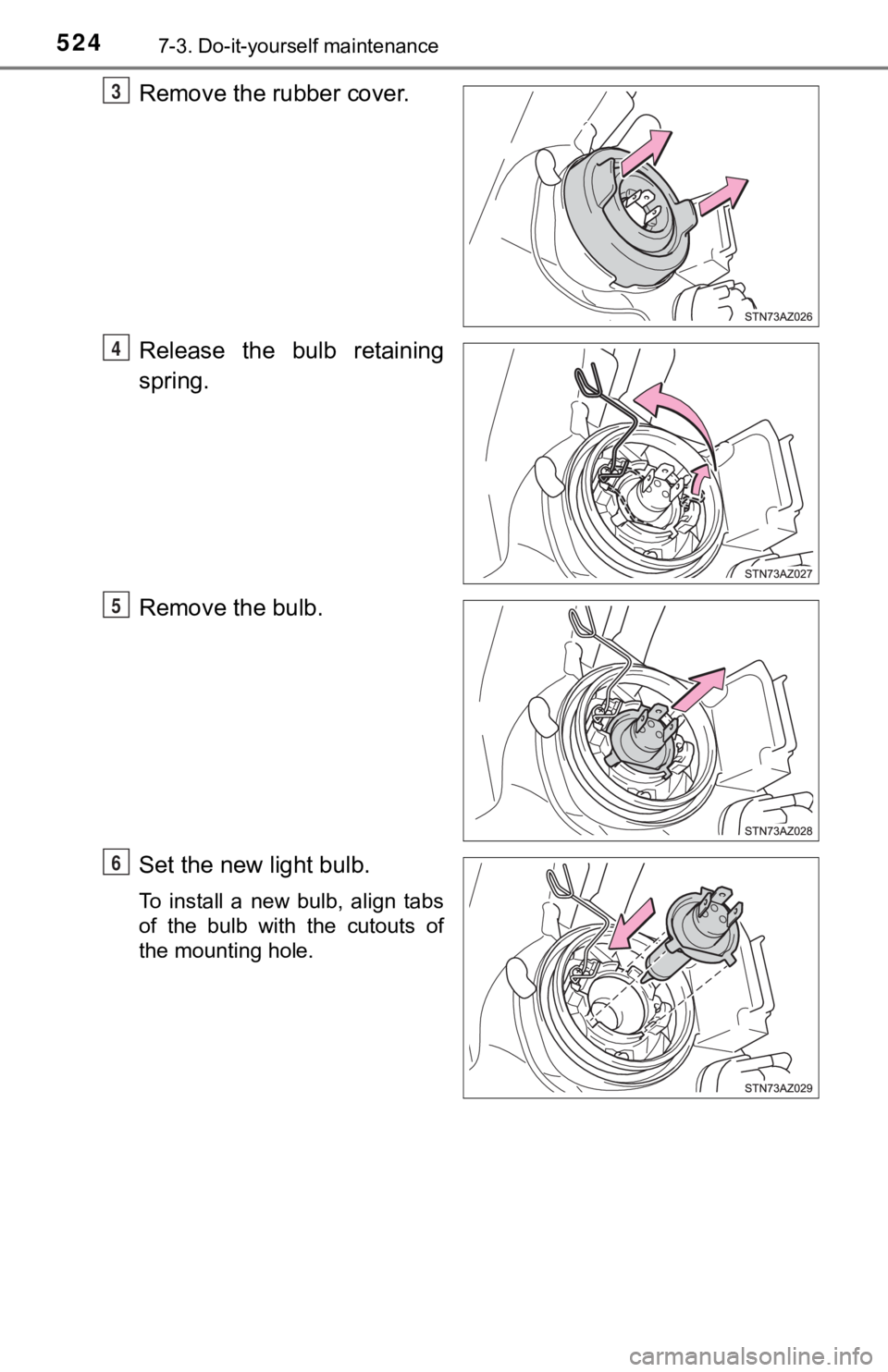

Set the new light bulb.
To install a new bulb, align tabs
of the bulb with the cutouts of
the mounting hole.
3
4
5
6

5257-3. Do-it-yourself maintenance
7
Maintenance and care
Install the bulb retaining
spring.
Install the rubber cover.
When installing the rubber
cover: P. 535
Install the connector.
7
8
9

5267-3. Do-it-yourself maintenance

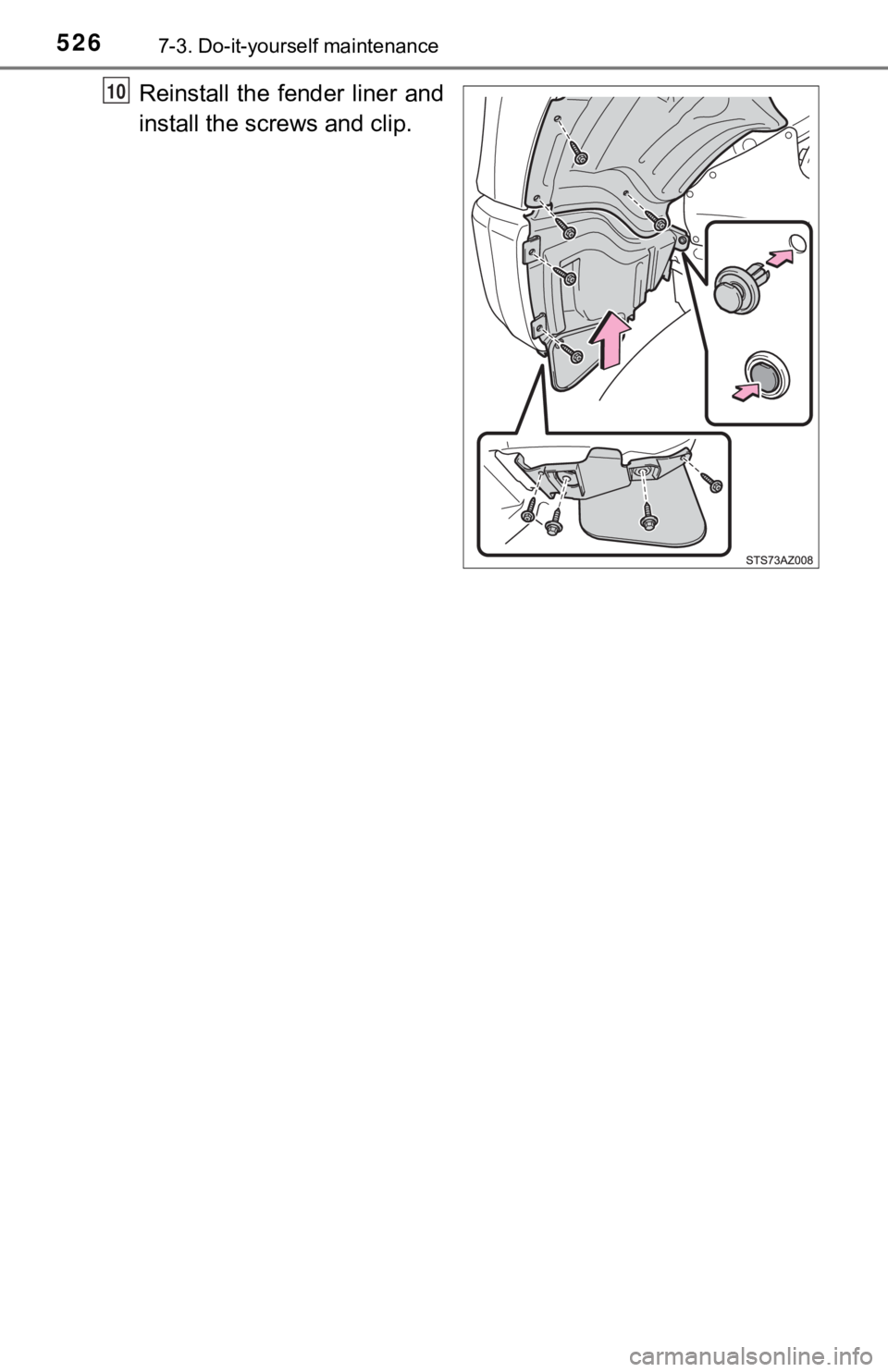

Reinstall the fender liner and
install the screws and clip.10

5277-3. Do-it-yourself maintenance
7
Maintenance and care

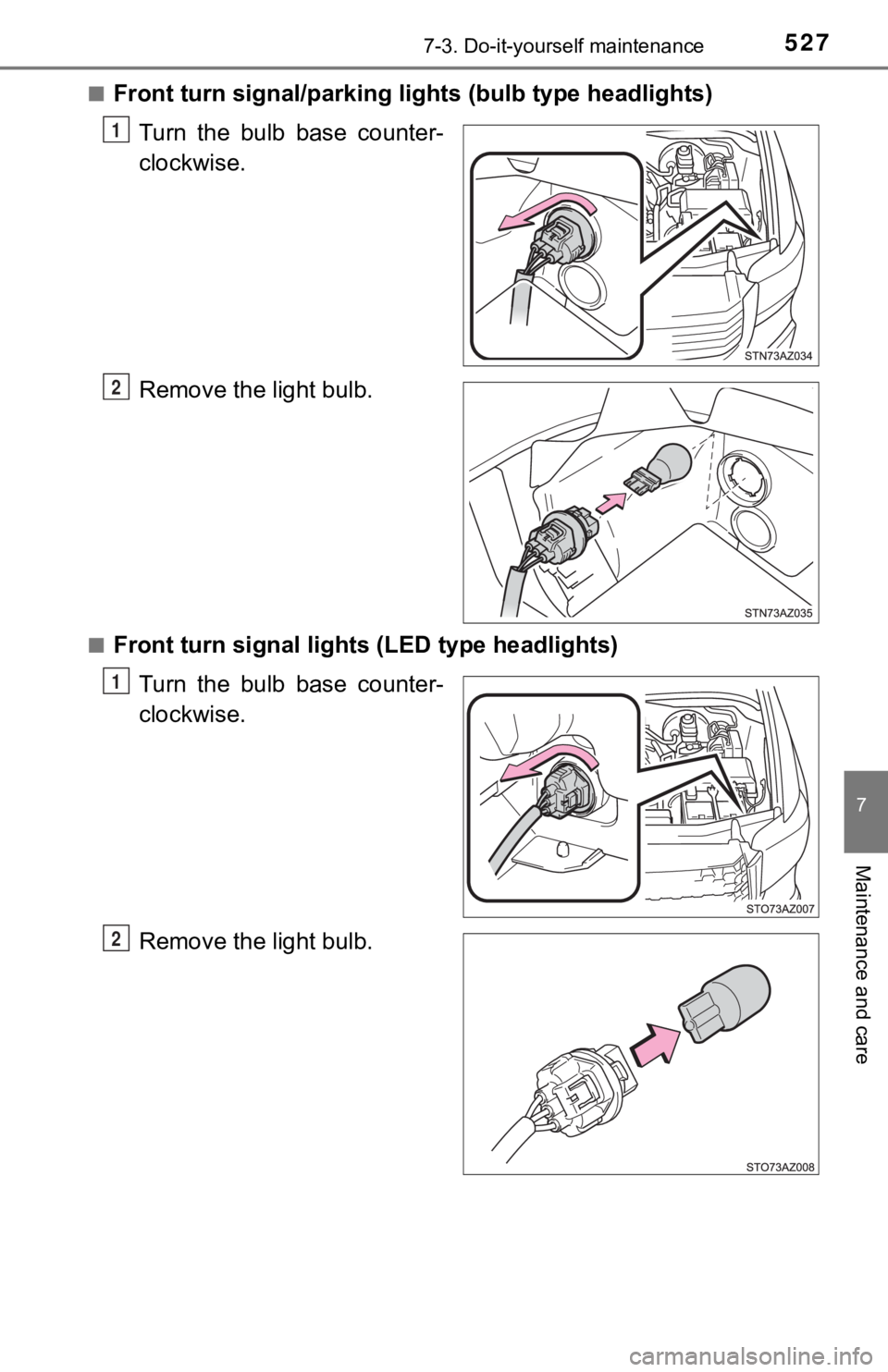

■Front turn signal/parking lights (bulb type headlights)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
■Front turn signal lights (LED type headlights)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
1
2

5287-3. Do-it-yourself maintenance
■Front side marker lightsTo allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the screws and
fender liner clip, and remove
the fender liner.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
turn the bulb base counter-
clockwise.
1
2

5297-3. Do-it-yourself maintenance
7
Maintenance and care
Remove the light bulb.
Reinstall the fender liner and
install the screws and clip.3
4

5307-3. Do-it-yourself maintenance
■Front fog lights-bulb type (if equipped)To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the screws and
fender liner clip, and remove
the fender liner.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.

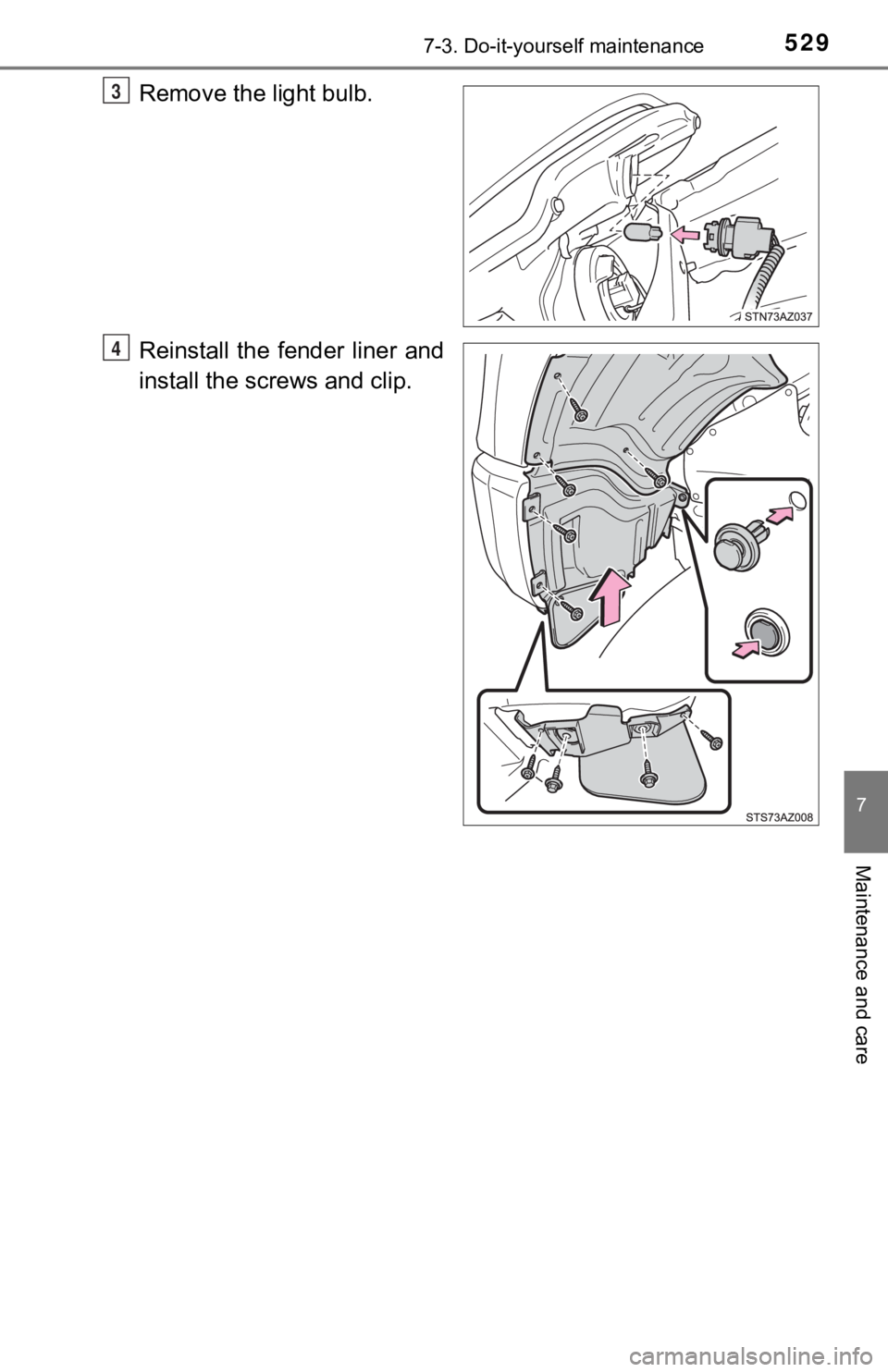

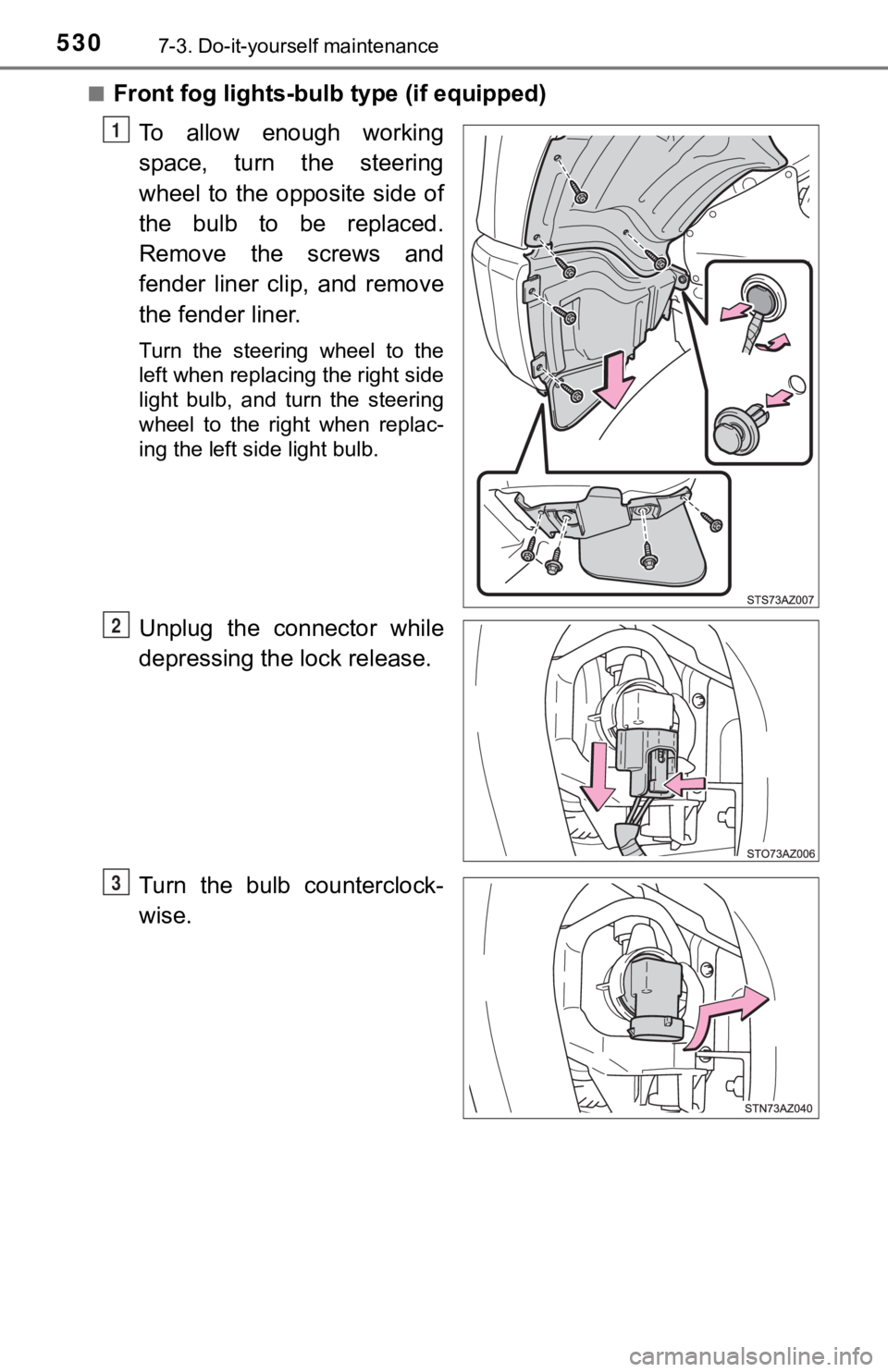

Unplug the connector while
depressing the lock release.
Turn the bulb counterclock-
wise.
1
2
3
