Page 21 of 52
19
SEAT HEATERS (IF EQUIPPED)
SEAT HEATERS & VENTILATORS (IF EQUIPPED)
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU” button and
select “Display”. Select “Camera” to adjust the screen contrast and brightness.
Refer to the Navigation and Multimedia System Owner’s Manual for limitations and
more details on this system.
Rear view monitor system
Seat heaters/ventilators
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Seat heatersSeat ventilators
HiHiMidMidLowLowOffOff
Driver seatDriver seatFront passenger seatFrontpassenger seat
Driver seat
Hi Mid Low Off
Front passenger seat
The engine switch must be in the “ON” position (without Smart Key) / ”IGNITION
ON” mode (with Smart Key) for use.
Page 22 of 52
20
FEATURES & OPERATIONS
Audio
Touch screen display
Turn to tune radio stations manually or select tracks or files
Push to turn ON/OFF, turn to adjust volume
Seek station/track/file select
Push to access hands-free system
Press to display the Toyota apps screen
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
Push to display home screen
Push to display “MENU” screen
Press to display the audio/visual system screen
Press to display the map screen
USB charging-ports
Charge only
The engine switch must be in the “ACC” or “ON” position (without Smart Key) /
“ACCESSARY” or ”IGNITION ON” mode (with Smart Key) for use.
Page 23 of 52
21
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
Multi-Information Display (MID)
Refer to your Owner’s Manual for complete details.
Push “DISP” to scroll through the following:
Drive information
Navigation system-linked display including compass display (if equipped)
Vehicle information
Audio system-linked display
Warning message display
Settings display
“” and “” Press to select an item/change pages
USB media port
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Enter/Set: Press to enter/set, press and hold to reset
Return to previous screen
Switch menus/Display top screen
Page 24 of 52
22
FEATURES & OPERATIONS

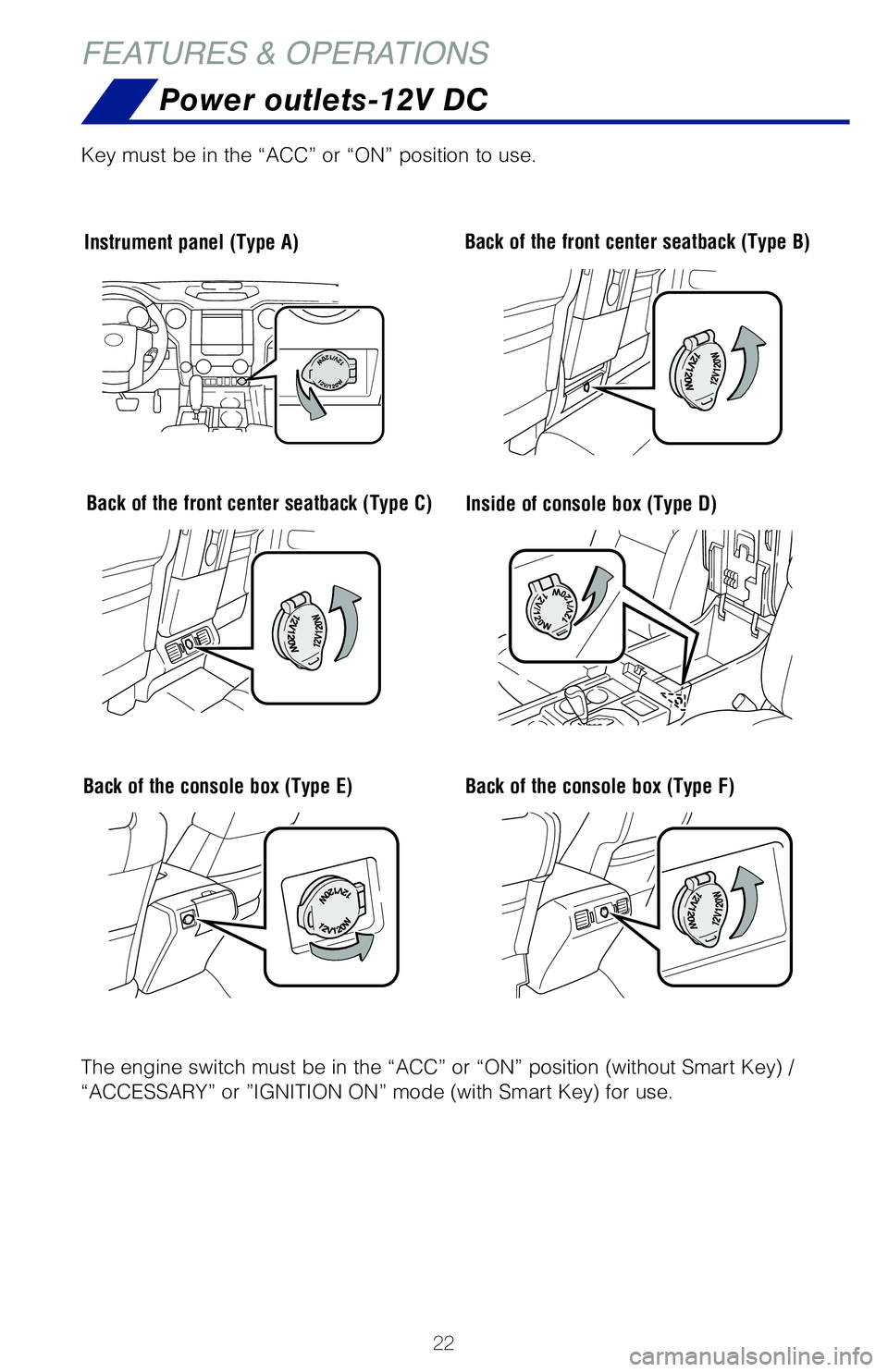

Power outlets-12V DC
Inside of console box (Type D)
Instrument panel (Type A)Back of the front center seatback (Type B)
Back of the front center seatback (Type C)
Key must be in the “ACC” or “ON” position to use.
Back of the console box (Type E)Back of the console box (Type F)
The engine switch must be in the “ACC” or “ON” position (without Smart Key) /
“ACCESSARY” or ”IGNITION ON” mode (with Smart Key) for use.
Page 25 of 52
23
Bluetooth® technology allows dialing or receipt of calls without removing your
hands from the steering wheel.
Refer to the Bluetooth® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
Microphone
Steering wheel telephone switches
Steering wheel switches
& telephone controls (Bluetooth®)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
“MODE/HOLD” Push and hold to mute or pause current operation or change audio source.
“”Use to search within the selected audio feature.
Microphone location may vary by vehicle.
• Make a call • Receive a call• Display “Phone” screen
• End a call• Refuse a call
“-, +” Volume control
Voice command switch
Page 26 of 52
24
FEATURES & OPERATIONS
Push and turnTurn
Shifting between “2WD” and “4H”
Reduce speed to less than 62 mph, then turn control to “2WD” or “4H.”
Shifting between “4H” and “4L”
When stopped shift to “N” position, then push and turn to “4L” from “4H.”
NOTE: For best fuel economy and performance under normal driving
conditions, keep in “2WD” position.
2WDHigh speed (2WD) Normal driving on dry hard-surfaced roads.
4HHigh speed (4WD) For driving only on roads that permit the tires to
slide, like off-road, icy or snow-covered roads.
4L
Low speed (4WD)
For maximum power and traction when climbing or descending steep
hills, off-road driving, and hard pulling in sand, mud or deep snow.
Turn
Two & four-wheel drive selector (if equipped)
The trailer brakes can be controlled by the Trailer brake controller via the 7-pin
connector. By selecting the type of brakes that are being used on the trailer
(electric or electric-over-hydraulic) and setting the gain for the controller, the
manual TRAILER BRAKE OUTPUT slider is used to slow just the trailer. The vehicle
brake pedal will also slow down as well as stop the trailer when applied. Gain
values, manual brake outputs, trailer brake types and the trailer connection status
are displayed in the multi-information display.
Refer to the Owner’s Manual for more details.
Trailer brake controller (if equipped)
Trailer connector indicator
Trailer brake typeGAIN (+/-) selection button
Manual TRAILER
BRAKE OUTPUT slider
Page 27 of 52
25

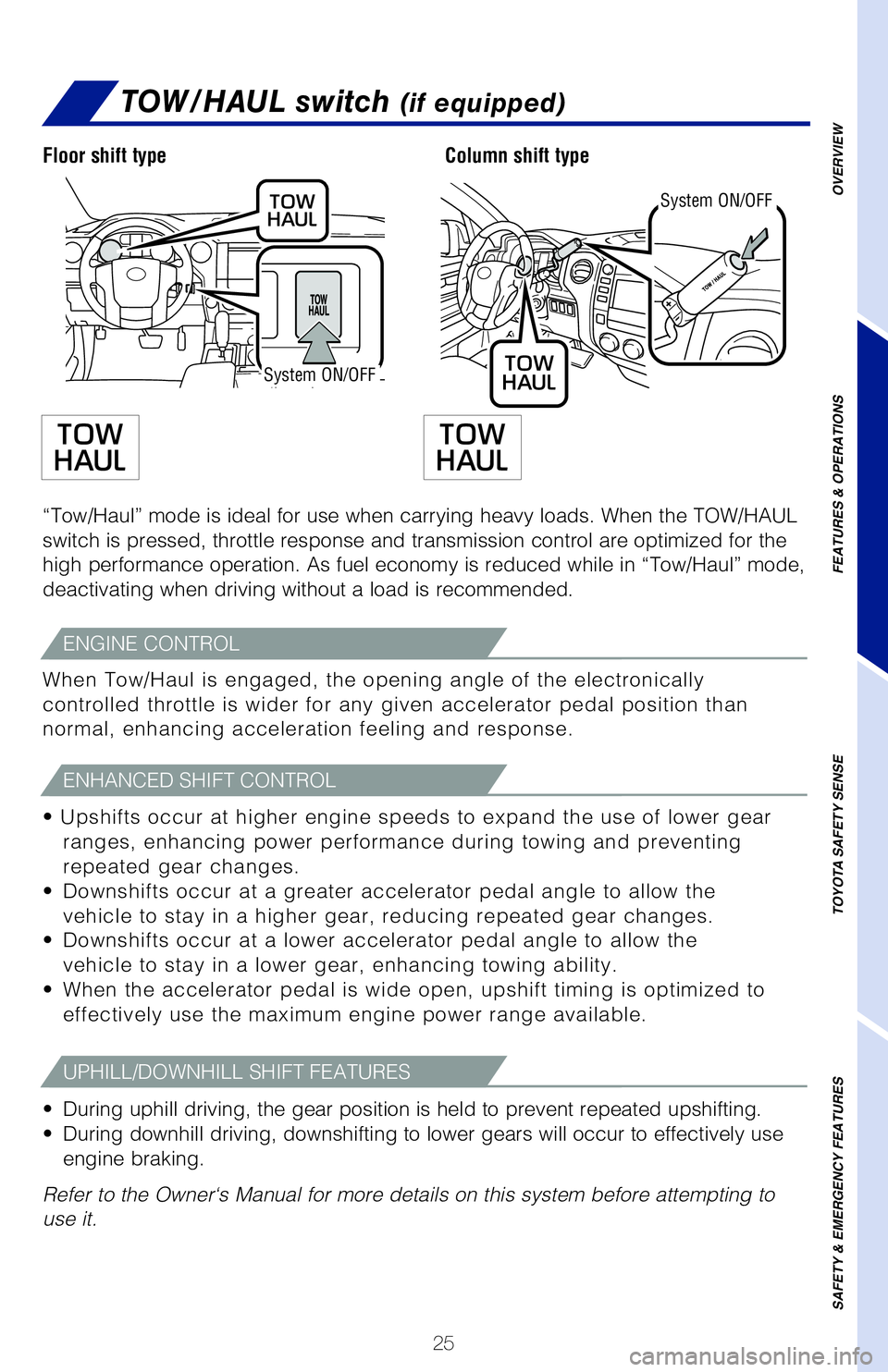

TOW/HAUL switch (if equipped)
“Tow/Haul” mode is ideal for use when carrying heavy loads. When the TOW/HAUL
switch is pressed, throttle response and transmission control are optimized for the
high performance operation. As fuel economy is reduced while in “Tow/Haul” mode,
deactivating when driving without a load is recommended.
• Upshifts occur at higher engine speeds to expand the use of lower gear
ranges, enhancing power performance during towing and preventing
repeated gear changes.
• Downshifts occur at a greater accelerator pedal angle to allow the
vehicle to stay in a higher gear, reducing repeated gear changes.
• Downshifts occur at a lower accelerator pedal angle to allow the
vehicle to stay in a lower gear, enhancing towing ability.
• When the accelerator pedal is wide open, upshift timing is optimized to
effectively use the maximum engine power range available.
When Tow/Haul is engaged, the opening angle of the electronically
controlled throttle is wider for any given accelerator pedal position than
normal, enhancing acceleration feeling and response.
• During uphill driving, the gear position is held to prevent repeated upshifting.
• During downhill driving, downshifting to lower gears will occur to effectively use
engine braking.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.
Floor shift type
System ON/OFF
System ON/OFF
Column shift type
ENGINE CONTROL
ENHANCED SHIFT CONTROL
UPHILL/DOWNHILL SHIFT FEATURES
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Page 28 of 52
26

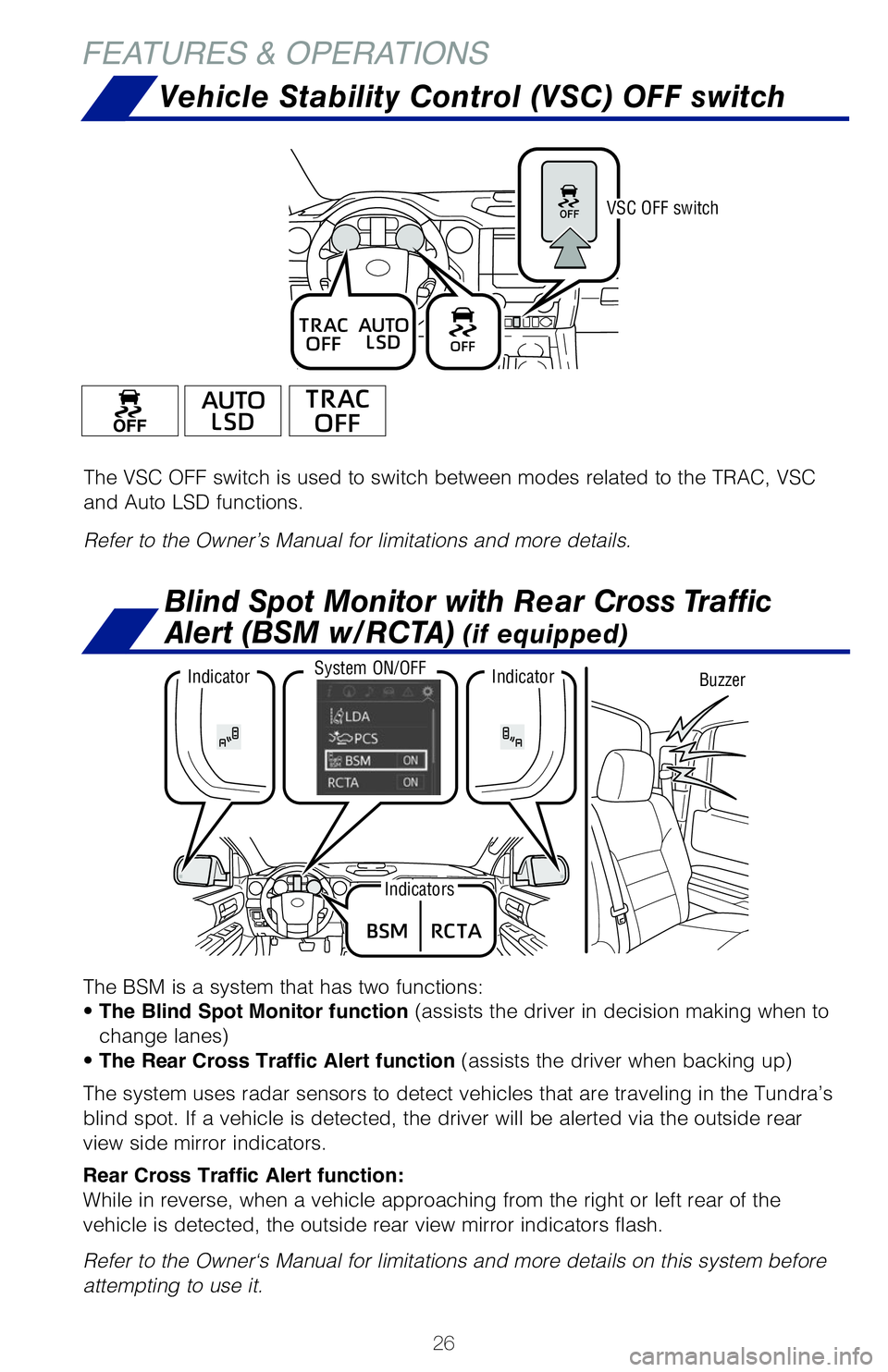

Vehicle Stability Control (VSC) OFF switch
FEATURES & OPERATIONS
The VSC OFF switch is used to switch between modes related to the TRAC, VSC
and Auto LSD functions.
Refer to the Owner’s Manual for limitations and more details.
VSC OFF switch
The BSM is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in decision making when to
change lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system uses radar sensors to detect vehicles that are traveling in the Tundra’s
blind spot. If a vehicle is detected, the driver will be alerted via the outside rear
view side mirror indicators.
Rear Cross Traffic Alert function:
While in reverse, when a vehicle approaching from the right or left rear of the
vehicle is detected, the outside rear view mirror indicators flash.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
BuzzerSystem ON/OFFIndicatorIndicator
Indicators
Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA) (if equipped)
Page 29 of 52
27

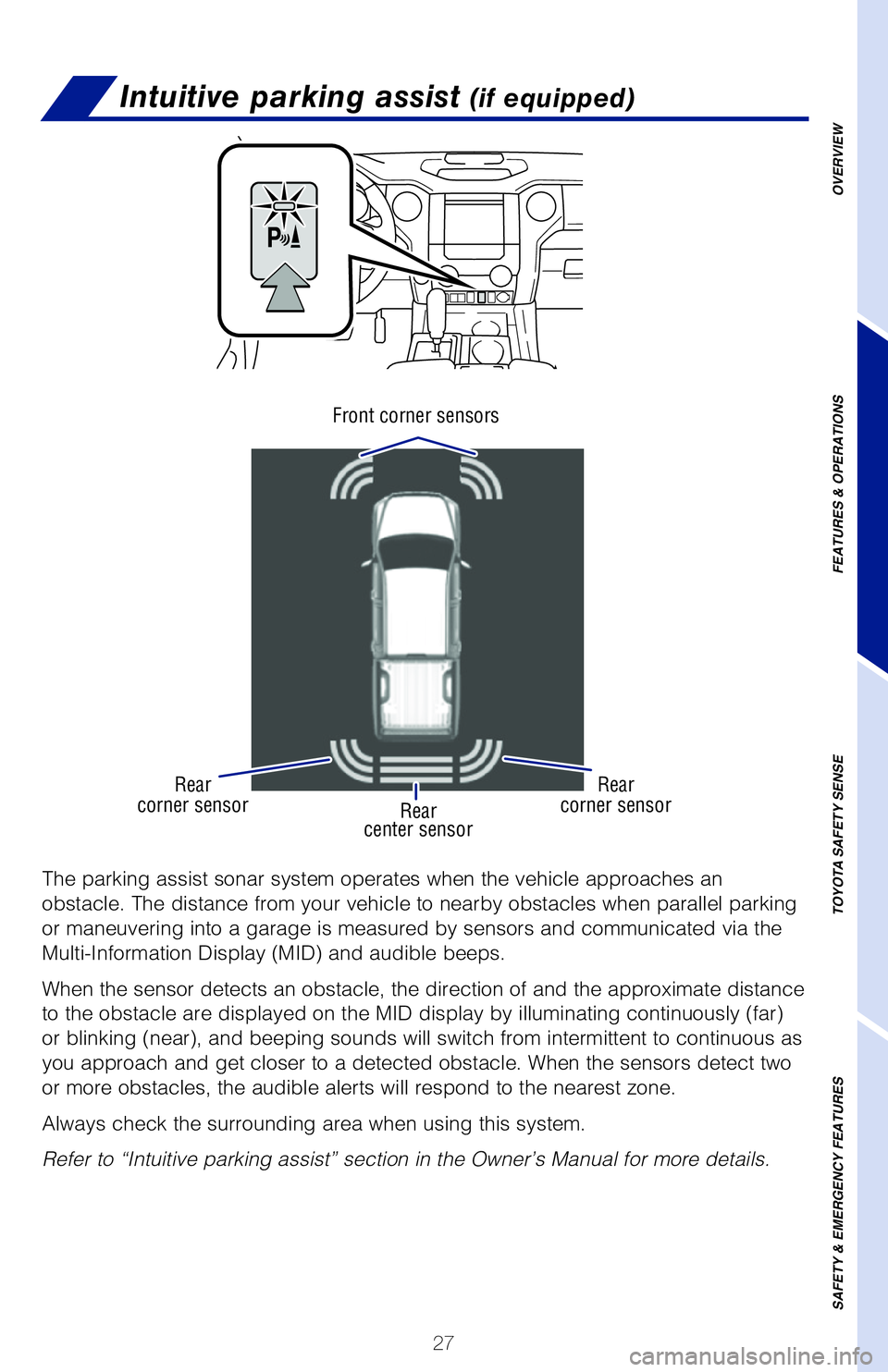

Intuitive parking assist (if equipped)
The parking assist sonar system operates when the vehicle approaches an
obstacle. The distance from your vehicle to nearby obstacles when parallel parking
or maneuvering into a garage is measured by sensors and communicated via the
Multi-Information Display (MID) and audible beeps.
When the sensor detects an obstacle, the direction of and the approximate distance
to the obstacle are displayed on the MID display by illuminating continuously (far)
or blinking (near), and beeping sounds will switch from intermittent to continuous as
you approach and get closer to a detected obstacle. When the sensors detect two
or more obstacles, the audible alerts will respond to the nearest zone.
Always check the surrounding area when using this system.
Refer to “Intuitive parking assist” section in the Owner’s Manual for more details.
Rearcenter sensor
Front corner sensors
Rear corner sensorRear corner sensor
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Page 30 of 52
28

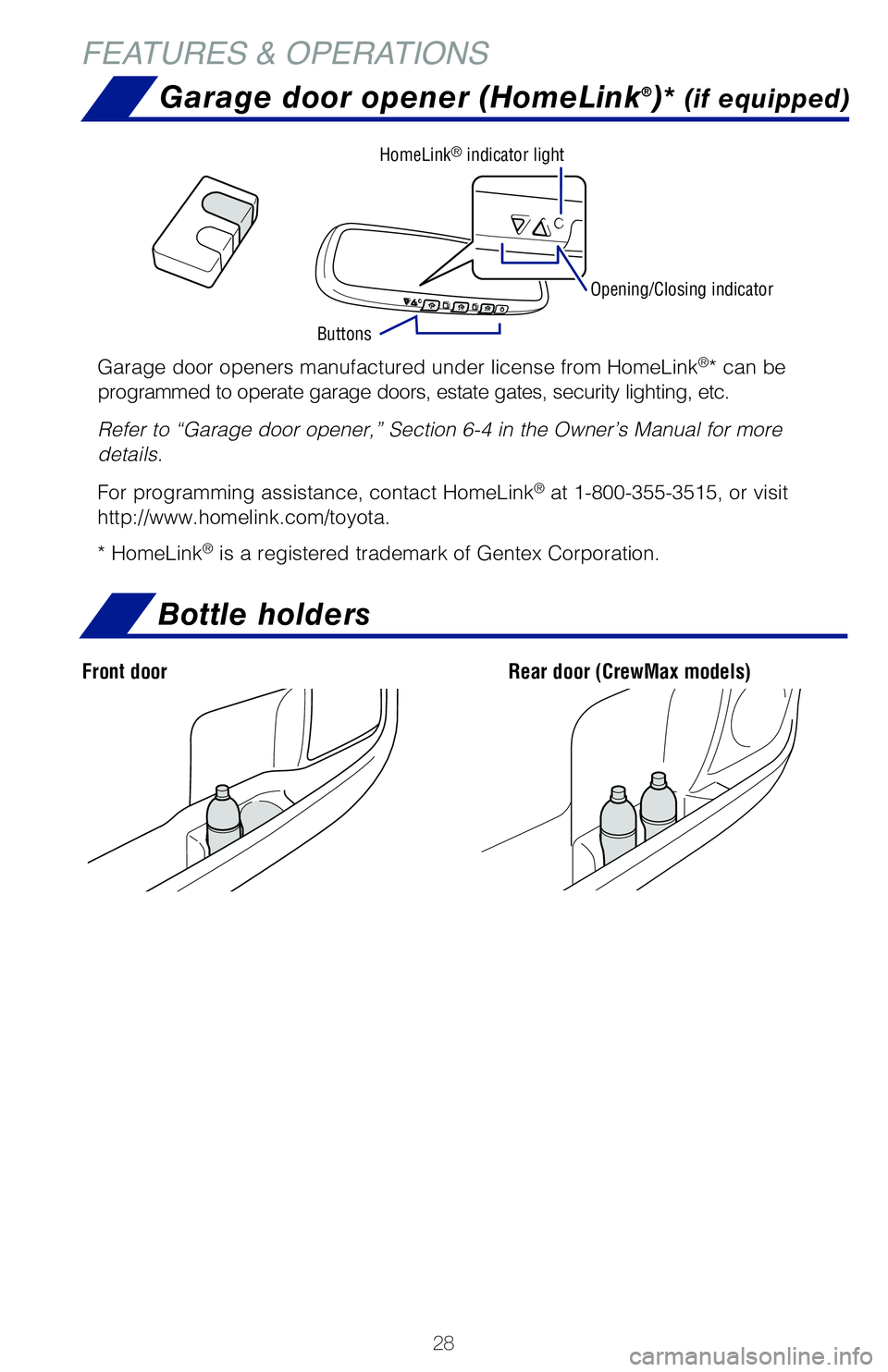

Bottle holders
FEATURES & OPERATIONS
Rear door (CrewMax models)Front door
Garage door opener (HomeLink®)* (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
Opening/Closing indicator
Buttons
HomeLink® indicator light
