TOYOTA TUNDRA HYBRID 2022 Owners Manual

3614-5. Using the driving support systems
Owners Manual_USA_M0C031_en
4
Driving
■Shifting from “4L” to “4H”
1 Stop the vehicle completely
and continue to depress the
brake pedal.
2 Shift the shift lever to N.
3 Push and shift the front-
wheel drive control switch to
“4H”.
The “4L” indicator will go off.
■When the front-wheel drive con-
trol switch is shifted to “4L”
VSC is automatically turned off.
■If the “4H” indicator flashes
The transfer mode may not suc-
cessfully change. Drive straight
ahead while accelerating or deceler-
ating, or drive in reverse.
■If the “4H” indicator is ON and
the “4L” indicator continues to
flash
A message will be displayed in the
multi-information display. Follow a
message, shift the shift lever to D or
R and drive the vehicle slowly, then
stop.
■If the “4H” indicator continues
to flash and the “4L” indicator
is ON
A message will be displayed in the
multi-information display. Follow a
message, shift the shift lever to D or
R and drive the vehicle slowly, then
stop.
■If the “4H” indicator is ON and
the “4L” indicator continues to
flash and a buzzer sounds
The shift lever is not in N and/or the
vehicle is moving . Stop the vehicle
completely, shift th e shift lever to N
and make sure that the indicator
stops flashing.
■If the “4H” indicator continues
to flash and the “4L” indicator
is ON and a buzzer sounds
The shift lever is not in N and/or the
vehicle is moving. Stop the vehicle
completely, shift the shift lever to N
and make sure that the indicator
stops flashing
■If the “4H” and “4L” indicator
flashes rapidly
There may be a malfunction in the
four-wheel drive system. Have the
vehicle inspected by your Toyota
dealer immediately.
■Four-wheel drive usage fre-
quency
You should drive in four-wheel drive
for at least 10 miles (16 km) each
month. This will assure that the front
drive components are lubricated.
WARNING
■Shifting the front-wheel drive
control switch from “2H” to
“4H” while driving
Never operate the front-wheel
drive control switch if the wheels
are slipping. Stop the slipping or
spinning before shifting.
■When the vehicle is parked
If the shift lever is moved before
the “4L” indicator turns on/off, the
transfer mode may not be shifted
completely. The transfer mode
disengages both the front and
rear driveshafts from the power-
train and allows the vehicle to
move regardless of the shift posi-
tion. (At this time, the indicator
blinks and the buzzer sounds.)
Therefore, the vehicle is free to
roll even if the automatic trans-
mission is in P. You or someone
else could be seriously injured.
You must complete the shifting of
the transfer mode before placing
transmission in P.

3624-5. Using the driving support systems
Owners Manual_USA_M0C031_en
*: If equipped
The system can be used only on
2WD models. The system is
activated when driving at a
speed under 62 mph (100
km/h). The AUTO LSD system
will be activated with the follow-
ing two procedures.
To turn the AUTO LSD system
on, quickly press and release .
The “AUTO LSD” indicator light
will come on.
Press again to turn the sys-
tem off.
■If the brake system overheats
The system will cease operation
and a buzzer will alert the driver. At
this time, the “T raction Control
Turned OFF” displayed in the multi-
information display. Stop the vehicle
in a safe place. (There is no prob-
lem with continuing normal driving.)
The system will be automatically
restored after a short time.
AUTO LSD system*
The AUTO LSD system aids
traction by using the trac-
tion control system to con-
trol hybrid system
performance and braking
when one of the drive
wheels begins to spin. The
system should be used only
when one of the drive
wheels spinning occurs in a
ditch or rough surface.
System operation
WARNING
■To avoid an accident
●Do not use the AUTO LSD sys-
tem in conditions other than
when one of the drive wheels
spinning occurs in a ditch or
rough surface.
●Do not drive with the AUTO
LSD system continuously
turned on.
Failure to do so, a much greater
steering effort an d more careful
cornering control will be required.
NOTICE
■Activating while driving
Do not activate the AUTO LSD
system if the wh eel is slipping.
Stop the slipping or spinning
before activating.

3634-5. Using the driving support systems
Owners Manual_USA_M0C031_en
4
Driving
*: If equipped
Press the switch to turn the sys-
tem on/off.
At this time, the rear differential lock
indicator and indicator in the differ-
ential lock/unlock display will blink.
Wait a few seconds for the system
to complete operation. After the
rear different ial is locked, the indi-
cators will stop blinking and remain
on.
To unlock the rear differential, push
the switch again.
■Operating tips
●Be sure to stop the wheels before
locking the differential.
●Unlock the differential as soon as the vehicle moves out.
■Unlocking the rear differential
If the rear different ial lock indicator
still flashes even a fter unlocking the
rear differential, check the safety of
the surrounding area and slightly
turn the steering wheel in either
direction while the vehicle is in
motion.
■Automatic unlocking feature
The rear different ial lock is also
unlocked in any of the following situ-
ations:
●When the front-wheel drive control
switch is turned to “2H” or “4H”
●When the power switch is turned
off
■After unlocking the rear differ-
ential
Check that the indicators go off.
■The rear different ial lock indica-
tor and indicator in the differen-
tial lock/unlock display
●The indicators blink while lock-
ing/unlocking the rear differential.
●If the indicators c ontinue to blink
when you operate the rear differ-
ential lock switch, stop the vehicle
completely and operate the switch
again.
If the indicators continue to blink
even if doing so, have the vehicle
inspected by your Toyota dealer as
soon as possible. There may be a
trouble in the four-wheel drive sys-
tem.
■Locking the rear differential
The following systems do not oper-
ate when the rear differential is
locked.
• ABS
• Brake assist system
• VSC
• Downhill assist control system (if equipped)
•TRAC
Rear differential lock
system*
Use the rear differential lock
system only when wheel
spinning occurs in a ditch
or on a slippery or ragged
surface. This system is
effective in case one of the
rear wheels is spinning.
Rear differential lock
switch

3644-5. Using the driving support systems
Owners Manual_USA_M0C031_en
*: If equipped
WARNING
■When using the rear differen-
tial lock system
Failure to obser ve the following
precautions may result in an acci-
dent.
●Do not lock the rear differential
in the conditions other than
above.
●Do not lock the rear differential
until the wheels have stopped
spinning.
●Do not drive over 5 mph (8
km/h) when the d ifferential is
locked.
●Do not keep driving with the
rear differential lock state
Crawl Control*
Allows travel on extremely
rough off-road surfaces at a
fixed low speed without
pressing the accelerator or
brake pedal. Minimizes loss
of traction or vehicle slip
when driving on slippery
road surfaces, allowing for
stable driving.
WARNING
■When using Crawl Control
function
Do not rely solely on the Crawl
Control function. This function
does not extend the vehicle’s per-
formance limitatio ns. Always thor-
oughly check the road conditions,
and drive safely.
■These conditions may cause
the system not to operate
properly
When driving on the following sur-
faces, the system may not be able
to maintain a fixed low speed,
which may result in an accident:
●Extremely steep inclines.
●Extremely uneven surfaces.
●Snow-covered roads, or other
slippery surfaces.

3654-5. Using the driving support systems
Owners Manual_USA_M0C031_en
4
Driving
“DAC/CRAWL” switch
Mode select switch
Indicators ( P. 8 9 )
1 Press the “DAC/CRAWL”
switch.
The indicator light and the Crawl
Control indicator on the multi-infor-
mation display w ill come on, and
the slip indicator will flash.
2 Turn the mode select switch
left or right to select a mode
on the multi-information dis-
play.
Multi-information display
A mode which matches the road
conditions can be selected from
among the following 5 modes.
Multi-information display
1 “LOW 2”
Suitable for driving on rocky roads
or decline
2“LOW 1”
Suitable for driving on rocky roads,
decline or bumpy incline
System components
Turning Crawl Control onSelectable modes

3664-5. Using the driving support systems
Owners Manual_USA_M0C031_en
3“MID”
Suitable for driving on bumpy
inclines
4“HIGH 1”
Suitable for driving on bumpy
inclines, debris roads, snow-cov-
ered roads, muddy roads, gravel
roads and grass roads
5“HIGH 2”
Suitable for driving on bumpy
inclines, debris roads, snow-cov-
ered roads, muddy roads, gravel
roads and grass roads
When the “DAC/CRAWL”
switch indicator illuminates
Press the “DAC/CRAWL” switch
again.
When the “DAC/CRAWL”
switch indicator does not illu-
minate
Press the “DAC/CRAWL” switch
to turn the indicator on. Press
the “DAC/CRAWL” switch again
with the indicator turned on.
If Crawl Control is turned off, the
Crawl Control indicator and the
slip indicator will go off and a
message, stating that Crawl
Control has been turned off will
be displayed on the multi-infor-
mation display for several sec-
onds.
When turning off Crawl Control
while driving, drive extremely
carefully.
■Operating tips
Crawl Control can be used with
Multi-terrain Select (if equipped) ON
or OFF. ( P.369)
■Operation conditions of the
Crawl Control
●The hybrid system is operating.
●The shift lever is in any gear other
than P or N.
●The front-wheel drive control
switch is in “4L”.
●The driver’s door is closed.
■Automatic system cancelation
of Crawl Control
In the following si tuations, the
buzzer will sound in termittently and
the Crawl Contro l will be canceled
automatically. In this event, the
Crawl Control indica tor will flash and
then go off, and a message stating
that Crawl Control has been turned
off will be displayed on the multi-
information displa y for several sec-
onds.
●When the shift lever is moved to P
or N.
●When the front-wheel drive control
switch is in “4H”.
●When the driver’s door is opened.
■Function limitations of Crawl
Control
●On vehicles with rear differential
lock system, in the following situa-
tions, brake control can be used to
drive downhill at a constant
speed. However, hybrid system
control is not ava ilable when driv-
ing uphill at a c onstant speed.
• When the vehicle speed exceeds approximately 6 mph (10 km/h).
●In the following s ituation, hybrid
system control and brake control
will stop temporarily. In this event,
the Crawl Contro l indicator will
flash.
• With the rear differential is locked:
when the vehicle speed exceeds
Turning Crawl Control off

3674-5. Using the driving support systems
Owners Manual_USA_M0C031_en
4
Driving
approximately 6 mph (10 km/h).
• With the rear d ifferential is
unlocked: when the vehicle speed
exceeds approximately 15 mph
(25 km/h).
■When the Crawl Control sys-
tem is operated continuously
●If Crawl Control is used continu-
ously for a long time, the brake
system overheats . In this case, a
buzzer will sou nd, a message
stating a malfunction will be dis-
played on the multi-information
display, and the Crawl Control
indicator will flash and then go off.
In this event, as Crawl Control will
be temporarily inoperable, stop
the vehicle immediately in a safe
place, and allow the brake system
to cool down suffi ciently until the
message goes off. (In the mean-
time, normal driving is possible.)
●If Crawl Control is used continu-
ously for a long time, the auto-
matic transmission overheats. In
this case, a buzzer will sound, the
system will be temporarily can-
celed, and a message stating a
malfunction may be displayed on
the multi-informat ion display. In
this event, stop th e vehicle in a
safe place until the message goes
off.
■Sounds and vibrations caused
by the Crawl Control system
●A sound may be heard from the
hybrid system compartment when
the hybrid system is started or just
after the vehicle begins to move.
This sound does not indicate that
a malfunction has occurred in
Crawl Control system.
●Either of the following conditions
may occur when the Crawl Control
system is operating. None of
these are indicators that a mal-
function has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after
the vehicle comes to a stop.
■When there is a malfunction in
the system
Warning lights and/or warning mes-
sages will tu rn on. (P.501, 511)

3684-5. Using the driving support systems
Owners Manual_USA_M0C031_en
*: If equipped
“MTS” switch
Mode select switch
Multi-information display
Selected mode is displayed.
1Press the “MTS” switch.
The indicator on the switch will
Multi-terrain Select*
Multi-terrain Select is a sys-
tem that improves drivabil-
ity in off-road situations.
Select a mode that most
closely matches the type of
terrain on which you are driv-
ing from several modes.
Brake control, steering feel
and drive force control can be
optimized in accordance with
the selected mode.
WARNING
■When using the Multi-terrain
Select
Observe the following precautions
to avoid an accident that could
result in death or serious injuries:
●Check that the selected mode
indicators are illuminated before
driving. Multi-terrain Select will
not operate when the indicators
are off.
●The road conditions listed
(  P.369) are for reference only.
There is a chanc e that the func-
tion may not be the most appro-
priate in terms of road
conditions such as pitch, slip-
periness, undulation, etc. Thor-
oughly check the road
conditions before driving.
●Multi-terrain Select is not
intended to expand the limits of
the vehicle. Check the road con-
ditions thoroughly beforehand,
and drive safely and carefully.
NOTICE
■Precaution for use
The Multi-terrain Select is
intended for use during off-road
driving. Do not use the system at
any other time.
System components
Switching modes

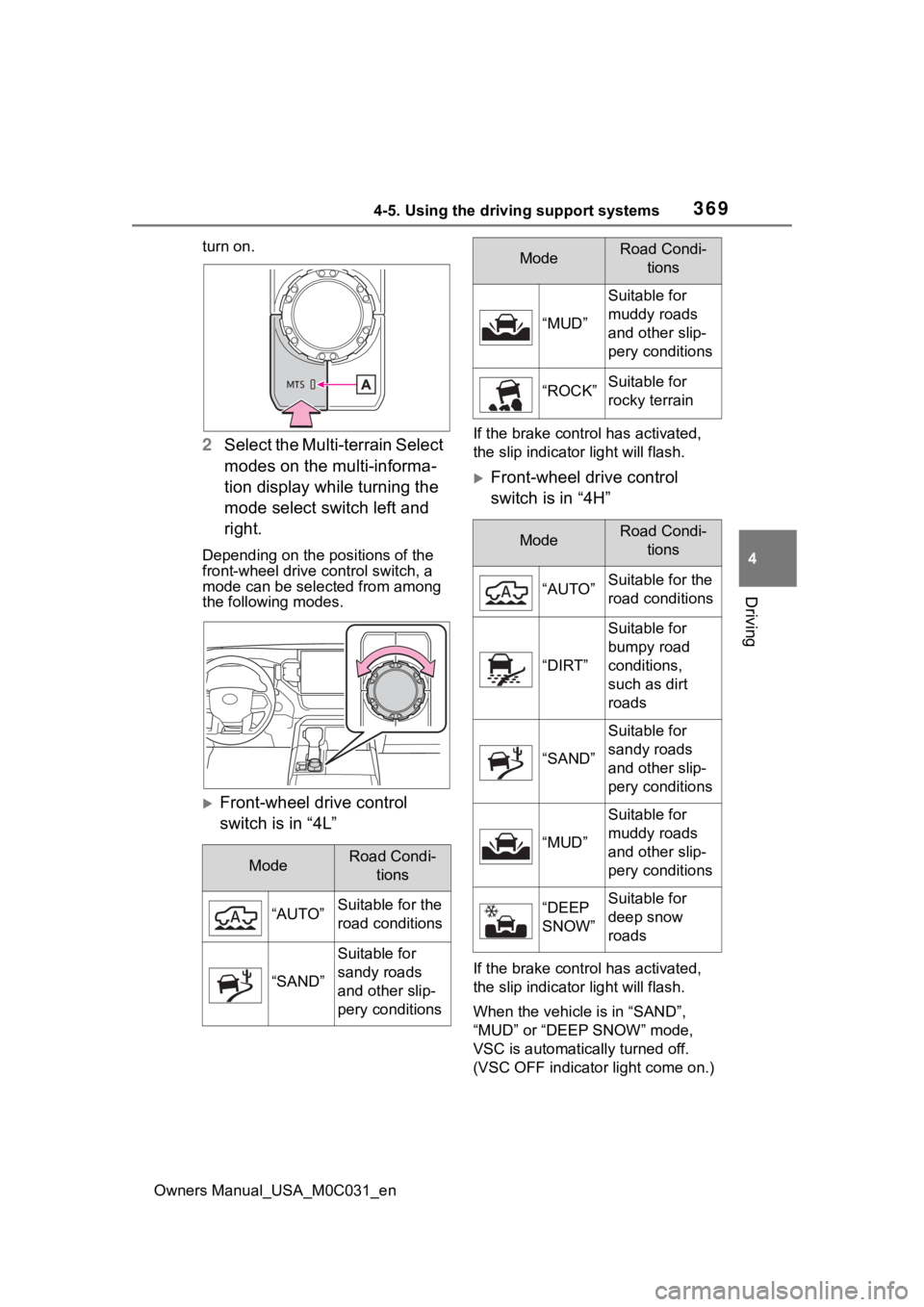

3694-5. Using the driving support systems
Owners Manual_USA_M0C031_en
4
Driving
turn on.
2 Select the Multi-terrain Select
modes on the multi-informa-
tion display while turning the
mode select switch left and
right.
Depending on the positions of the
front-wheel drive control switch, a
mode can be selected from among
the following modes.
Front-wheel drive control
switch is in “4L”
If the brake control has activated,
the slip indicator light will flash.
Front-wheel drive control
switch is in “4H”
If the brake control has activated,
the slip indicator light will flash.
When the vehicle is in “SAND”,
“MUD” or “DEEP SNOW” mode,
VSC is automatica lly turned off.
(VSC OFF indicator light come on.)
ModeRoad Condi- tions
“AUTO”Suitable for the
road conditions
“SAND”
Suitable for
sandy roads
and other slip-
pery conditions
“MUD”
Suitable for
muddy roads
and other slip-
pery conditions
“ROCK”Suitable for
rocky terrain
ModeRoad Condi- tions
“AUTO”Suitable for the
road conditions
“DIRT”
Suitable for
bumpy road
conditions,
such as dirt
roads
“SAND”
Suitable for
sandy roads
and other slip-
pery conditions
“MUD”
Suitable for
muddy roads
and other slip-
pery conditions
“DEEP
SNOW”Suitable for
deep snow
roads
ModeRoad Condi-tions

3704-5. Using the driving support systems
Owners Manual_USA_M0C031_en
■Multi-terrain Select
Multi-terrain Sel ect controls the
vehicle so that i t can maximize the
drive force and imp rove drivability
on rough roads. As a result, fuel effi-
ciency may diminish when com-
pared to driving in normal mode.
■Automatic system cancelation
In the following situations, Multi-ter-
rain Select will be canceled auto-
matically.
●When the power switch is turned
off
●When the front-wheel drive control
switch is in “2H”
●When “TOW HAUL” mode and
“TOW+” mode is selected while
the front-wheel drive control
switch is in “4H”
●When drive mode select is
selected while the front-wheel
drive control switch is in “4H”
■Turning off Mult i-terrain Select
Performing the following turns Multi-
terrain Select off, and then the dis-
play on the multi-information display
will disappear.
When the “MTS” switch indicator
is illuminated
Press the “MTS” switch while the
system is in operation.
When the “MTS” switch indicator
is not illuminated
Press the “MTS” switch to turn the
indicator on.
Press the “MTS” switch again with
the Multi-terr ain Select indicator illu-
minated.
■When the vehic le is stuck
Switching the transfer and differen-
tial For the operation of the following
functions, refer to the following
pages. (If equipped)
●Four-wheel drive system
(  P.361)
●Rear differential lock ( P.364)
■Driving in Multi-terrain Select
The following types of situations
may occur, but they are not malfunc-
tions.
●Vibrations may be felt throughout
the vehicle or steering wheel.
●Operating noise may be heard
from the hybrid system compart-
ment.
■When an inspection at your
Toyota dealer is necessary
In the following situ ations, the sys-
tem may be malf unctioning. Have
the vehicle inspected by your Toyota
dealer immediately.
●When the slip indica tor light illumi-
nates.
●When the indicator for each mode
does not illuminate on the multi-
information display even though
Multi-terrain Select is selected.
