391 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)

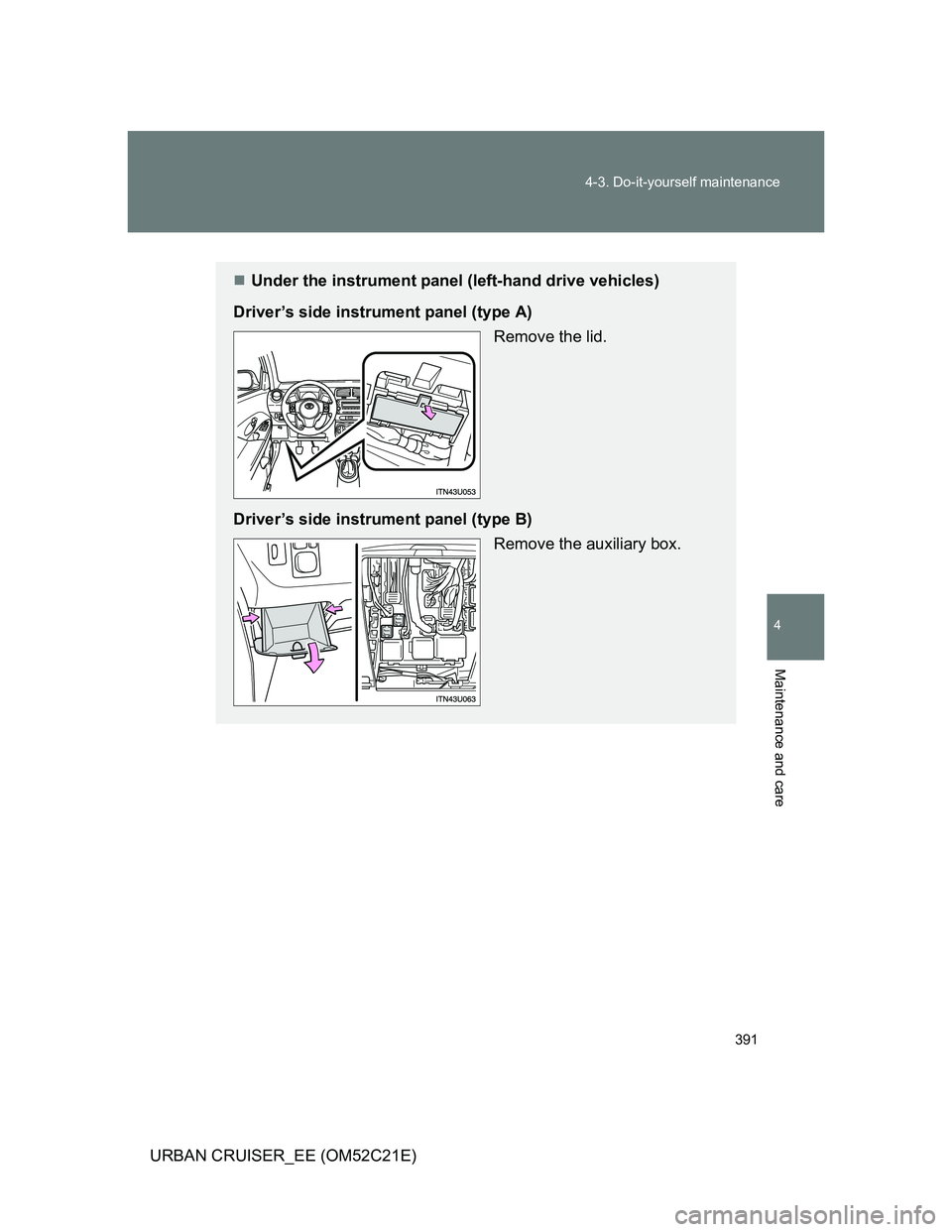

Under the instrument panel (left-hand drive vehicles)
Driver’s side instrument panel (type A)
Remove the lid.
Driver’s side instrument panel (type B)
Remove the auxiliary box.

392 4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)

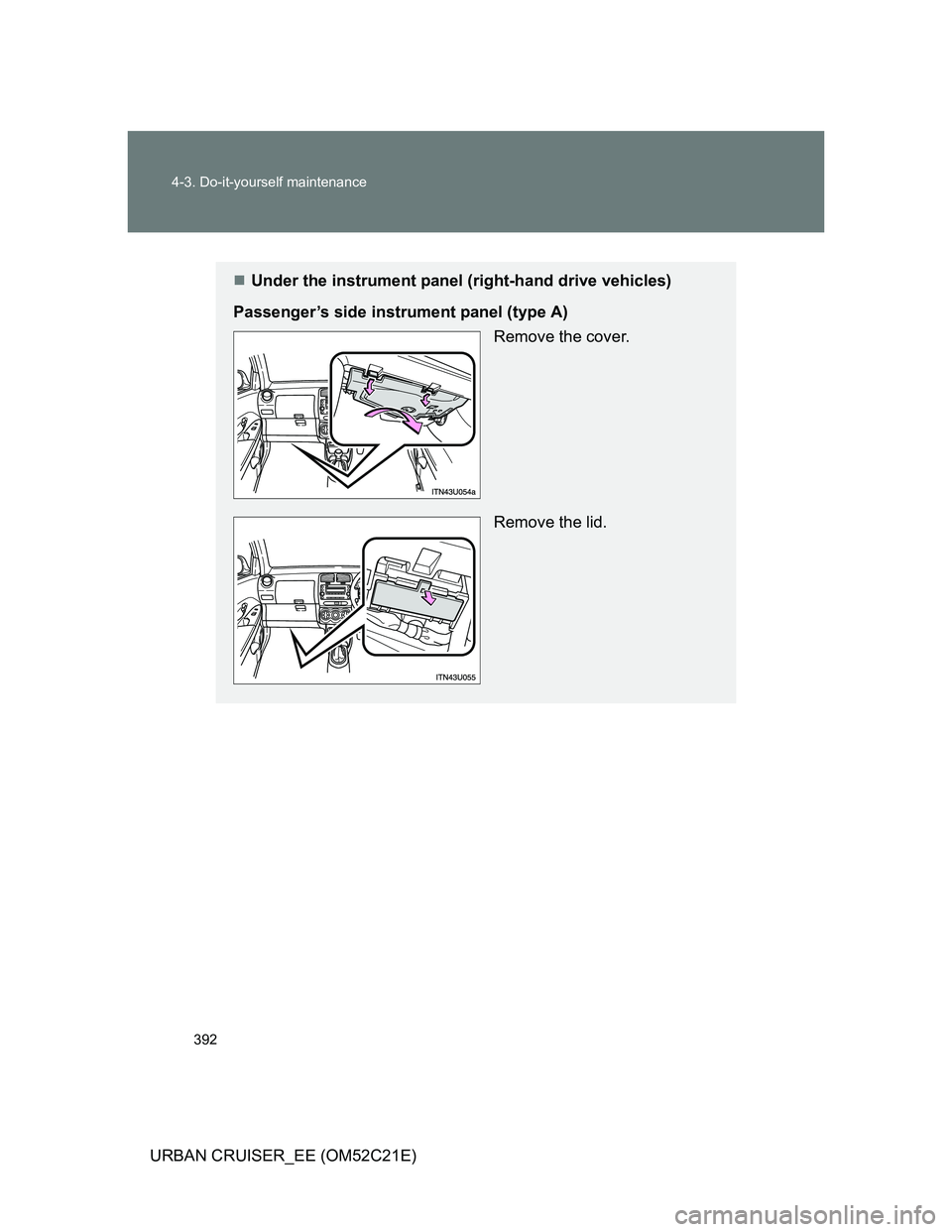

Under the instrument panel (right-hand drive vehicles)
Passenger’s side instrument panel (type A)
Remove the cover.
Remove the lid.

393 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)

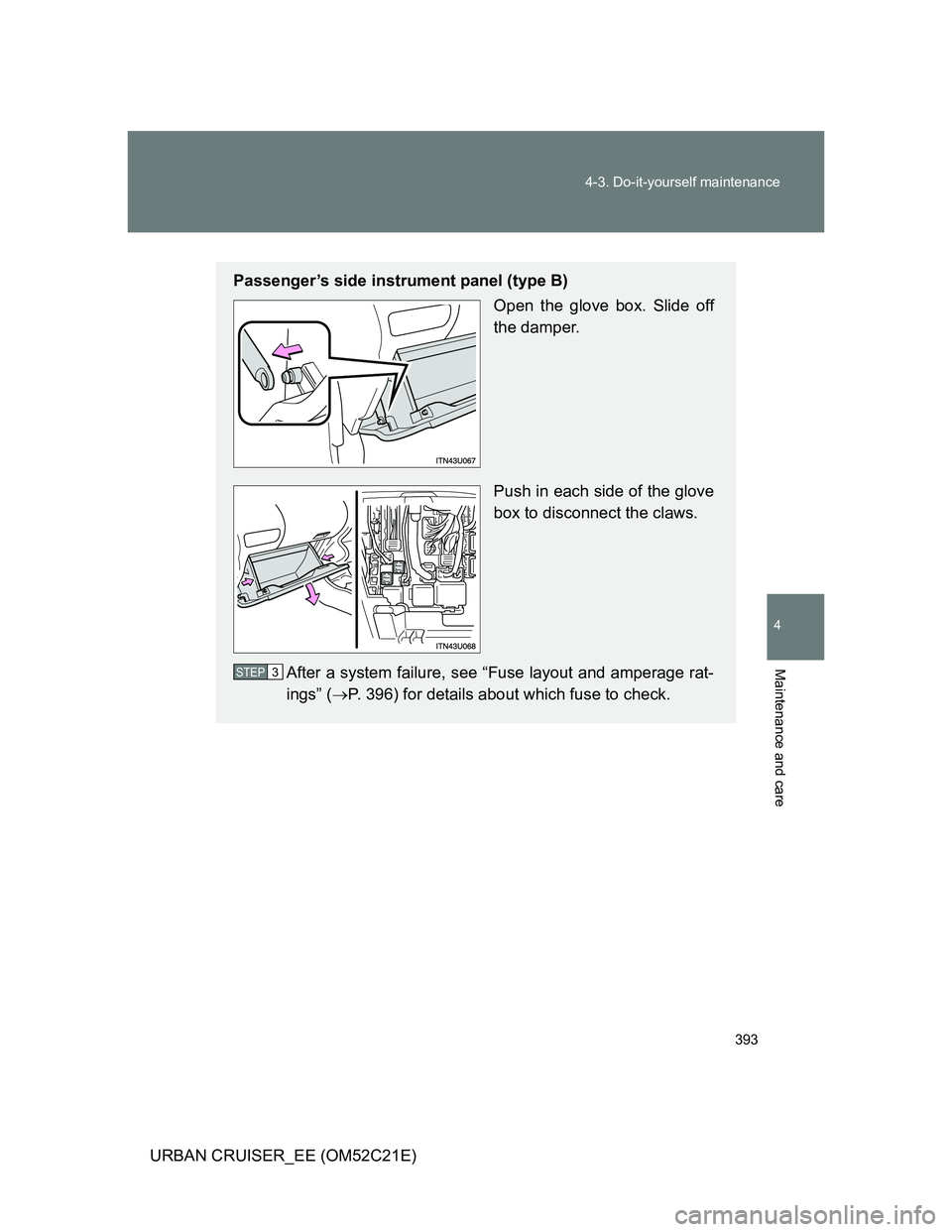

Passenger’s side instrument panel (type B)
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 396) for details about which fuse to check.
STEP3

394 4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)

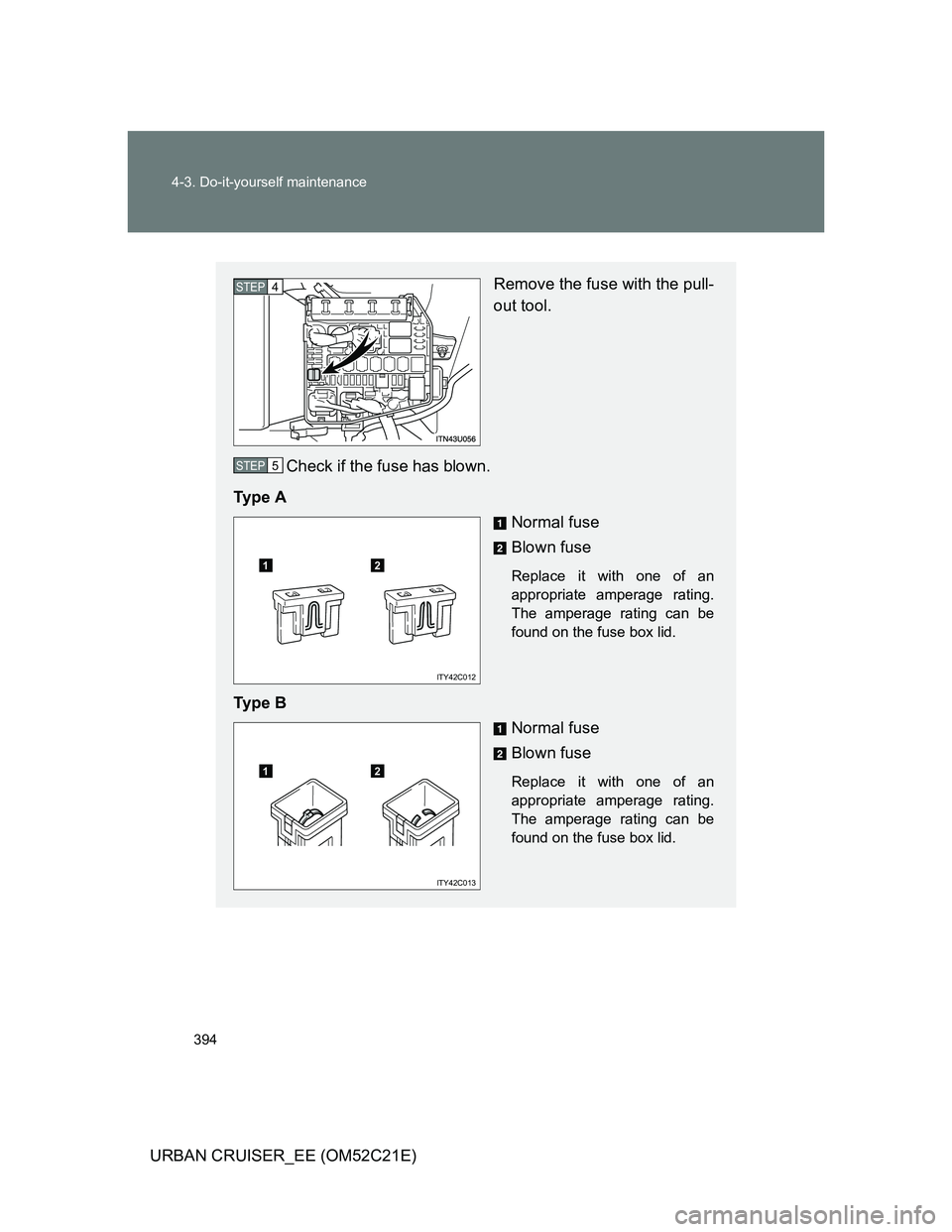

Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5
12
ITY42C012
12
ITY42C013

395 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)

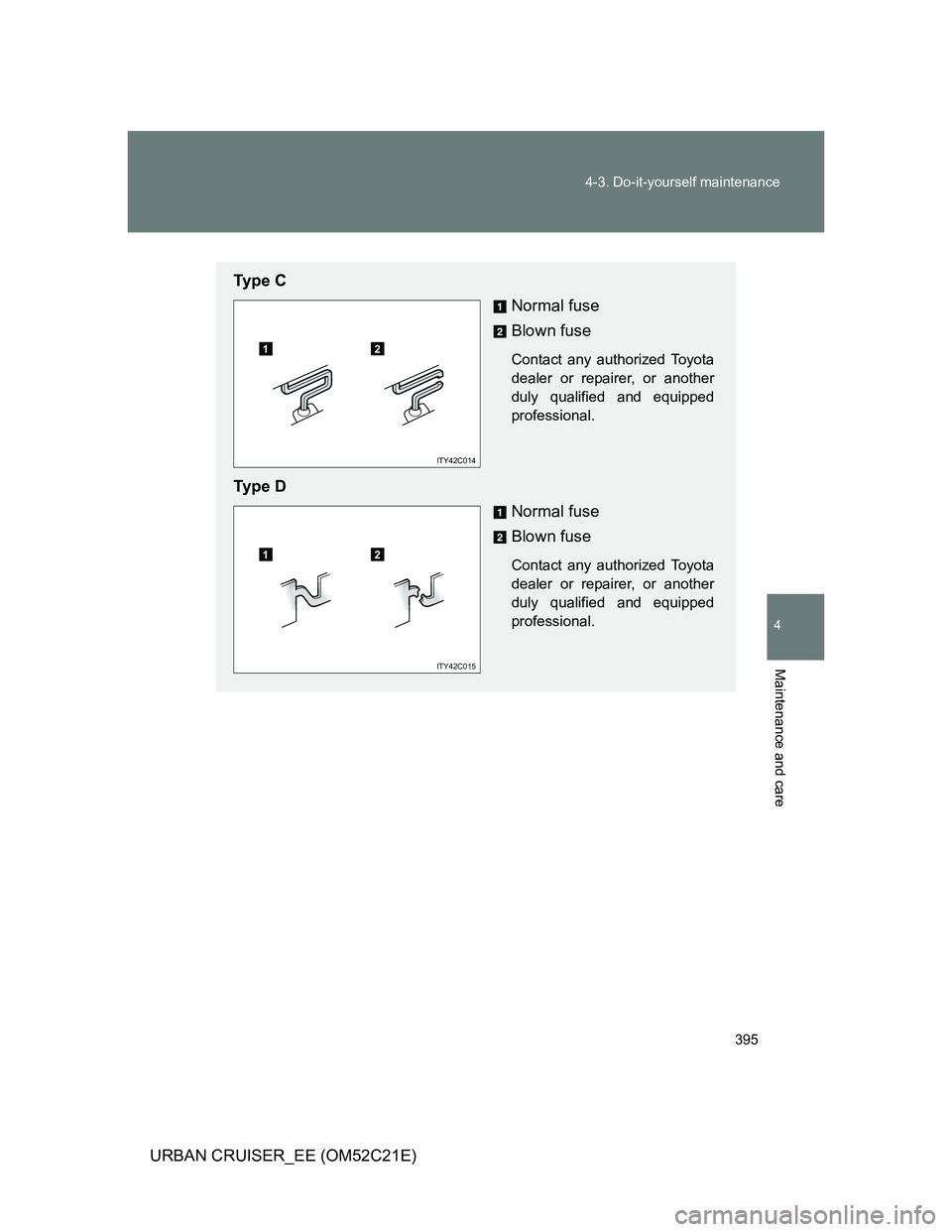

Ty p e C
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Ty p e D
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
12
ITY42C014
12
ITY42C015

396 4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)

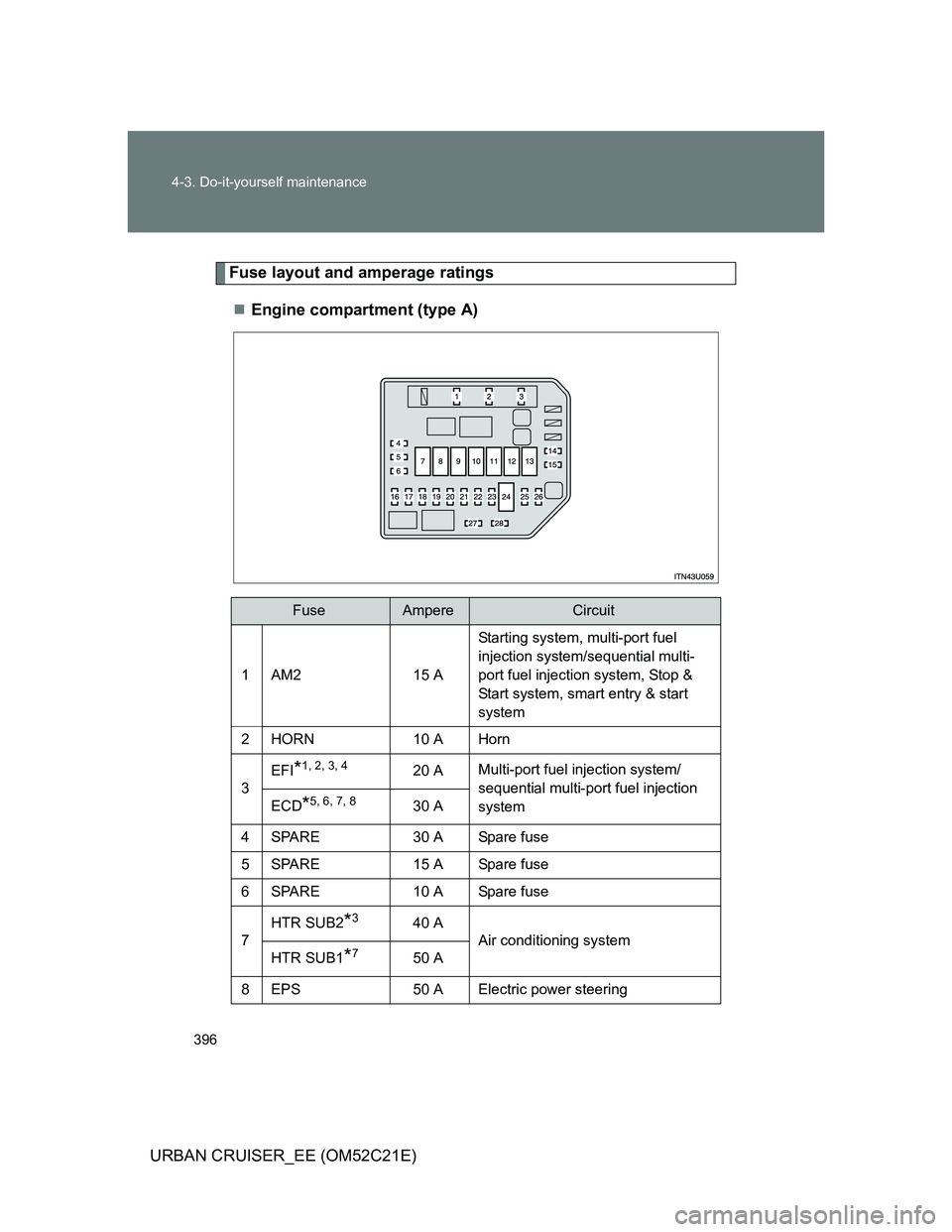

Fuse layout and amperage ratings
Engine compartment (type A)
FuseAmpereCircuit
1AM215 AStarting system, multi-port fuel
injection system/sequential multi-
port fuel injection system, Stop &
Start system, smart entry & start
system
2HORN10 A Horn
3
EFI*1, 2, 3, 420 AMulti-port fuel injection system/
sequential multi-port fuel injection
system
ECD*5, 6, 7, 830 A
4 SPARE 30 A Spare fuse
5 SPARE 15 A Spare fuse
6 SPARE 10 A Spare fuse
7HTR SUB2
*340 A
Air conditioning system
HTR SUB1
*750 A
8 EPS 50 A Electric power steering

397 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)

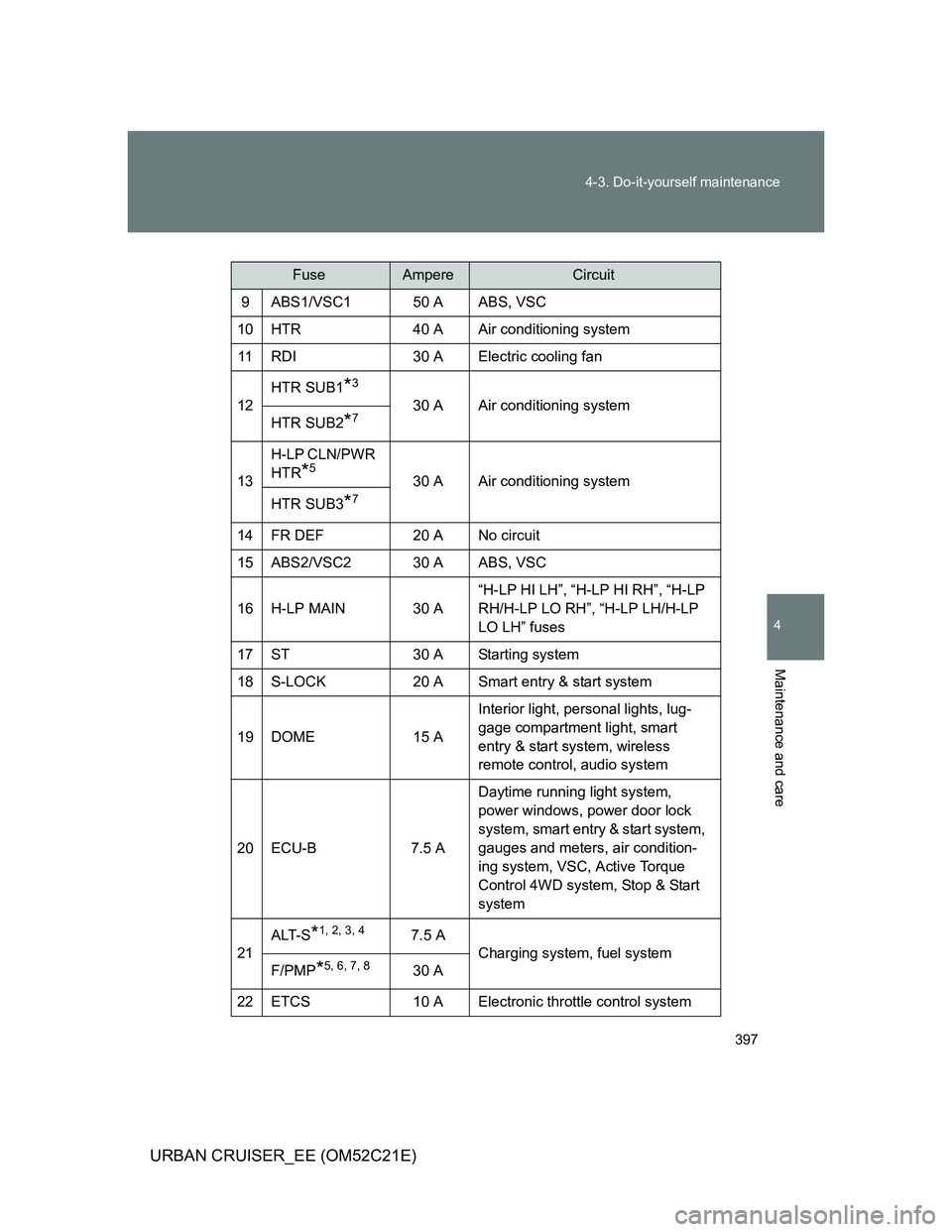

FuseAmpereCircuit
9 ABS1/VSC1 50 A ABS, VSC
10 HTR 40 A Air conditioning system
11 RDI 30 A Electric cooling fan
12
HTR SUB1*3
30 A Air conditioning system
HTR SUB2*7
13H-LP CLN/PWR
HTR*530 A Air conditioning system
HTR SUB3
*7
14 FR DEF 20 A No circuit
15 ABS2/VSC2 30 A ABS, VSC
16 H-LP MAIN 30 A“H-LP HI LH”, “H-LP HI RH”, “H-LP
RH/H-LP LO RH”, “H-LP LH/H-LP
LO LH” fuses
17 ST 30 A Starting system
18 S-LOCK 20 A Smart entry & start system
19 DOME 15 AInterior light, personal lights, lug-
gage compartment light, smart
entry & start system, wireless
remote control, audio system
20 ECU-B 7.5 ADaytime running light system,
power windows, power door lock
system, smart entry & start system,
gauges and meters, air condition-
ing system, VSC, Active Torque
Control 4WD system, Stop & Start
system
21
ALT-S*1, 2, 3, 47.5 A
Charging system, fuel system
F/PMP*5, 6, 7, 830 A
22 ETCS 10 A Electronic throttle control system

398 4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)

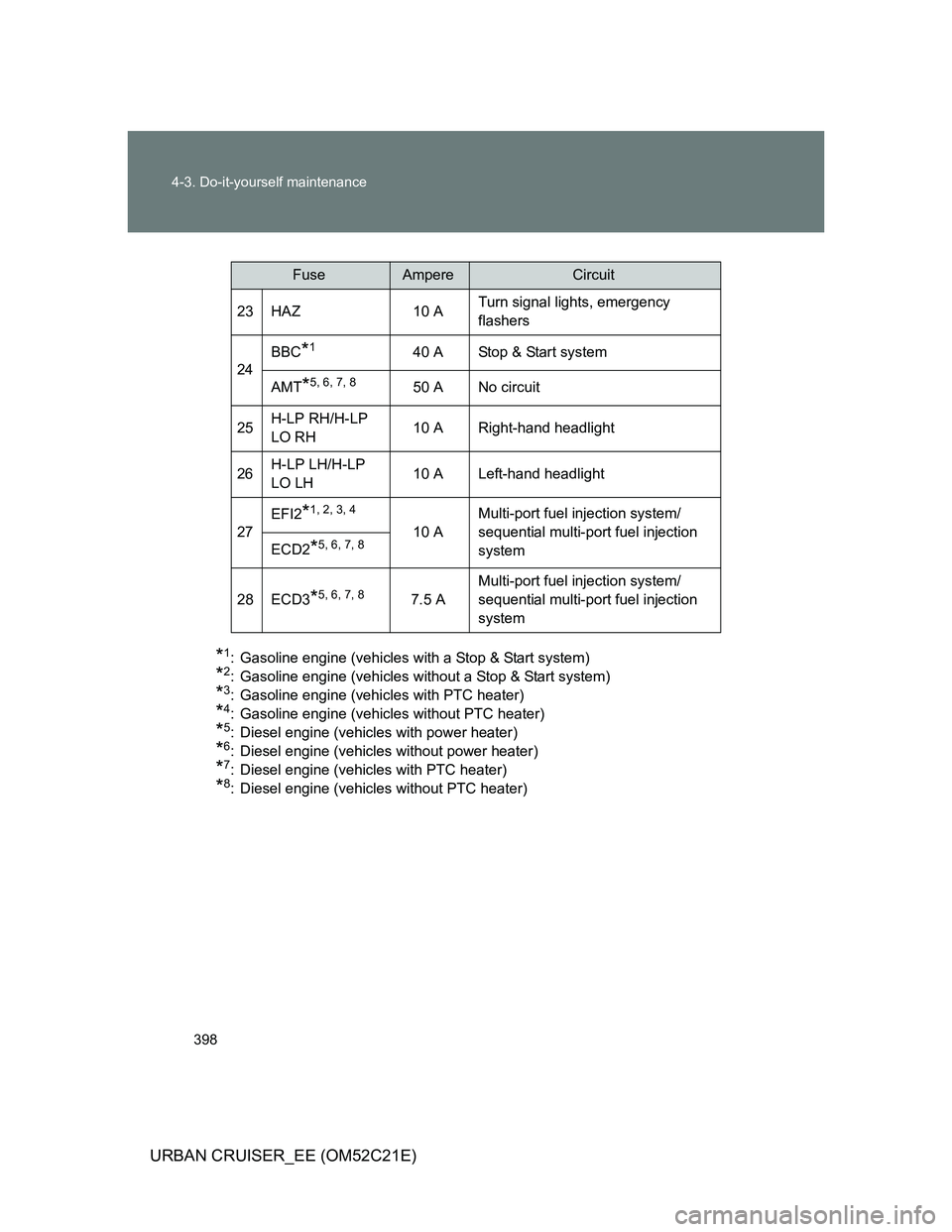

*1: Gasoline engine (vehicles with a Stop & Start system)
*2: Gasoline engine (vehicles without a Stop & Start system)
*3: Gasoline engine (vehicles with PTC heater)
*4: Gasoline engine (vehicles without PTC heater)
*5: Diesel engine (vehicles with power heater)
*6: Diesel engine (vehicles without power heater)
*7: Diesel engine (vehicles with PTC heater)
*8: Diesel engine (vehicles without PTC heater)
FuseAmpereCircuit
23 HAZ 10 ATurn signal lights, emergency
flashers
24
BBC*140 A Stop & Start system
AMT*5, 6, 7, 850 A No circuit
25H-LP RH/H-LP
LO RH10 A Right-hand headlight
26H-LP LH/H-LP
LO LH10 A Left-hand headlight
27EFI2
*1, 2, 3, 4
10 AMulti-port fuel injection system/
sequential multi-port fuel injection
system ECD2
*5, 6, 7, 8
28 ECD3*5, 6, 7, 87.5 AMulti-port fuel injection system/
sequential multi-port fuel injection
system

399 4-3. Do-it-yourself maintenance
4
Maintenance and care

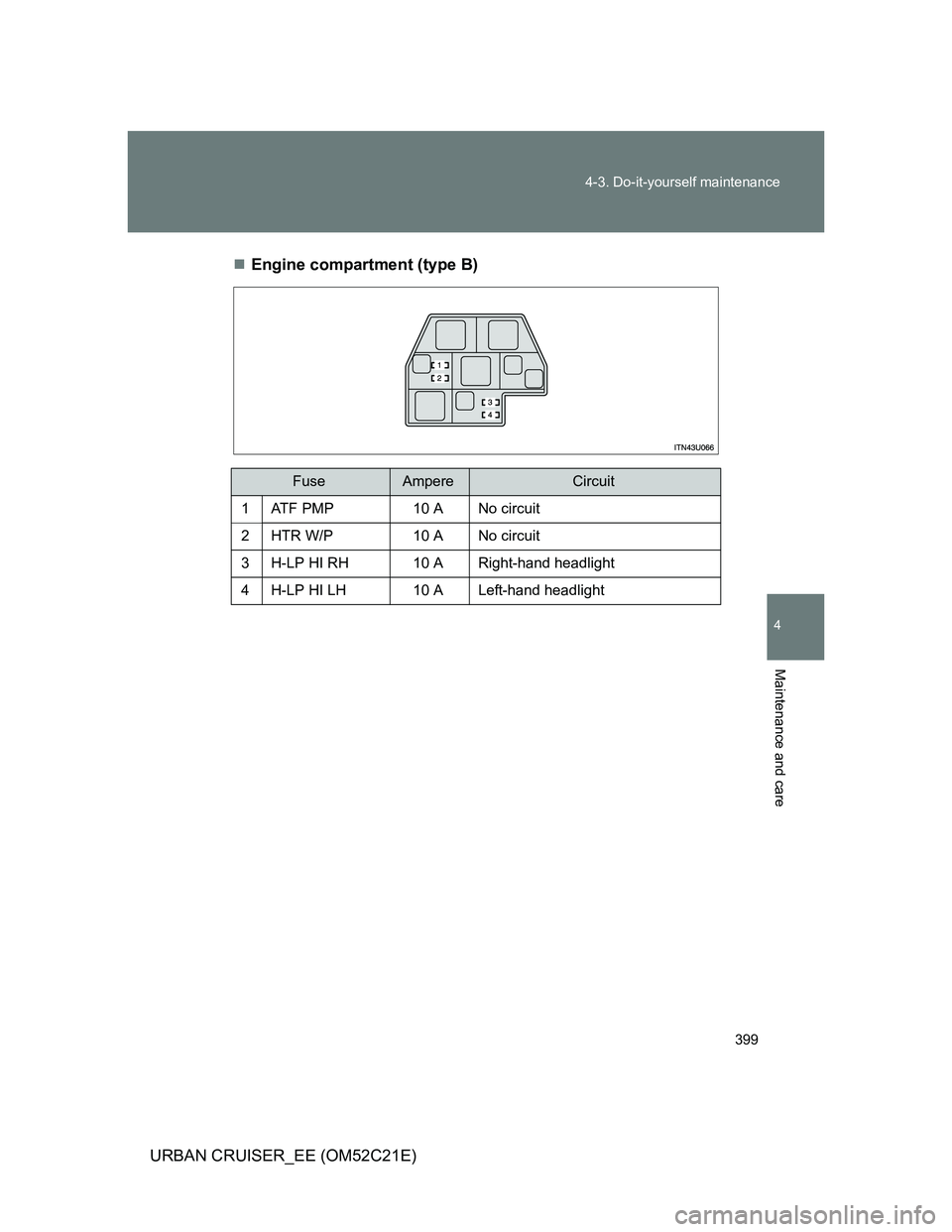

URBAN CRUISER_EE (OM52C21E)Engine compartment (type B)
FuseAmpereCircuit
1AT F P M P10 A No circuit
2HTR W/P10 A No circuit
3H-LP HI RH10 A Right-hand headlight
4H-LP HI LH
10 A Left-hand headlight

400 4-3. Do-it-yourself maintenance

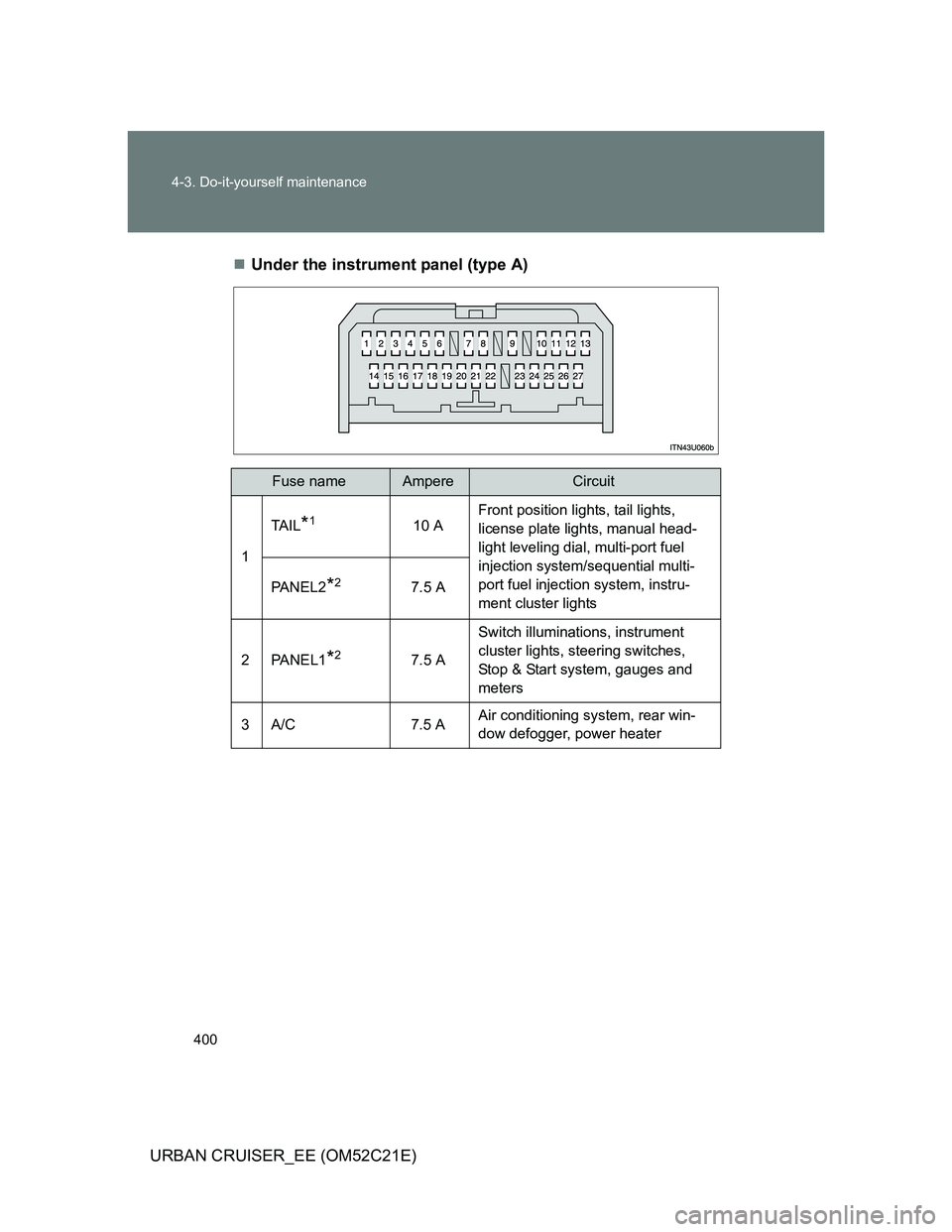

URBAN CRUISER_EE (OM52C21E)Under the instrument panel (type A)
Fuse nameAmpereCircuit
1TA I L
*110 AFront position lights, tail lights,
license plate lights, manual head-
light leveling dial, multi-port fuel
injection system/sequential multi-
port fuel injection system, instru-
ment cluster lights PA N E L 2
*27.5 A
2 PANEL1
*27.5 ASwitch illuminations, instrument
cluster lights, steering switches,
Stop & Start system, gauges and
meters
3A/C 7.5 AAir conditioning system, rear win-
dow defogger, power heater
