401 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)

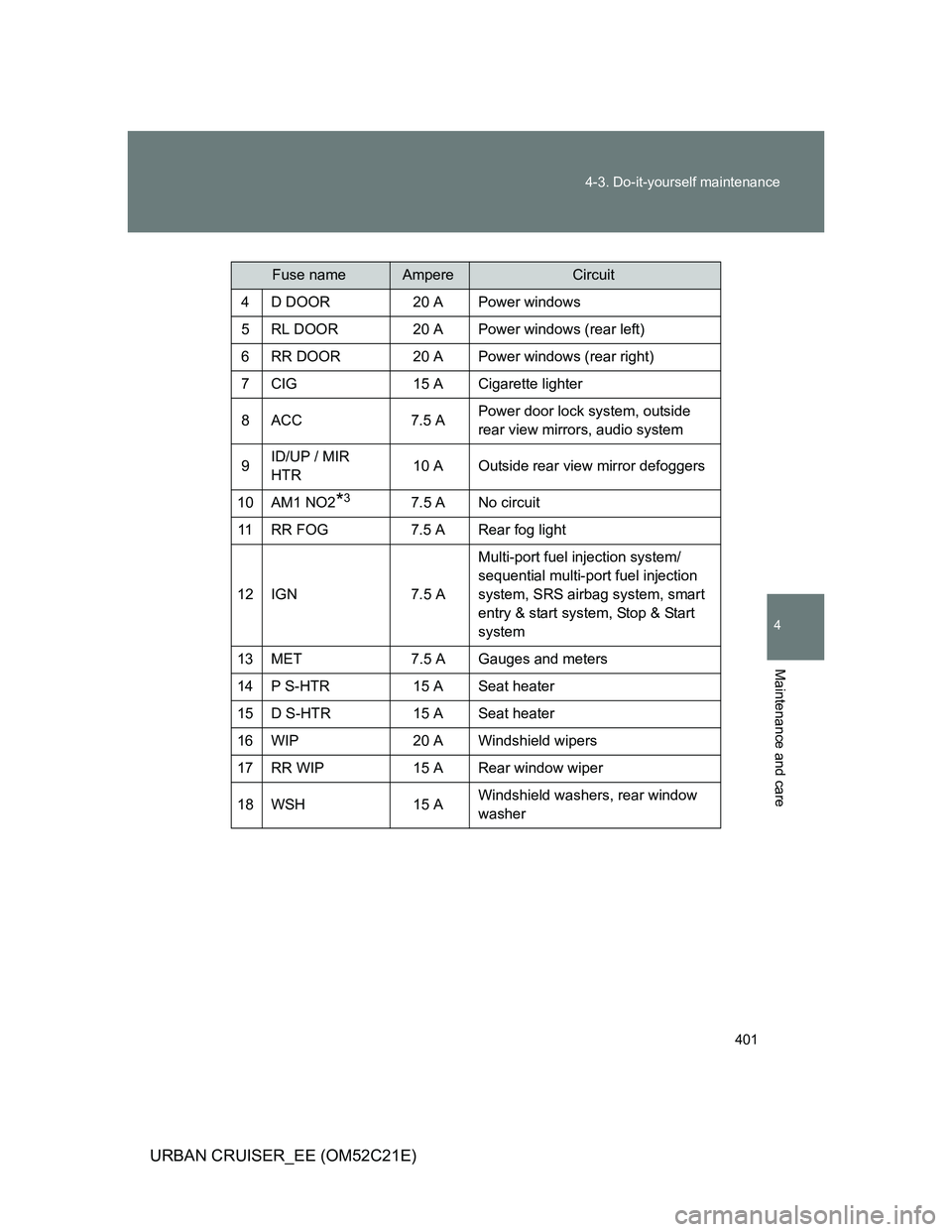

Fuse nameAmpereCircuit
4 D DOOR 20 A Power windows
5 RL DOOR 20 A Power windows (rear left)
6 RR DOOR 20 A Power windows (rear right)
7 CIG 15 A Cigarette lighter
8ACC 7.5 APower door lock system, outside
rear view mirrors, audio system
9ID/UP / MIR
HTR10 A Outside rear view mirror defoggers
10 AM1 NO2
*37.5 A No circuit
11 RR FOG 7.5 A Rear fog light
12 IGN 7.5 AMulti-port fuel injection system/
sequential multi-port fuel injection
system, SRS airbag system, smart
entry & start system, Stop & Start
system
13 MET 7.5 A Gauges and meters
14 P S-HTR 15 A Seat heater
15 D S-HTR 15 A Seat heater
16 WIP 20 A Windshield wipers
17 RR WIP 15 A Rear window wiper
18 WSH 15 AWindshield washers, rear window
washer

402 4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)

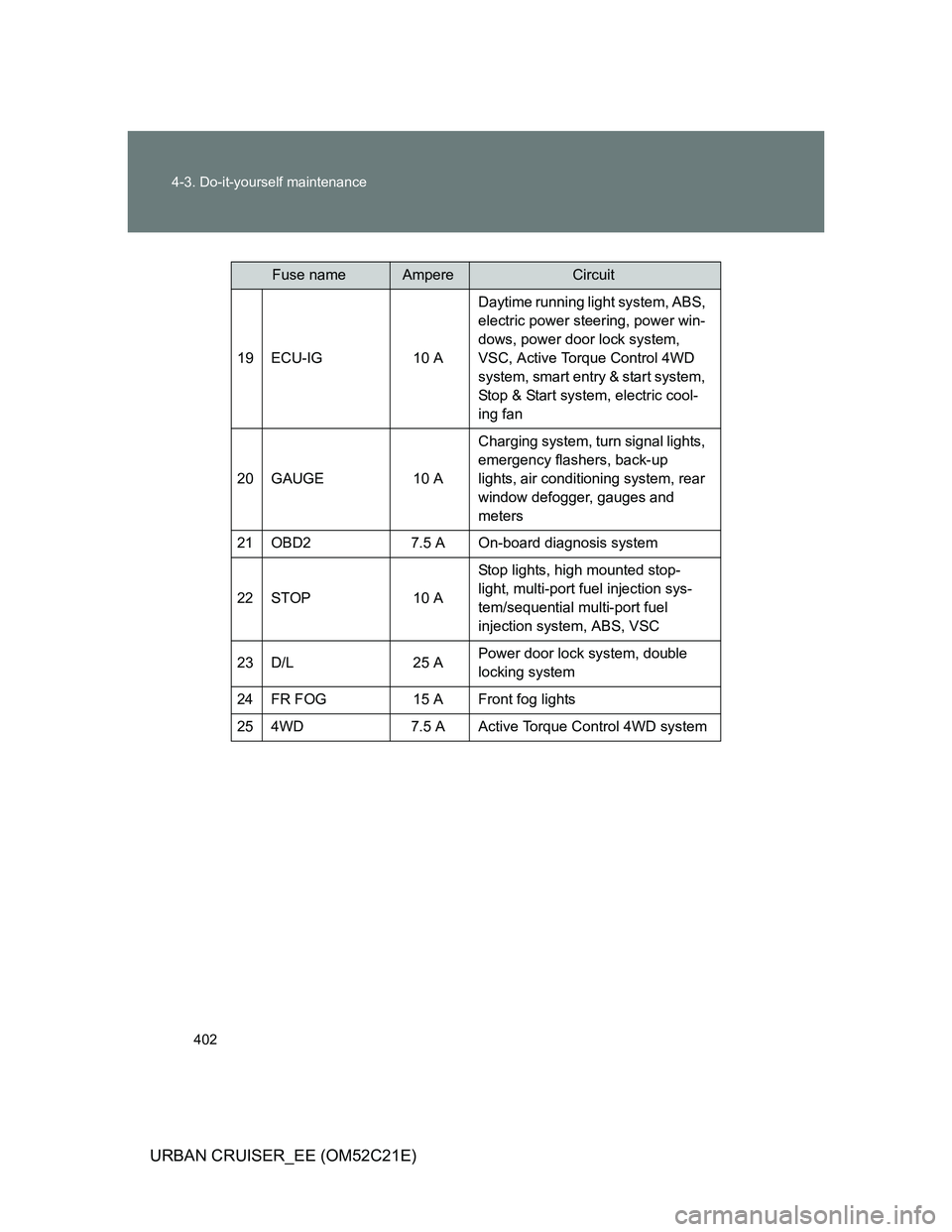

Fuse nameAmpereCircuit
19 ECU-IG 10 ADaytime running light system, ABS,
electric power steering, power win-
dows, power door lock system,
VSC, Active Torque Control 4WD
system, smart entry & start system,
Stop & Start system, electric cool-
ing fan
20 GAUGE 10 ACharging system, turn signal lights,
emergency flashers, back-up
lights, air conditioning system, rear
window defogger, gauges and
meters
21 OBD2 7.5 A On-board diagnosis system
22 STOP 10 AStop lights, high mounted stop-
light, multi-port fuel injection sys-
tem/sequential multi-port fuel
injection system, ABS, VSC
23 D/L 25 APower door lock system, double
locking system
24 FR FOG 15 A Front fog lights
25 4WD 7.5 A Active Torque Control 4WD system

403 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)
*1: Vehicles with daytime running light system
*2: Vehicles without daytime running light system
*3: Vehicles with smart entry & start system

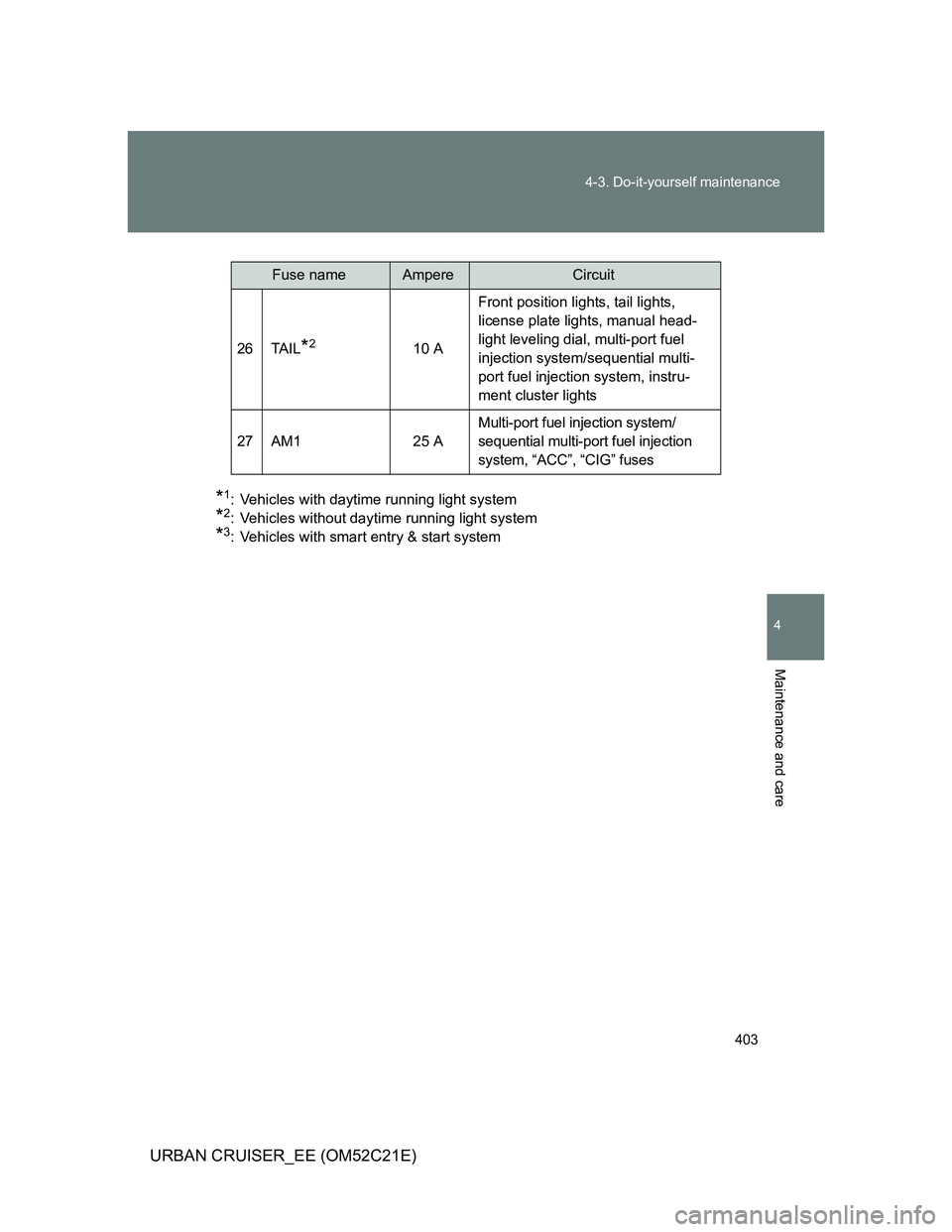

Fuse nameAmpereCircuit
26 TAIL
*210 AFront position lights, tail lights,
license plate lights, manual head-
light leveling dial, multi-port fuel
injection system/sequential multi-
port fuel injection system, instru-
ment cluster lights
27 AM1 25 AMulti-port fuel injection system/
sequential multi-port fuel injection
system, “ACC”, “CIG” fuses

404 4-3. Do-it-yourself maintenance

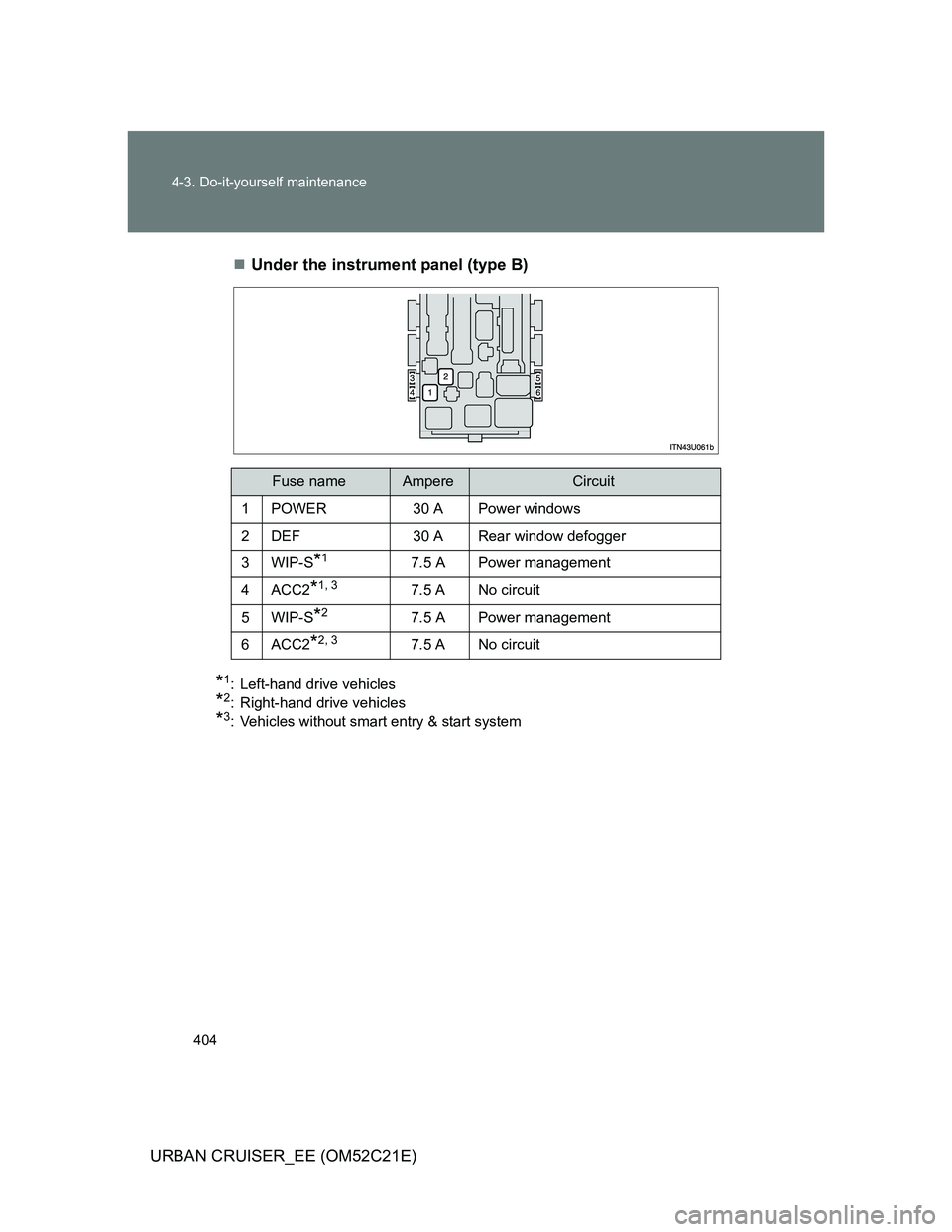

URBAN CRUISER_EE (OM52C21E)Under the instrument panel (type B)
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
*3: Vehicles without smart entry & start system
Fuse nameAmpereCircuit
1 POWER 30 A Power windows
2 DEF 30 A Rear window defogger
3WIP-S
*17.5 A Power management
4ACC2
*1, 37.5 A No circuit
5WIP-S
*27.5 A Power management
6ACC2
*2, 37.5 A No circuit

405 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 406)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
Do not modify the fuse or the fuse box.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.

406
4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 510)
Front bulb locations
Front turn signal light
Front position light Headlight
Front fog light
(if equipped)

407 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)

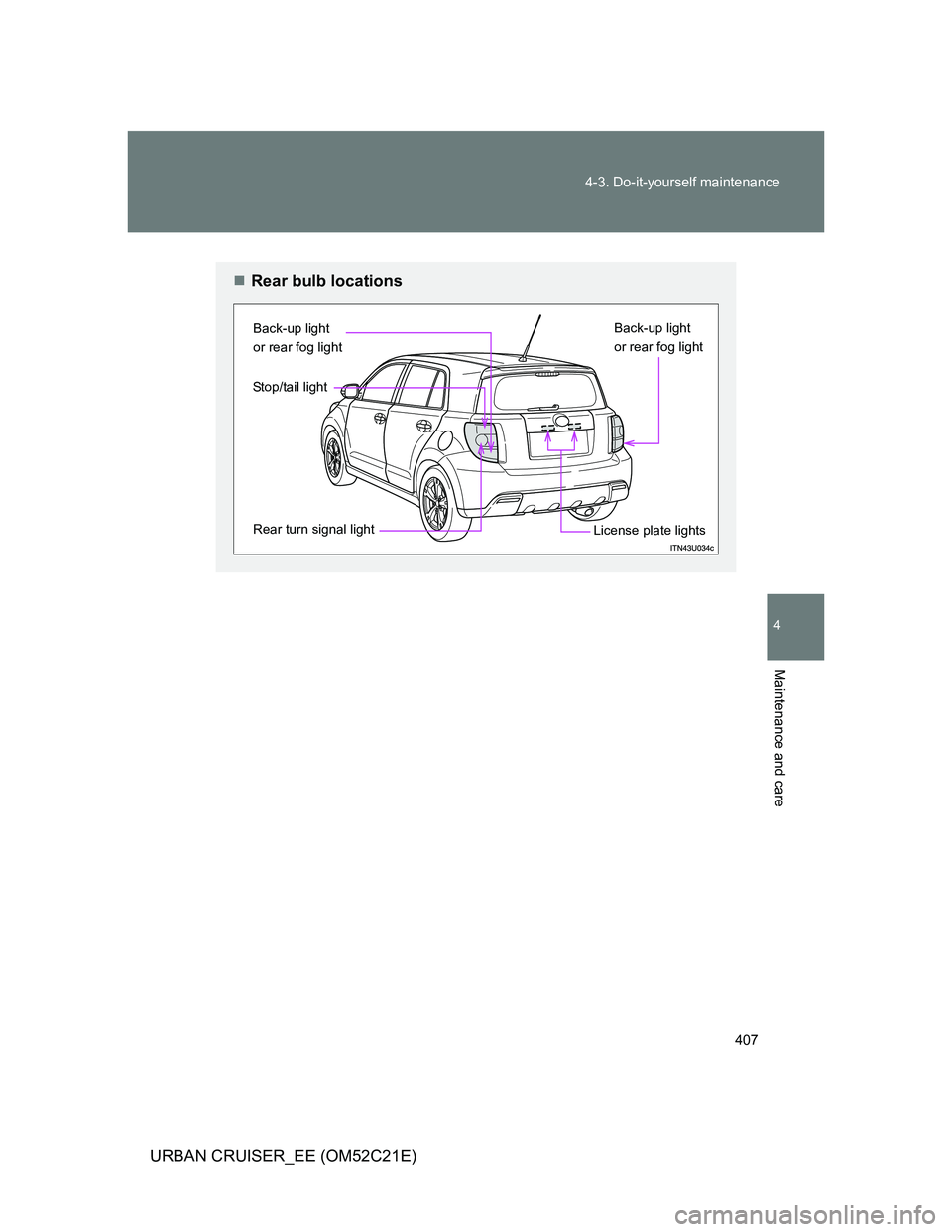

Rear bulb locations
Back-up light
or rear fog light
License plate lights Stop/tail light
Rear turn signal lightBack-up light
or rear fog light

408 4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)

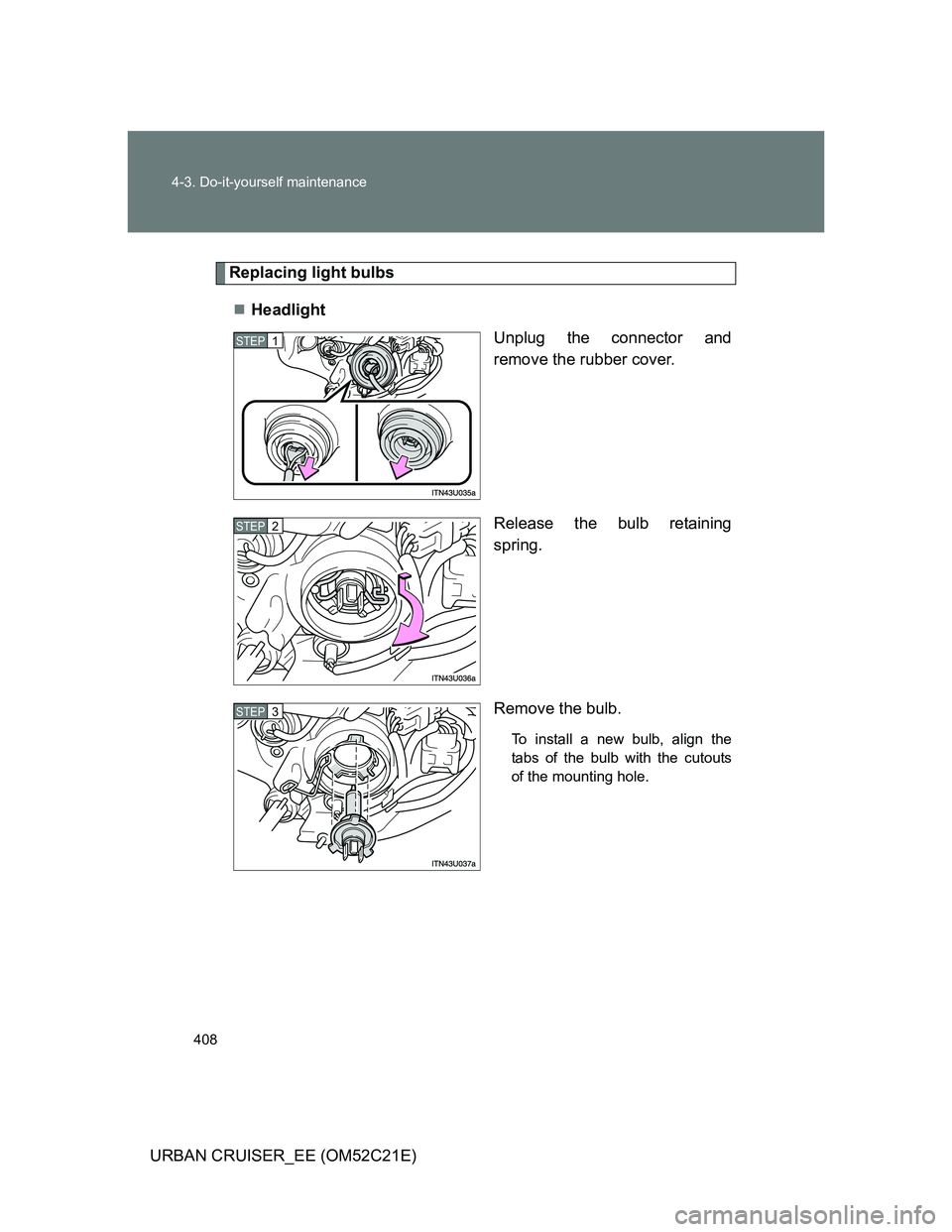

Replacing light bulbs
Headlight
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
STEP1
STEP2
STEP3

409 4-3. Do-it-yourself maintenance
4
Maintenance and care

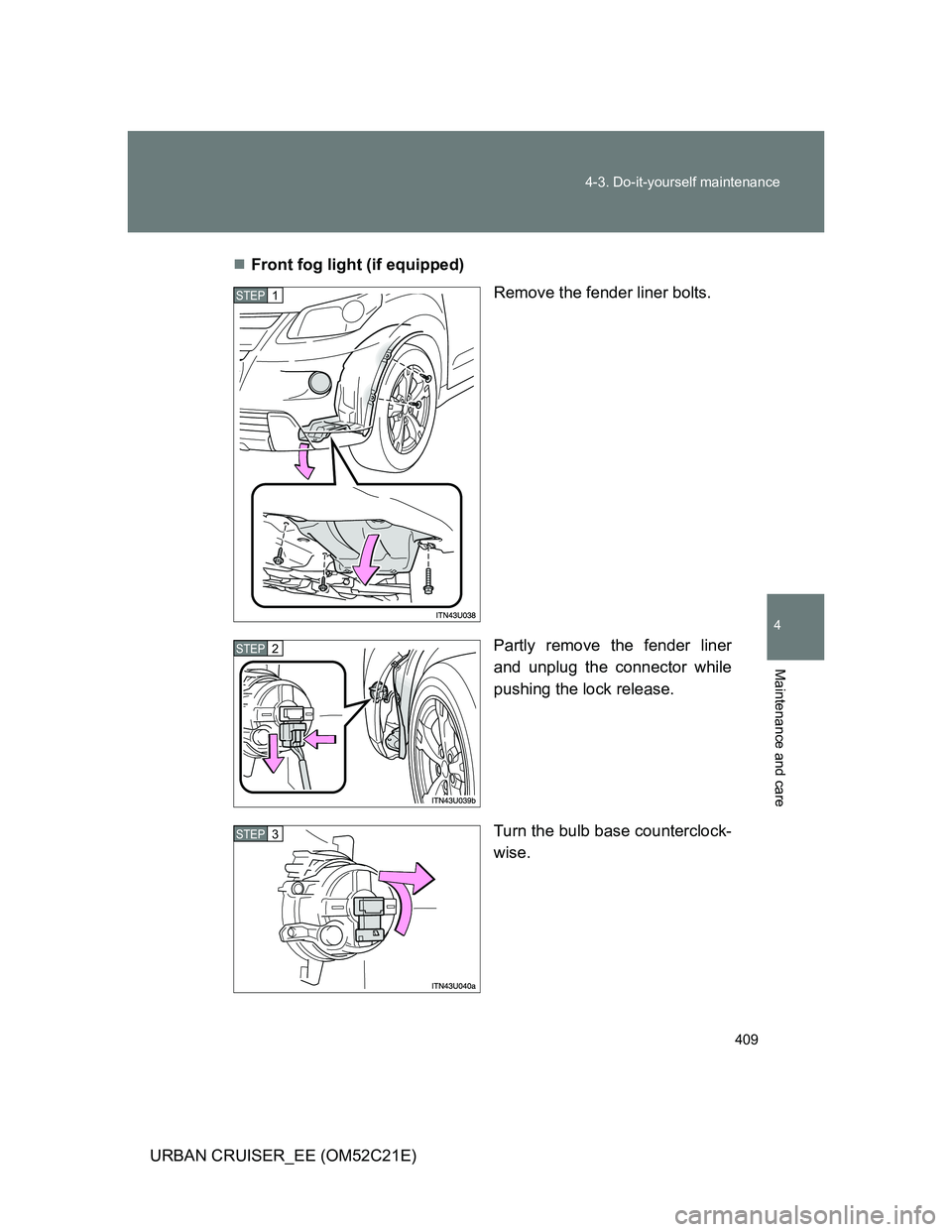

URBAN CRUISER_EE (OM52C21E)Front fog light (if equipped)
Remove the fender liner bolts.
Partly remove the fender liner
and unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP3

410 4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)Front position light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
