431 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)

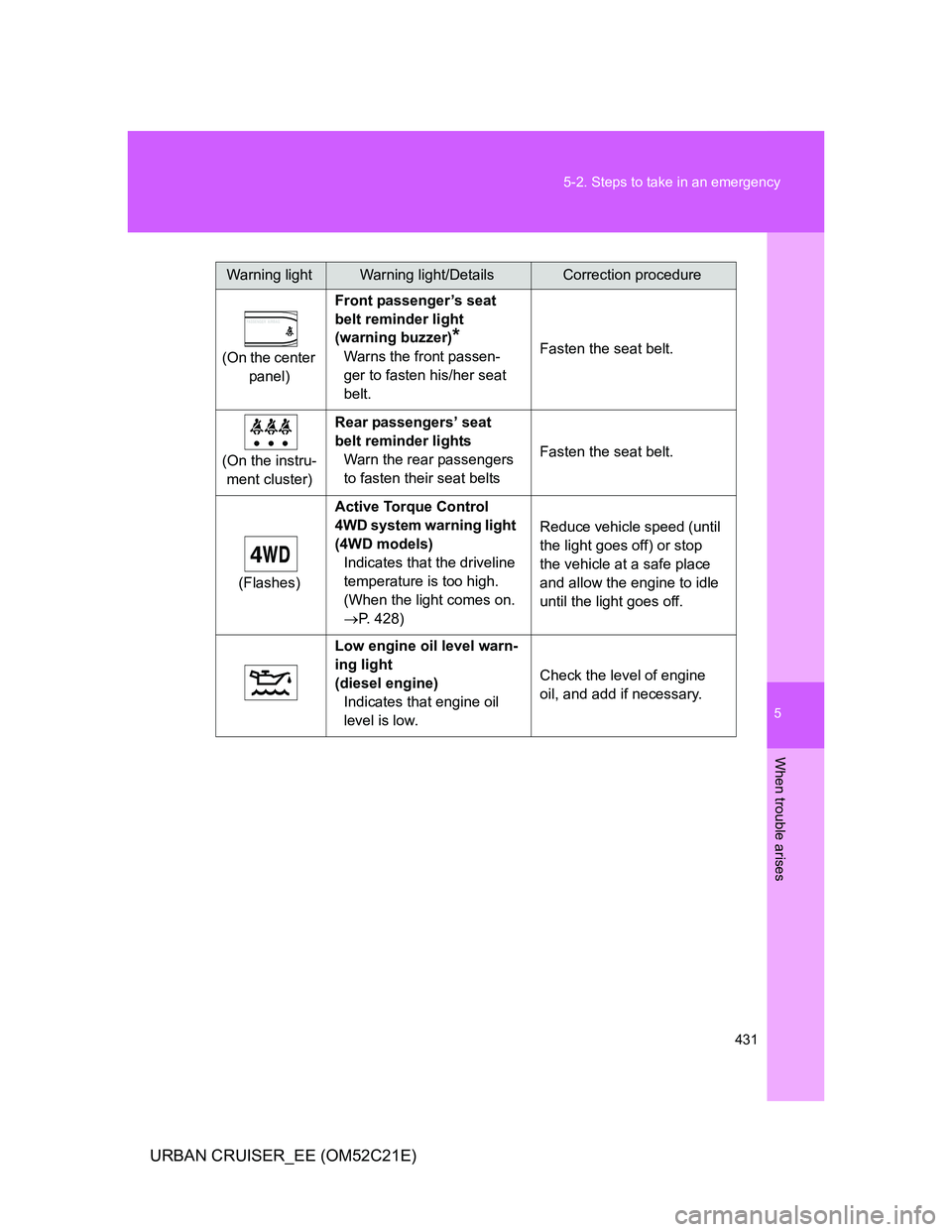

Warning lightWarning light/DetailsCorrection procedure
(On the center
panel)Front passenger’s seat
belt reminder light
(warning buzzer)
*
Warns the front passen-
ger to fasten his/her seat
belt.Fasten the seat belt.
(On the instru-
ment cluster)Rear passengers’ seat
belt reminder lights
Warn the rear passengers
to fasten their seat beltsFasten the seat belt.
(Flashes)Active Torque Control
4WD system warning light
(4WD models)
Indicates that the driveline
temperature is too high.
(When the light comes on.
P. 428)Reduce vehicle speed (until
the light goes off) or stop
the vehicle at a safe place
and allow the engine to idle
until the light goes off.
Low engine oil level warn-
ing light
(diesel engine)
Indicates that engine oil
level is low.Check the level of engine
oil, and add if necessary.

432 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)
Warning lightWarning light/DetailsCorrection procedure

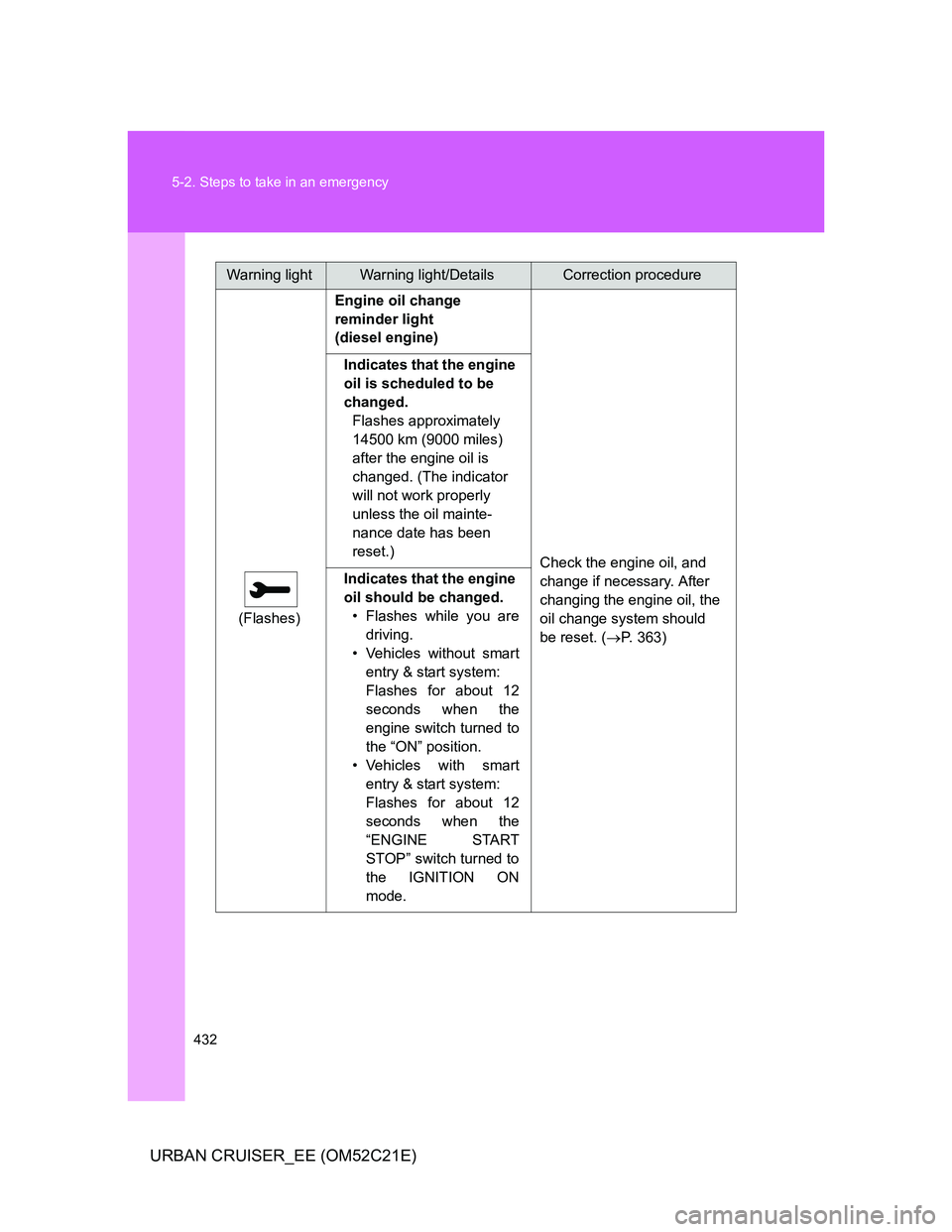

(Flashes)Engine oil change
reminder light
(diesel engine)
Check the engine oil, and
change if necessary. After
changing the engine oil, the
oil change system should
be reset. (P. 363) Indicates that the engine
oil is scheduled to be
changed.
Flashes approximately
14500 km (9000 miles)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance date has been
reset.)
Indicates that the engine
oil should be changed.
• Flashes while you are
driving.
• Vehicles without smart
entry & start system:
Flashes for about 12
seconds when the
engine switch turned to
the “ON” position.
• Vehicles with smart
entry & start system:
Flashes for about 12
seconds when the
“ENGINE START
STOP” switch turned to
the IGNITION ON
mode.

5
433 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)
*:Driver’s and front passenger’s seat belt reminders:
The driver’s and front passenger’s seat belts reminder sounds to alert the
driver and front passenger that his/her seat belt is not fastened. The buzzer
sounds for 30 seconds after the vehicle has reached a speed of at least 20
km/h (12 mph). Then, if the seat belt is still unfastened, the buzzer will sound
in a different tone for 90 more seconds.

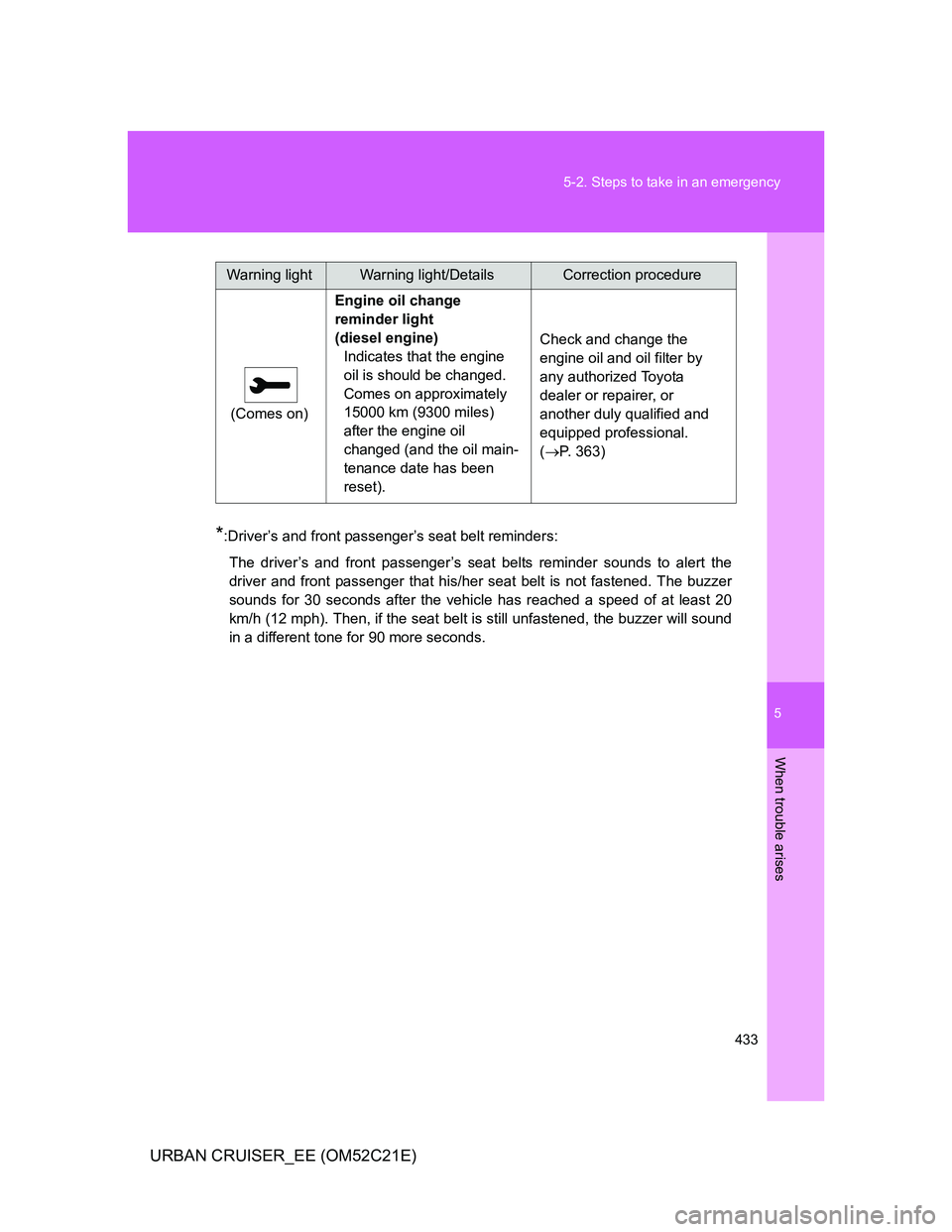

Warning lightWarning light/DetailsCorrection procedure
(Comes on)Engine oil change
reminder light
(diesel engine)
Indicates that the engine
oil is should be changed.
Comes on approximately
15000 km (9300 miles)
after the engine oil
changed (and the oil main-
tenance date has been
reset).Check and change the
engine oil and oil filter by
any authorized Toyota
dealer or repairer, or
another duly qualified and
equipped professional.
(P. 363)

434 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)

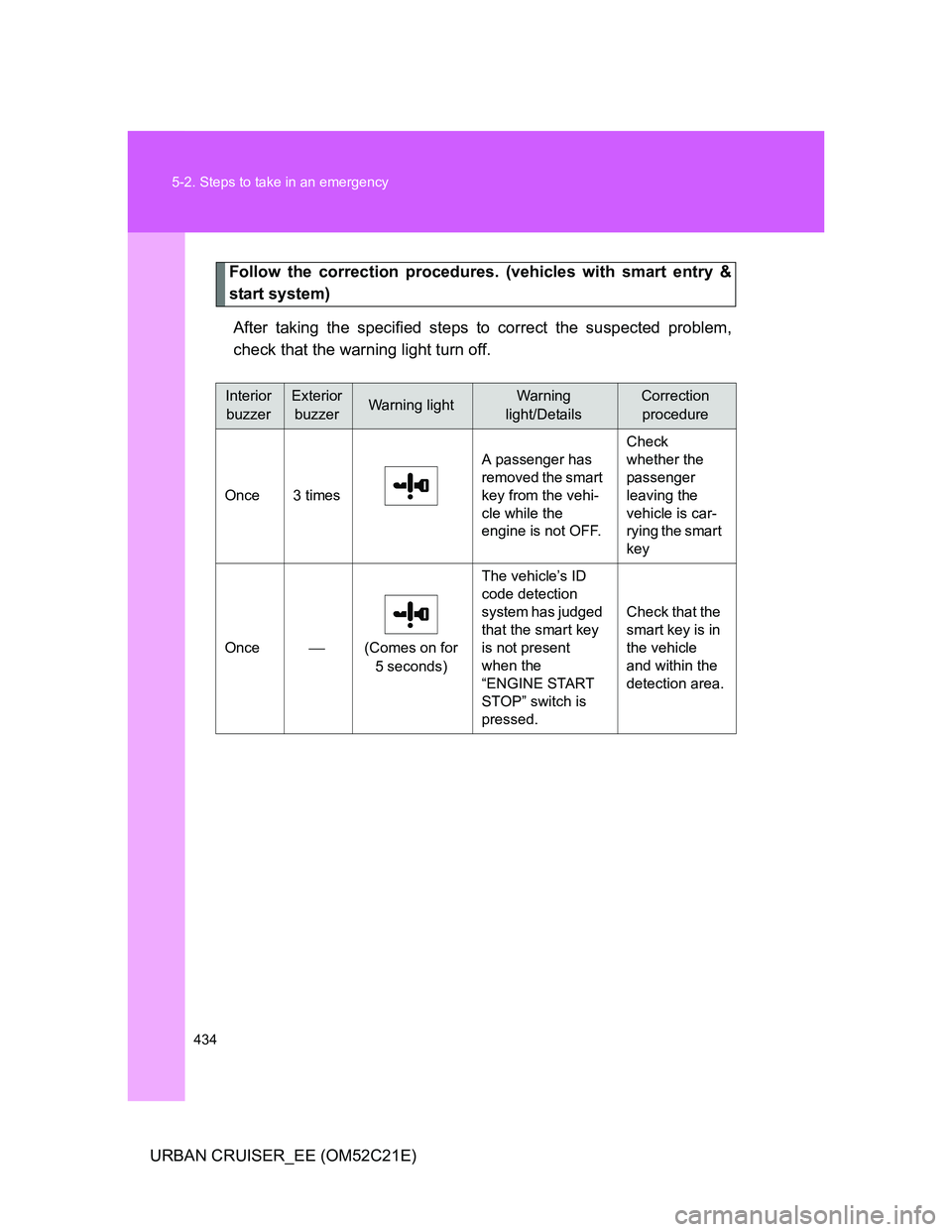

Follow the correction procedures. (vehicles with smart entry &
start system)
After taking the specified steps to correct the suspected problem,
check that the warning light turn off.
Interior
buzzerExterior
buzzerWarning lightWarning
light/DetailsCorrection
procedure
Once3 times
A passenger has
removed the smart
key from the vehi-
cle while the
engine is not OFF.
Check
whether the
passenger
leaving the
vehicle is car-
rying the smart
key
Once(Comes on for
5 seconds)
The vehicle’s ID
code detection
system has judged
that the smart key
is not present
when the
“ENGINE START
STOP” switch is
pressed.
Check that the
smart key is in
the vehicle
and within the
detection area.

5
435 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)

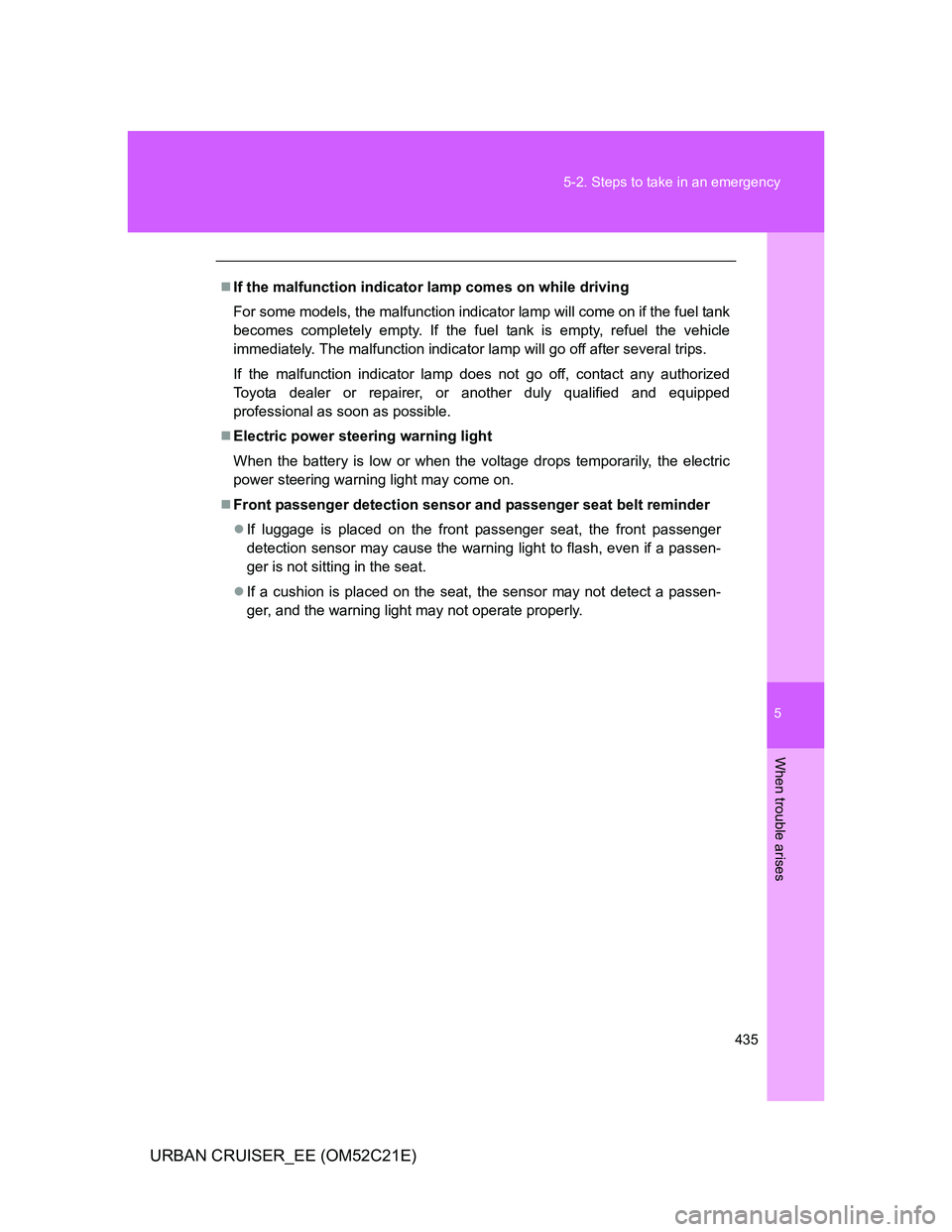

If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle
immediately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.
Electric power steering warning light
When the battery is low or when the voltage drops temporarily, the electric
power steering warning light may come on.
Front passenger detection sensor and passenger seat belt reminder
If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash, even if a passen-
ger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.

436 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)

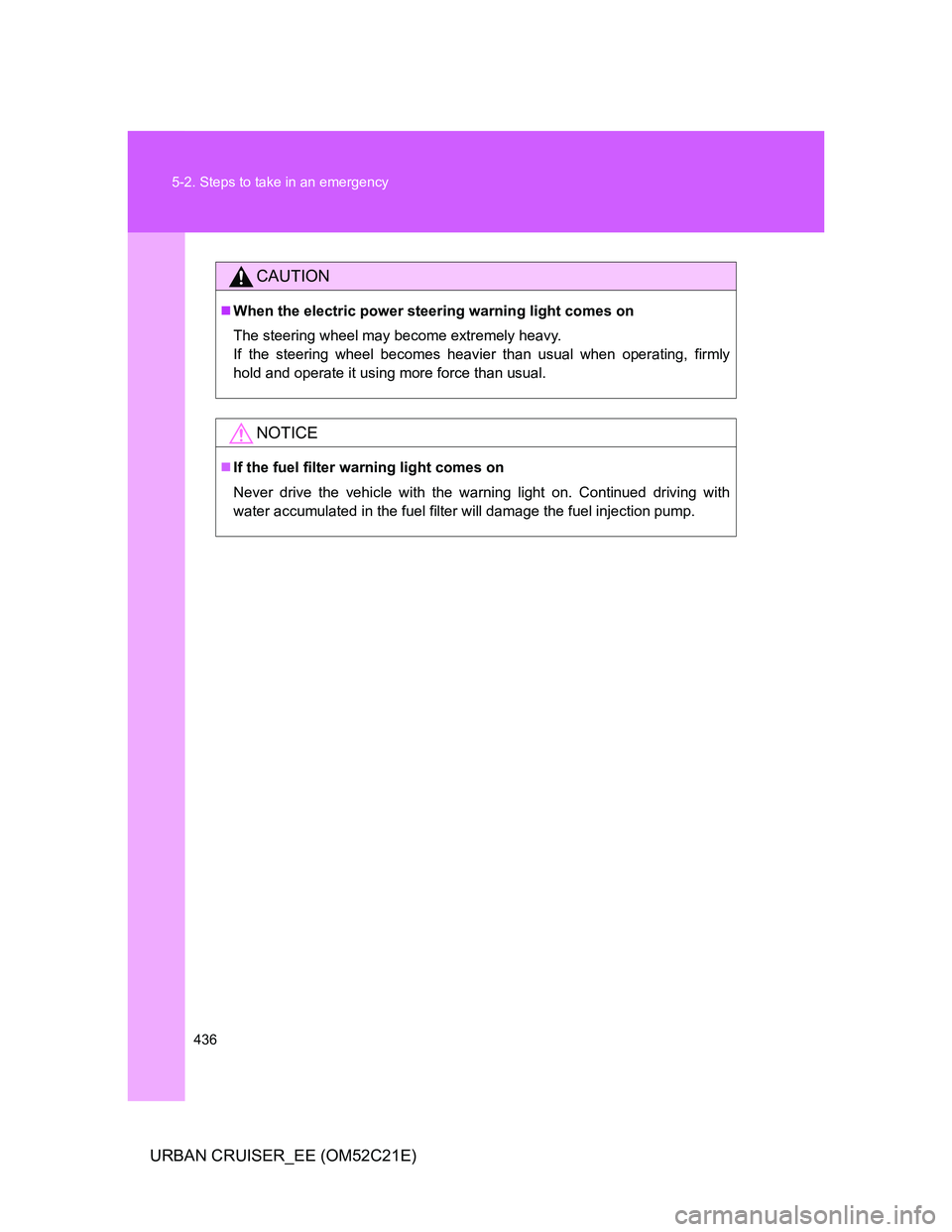

CAUTION
When the electric power steering warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, firmly
hold and operate it using more force than usual.
NOTICE
If the fuel filter warning light comes on
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.

5
437
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)

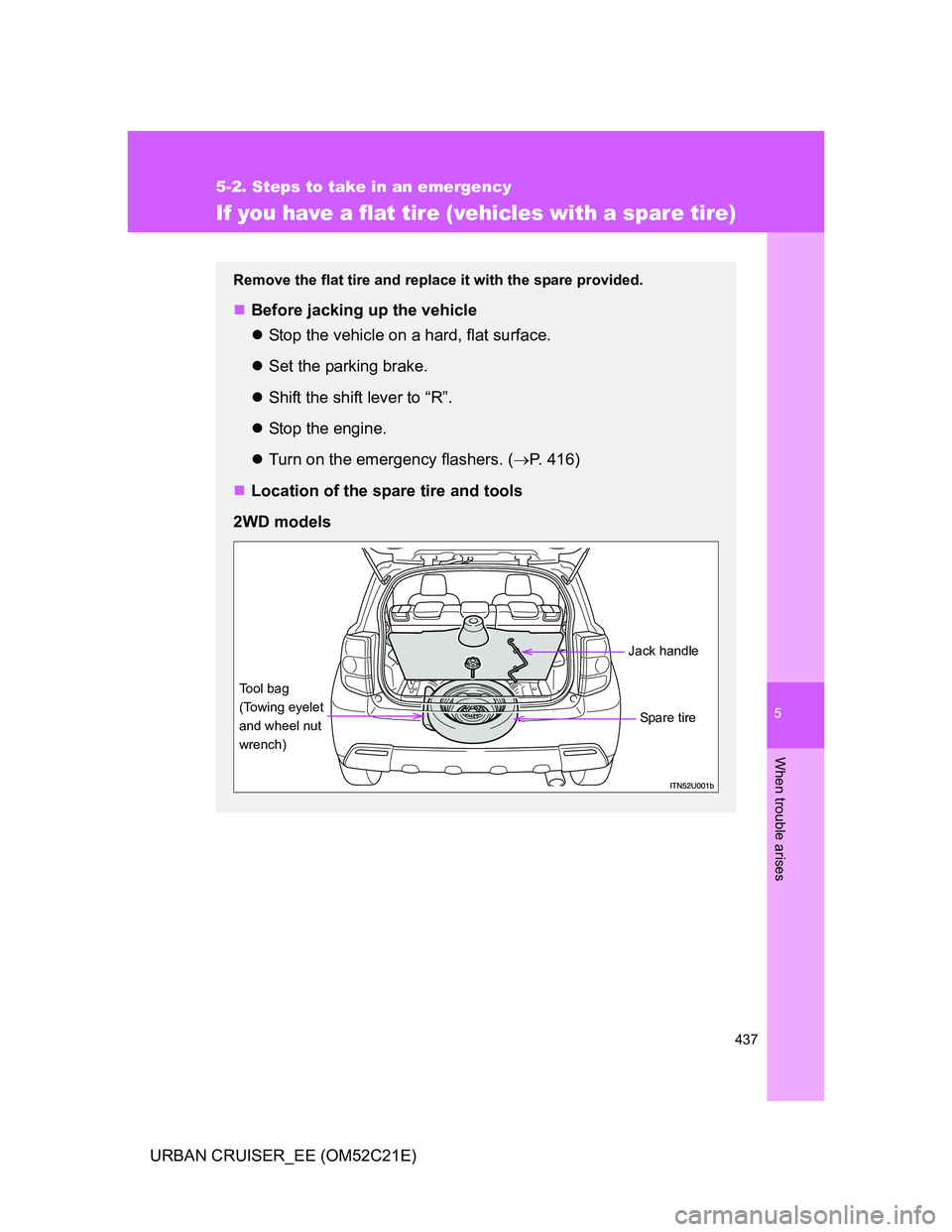

If you have a flat tire (vehicles with a spare tire)
Remove the flat tire and replace it with the spare provided.
Before jacking up the vehicle
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to “R”.
Stop the engine.
Turn on the emergency flashers. (P. 416)
Location of the spare tire and tools
2WD models
Jack handle
Spare tire
Tool bag
(Towing eyelet
and wheel nut
wrench)

438 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)
4WD models
Location of the jack
The jack is stored under the
left-hand front seat.
Jack handle
Spare tireTool bag
(Towing eyelet
and wheel nut
wrench)

5
439 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)

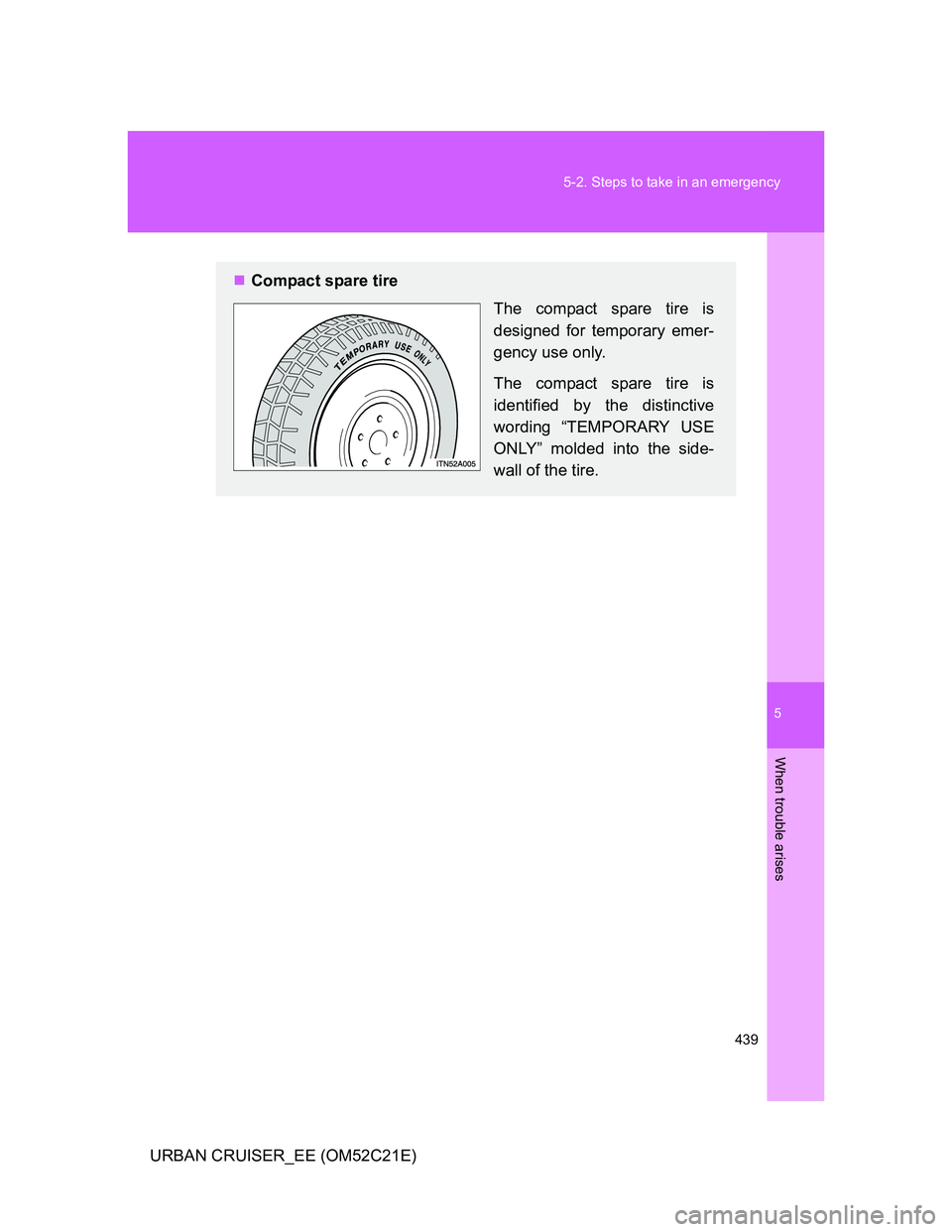

Compact spare tire
The compact spare tire is
designed for temporary emer-
gency use only.
The compact spare tire is
identified by the distinctive
wording “TEMPORARY USE
ONLY” molded into the side-
wall of the tire.

440 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)

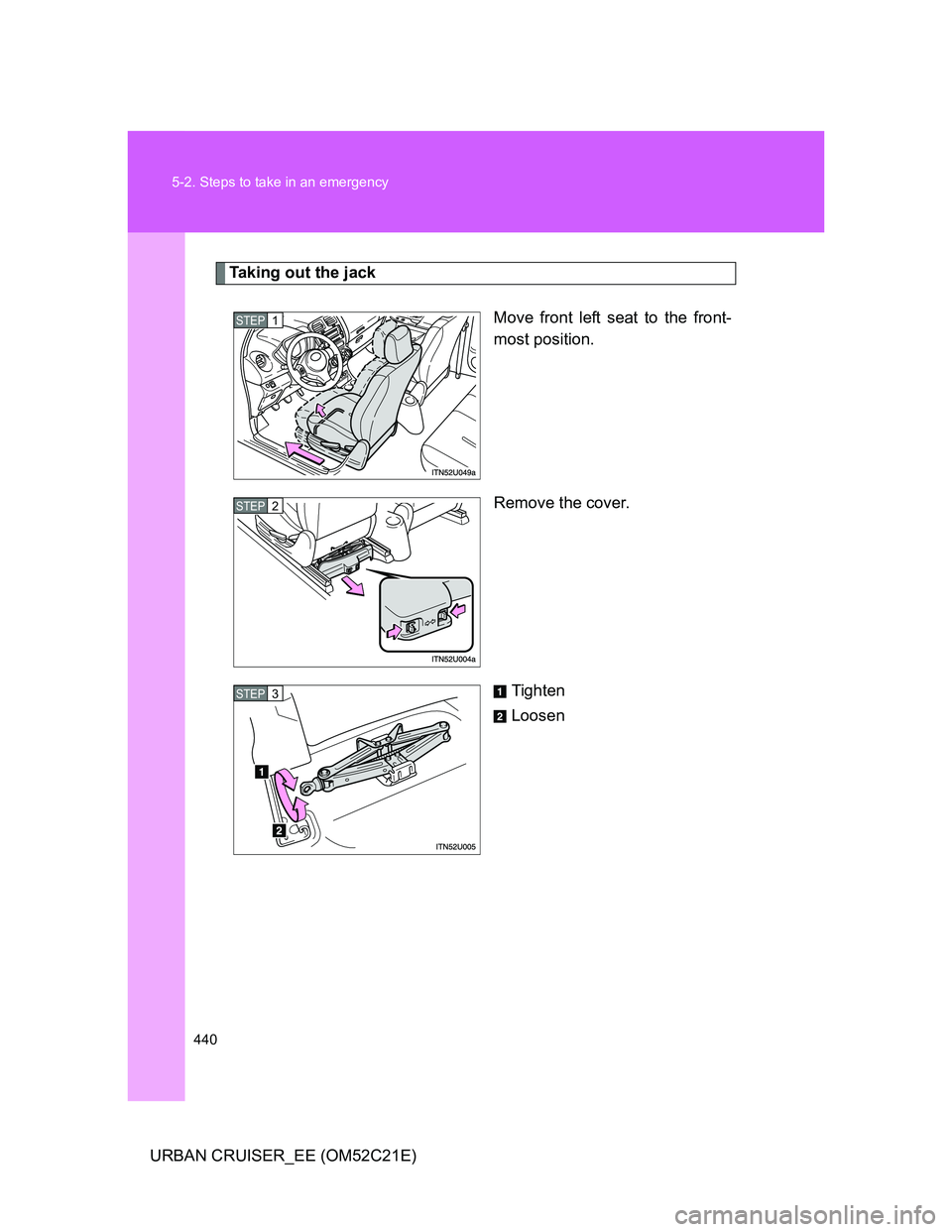

Taking out the jack
Move front left seat to the front-
most position.
Remove the cover.
Tighten
Loosen
STEP1
STEP2
STEP3
