TOYOTA URBAN CRUISER 2014 Owners Manual

401
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■
Removed battery and other parts
These parts are small and if swallowed by a child they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend the battery terminals.

402
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

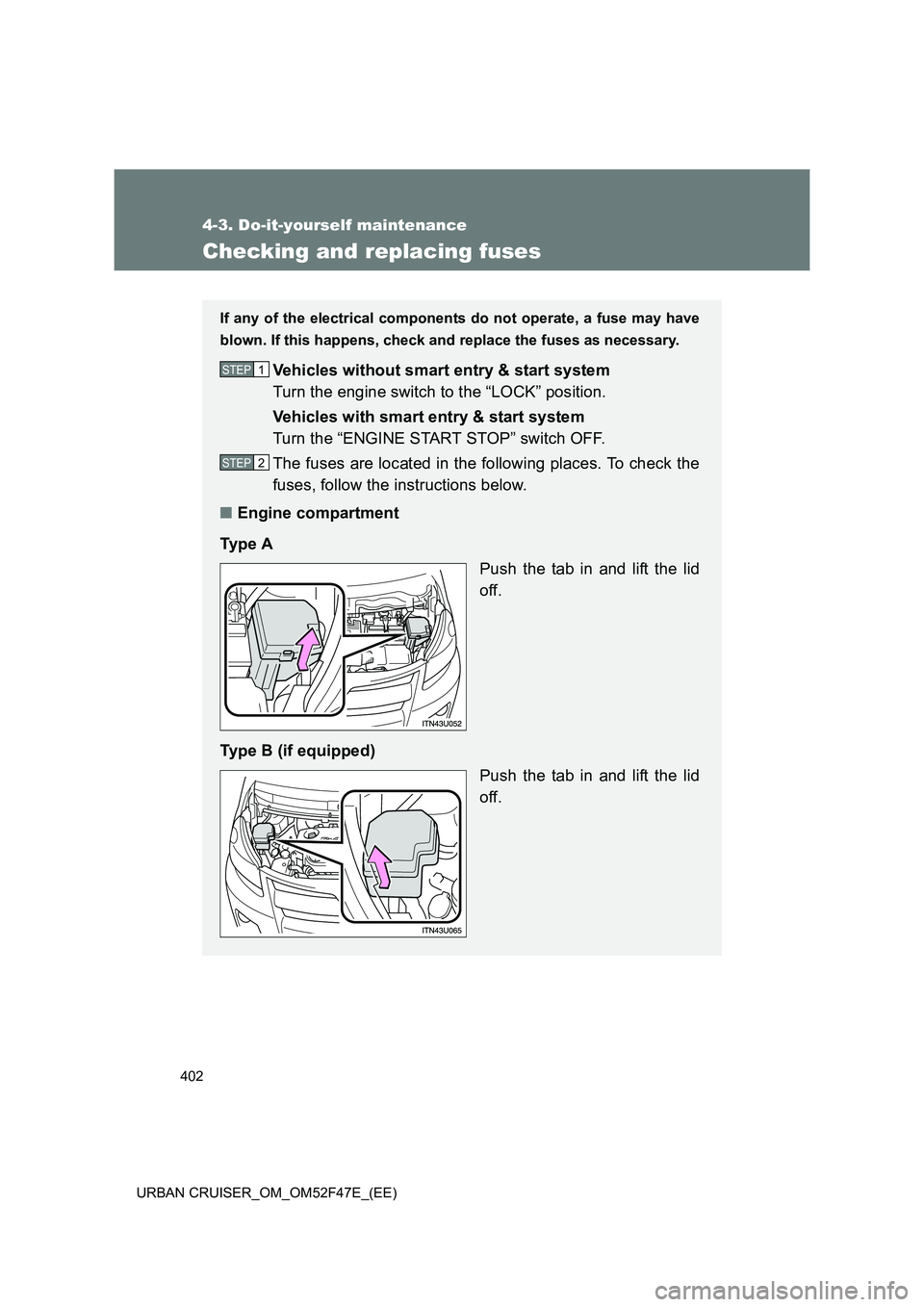

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without smart entry & start system
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system
Turn the “ENGINE START STOP” switch OFF.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
■ Engine compartment
Ty p e A Push the tab in and lift the lid
off.
Type B (if equipped) Push the tab in and lift the lid
off.STEP1
STEP2

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■

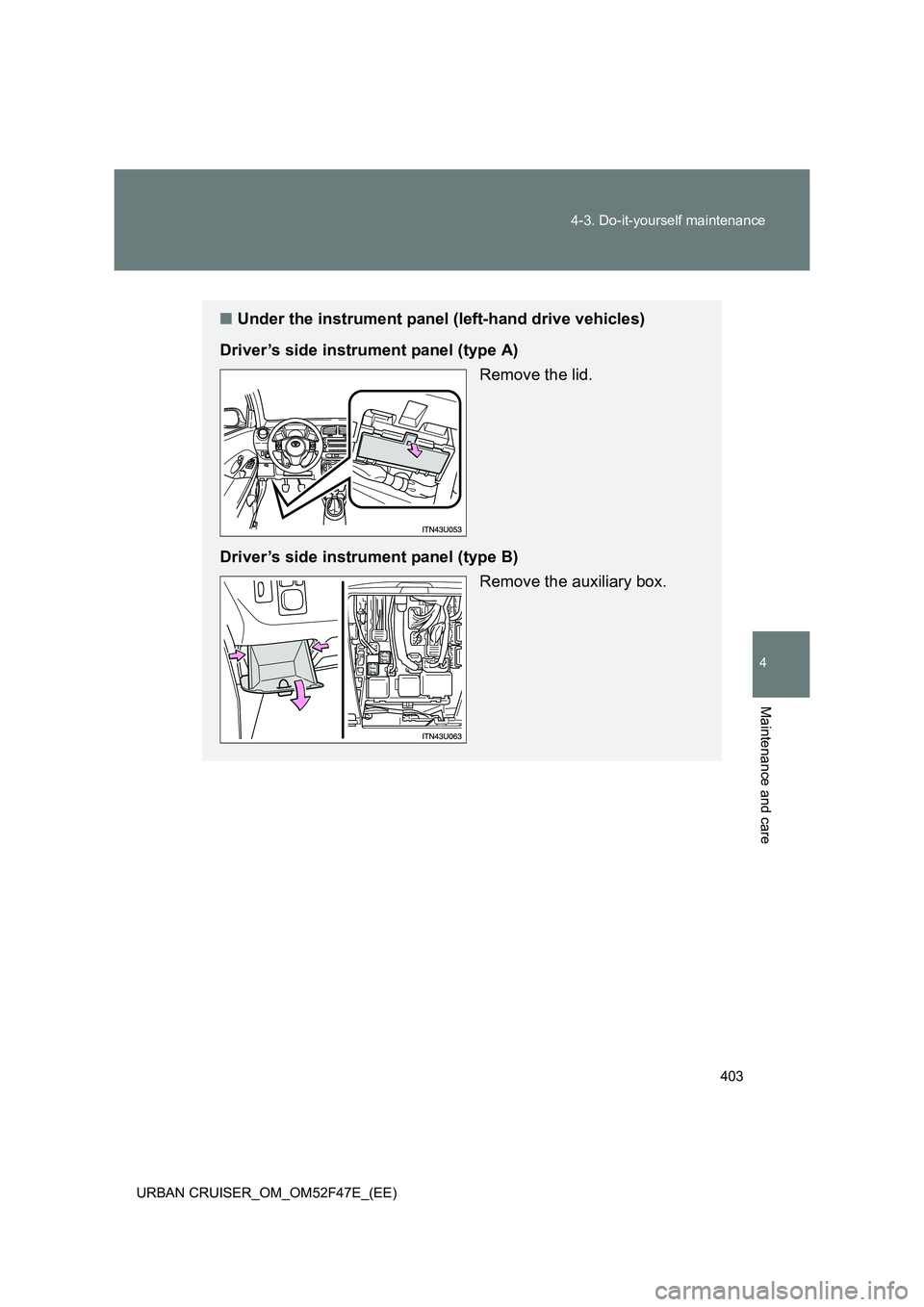

Under the instrument panel (left-hand drive vehicles)
Driver’s side instrument panel (type A) Remove the lid.
Driver’s side instrument panel (type B) Remove the auxiliary box.

404
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

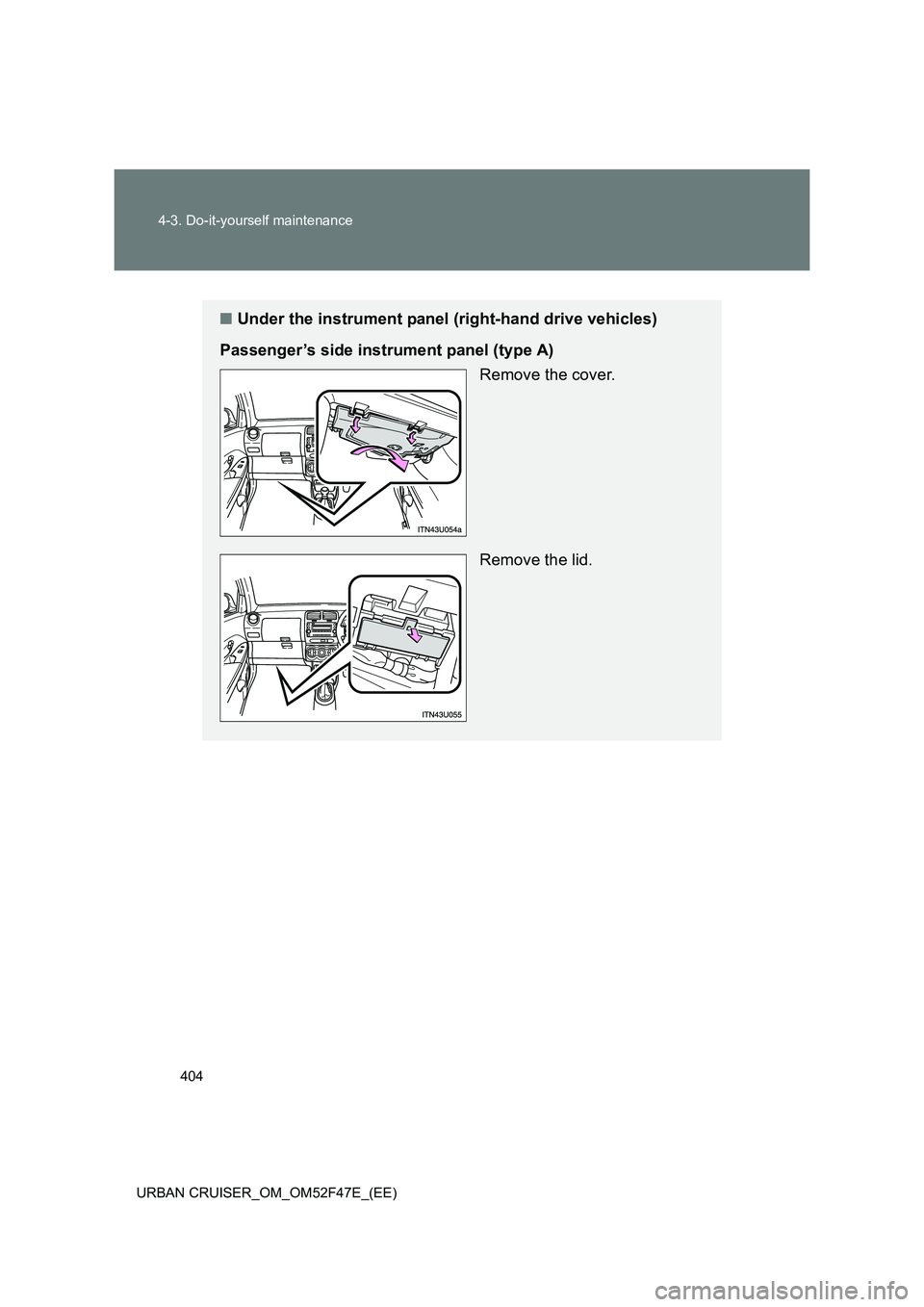

■ Under the instrument panel (right-hand drive vehicles)
Passenger’s side instrument panel (type A) Remove the cover.
Remove the lid.

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)

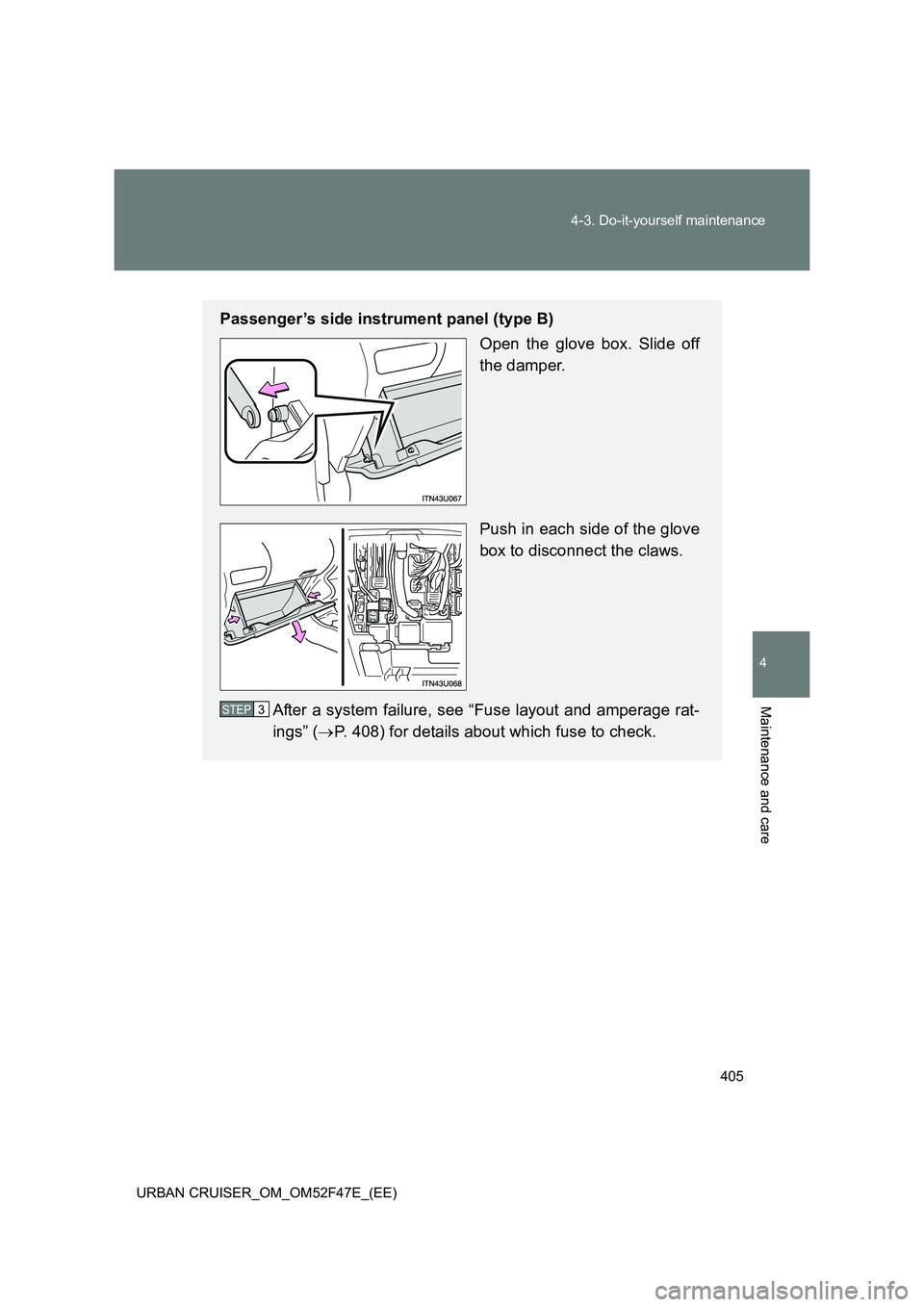

Passenger’s side instrument panel (type B)
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
After a system failure, see “Fuse layout and amperage rat-
ings” ( →P. 408) for details about which fuse to check.
STEP3

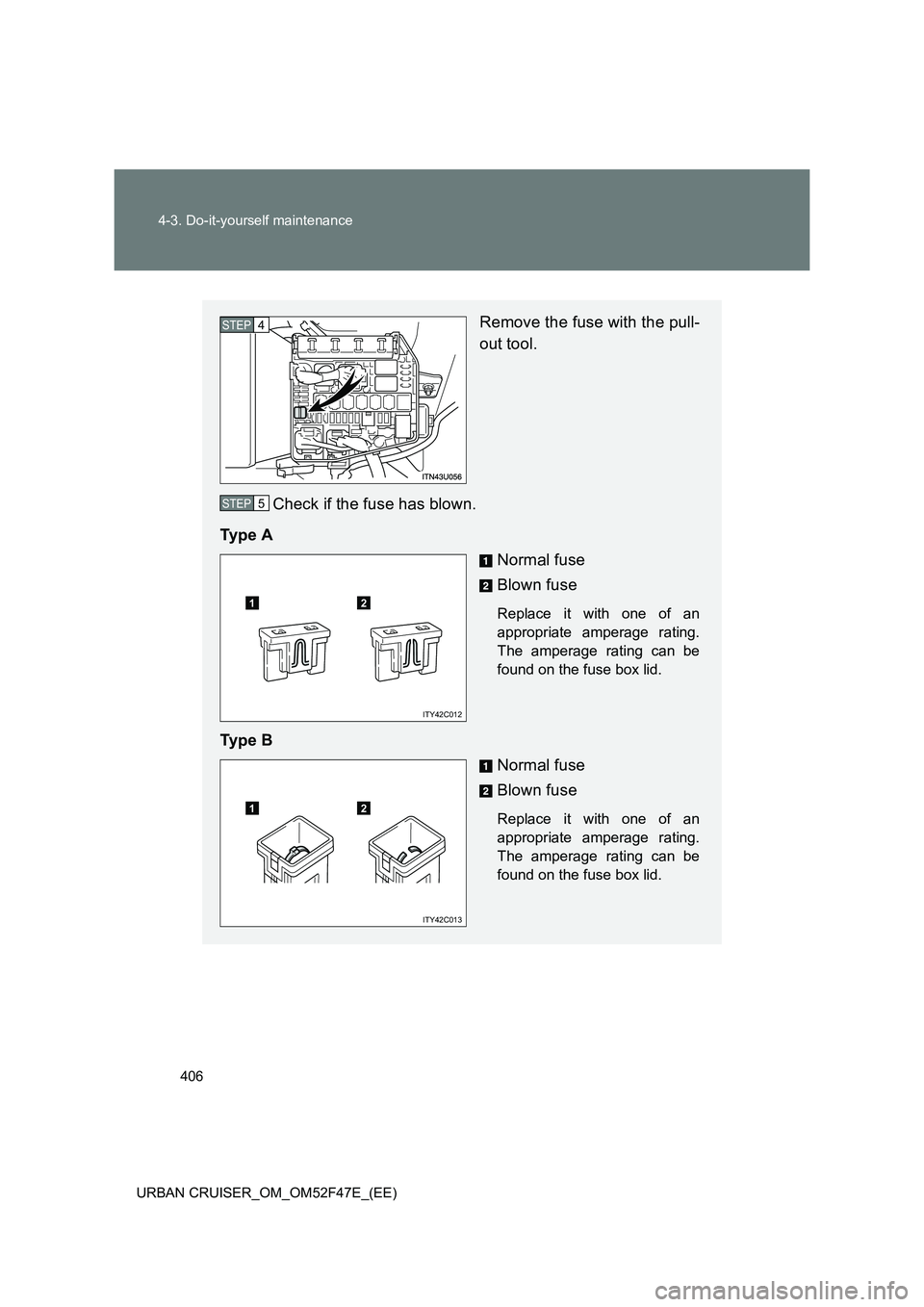

406
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5
12
ITY42C012
12
ITY42C013

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)

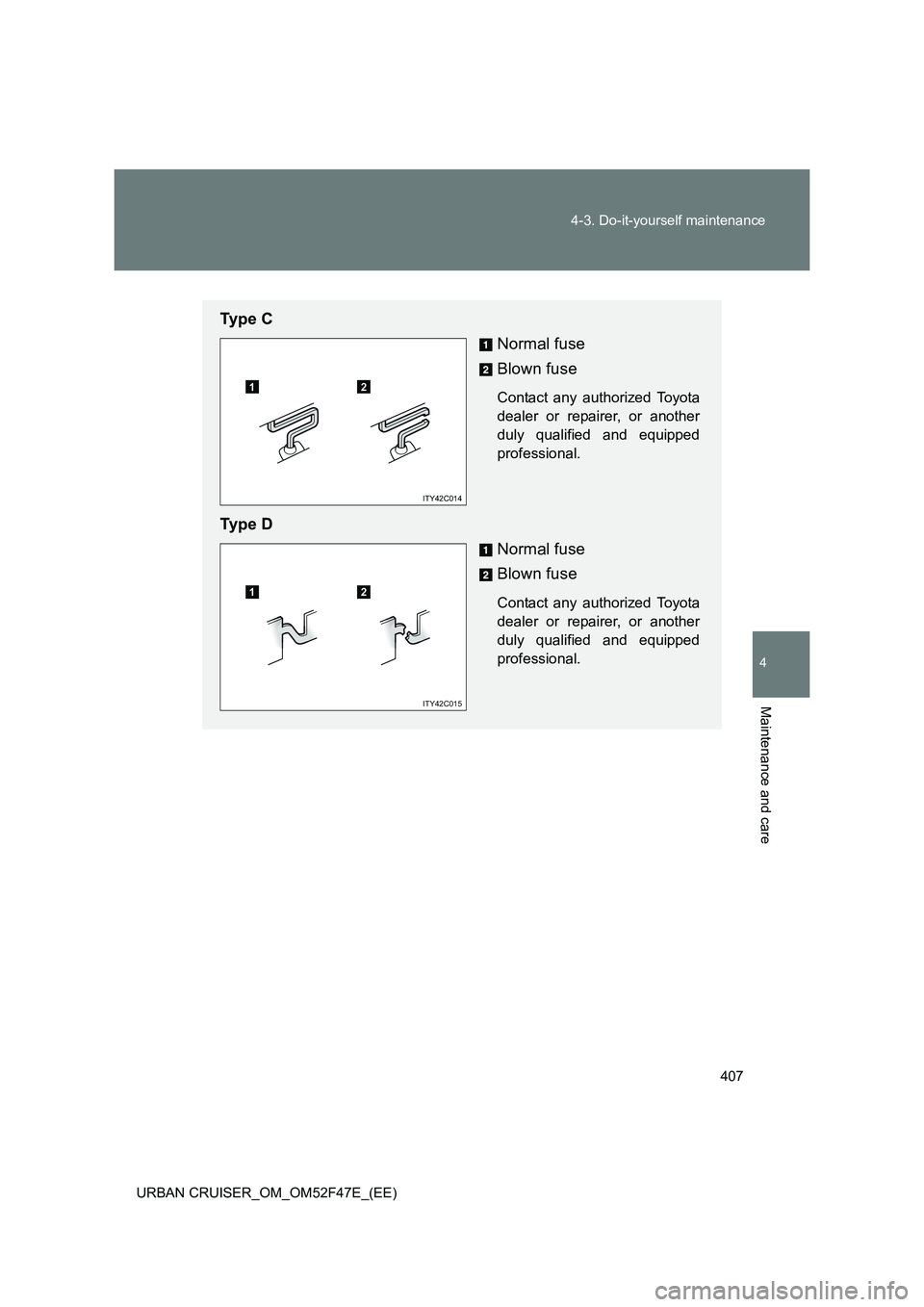

Ty p e C
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Ty p e DNormal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
12
ITY42C014
12
ITY42C015

408
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

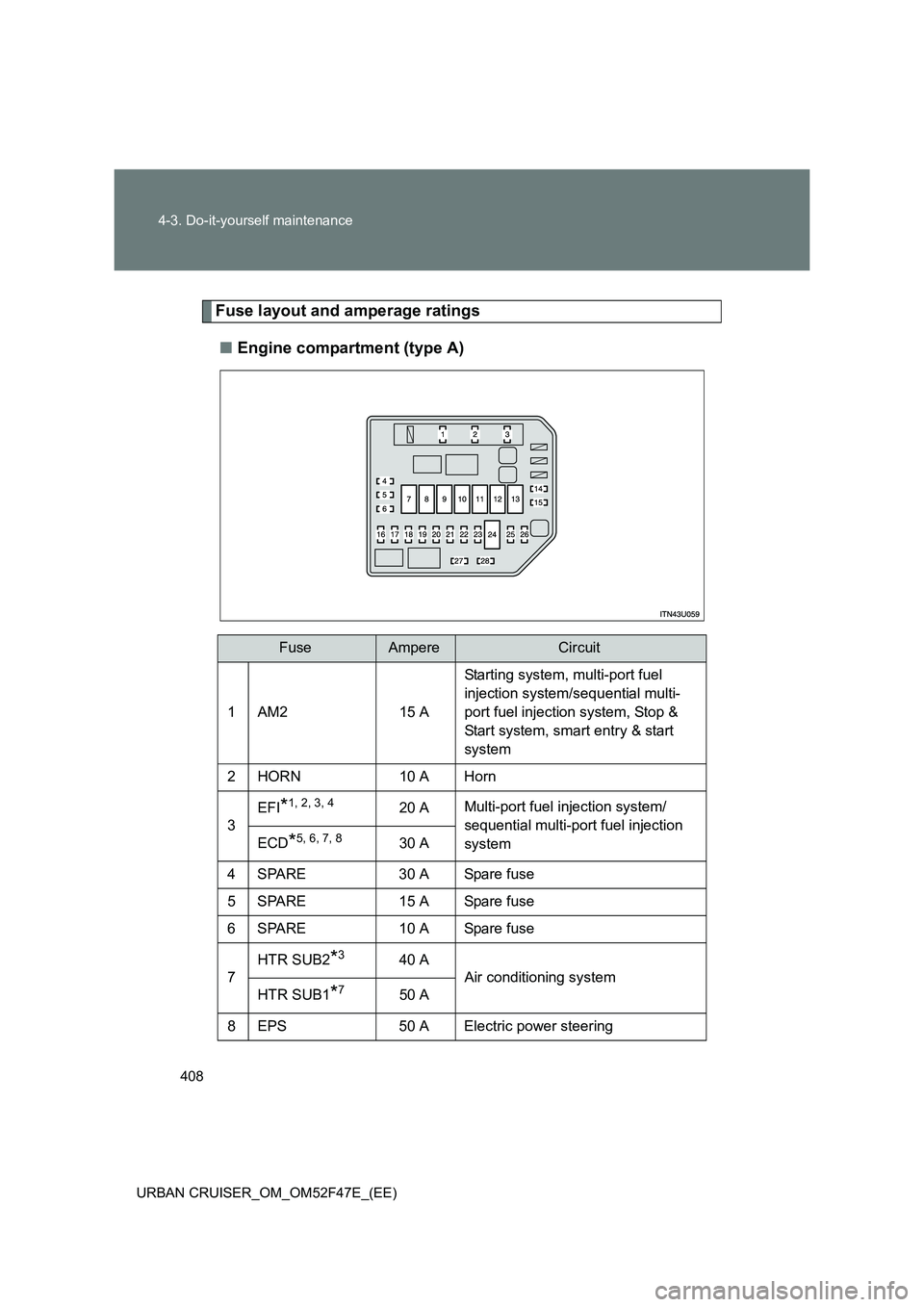

Fuse layout and amperage ratings ■ Engine compartment (type A)
FuseAmpereCircuit
1AM215 A Starting system, multi-port fuel
injection system/sequential multi-
port fuel injection system, Stop &
Start system, smart entry & start
system
2HORN10 A Horn
3
EFI*1, 2, 3, 420 A
Multi-port fuel injection system/
sequential multi-port fuel injection
system
ECD*5, 6, 7, 830 A
4 SPARE 30 A Spare fuse
5 SPARE 15 A Spare fuse
6 SPARE 10 A Spare fuse
7 HTR SUB2
*340 A
Air conditioning system
HTR SUB1
*750 A
8 EPS 50 A Electric power steering

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)

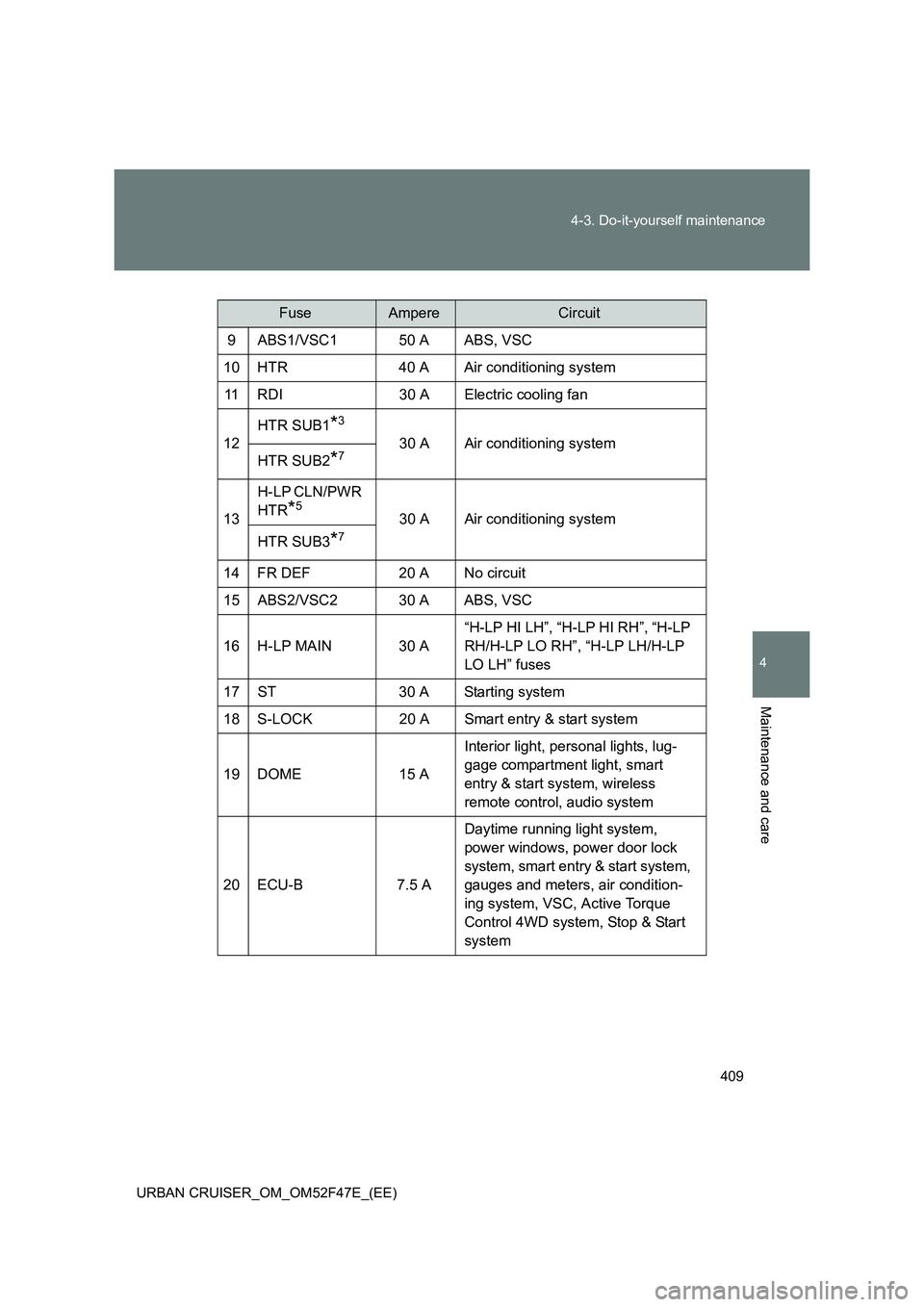

FuseAmpereCircuit
9 ABS1/VSC1 50 A ABS, VSC
10 HTR 40 A Air conditioning system 11 RDI 30 A Electric cooling fan
12
HTR SUB1*3
30 A Air conditioning system
HTR SUB2*7
13 H-LP CLN/PWR
HTR*530 A Air conditioning system
HTR SUB3
*7
14 FR DEF 20 A No circuit
15 ABS2/VSC2 30 A ABS, VSC
16 H-LP MAIN 30 A “H-LP HI LH”, “H-LP HI RH”, “H-LP
RH/H-LP LO RH”, “H-LP LH/H-LP
LO LH” fuses
17 ST 30 A Starting system
18 S-LOCK 20 A Smart entry & start system
19 DOME 15 A Interior light, personal lights, lug-
gage compartment light, smart
entry & start system, wireless
remote control, audio system
20 ECU-B 7.5 A Daytime running light system,
power windows, power door lock
system, smart entry & start system,
gauges and meters, air condition-
ing system, VSC, Active Torque
Control 4WD system, Stop & Start
system

410
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)
*1: Gasoline engine (vehicles with a Stop & Start system)
*2: Gasoline engine (vehicles without a Stop & Start system)
*3: Gasoline engine (vehicles with PTC heater)
*4: Gasoline engine (vehicles without PTC heater)
*5: Diesel engine (vehicles with power heater)
*6: Diesel engine (vehicles without power heater)
*7: Diesel engine (vehicles with PTC heater)
*8: Diesel engine (vehicles without PTC heater)

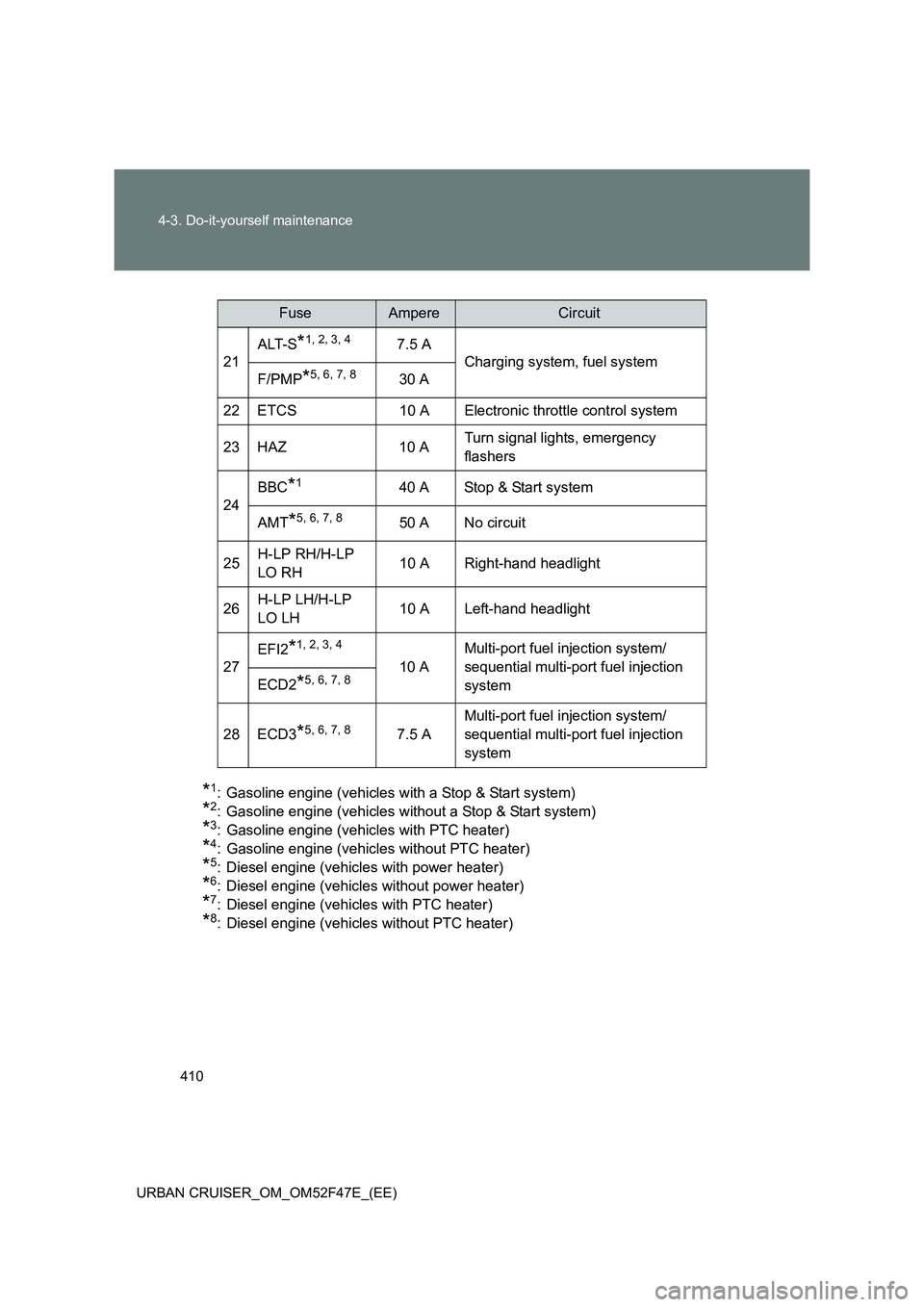

FuseAmpereCircuit
21
ALT-S*1, 2, 3, 47.5 A Charging system, fuel system
F/PMP*5, 6, 7, 830 A
22 ETCS 10 A Electronic throttle control system
23 HAZ 10 A Turn signal lights, emergency
flashers
24
BBC*140 A Stop & Start system
AMT*5, 6, 7, 850 A No circuit
25 H-LP RH/H-LP
LO RH 10 A Right-hand headlight
26 H-LP LH/H-LP
LO LH 10 A Left-hand headlight
27 EFI2
*1, 2, 3, 4
10 A Multi-port fuel injection system/
sequential multi-port fuel injection
system
ECD2
*5, 6, 7, 8
28 ECD3*5, 6, 7, 87.5 A Multi-port fuel injection system/
sequential multi-port fuel injection
system
