4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■

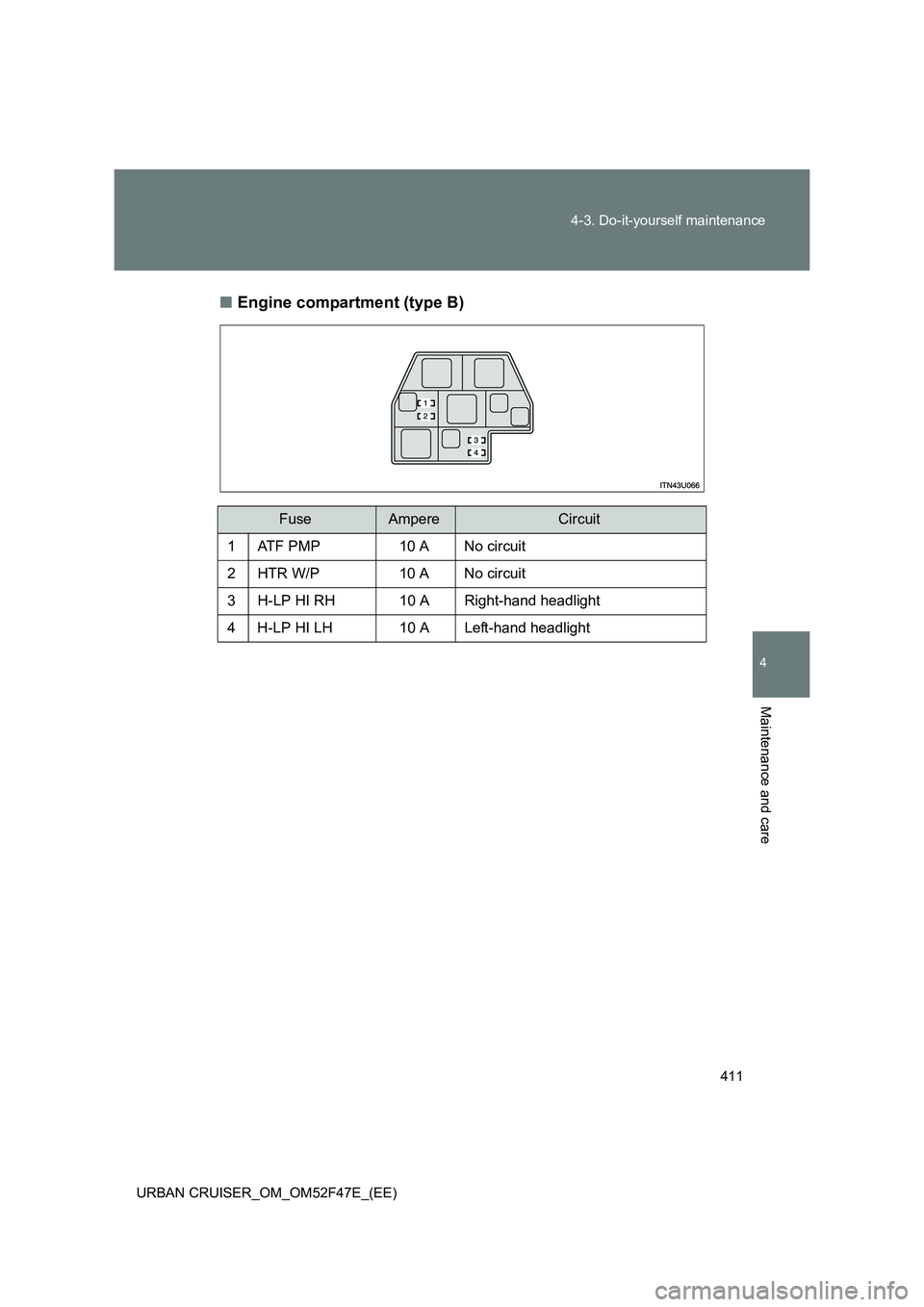

Engine compartment (type B)
FuseAmpereCircuit
1AT F P M P10 A No circuit
2HTR W/P10 A No circuit
3H-LP HI RH10 A Right-hand headlight
4H-LP HI LH
10 A Left-hand headlight

412
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

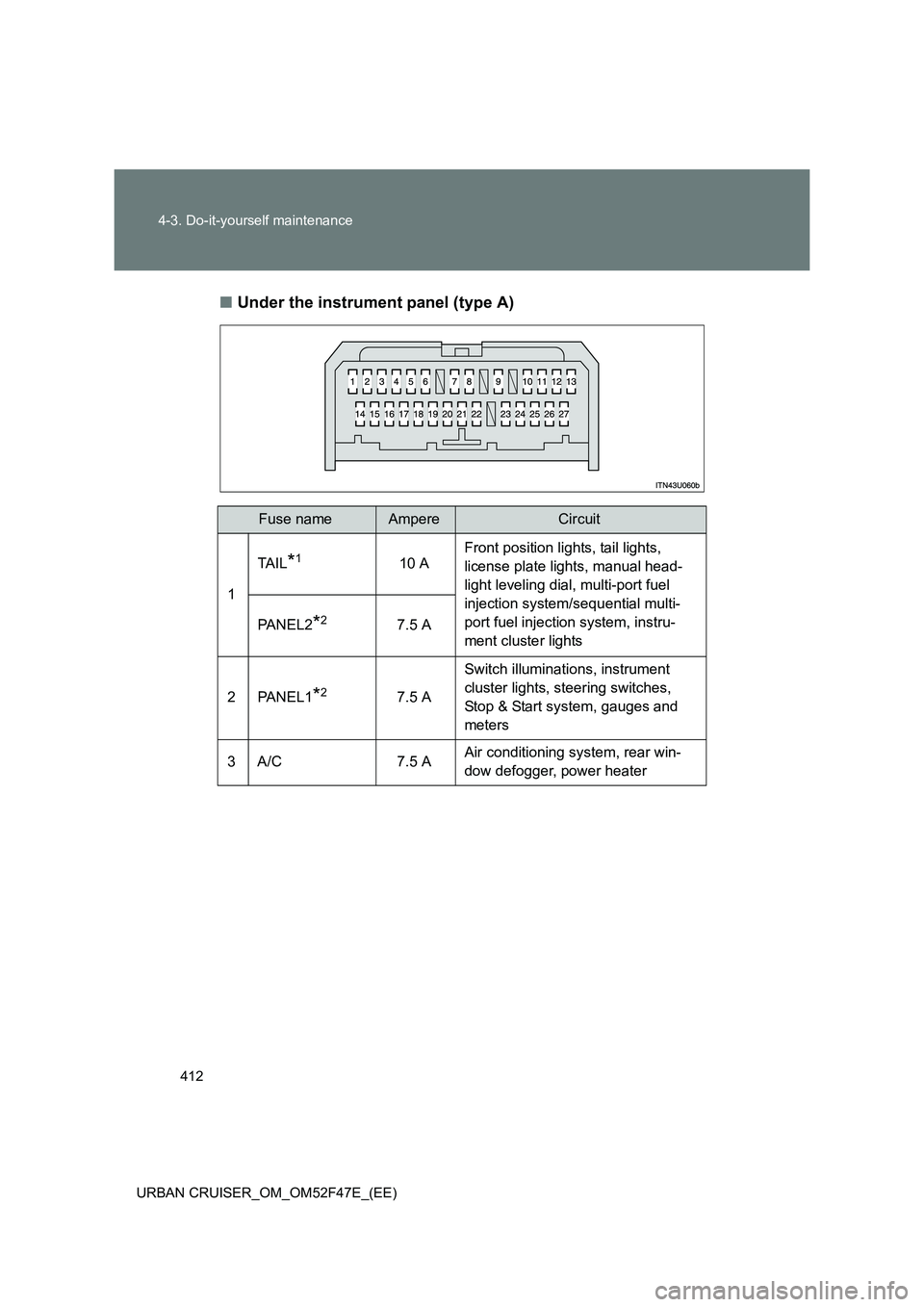

■ Under the instrument panel (type A)
Fuse nameAmpereCircuit
1 TA I L
*110 A
Front position lights, tail lights,
license plate lights, manual head-
light leveling dial, multi-port fuel
injection system/sequential multi-
port fuel injection system, instru-
ment cluster lights
PA N E L 2
*27.5 A
2 PANEL1
*27.5 A Switch illuminations, instrument
cluster lights, steering switches,
Stop & Start system, gauges and
meters
3 A/C 7.5 A Air conditioning system, rear win-
dow defogger, power heater

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)

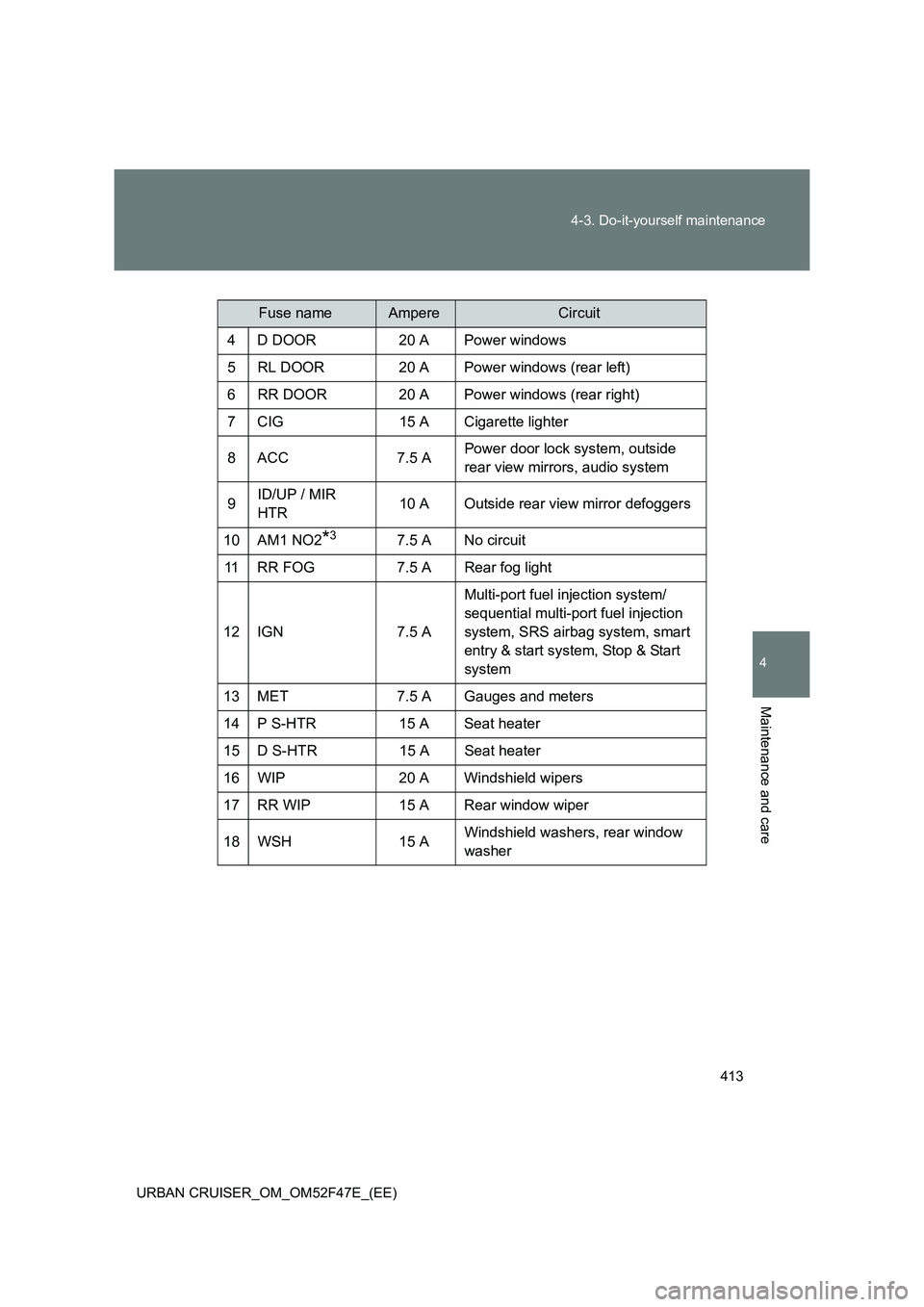

Fuse nameAmpereCircuit
4 D DOOR 20 A Power windows
5 RL DOOR 20 A Power windows (rear left)
6 RR DOOR 20 A Power windows (rear right)
7 CIG 15 A Cigarette lighter
8 ACC 7.5 A Power door lock system, outside
rear view mirrors, audio system
9 ID/UP / MIR
HTR 10 A Outside rear view mirror defoggers
10 AM1 NO2
*37.5 A No circuit
11 RR FOG 7.5 A Rear fog light
12 IGN 7.5 A Multi-port fuel injection system/
sequential multi-port fuel injection
system, SRS airbag system, smart
entry & start system, Stop & Start
system
13 MET 7.5 A Gauges and meters
14 P S-HTR 15 A Seat heater
15 D S-HTR 15 A Seat heater
16 WIP 20 A Windshield wipers
17 RR WIP 15 A Rear window wiper
18 WSH 15 A Windshield washers, rear window
washer

414
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

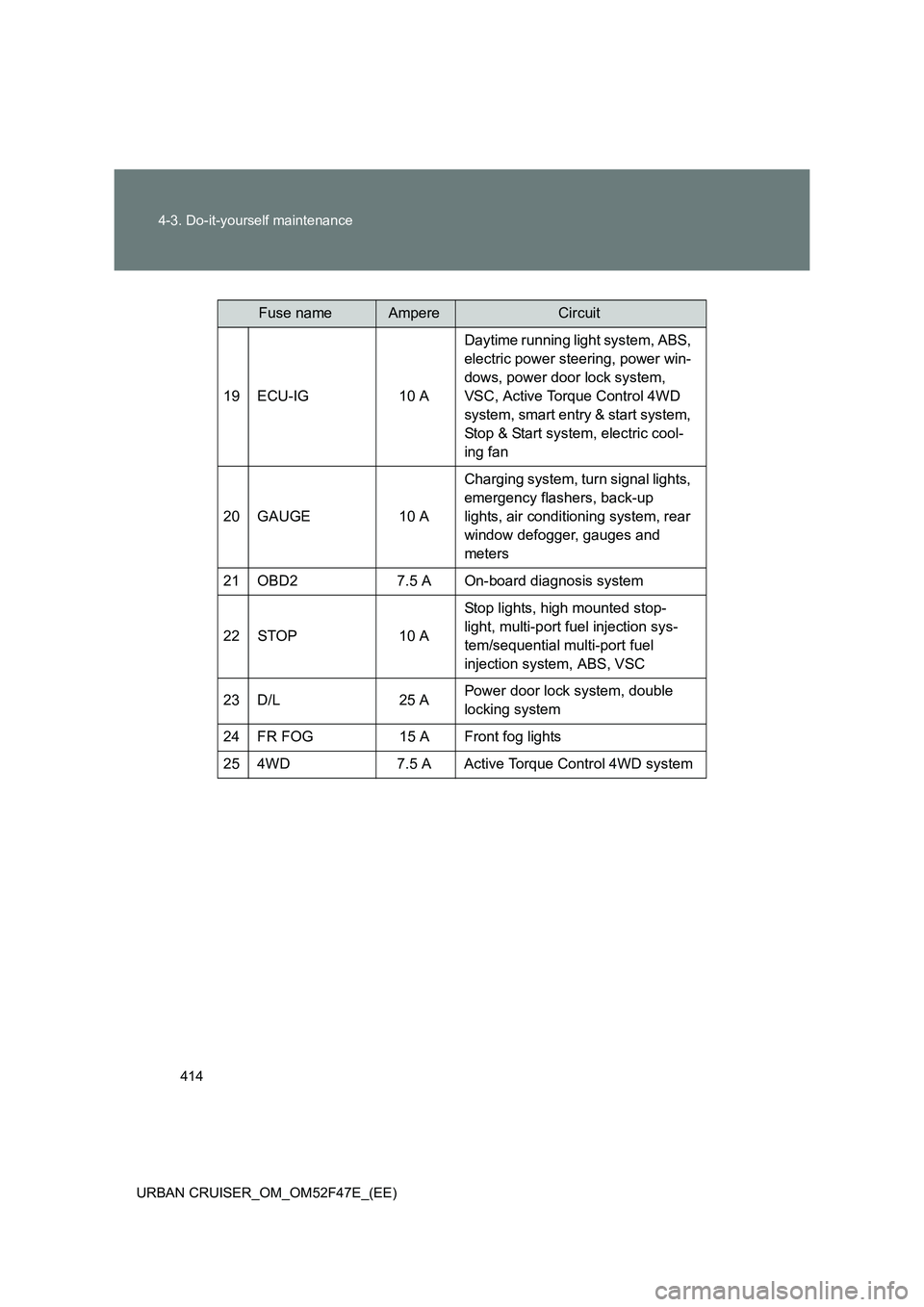

Fuse nameAmpereCircuit
19 ECU-IG 10 A Daytime running light system, ABS,
electric power steering, power win-
dows, power door lock system,
VSC, Active Torque Control 4WD
system, smart entry & start system,
Stop & Start system, electric cool-
ing fan
20 GAUGE 10 A Charging system, turn signal lights,
emergency flashers, back-up
lights, air conditioning system, rear
window defogger, gauges and
meters
21 OBD2 7.5 A On-board diagnosis system
22 STOP 10 A Stop lights, high mounted stop-
light, multi-port fuel injection sys-
tem/sequential multi-port fuel
injection system, ABS, VSC
23 D/L 25 A Power door lock system, double
locking system
24 FR FOG 15 A Front fog lights
25 4WD 7.5 A Active Torque Control 4WD system

415
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
*1: Vehicles with daytime running light system
*2: Vehicles without daytime running light system
*3: Vehicles with smart entry & start system

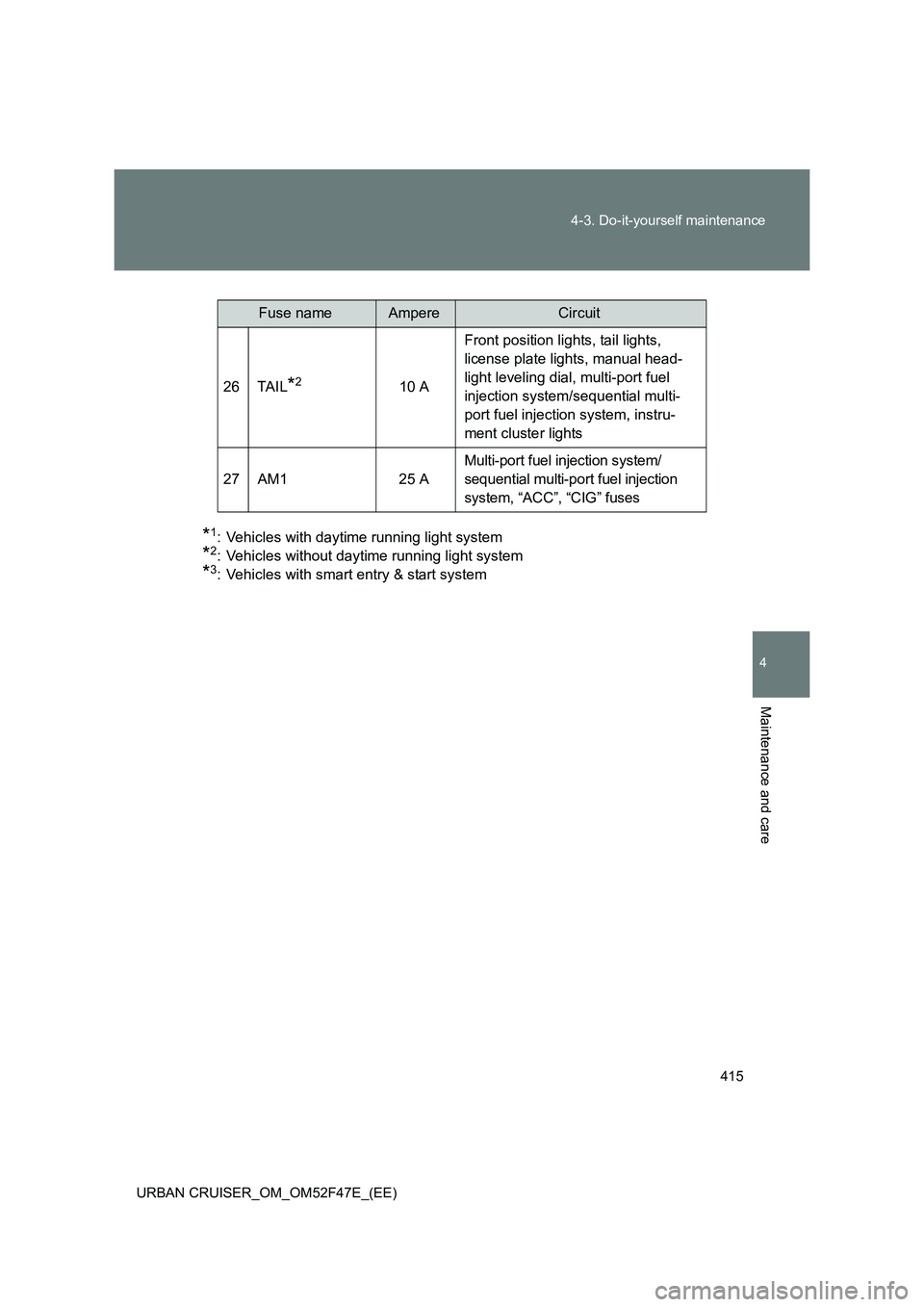

Fuse nameAmpereCircuit
26 TAIL
*210 A Front position lights, tail lights,
license plate lights, manual head-
light leveling dial, multi-port fuel
injection system/sequential multi-
port fuel injection system, instru-
ment cluster lights
27 AM1 25 A Multi-port fuel injection system/
sequential multi-port fuel injection
system, “ACC”, “CIG” fuses

416
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

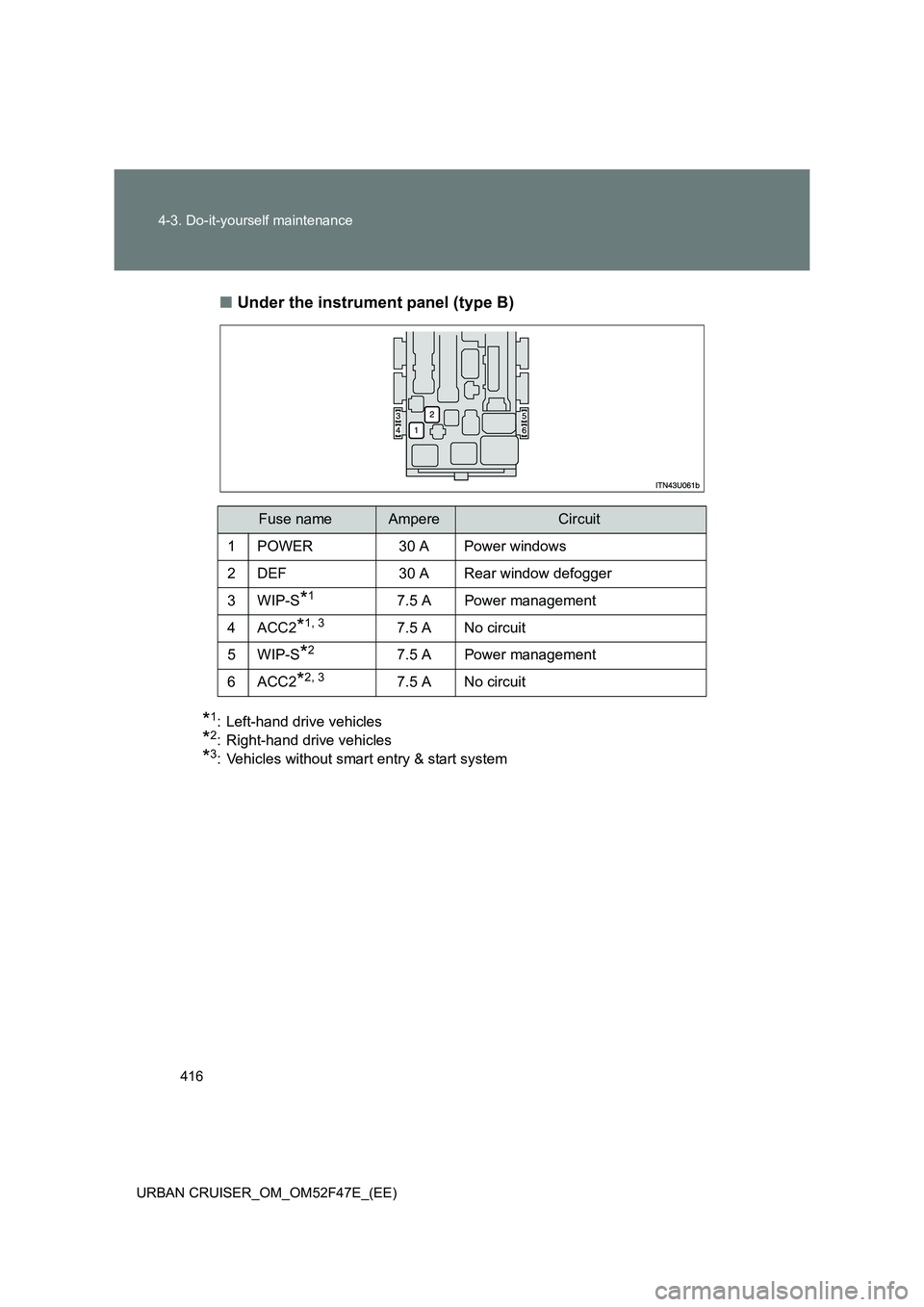

■ Under the instrument panel (type B)
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
*3: Vehicles without smart entry & start system
Fuse nameAmpereCircuit
1 POWER 30 A Power windows
2 DEF 30 A Rear window defogger
3WIP-S
*17.5 A Power management
4ACC2
*1, 37.5 A No circuit
5WIP-S
*27.5 A Power management
6ACC2
*2, 37.5 A No circuit

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■

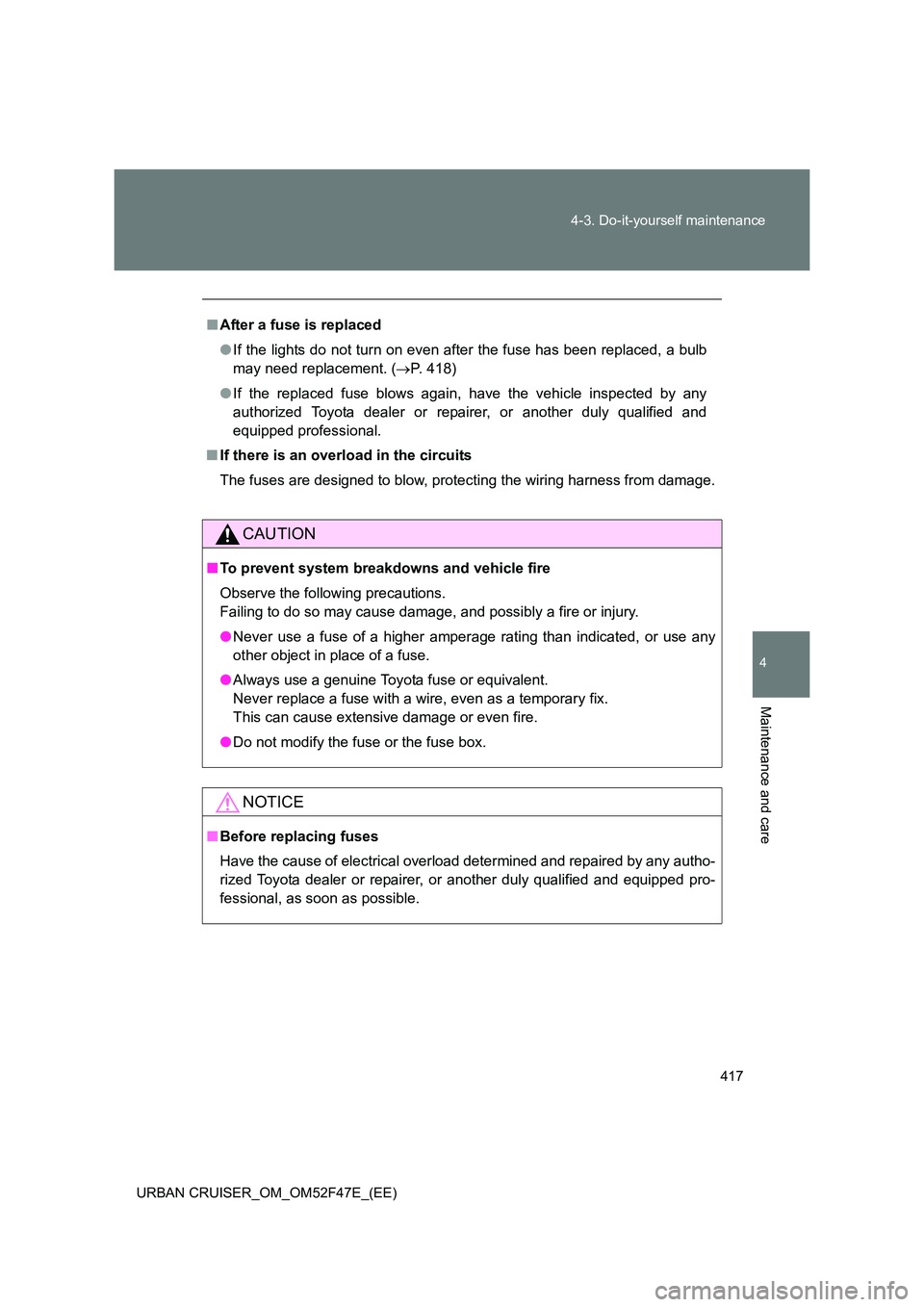

After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( →P. 418)
● If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.

418
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

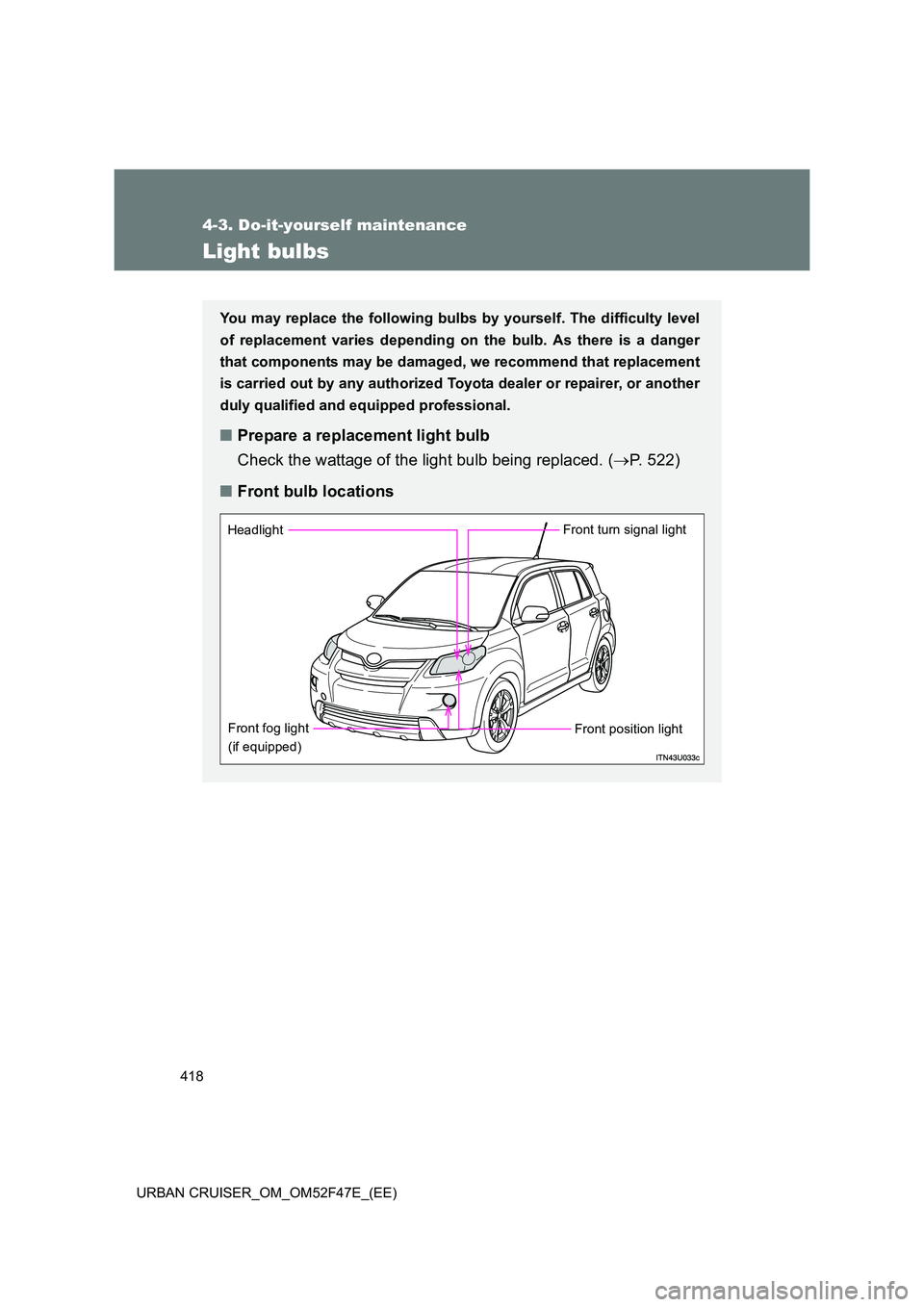

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 522)
■ Front bulb locations
Front turn signal light
Front position light
Headlight
Front fog light
(if equipped)

419
4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
■
Rear bulb locations
Back-up light
or rear fog light
License plate lights
Stop/tail light
Rear turn signal lightBack-up light
or rear fog light

420
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

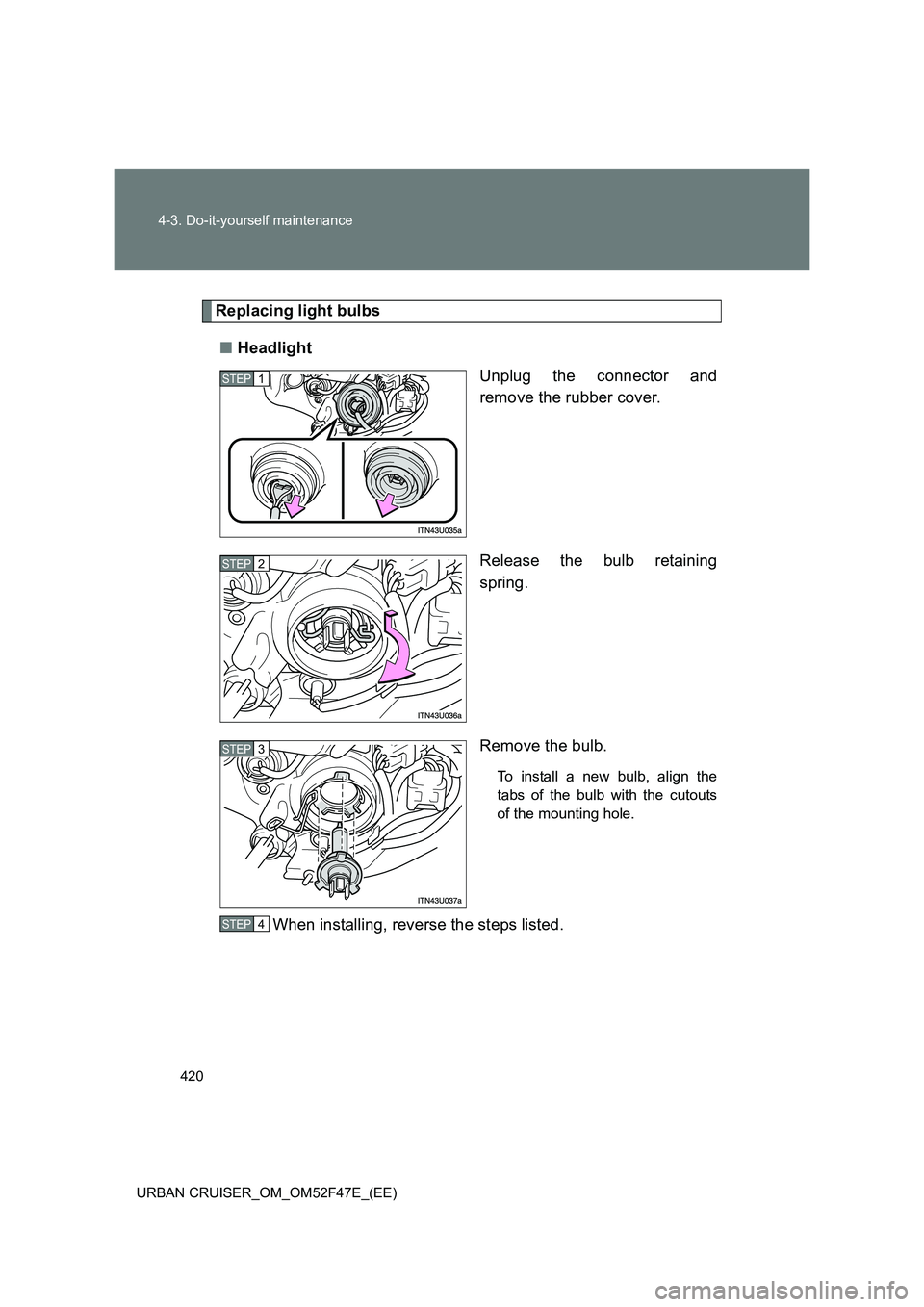

Replacing light bulbs ■ Headlight
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4
