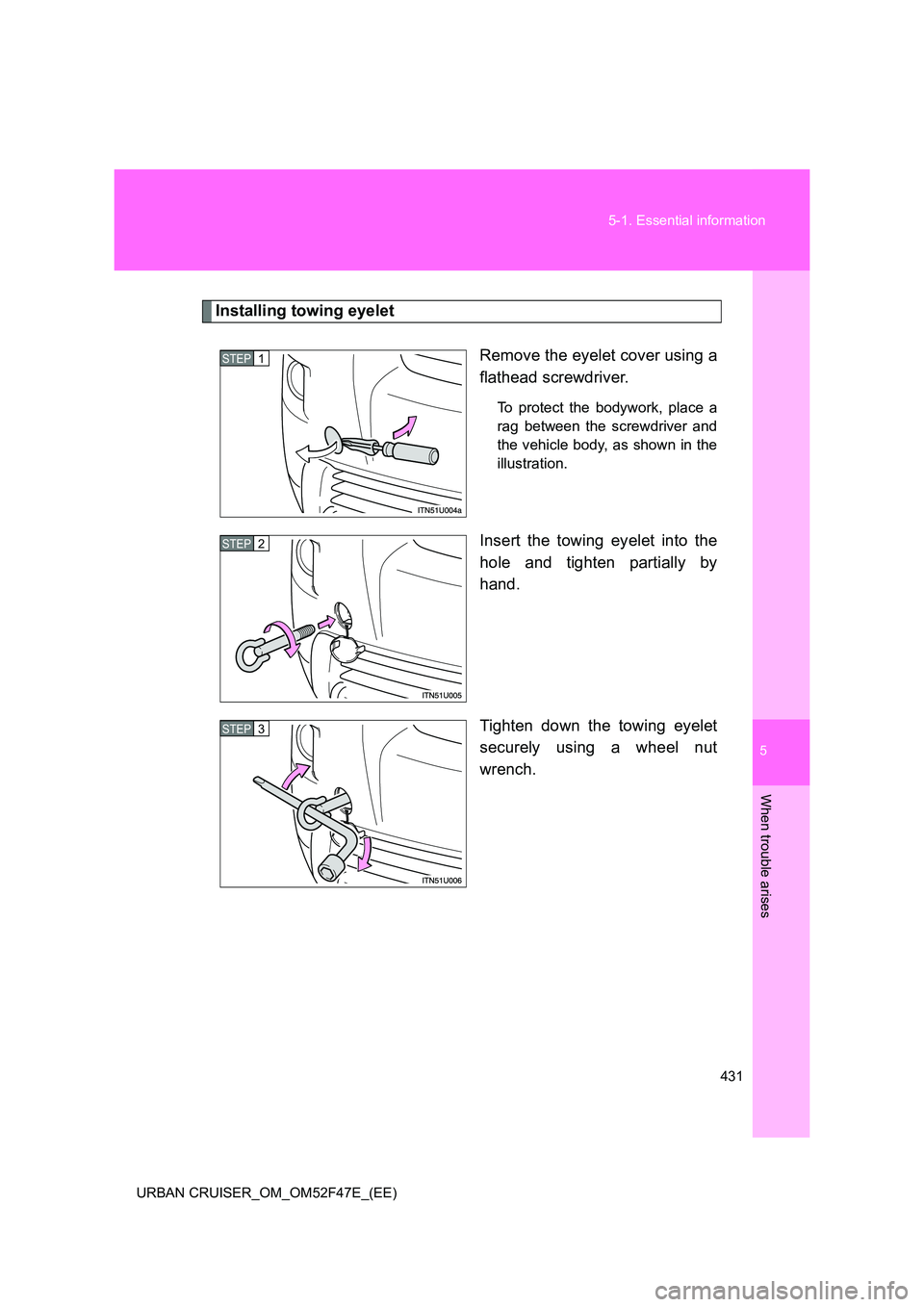

Installing towing eyelet
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
STEP1
STEP2
STEP3
Page 432 of 544

432
5-1. Essential information
URBAN CRUISER_OM_OM52F47E_(EE)

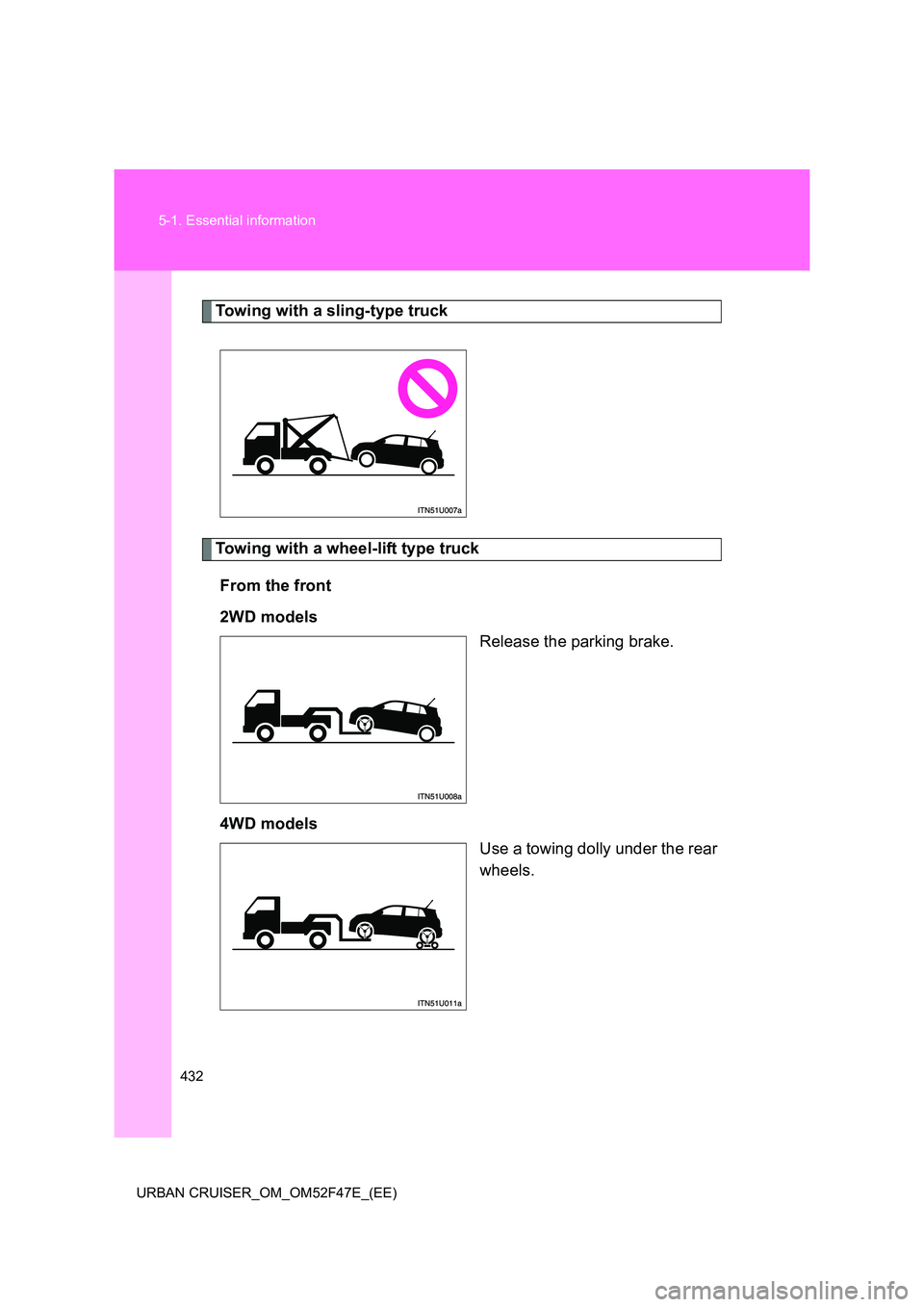

Towing with a sling-type truck
Towing with a wheel-lift type truck From the front
2WD models Release the parking brake.
4WD models Use a towing dolly under the rear
wheels.
Page 433 of 544

5
433
5-1. Essential information
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)

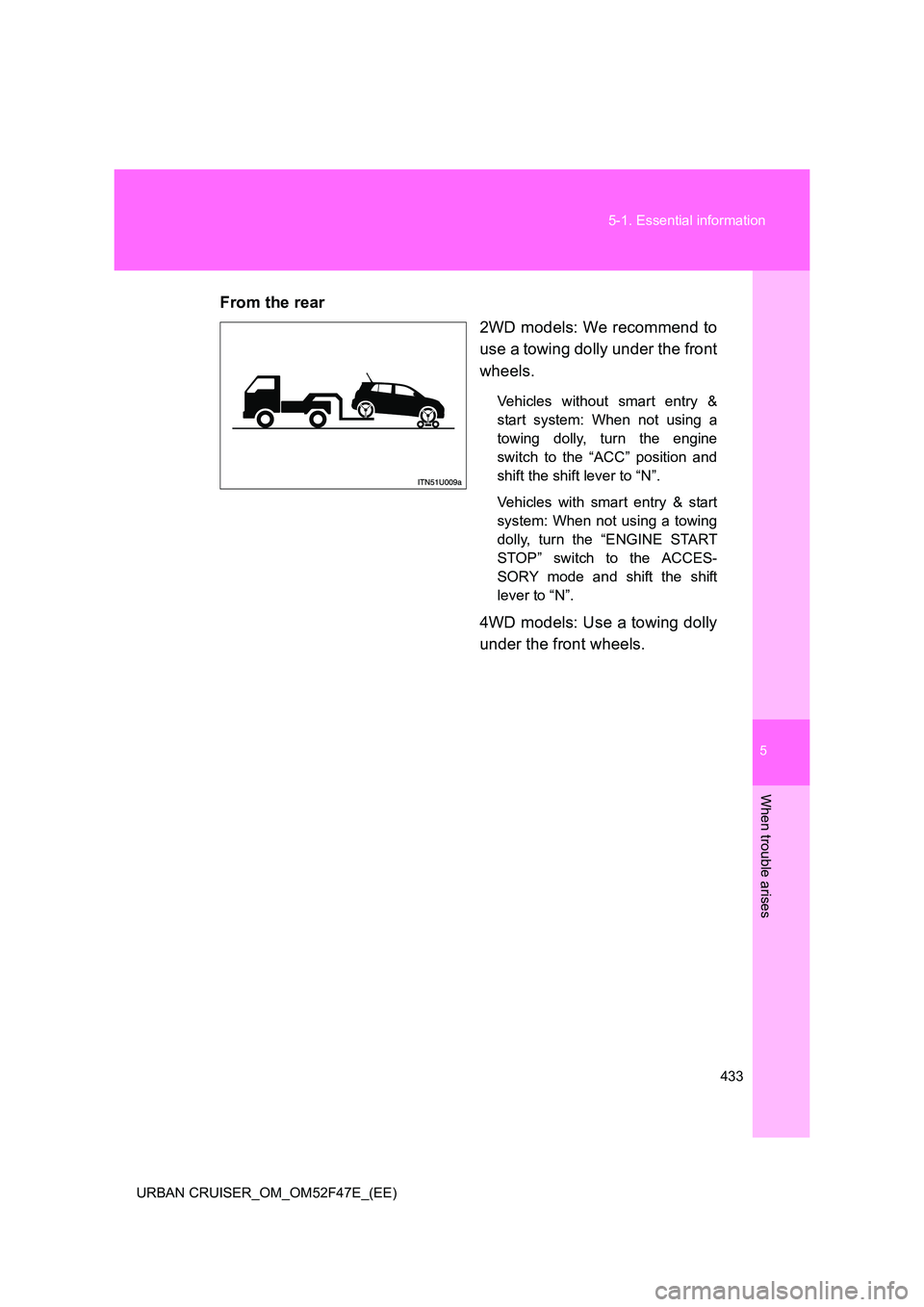

From the rear
2WD models: We recommend to
use a towing dolly under the front
wheels.
Vehicles without smart entry &
start system: When not using a
towing dolly, turn the engine
switch to the “ACC” position and
shift the shift lever to “N”.
Vehicles with smart entry & start
system: When not using a towing
dolly, turn the “ENGINE START
STOP” switch to the ACCES-
SORY mode and shift the shift
lever to “N”.
4WD models: Use a towing dolly
under the front wheels.
Page 434 of 544

434
5-1. Essential information
URBAN CRUISER_OM_OM52F47E_(EE)

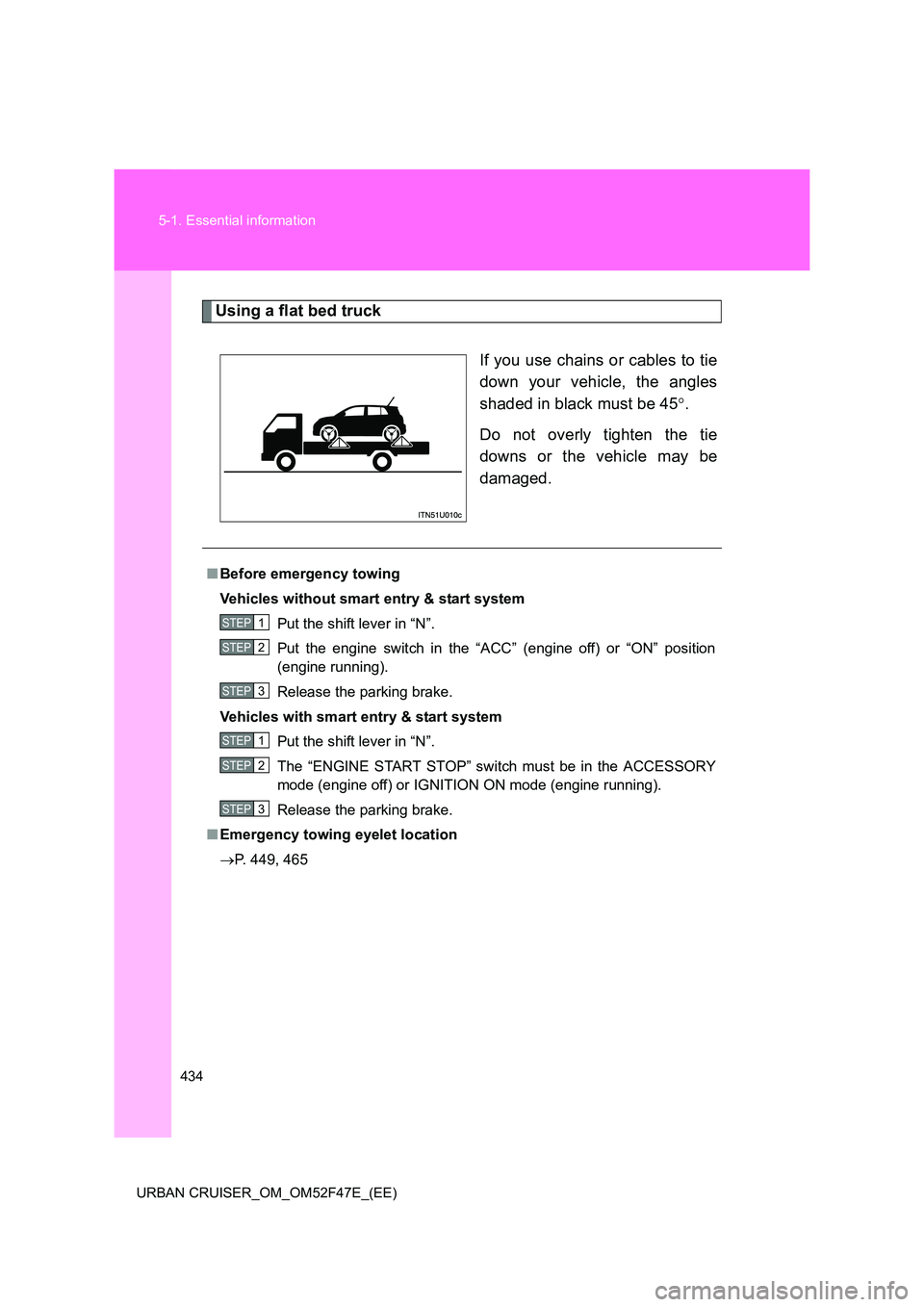

Using a flat bed truck If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
■ Before emergency towing
Vehicles without smart entry & start system
Put the shift lever in “N”.
Put the engine switch in the “ACC” (engine off) or “ON” position
(engine running).
Release the parking brake.
Vehicles with smart entry & start system Put the shift lever in “N”.
The “ENGINE START STOP” switch must be in the ACCESSORY
mode (engine off) or IGNITION ON mode (engine running).
Release the parking brake.
■ Emergency towing eyelet location
→ P. 449, 465
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
Page 435 of 544

5
435
5-1. Essential information
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)

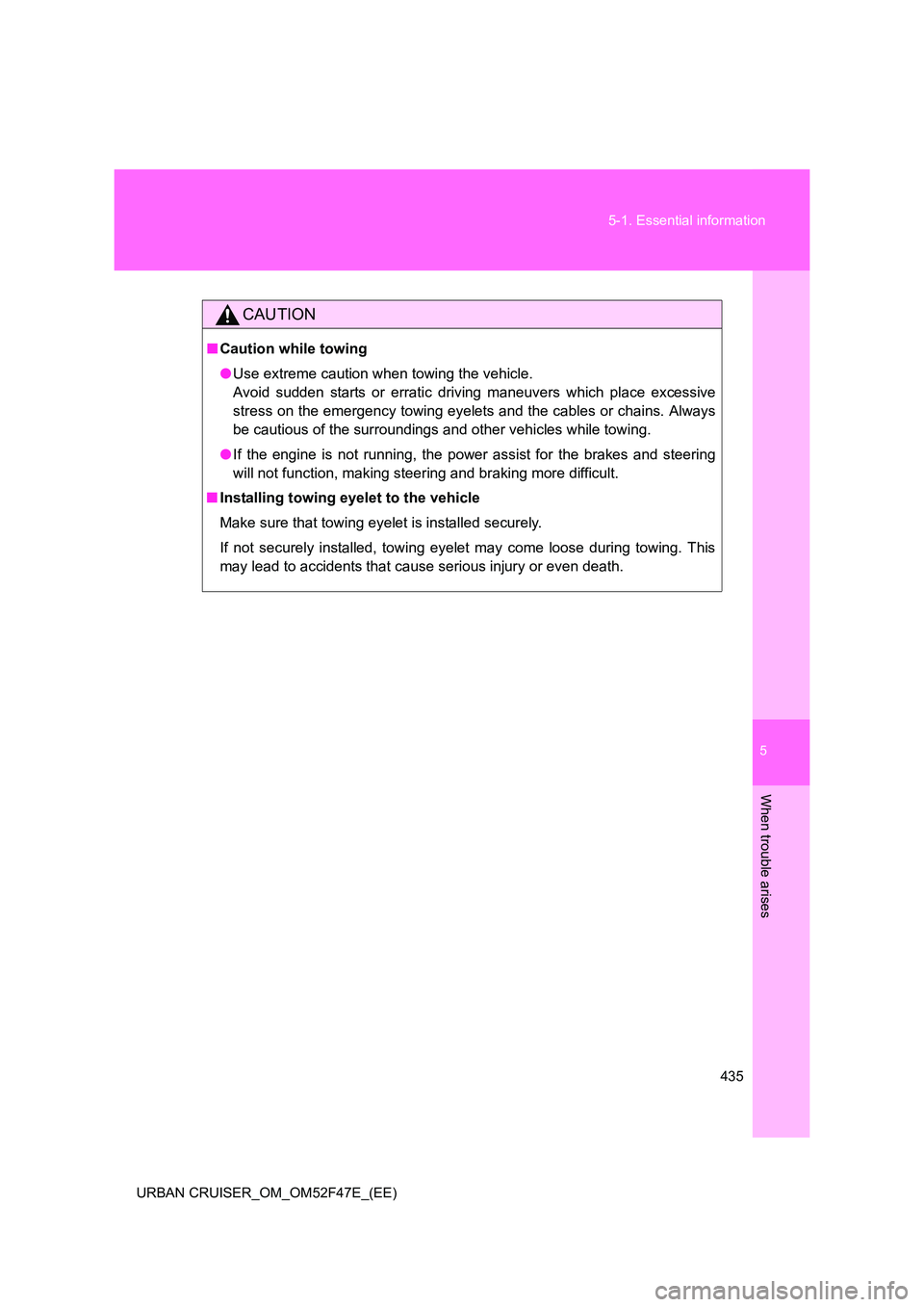

CAUTION
■
Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
● If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
■ Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing. This
may lead to accidents that cause serious injury or even death.
Page 436 of 544

436
5-1. Essential information
URBAN CRUISER_OM_OM52F47E_(EE)

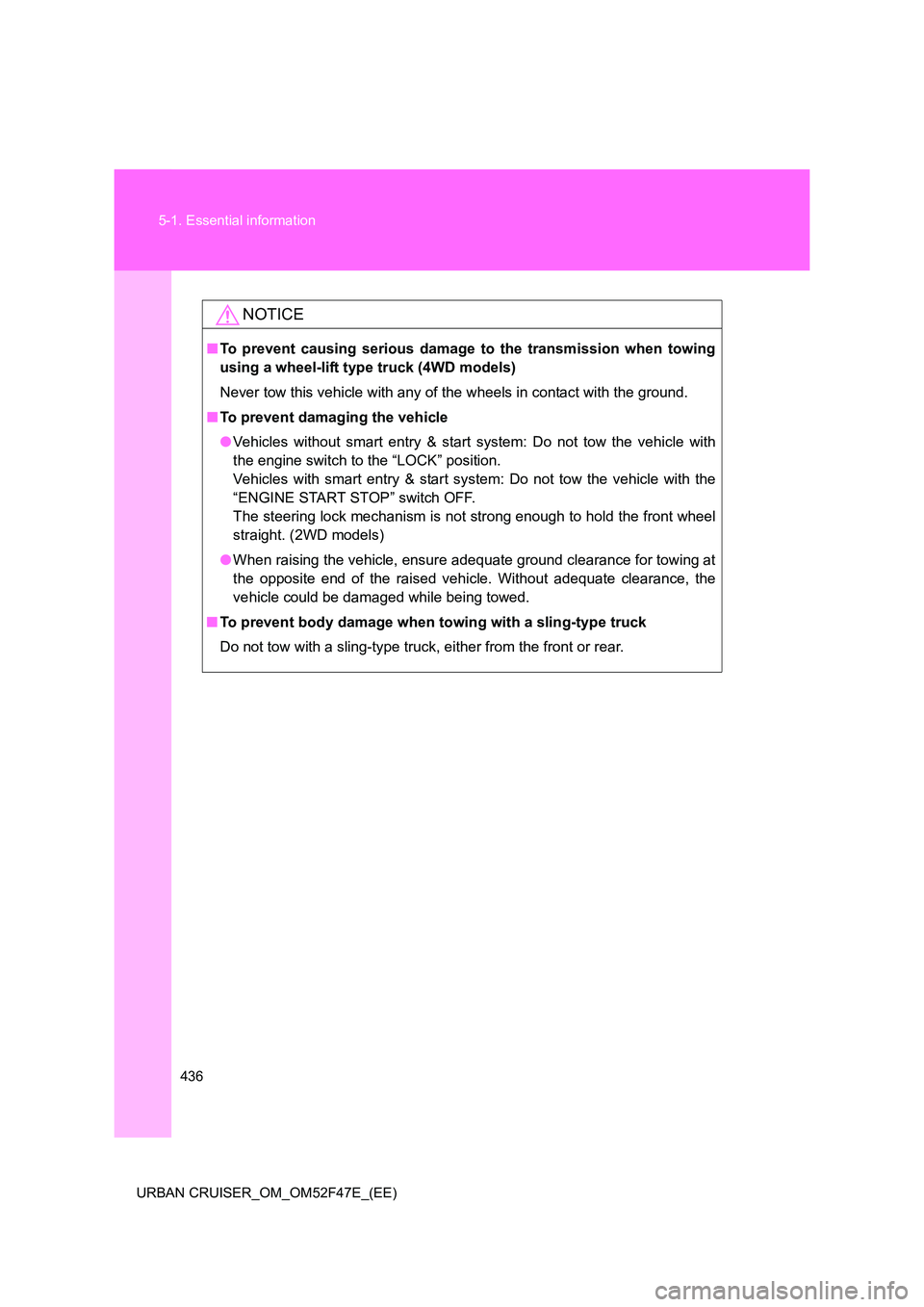

NOTICE
■ To prevent causing serious damage to the transmission when towing
using a wheel-lift type truck (4WD models)
Never tow this vehicle with any of the wheels in contact with the ground.
■ To prevent damaging the vehicle
●Vehicles without smart entry & start system: Do not tow the vehicle with
the engine switch to the “LOCK” position.
Vehicles with smart entry & start system: Do not tow the vehicle with the
“ENGINE START STOP” switch OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight. (2WD models)
● When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
Page 437 of 544

5
437
5-1. Essential information
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)

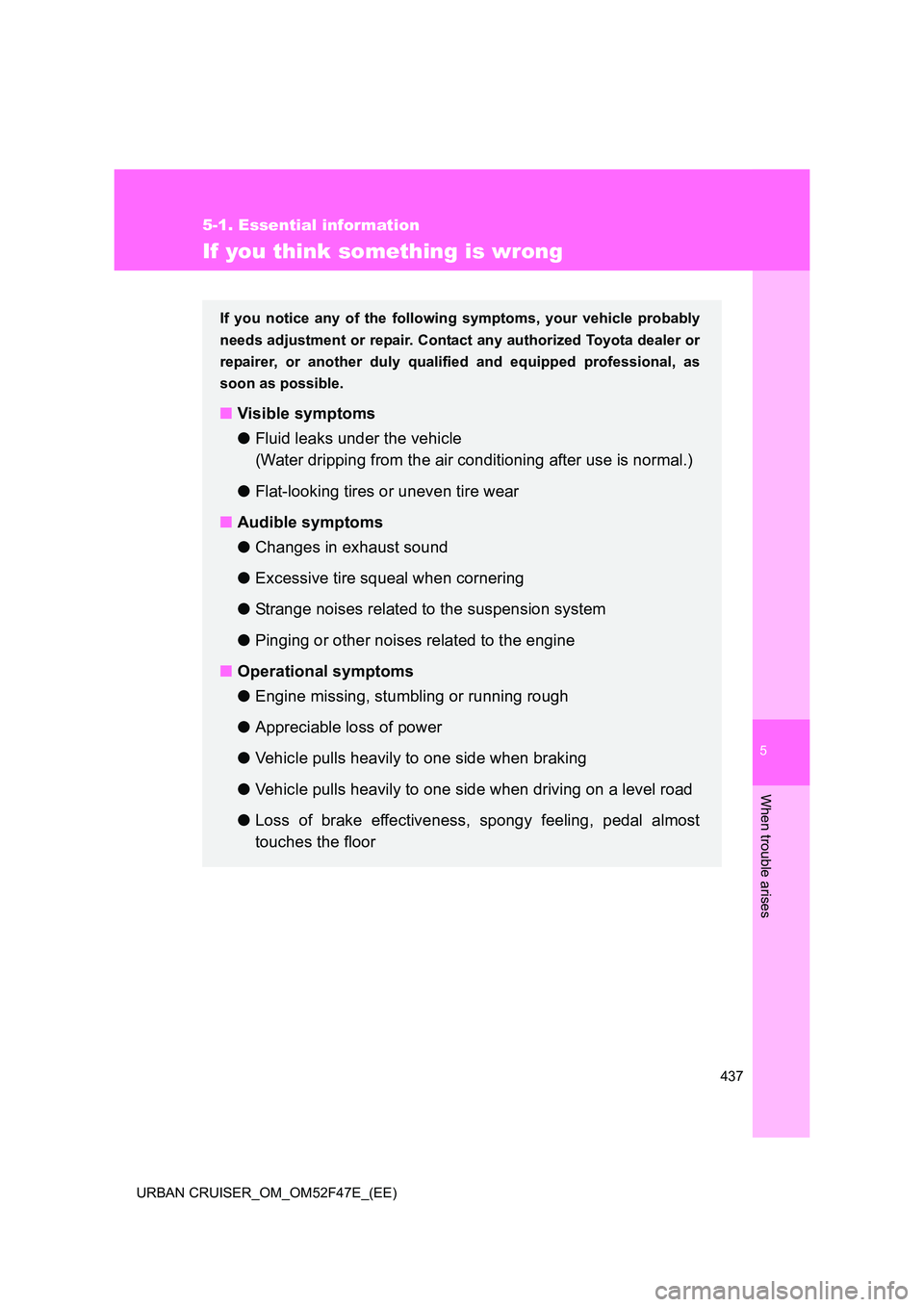

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, as
soon as possible.
■ Visible symptoms
● Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
■ Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
● Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost
touches the floor
Page 438 of 544

438
5-1. Essential information
URBAN CRUISER_OM_OM52F47E_(EE)

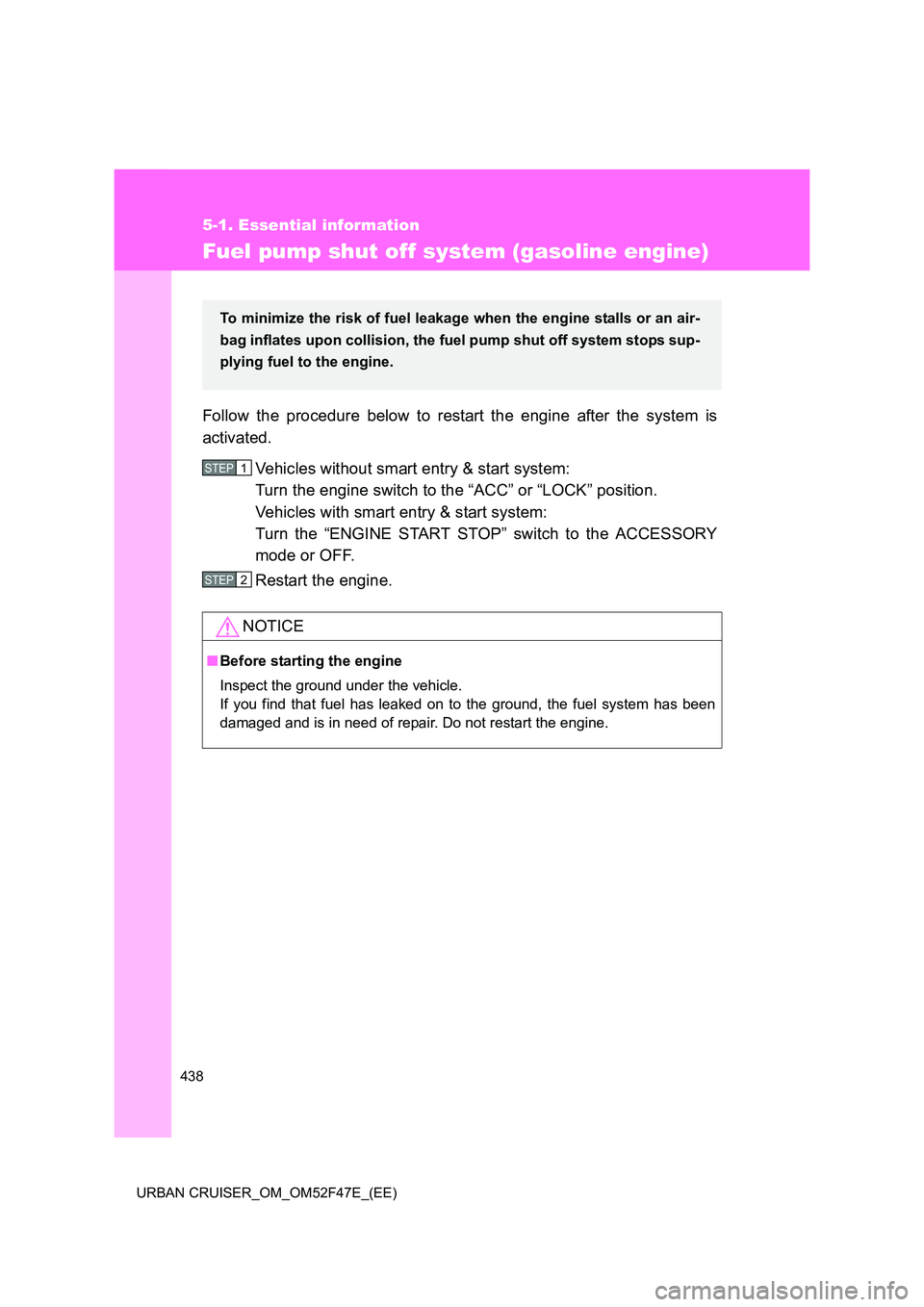

Fuel pump shut off system (gasoline engine)
Follow the procedure below to restart the engine after the system is
activated.Vehicles without smart entry & start system:
Turn the engine switch to the “ACC” or “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch to the ACCESSORY
mode or OFF.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump shut off system stops sup-
plying fuel to the engine.
STEP1
STEP2
Page 439 of 544

5
439
When trouble arises
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency

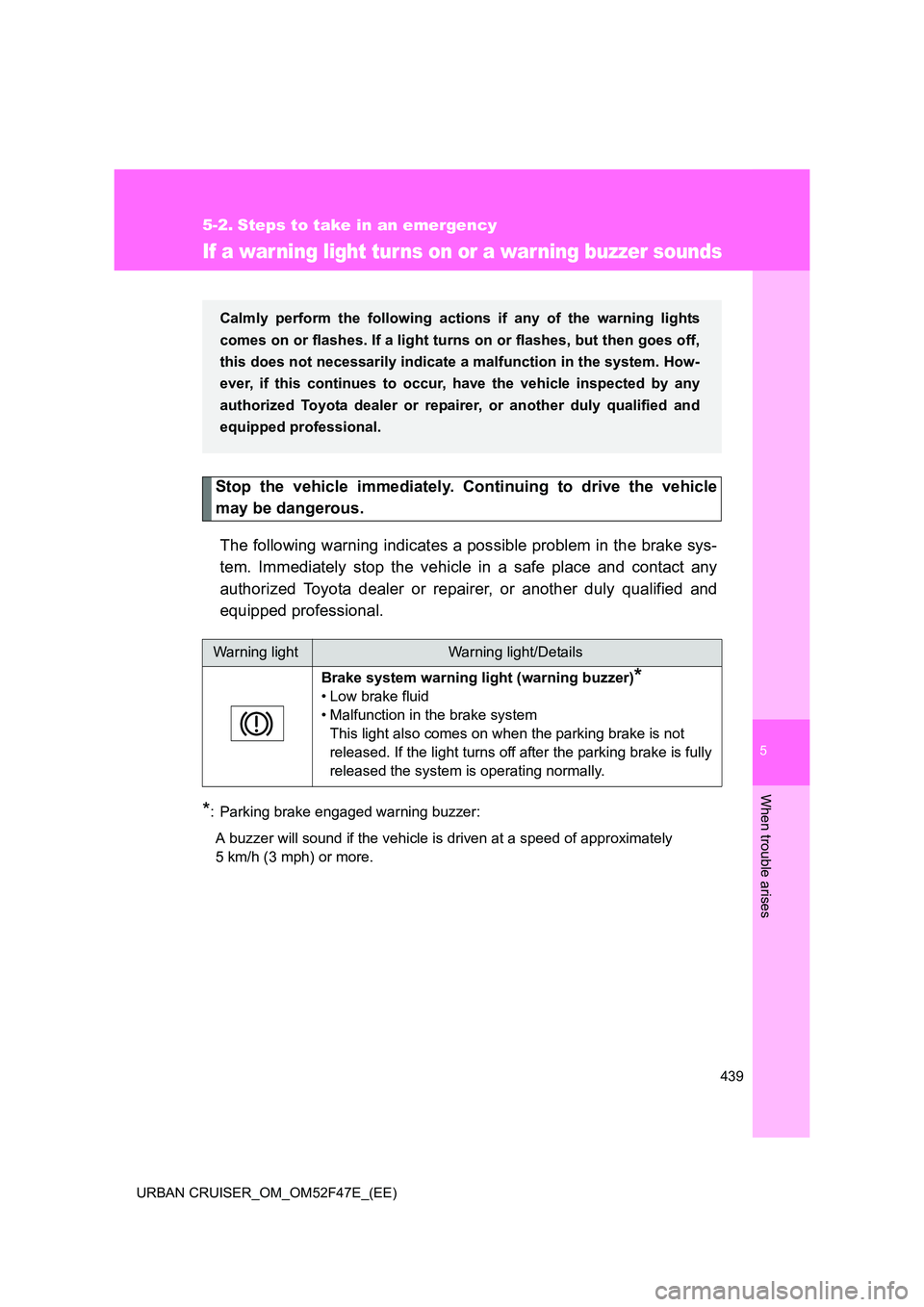

If a warning light turns on or a warning buzzer sounds
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*: Parking brake engaged warning buzzer: A buzzer will sound if the vehicle is driven at a speed of approximately
5 km/h (3 mph) or more.
Warning lightWarning light/Details
Brake system warning light (warning buzzer)
*
• Low brake fluid
• Malfunction in the brake system This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light turns on or flashes, but then goes off,
this does not necessarily indicate a malfunction in the system. How-
ever, if this continues to occur, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Page 440 of 544

440
5-2. Steps to take in an emergency
URBAN CRUISER_OM_OM52F47E_(EE)

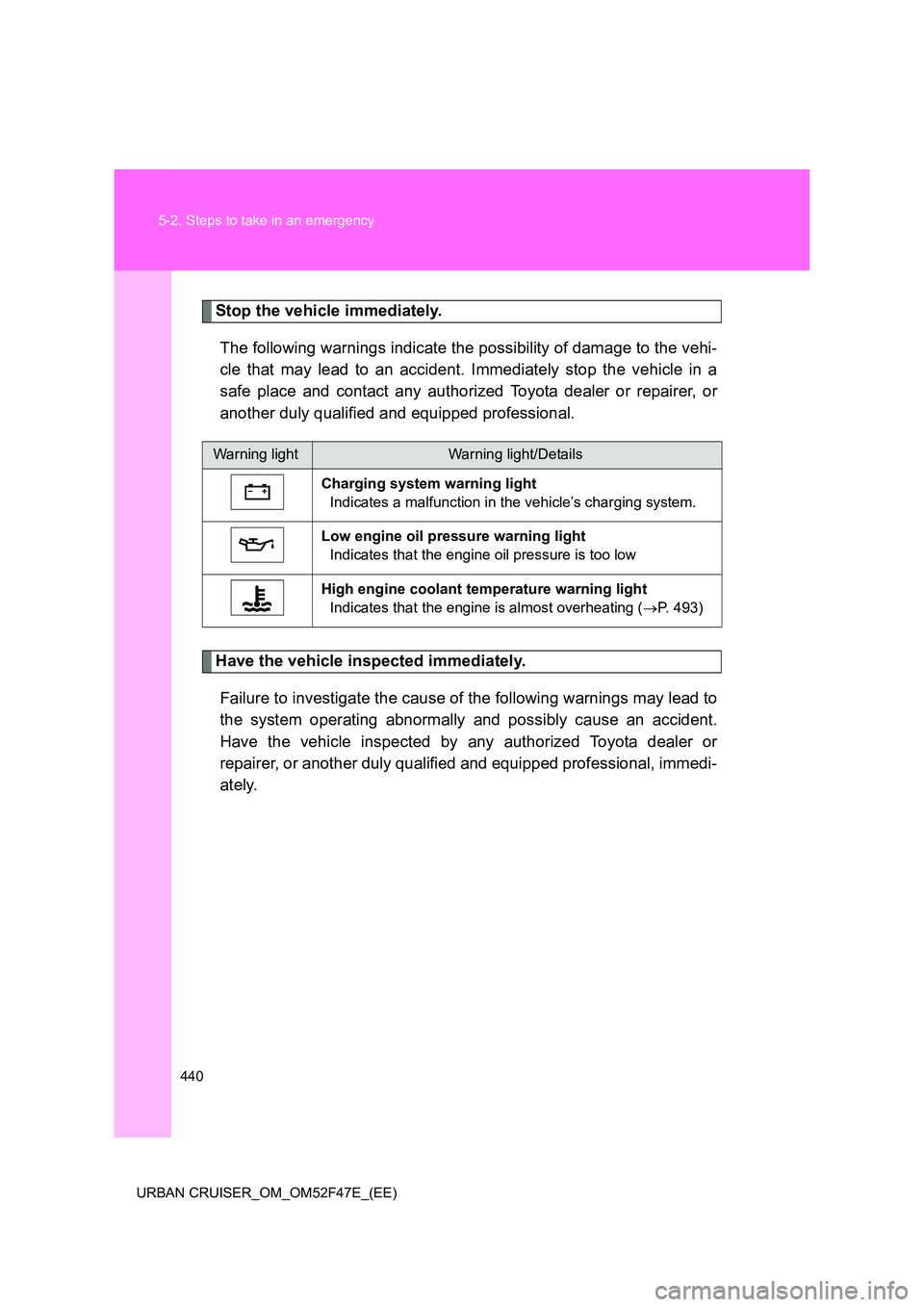

Stop the vehicle immediately. The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Have the vehicle inspected immediately.Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging system.
Low engine oil pressure warning light Indicates that the engine oil pressure is too low
High engine coolant temperature warning light Indicates that the engine is almost overheating ( →P. 493)
