4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73004U)

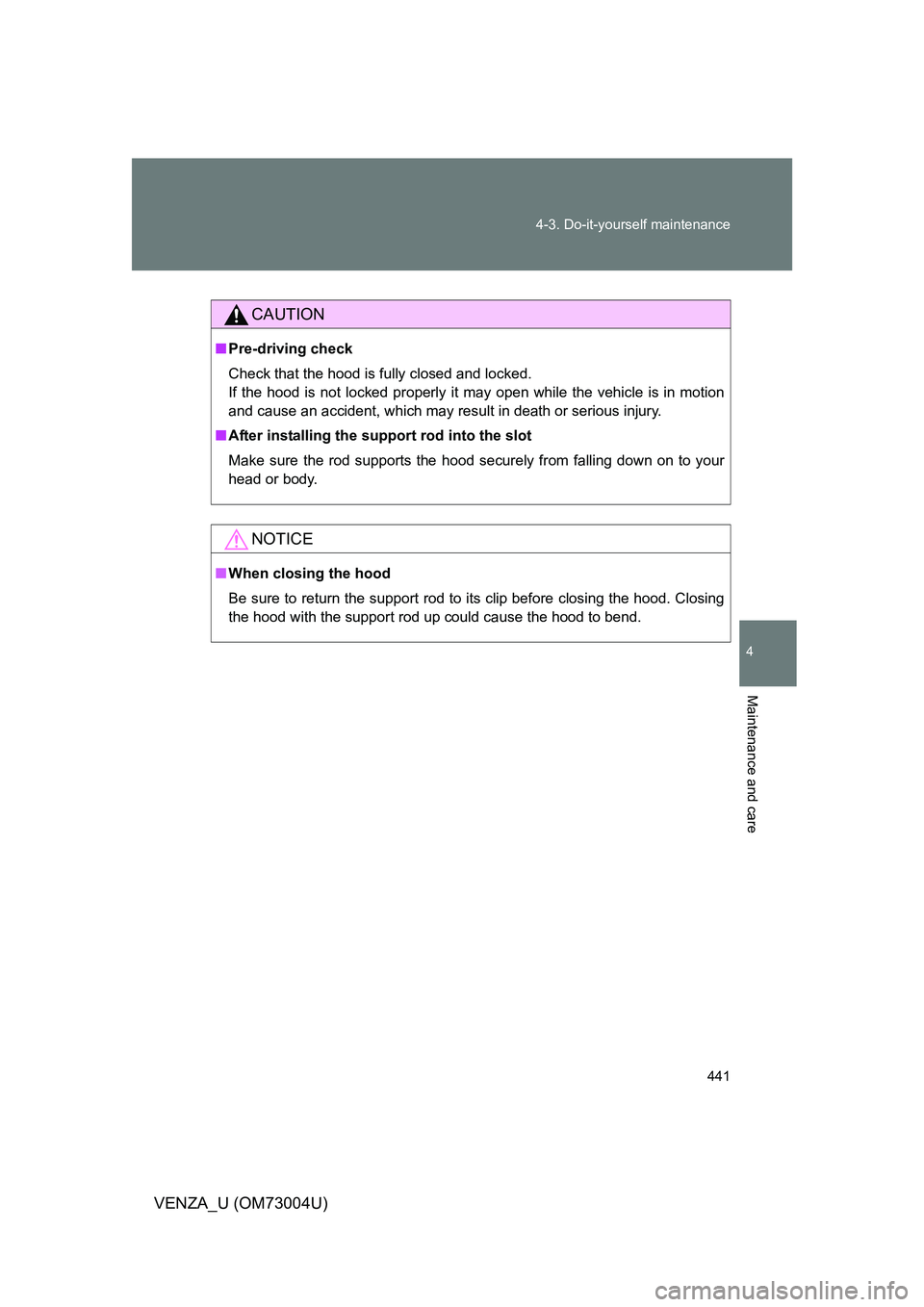

CAUTION
■
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.
Page 442 of 620
442
4-3. Do-it-yourself maintenance
VENZA_U (OM73004U)
Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
Rear (2WD models)
Rear (AWD models)
Page 443 of 620

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73004U)

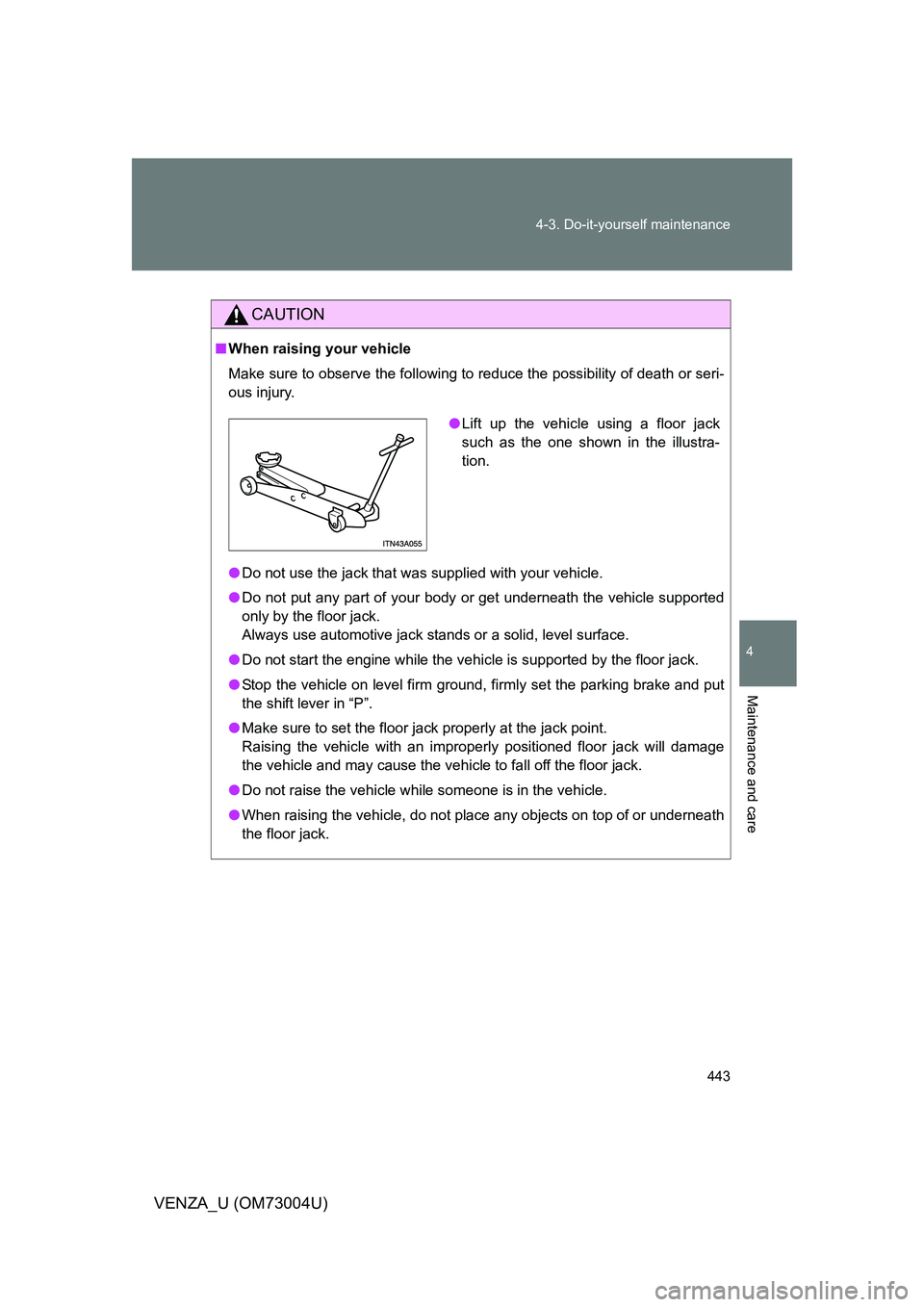

CAUTION
■
When raising your vehicle
Make sure to observe the following to reduce the possibility of death or\
seri-
ous injury.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
Always use automotive jack stands or a solid, level surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level firm ground, firmly set the parking brake and put
the shift lever in “P”.
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.
Page 444 of 620
444
4-3. Do-it-yourself maintenance
VENZA_U (OM73004U)

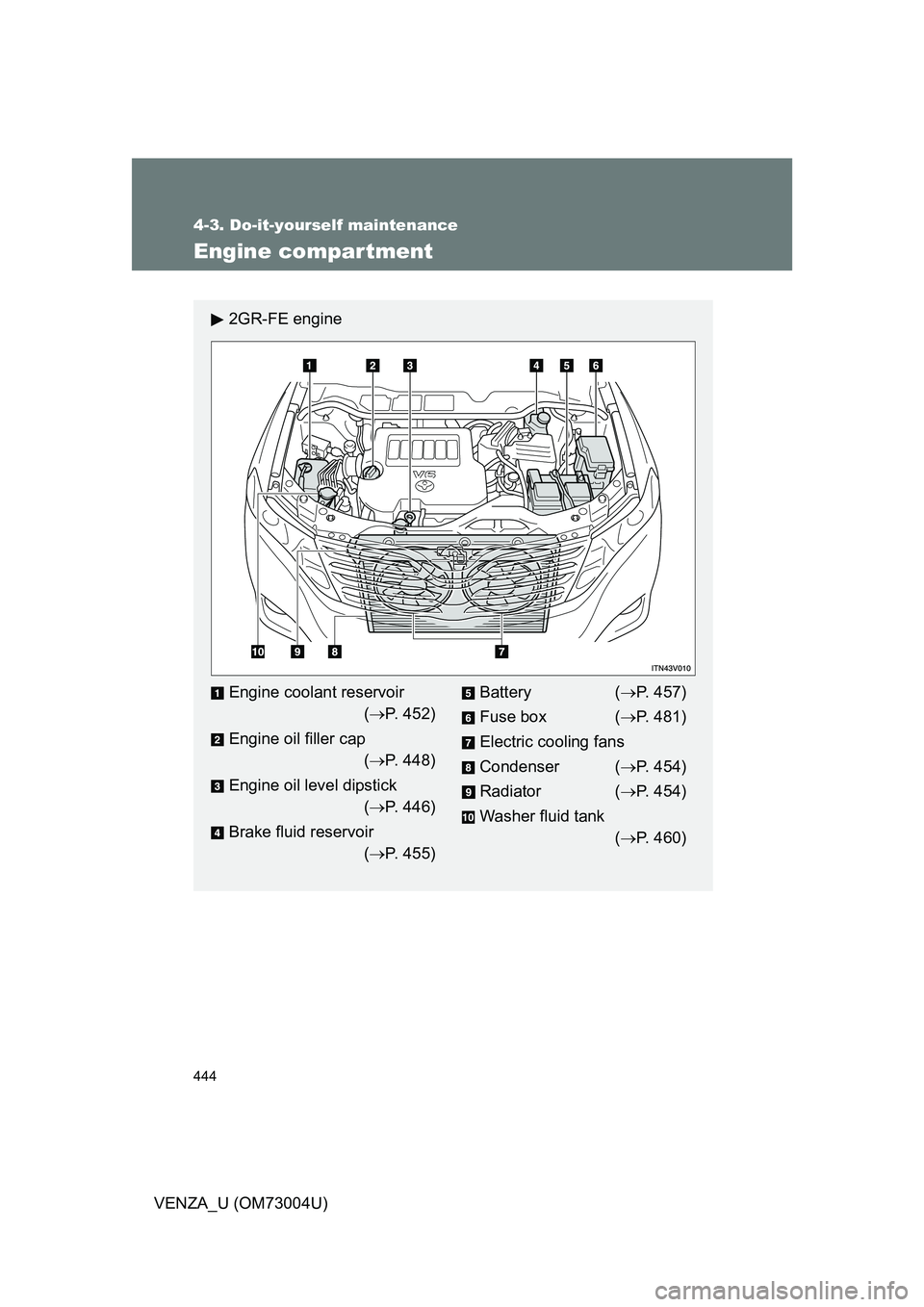

Engine compar tment
2GR-FE engine
Engine coolant reservoir( P. 452)
Engine oil filler cap ( P. 448)
Engine oil level dipstick ( P. 446)
Brake fluid reservoir ( P. 455)Battery ( P. 457)
Fuse box ( P. 481)
Electric cooling fans
Condenser ( P. 454)
Radiator ( P. 454)
Washer fluid tank ( P. 460)
Page 445 of 620
445
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73004U)

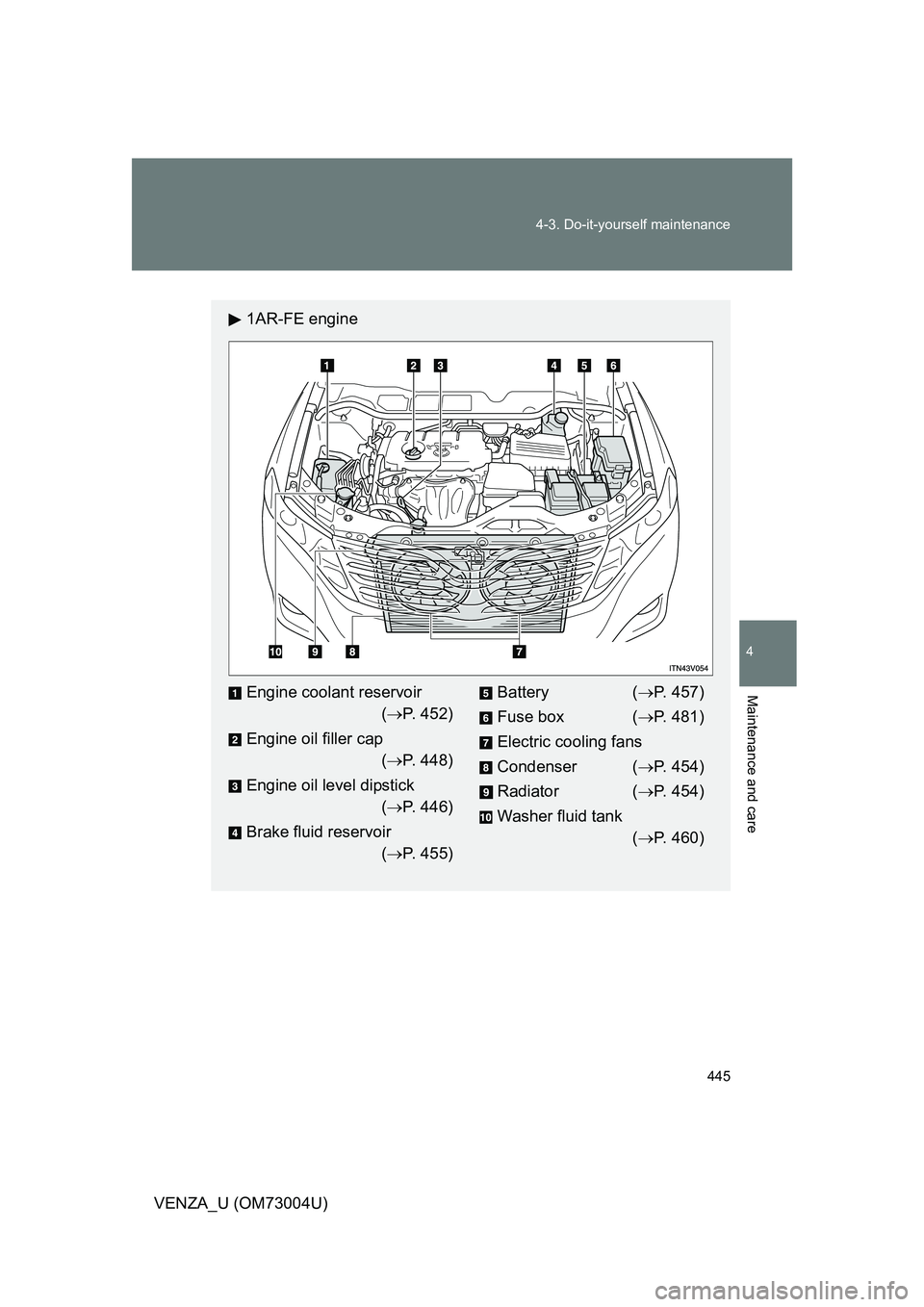

1AR-FE engine
Engine coolant reservoir
( P. 452)
Engine oil filler cap ( P. 448)
Engine oil level dipstick ( P. 446)
Brake fluid reservoir ( P. 455)Battery ( P. 457)
Fuse box ( P. 481)
Electric cooling fans
Condenser ( P. 454)
Radiator ( P. 454)
Washer fluid tank ( P. 460)
Page 446 of 620
446 4-3. Do-it-yourself maintenance
VENZA_U (OM73004U)
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level gro und. After turning off the engine,
wait more than five minutes for the oil to drain back into the
bottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
STEP1
STEP2
STEP3
STEP4
STEP5
Page 447 of 620
447
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73004U)

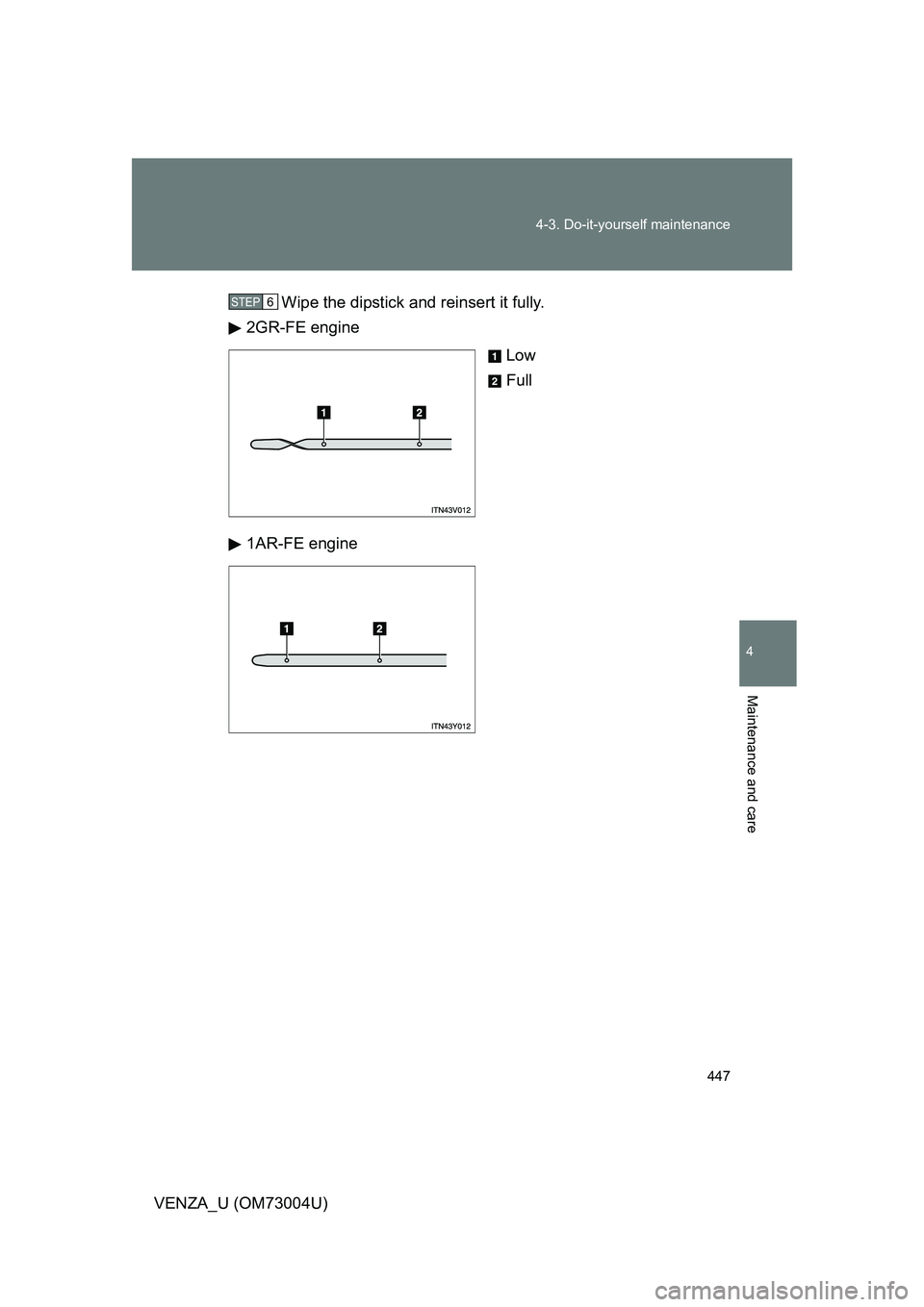

Wipe the dipstick and reinsert it fully.
2GR-FE engine
Low
Full
1AR-FE engine
STEP6
Page 448 of 620
448 4-3. Do-it-yourself maintenance
VENZA_U (OM73004U)■

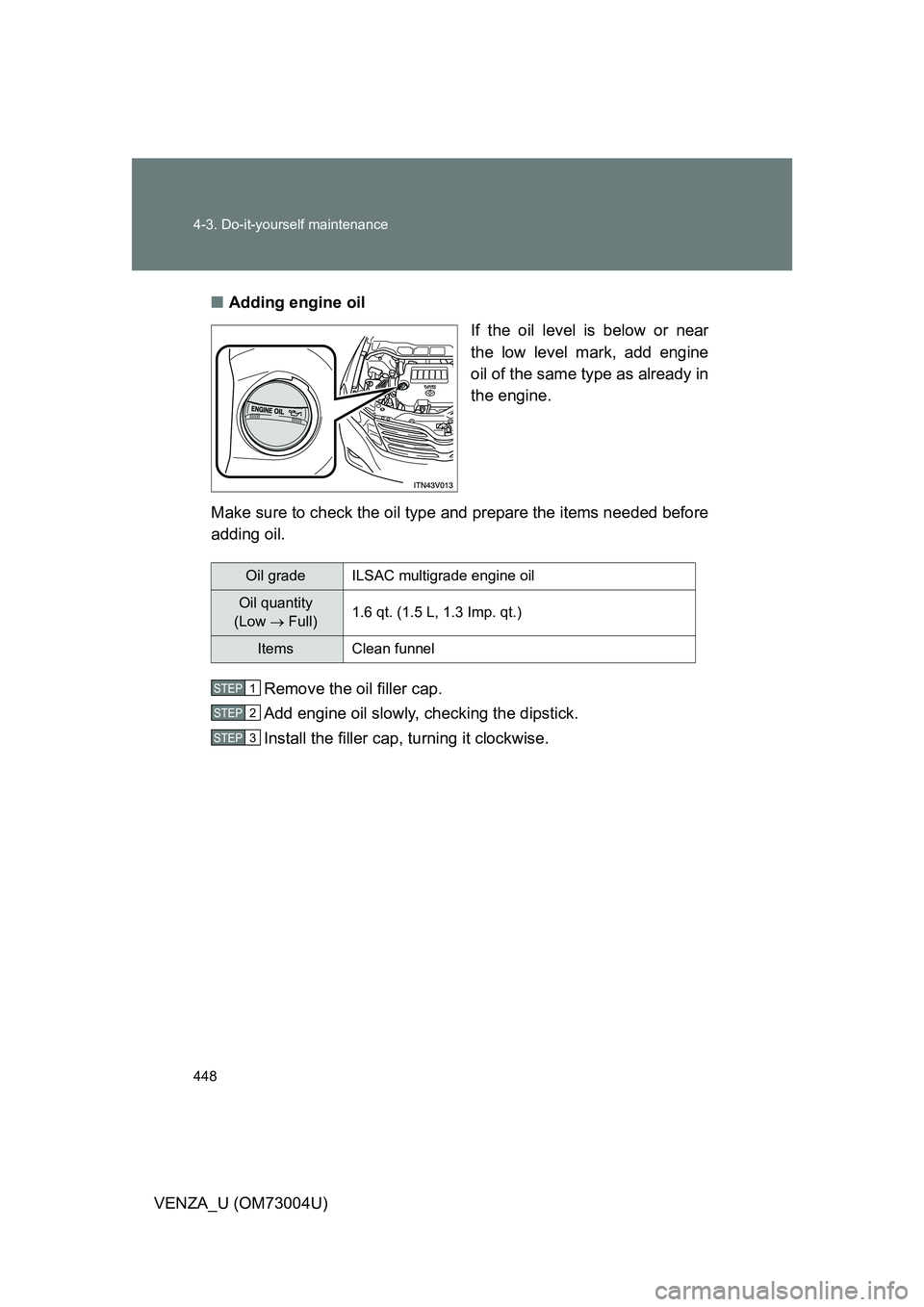

Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
Oil gradeILSAC multigrade engine oil
Oil quantity
(Low Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3
Page 449 of 620
449
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73004U)
■
Recommended viscosity
2GR-FE engine
SAE 5W-30 is the best choice for
good fuel economy, and good
starting in cold weather.
If SAE 5W-30 oil is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
1AR-FE engineSAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
■ How to read oil container labels
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to
help you select the oil you should use.
Outside temperature
Outside temperature
Page 450 of 620

450 4-3. Do-it-yourself maintenance
VENZA_U (OM73004U)

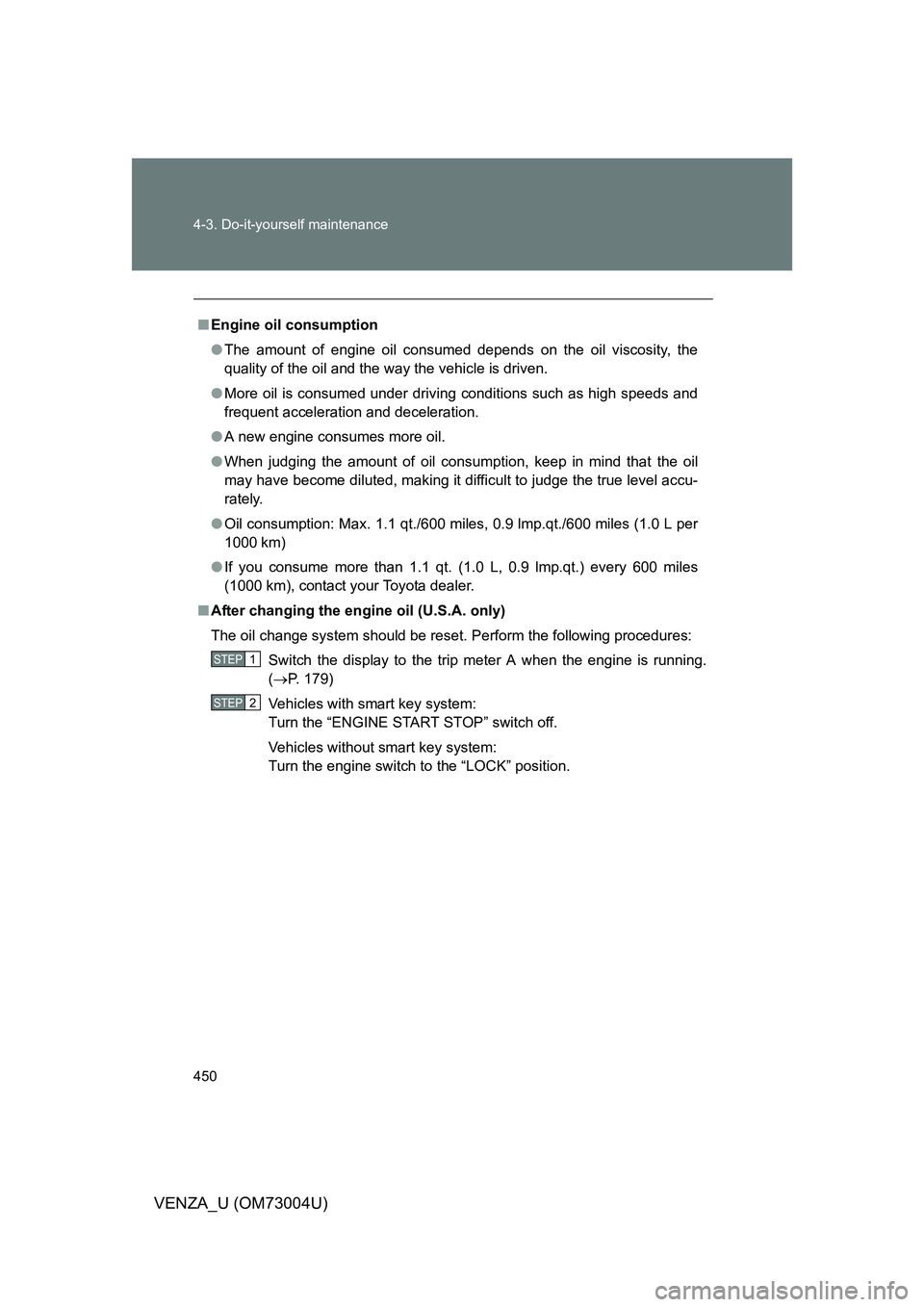

■Engine oil consumption
● The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
● More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
● A new engine consumes more oil.
● When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level accu-
rately.
● Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per
1000 km)
● If you consume more than 1.1 qt. (1.0 L, 0.9 lmp.qt.) every 600 miles
(1000 km), contact your Toyota dealer.
■ After changing the engine oil (U.S.A. only)
The oil change system should be reset. Perform the following procedures:
Switch the display to the trip meter A when the engine is running.
( P. 179)
Vehicles with smart key system:
Turn the “ENGINE START STOP” switch off.
Vehicles without smart key system:
Turn the engine switch to the “LOCK” position.
STEP1
STEP2
