Page 401 of 620

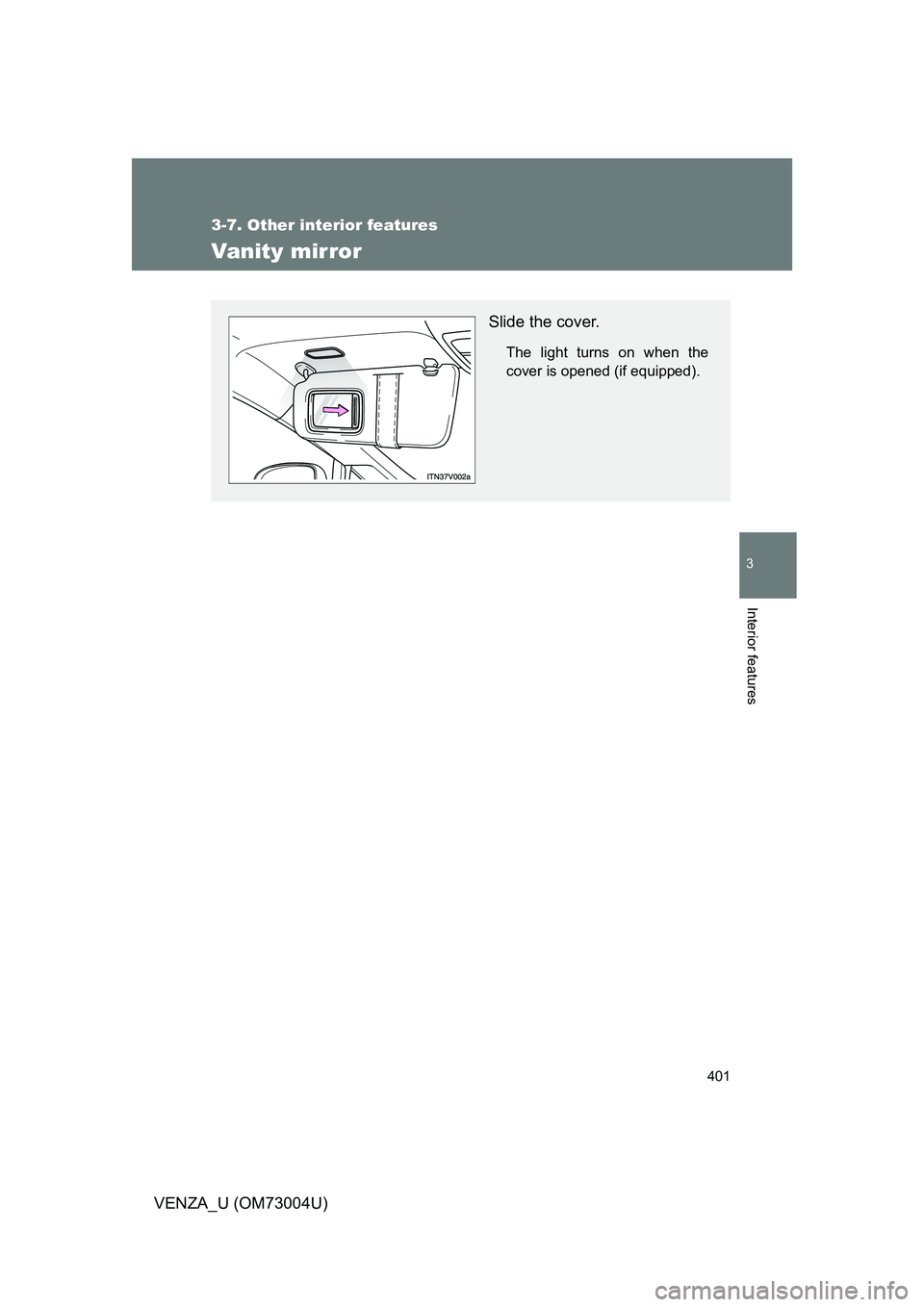

401
3-7. Other interior features
3
Interior features
VENZA_U (OM73004U)
Vanity mirror
Slide the cover.
The light turns on when the
cover is opened (if equipped).
Page 402 of 620

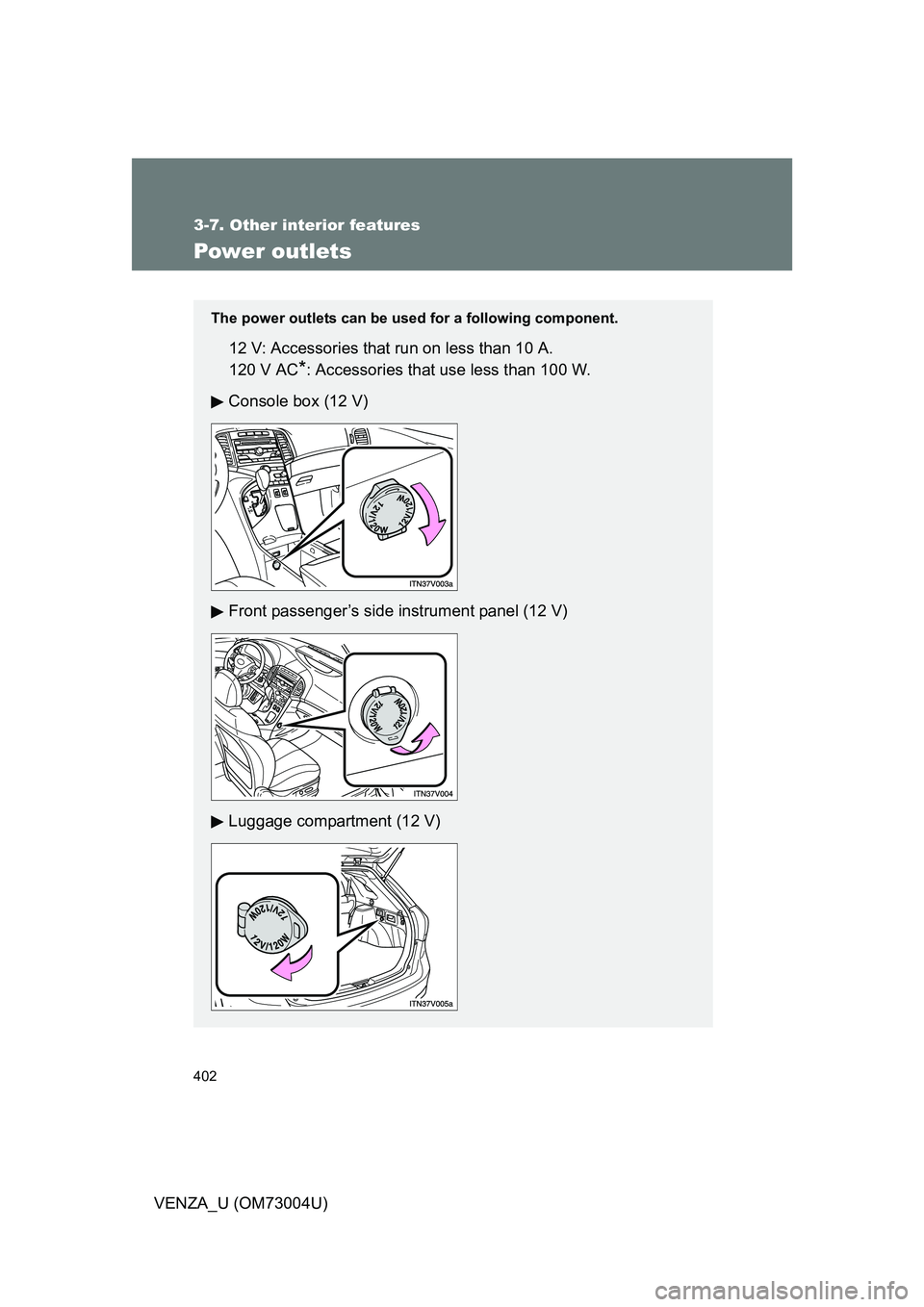

402
3-7. Other interior features
VENZA_U (OM73004U)
Power outlets
The power outlets can be used for a following component.
12 V: Accessories that run on less than 10 A.
120 V AC
*: Accessories that use less than 100 W.
Console box (12 V)
Front passenger’s side instrument panel (12 V)
Luggage compartment (12 V)
Page 403 of 620

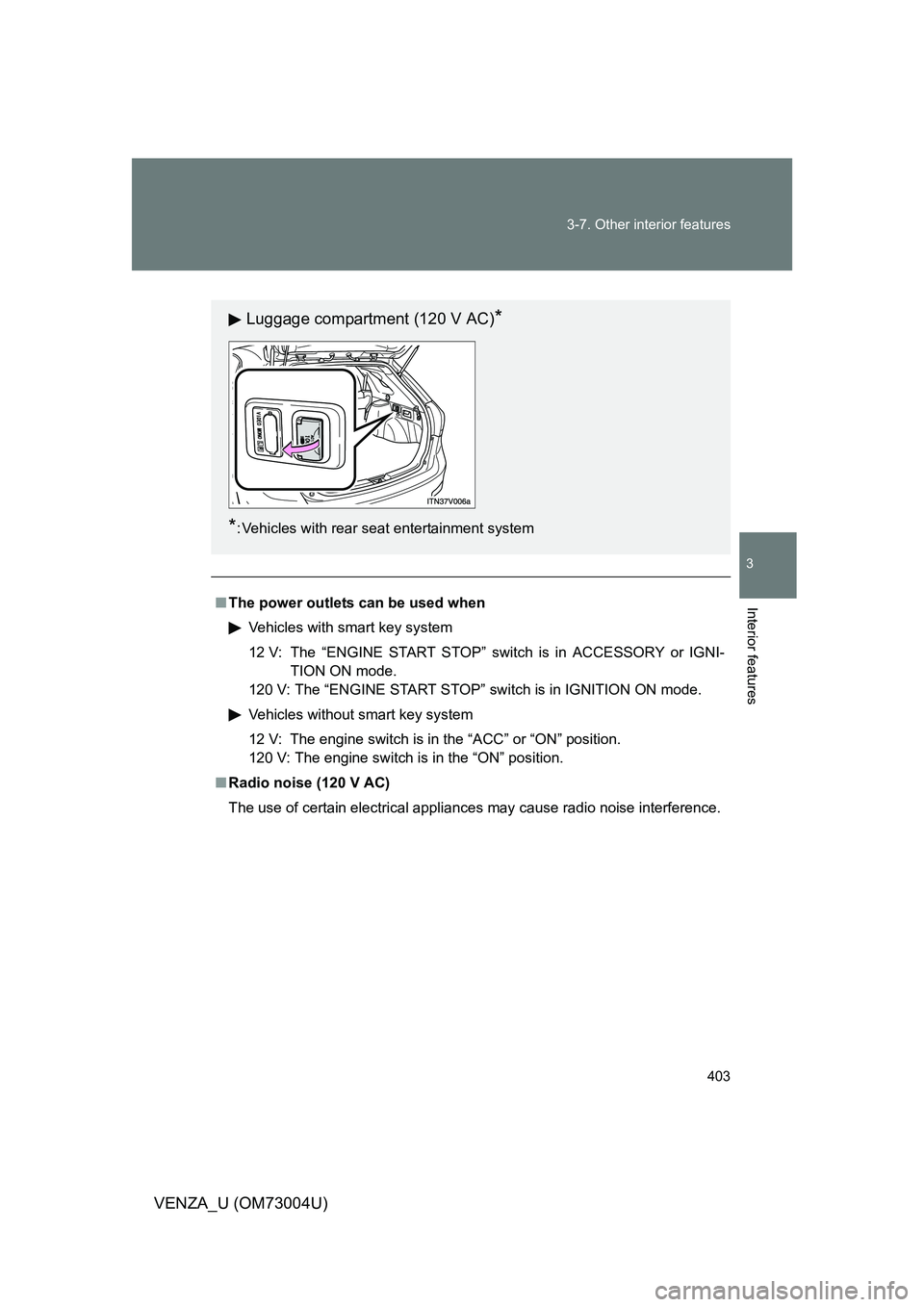

403
3-7. Other interior features
3
Interior features
VENZA_U (OM73004U)
■
The power outlets can be used when
Vehicles with smart key system
12 V: The “ENGINE START STOP” switch is in ACCESSORY or IGNI- TION ON mode.
120 V: The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
12 V: The engine switch is in the “ACC” or “ON” position.
120 V: The engine switch is in the “ON” position.
■ Radio noise (120 V AC)
The use of certain electrical appliances may cause radio noise interference.
Luggage compartment (120 V AC)*
*
: Vehicles with rear seat entertainment system
Page 404 of 620

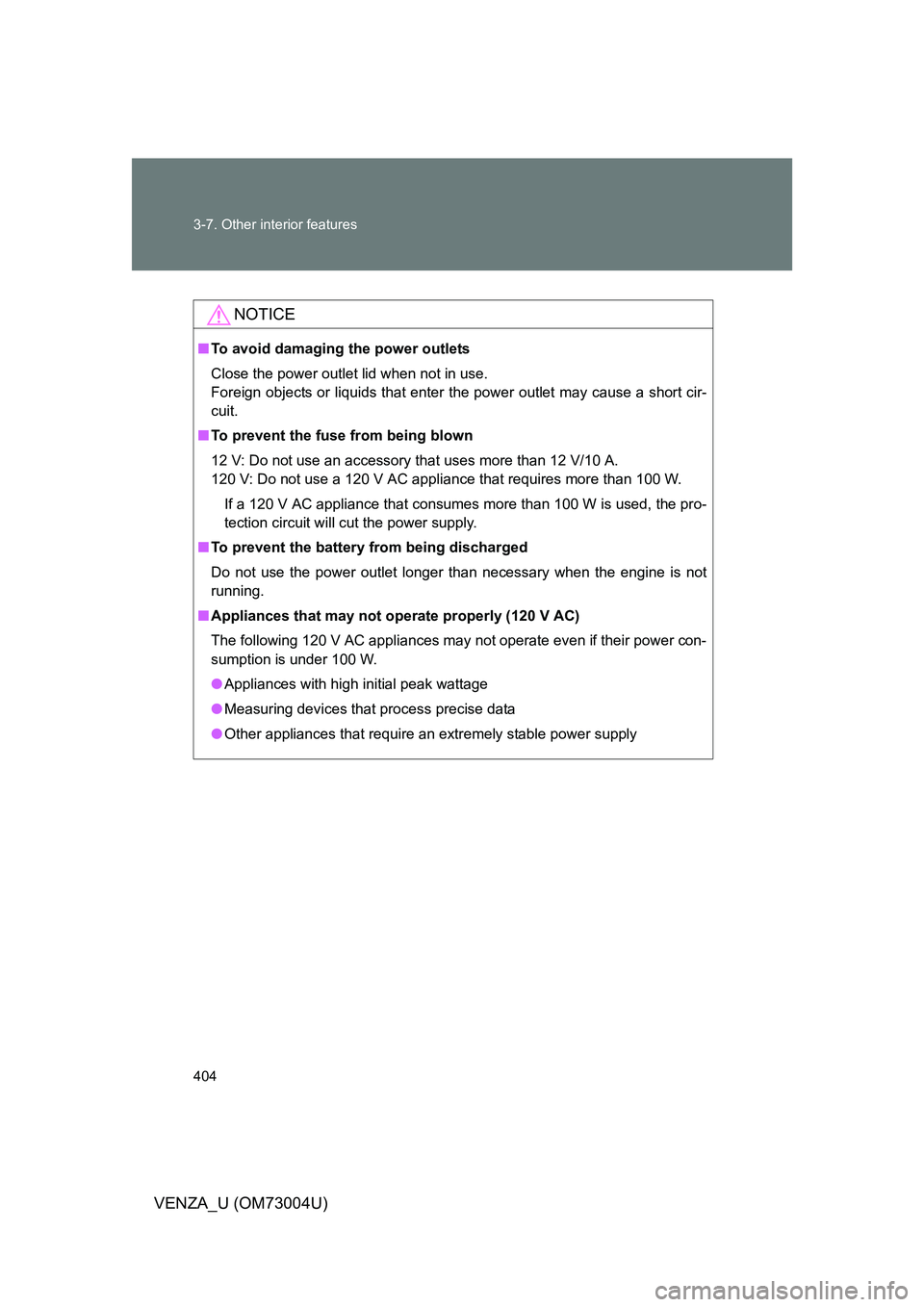

404 3-7. Other interior features
VENZA_U (OM73004U)
NOTICE
■To avoid damaging the power outlets
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12 V: Do not use an accessory that uses more than 12 V/10 A.
120 V: Do not use a 120 V AC appliance that requires more than 100 W.
If a 120 V AC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not\
running.
■ Appliances that may not ope rate properly (120 V AC)
The following 120 V AC appliances may not operate even if their power con-
sumption is under 100 W.
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply
Page 405 of 620

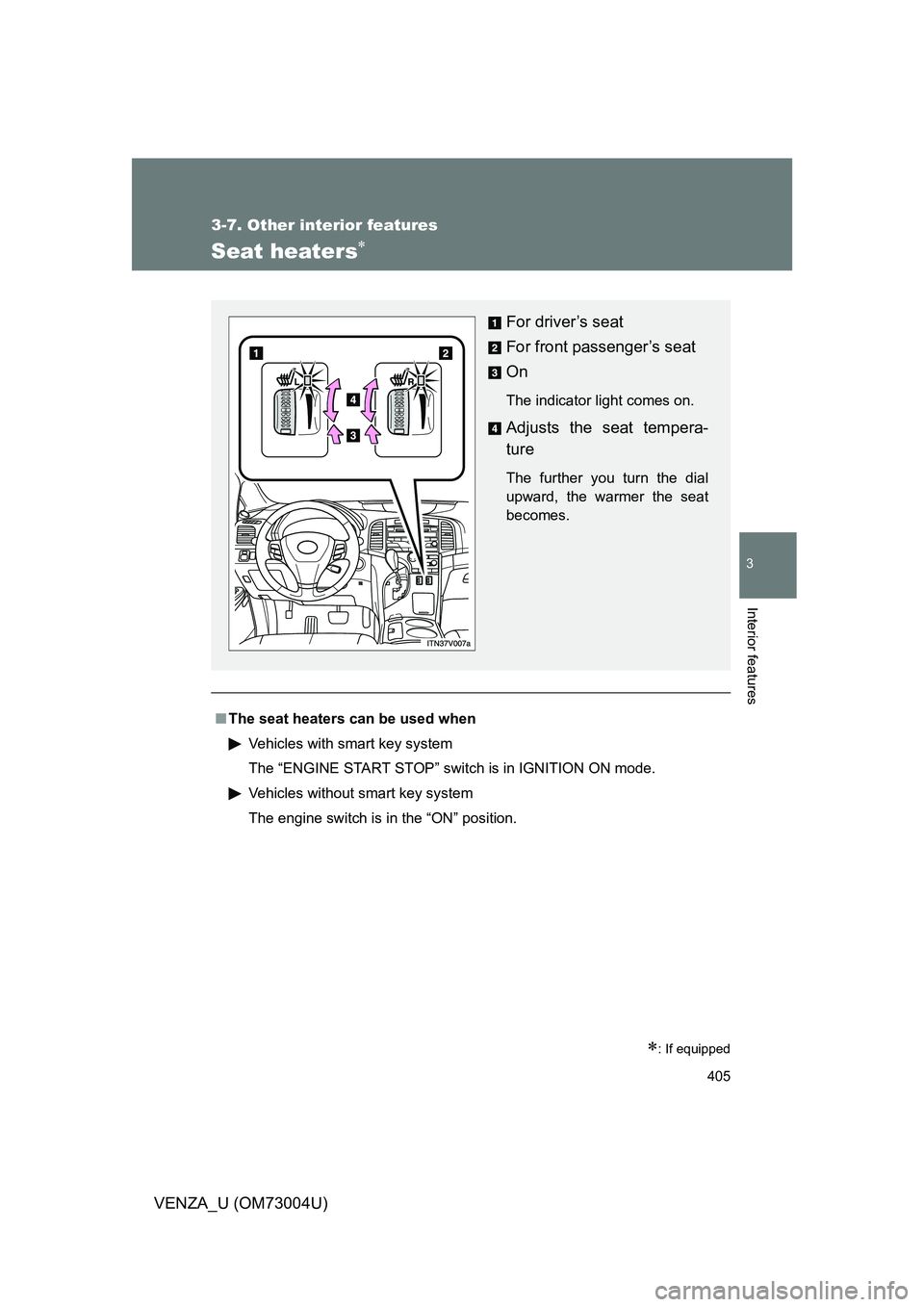

405
3-7. Other interior features
3
Interior features
VENZA_U (OM73004U)
Seat heaters
: If equipped
■The seat heaters can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
For driver’s seat
For front passenger’s seat
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the dial
upward, the warmer the seat
becomes.
Page 406 of 620

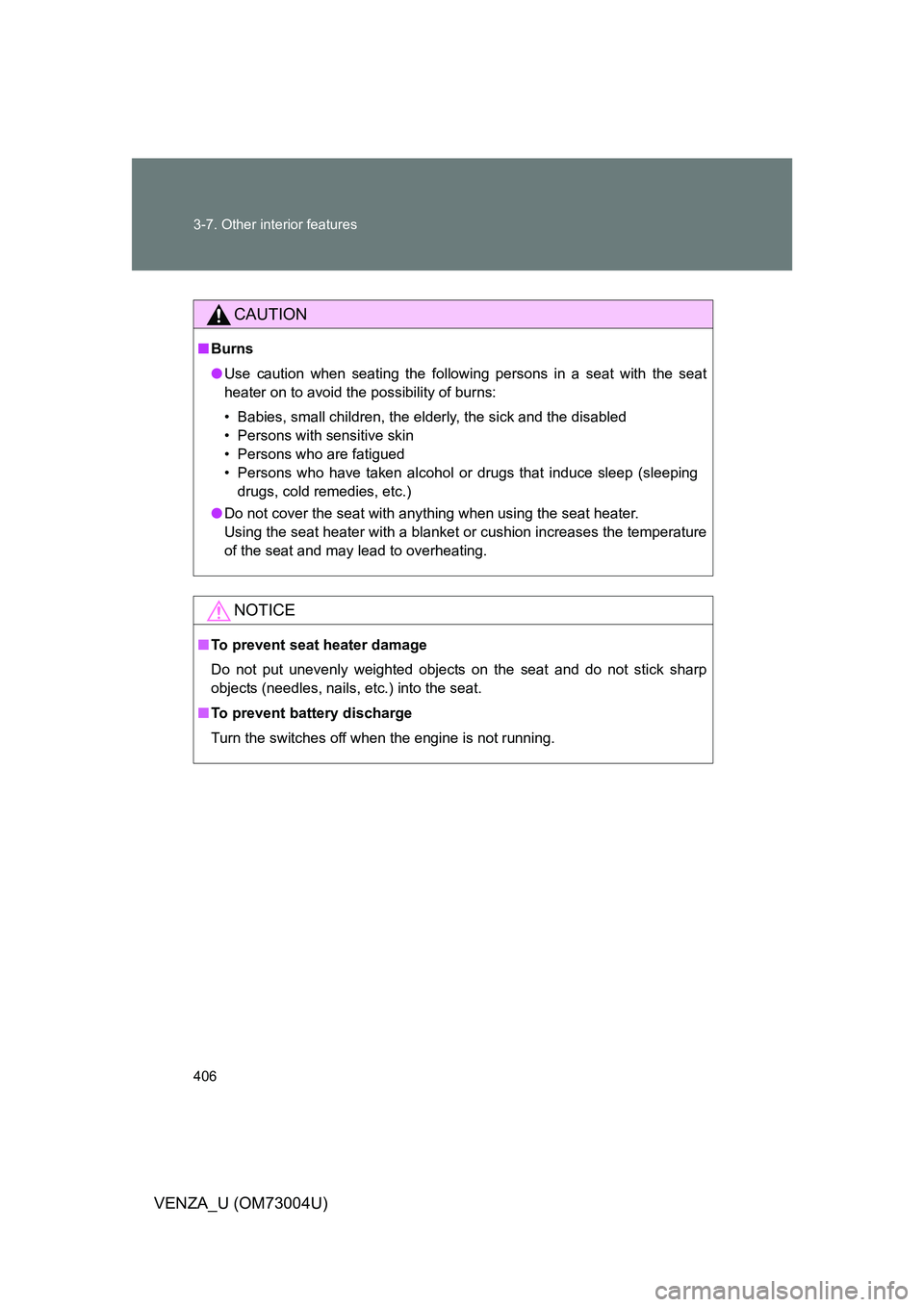

406 3-7. Other interior features
VENZA_U (OM73004U)
CAUTION
■Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.
Page 407 of 620

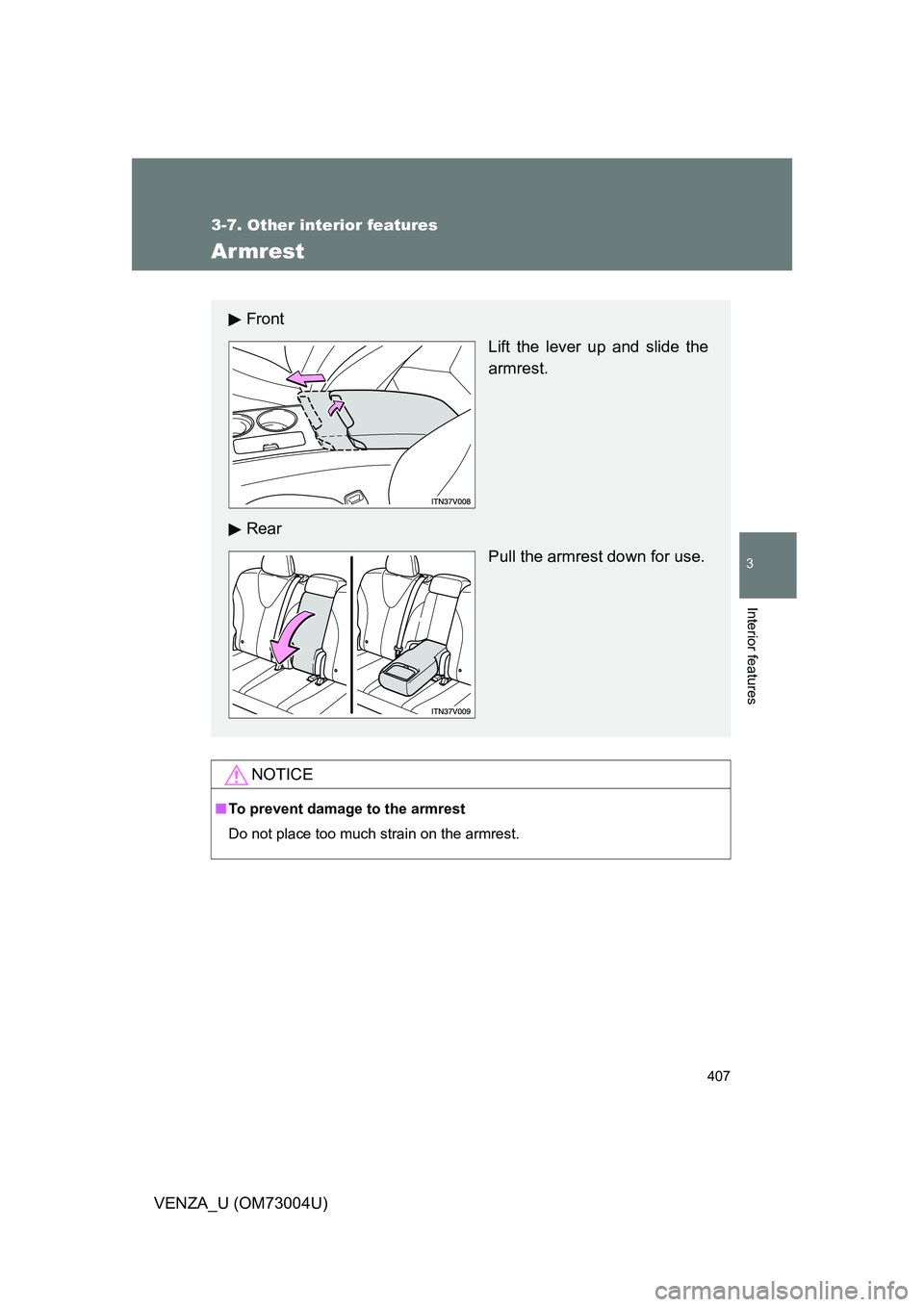

407
3-7. Other interior features
3
Interior features
VENZA_U (OM73004U)
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Front
Lift the lever up and slide the
armrest.
Rear Pull the armrest down for use.

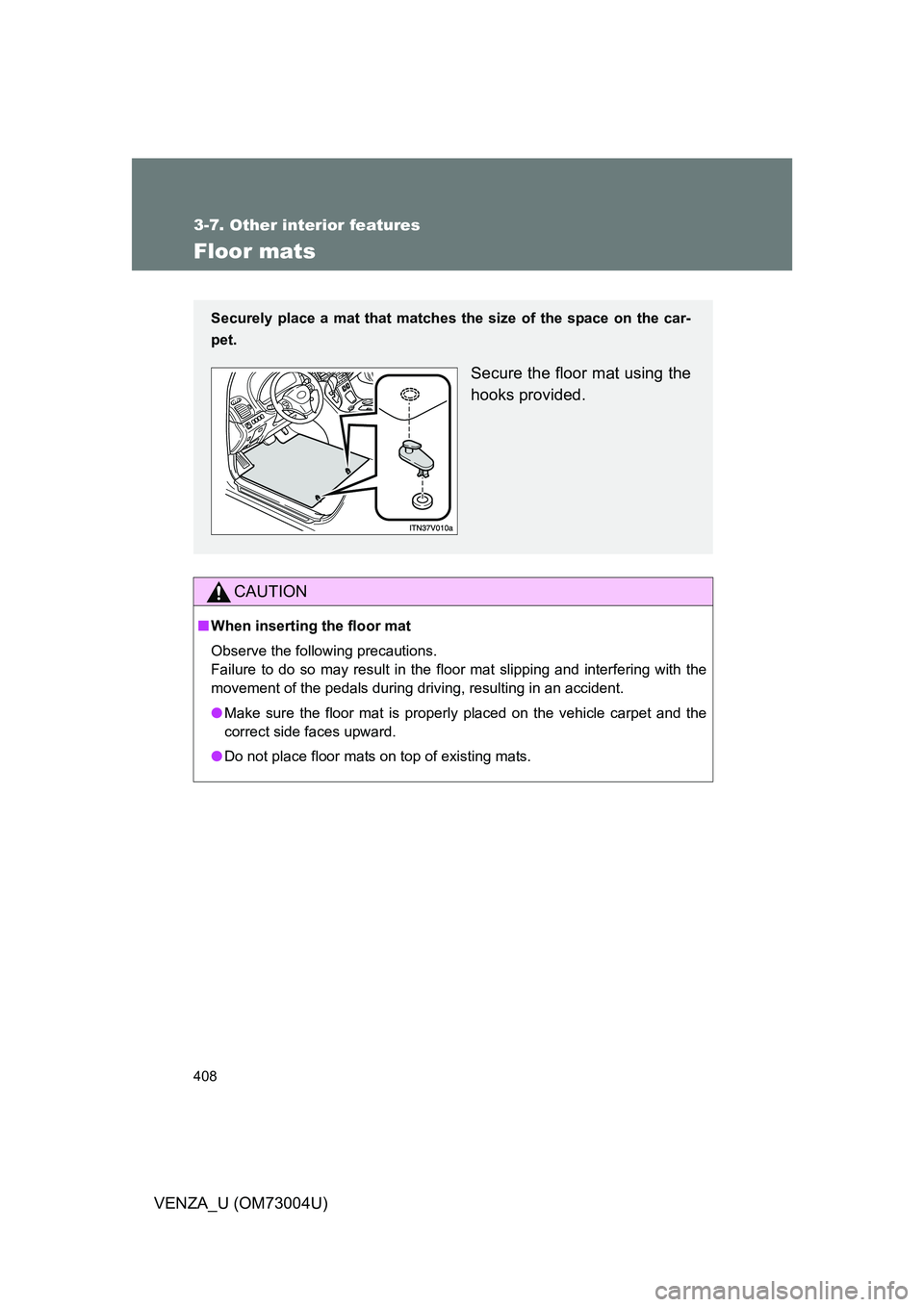

Page 408 of 620
408
3-7. Other interior features
VENZA_U (OM73004U)
Floor mats
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering wi\
th the
movement of the pedals during driving, resulting in an accident.
● Make sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
● Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the floor mat using the
hooks provided.

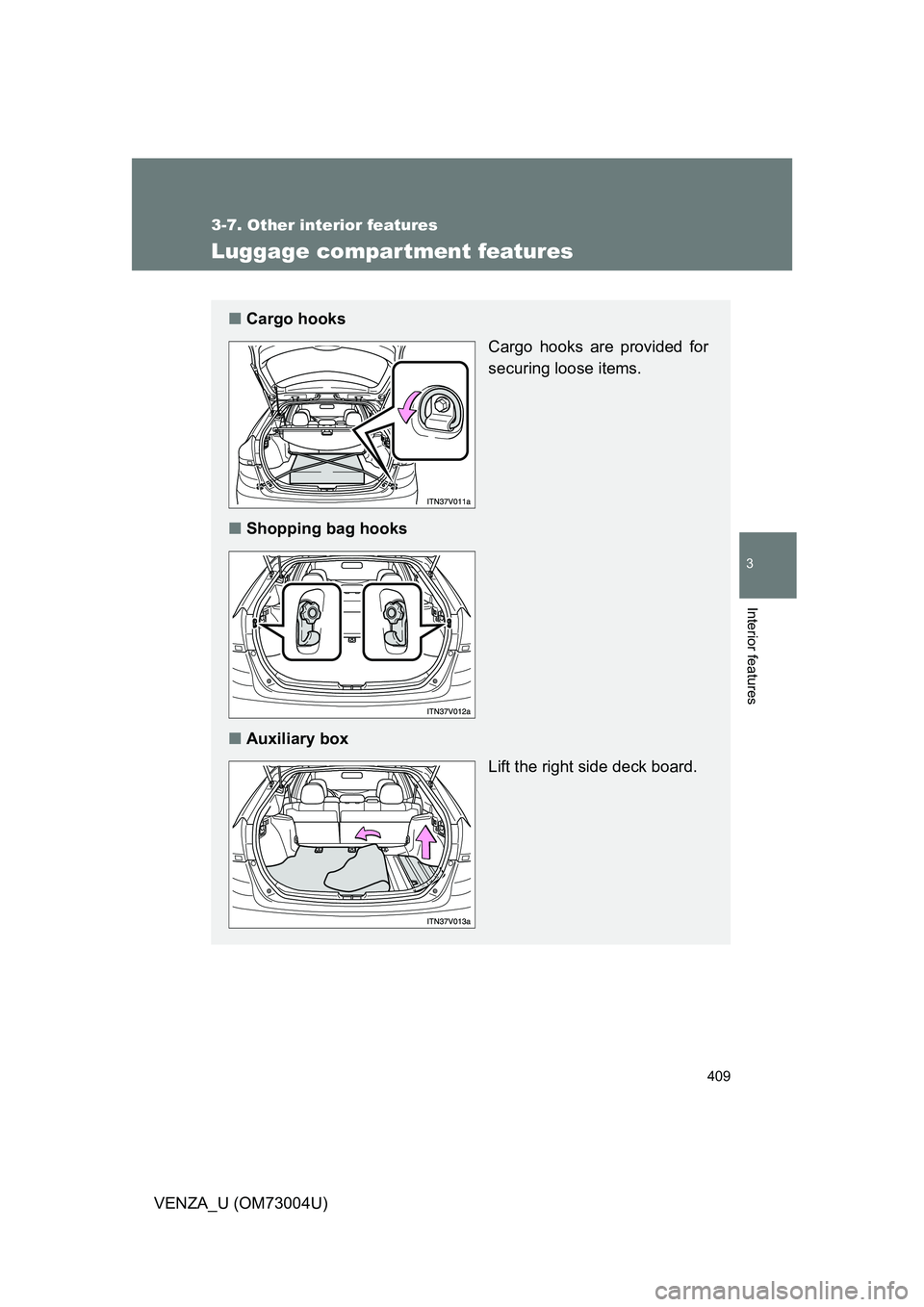

Page 409 of 620
409
3-7. Other interior features
3
Interior features
VENZA_U (OM73004U)
Luggage compar tment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Shopping bag hooks
■ Auxiliary box
Lift the right side deck board.
Page 410 of 620

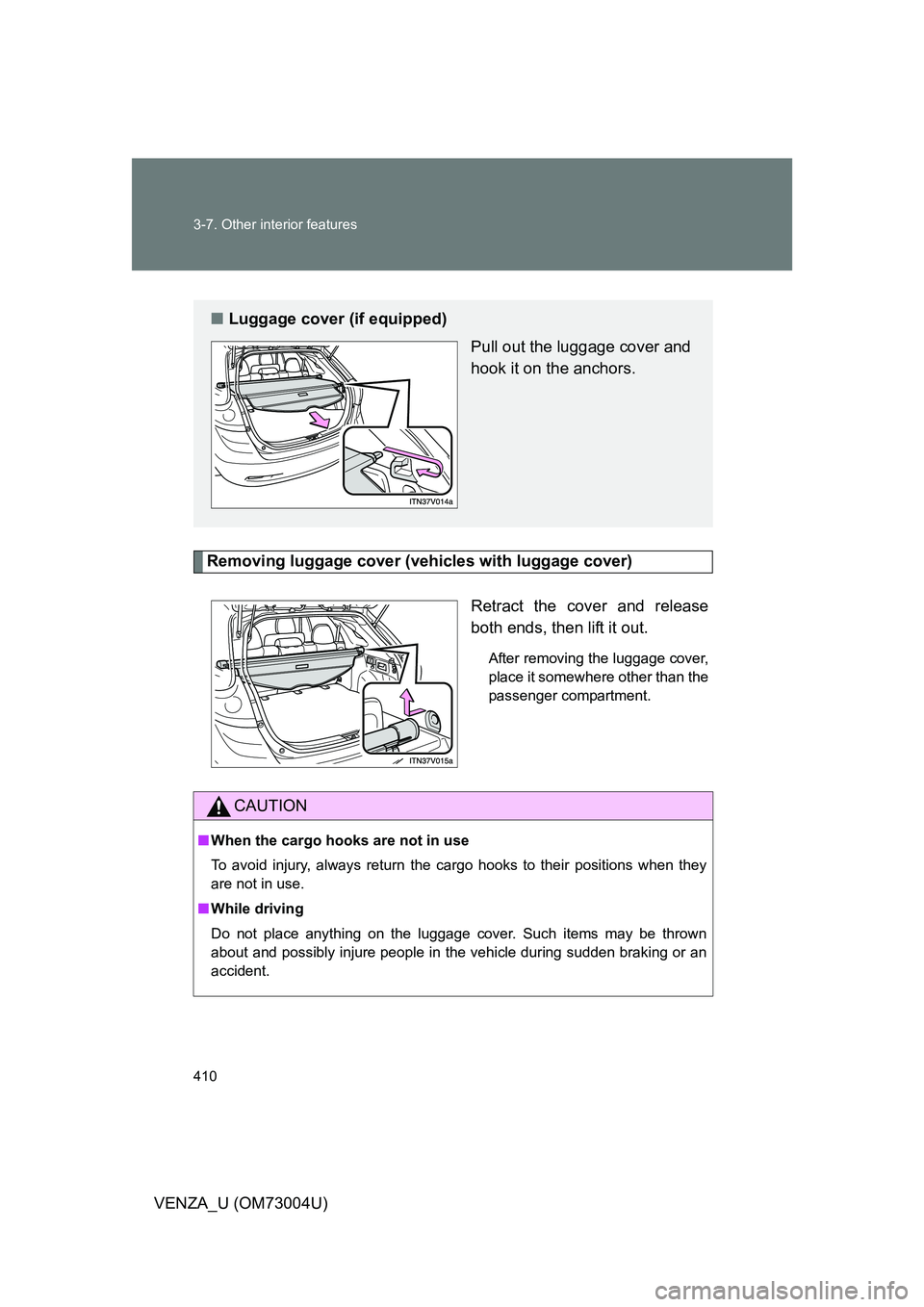

410 3-7. Other interior features
VENZA_U (OM73004U)
Removing luggage cover (vehicles with luggage cover)
Retract the cover and release
both ends, then lift it out.
After removing the luggage cover,
place it somewhere other than the
passenger compartment.
■Luggage cover (if equipped)
Pull out the luggage cover and
hook it on the anchors.
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
■ While driving
Do not place anything on the luggage cover. Such items may be thrown
about and possibly injure people in the vehicle during sudden braking or an
accident.
