5
When trouble arises

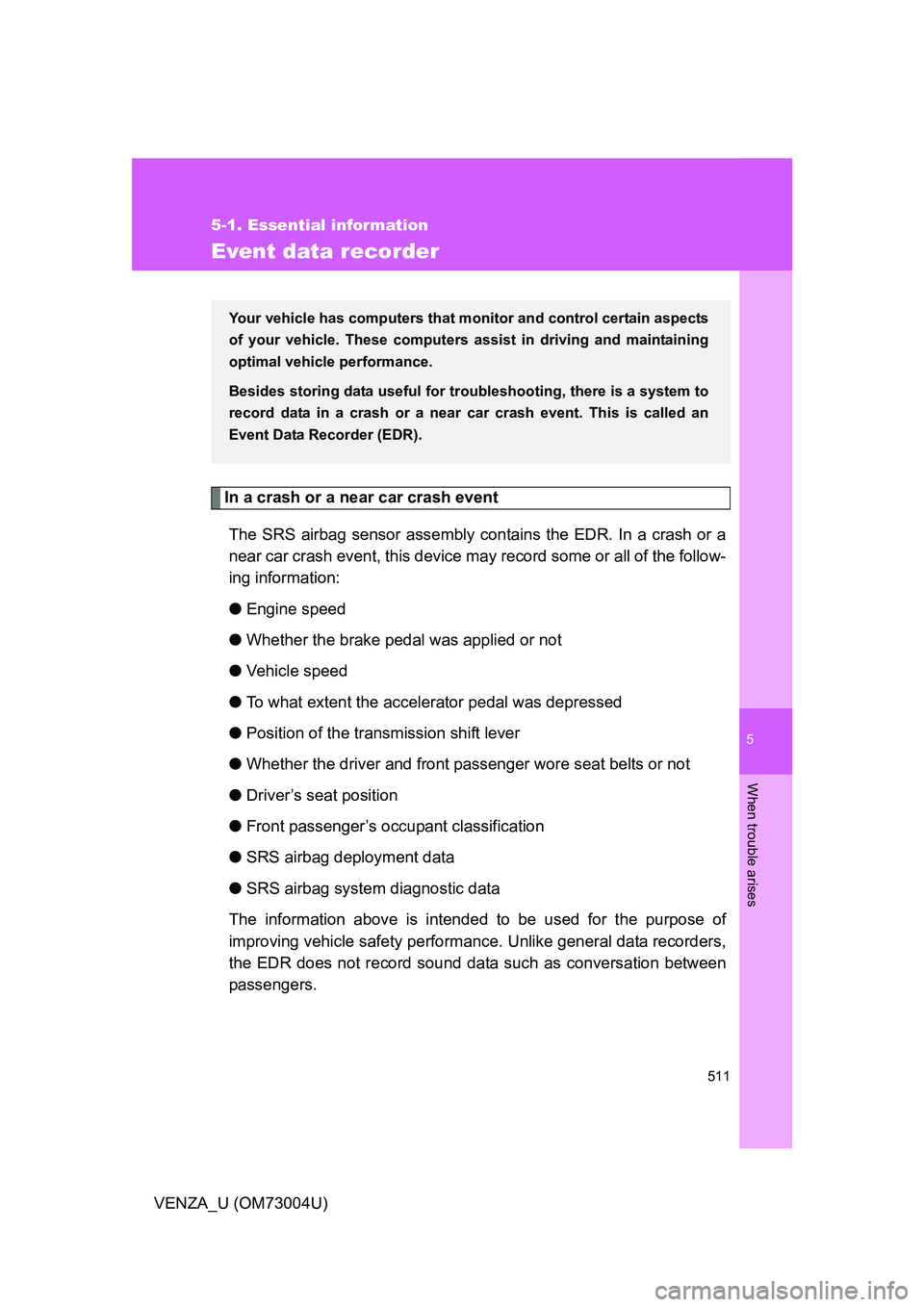

511
5-1. Essential information
VENZA_U (OM73004U)
Event data recorder
In a crash or a near car crash eventThe SRS airbag sensor assembly contains the EDR. In a crash or a
near car crash event, this device may record some or all of the follow-
ing information:
● Engine speed
● Whether the brake pedal was applied or not
● Vehicle speed
● To what extent the accelerator pedal was depressed
● Position of the transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver’s seat position
● Front passenger’s occupant classification
● SRS airbag deployment data
● SRS airbag system diagnostic data
The information above is intended to be used for the purpose of
improving vehicle safety performance. Unlike general data recorders,
the EDR does not record sound data such as conversation between
passengers.
Your vehicle has computers that monitor and control certain aspects
of your vehicle. These computers assi st in driving and maintaining
optimal vehicle performance.
Besides storing data useful for tr oubleshooting, there is a system to
record data in a crash or a near car crash event. This is called an
Event Data Recorder (EDR).

512 5-1. Essential information
VENZA_U (OM73004U)

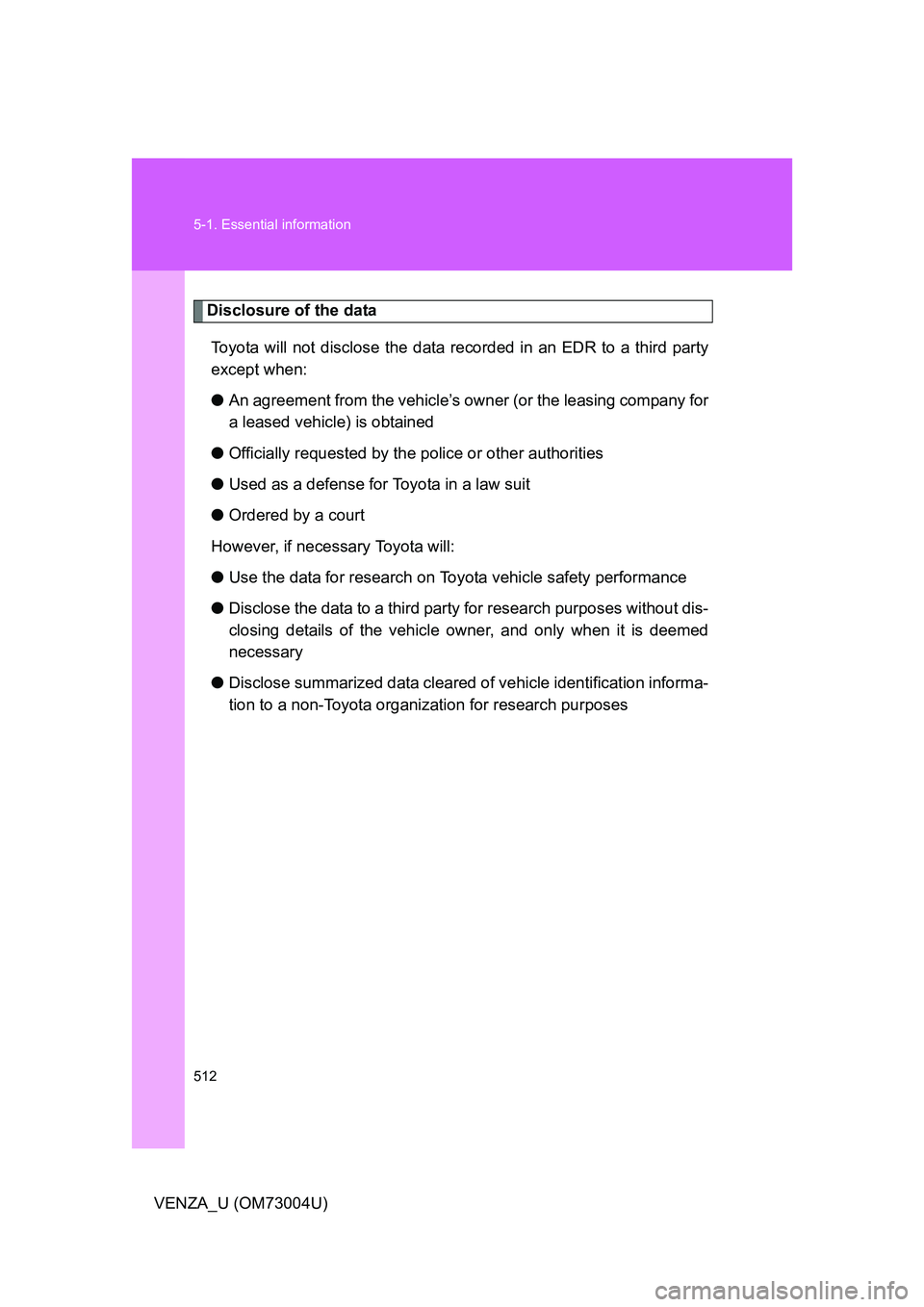

Disclosure of the dataToyota will not disclose the data re corded in an EDR to a third party
except when:
● An agreement from the vehicle’s ow ner (or the leasing company for
a leased vehicle) is obtained
● Officially requested by the police or other authorities
● Used as a defense for Toyota in a law suit
● Ordered by a court
However, if necessary Toyota will:
● Use the data for research on Toyota vehicle safety performance
● Disclose the data to a third party for research purposes without dis-
closing details of the vehicle owner, and only when it is deemed
necessary
● Disclose summarized data cleared of vehicle identification informa-
tion to a non-Toyota organization for research purposes

5
When trouble arises
513
VENZA_U (OM73004U)

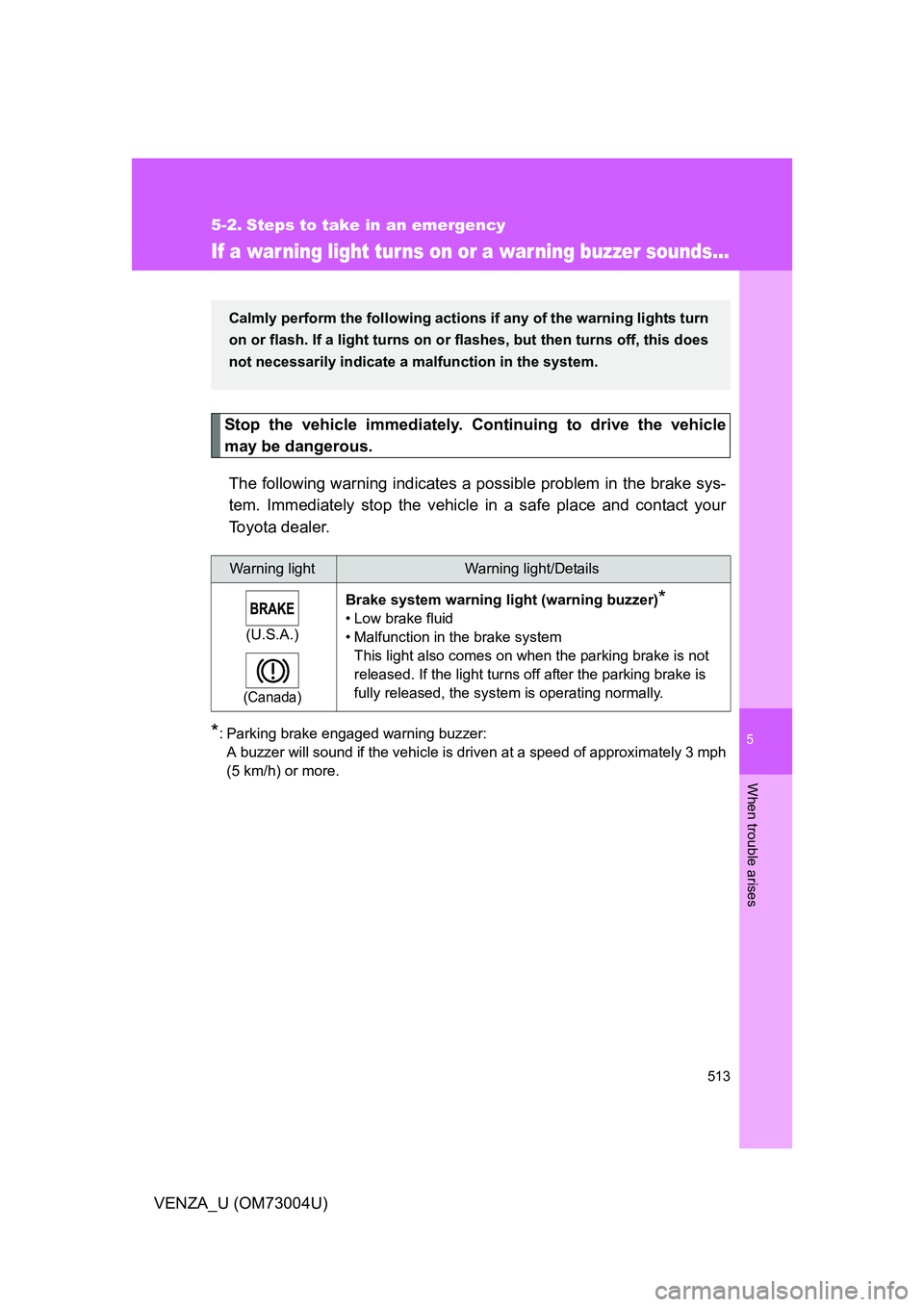

5-2. Steps to take in an emergency
If a war ning light turns on or a war ning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
*: Parking brake engaged warning buzzer: A buzzer will sound if the vehicle is driven at a speed of approximately 3 mph
(5 km/h) or more.
Warning lightWarning light/Details

(U.S.A.)

(Canada)
Brake system warning light (warning buzzer)*
• Low brake fluid
• Malfunction in the brake systemThis light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released, the system is operating normally.
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.

514 5-2. Steps to take in an emergency
VENZA_U (OM73004U)

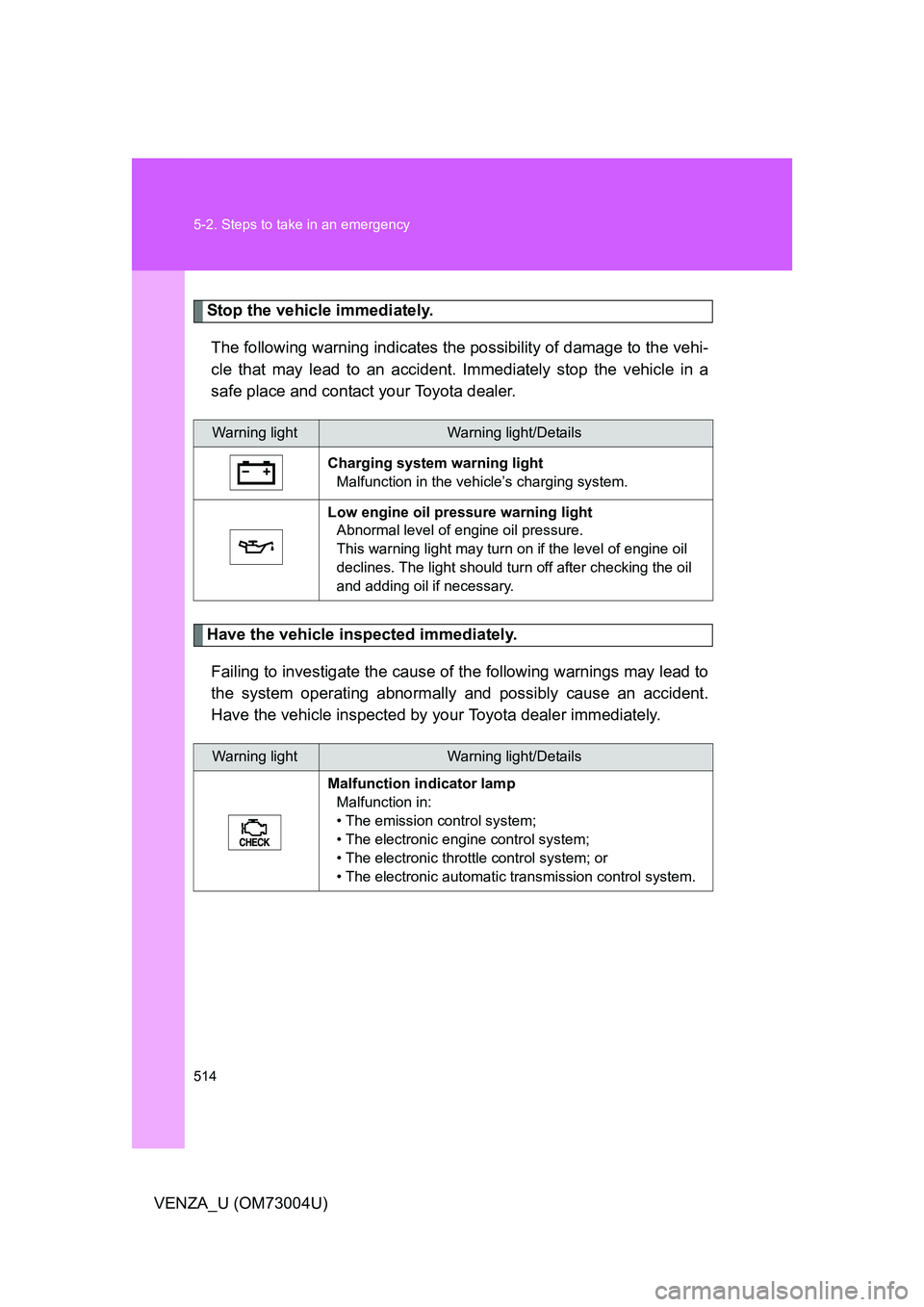

Stop the vehicle immediately.The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Have the vehicle inspected immediately.Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
Charging system warning light Malfunction in the vehicle’s charging system.
Low engine oil pressure warning light Abnormal level of engine oil pressure.
This warning light may turn on if the level of engine oil
declines. The light should turn off after checking the oil
and adding oil if necessary.
Warning lightWarning light/Details
Malfunction indicator lamp Malfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system.

5
When trouble arises

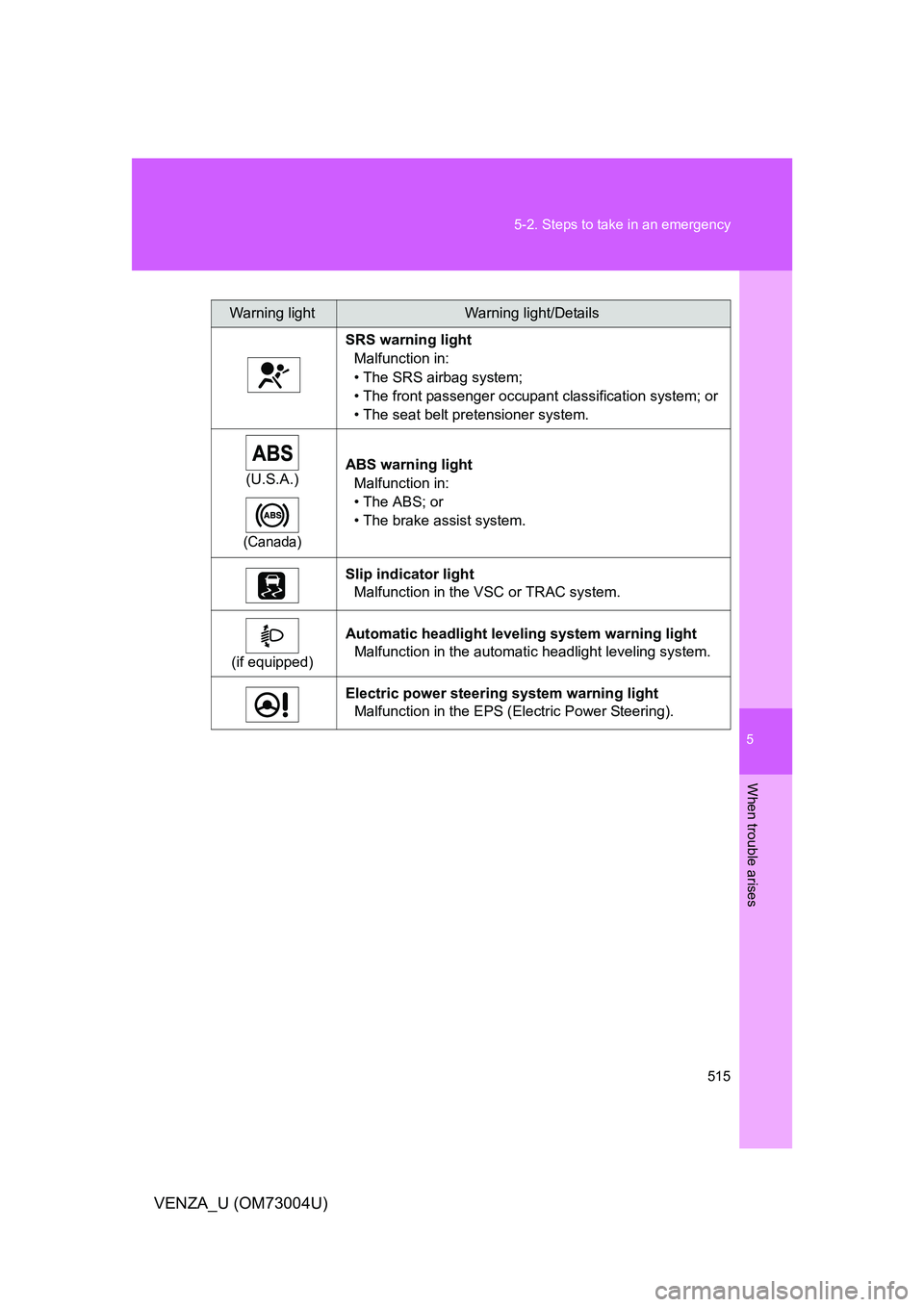

515
5-2. Steps to take in an emergency
VENZA_U (OM73004U)
Warning lightWarning light/Details
SRS warning light Malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.

(U.S.A.)

(Canada)
ABS warning lightMalfunction in:
• The ABS; or
• The brake assist system.
Slip indicator light Malfunction in the VSC or TRAC system.

(if equipped) Automatic headlight level
ing system warning light
Malfunction in the automatic headlight leveling system.
Electric power steering system warning light Malfunction in the EPS (Electric Power Steering).

516 5-2. Steps to take in an emergency
VENZA_U (OM73004U)

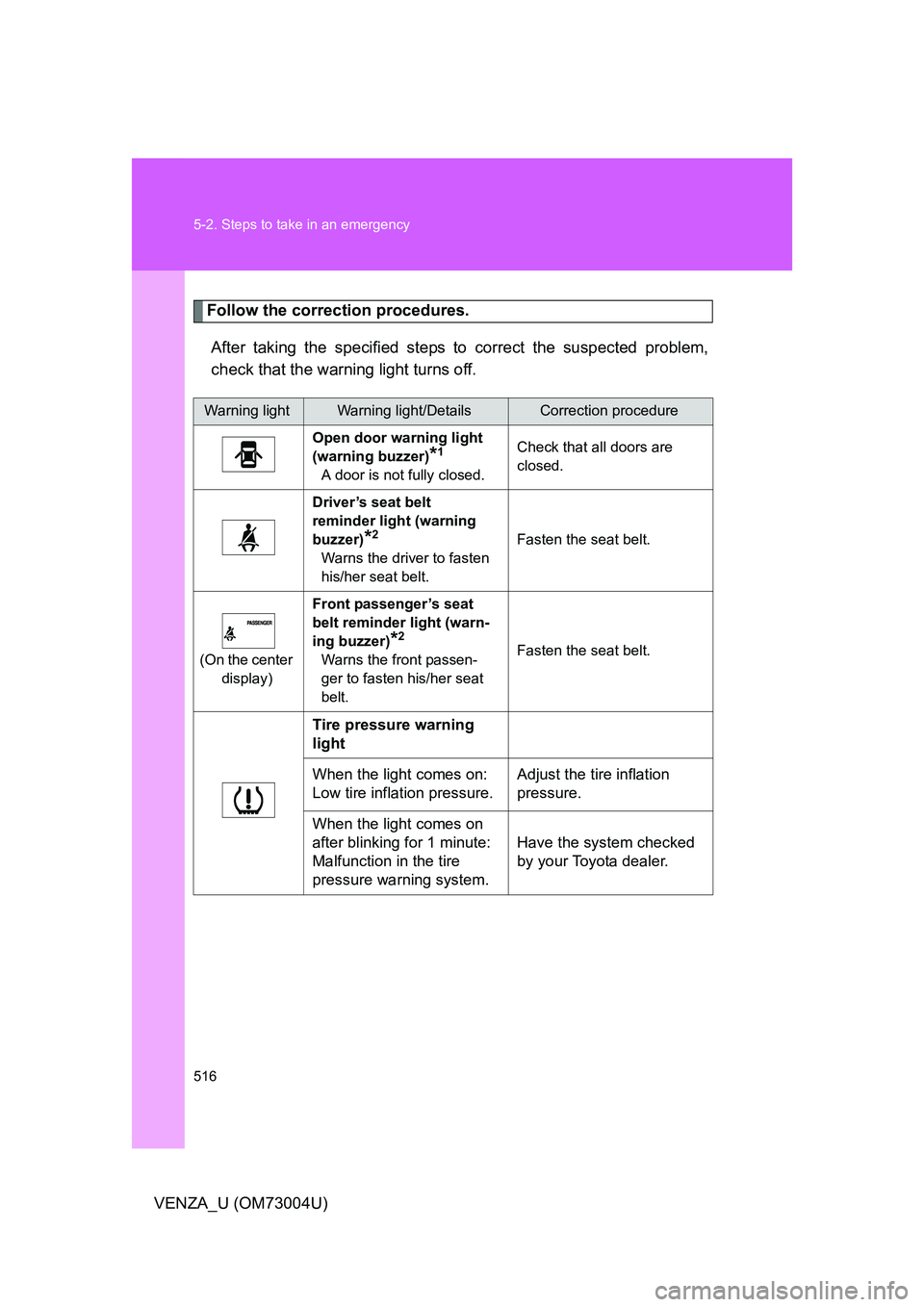

Follow the correction procedures.After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
A door is not fully closed. Check that all doors are
closed.
Driver’s seat belt
reminder light (warning
buzzer)
*2
Warns the driver to fasten
his/her seat belt. Fasten the seat belt.
(On the center display) Front passenger’s seat
belt reminder light (warn-
ing buzzer)
*2
Warns the front passen-
ger to fasten his/her seat
belt.
Fasten the seat belt.
Tire pressure warning
light
When the light comes on:
Low tire inflation pressure.
Adjust the tire inflation
pressure.
When the light comes on
after blinking for 1 minute:
Malfunction in the tire
pressure warning system. Have the system checked
by your Toyota dealer.

5
When trouble arises
517
5-2. Steps to take in an emergency
VENZA_U (OM73004U)

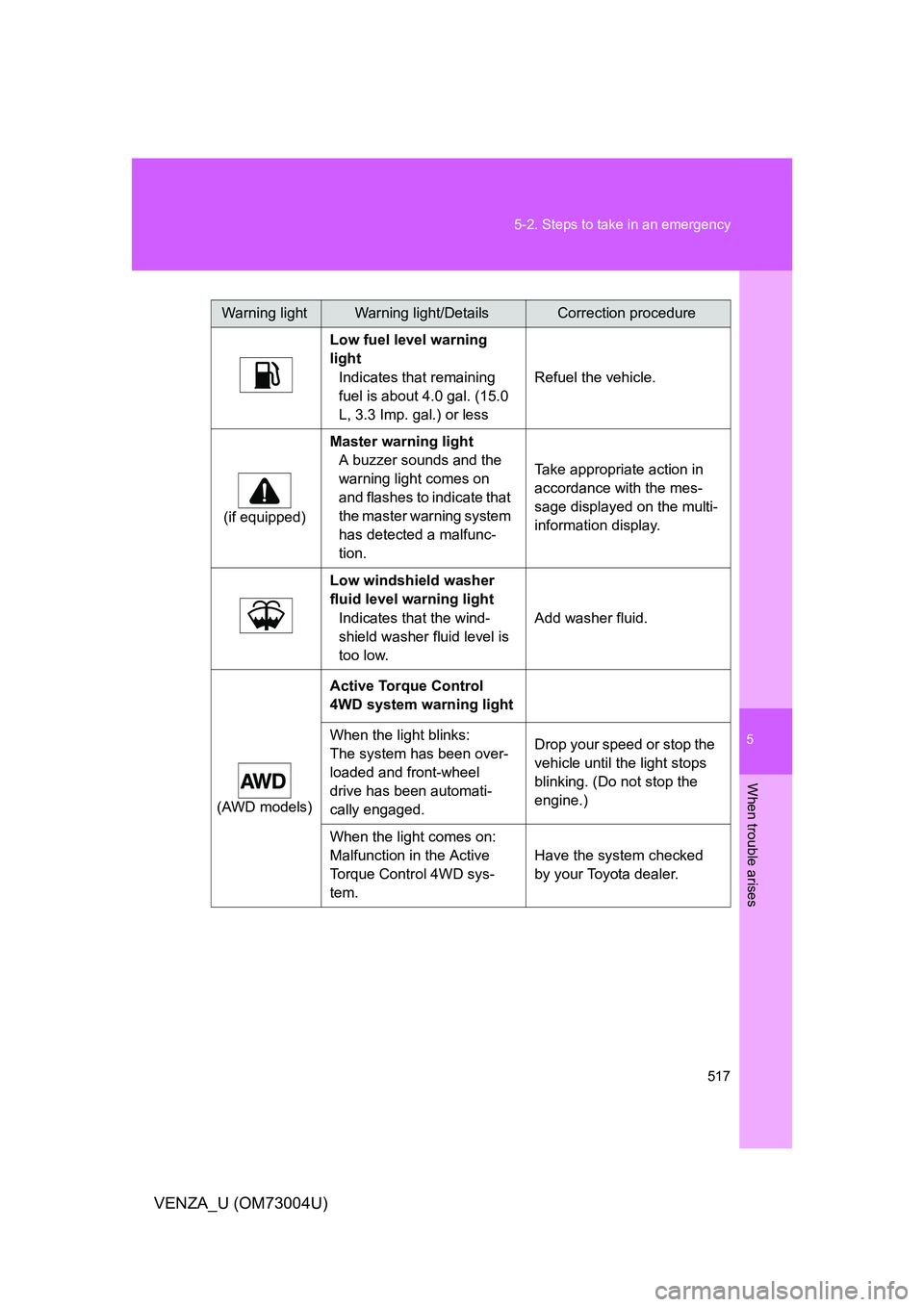

Warning lightWarning light/DetailsCorrection procedure
Low fuel level warning
light Indicates that remaining
fuel is about 4.0 gal. (15.0
L, 3.3 Imp. gal.) or less Refuel the vehicle.

(if equipped) Master warning light
A buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning system
has detected a malfunc-
tion. Take appropriate action in
accordance with the mes-
sage displayed on the multi-
information display.
Low windshield washer
fluid level warning light Indicates that the wind-
shield washer fluid level is
too low. Add washer fluid.

(AWD models) Active Torque Control
4WD system warning light
When the light blinks:
The system has been over-
loaded and front-wheel
drive has been automati-
cally engaged.
Drop your speed or stop the
vehicle until the light stops
blinking. (Do not stop the
engine.)
When the light comes on:
Malfunction in the Active
Torque Control 4WD sys-
tem. Have the system checked
by your Toyota dealer.

518 5-2. Steps to take in an emergency
VENZA_U (OM73004U)

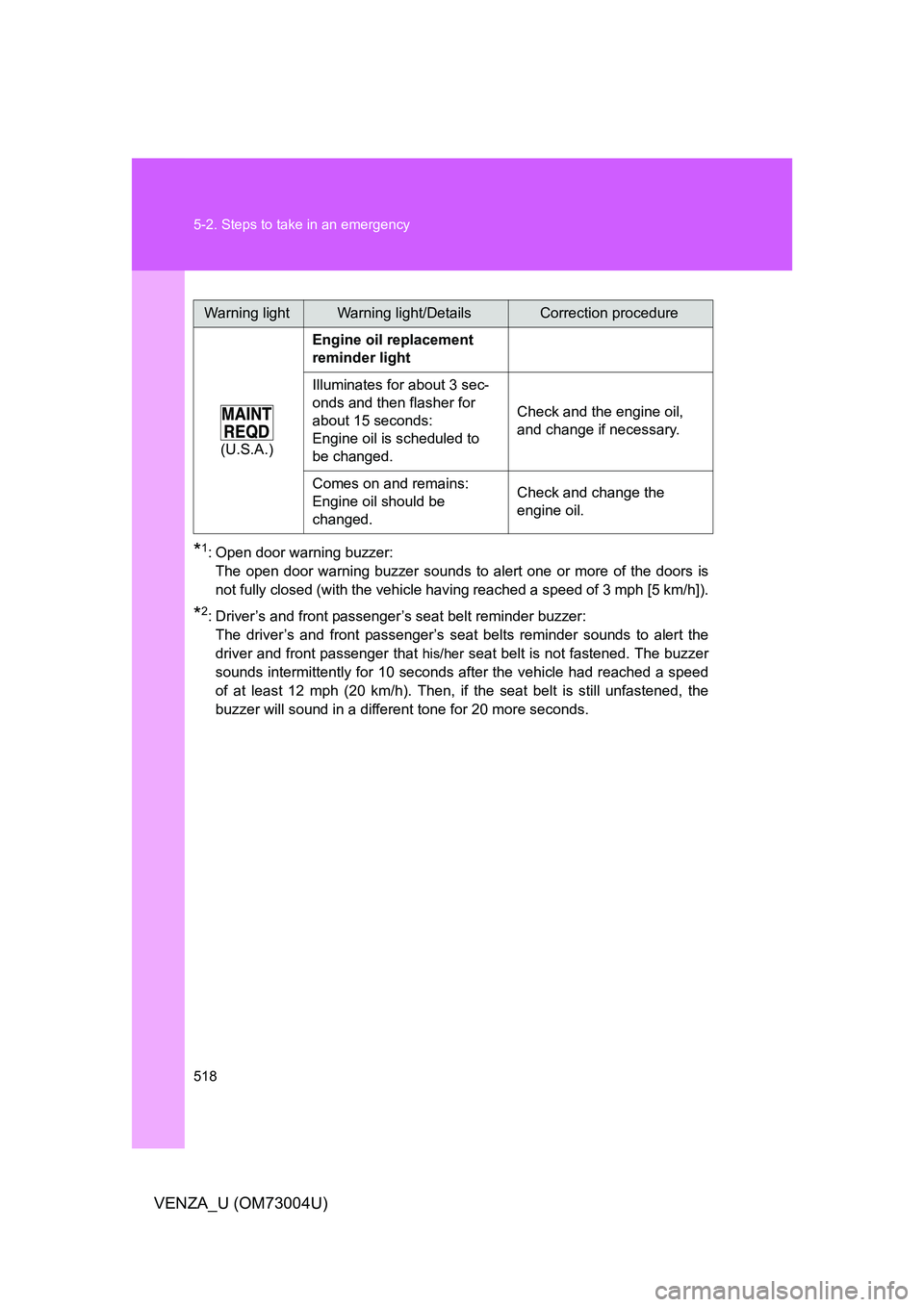

*1: Open door warning buzzer:The open door warning buzzer sounds to alert one or more of the doors is
not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
*2: Driver’s and front passenger’s seat belt reminder buzzer:The driver’s and front passenger’s seat belts reminder sounds to alert the
driver and front passenger that
his/her seat belt is not fastened. The buzzer
sounds intermittently for 10 seconds after the vehicle had reached a speed
of at least 12 mph (20 km/h). Then, if the seat belt is still unfastened, the
buzzer will sound in a different tone for 20 more seconds.
Warning lightWarning light/DetailsCorrection procedure

(U.S.A.)
Engine oil replacement
reminder light
Illuminates for about 3 sec-
onds and then flasher for
about 15 seconds:
Engine oil is scheduled to
be changed. Check and the engine oil,
and change if necessary.
Comes on and remains:
Engine oil should be
changed. Check and change the
engine oil.

5
When trouble arises
519
5-2. Steps to take in an emergency
VENZA_U (OM73004U)

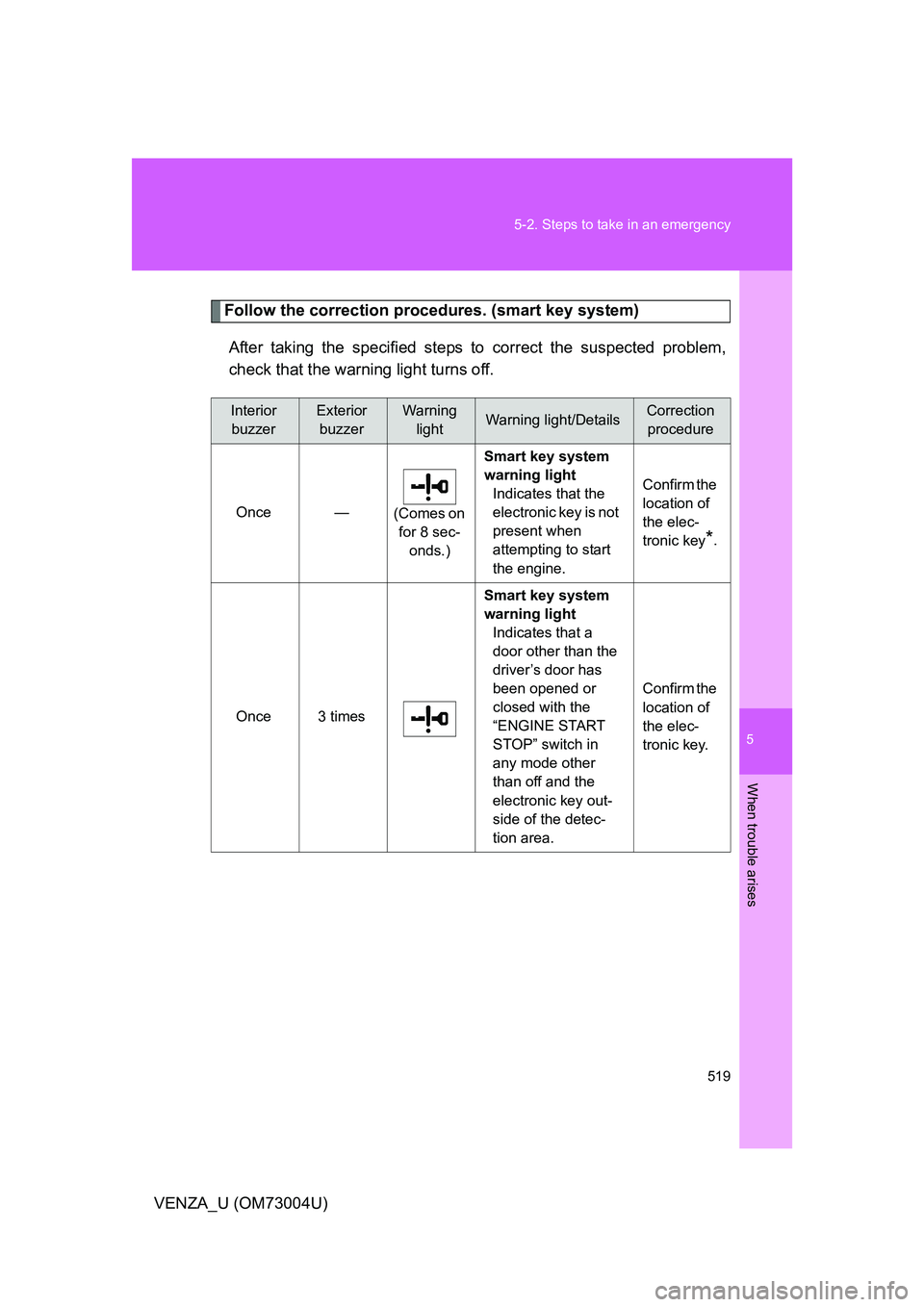

Follow the correction procedures. (smart key system)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Interior buzzerExterior buzzerWarning lightWarning light/DetailsCorrection procedure
Once —
(Comes on for 8 sec- onds.) Smart key system
warning light
Indicates that the
electronic key is not
present when
attempting to start
the engine. Confirm the
location of
the elec-
tronic key
*.
Once 3 times Smart key system
warning light
Indicates that a
door other than the
driver’s door has
been opened or
closed with the
“ENGINE START
STOP” switch in
any mode other
than off and the
electronic key out-
side of the detec-
tion area. Confirm the
location of
the elec-
tronic key.

520 5-2. Steps to take in an emergency
VENZA_U (OM73004U)

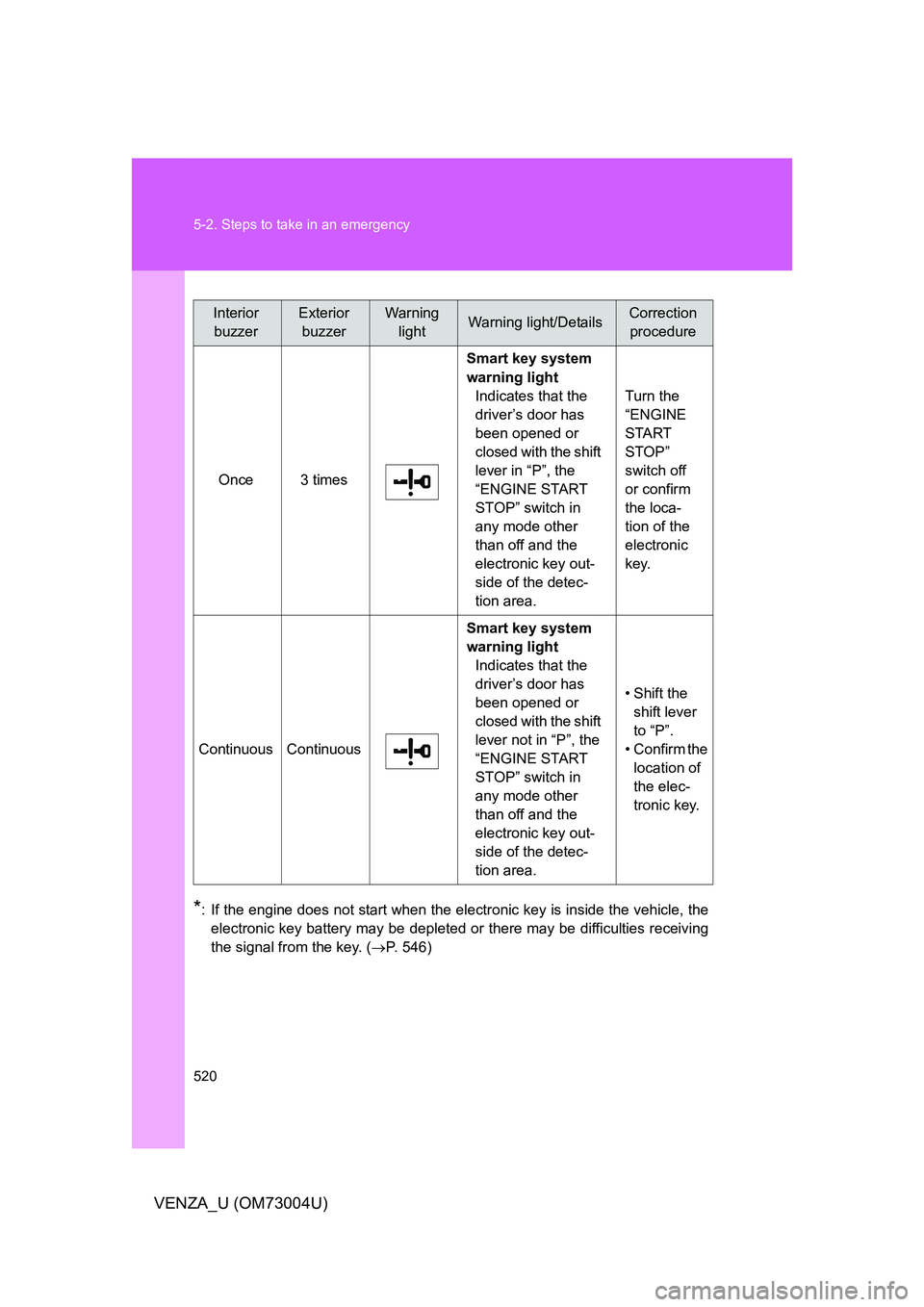

*: If the engine does not start when the electronic key is inside the vehicle, theelectronic key battery may be depleted or there may be difficulties receiving
the signal from the key. ( P. 546)
Interior
buzzerExterior buzzerWarning lightWarning light/DetailsCorrection procedure
Once 3 times Smart key system
warning light
Indicates that the
driver’s door has
been opened or
closed with the shift
lever in “P”, the
“ENGINE START
STOP” switch in
any mode other
than off and the
electronic key out-
side of the detec-
tion area. Turn the
“ENGINE
START
STOP”
switch off
or confirm
the loca-
tion of the
electronic
key.
Continuous Continuous Smart key system
warning light
Indicates that the
driver’s door has
been opened or
closed with the shift
lever not in “P”, the
“ENGINE START
STOP” switch in
any mode other
than off and the
electronic key out-
side of the detec-
tion area. • Shift the
shift lever
to “P”.
• Confirm the location of
the elec-
tronic key.
