5
When trouble arises

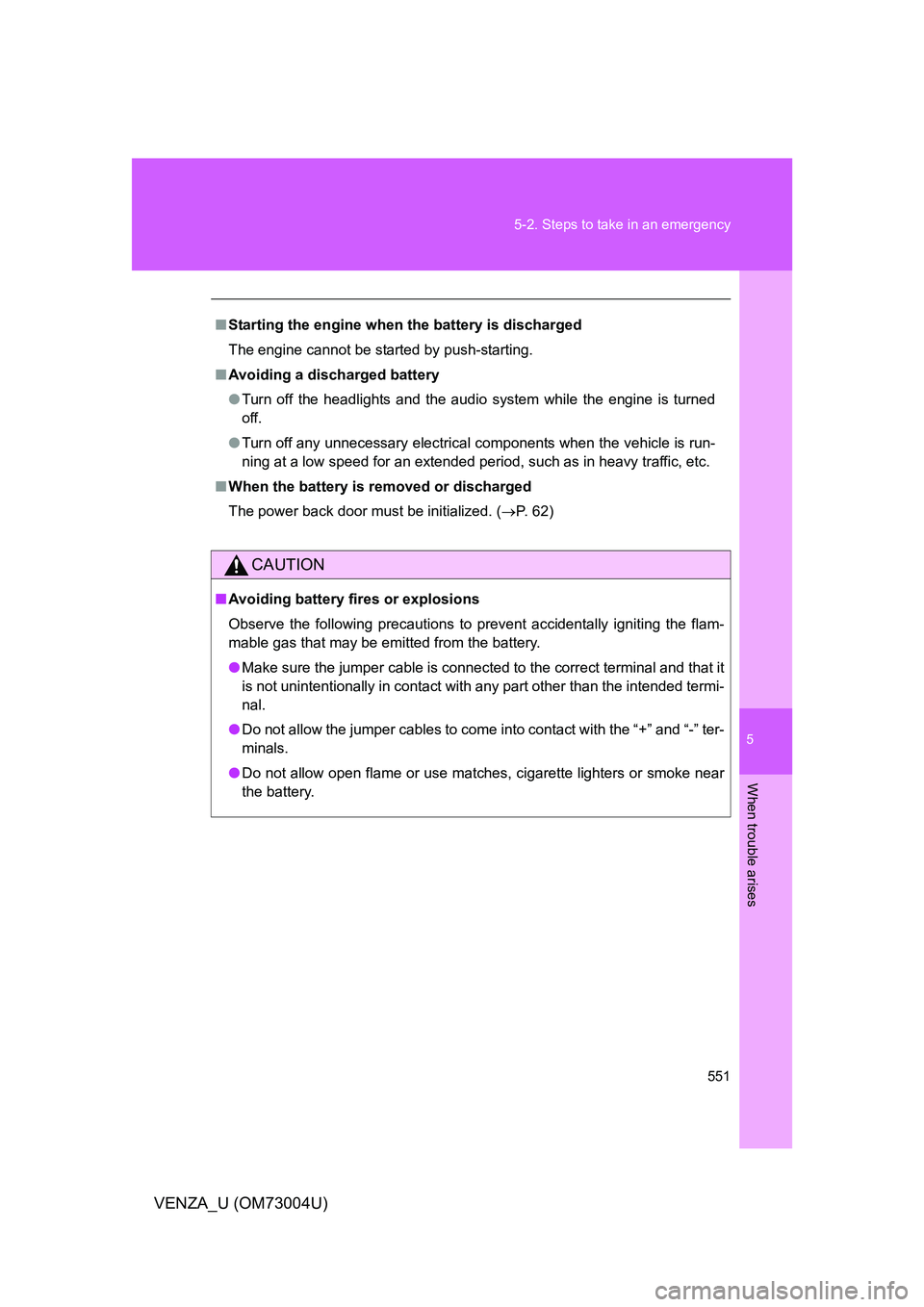

551
5-2. Steps to take in an emergency
VENZA_U (OM73004U)
■
Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ Avoiding a discharged battery
● Turn off the headlights and the audio system while the engine is turned
off.
● Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
■ When the battery is removed or discharged
The power back door must be initialized. ( P. 62)
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery.
● Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any part other than the intended termi-
nal.
● Do not allow the jumper cables to come into contact with the “+” and “-” ter-
minals.
● Do not allow open flame or use matc hes, cigarette lighters or smoke near
the battery.

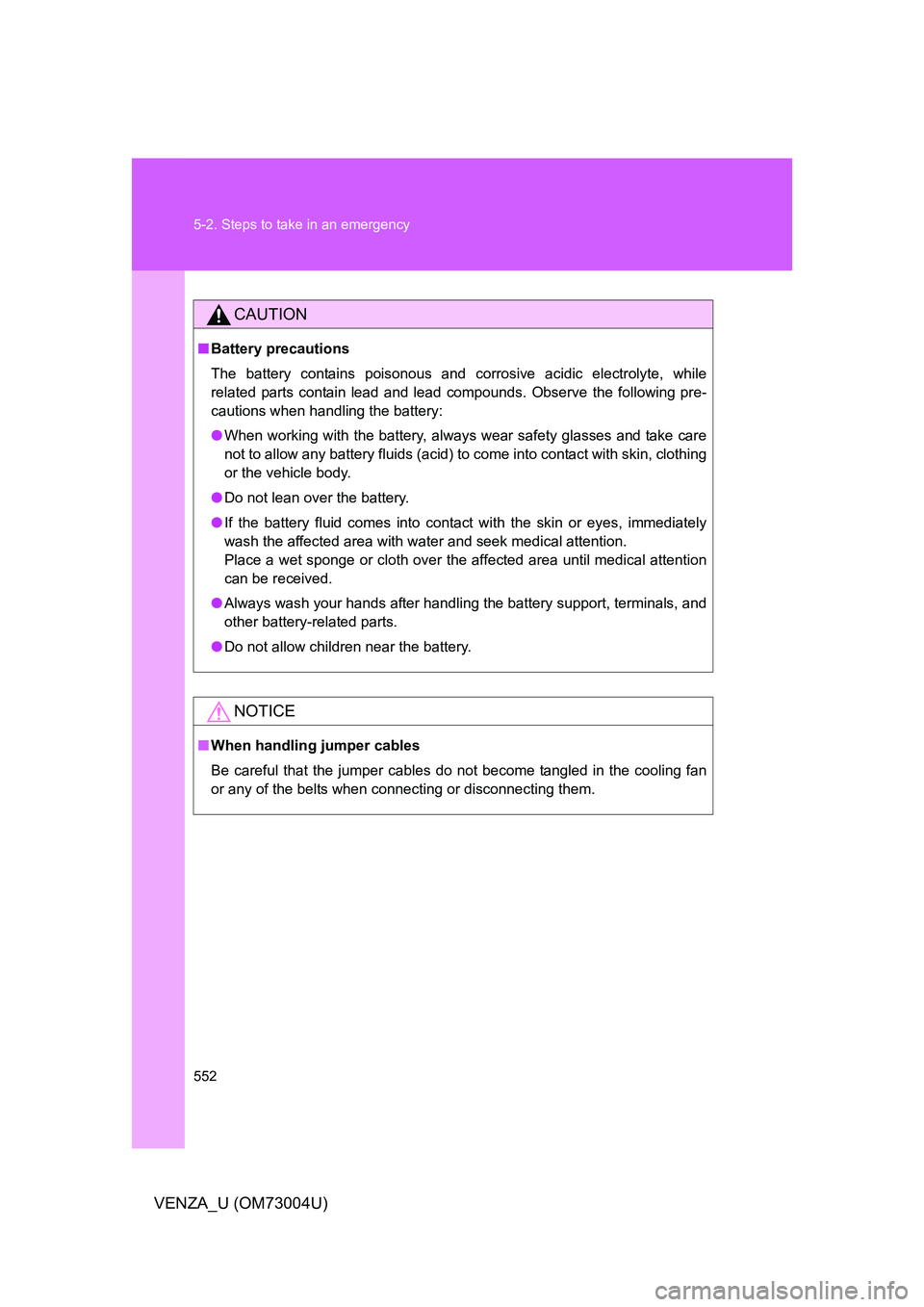

552 5-2. Steps to take in an emergency
VENZA_U (OM73004U)
CAUTION
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
● When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
● Do not lean over the battery.
● If the battery fluid comes into contact with the skin or eyes, immediately
wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
● Do not allow children near the battery.
NOTICE
■When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan
or any of the belts when connecting or disconnecting them.

5
When trouble arises
553
5-2. Steps to take in an emergency
VENZA_U (OM73004U)

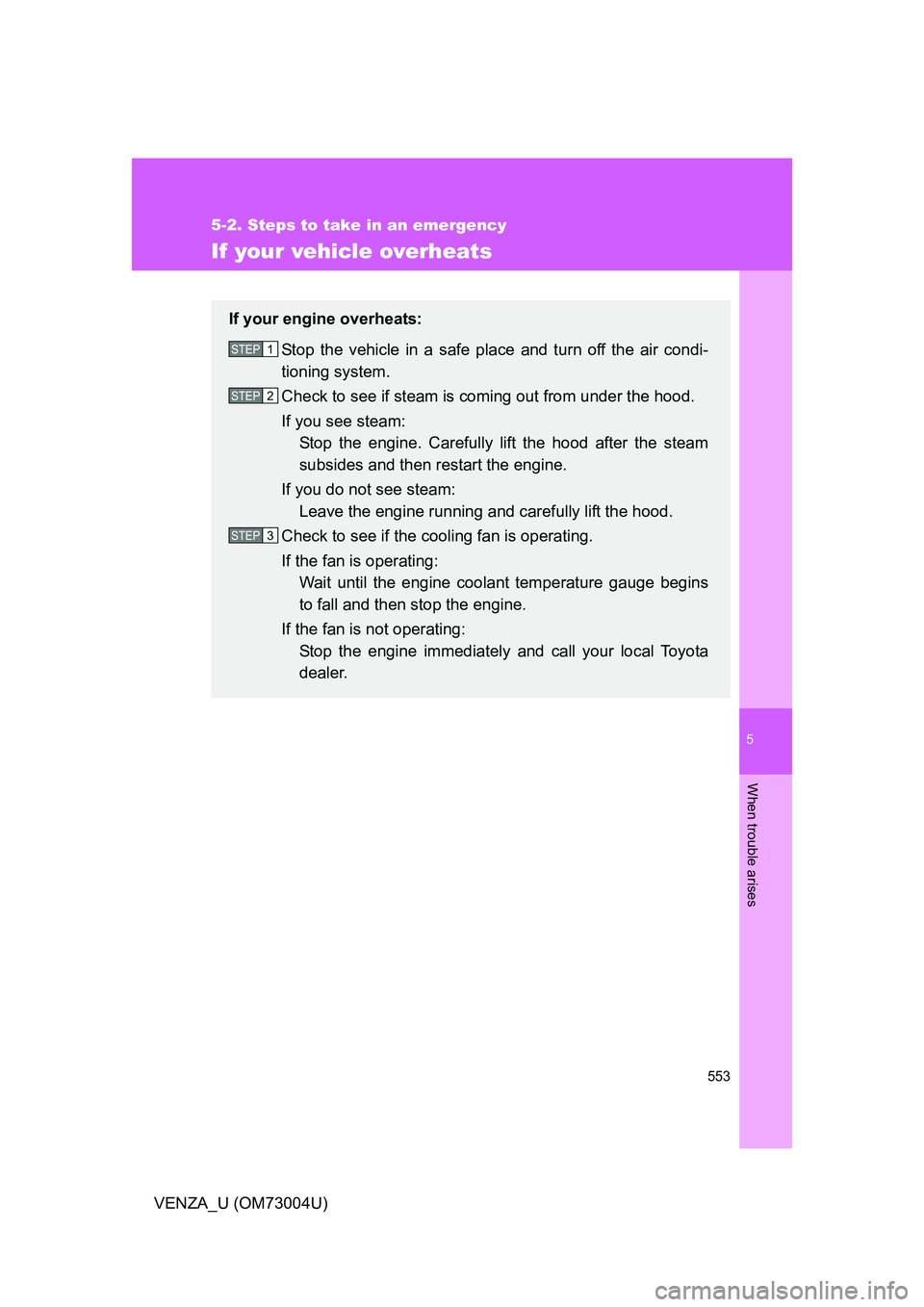

If your vehicle overheats
If your engine overheats:Stop the vehicle in a safe place and turn off the air condi-
tioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine. Carefully lift the hood after the steam
subsides and then restart the engine.
If you do not see steam: Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins
to fall and then stop the engine.
If the fan is not operating: Stop the engine immediately and call your local Toyota
dealer.
STEP1
STEP2
STEP3

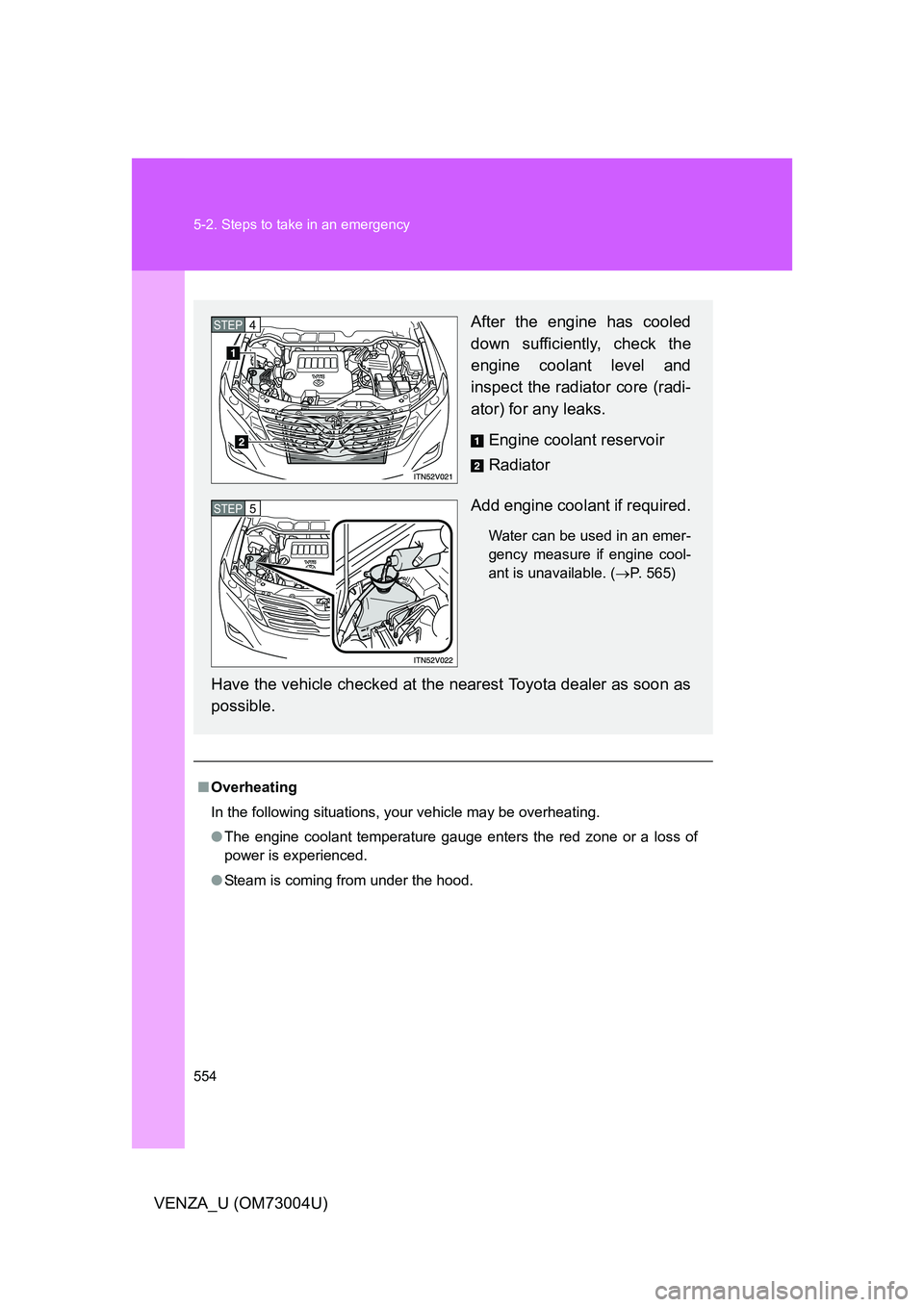

554 5-2. Steps to take in an emergency
VENZA_U (OM73004U)
■Overheating
In the following situations, your vehicle may be overheating.
● The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
● Steam is coming from under the hood.
After the engine has cooled
down sufficiently, check the
engine coolant level and
inspect the radiator core (radi-
ator) for any leaks.
Engine coolant reservoir
Radiator
Add engine coolant if required.
Water can be used in an emer-
gency measure if engine cool-
ant is unavailable. ( P. 565)
Have the vehicle chec ked at the nearest Toyota dealer as soon as
possible.
STEP4
STEP5

5
When trouble arises
555
5-2. Steps to take in an emergency
VENZA_U (OM73004U)

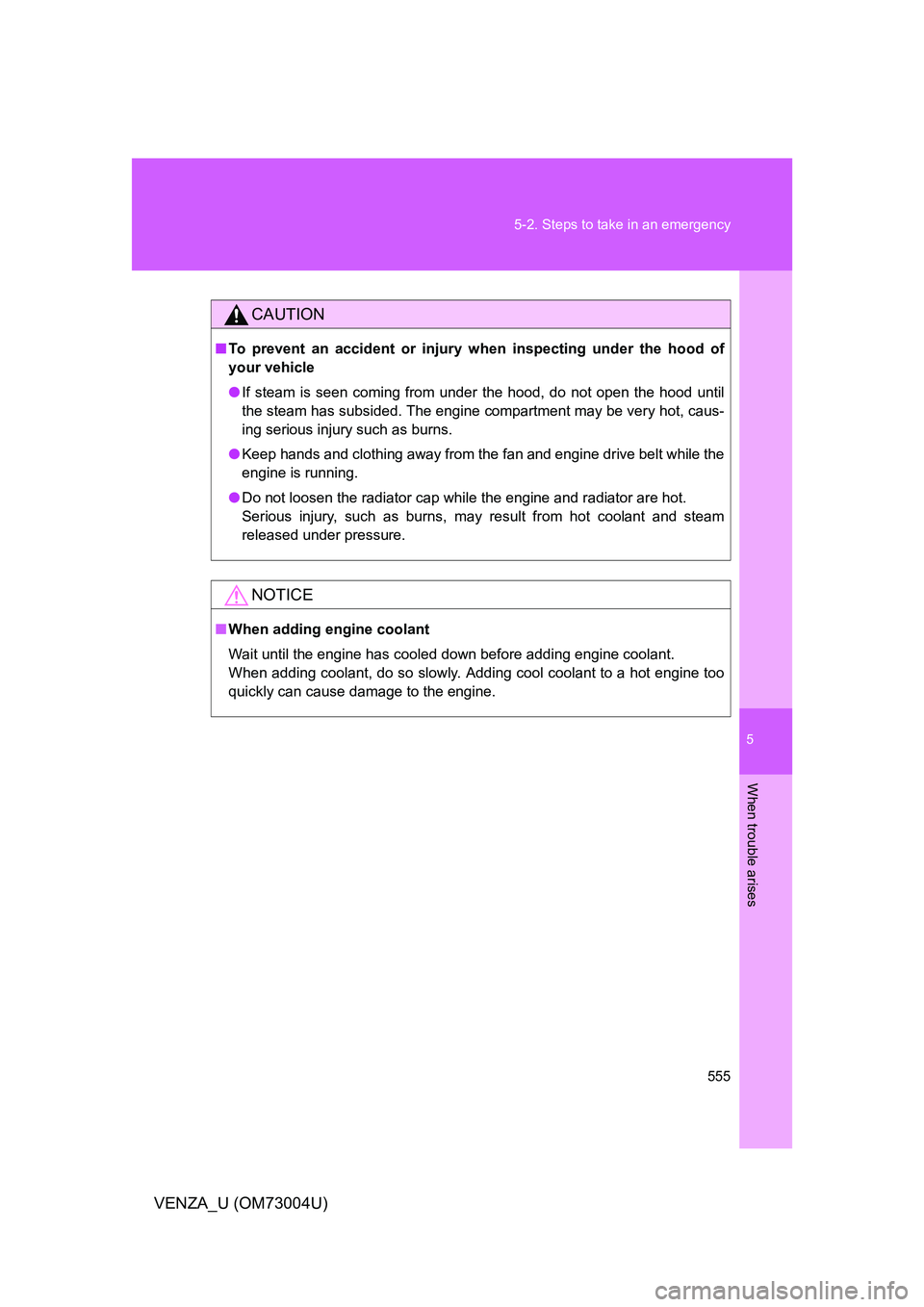

CAUTION
■
To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
● Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
● Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

556
5-2. Steps to take in an emergency
VENZA_U (OM73004U)
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striki ng other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parki ng brake and shift the shift
lever in “P”.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Turn off VSC. (  P. 228)
Shift the shift lever to “D” or “R” position and carefully apply
the accelerator to free the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

5
When trouble arises
557
5-2. Steps to take in an emergency
VENZA_U (OM73004U)

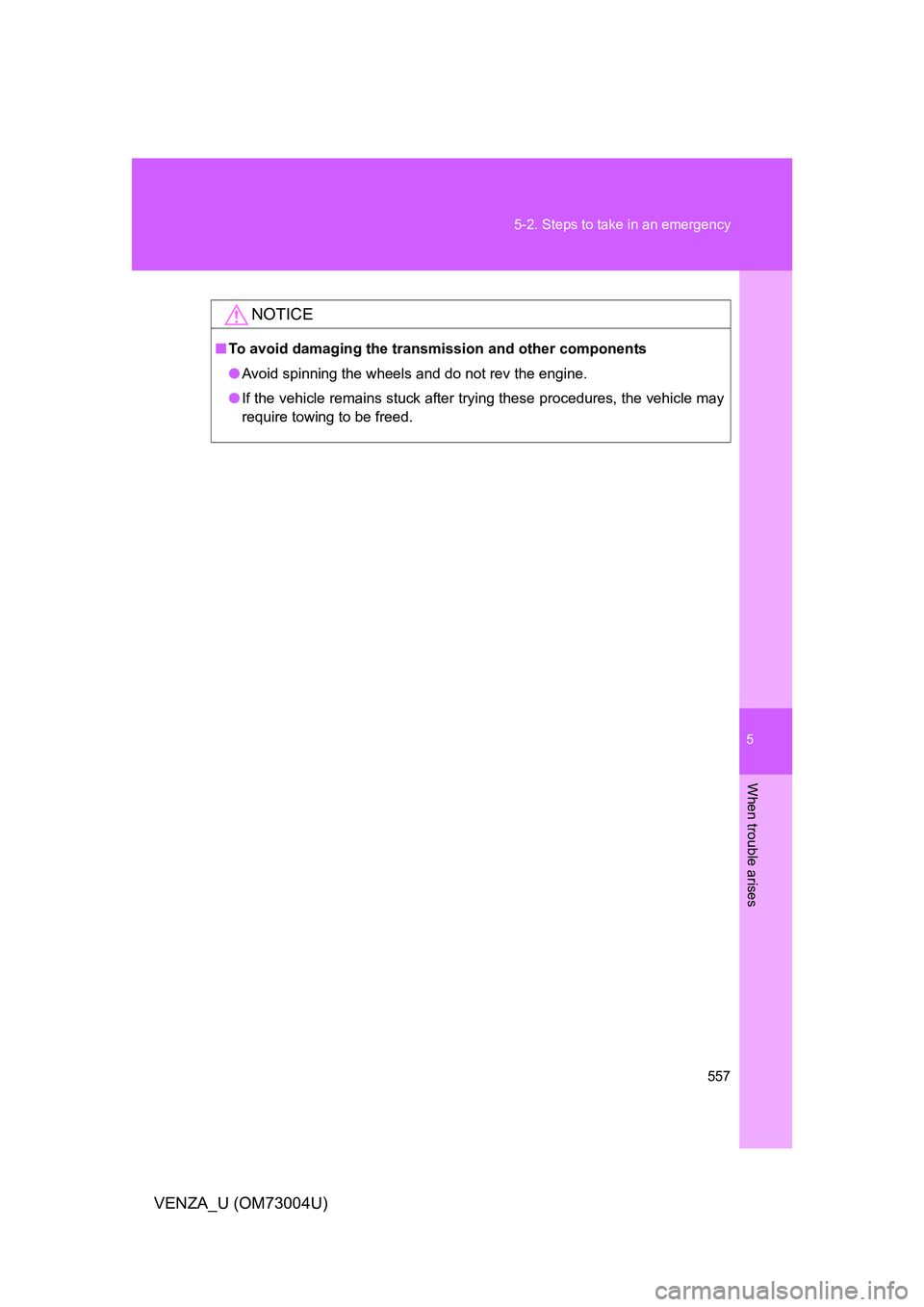

NOTICE
■
To avoid damaging the transmission and other components
● Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.

558 5-2. Steps to take in an emergency
VENZA_U (OM73004U)

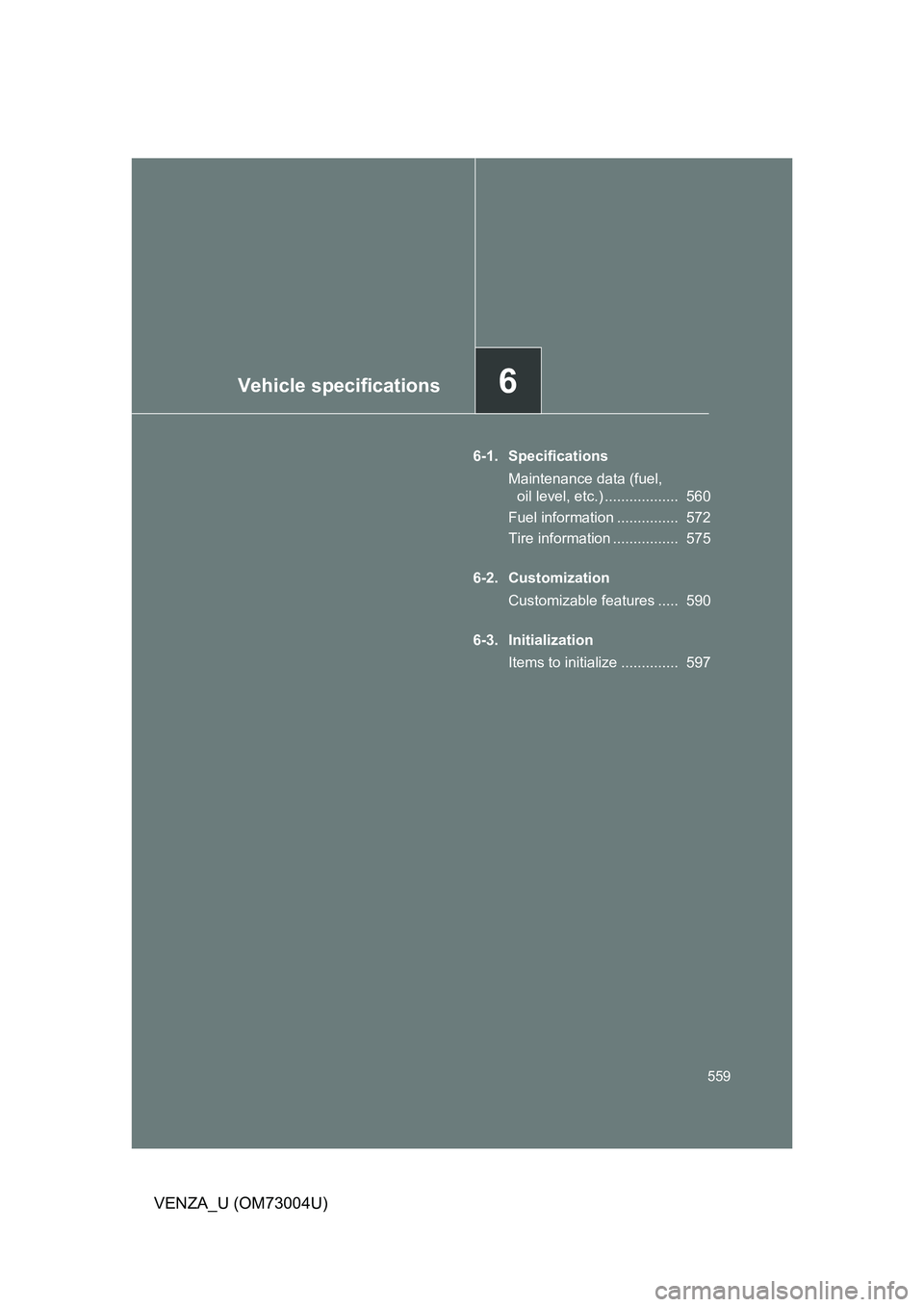

Vehicle specifications6
559
VENZA_U (OM73004U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) .................. 560
Fuel information ............... 572
Tire information ................ 575
6-2. Customization Customizable features ..... 590
6-3. Initialization Items to initialize .............. 597

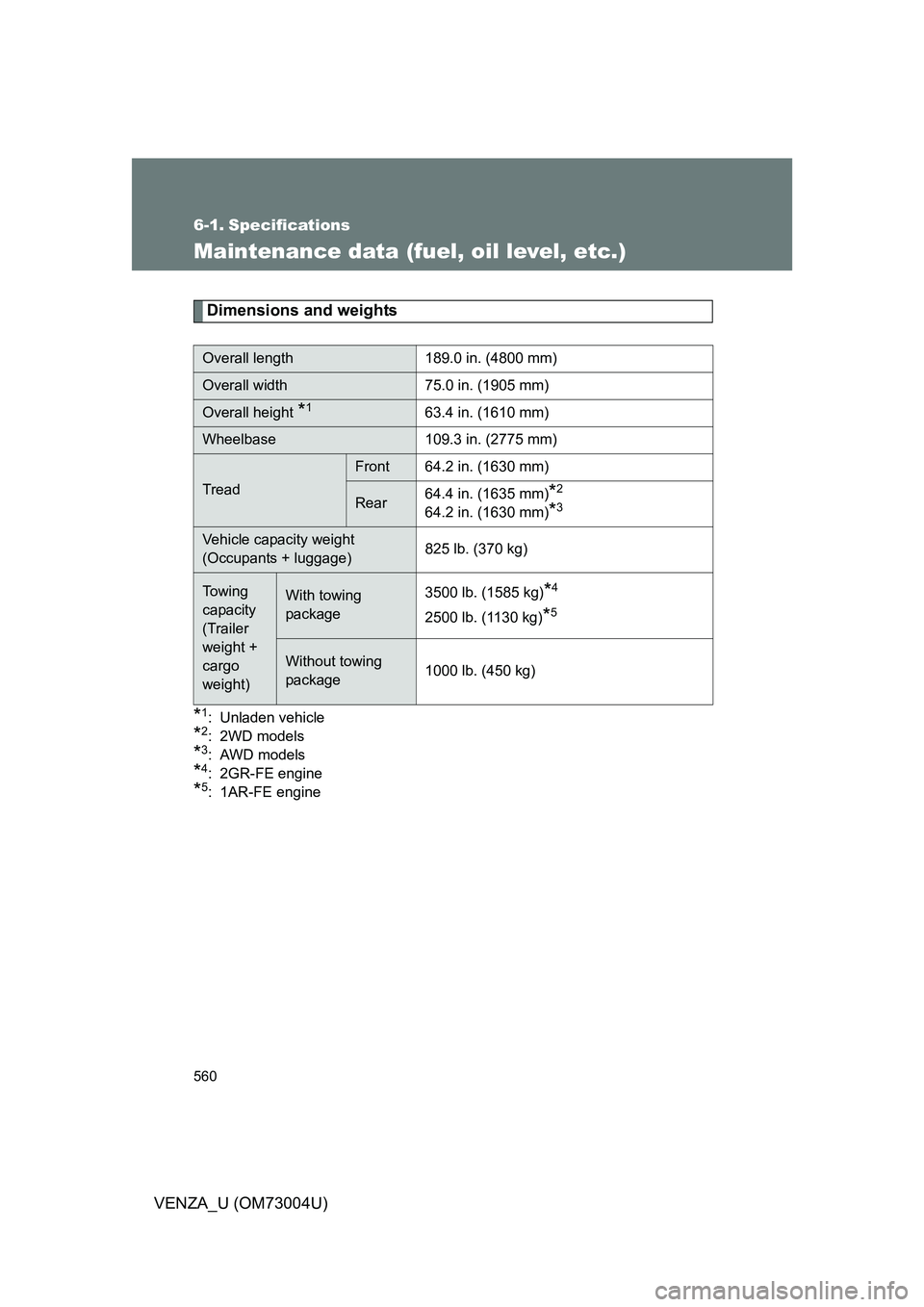

560
VENZA_U (OM73004U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicle
*2: 2WD models
*3: AWD models
*4: 2GR-FE engine
*5: 1AR-FE engine
Overall length189.0 in. (4800 mm)
Overall width75.0 in. (1905 mm)
Overall height *163.4 in. (1610 mm)
Wheelbase109.3 in. (2775 mm)
Tread
Front64.2 in. (1630 mm)
Rear64.4 in. (1635 mm)*2
64.2 in. (1630 mm)*3
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
Towing
capacity
(Trailer
weight +
cargo
weight)With towing
package3500 lb. (1585 kg)*4
2500 lb. (1130 kg)*5
Without towing
package1000 lb. (450 kg)
