TOYOTA VENZA 2009 (in English) Owner's Manual

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6)\
to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Types 1 and 2 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE” or either side of “SEEK
TRACK.”
To select a folder (MP3/WMA only) Push either side of “TAPE FOLDER.”
“ ”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn audio system OFF.
vv
AUX audio jack
Steering wheel switches
Volume control
By inserting a mini plug into the AUX audio jack, you can listen to musi\
c
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
413077M1.qxd 10/21/08 4:45 PM Page 19

20
FEATURES/OPERATIONS
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Rear seat entertainment system
(if equipped)
Front audio system
Display
DVD player
Remote controller
A/V input adapter
120V AC Power outlet
Set
413077M1.qxd 10/21/08 4:45 PM Page 20

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Power outlets-12V DC
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, \
etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manualfor
more details.
*
HomeLink®is a registered trademark of Johnson Controls, Inc.
NOTE: Engine switch/“ENGINE START STOP” switch must be in the “ON”
position to be used.
Instrument panelInside center console
NOTE: Designed for car accessories. Engine switch/“ENGINE START STOP”
switch must be in the ACCESSORY or ON position to be used.
Luggage compartment
Power outlet-120V AC (if equipped)
Garage door opener (HomeLink®)*
(if equipped)
413077M1.qxd 10/21/08 4:45 PM Page 21

22
FEATURES/OPERATIONS
Multi-information display (clock)
Push “INFO” or “INFO-CLOCK” to change information in the fol\
lowing:
(1) Average fuel economy (AVERAGE ECON)
(2) Current fuel economy (CURRENT ECON)
(3) Distance to empty (RANGE)
(4) Average speed (AVERAGE SPEED)
(5) Trip timer (TFT type only)
TFT type*
LCD type
Setting the clock
TFT type*(1) Press the “SETUP” button for the “Custom Settings” screen.
(2) Select “Clock” on the Display Settings screen, and press the\
“SELECT RESET”
button. (3) Press the “INFO” button to adjust the hours and the “SETUP” b\
utton
to adjust the minutes. (4) Press the “SELECT RESET” button to set the clock.
LCD type (1) Press and hold the “INFO-CLOCK” button until part of the display
begins to flash. (2) Press and hold the “RESET-H” button to adjust the hours and
the “US/M-M” button to adjust the minutes. (3) Press the “INFO-CLOCK” button to
complete the setting.
* On vehicles equipped with back-up camera
413077M1.qxd 10/22/08 4:55 PM Page 22

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to the Navigation System Owner’s Manual or the Owners Manual .
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneAudio unit
Steering wheel telephone switches
Start call
End call
Voice command buttonVo l u m e
Customizable features
If your vehicle has a TFT type* multi-information display, you will be able
to customize certain electronic features. Press the “SETUP” button while
stopped to access the “Custom Settings” screen.
Please see the Owner’s Manual for details.
* On vehicles equipped with back-up camera
413077M1.qxd 10/21/08 4:45 PM Page 23

24
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seatbelts
Push up, or squeeze
lock release to lower
Seatbelts-Shoulder belt anchor
If tire pressure becomes critically low on any of the tires (excluding \
the
spare), indicator will illuminate. Correctly adjusting tire inflation will
turn off the light after a few minutes. If the light does not turn off, \
have
the system checked by your Toyota dealer.
Refer to the Owner’s Manual for more details.
Tire Pressure Monitoring (warning)
System
Door locks
LockUnlock
413077M1.qxd 10/22/08 4:55 PM Page 24

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

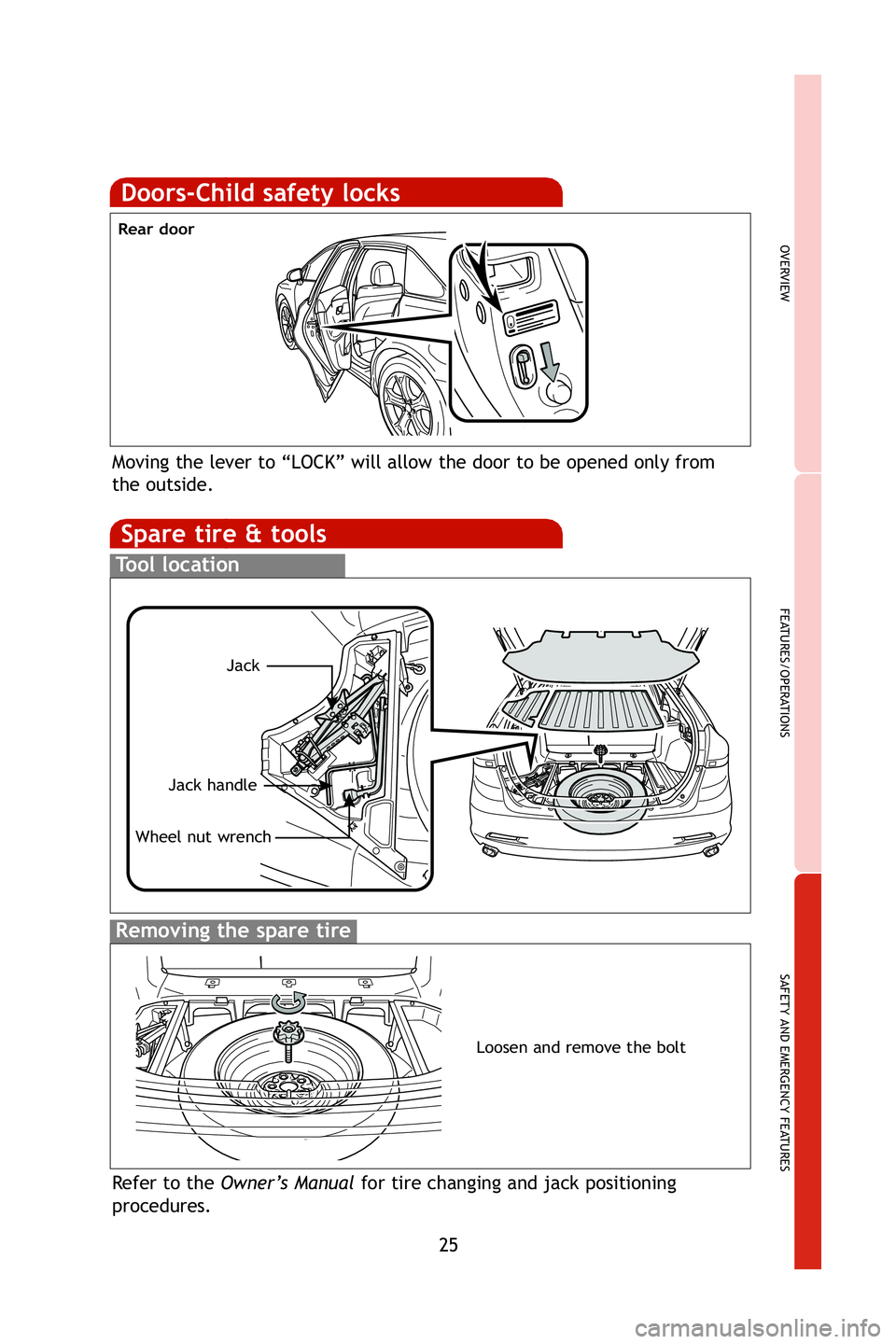

Spare tire & tools
Tool location
Removing the spare tire
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Wheel nut wrench
Moving the lever to “LOCK” will allow the door to be opened only f\
rom
the outside.
Rear door
Jack
Jack handle
Doors-Child safety locks
Loosen and remove the bolt
413077M1.qxd 10/21/08 4:45 PM Page 25

MN 00505-QRG09-VEN
Printed in the USA 10/08
413077M1.qxd 10/21/08 4:45 PM Page 26
