TOYOTA VENZA 2009 (in English) User Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-+
413077M1.qxd 10/21/08 4:45 PM Page 9

10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP” switch/engine switch must be “ON” and thebrake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always\
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
“S” mode
“S”
“D”
Parking brake
Set: Depress
Release: Depress again
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Length
Angle
413077M1.qxd 10/21/08 4:45 PM Page 10

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

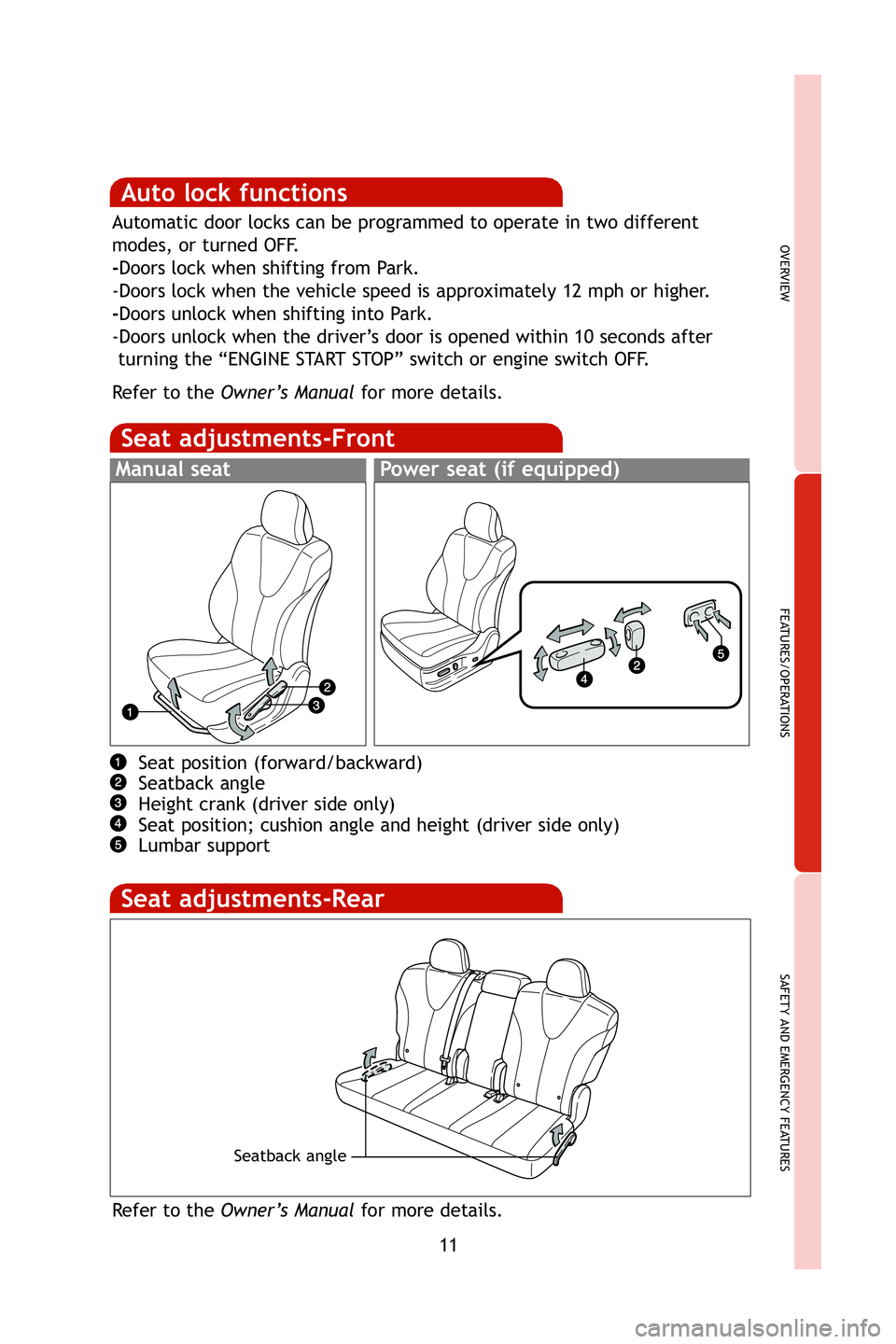

Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds afterturning the “ENGINE START STOP” switch or engine switch OFF.
Refer to the Owner’s Manual for more details.
Seat adjustments-Front
Power seat (if equipped)Manual seat
Seat position (forward/backward)
Seatback angle
Height crank (driver side only)
Seat position; cushion angle and height (driver side only)
Lumbar support
Seat adjustments-Rear
Refer to the Owner’s Manual for more details.
Seatback angle
413077M1.qxd 10/21/08 4:45 PM Page 11

12
FEATURES/OPERATIONS

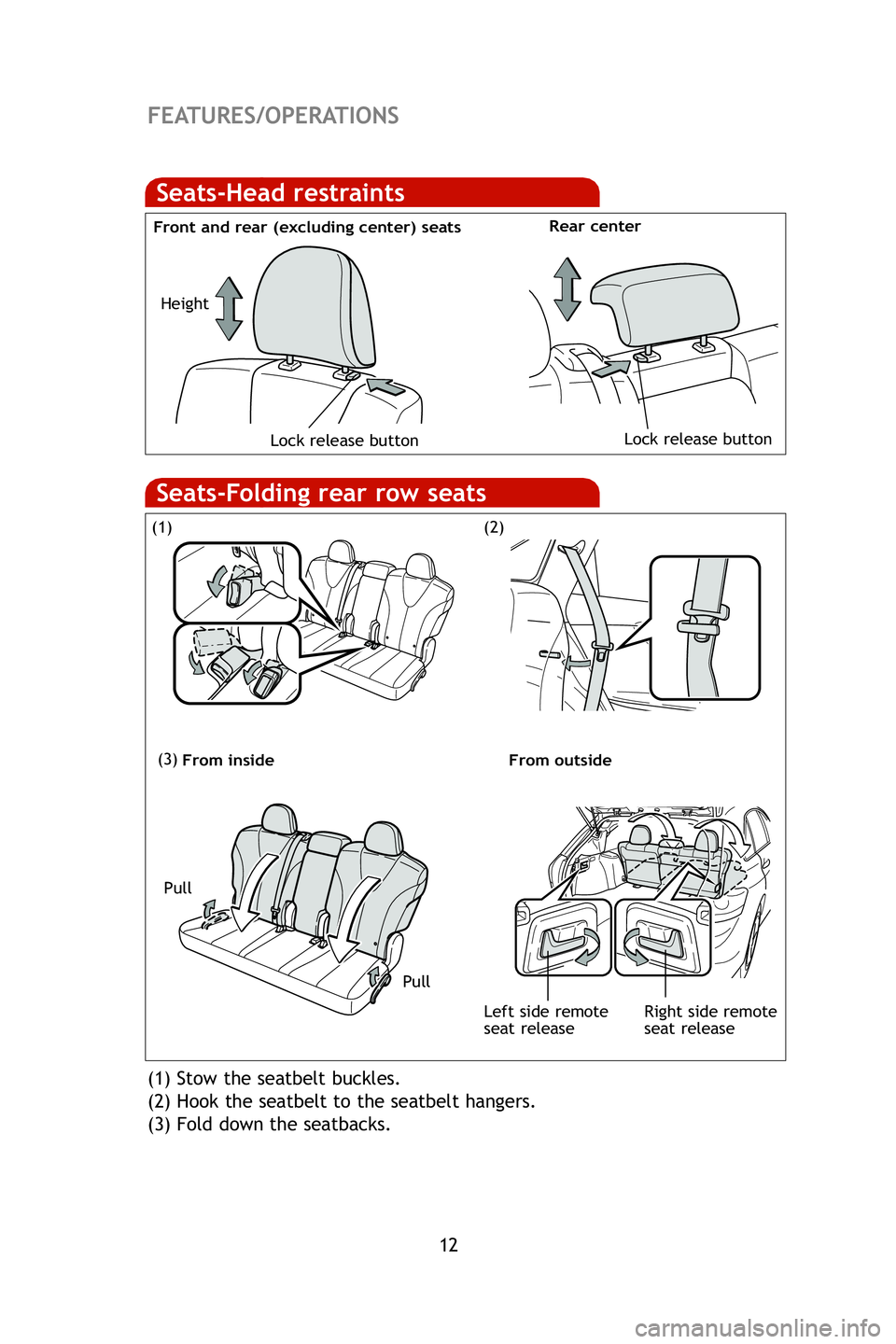

Seats-Head restraints
Front and rear (excluding center) seatsRear center
Lock release buttonLock release button
Height
(1) Stow the seatbelt buckles.
(2) Hook the seatbelt to the seatbelt hangers.
(3) Fold down the seatbacks.
(1)
(3)
(2)
Seats-Folding rear row seats
Pull
Pull
From inside
From outside
Right side remote
seat release
Left side remote
seat release
413077M1.qxd 10/21/08 4:45 PM Page 12

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Moonroof (if equipped)
Sliding operationTilting operation
Open
Close
Recommended driving position to
minimize wind noise.
Windows-Power
Up
Down
Window lock
switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Push once to open partway;
again to open completely.
Tilt
Close
413077M1.qxd 10/21/08 4:45 PM Page 13

14
FEATURES/OPERATIONS
Lights & turn signals
Headlights
High beam flasher
Low beam
Headlights
-Daytime Running Light system (DRL)
Automatically turns on the
headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
Parking lights
High beam
Auto
DRL OFF
Without automatic high beam
Automatic high beam (if equipped)
Manual high beam ONActivate*
Deactivate
* Refer to the Owner’s Manual
for details on activating the
automatic high beams.
413077M1.qxd 10/21/08 4:45 PM Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Turn signals
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change Left turn
Tu r n
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Front
Rear
Wash and wipe Wipe
Interval wipe
Wash and wipe
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
Adjust frequency*
Pull to wash
and wipe
413077M1.qxd 10/21/08 4:45 PM Page 15

16
FEATURES/OPERATIONS

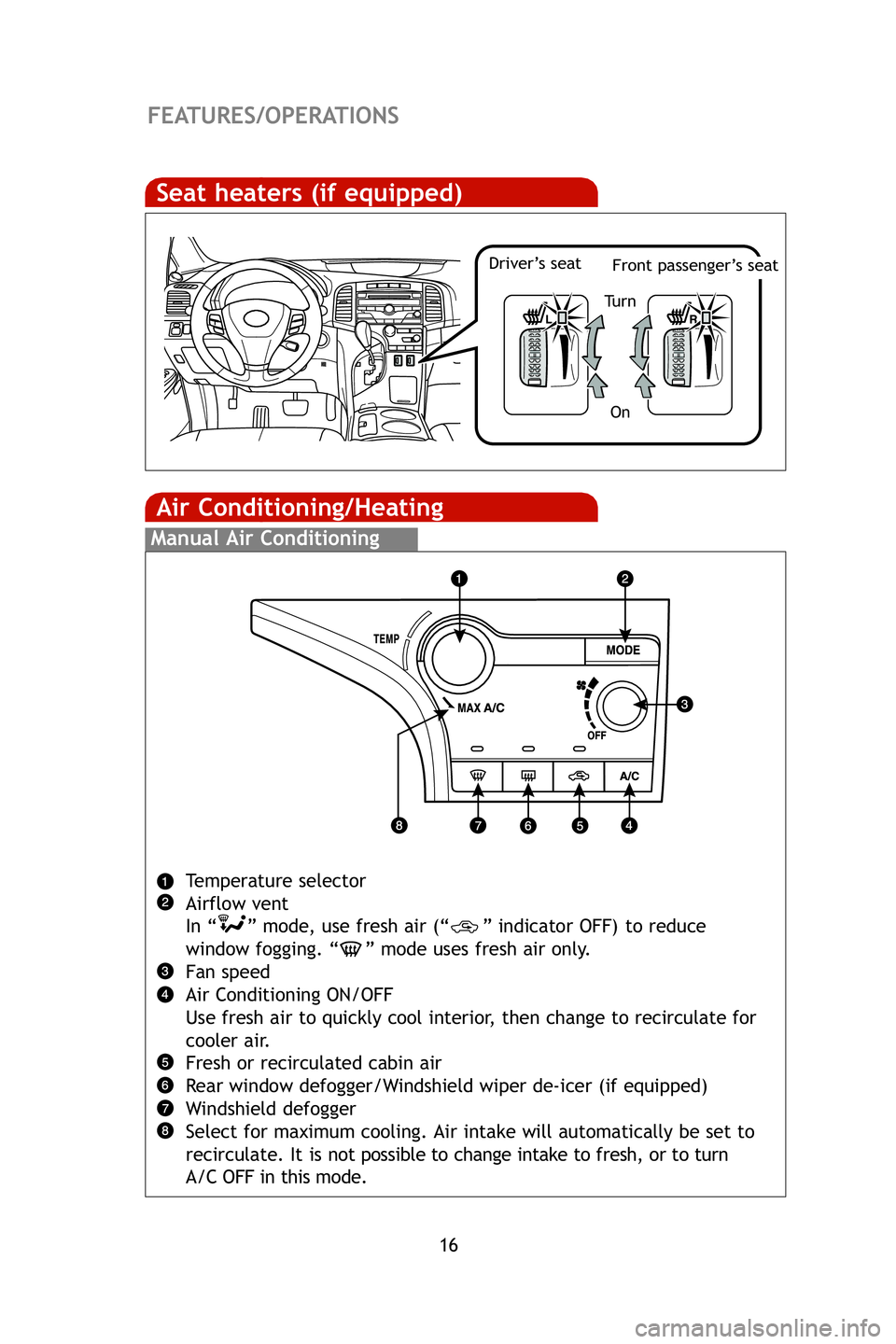

Air Conditioning/Heating
Manual Air Conditioning
Temperature selector
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only.
Fan speed
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Fresh or recirculated cabin air
Rear window defogger/Windshield wiper de-icer (if equipped)
Windshield defogger
Select for maximum cooling. Air intake will automatically be set to
recirculate. It is not possible to change intake to fresh, or to turn
A/C OFF in this mode.
Seat heaters (if equipped)
Driver’s seatFront passenger’s seat
Tu r n
On
413077M1.qxd 10/21/08 4:45 PM Page 16

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

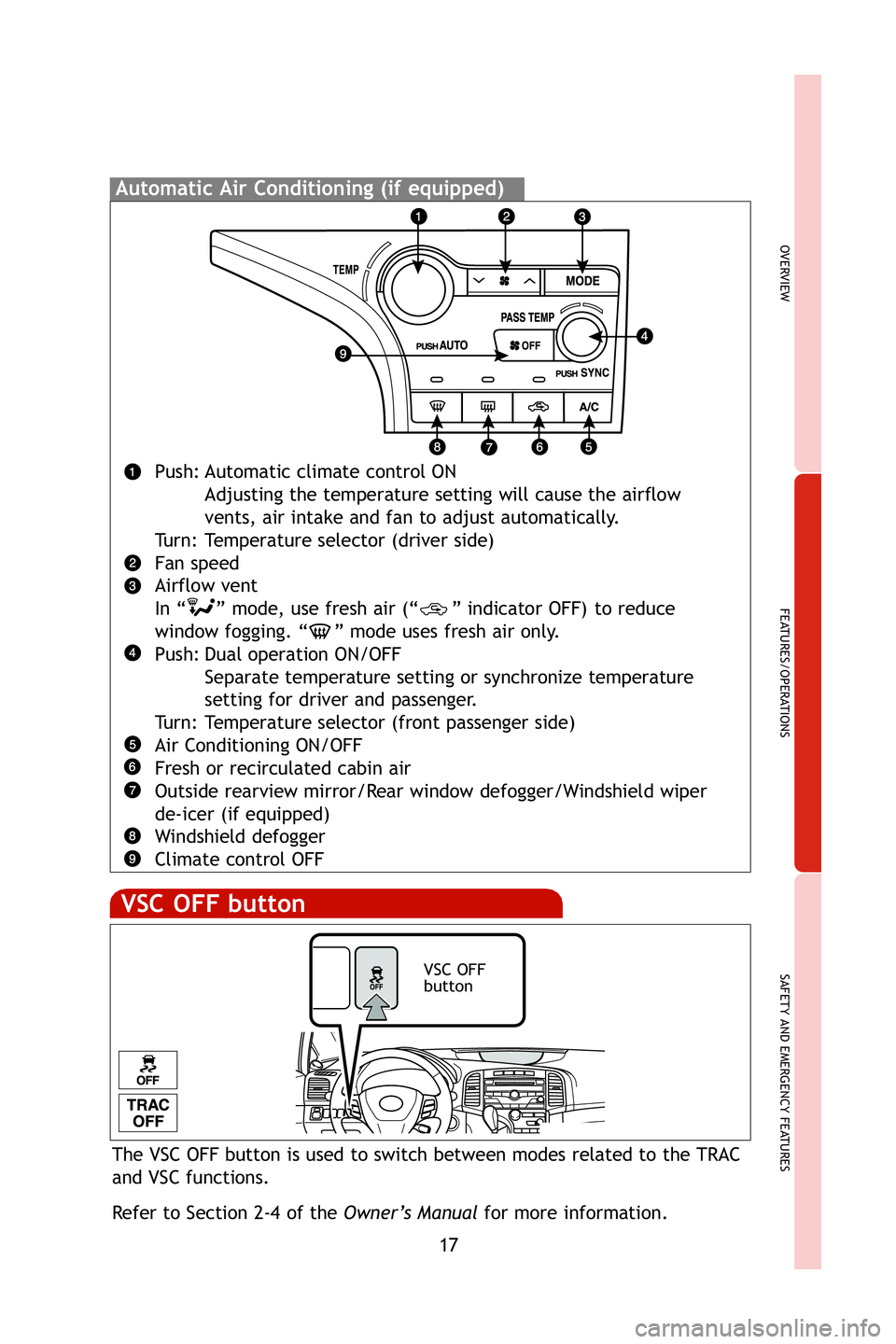

Automatic Air Conditioning (if equipped)
Push: Automatic climate control ONAdjusting the temperature setting will cause the airflow
vents, air intake and fan to adjust automatically.
Turn: Temperature selector (driver side)
Fan speed
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only.
Push: Dual operation ON/OFF Separate temperature setting or synchronize temperature
setting for driver and passenger.
Turn: Temperature selector (front passenger side)
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Outside rearview mirror/Rear window defogger/Windshield wiper
de-icer (if equipped)
Windshield defogger
Climate control OFF
The VSC OFF button is used to switch between modes related to the TRAC
and VSC functions.
Refer to Section 2-4 of the Owner’s Manualfor more information.
VSC OFF
button
VSC OFF button
413077M1.qxd 10/21/08 4:45 PM Page 17

18
FEATURES/OPERATIONS

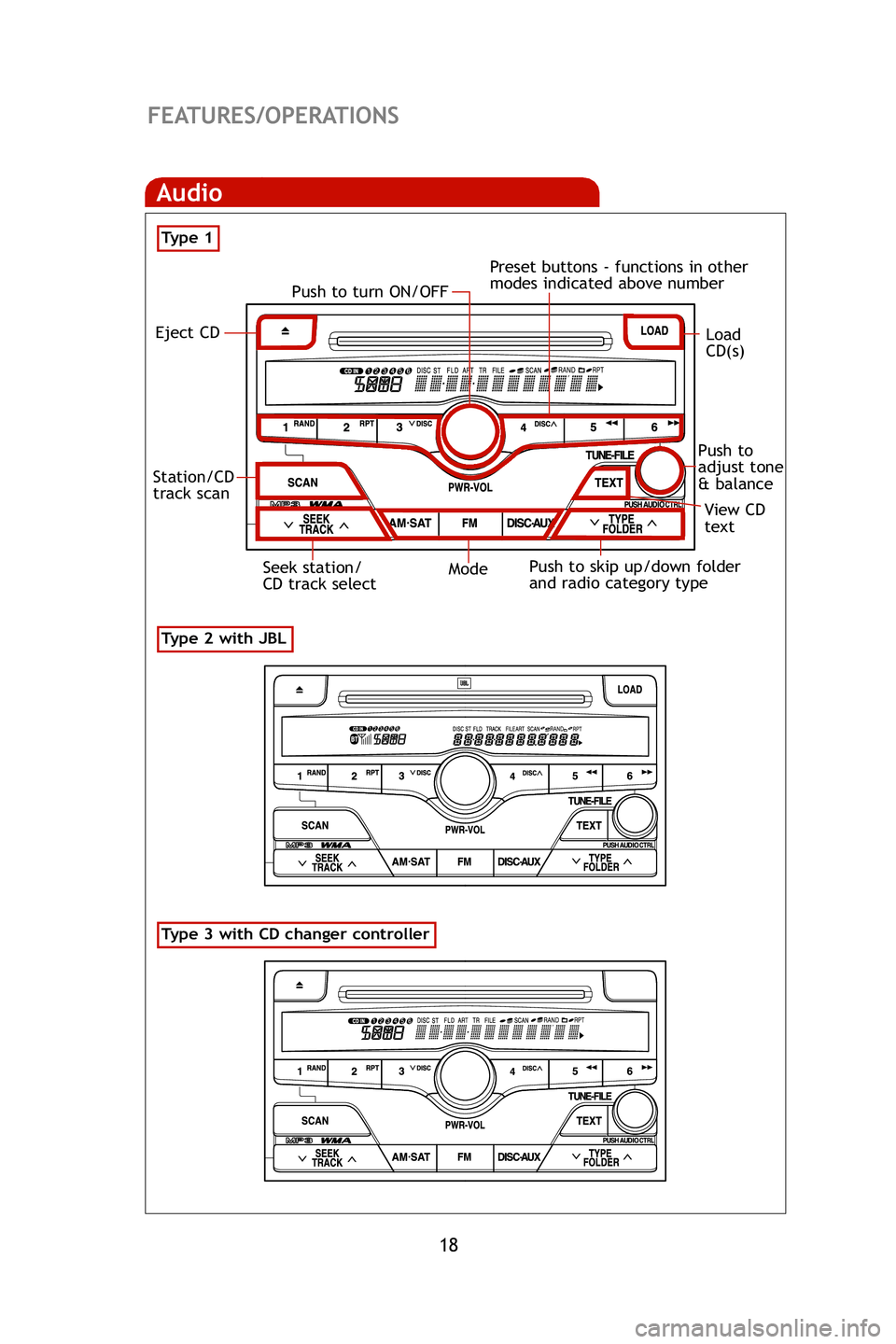

Audio
Type 2 with JBL
Type 3 with CD changer controller
Audio
Ty p e 1
Eject CDPush to turn ON/OFF
View CD
text
Seek station/
CD track select
Station/CD
track scan
ModePreset buttons - functions in other
modes indicated above number
Push to skip up/down folder
and radio category type
Push to
adjust tone
& balance
Load
CD(s)
