display TOYOTA VENZA 2009 Owners Manual (in English)

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 8Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry1,26Light control-Instrument panel9
Smart Key system1,27
Air Conditioning/Heating16-17Audio 18-19Auto lock functions111Automatic Transmission 10Cruise control 20Customizable features23Garage door opener (HomeLink®)321Lights1,2& turn signals14-15Moonroof 13Multi-information display (clock)222Parking brake10Power outlets-12V DC 21Power outlet-120V AC21Rear seat entertainment system20Seat adjustments-Front 11Seat adjustments-Rear11Seat heaters 16Seats-Head restraints12Seats-Folding rear row seats12Tilt and telescopic steering wheel 10Te l e p h o n e controls (Bluetooth®)23VSC OFF button 17Windows-Power13
Windshield wipers & washers 15
Door locks1,224Doors-Child safety locks 25Seatbelts24Seatbelts-Shoulder belt anchor24Spare tire & tools25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
413077M1.qxd 10/21/08 4:45 PM Page 1

2
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1,2
Voice command button1,2
Cruise control
Engine switch (standard key)1
Headlight, turn signal and front fog light1 controls
Wiper and washer controls
“ENGINE START STOP” switch (Smart Key)
1
Multi-information display
Audio system2
Emergency flasher button
Multi-information display switches
Steering wheel controls
413077M1.qxd 10/21/08 4:45 PM Page 2

4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button/Instrument panel
light control
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Driver seatbelt reminder1
(alarm will sound if speed is over 12 mph)Front passenger seatbelt reminder
1
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Active torque control 4WD system warning1
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2009
Owner’s Manual .
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 200\
9 Owner’s Manual.
413077M1.qxd 10/21/08 4:45 PM Page 4

20
FEATURES/OPERATIONS

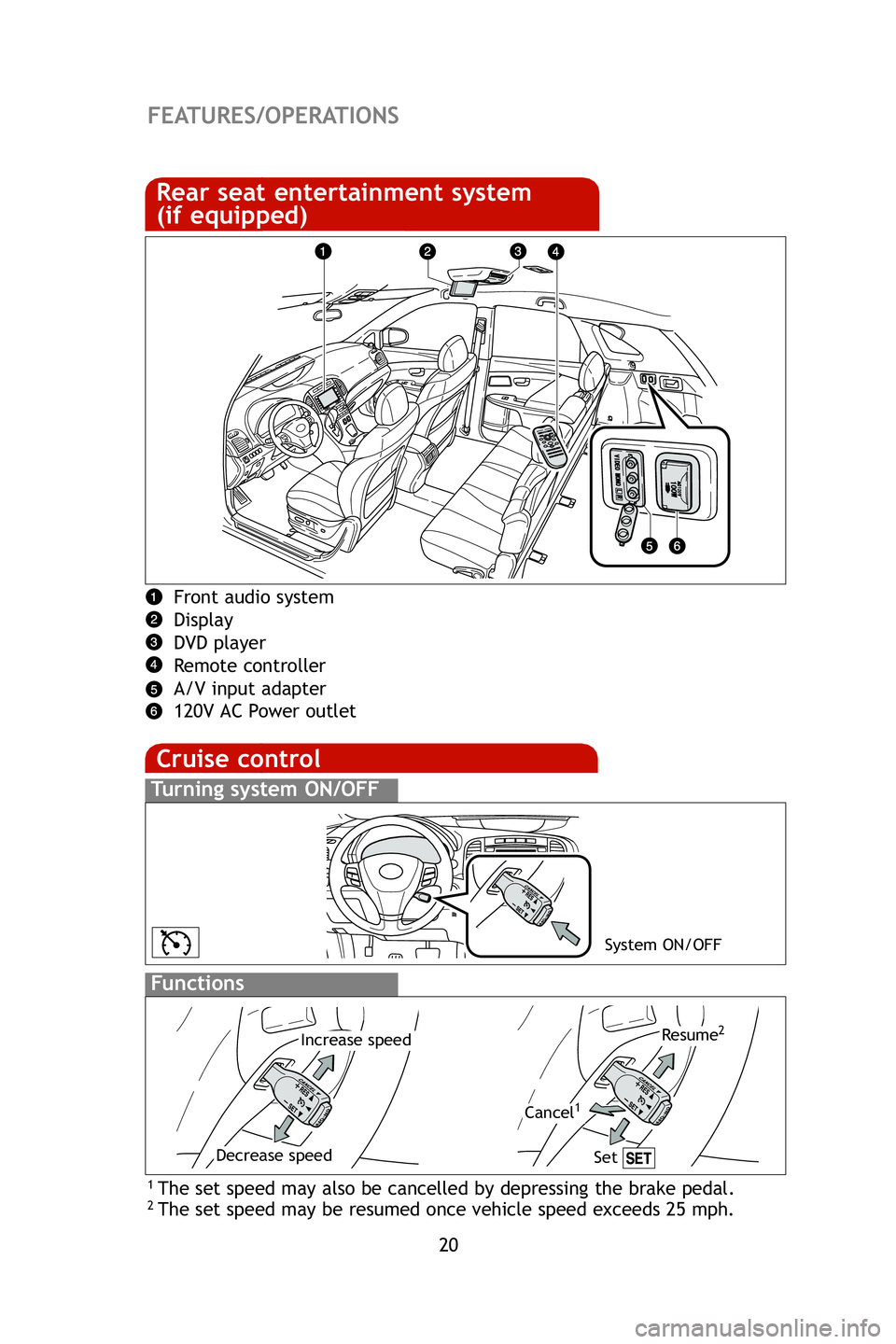

Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Rear seat entertainment system
(if equipped)
Front audio system
Display
DVD player
Remote controller
A/V input adapter
120V AC Power outlet
Set
413077M1.qxd 10/21/08 4:45 PM Page 20

22
FEATURES/OPERATIONS

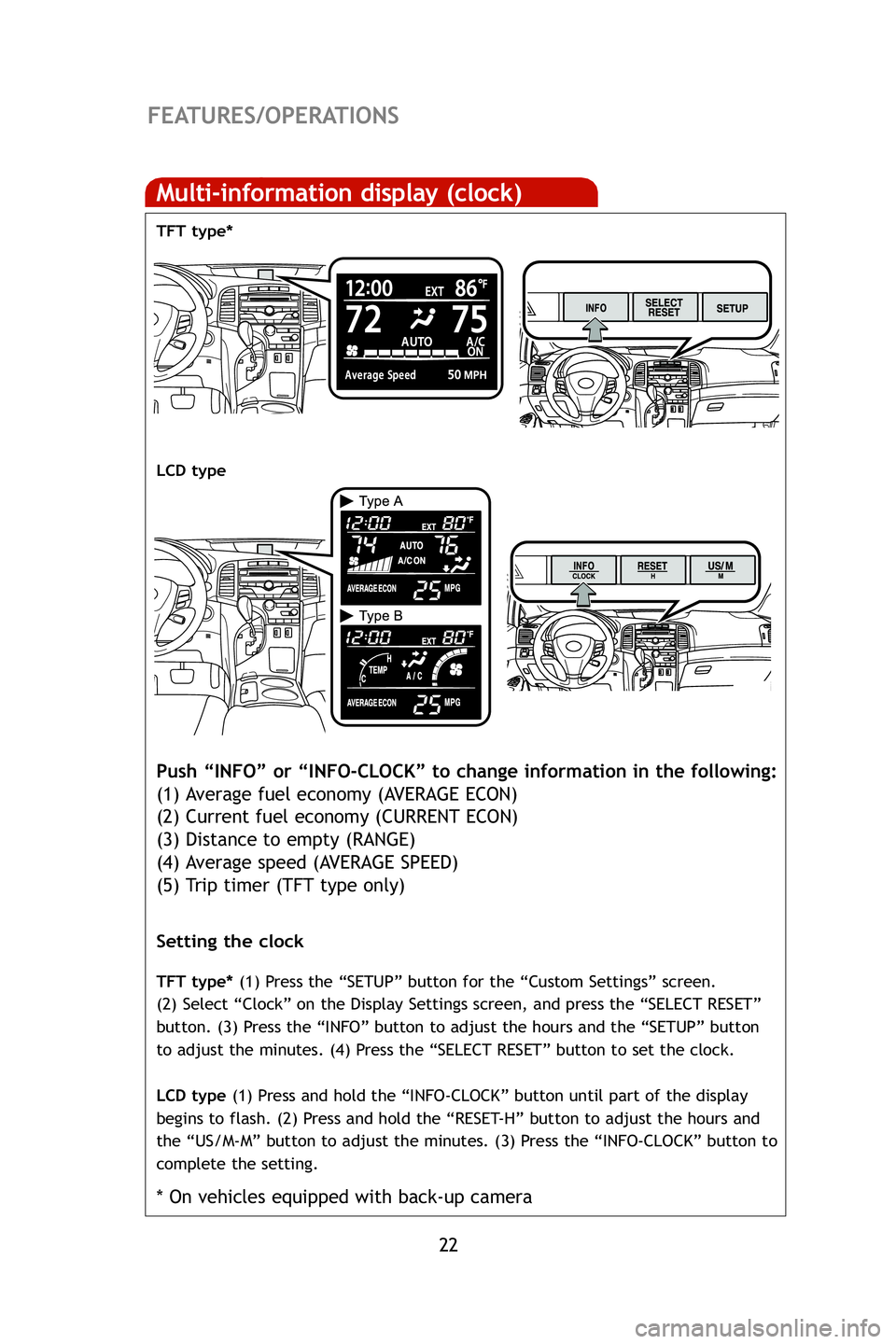

Multi-information display (clock)
Push “INFO” or “INFO-CLOCK” to change information in the fol\
lowing:
(1) Average fuel economy (AVERAGE ECON)
(2) Current fuel economy (CURRENT ECON)
(3) Distance to empty (RANGE)
(4) Average speed (AVERAGE SPEED)
(5) Trip timer (TFT type only)
TFT type*
LCD type
Setting the clock
TFT type*(1) Press the “SETUP” button for the “Custom Settings” screen.
(2) Select “Clock” on the Display Settings screen, and press the\
“SELECT RESET”
button. (3) Press the “INFO” button to adjust the hours and the “SETUP” b\
utton
to adjust the minutes. (4) Press the “SELECT RESET” button to set the clock.
LCD type (1) Press and hold the “INFO-CLOCK” button until part of the display
begins to flash. (2) Press and hold the “RESET-H” button to adjust the hours and
the “US/M-M” button to adjust the minutes. (3) Press the “INFO-CLOCK” button to
complete the setting.
* On vehicles equipped with back-up camera
413077M1.qxd 10/22/08 4:55 PM Page 22

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to the Navigation System Owner’s Manual or the Owners Manual .

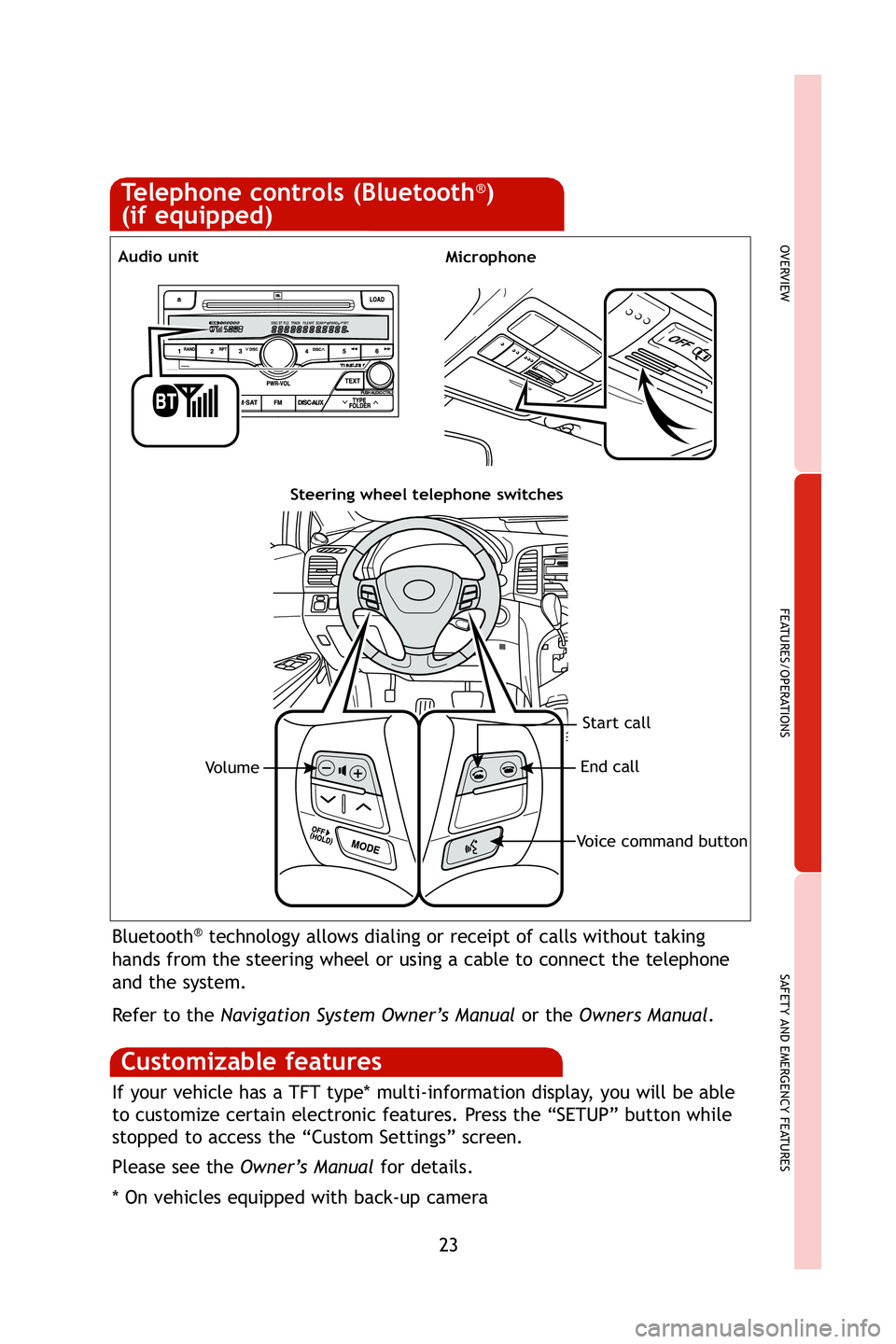

Telephone controls (Bluetooth®)
(if equipped)
MicrophoneAudio unit
Steering wheel telephone switches
Start call
End call
Voice command buttonVo l u m e
Customizable features
If your vehicle has a TFT type* multi-information display, you will be able
to customize certain electronic features. Press the “SETUP” button while
stopped to access the “Custom Settings” screen.
Please see the Owner’s Manual for details.
* On vehicles equipped with back-up camera
413077M1.qxd 10/21/08 4:45 PM Page 23
