!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Venza.
This Quick Reference Guide is not a full description of Venza
operations. Every Venza owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
413077M1.qxd 10/21/08 4:45 PM Page 2

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 8Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry1,26Light control-Instrument panel9
Smart Key system1,27
Air Conditioning/Heating16-17Audio 18-19Auto lock functions111Automatic Transmission 10Cruise control 20Customizable features23Garage door opener (HomeLink®)321Lights1,2& turn signals14-15Moonroof 13Multi-information display (clock)222Parking brake10Power outlets-12V DC 21Power outlet-120V AC21Rear seat entertainment system20Seat adjustments-Front 11Seat adjustments-Rear11Seat heaters 16Seats-Head restraints12Seats-Folding rear row seats12Tilt and telescopic steering wheel 10Te l e p h o n e controls (Bluetooth®)23VSC OFF button 17Windows-Power13
Windshield wipers & washers 15
Door locks1,224Doors-Child safety locks 25Seatbelts24Seatbelts-Shoulder belt anchor24Spare tire & tools25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
413077M1.qxd 10/21/08 4:45 PM Page 1

2
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1,2
Voice command button1,2
Cruise control
Engine switch (standard key)1
Headlight, turn signal and front fog light1 controls
Wiper and washer controls
“ENGINE START STOP” switch (Smart Key)
1
Multi-information display
Audio system2
Emergency flasher button
Multi-information display switches
Steering wheel controls
413077M1.qxd 10/21/08 4:45 PM Page 2

4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button/Instrument panel
light control
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Driver seatbelt reminder1
(alarm will sound if speed is over 12 mph)Front passenger seatbelt reminder
1
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Active torque control 4WD system warning1
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2009
Owner’s Manual .
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 200\
9 Owner’s Manual.
413077M1.qxd 10/21/08 4:45 PM Page 4

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
Cruise control indicator2
Low Tire Pressure Warning1
Smart Key system warning1
Open door warning1
Airbag SRS warning1
Master warning1
Low windshield washer fluid level warning1
Low fuel level warning1
Electric power steering system warning1
Fog light indicator
3For details, refer to “Headlight switch,” Section 2-3, 2009 Owner’\
s Manual.
Vehicle Stability Control OFF indicator
Low Engine oil pressure warning1
Automatic headlight leveling system warning1
Engine oil replacement reminder1
Security indicator
Traction Control OFF indicator
Automatic high beam indicator3
413077M1.qxd 10/21/08 4:45 PM Page 5

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

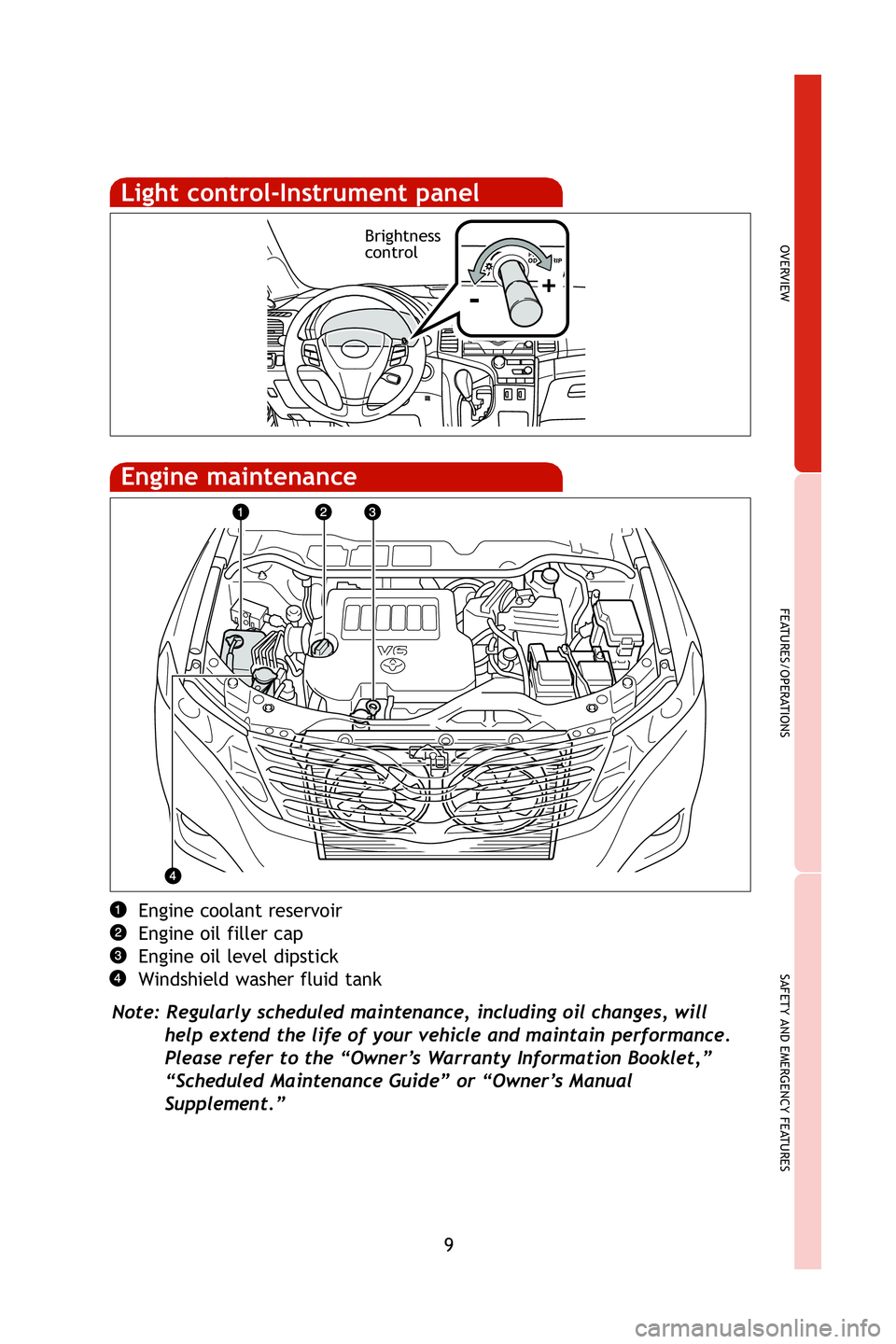

Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-+
413077M1.qxd 10/21/08 4:45 PM Page 9

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

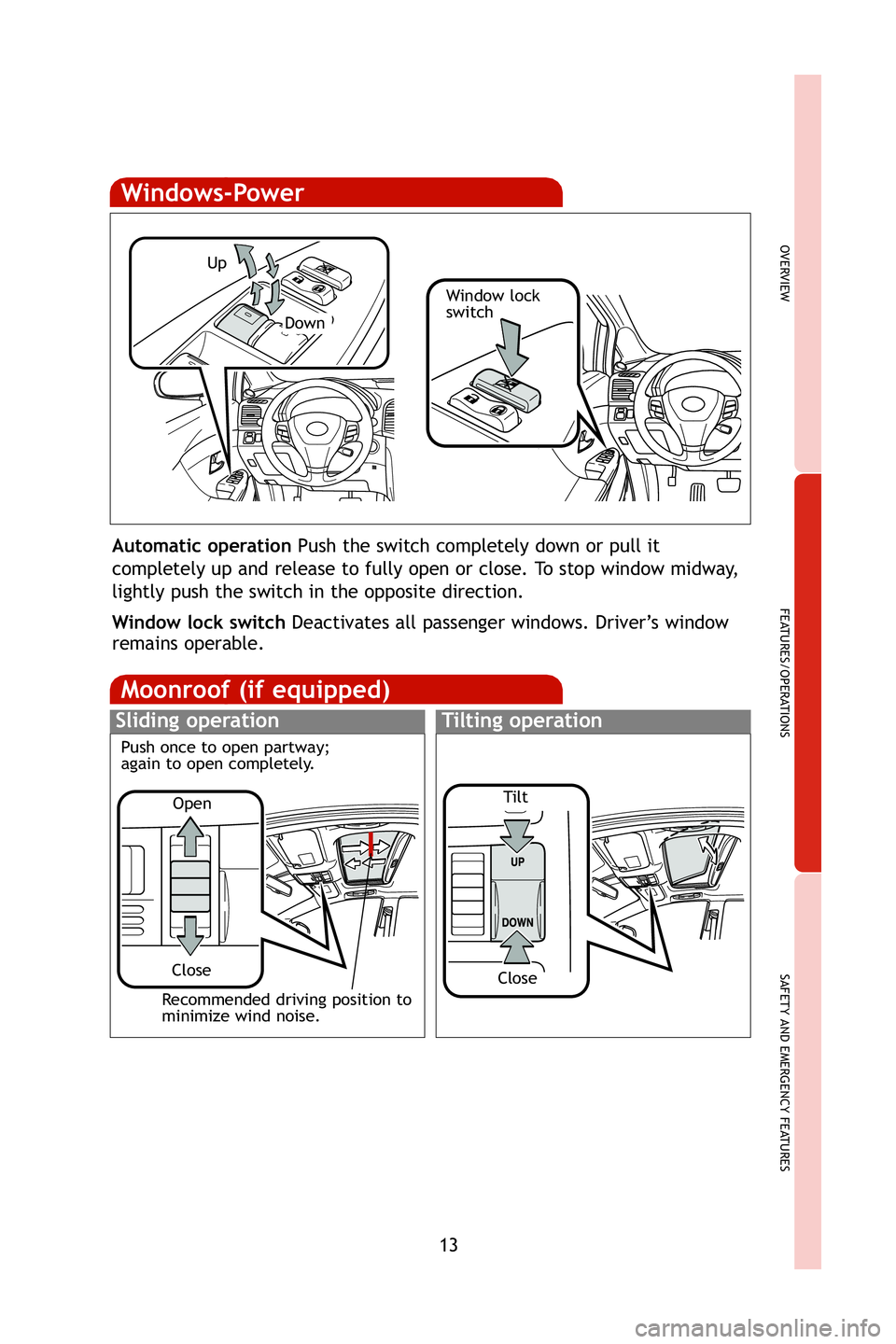

Moonroof (if equipped)
Sliding operationTilting operation
Open
Close
Recommended driving position to
minimize wind noise.
Windows-Power
Up
Down
Window lock
switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Push once to open partway;
again to open completely.
Tilt
Close
413077M1.qxd 10/21/08 4:45 PM Page 13

14
FEATURES/OPERATIONS

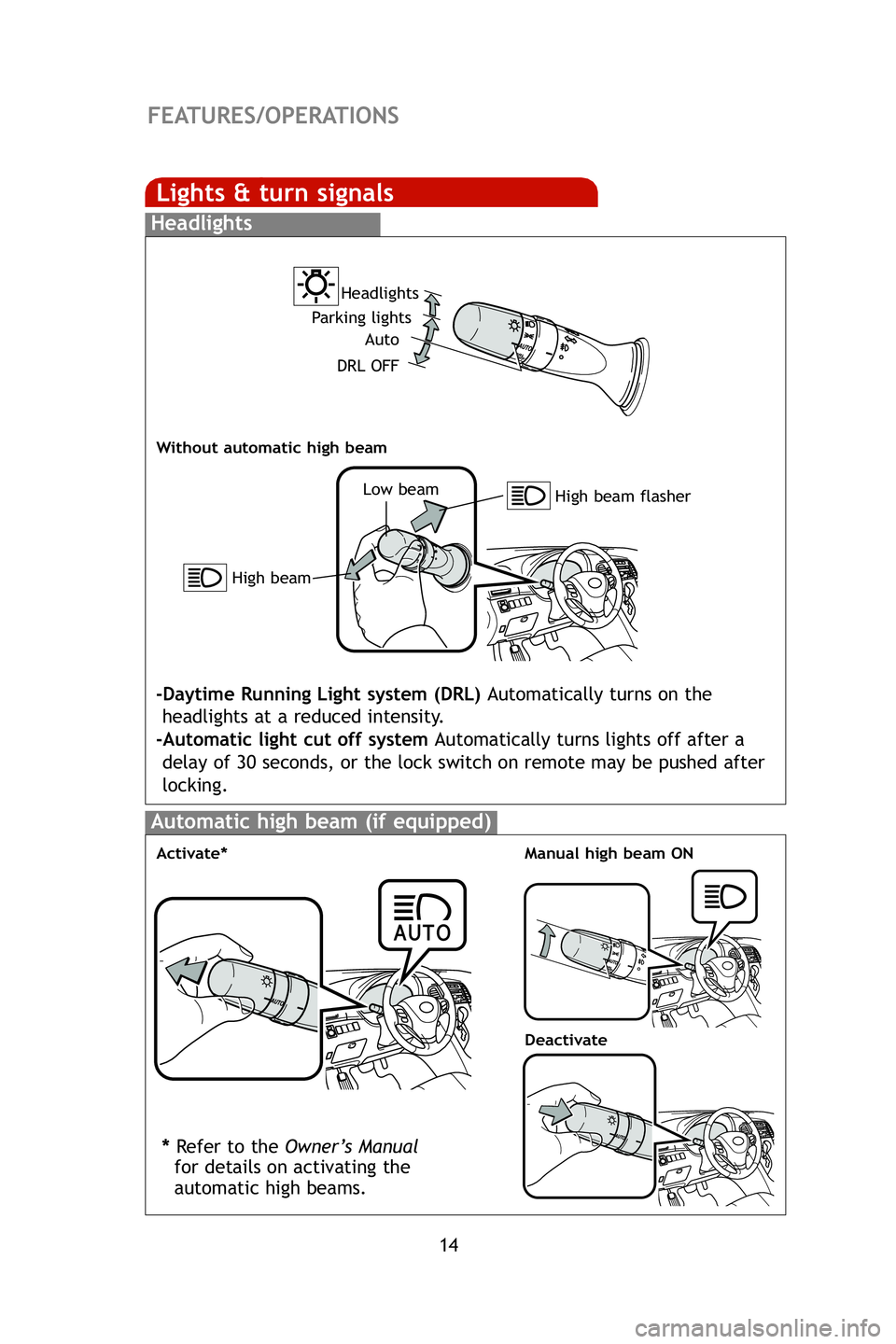

Lights & turn signals
Headlights
High beam flasher
Low beam
Headlights
-Daytime Running Light system (DRL)
Automatically turns on the
headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
Parking lights
High beam
Auto
DRL OFF
Without automatic high beam
Automatic high beam (if equipped)
Manual high beam ONActivate*
Deactivate
* Refer to the Owner’s Manual
for details on activating the
automatic high beams.
413077M1.qxd 10/21/08 4:45 PM Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

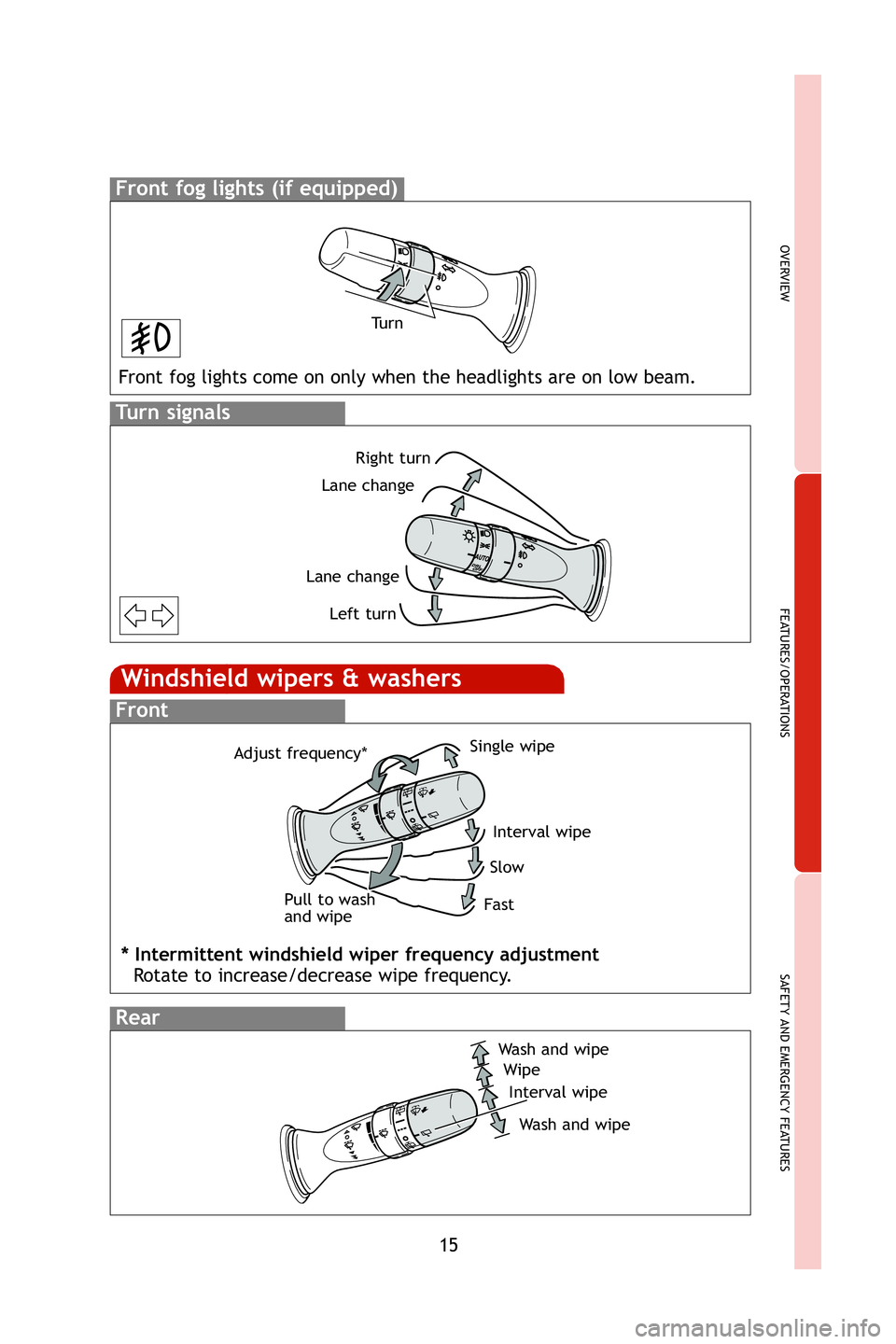

Turn signals
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change Left turn
Tu r n
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Front
Rear
Wash and wipe Wipe
Interval wipe
Wash and wipe
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
Adjust frequency*
Pull to wash
and wipe
413077M1.qxd 10/21/08 4:45 PM Page 15

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

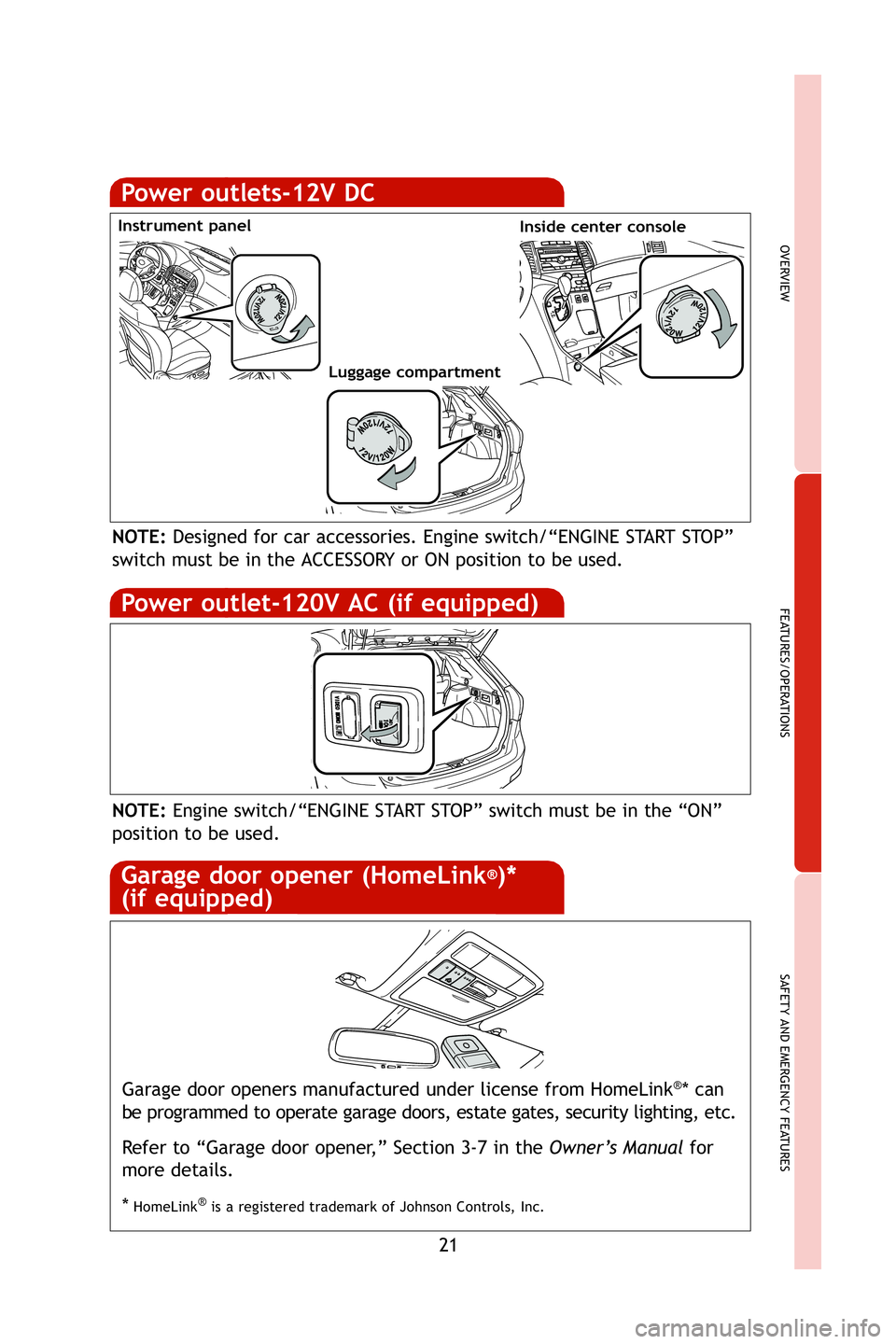

Power outlets-12V DC
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, \
etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manualfor
more details.
*
HomeLink®is a registered trademark of Johnson Controls, Inc.
NOTE: Engine switch/“ENGINE START STOP” switch must be in the “ON”
position to be used.
Instrument panelInside center console
NOTE: Designed for car accessories. Engine switch/“ENGINE START STOP”
switch must be in the ACCESSORY or ON position to be used.
Luggage compartment
Power outlet-120V AC (if equipped)
Garage door opener (HomeLink®)*
(if equipped)
