TOYOTA VENZA 2010 Owners Manual (in English)

361
3-4. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73007U)

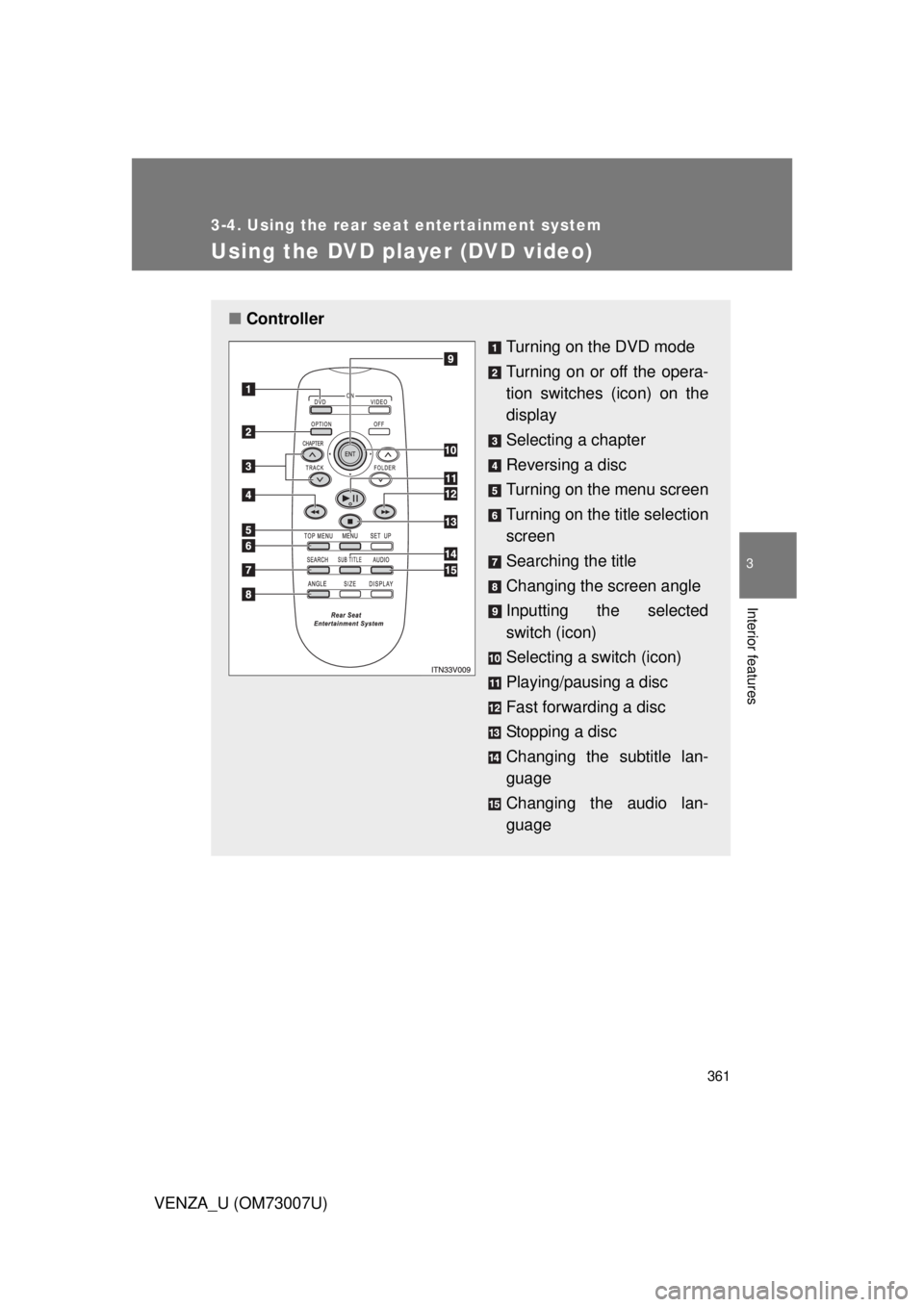

Using the DVD player (DVD video)
■Controller
Turning on the DVD mode
Turning on or off the opera-
tion switches (icon) on the
display
Selecting a chapter
Reversing a disc
Turning on the menu screen
Turning on the title selection
screen
Searching the title
Changing the screen angle
Inputting the selected
switch (icon)
Selecting a switch (icon)
Playing/pausing a disc
Fast forwarding a disc
Stopping a disc
Changing the subtitle lan-
guage
Changing the audio lan-
guage

362 3-4. Using the rear seat entertainment system
VENZA_U (OM73007U)

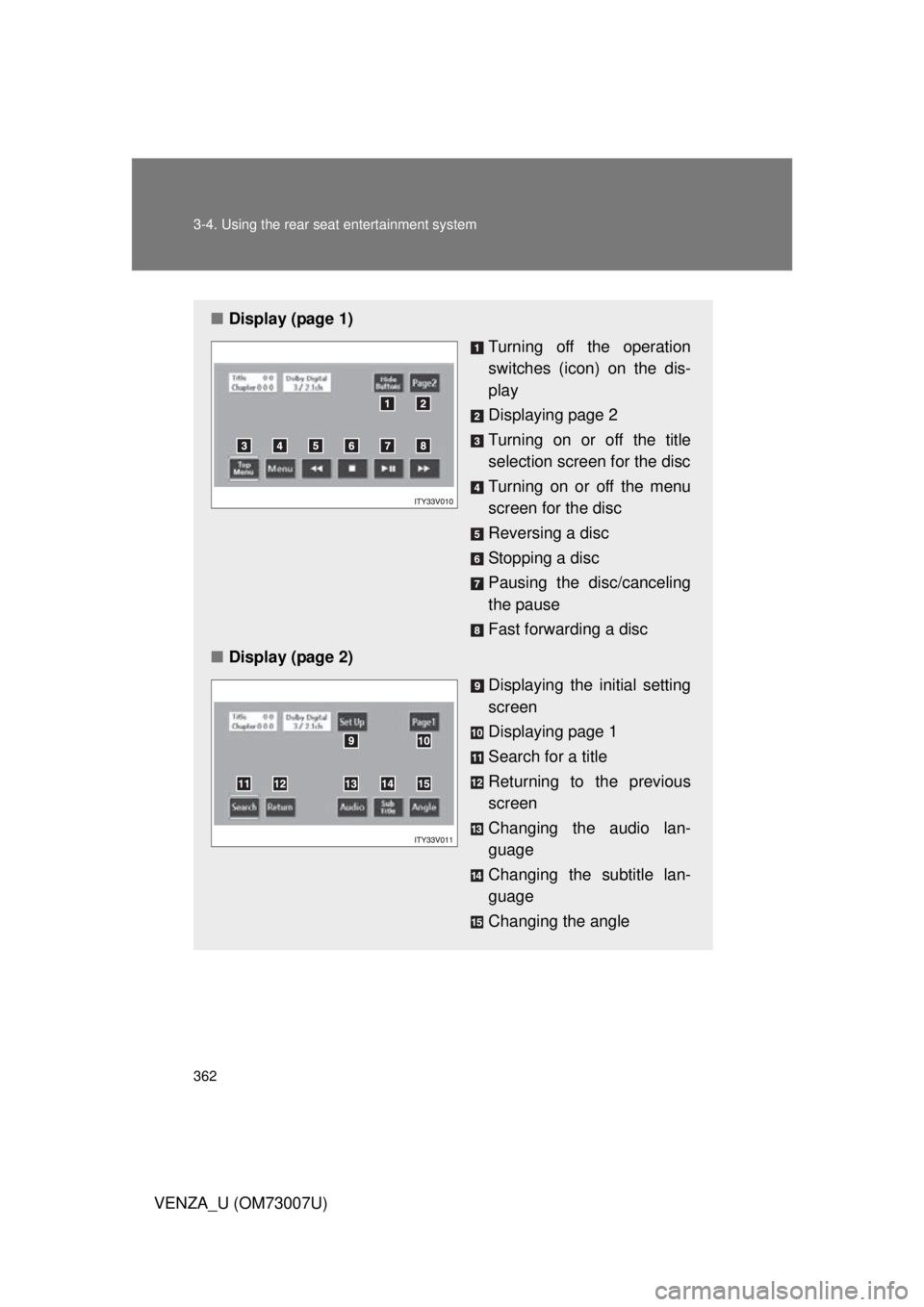

■Display (page 1)
Turning off the operation
switches (icon) on the dis-
play
Displaying page 2
Turning on or off the title
selection screen for the disc
Turning on or off the menu
screen for the disc
Reversing a disc
Stopping a disc
Pausing the disc/canceling
the pause
Fast forwarding a disc
■ Display (page 2)
Displaying the initial setting
screen
Displaying page 1
Search for a title
Returning to the previous
screen
Changing the audio lan-
guage
Changing the subtitle lan-
guage
Changing the angle

363
3-4. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73007U)
Turning on or off the operation switches
Press to turn on the operation switches.
Press once again or select to turn off the operation
switches.
Turning on the title selection screen
Press or select to turn on the title selection screen. For
the operation of the title selectio n screen, see the separate manual
for the DVD disc.
Turning on the menu screen
Press or select to turn on the menu screen. For the
operation of the menu screen, s ee the separate manual for the DVD
disc.
■ Operating from the front audio system
Press: Selecting a chapter
Press and hold: Fast-for-
warding/rewinding a disc
Playing/pausing a disc
Stopping/playing a disc
Selecting the DVD mode
Starting a disc
Displaying a elapsed time

364 3-4. Using the rear seat entertainment system
VENZA_U (OM73007U)
Returning to the previous screenSelect to return to the previous screen. For the operation of the
menu screen, see the separate manual for the DVD disc.
Searching for a title
Press or select to
display the screen to search for a
title.
Select the title number, and press to input it.
Select to return to the previ-
ous screen.
Changing the subtitle language
Press or select to
display the subtitle language
screen.
Each time is pressed or is selected, another lan-
guage stored on the disc is
selected.
Select to return to the previ-
ous screen.

365
3-4. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73007U)
Changing the audio language
Press or select to
display the audio language
screen.
Each time is pressed or is selected, another lan-
guage stored on the disc is
selected.
Select to return to the previ-
ous screen.
Changing the angle
Press or select to
display the screen to change the
angle.
Each time is pressed or is selected, the angle
changes.
Select to return to the previ-
ous screen.
■ DVD player and DVD video discs
This DVD player is compatible NTSC color TV formats. DVD video discs
conforming to other formats such as PAL or SECAM cannot be used.

366 3-4. Using the rear seat entertainment system
VENZA_U (OM73007U)
■Region codes
Some DVD video discs have a region code indicating where you can use
them. If the DVD video disc is not labeled “ALL” or “1”, you cannot use it in
this DVD player. If you attempt to play an inappropriate DVD video disc in
this player, “REGION CODE ERROR” appears on the screen. Even if the
DVD video disc does not have a region code, in some cases you cannot use
it.
■ Symbols shown on DVD video discs
SymbolMeaning
Indicates NTSC format.
Indicates the number of audio tracks.
Indicates the number of language subtitles.
Indicates the number of angles.
Indicates the screen display ratios available.
Wide screen: 16:9
Standard: 4:3
Indicates the disc’s region code.
ALL: in all countries
Number: region code

367
3-4. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73007U)
■
DVD video disc information
● DVD video discs
Digital Versatile Disc that holds video. DVD video discs have adopted
“MPEG2”, one of the world standards of digital compression technolo-
gies. The picture data is compressed by 1/40 on average and stored.
Variable rate encoding technology in which the volume of data assigned
to the picture is changed depending on the picture format has also been
adopted. Audio data is stored using PCM and Dolby digital, which
enables higher quality of sound. Furthermore, multi-angle and multi-lan-
guage features will also help you enjoy the more advanced technology of
DVD video.

368 3-4. Using the rear seat entertainment system
VENZA_U (OM73007U)
●Viewer restrictions
This feature limits what can be viewed in conformity with the level of
restrictions of the country. The level of restrictions varies depending on
the DVD video disc. Some DVD video discs cannot be played at all, or
violent scenes are skipped or replaced with other scenes.
Level 1: DVD video discs for children can be played.
Level 2-7: DVD video discs for children and G-rated movies can be
played.
Level 8: All types of DVD video discs can be played.
● Multi-angle option
You can enjoy the same scene from different angles.
● Multi-language option
You can select the subtitle and audio languages.
● Region codes
The region codes are found on DVD players and DVD discs. If a DVD
video disc does not have the same region code as the DVD player, you
cannot play the disc on that DVD player. ( P. 366)
● Audio
This DVD player can play linear PCM, Dolby Digital and MPEG audio for-
mat DVD. Other decoded types cannot be played.
● Title and chapter
Video and audio programs stored in DVD video discs are divided into
parts by title and chapter.
Title: The largest unit of the video and audio programs stored on DVD
video discs. Usually, one movie, one album, or one audio program is
assigned as a title.
Chapter: A title is comprised of one or more chapters.

369
3-4. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73007U)
■
Sound
● Dolby Digital
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works.
©1992-1997 Dolby Laboratories. All rights reserved.
● DTS
“DTS” and “DTS Digita l Surround” are registered trademarks of Digital
Theater System, Inc.
■ MP3 and WMA files
 P. 305

370
3-4. Using the rear seat entertainment system
VENZA_U (OM73007U)

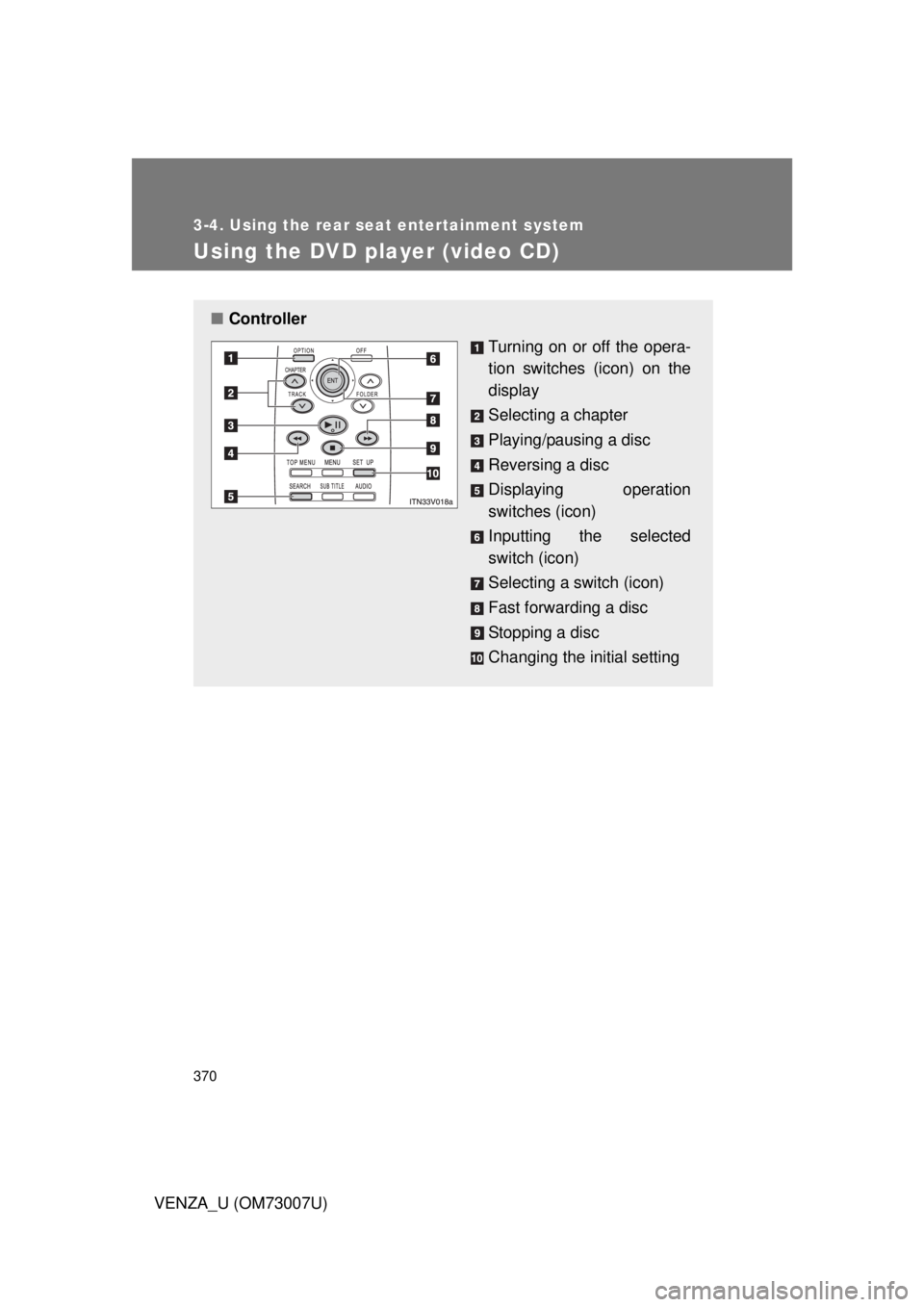

Using the DVD player (video CD)
■Controller
Turning on or off the opera-
tion switches (icon) on the
display
Selecting a chapter
Playing/pausing a disc
Reversing a disc
Displaying operation
switches (icon)
Inputting the selected
switch (icon)
Selecting a switch (icon)
Fast forwarding a disc
Stopping a disc
Changing the initial setting
