TOYOTA VENZA 2010 (in English) Owner's Manual

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn audio system OFF.vv

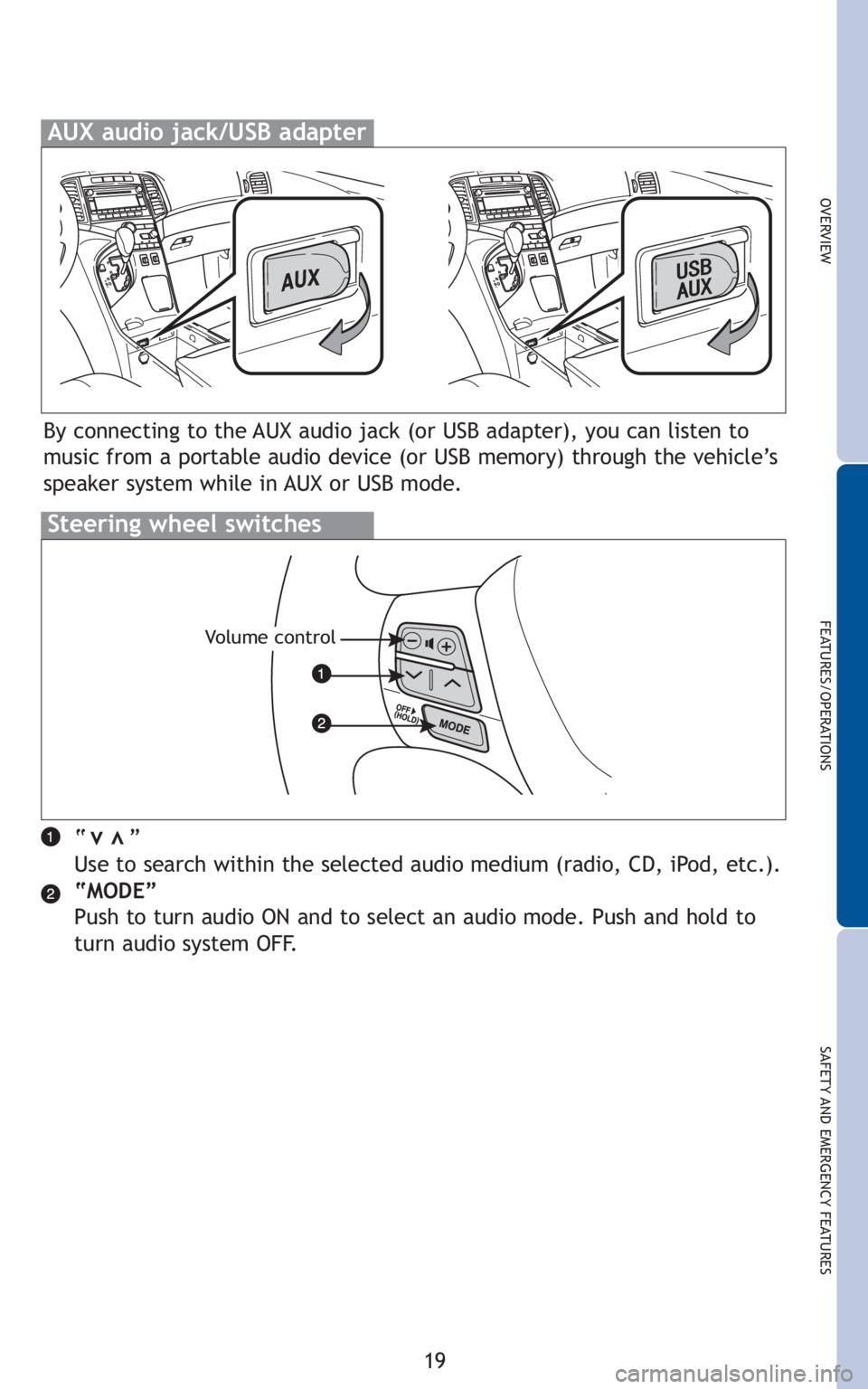

AUX audio jack/USB adapter
Steering wheel switches
Volume control
By connecting to the AUX audio jack (or USB adapter), you can listen to
music from a portable audio device (or USB memory) through the vehicle’s
speaker system while in AUX or USB mode.

20
FEATURES/OPERATIONS

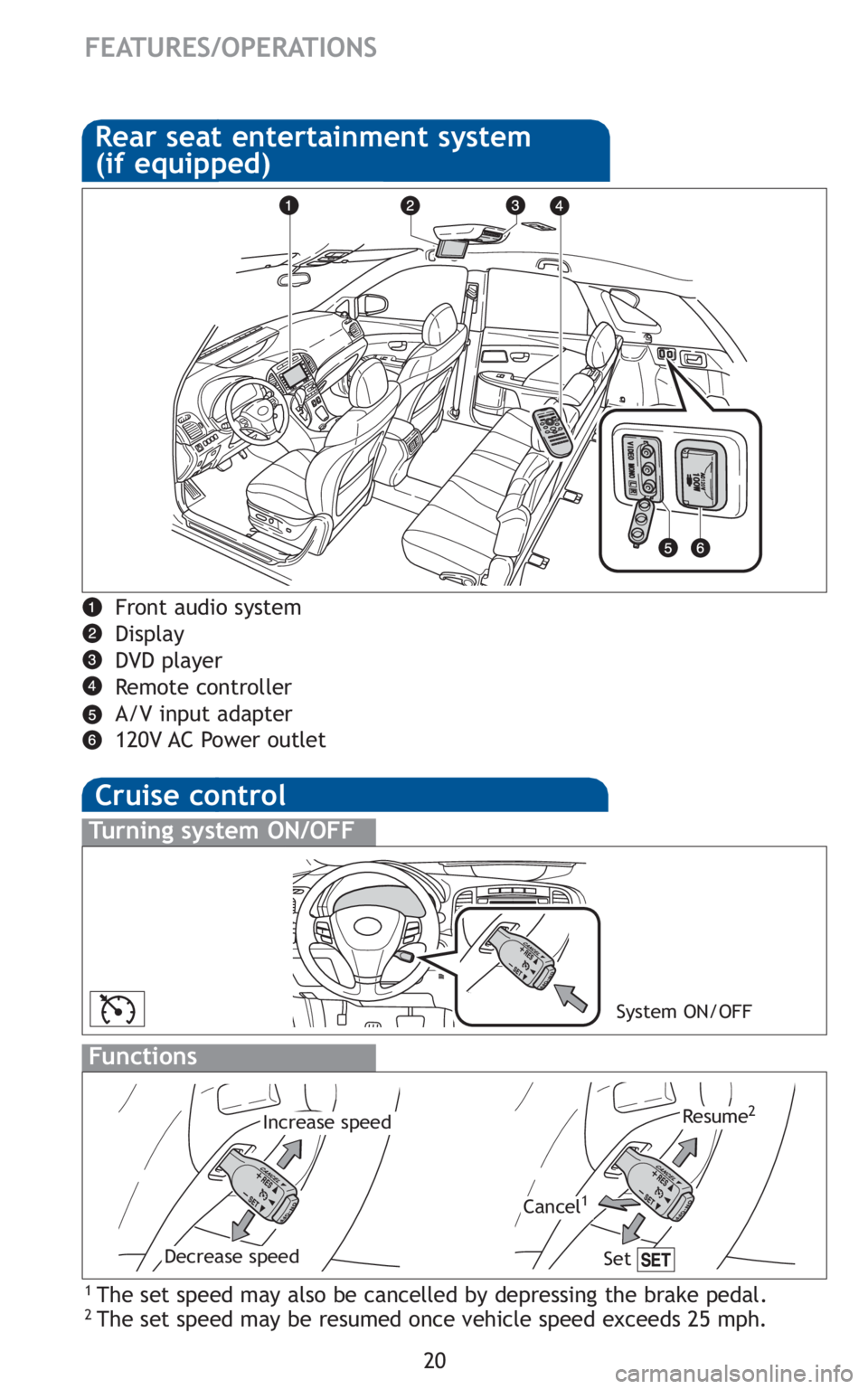

Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Rear seat entertainment system
(if equipped)
Front audio system
Display
DVD player
Remote controller
A/V input adapter
120V AC Power outlet
Set

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

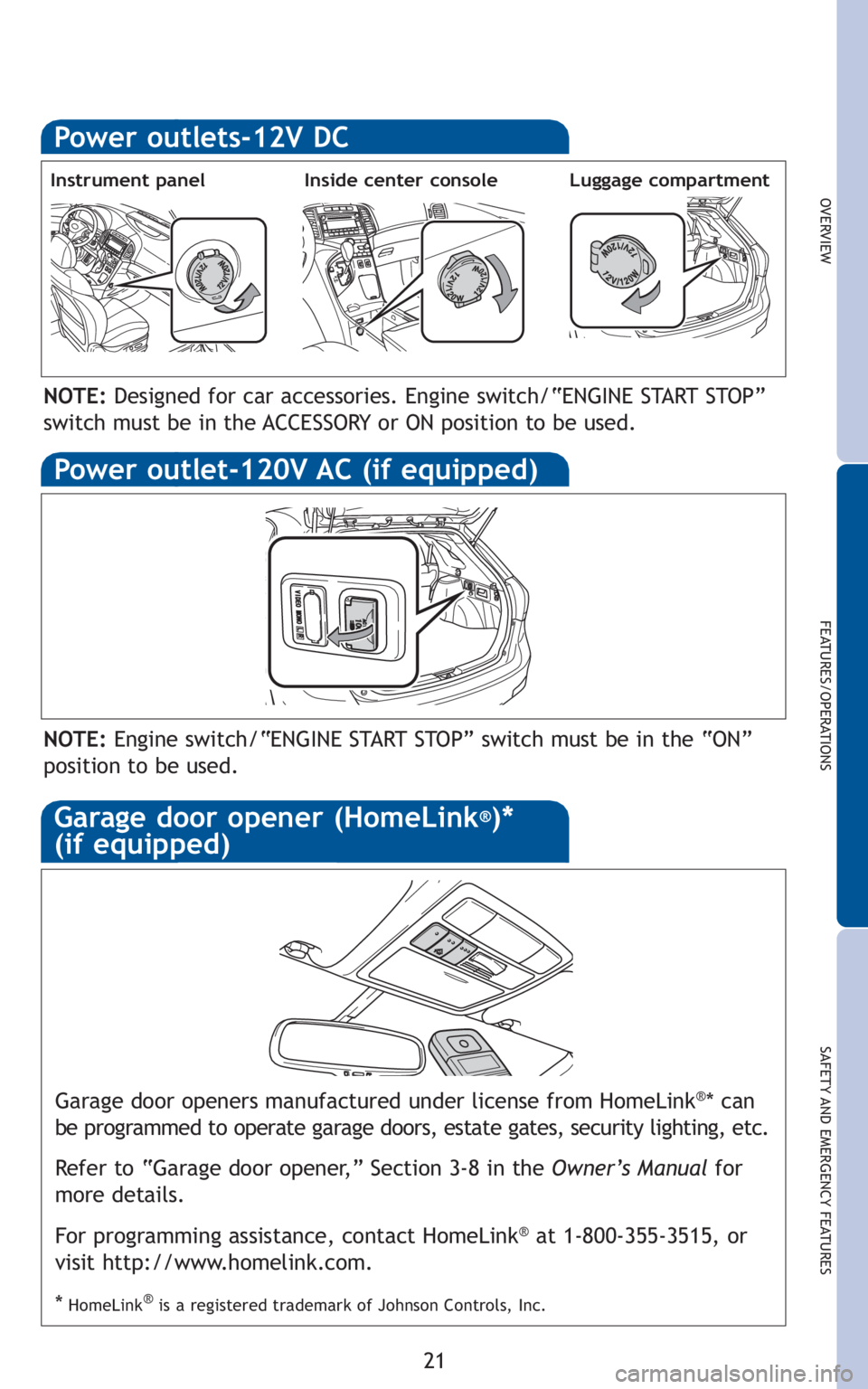

Power outlets-12V DC
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-8 in the Owner’s Manualfor
more details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or
visit http://www.homelink.com.
*
HomeLink®is a registered trademark of Johnson Controls, Inc.
NOTE:Engine switch/“ENGINE START STOP” switch must be in the “ON”
position to be used.
Instrument panelInside center console
NOTE:Designed for car accessories. Engine switch/“ENGINE START STOP”
switch must be in the ACCESSORY or ON position to be used.
Luggage compartment
Power outlet-120V AC (if equipped)
Garage door opener (HomeLink®)*
(if equipped)

22
FEATURES/OPERATIONS

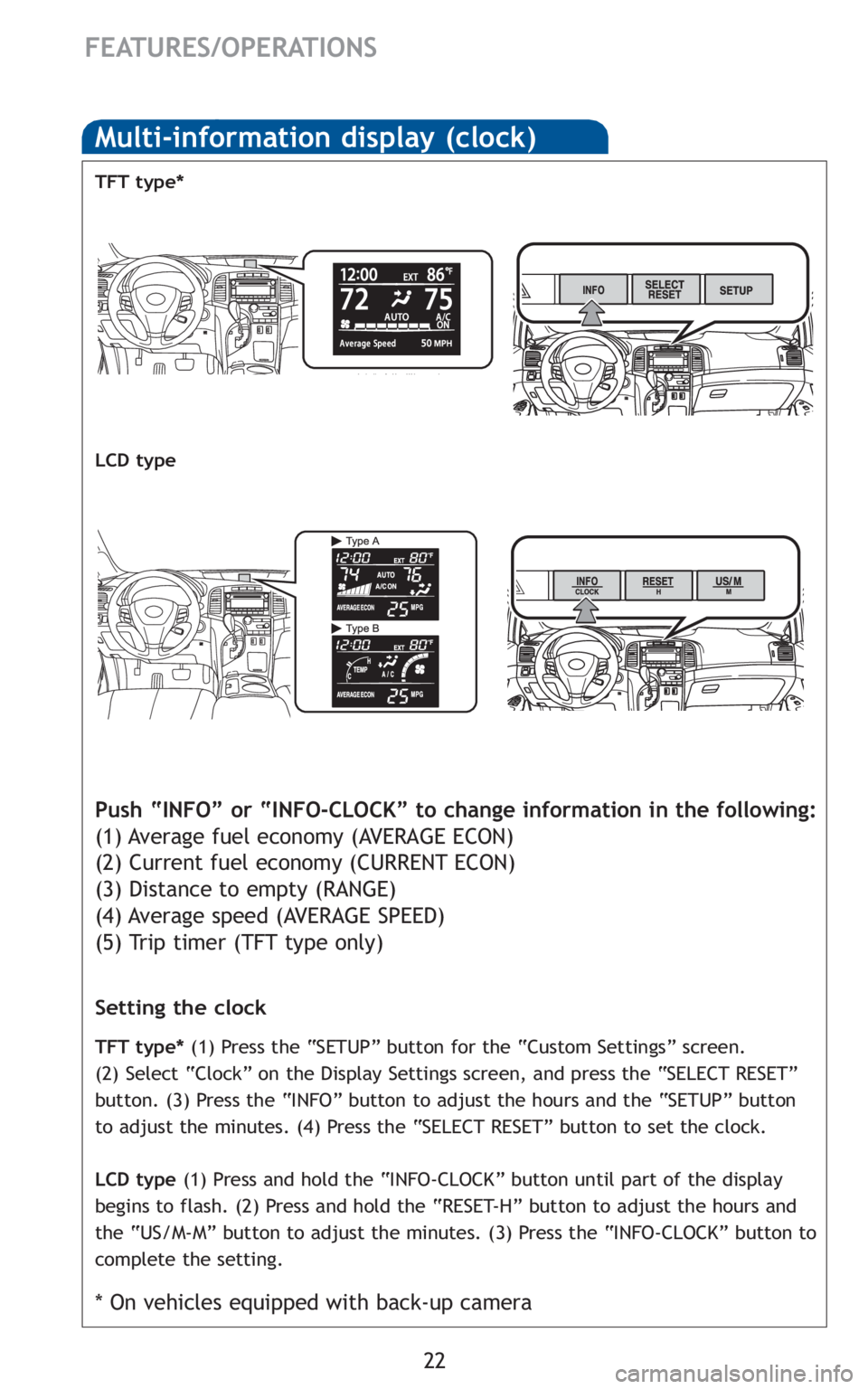

Multi-information display (clock)
Push “INFO” or “INFO-CLOCK” to change information in the following:
(1) Average fuel economy (AVERAGE ECON)
(2) Current fuel economy (CURRENT ECON)
(3) Distance to empty (RANGE)
(4) Average speed (AVERAGE SPEED)
(5) Trip timer (TFT type only)
TFT type*
LCD type
Setting the clock
TFT type*(1) Press the “SETUP” button for the “Custom Settings” screen.
(2) Select “Clock” on the Display Settings screen, and press the “SELECT RESET”
button. (3) Press the “INFO” button to adjust the hours and the “SETUP” button
to adjust the minutes. (4) Press the “SELECT RESET” button to set the clock.
LCD type(1) Press and hold the “INFO-CLOCK” button until part of the display
begins to flash. (2) Press and hold the “RESET-H” button to adjust the hours and
the “US/M-M” button to adjust the minutes. (3) Press the “INFO-CLOCK” button to
complete the setting.
* On vehicles equipped with back-up camera

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

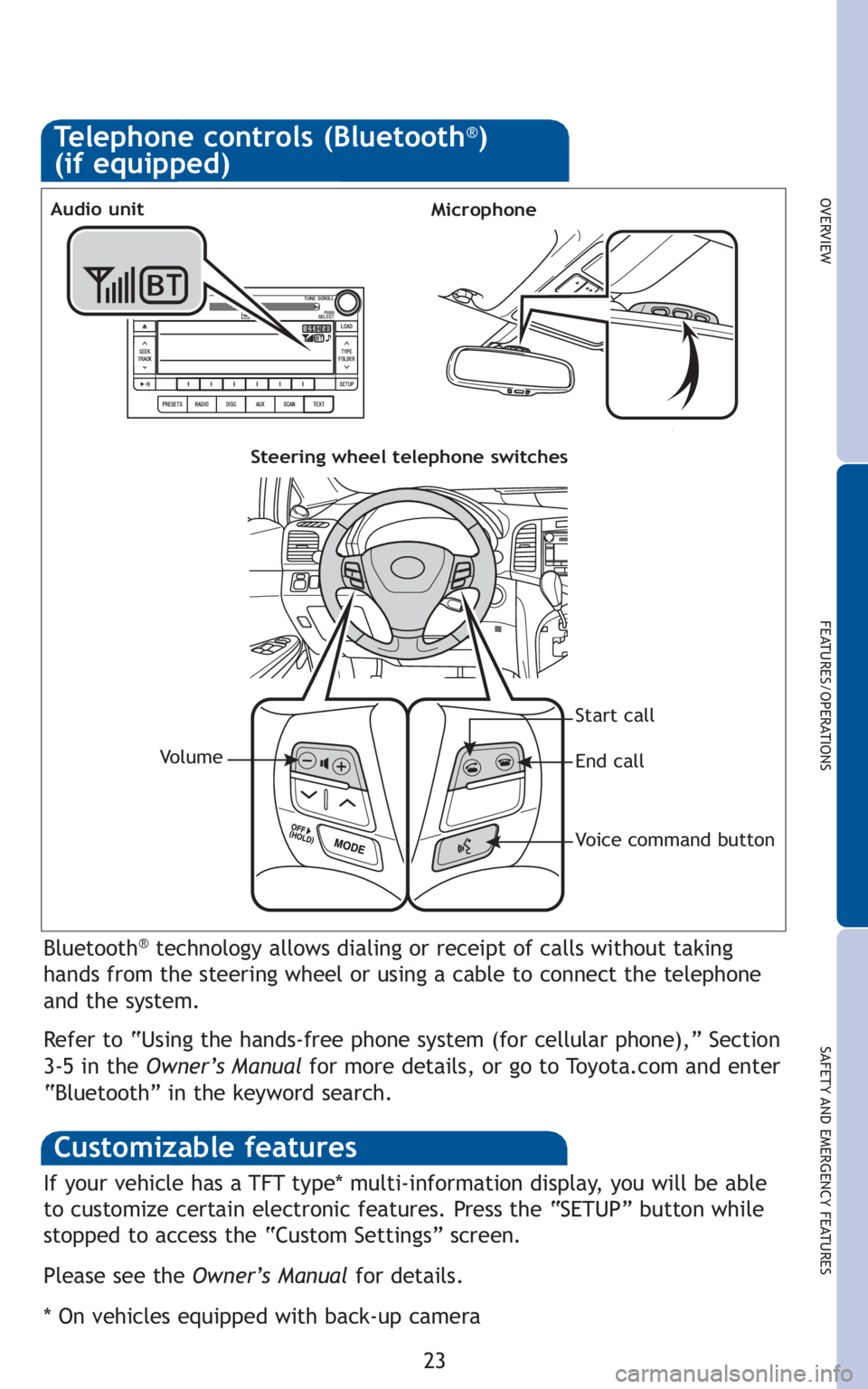

Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section
3-5 in the Owner’s Manualfor more details, or go to Toyota.com and enter
“Bluetooth” in the keyword search.
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneAudio unit
Steering wheel telephone switches
Start call
End call
Voice command button Vo l u m e
Customizable features
If your vehicle has a TFT type* multi-information display, you will be able
to customize certain electronic features. Press the “SETUP” button while
stopped to access the “Custom Settings” screen.
Please see the Owner’s Manualfor details.
* On vehicles equipped with back-up camera

24

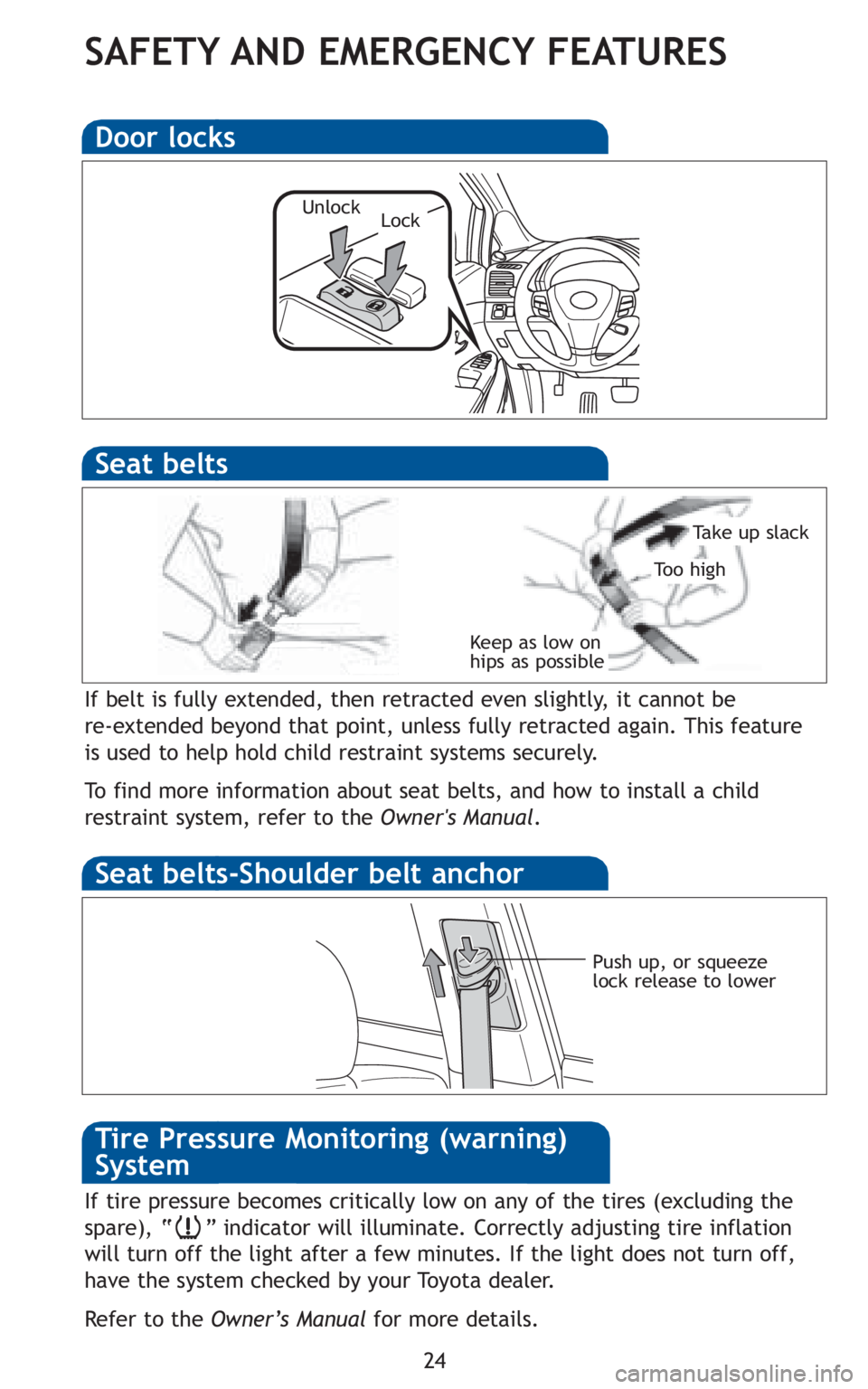

SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
If tire pressure becomes critically low on any of the tires (excluding the
spare), “ ” indicator will illuminate. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn off,
have the system checked by your Toyota dealer.
Refer to the Owner’s Manualfor more details.
Tire Pressure Monitoring (warning)
System
Door locks
LockUnlock
