QUICK REFERENCE
GUIDE
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
VENZA
2010
00505-QRG10-VEN Printed in U.S.A. 10/09
08-TCS-03082
10%
Cert no. SGS-COC-005612
413627M1.indd 110/20/09 12:37:41 PM
Page 2 of 26
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire & tools
Tool location
Removing the spare tire
Refer to the Owner’s Manualfor tire changing and jack positioning
procedures.
Wheel nut wrench
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Jack
Jack handle

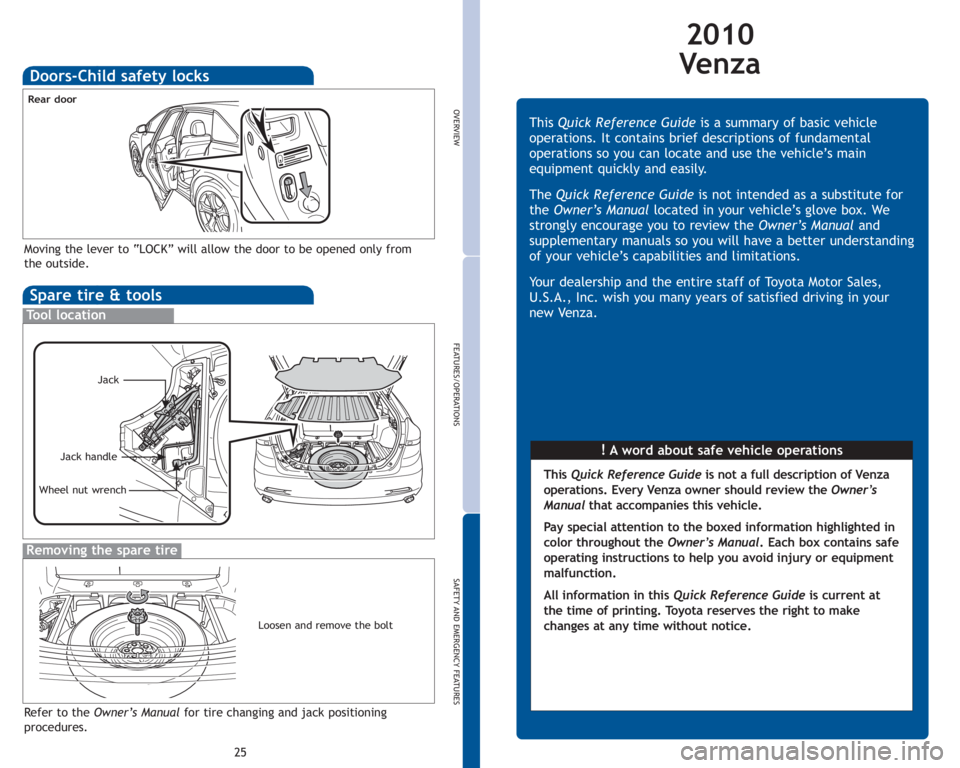

Doors-Child safety locks
Loosen and remove the bolt
2010
Ve n z a
!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for
theOwner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review theOwner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Venza.
This Quick Reference Guideis not a full description of Venza
operations. Every Venza owner should review the Owner’s
Manualthat accompanies this vehicle.
Pay special attention to the boxed
information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
Page 3 of 26
1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX

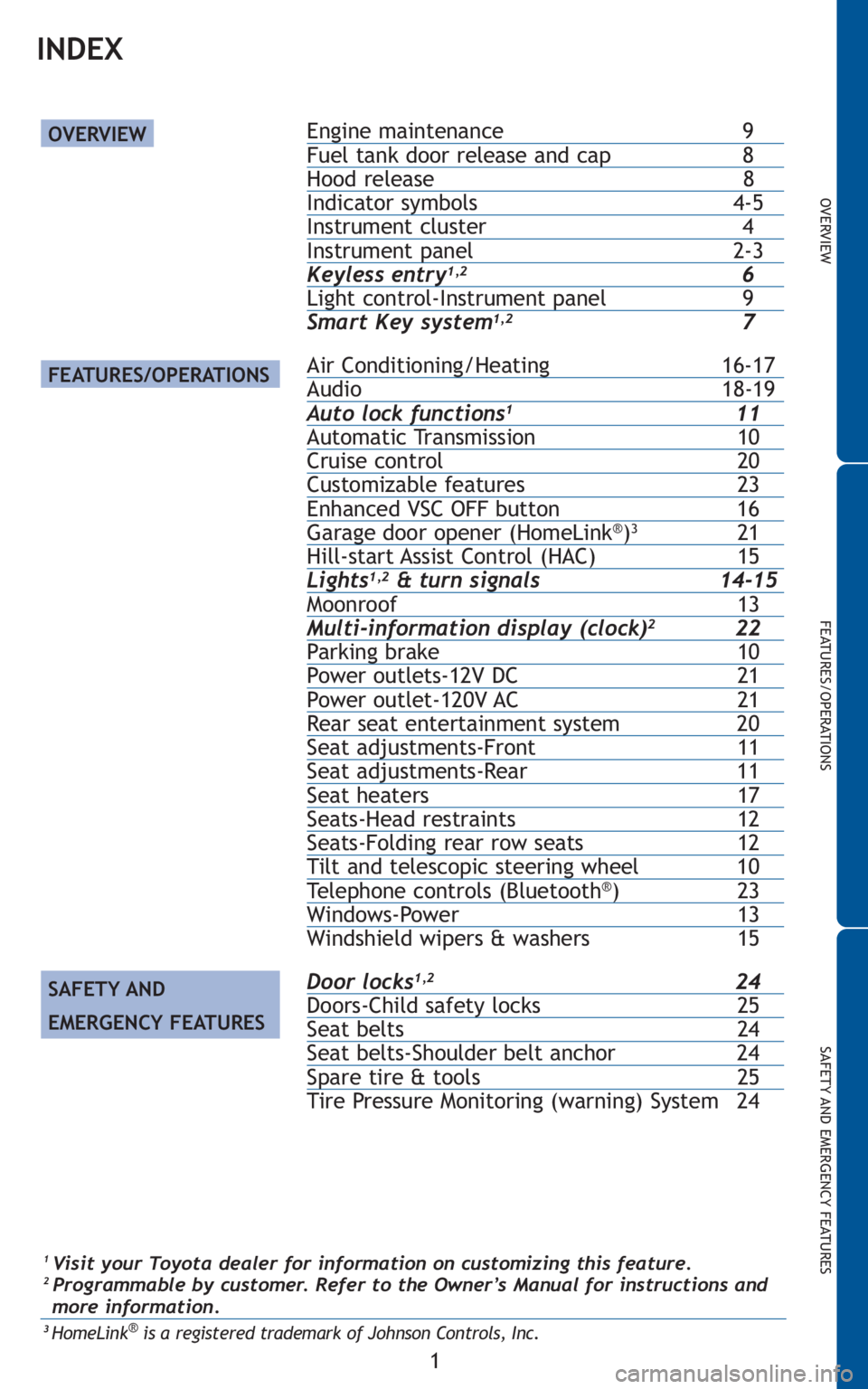

Engine maintenance 9Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry1,26Light control-Instrument panel 9
Smart Key system1,27
Air Conditioning/Heating 16-17Audio 18-19Auto lock functions111Automatic Transmission 10Cruise control 20Customizable features 23Enhanced VSC OFF button 16Garage door opener (HomeLink®)321Hill-start Assist Control (HAC) 15Lights1,2& turn signals 14-15Moonroof 13Multi-information display (clock)222Parking brake 10Power outlets-12V DC 21Power outlet-120V AC 21Rear seat entertainment system 20Seat adjustments-Front 11Seat adjustments-Rear 11Seat heaters 17Seats-Head restraints 12Seats-Folding rear row seats 12Tilt and telescopic steering wheel 10Telephone controls (Bluetooth®)23Windows-Power 13
Windshield wipers & washers 15
Door locks1,224Doors-Child safety locks 25Seat belts 24Seat belts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Page 4 of 26
2
OVERVIEW
Instrument panel

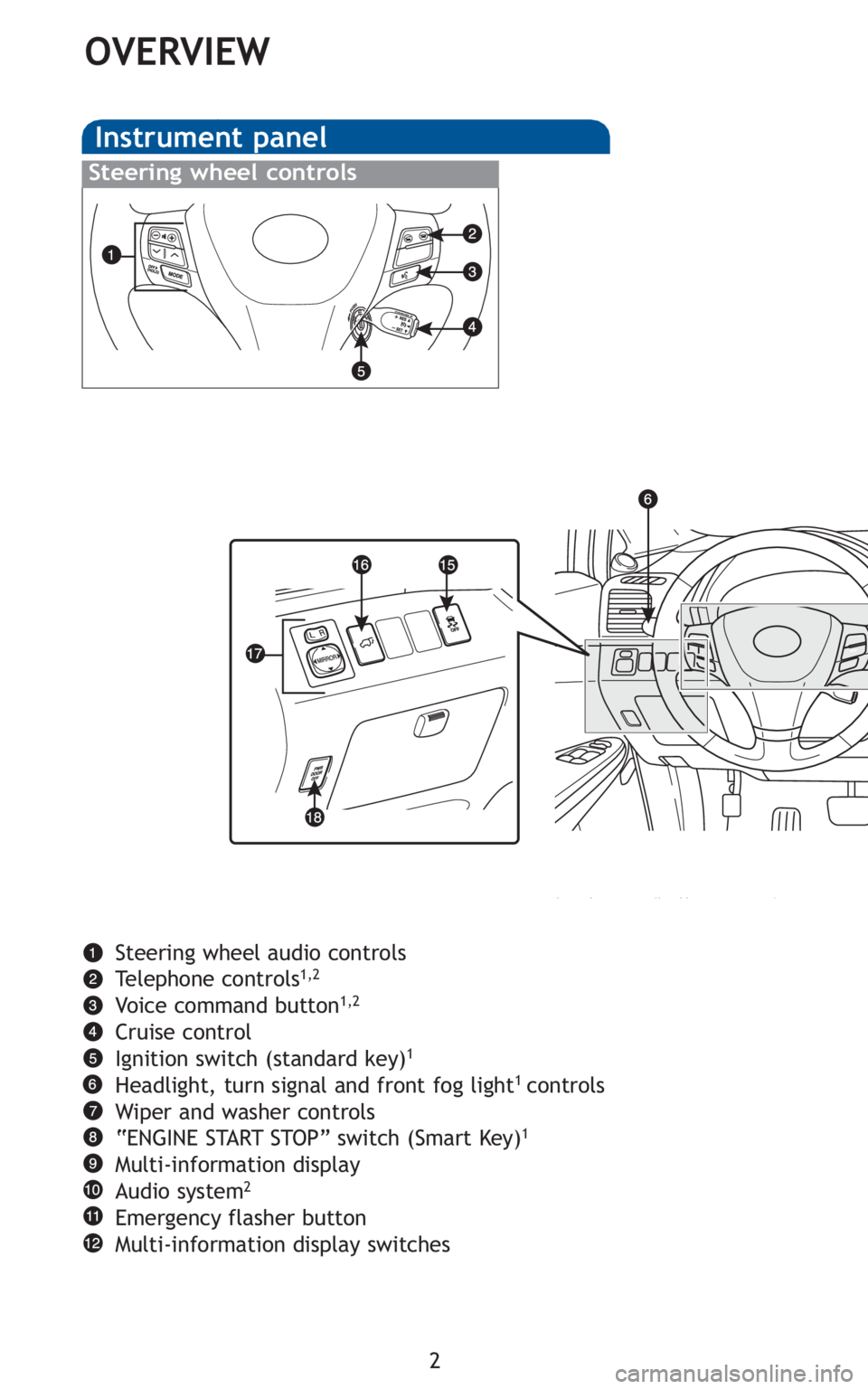

Steering wheel audio controls
Telephone controls1,2
Voice command button1,2
Cruise control
Ignition switch (standard key)1
Headlight, turn signal and front fog light1 controls
Wiper and washer controls
“ENGINE START STOP” switch (Smart Key)
1
Multi-information display
Audio system2
Emergency flasher button
Multi-information display switches
Steering wheel controls
Page 5 of 26
3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

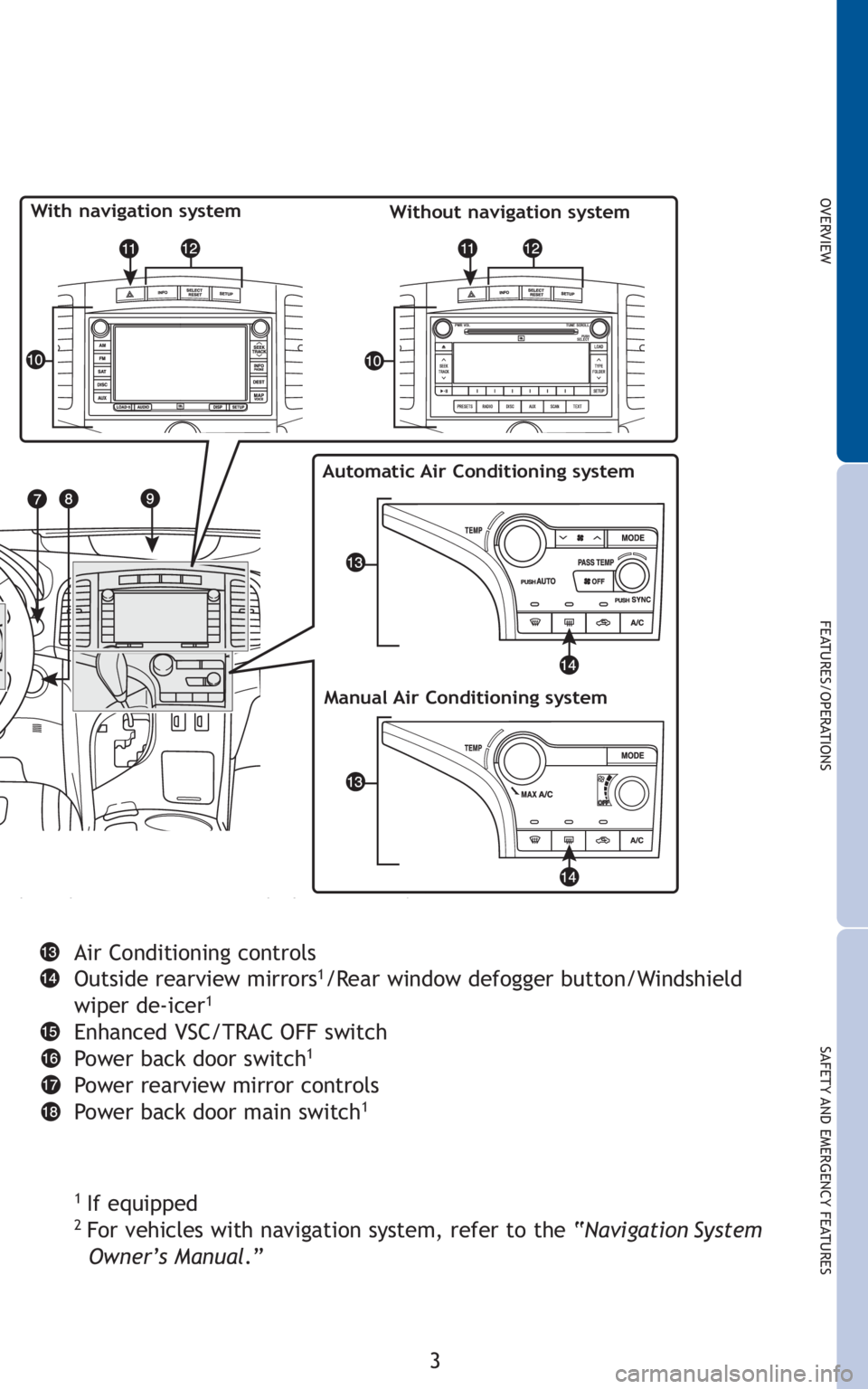

Air Conditioning controls
Outside rearview mirrors1/Rear window defogger button/Windshield
wiper de-icer1
Enhanced VSC/TRAC OFF switch
Power back door switch1
Power rearview mirror controls
Power back door main switch1
1
If equipped2For vehicles with navigation system, refer to the “Navigation System
Owner’s Manual.”
Without navigation system With navigation system
Automatic Air Conditioning system
Manual Air Conditioning system
Page 6 of 26
4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button/Instrument panel
light control
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Active torque control 4WD system warning1
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
Page 7 of 26
5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

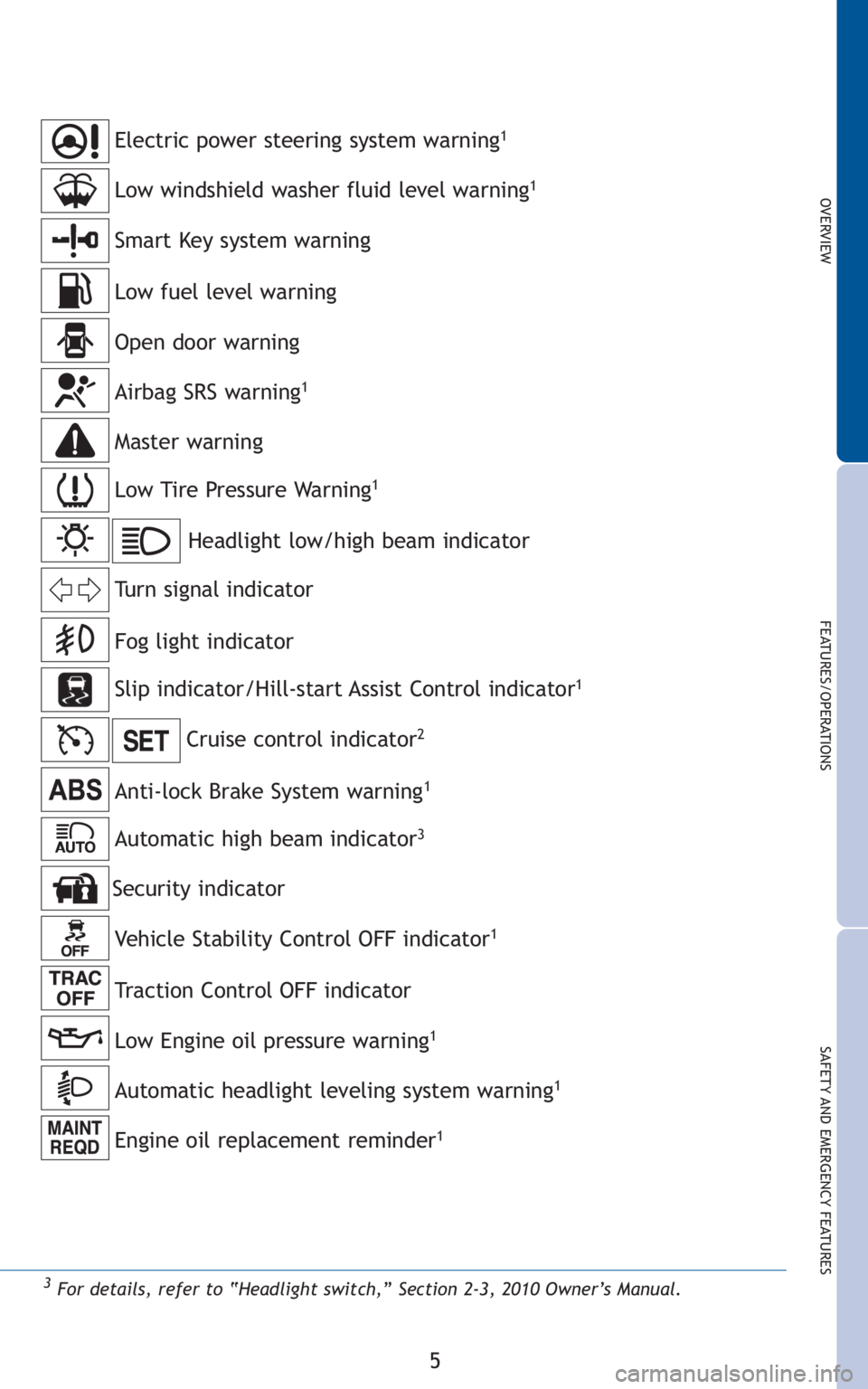

Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2
Low Tire Pressure Warning1
Smart Key system warning
Open door warning
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning1
Low fuel level warning
Electric power steering system warning1
Fog light indicator
3For details, refer to “Headlight switch,” Section 2-3, 2010 Owner’s Manual.
Vehicle Stability Control OFF indicator1
Low Engine oil pressure warning1
Automatic headlight leveling system warning1
Engine oil replacement reminder1
Security indicator
Traction Control OFF indicator
Automatic high beam indicator3
Page 8 of 26
6
OVERVIEW

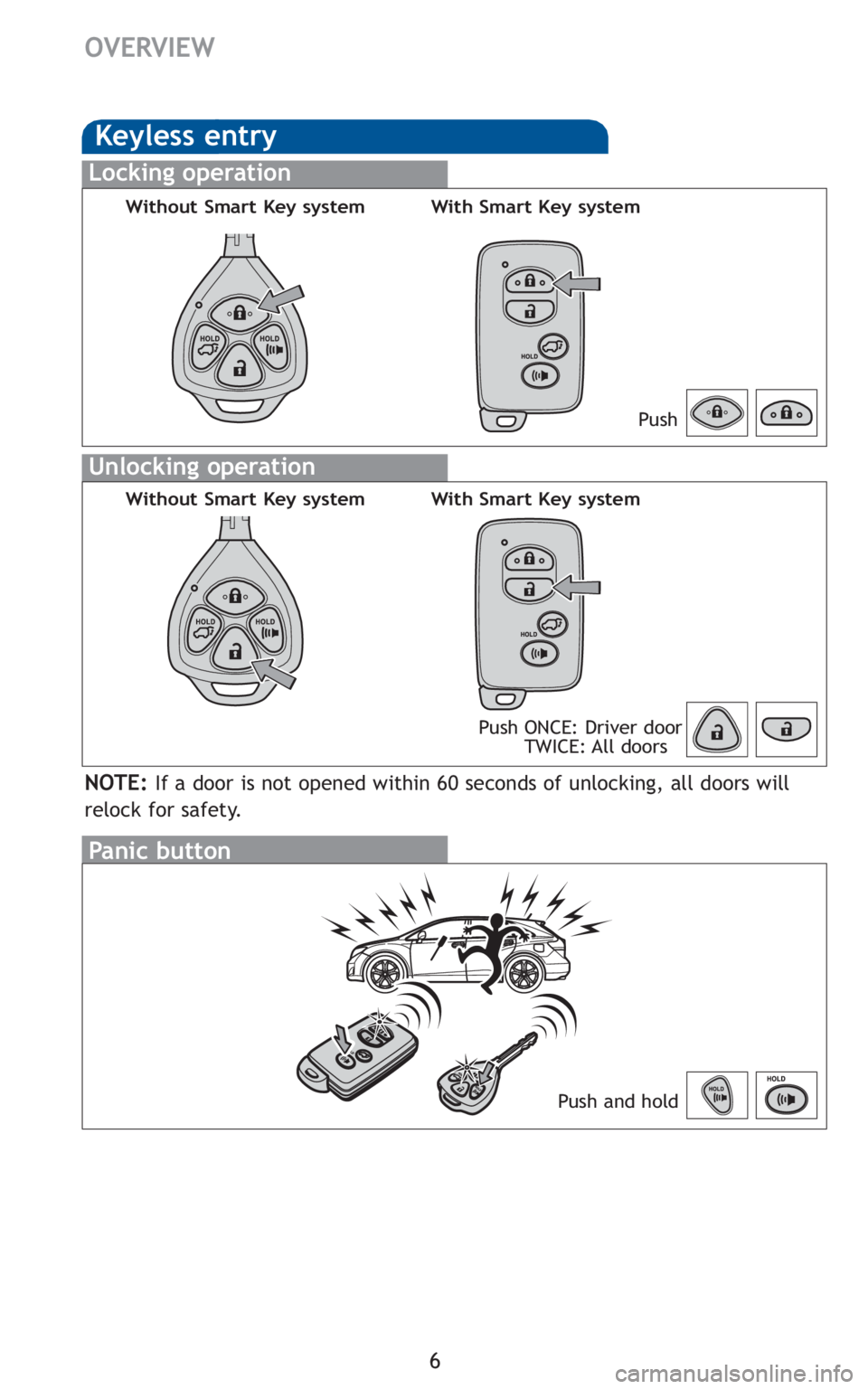

Panic button
Push and hold
Keyless entry
Locking operation
Unlocking operation
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Push ONCE: Driver door
TWICE: All doorsPush
Without Smart Key systemWith Smart Key system
Without Smart Key systemWith Smart Key system
Page 9 of 26
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

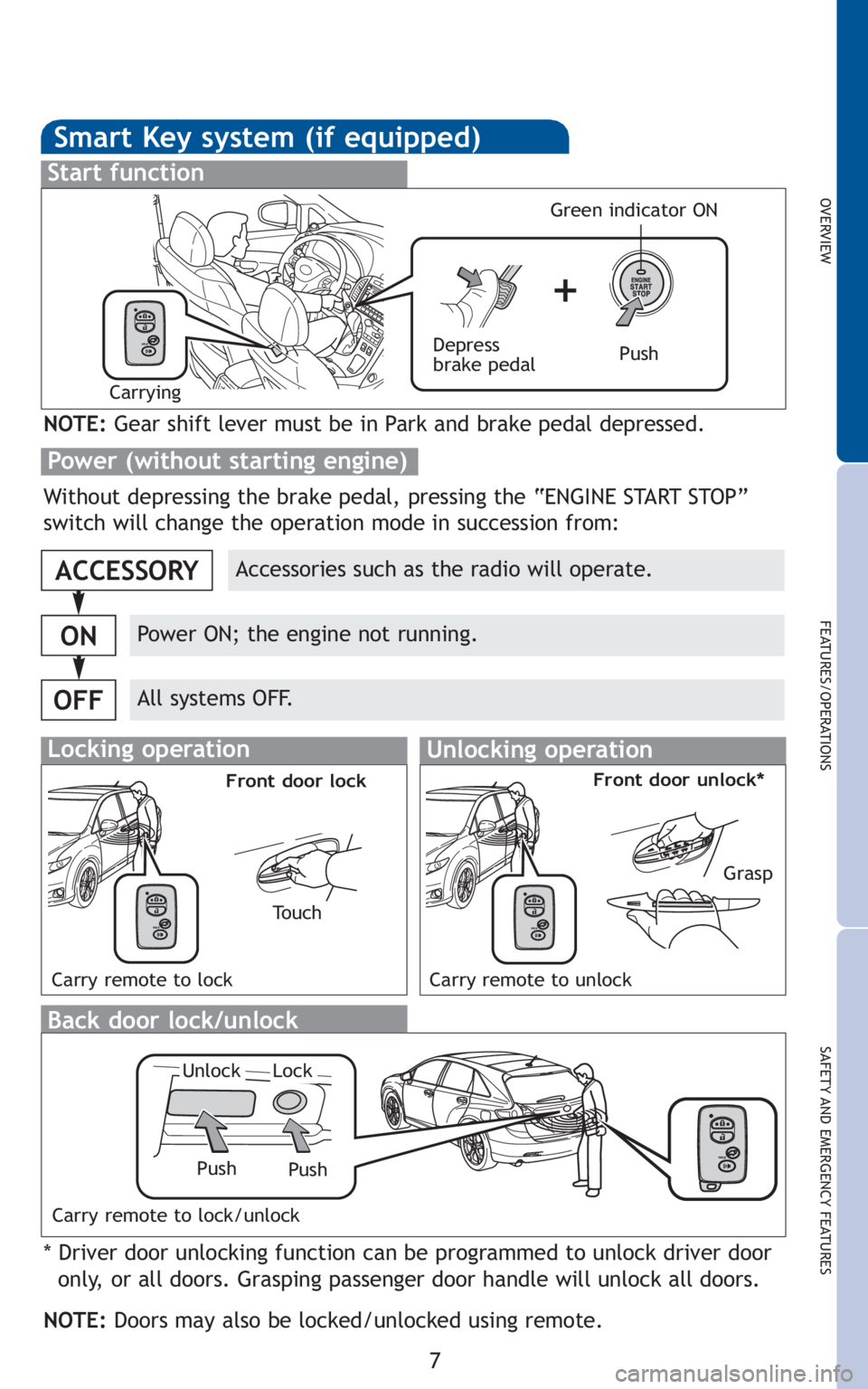

Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Unlock
Push
Lock
Locking operationUnlocking operation
Carry remote to lockCarry remote to unlock
To u c h
Front door lockFront door unlock*
Grasp
Carry remote to lock/unlock
Back door lock/unlock
Page 10 of 26
8

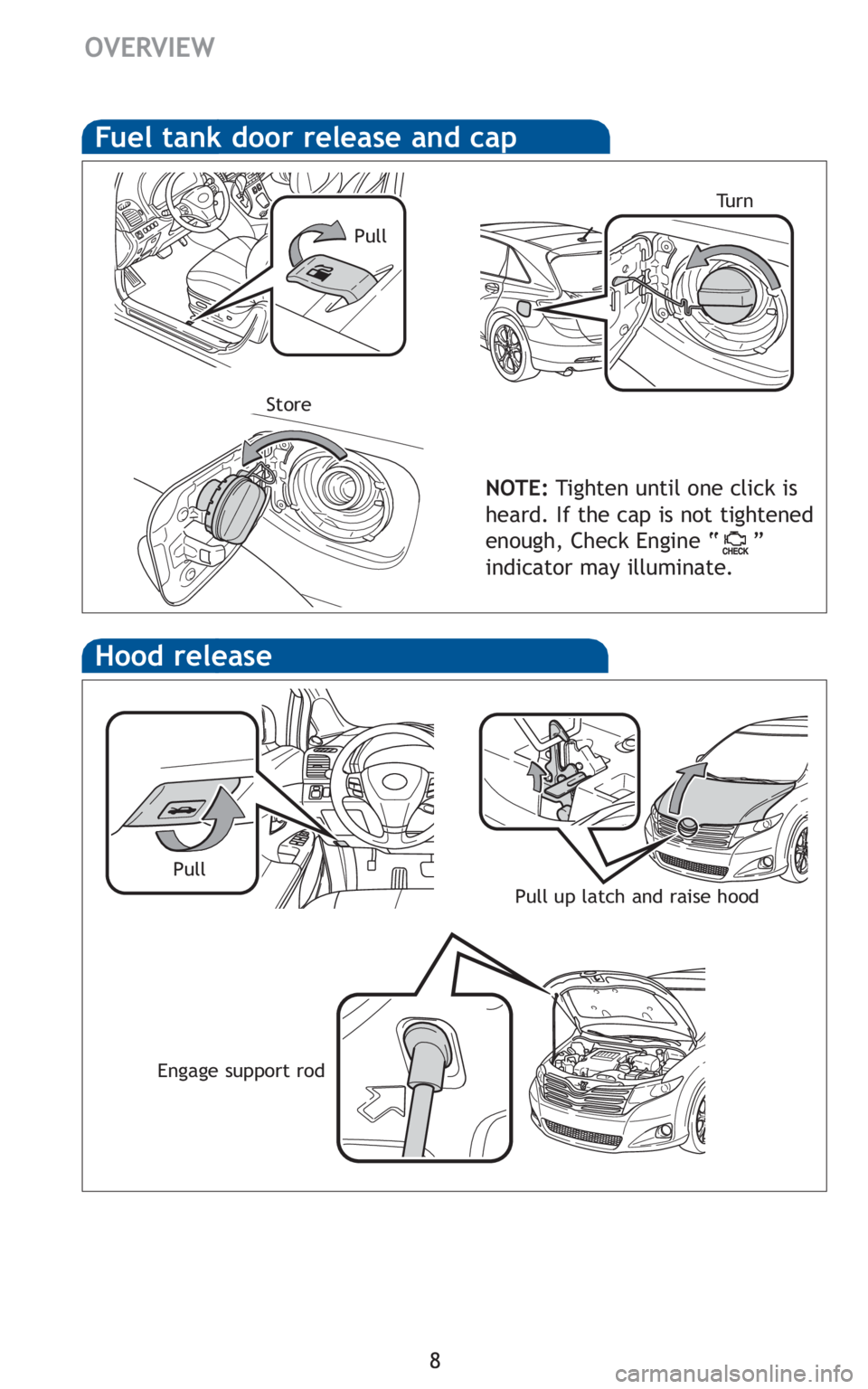

Hood release
