TOYOTA VENZA 2011 Owners Manual (in English)

451
3-8. Other interior features
3
Interior features
VENZA_U (OM73008U)
CAUTION
■
Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

452
3-8. Other interior features
VENZA_U (OM73008U)
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Front
Lift the lever up and slide the
armrest.
Rear Pull the armrest down for use.

453
3-8. Other interior features
3
Interior features
VENZA_U (OM73008U)

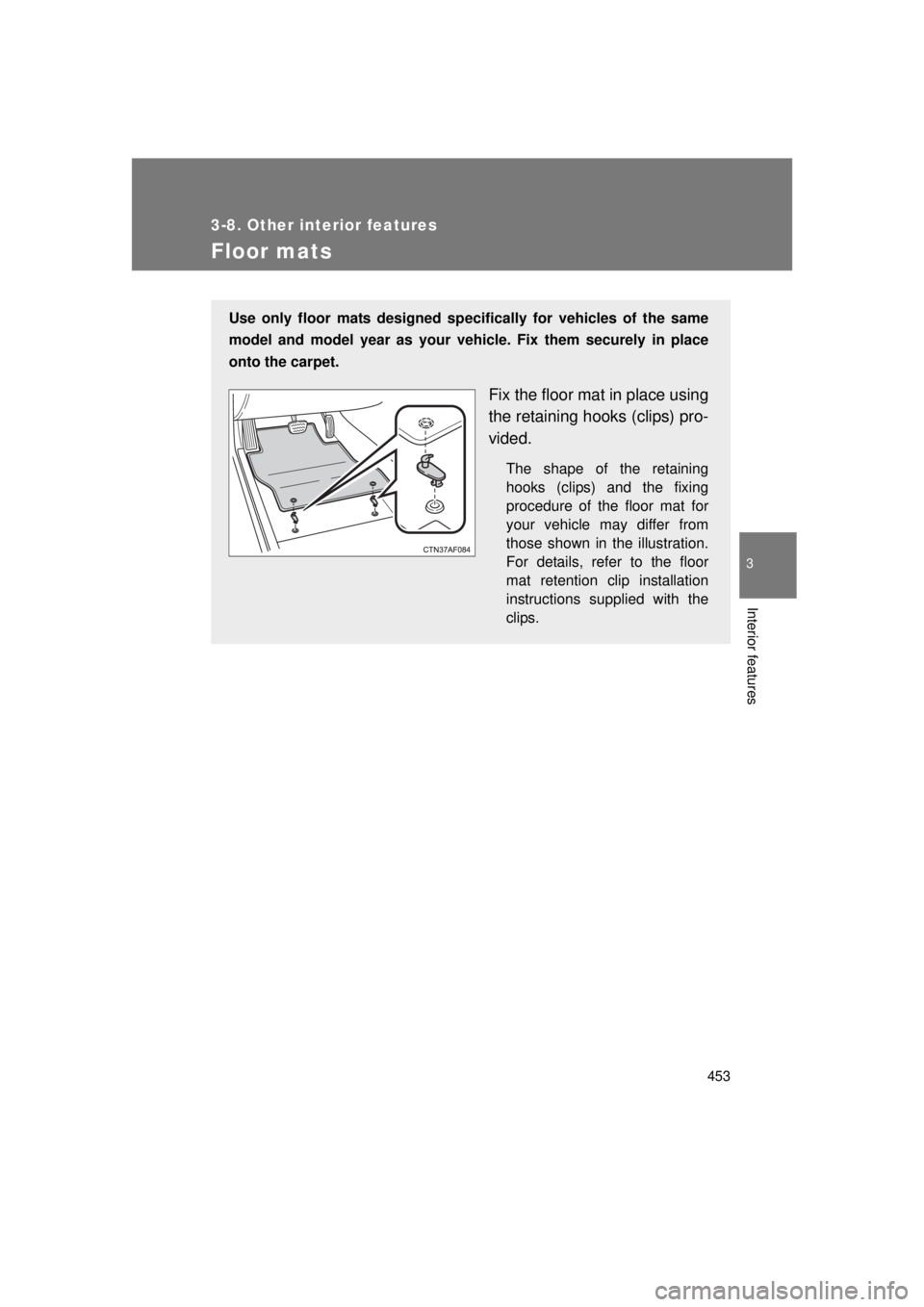

Floor mats
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining
hooks (clips) and the fixing
procedure of the floor mat for
your vehicle may differ from
those shown in the illustration.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
clips.

454 3-8. Other interior features
VENZA_U (OM73008U)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the right place with all the pro-
vided retaining hooks (clips). Be espe-
cially careful to perform this check after
cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

455
3-8. Other interior features
3
Interior features
VENZA_U (OM73008U)

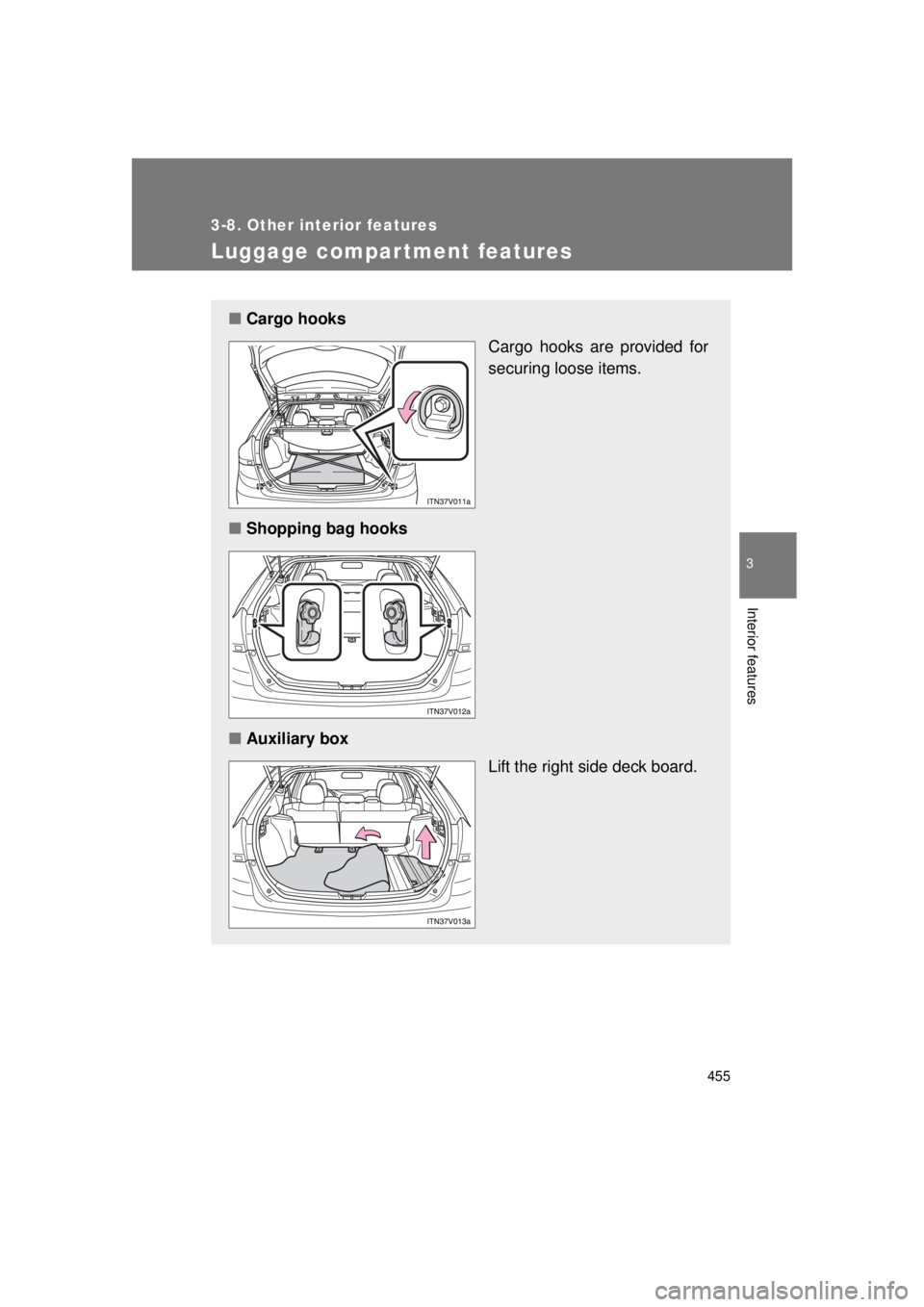

Luggage compar tment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Shopping bag hooks
■ Auxiliary box
Lift the right side deck board.

456 3-8. Other interior features
VENZA_U (OM73008U)
Removing luggage cover (vehicles with luggage cover)
Retract the cover and release
both ends, then lift it out.
After removing the luggage cover,
place it somewhere other than the
passenger compartment.
■Luggage cover (if equipped)
Pull out the luggage cover and
hook it on the anchors.
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
■ While driving
Do not place anything on the luggage cover. Such items may be thrown
about and possibly injure people in the vehicle during sudden braking, sud-
den swerving or an accident.

457
3-8. Other interior features
3
Interior features
VENZA_U (OM73008U)
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufac-
tured under license from HomeLink.
Programming HomeLink (for U.S.A. owners)
To ensure correct progr amming into the HomeLink, install a new bat-
tery in the hand-held transmitter prior to programming. Failure to
install a new battery into the hand-hel d transmitter will affect both the
range and accuracy of the HomeLink
 in your vehicle.
The battery side of the hand-held transmitter must be pointed away
from the HomeLink
 during the programming process.
The HomeLink compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
: If equipped
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, hom e lighting systems, secu-
rity systems, and other devices.

458 3-8. Other interior features
VENZA_U (OM73008U)■
Programming HomeLink

Point the remote control trans-
mitter for the device 1 to 3 in. (25
to 75 mm) from the HomeLink

buttons.
Keep the HomeLink indicator
light in view while programming.
Press and hold one of the
HomeLink buttons and the
transmitter button. When the
HomeLink
 indicator light
changes from a slow to a rapid
flash within 20 seconds, you can
release both buttons.
STEP1
STEP2

459
3-8. Other interior features
3
Interior features
VENZA_U (OM73008U)
Test the HomeLink
 operation
by pressing the newly pro-
grammed button.
If a HomeLink button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
remote control transmitter is of
the rolling code type. Press and
hold the programmed HomeLink

button. The remote control trans-
mitter is of the rolling code type if
the HomeLink
 indicator light
flashes rapidly for 2 seconds and
then remains lit. If your transmit-
ter is of the rolling code type, pro-
ceed to the heading
“Programming a rolling code sys-
tem”.
Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
STEP3
STEP4

460 3-8. Other interior features
VENZA_U (OM73008U)■
Programming a rolling code system
If your device is rolling code e quipped, follow the steps under the
heading “Programming HomeLink
” before proceeding with the
steps listed below.
Locate the learn button on t he ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor.
Refer to the operation manual supplied with the garage door opener
motor for the location of the learn button.
Press the learn button.
Following this step, you have 30 seconds in which to initiate step 3
below.
Press and hold the vehicle’s programmed HomeLink button
for 2 seconds and release it. Repeat this step once again. The
garage door may open.
If the garage door opens, the programming process is complete. If
the door does not open, press and release the button a third time.
This third press and release will complete the programming process
by opening the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink
 signal and operate the garage door.
Repeat the steps above to prog ram another rolling code sys-
tem for any of the remaining HomeLink buttons.
STEP1
STEP2
STEP3
STEP4
