TOYOTA VENZA 2011 Owners Manual (in English)

531
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73008U)
*1: Vehicles with 2GR-FE engine
*2: Vehicles with 1AR-FE engine
*3: Replace the fuse with one of the same ampere rating as the original.
37ECU-B10 A
Gauges and meters, clock,
audio system, main body ECU,
wireless remote control, smart
key system, power back door,
front passenger occupant clas-
sification system
38RSE10 ARear seat entertainment system
39RADIO NO.115 AAudio system, navigation system
40SPARE7.5 ASpare fuse
41SPARE15 ASpare fuse
42SPARE25 ASpare fuse
FuseAmpereCircuit

532 4-3. Do-it-yourself maintenance
VENZA_U (OM73008U)■
Driver’s side instrument panel
FuseAmpereCircuit

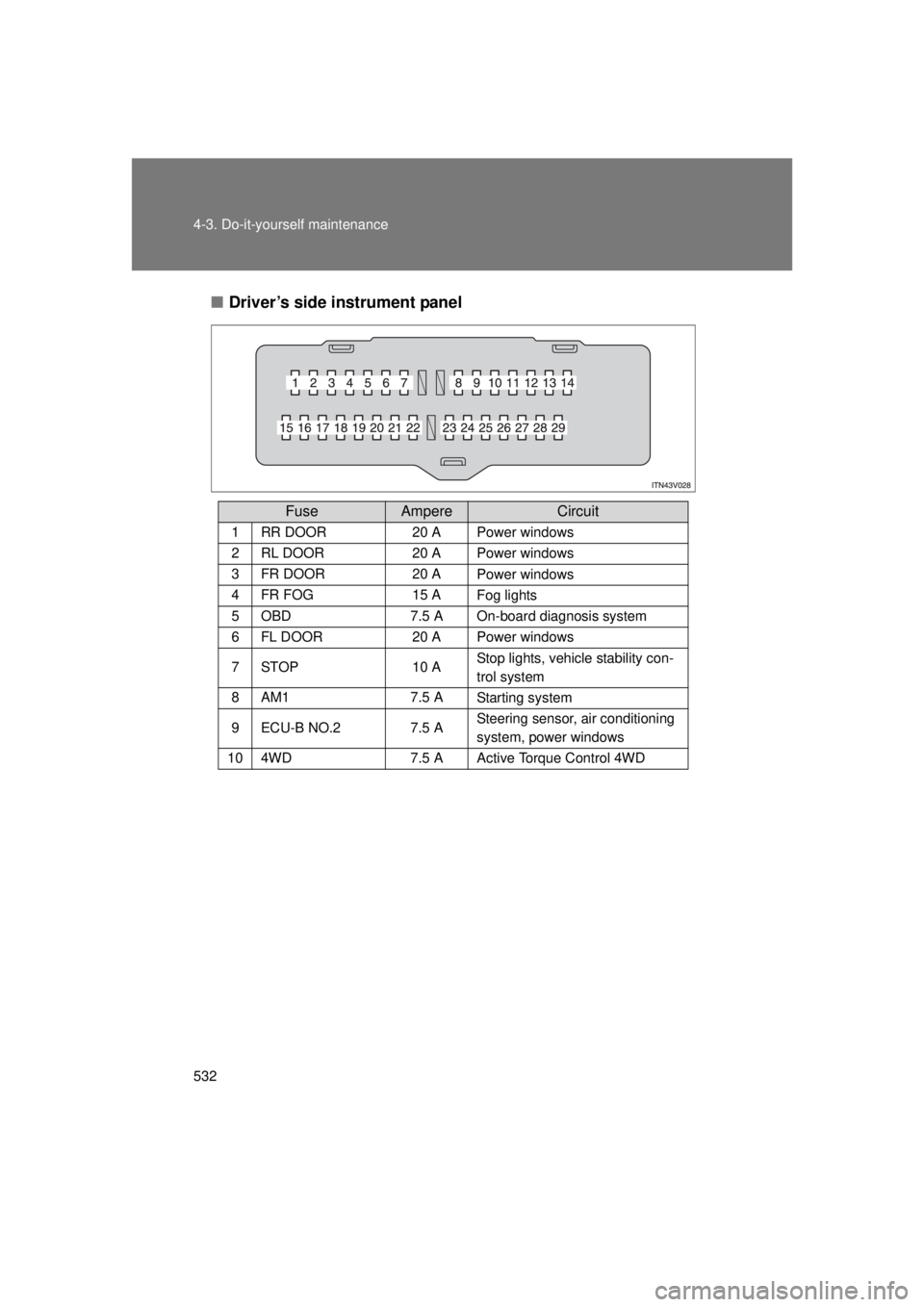

1RR DOOR20 APower windows
2RL DOOR20 APower windows
3FR DOOR20 APower windows
4FR FOG15 AFog lights
5OBD7.5 AOn-board diagnosis system
6FL DOOR20 APower windows
7STOP10 AStop lights, vehicle stability con-
trol system
8AM17.5 AStarting system
9ECU-B NO.27.5 ASteering sensor, air conditioning
system, power windows
104WD7.5 AActive Torque Control 4WD

533
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73008U)

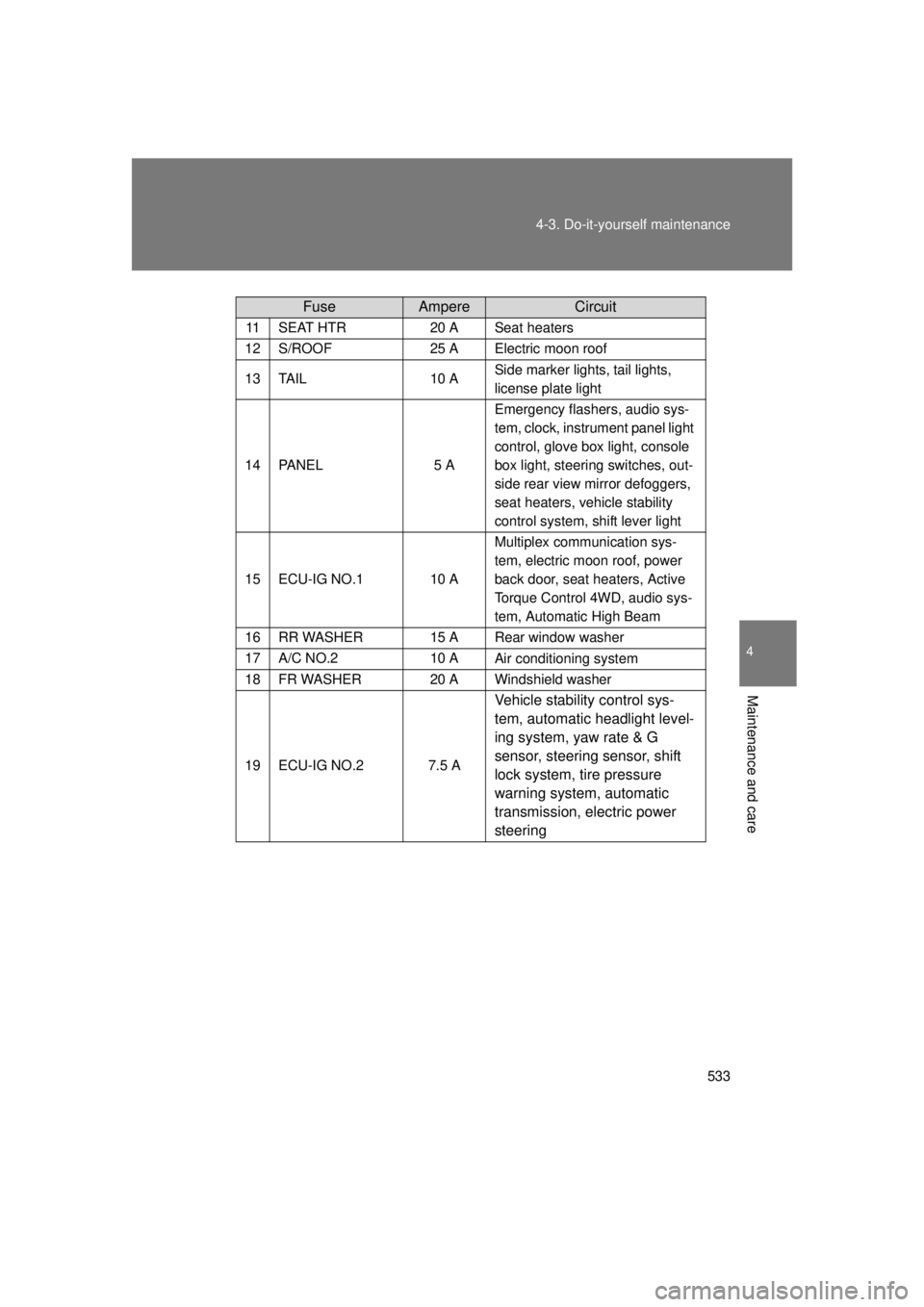

11SEAT HTR20 ASeat heaters
12S/ROOF25 AElectric moon roof
13TA I L10 ASide marker lights, tail lights,
license plate light
14PA N E L5 A
Emergency flashers, audio sys-
tem, clock, instrument panel light
control, glove box light, console
box light, steering switches, out-
side rear view mirror defoggers,
seat heaters, vehicle stability
control system, sh
ift lever light
15ECU-IG NO.110 A
Multiplex communication sys-
tem, electric moon roof, power
back door, seat heaters, Active
Torque Control 4WD, audio sys-
tem, Automatic High Beam
16RR WASHER15 ARear window washer
17A/C NO.210 AAir conditioning system
18FR WASHER20 AWindshield washer
19ECU-IG NO.27.5 A
Vehicle stability control sys-
tem, automatic headlight level-
ing system, yaw rate & G
sensor, steering sensor, shift
lock system, tire pressure
warning system, automatic
transmission, electric power
steering
FuseAmpereCircuit

534 4-3. Do-it-yourself maintenance
VENZA_U (OM73008U)

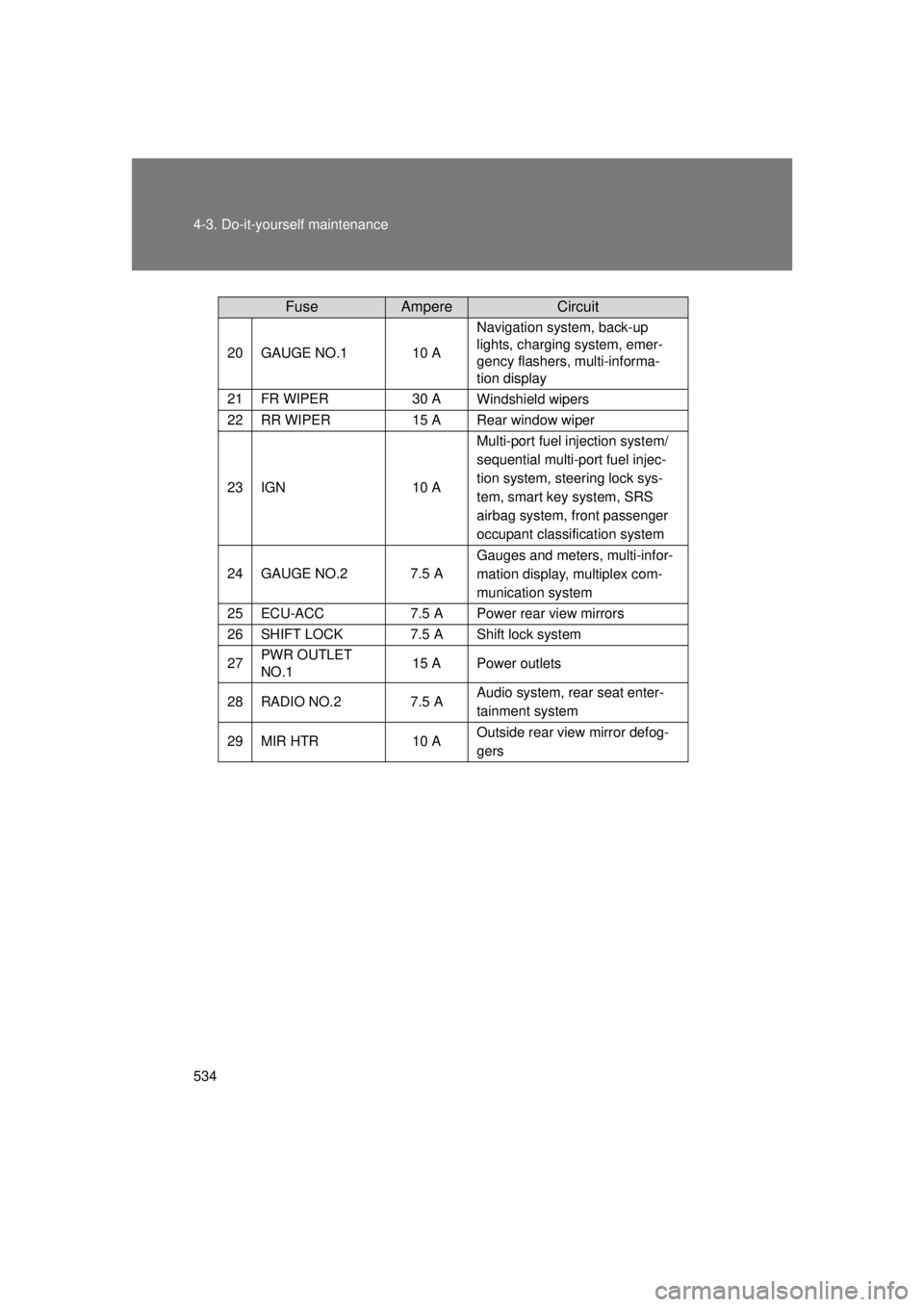

20GAUGE NO.110 A
Navigation system, back-up
lights, charging system, emer-
gency flashers, multi-informa-
tion display
21FR WIPER30 AWindshield wipers
22RR WIPER15 ARear window wiper
23IGN10 A
Multi-port fuel injection system/
sequential multi-port fuel injec-
tion system, steering lock sys-
tem, smart key system, SRS
airbag system, front passenger
occupant classification system
24GAUGE NO.27.5 A
Gauges and meters, multi-infor-
mation display, multiplex com-
munication system
25ECU-ACC7.5 APower rear view mirrors
26SHIFT LOCK7.5 AShift lock system
27PWR OUTLET
NO.115 APower outlets
28RADIO NO.27.5 AAudio system, rear seat enter-
tainment system
29MIR HTR10 AOutside rear view mirror defog-
gers
FuseAmpereCircuit

535
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73008U)
■
After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 536)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.

536
4-3. Do-it-yourself maintenance
VENZA_U (OM73008U)

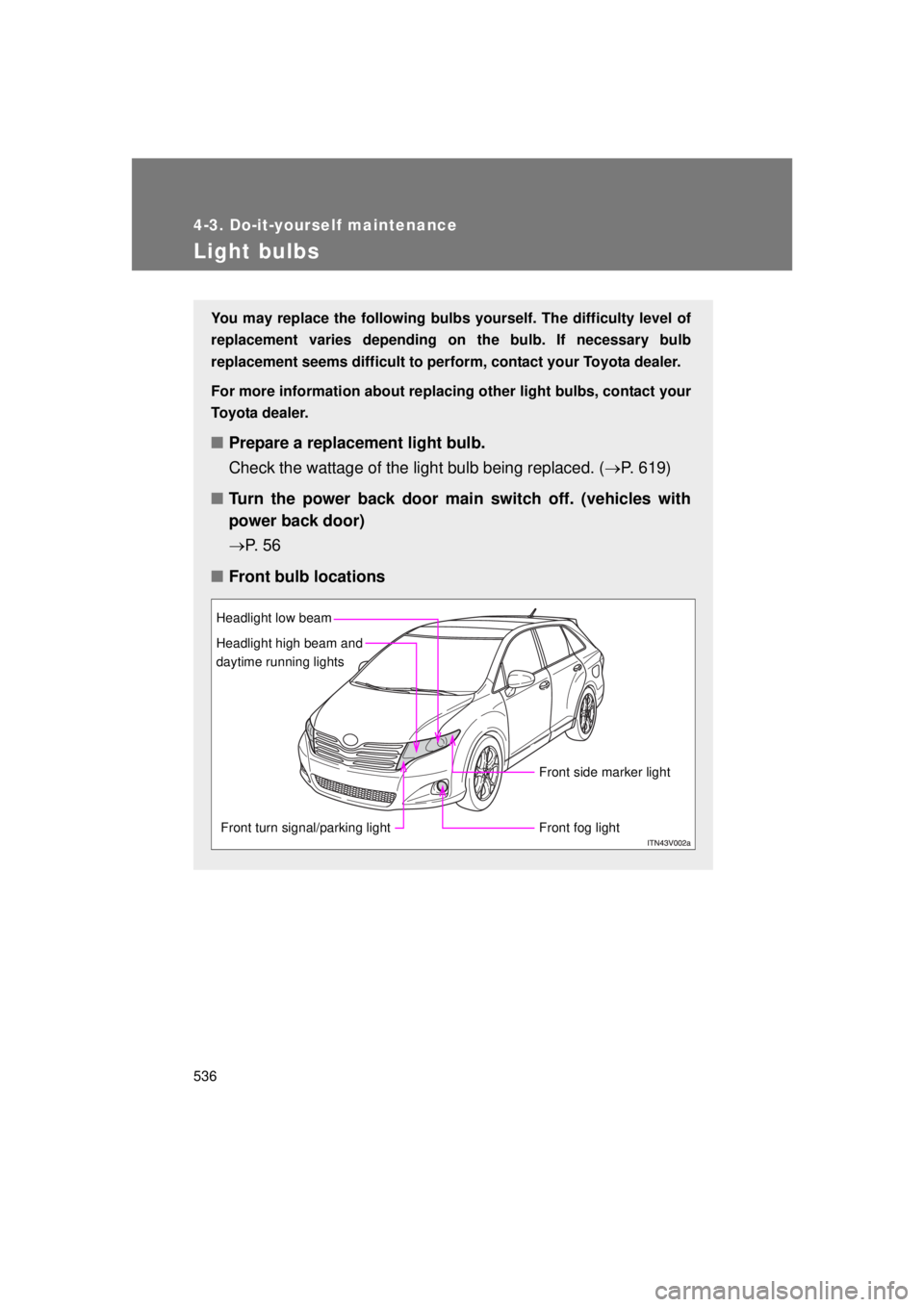

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 619)
■ Turn the power back door main switch off. (vehicles with
power back door)
P. 5 6
■ Front bulb locations
Headlight low beam
Headlight high beam and
daytime running lights
Front turn signal/parking light Front fog light
Front side marker light

537
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73008U)
Replacing light bulbs
■ Headlight low beams (halogen bulb)
Turn the bulb base counterclock-
wise.

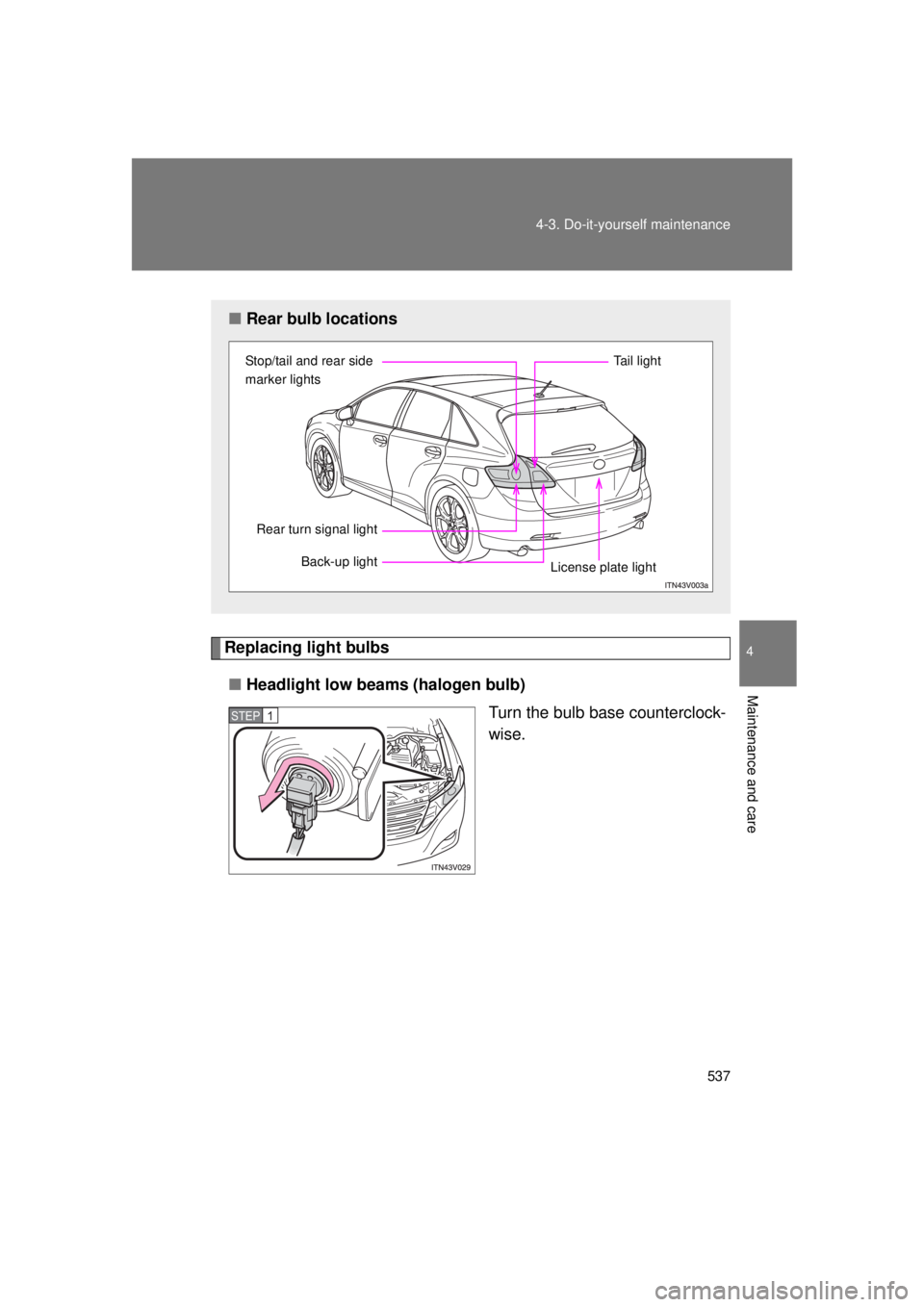

■Rear bulb locations
Stop/tail and rear side
marker lights
Back-up light Tail light
License plate light
Rear turn signal light
STEP1

538 4-3. Do-it-yourself maintenance
VENZA_U (OM73008U)Unplug the connector while
pushing the lock release.
■ Headlight high beams and daytime running lights
Unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
STEP2
STEP1
STEP2

539
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73008U)
■

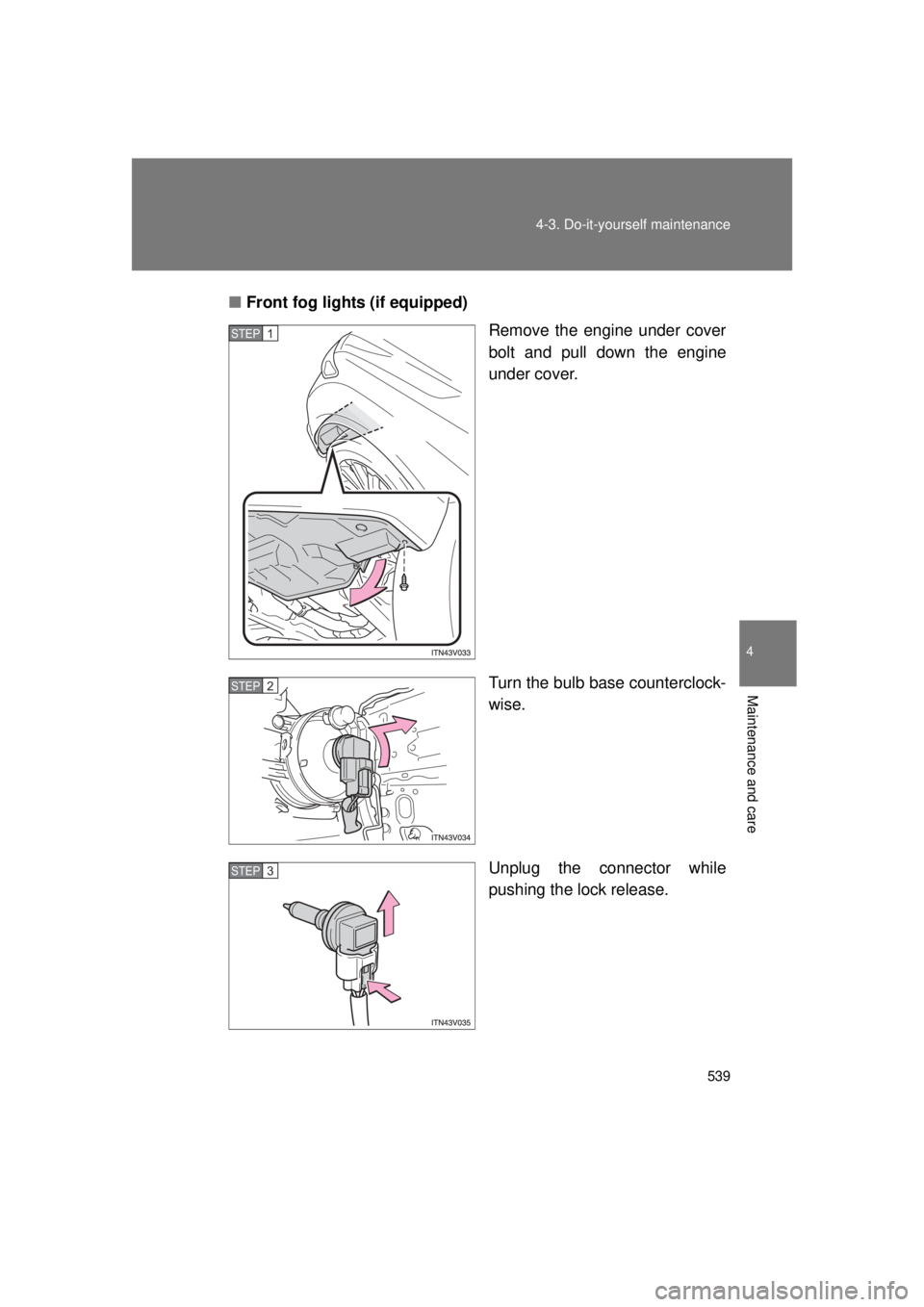

Front fog lights (if equipped)
Remove the engine under cover
bolt and pull down the engine
under cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.
STEP1
STEP2
STEP3

540 4-3. Do-it-yourself maintenance
VENZA_U (OM73008U)■

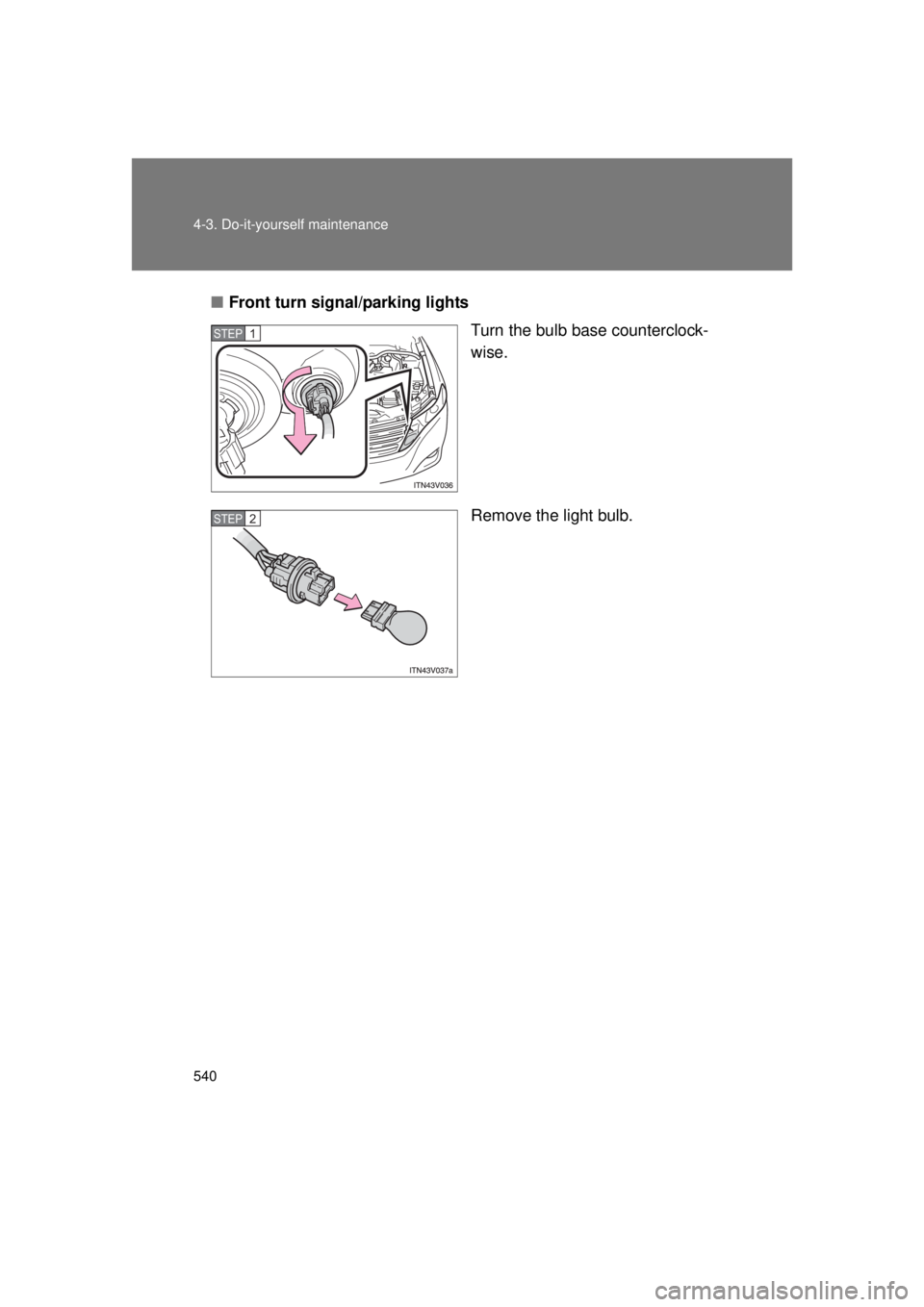

Front turn signal/parking lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
