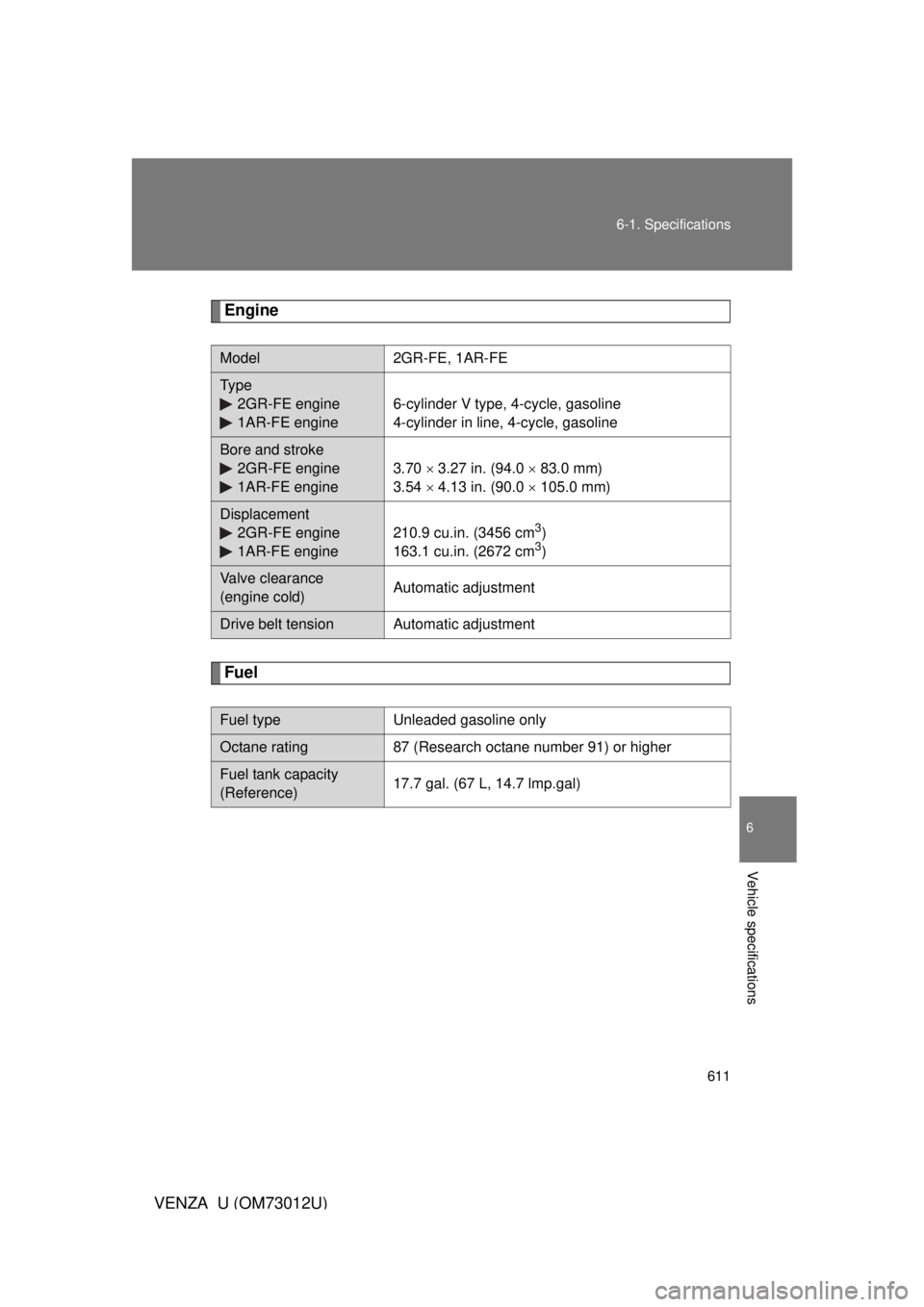

Vehicle specifications
VENZA_U (OM73012U)
Engine
Fuel
Model2GR-FE, 1AR-FE
Ty p e
2GR-FE engine
1AR-FE engine
6-cylinder V type, 4-cycle, gasoline
4-cylinder in line, 4-cycle, gasoline
Bore and stroke2GR-FE engine
1AR-FE engine
3.70 3.27 in. (94.0 83.0 mm)
3.54 4.13 in. (90.0 105.0 mm)
Displacement
2GR-FE engine
1AR-FE engine
210.9 cu.in. (3456 cm3)
163.1 cu.in. (2672 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)17.7 gal. (67 L, 14.7 lmp.gal)
Page 612 of 680

612 6-1. Specifications
VENZA_U (OM73012U)
Lubrication system
2GR-FE engine
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
The 5W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 30 in 5W-30 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.

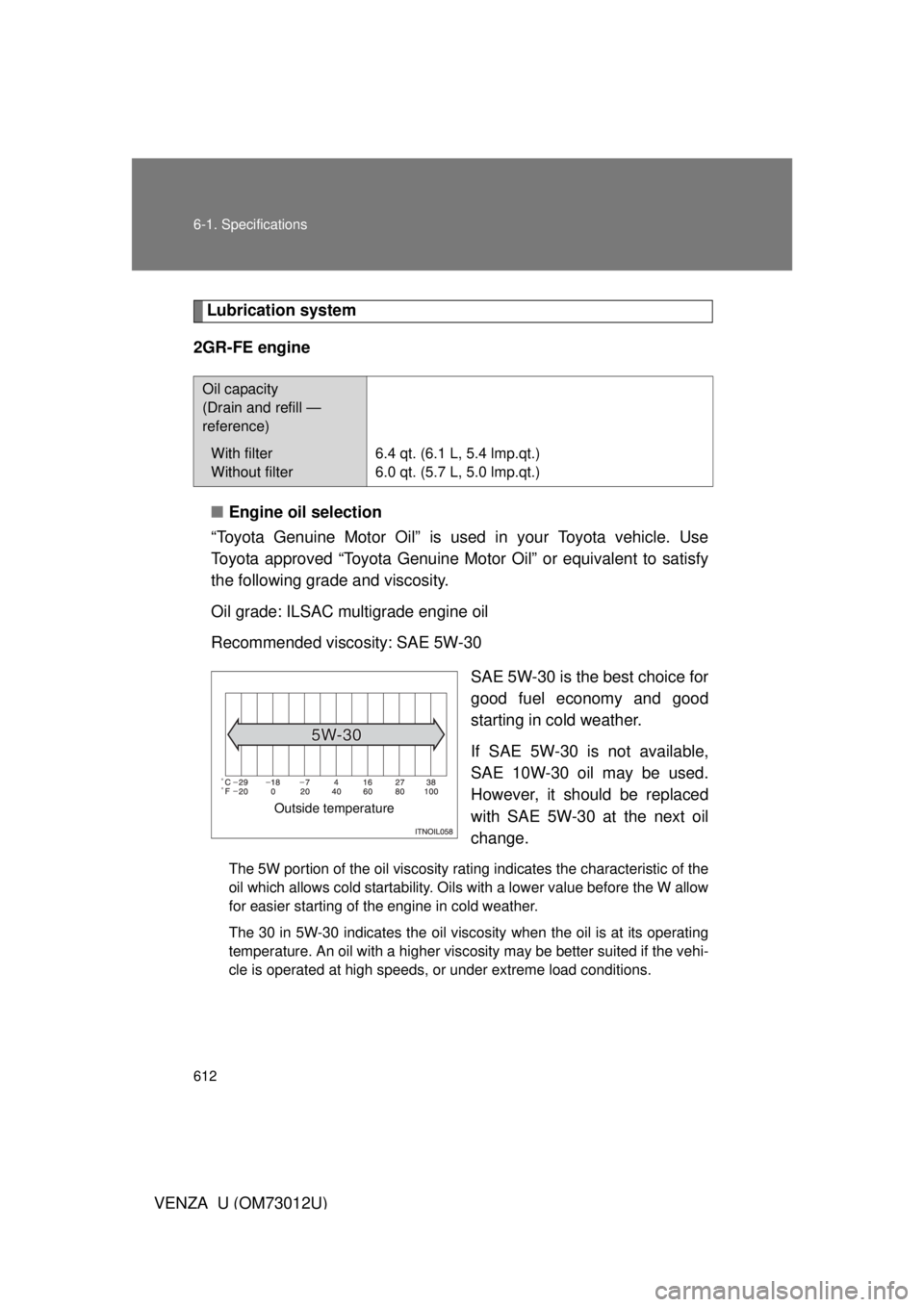

Oil capacity
(Drain and refill —
reference)
With filter
Without filter6.4 qt. (6.1 L, 5.4 lmp.qt.)
6.0 qt. (5.7 L, 5.0 lmp.qt.)
Outside temperature
Page 613 of 680

613
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73012U)
How to read oil container label:
The ILSAC (International Lubric
ant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
1AR-FE engine ■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-20 or 0W-20

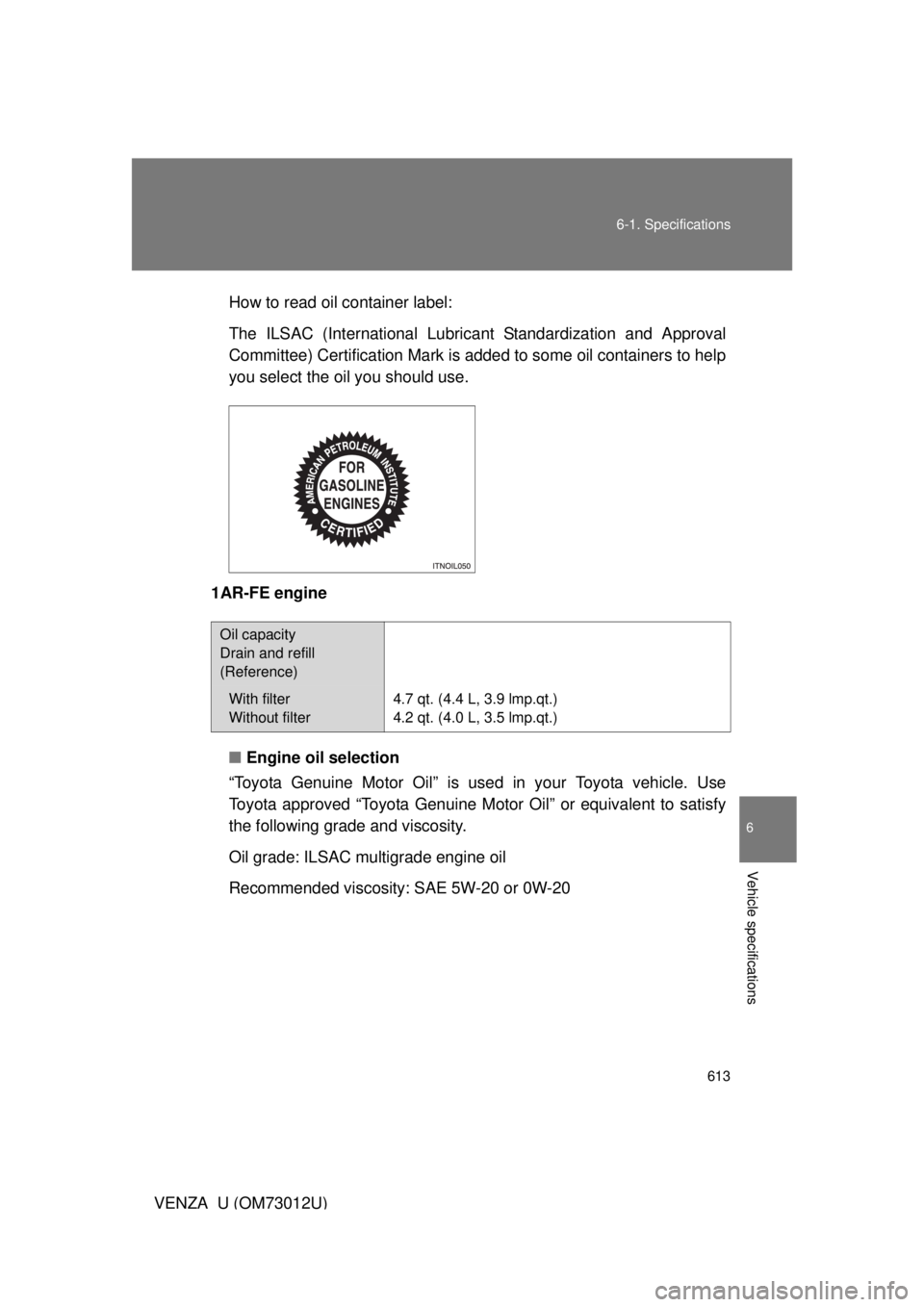

Oil capacity
Drain and refill
(Reference)
With filter
Without filter4.7 qt. (4.4 L, 3.9 lmp.qt.)
4.2 qt. (4.0 L, 3.5 lmp.qt.)
Page 614 of 680

614 6-1. Specifications

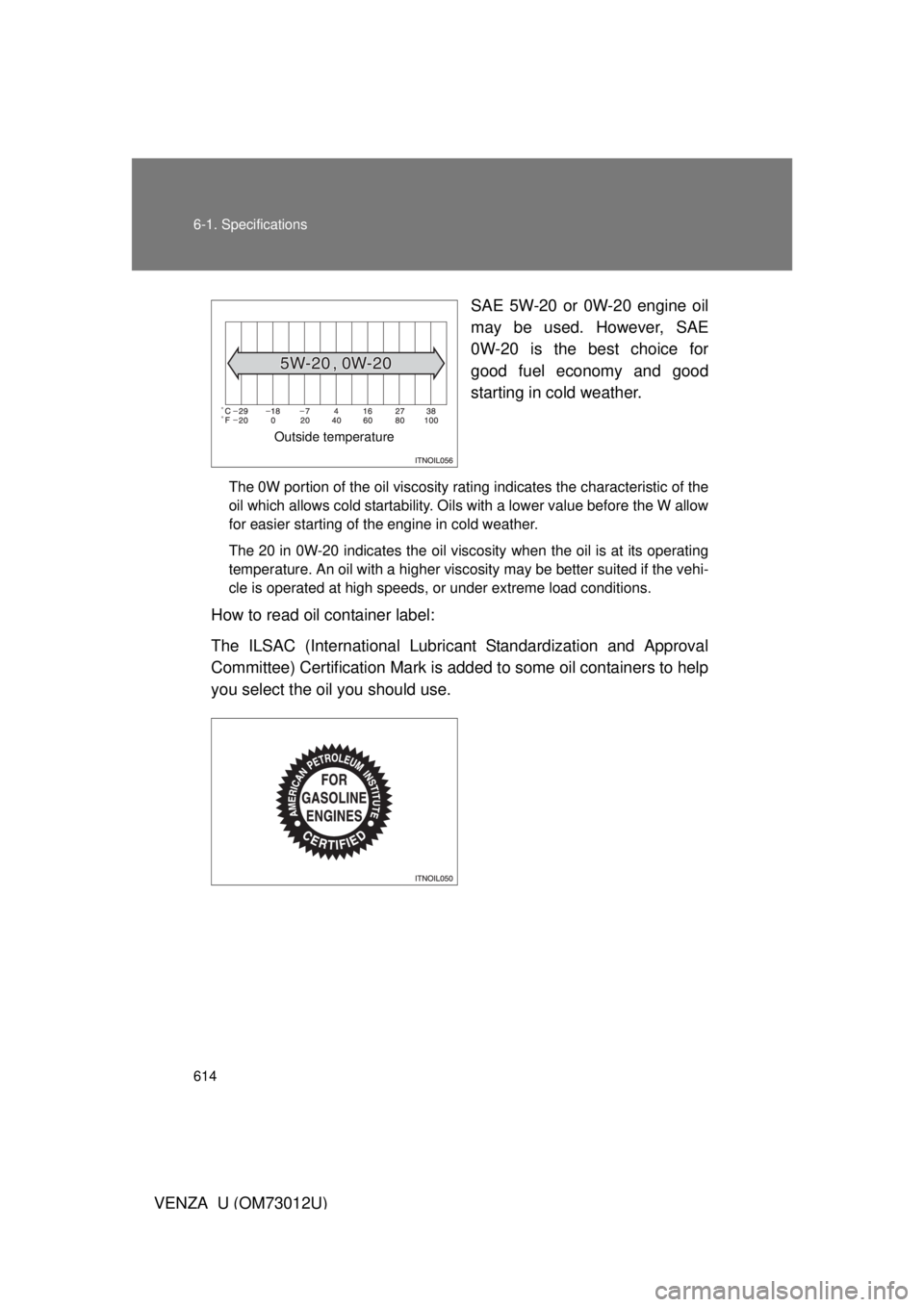

VENZA_U (OM73012U)SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is
added to some oil containers to help
you select the oil you should use.
Outside temperature
Page 615 of 680

615
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73012U)

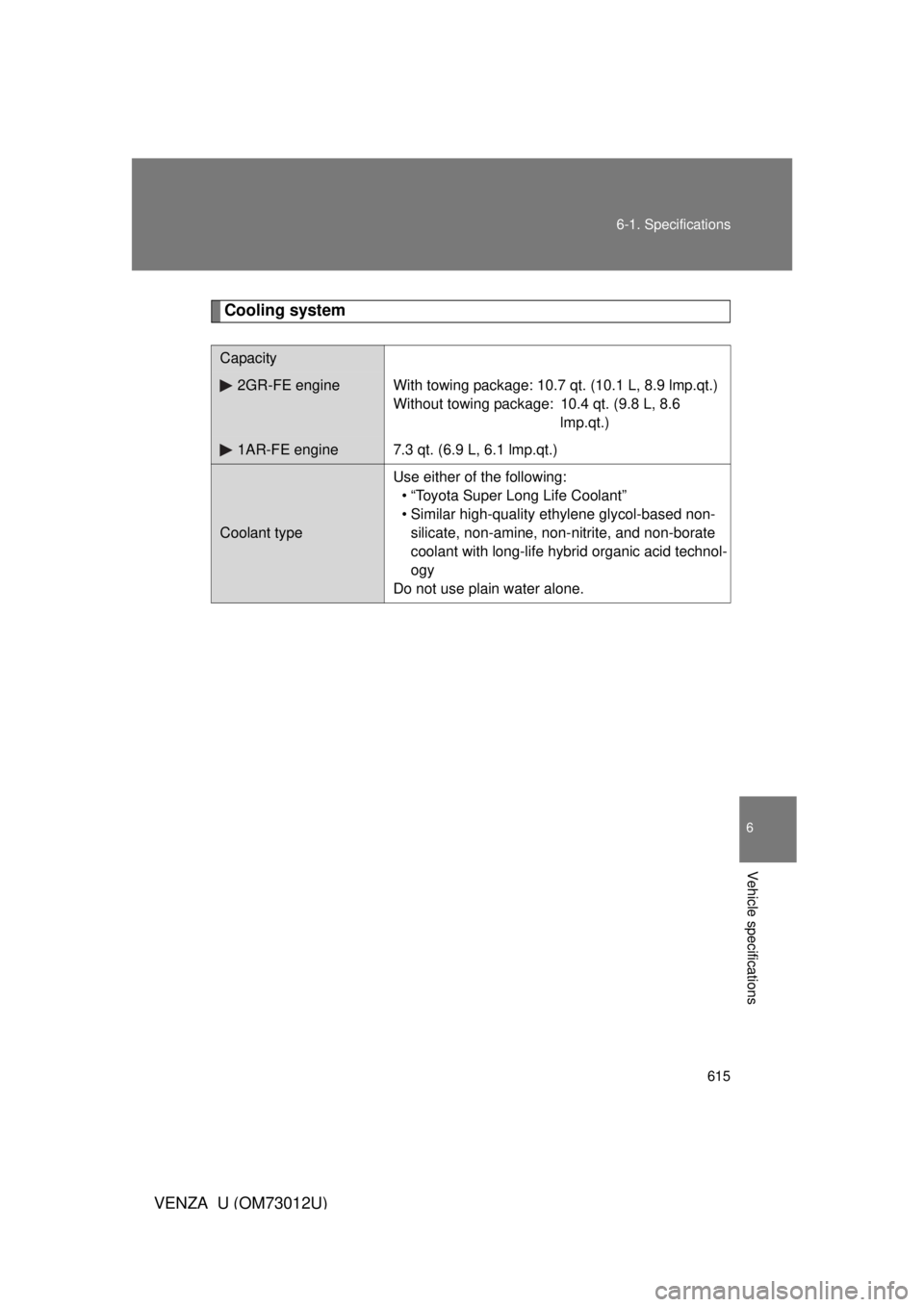

Cooling system
Capacity
2GR-FE engineWith towing package: 10.7 qt. (10.1 L, 8.9 lmp.qt.)
Without towing package: 10.4 qt. (9.8 L, 8.6
lmp.qt.)
1AR-FE engine7.3 qt. (6.9 L, 6.1 lmp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Page 616 of 680

616 6-1. Specifications
VENZA_U (OM73012U)

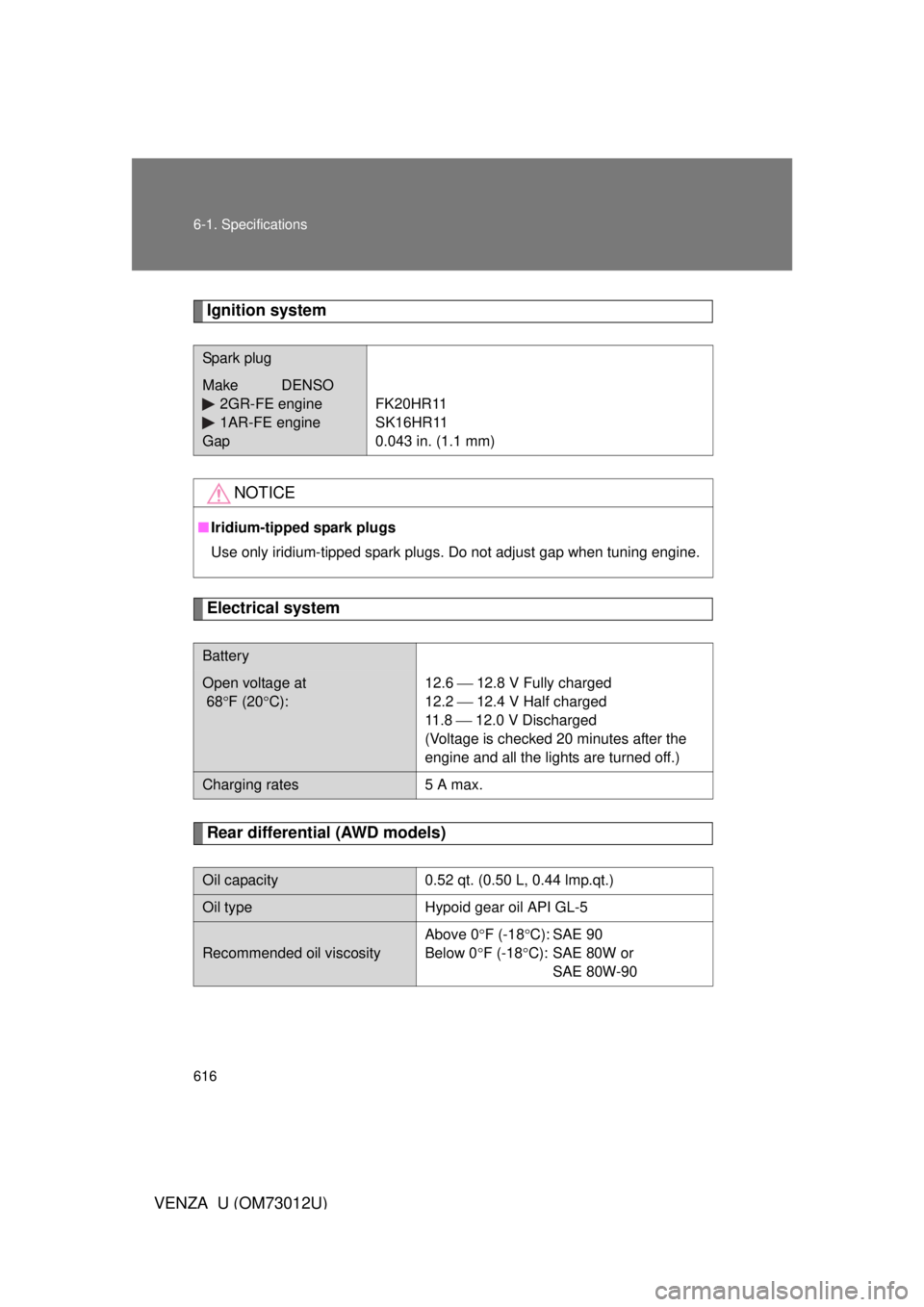

Ignition system
Electrical system
Rear differential (AWD models)
Spark plug
Make DENSO2GR-FE engine
1AR-FE engine
Gap
FK20HR11
SK16HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68 F (20 C):12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(Voltage is checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5 A max.
Oil capacity0.52 qt. (0.50 L, 0.44 lmp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosity
Above 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or
SAE 80W-90
Page 617 of 680

617
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73012U)

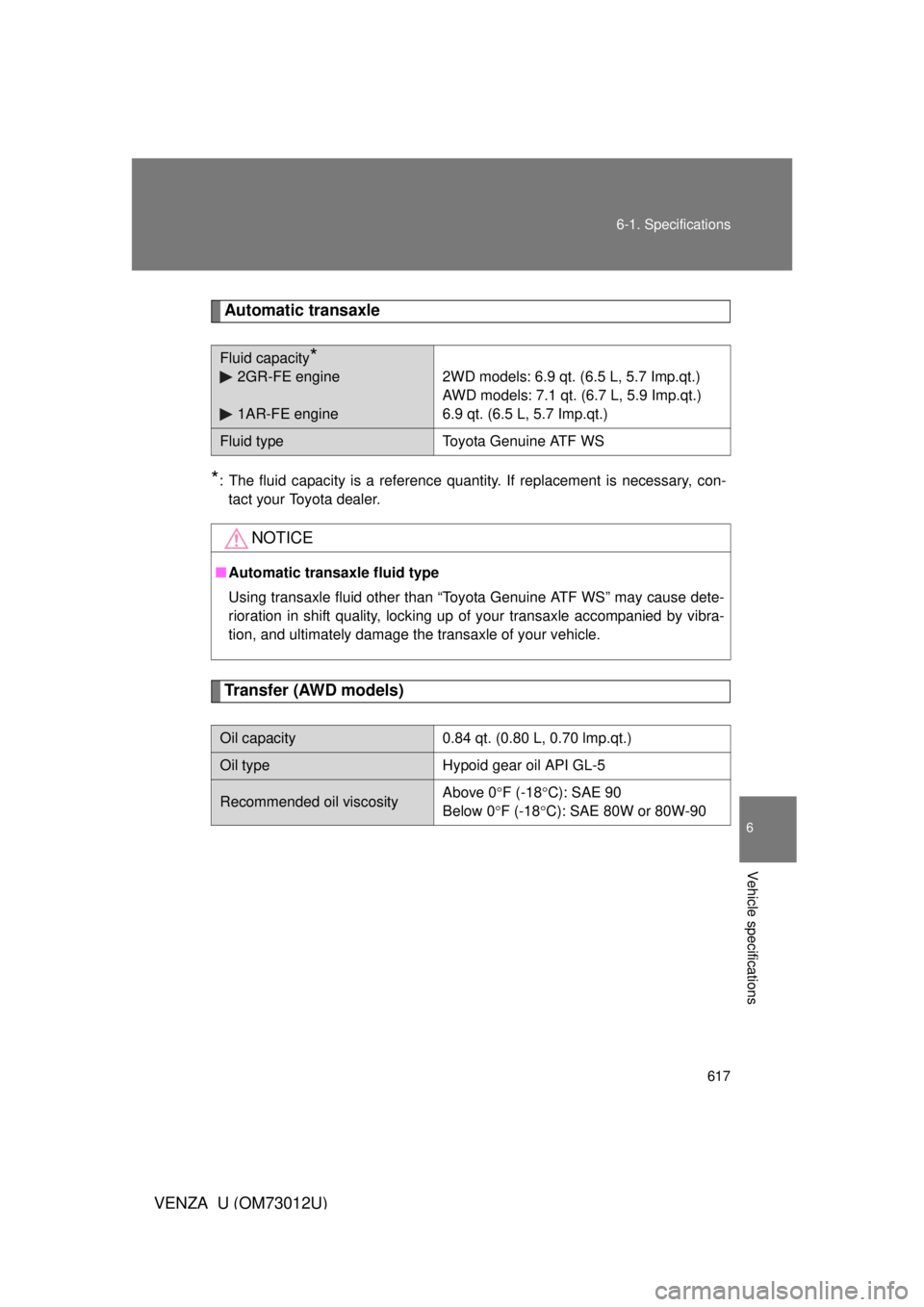

Automatic transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, con-
tact your Toyota dealer.
Transfer (AWD models)
Fluid capacity*
2GR-FE engine
1AR-FE engine2WD models: 6.9 qt. (6.5 L, 5.7 Imp.qt.)
AWD models: 7.1 qt. (6.7 L, 5.9 Imp.qt.)
6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transaxle fluid type
Using transaxle fluid other than “Toyota Genuine ATF WS” may cause dete-
rioration in shift quality, locking up of your transaxle accompanied by vibra-
tion, and ultimately damage the transaxle of your vehicle.
Oil capacity0.84 qt. (0.80 L, 0.70 lmp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosityAbove 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or 80W-90
Page 618 of 680

618 6-1. Specifications
VENZA_U (OM73012U)

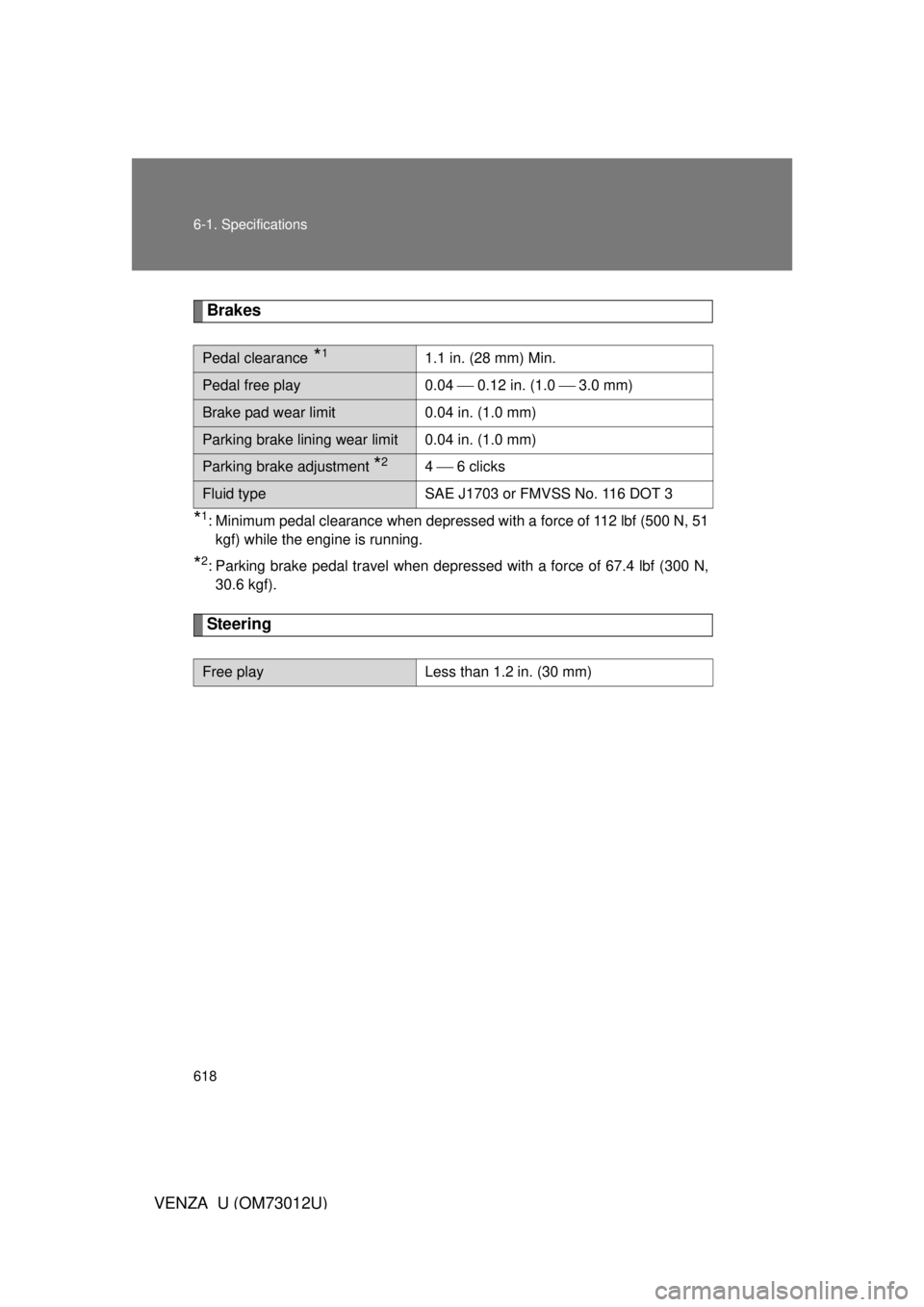

Brakes
*1: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
Steering
Pedal clearance *11.1 in. (28 mm) Min.
Pedal free play0.04 0.12 in. (1.0 3.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake adjustment *24 6 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)
Page 619 of 680

619
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73012U)

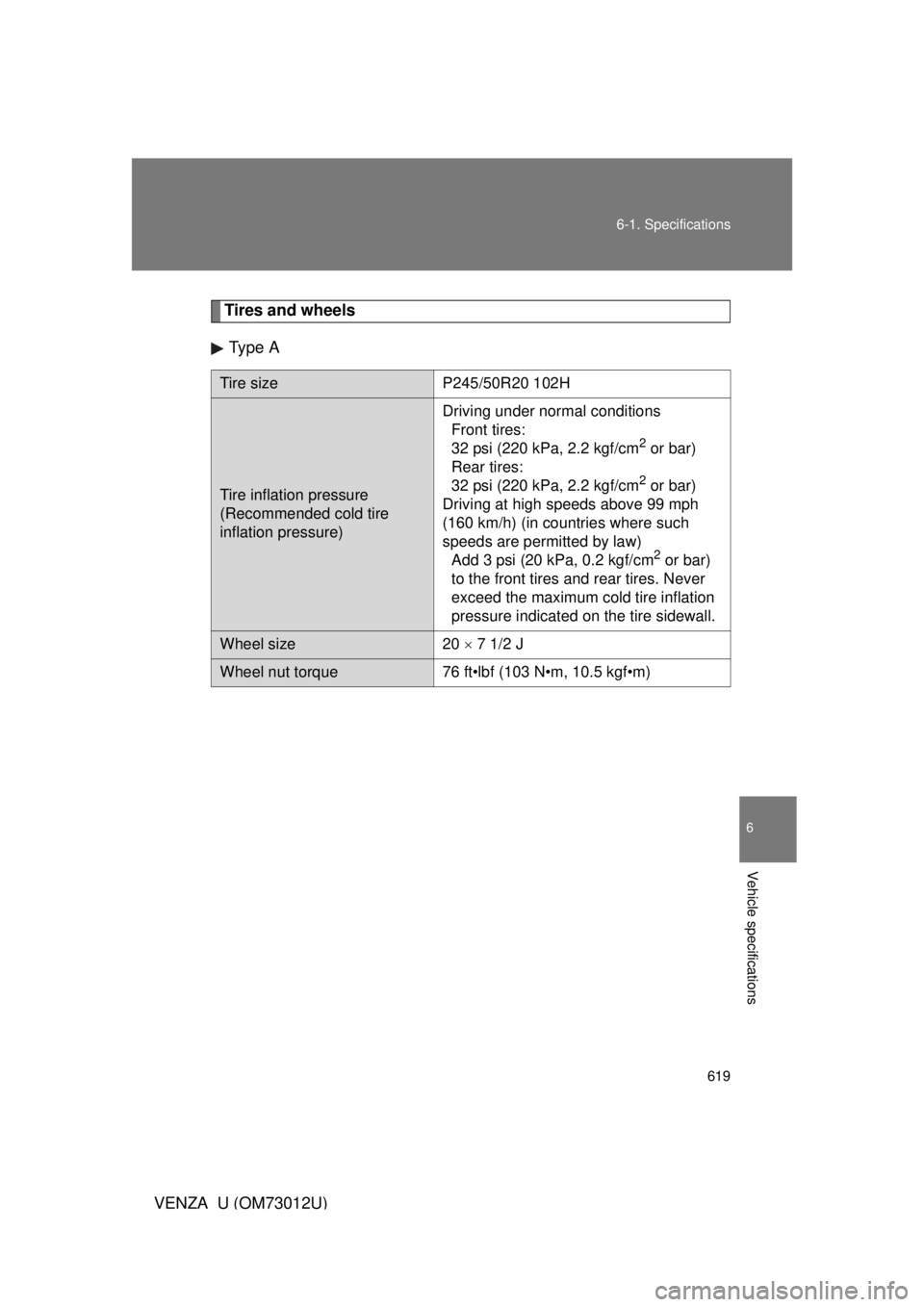

Tires and wheels
Type A
Tire sizeP245/50R20 102H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law) Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size20 7 1/2 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Page 620 of 680

620 6-1. Specifications
VENZA_U (OM73012U)Type B

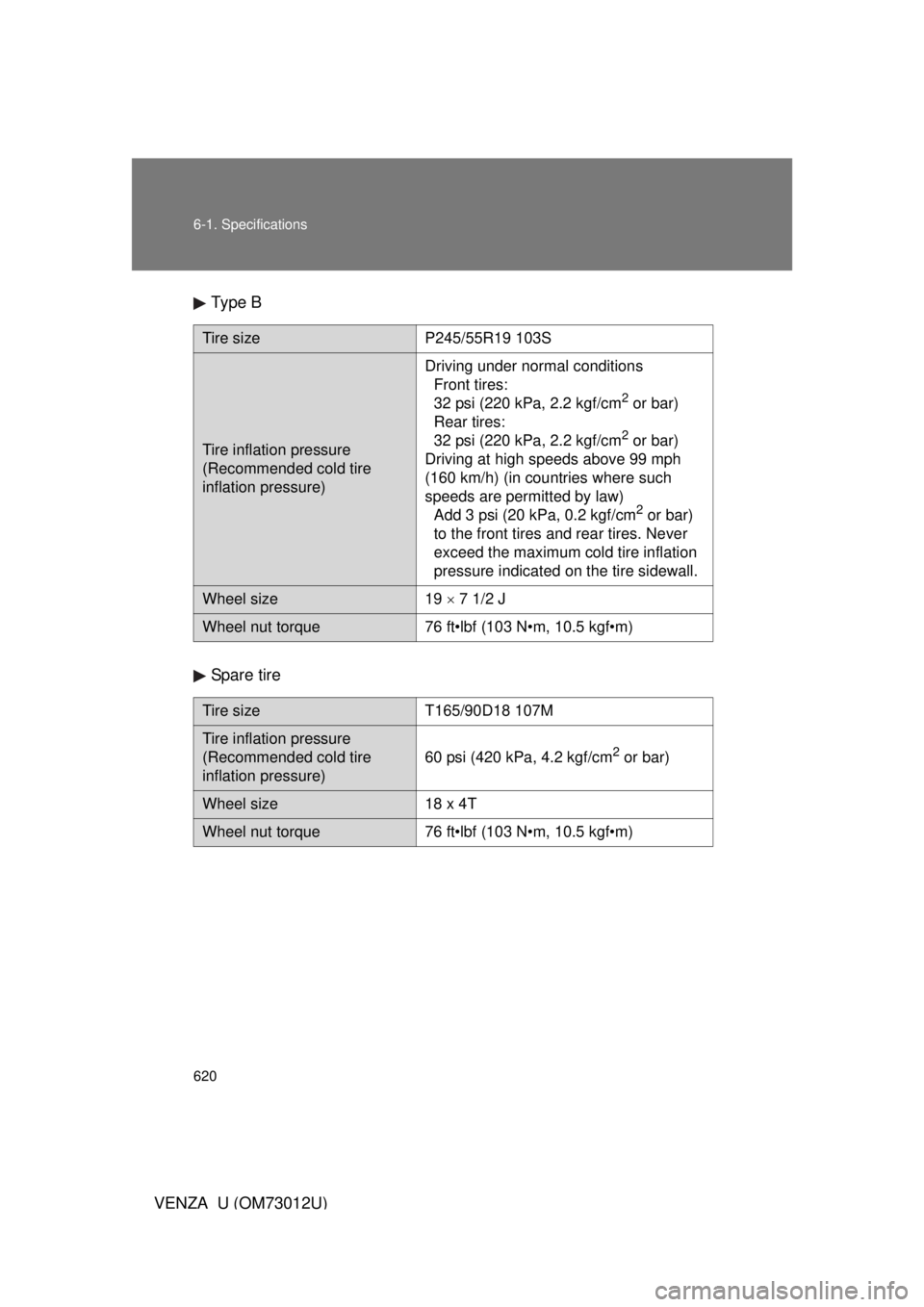

Spare tire
Tire sizeP245/55R19 103S
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions
Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law) Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size19 7 1/2 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeT165/90D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size18 x 4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
