TOYOTA VENZA 2011 Owners Manual (in English)

641
6-2. Customization
6
Vehicle specifications
VENZA_U (OM73012U)
ItemFunctionDefault settingCustomized
setting
Wireless
remote
control
( P. 43) Operation signal
(Emergency flashers)
*ON
OFF
Operation signal
(Buzzer) ON
OFF
Operation signal
(Buzzer volume) Level 7Level 1 to 6
OFF
Open door warning
function
(when locking the vehi-
cle) ON
OFF
Panic function ONOFF
Door lock
( P. 48) Unlocking using a key
Driver’s door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Speed-detecting auto-
matic door lock func-
tion
*
OFF ON
Shifting the shift lever to
position other than “P”
locks all doors
*
ON OFF
Shifting the shift lever to
“P” unlocks all doors
*ON OFF
Opening driver’s door
unlocks all doors
*OFF ON

642 6-2. Customization
VENZA_U (OM73012U)
ItemFunctionDefault settingCustomizedsetting
Smart key
system
( P. 28) Smart key system ON OFF
Operation signal
(Emergency flashers)
ON OFF
Operation signal
(Buzzer) ON OFF
Automatic
light control
system
( P. 198) Light sensor sensitivity Level 3 Level 1 to 5
Daytime running light
system (U.S.A. only)
ON
OFF
Automatic High Beam
(if equipped)
*ON OFF
Time elapsed before
headlights automati-
cally turn off after doors
are closed
*
30 seconds 0 seconds
60 seconds
90 seconds
Alarm
system
( P. 100) Time elapsed before
the alarm is set
14 seconds 30 seconds
Multi-
information
display
( P. 180) Language selection
*English
French
Spanish

643
6-2. Customization
6
Vehicle specifications
VENZA_U (OM73012U)
*: For vehicles with TFT type multi-information display, the setting can be
changed by operating the multi-information display. ( P. 644)
ItemFunctionDefault settingCustomized
setting
Illumination
( P. 391) Time period before
lights turn off
*15 seconds
7.5 seconds
30 seconds
Vehicles with smart key
system: Operation after
the “ENGINE START
STOP” switch is turned
off
Vehicles without smart
key system: Operation
after the engine switch
is turned to the “LOCK”
position ON OFF
Operation when the
doors are unlocked ON OFF
Operation when you
approach the vehicle
with the electronic key
on your person (When
the personal/interior
light main switch is door
position.) (vehicles with
smart key system) ON OFF
Seat belt
reminder
( P. 563) Vehicle speed linked
seat belt reminder
buzzer
ON
OFF

644 6-2. Customization
VENZA_U (OM73012U)
Customizing the features by using the multi-information display
(vehicles with TFT type mu lti-information display)
Press the “SETUP” button while
the vehicle is stopped.
The “Custom Settings” screen is
displayed on the multi-information
display.
If left idle for approximately 10
seconds, the display will revert to
the previous screen.
Select the setting you wish to
change by pressing the “INFO”
or “SETUP” button, and press
the “SELECT RESET” button.
If you select “Exit” and press the
“SELECT RESET” button, the
display will revert to the previous
screen.
Select the setting you wish to
change by pressing the “INFO”
or “SETUP” button, and press
the “SELECT RESET” button.
The illustration assumes that
“Door” was chosen in .
The current setting is indicated by
yellow text.
If you select “Return” and press
the “SELECT RESET” button, the
display will revert to the “Custom
Settings” screen.
STEP1
STEP2
STEP3
STEP2

645
6-2. Customization
6
Vehicle specifications
VENZA_U (OM73012U)
Choose a desired setting by
pressing the “INFO” or “SETUP”
button, and press the “SELECT
RESET” button.
If any settings are changed, the
display will revert to the previous
screen.
The illustration assumes that
“Auto Locking” was chosen in
.
The current setting is indicated by
yellow text.
If you select “Return” and press
the “SELECT RESET” button, the
display will revert to the previous
screen.
■ Restoring default settings
Press the “SETUP” button while
the vehicle is stopped.
The “Custom Settings” screen is
displayed on the multi-information
display.
If left idle for approximately 10
seconds, the display will revert to
the previous screen.
STEP4
STEP3
STEP1

646 6-2. Customization
VENZA_U (OM73012U)Select “Default Settings” by
pressing the “INFO” or “SETUP”
button, and press the “SELECT
RESET” button.
If you select “Exit” and press the
“SELECT RESET” button, the
display will revert to the previous
screen.
Select “Yes” by pressing the
“INFO” or “SETUP” button, and
press the “SELECT RESET” but-
ton.
“Default Settings Restored” is dis-
played, and the default settings
are restored.
If you select “No” and press the
“SELECT RESET” button, the
display will revert to the “Custom
Settings” screen without restor-
ing the default settings.
STEP2
STEP3
■
If the vehicle is moved while setti ngs are being changed on the multi-
information display
 P. 192

647
6
Vehicle specifications
VENZA_U (OM73012U)
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Power back door • After reconnecting or changing the
battery
• After changing a fuse P. 5 7
Engine oil mainte-
nance data
(U.S.A. only) After changing engine oil P. 495
The following items must be init
ialized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

648 6-3. Initialization
VENZA_U (OM73012U)

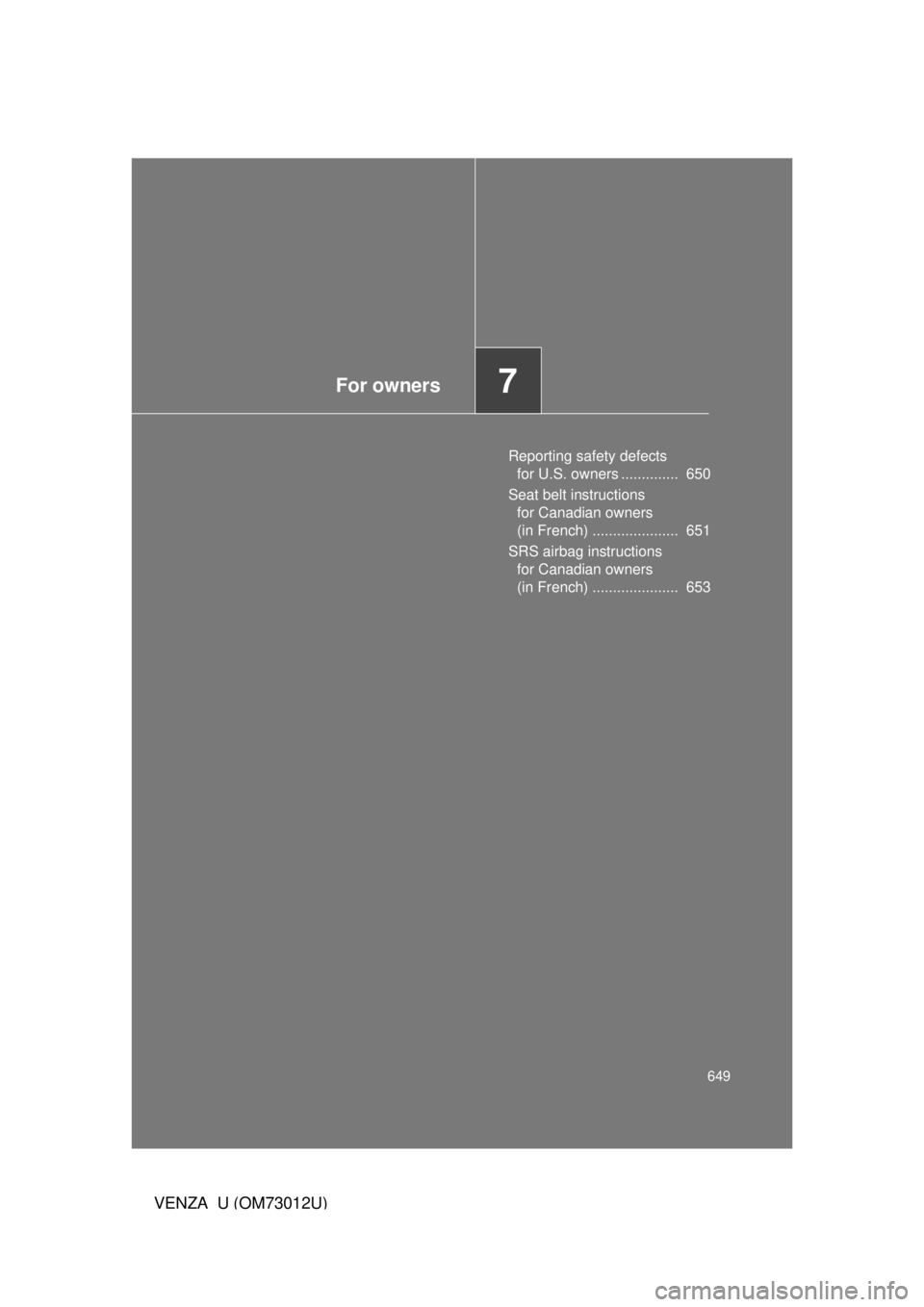

For owners7
649
VENZA_U (OM73012U)
Reporting safety defects for U.S. owners .............. 650
Seat belt instructions for Canadian owners
(in French) ..................... 651
SRS airbag instructions for Canadian owners
(in French) ..................... 653

650
VENZA_U (OM73012U)

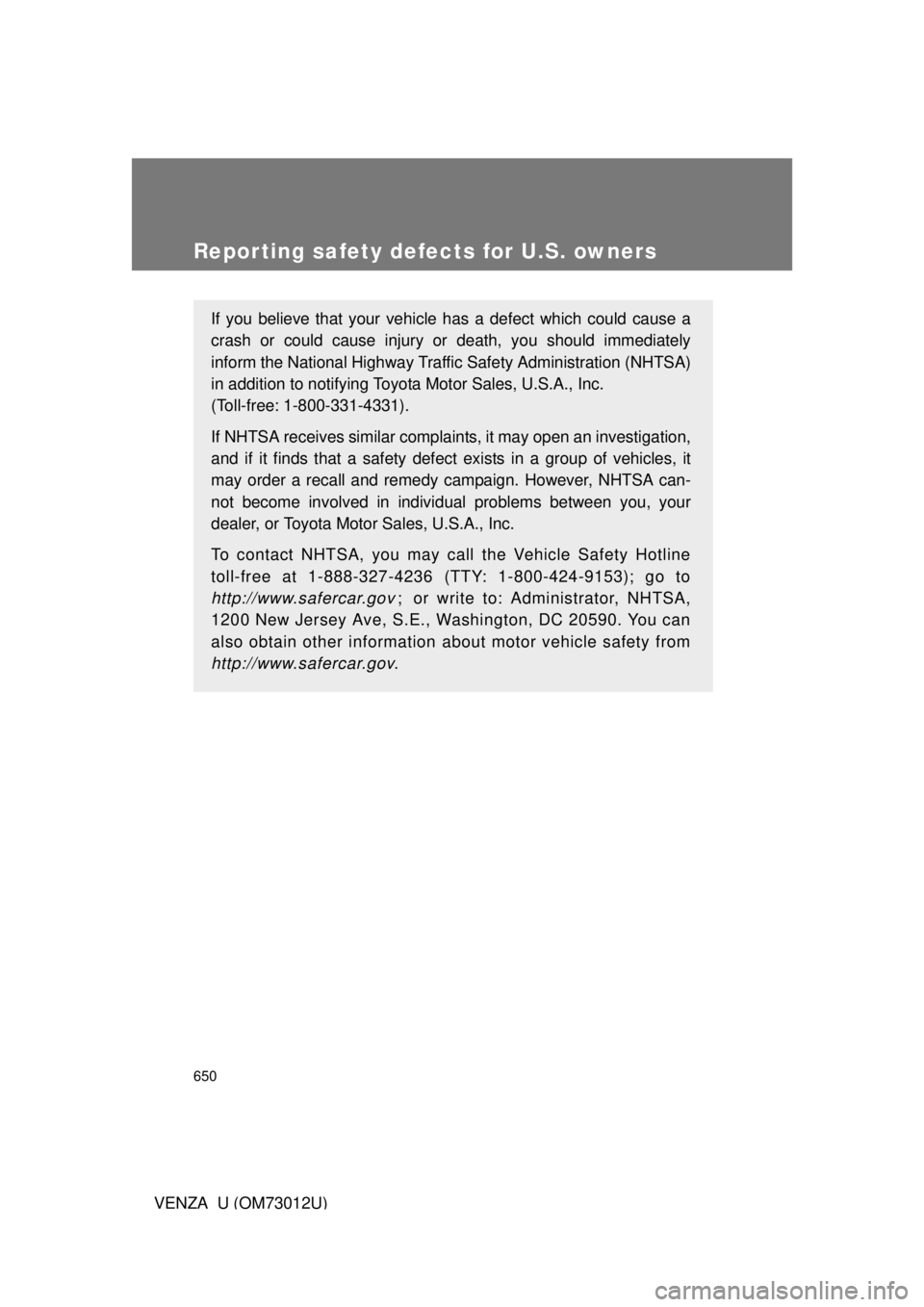

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .
