TOYOTA VENZA 2011 Owners Manual (in English)

5
When trouble arises
601
5-2. Steps to take in an emergency
VENZA_U (OM73012U)
■
Overheating
In the following situations, your vehicle may be overheating.
● The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
● Steam is coming from under the hood.
After the engine has cooled
down sufficiently, check the
engine coolant level and
inspect the radiator core (radi-
ator) for any leaks.
Engine coolant reservoir
Radiator
Add engine coolant if required.
Water can be used in an emer-
gency measure if engine cool-
ant is unavailable. ( P. 615)
Have the vehicle chec ked at the nearest Toyota dealer as soon as
possible.
STEP4
STEP5

602 5-2. Steps to take in an emergency
VENZA_U (OM73012U)
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
● Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
● Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

5
When trouble arises
603
5-2. Steps to take in an emergency
VENZA_U (OM73012U)
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parki ng brake and shift the shift
lever in “P”.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Turn off Enhanced VSC. (  P. 226)
Shift the shift lever to “D” or “R” position and carefully apply
the accelerator to free the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

604 5-2. Steps to take in an emergency
VENZA_U (OM73012U)
NOTICE
■To avoid damaging the transmission and other components
● Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.

5
When trouble arises
605
5-2. Steps to take in an emergency
VENZA_U (OM73012U)

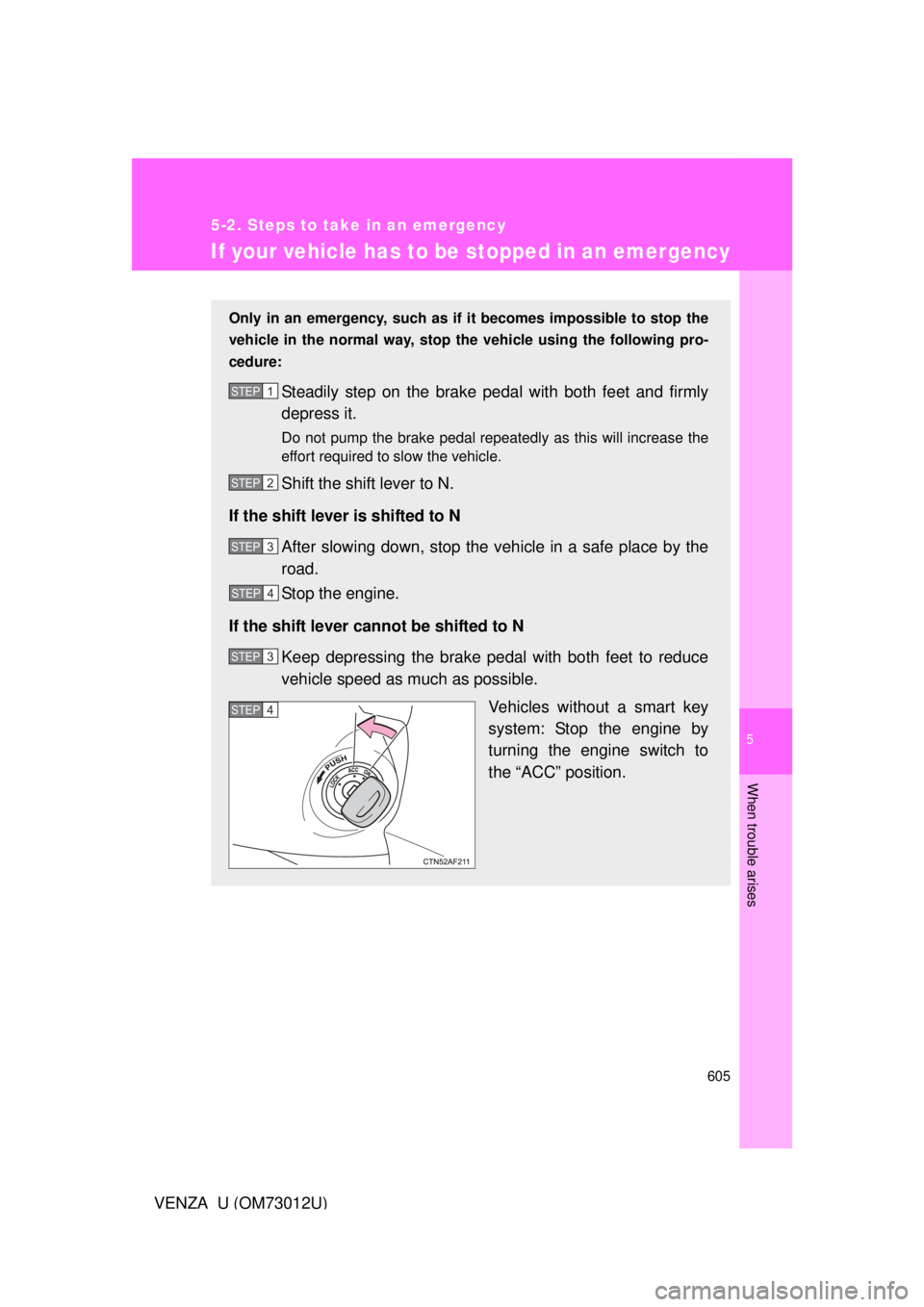

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible. Vehicles without a smart key
system: Stop the engine by
turning the engine switch to
the “ACC” position.
STEP1
STEP2
STEP3
STEP4
STEP3
STEP4

606 5-2. Steps to take in an emergency
VENZA_U (OM73012U)
CAUTION
■If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: Stop the engine by press-
ing and holding the “ENGINE
START STOP” switch for 3
consecutive seconds or more.
Stop the vehicle in a safe place by the road.STEP4
Press and hold for 3 seconds or more
STEP5

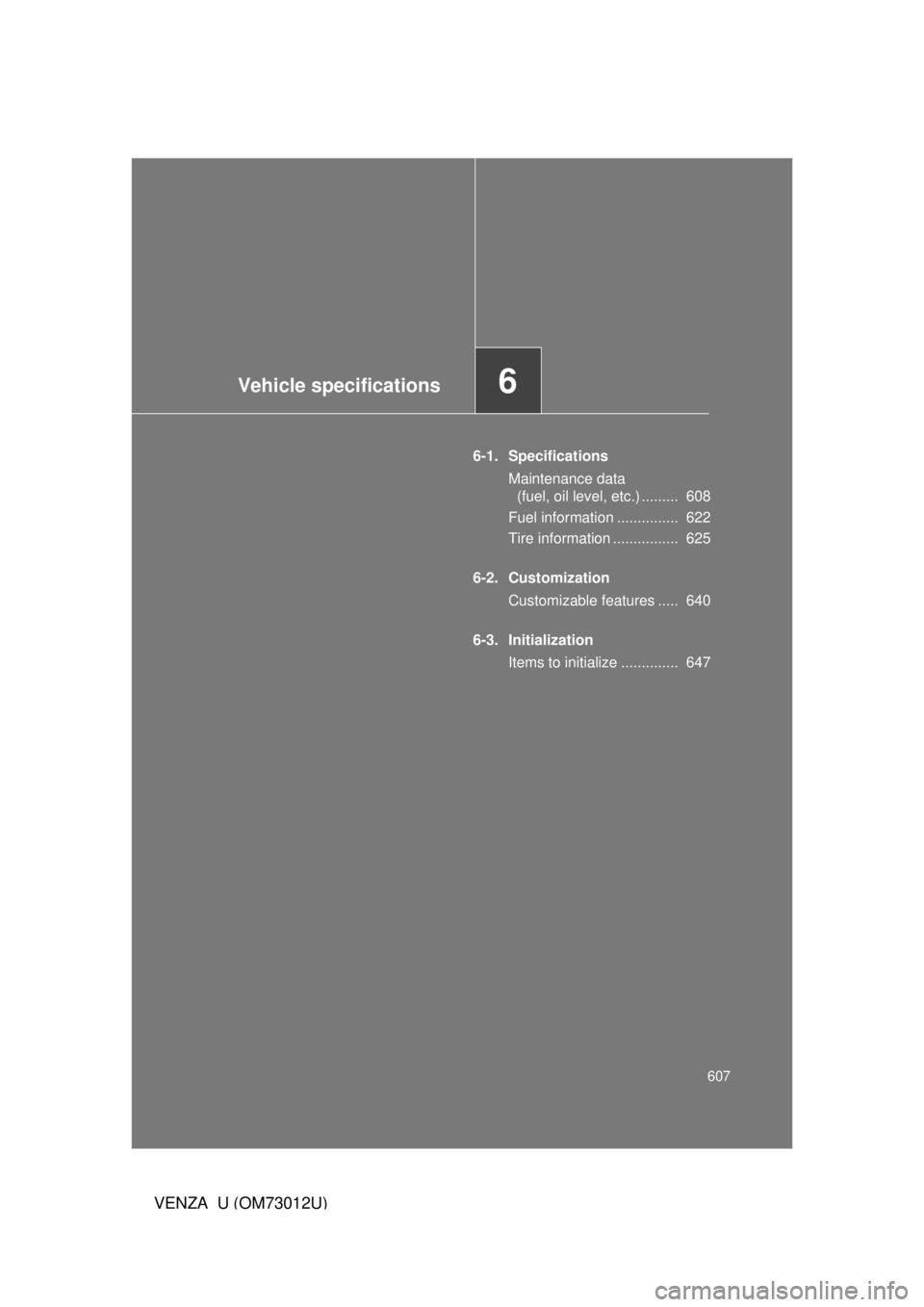

Vehicle specifications6
607
VENZA_U (OM73012U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 608
Fuel information ............... 622
Tire information ................ 625
6-2. Customization Customizable features ..... 640
6-3. Initialization Items to initialize .............. 647

608
VENZA_U (OM73012U)
6-1. Specifications

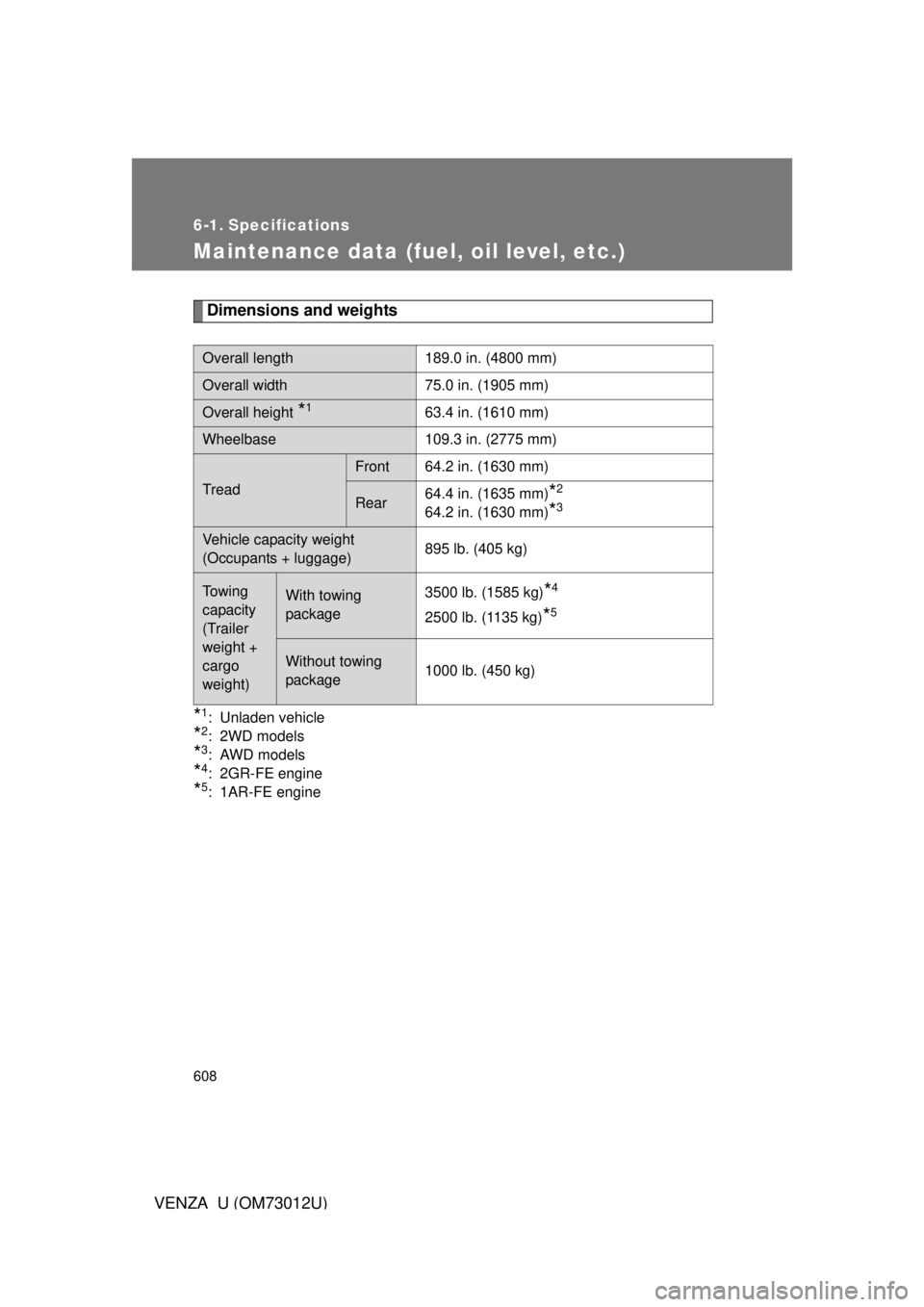

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicle
*2: 2WD models
*3: AWD models
*4: 2GR-FE engine
*5: 1AR-FE engine
Overall length189.0 in. (4800 mm)
Overall width75.0 in. (1905 mm)
Overall height *163.4 in. (1610 mm)
Wheelbase109.3 in. (2775 mm)
Tread
Front64.2 in. (1630 mm)
Rear64.4 in. (1635 mm)*2
64.2 in. (1630 mm)*3
Vehicle capacity weight
(Occupants + luggage)895 lb. (405 kg)
Towing
capacity
(Trailer
weight +
cargo
weight)With towing
package3500 lb. (1585 kg)*4
2500 lb. (1135 kg)*5
Without towing
package1000 lb. (450 kg)

609
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73012U)
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.

610 6-1. Specifications
VENZA_U (OM73012U)■
Engine number
2GR-FE engine
The engine number is stamped
on the engine block as shown.
1AR-FE engine
