81
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
VENZA_U (OM73012U)
Adjusting the height of rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
■To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
CAUTION
■ While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and an accident, or result-
ing in death or serious injury.
To ensure correct functioning of the sen-
sors, do not touch or cover the sensors.

82
1-3. Adjustable components (seats, mirrors, steering wheel)
VENZA_U (OM73012U)

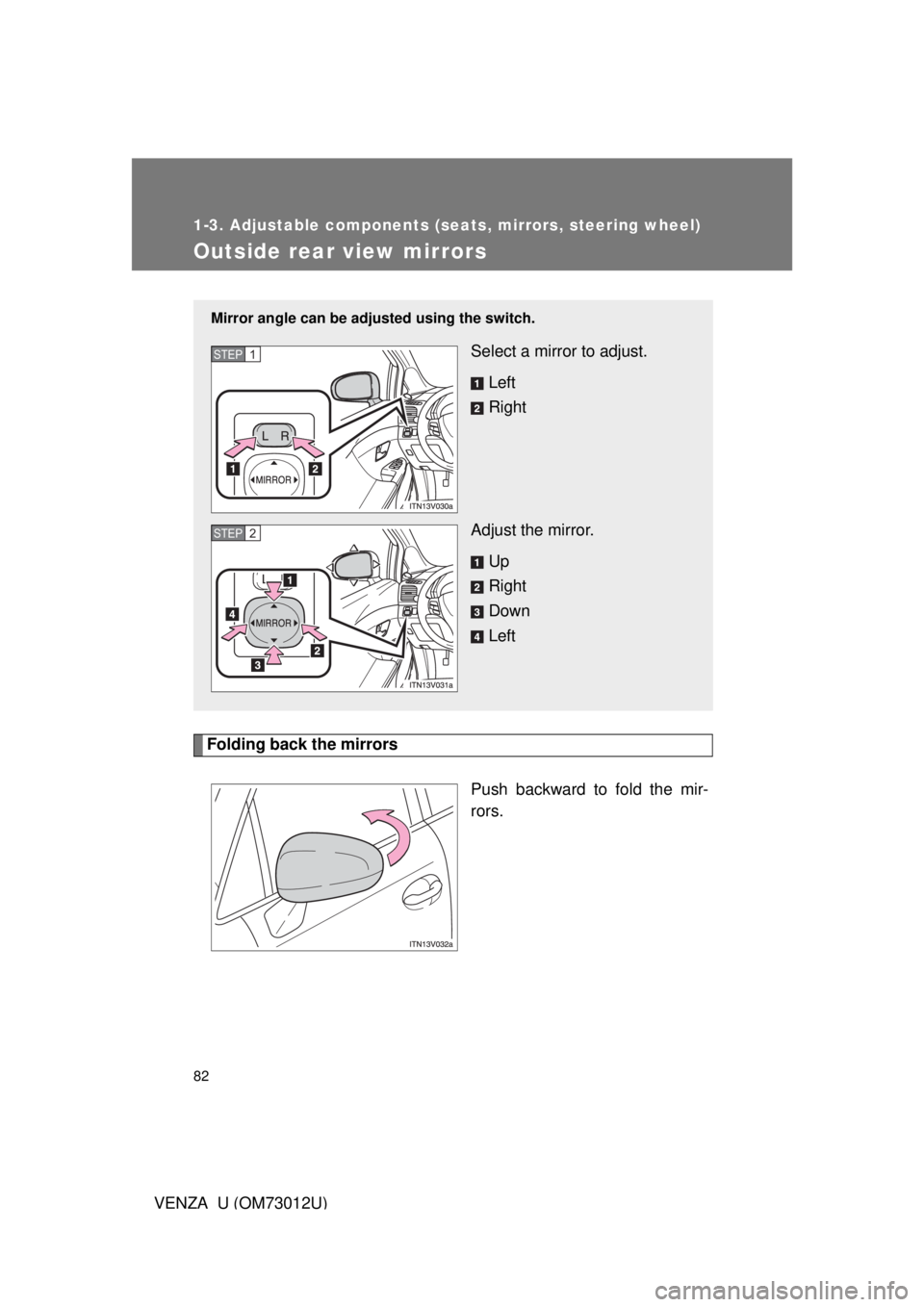

Outside rear view mirrors
Folding back the mirrorsPush backward to fold the mir-
rors.
Mirror angle can be adjusted using the switch.
Select a mirror to adjust.
Left
Right
Adjust the mirror. Up
Right
Down
LeftSTEP1
STEP2

83
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
VENZA_U (OM73012U)
■Mirror angle can be adjusted when
Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
■ When the mirrors are fogged up (veh icles with outside rear view mirror
defoggers)
Turn on the rear window defogger to defog the mirrors. ( P. 278)

84 1-3. Adjustable components (seats, mirrors, steering wheel)
VENZA_U (OM73012U)
CAUTION
■While driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
● Do not adjust the mirrors.
● Do not drive with the mirrors folded back.
● Before driving, be sure to extend mirrors and make an adjustment prop-
erly.
■ When the mirror defoggers are operating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
NOTICE
■If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

85
1
Before driving
VENZA_U (OM73012U)
1-4. Opening and closing the windows and moon roof

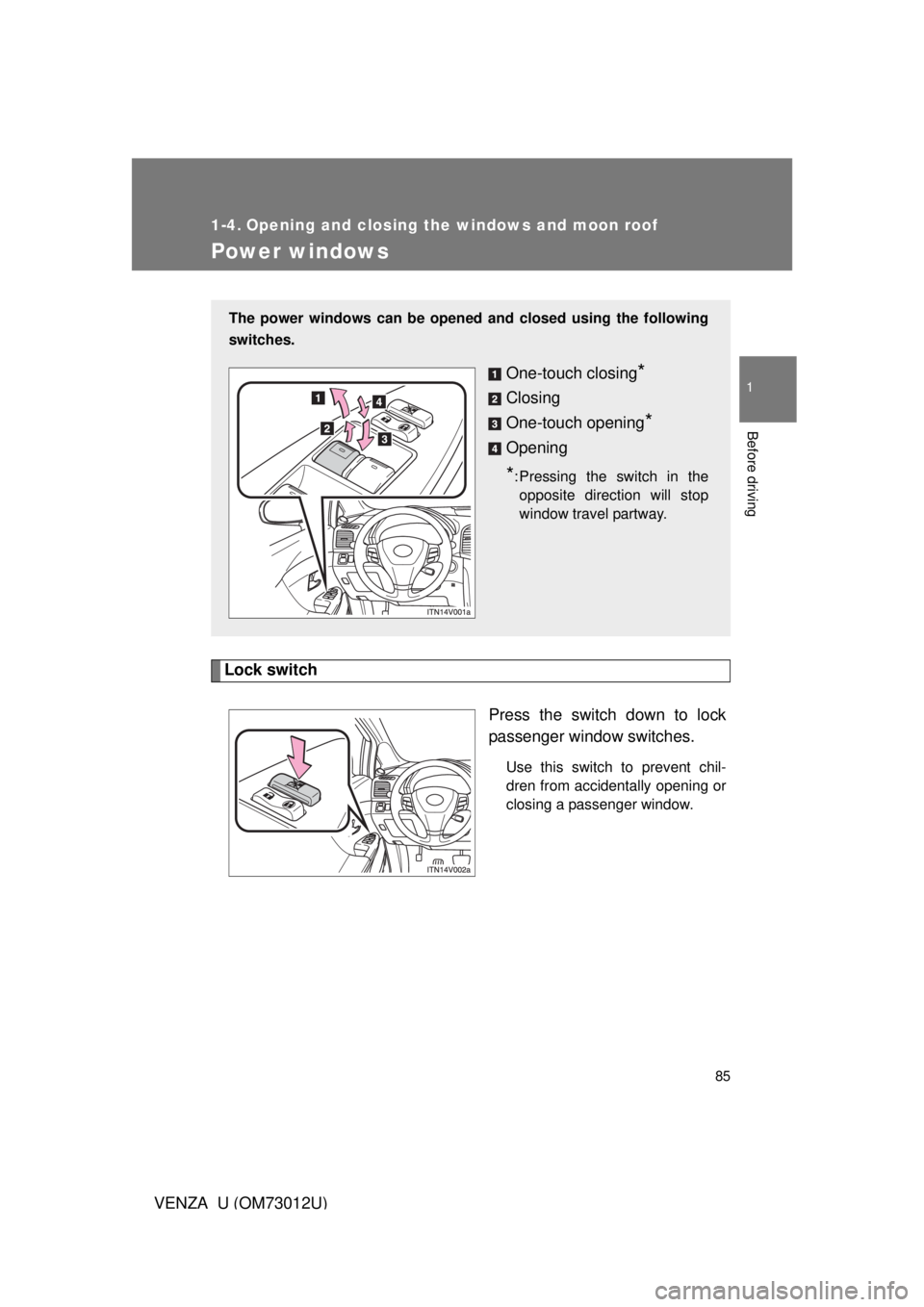

Power windows
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
One-touch closing*
Closing
One-touch opening
*
Opening
*: Pressing the switch in the opposite direction will stop
window travel partway.

86 1-4. Opening and closing the windows and moon roof
VENZA_U (OM73012U)
■The power windows can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■ Operating the power windows af ter turning the engine off
Vehicles with smart key system
The power windows can be operated for approximately 45 seconds even
after the “ENGINE START STOP” switch is turned to ACCESSORY mode
or turned off. They cannot, however, be operated once either front door is
opened.
Vehicles without smart key system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They
cannot, however, be operated once either front door is opened.
■ Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.

87
1-4. Opening and closing the windows and moon roof
1
Before driving
VENZA_U (OM73012U)
■
When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the relevant door.
● After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the
“ENGINE START STOP” switch is turned to IGNITION ON mode (vehi-
cles with smart key system) or the engine switch is turned to the “ON”
position (vehicles without smart key system).
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by your Toyota dealer.
STEP1
STEP2
STEP3

88 1-4. Opening and closing the windows and moon roof
VENZA_U (OM73012U)
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
■ Jam protection function
● Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

89
1
1-4. Opening and closing the windows and moon roof
Before driving
VENZA_U (OM73012U)

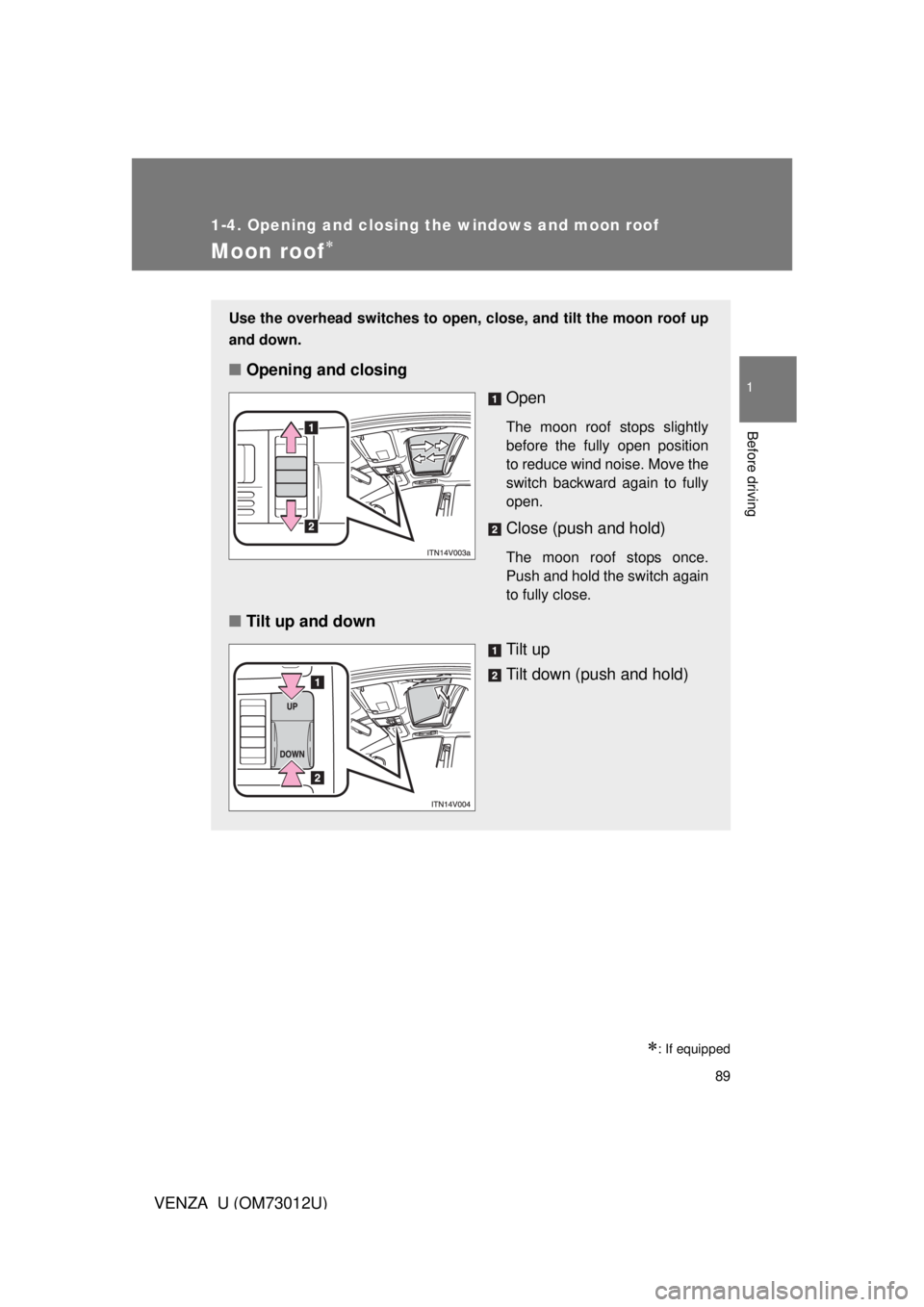

Moon roof
: If equipped
Use the overhead switches to open, close, and tilt the moon roof up
and down.
■Opening and closing
Open
The moon roof stops slightly
before the fully open position
to reduce wind noise. Move the
switch backward again to fully
open.
Close (push and hold)
The moon roof stops once.
Push and hold the switch again
to fully close.
■Tilt up and down
Tilt up
Tilt down (push and hold)

90 1-4. Opening and closing the windows and moon roof
VENZA_U (OM73012U)
■The moon roof can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■ Operating the moon roof af ter turning the engine off
Vehicles with smart key system
The moon roof can be operated for approximately 45 seconds even after
the “ENGINE START STOP” switch is turned to ACCESSORY mode or
turned off. It cannot, however, be operated once either front door is
opened.
Vehicles without smart key system
The moon roof can be operated for approximately 45 seconds even after
the engine switch is turned to the “ACC” or “LOCK” position. It cannot,
however, be operated once either front door is opened.
■ To reduce moon roof wind noise
Drive with the moon roof opened to slightly before the fully open position as
driving with the moon roof opened fully will cause wind noise.
■ Sunshade
 P. 9 2
■ Open moon roof warning buzzer
Vehicles with smart key system
The buzzer sounds and message is shown on the multi-information dis-
play (TFT type only) when the “ENGINE START STOP” switch is turned
off and the driver’s door is opened with the moon roof open.
Vehicles without smart key system
The buzzer sounds and message is shown on the multi-information dis-
play (TFT type only) when the engine switch is turned to the “LOCK” posi-
tion and the driver’s door is opened with the moon roof open.
