TOYOTA VENZA 2012 Owners Manual (in English)

371
3-3. Using the Bluetooth® audio system
3
Interior features
VENZA_U (OM73013U)

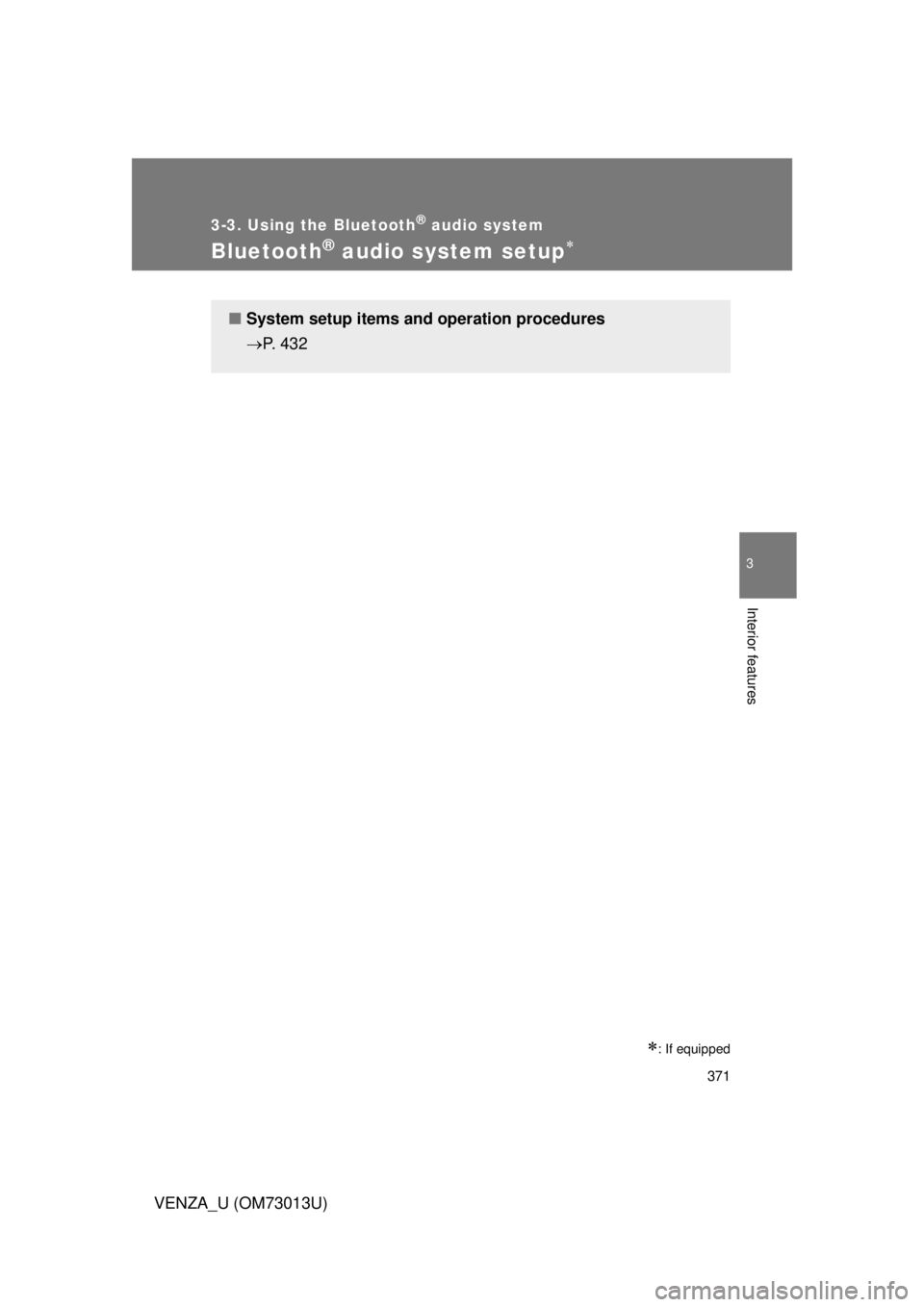

Bluetooth® audio system setup
: If equipped
■System setup items and operation procedures
P. 432

372
VENZA_U (OM73013U)
3-4. Using the rear seat enter tainment system

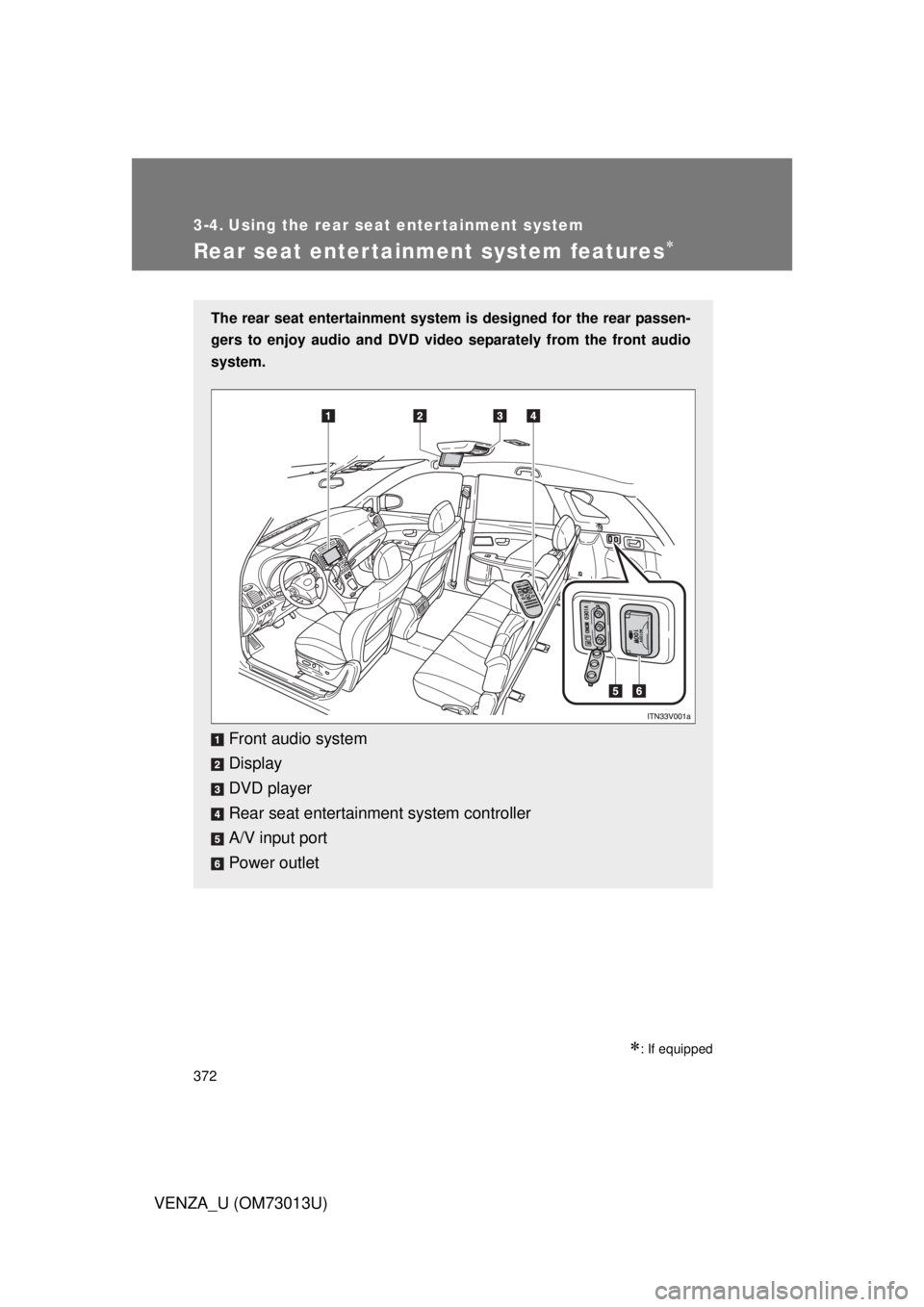

Rear seat entertainment system features
: If equipped
The rear seat entertainment system is designed for the rear passen-
gers to enjoy audio and DVD vide o separately from the front audio
system.
Front audio system
Display
DVD player
Rear seat entertainment system controller
A/V input port
Power outlet

373
3-4. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73013U)
Opening and closing the display
Press the lock release button to
open the display.
Pull the display down to an easily
viewable angle (between 90 and
125).
To close the display, push the
display up until a click is heard.
The illumination of the screen is
automatically turned off when the
display is closed. However, the
rear seat entertainment system is
not turned off.
Loading a disc
Insert the disc into the slot with
the label side up.
The “DISC” indicator light turns
on while the disc is loaded.
The player will play the track or
chapter, and will repeat it after it
reaches the end.

374 3-4. Using the rear seat entertainment system
VENZA_U (OM73013U)
Ejecting a discPress and remove the disc.
Turning the rear seat entertainment system power on/off■ Operating from the front audio system
Selecting either the front audio
system or DVD player audio
for the speakers
Press that corresponds
to “OFF”, to turn off the rear
seat entertainment system.
Press that corresponds to
“ON”, to turn on the rear seat
entertainment system.

375
3-4. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73013U)
Setting the rear seat entertainment system lock
Front audio system Selecting either the front audio
system or DVD player audio
for the speakers
Selecting “LOCK” or
“UNLOCK” for the rear seat
entertainment system
The rear seat entertainment sys-
tem lock remains on, even when
the engine switch is turned off.
DVD player display

376 3-4. Using the rear seat entertainment system
VENZA_U (OM73013U)
■The rear seat entertainmen t system can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
■ When
appears on the screen
It indicates that the selected icon cannot be used at this time.
■ If a disc is removed from the fr ont audio system while the rear seat
entertainment system is in use
The rear seat entertainment system will be turned off.
■ Error messages
DISC CHECK: Indicates that the disc is dirty, damaged or was inserted
upside down. Clean the disc or insert it correctly.
REGION CODE ERROR: Indicates that the DVD region code is not set
properly.
DVD ERROR: Indicates that there is a problem inside the player. Eject the
disc. Set the disc again.
If the malfunction still exists, take the vehicle to your Toyota
dealer.

377
3-4. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73013U)
■
Before using the controller (for new vehicle owners)
■ When the controller batteries are fully depleted
Remove the cover.
Remove the insulating sheet.STEP1
STEP2
Remove the depleted batteries and install
new 3 AA batteries.

378 3-4. Using the rear seat entertainment system
VENZA_U (OM73013U)
■If the remote controller batteries are discharged
The following symptoms may occur.
● The rear seat entertainment system controller will not function properly.
● The operational range is reduced.
■ When using AA batteries
Batteries can be purchased at your Toyota dealer, electric appliance shop, or
camera stores.
Replace only with the same or equivalent type recommended by a Toyota
dealer.
Dispose of used batteries according to the local laws.
■ Headphones
With some headphones generally available in the market, it may be difficult
to catch signals properly. Toyota recommends the use of Toyota genuine
wireless headphones.
Contact your Toyota dealer for further details.
■ Vo l u m e
● Adjust the volume when you use the headphones. Loud sounds may have
a significant impact on the human body.
● Conversational speech on some DVDs is recorded at a low volume to
emphasize the impact of sound effects. If you adjust the volume assuming
that the conversations represent the maximum volume level that the DVD
will play, you may be startled by louder sound effects or when you change
to a different audio source. Be sure to adjust the volume with this in mind.

379
3-4. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73013U)
CAUTION
■
When the rear seat entert ainment system is not used
Keep the display closed.
In the event of an accident or sudden braking, an occupant may hit the
opened display, resulting in injury.
■ To prevent accidents and electric shock
Do not disassemble or modify the remote controller.
■ When the remote controller is not used
Stow the remote controller.
Injuries may result in the event of an accident or sudden braking.
■ Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child
they can cause choking. Failure to do so could result in death or serious
injury.
■ DVD video precaution
Conversational speech on some DVDs is recorded at a low volume to
emphasize the impact of sound effects. If you adjust the volume assuming
that the conversations represent the maximum volume level that the DVD
will play, you may be startled by louder sound effects or when you change to
a different audio source.
Loud sounds may have a significant impact on the human body or pose a
driving hazard. Keep this in mind when you adjust the volume.

380 3-4. Using the rear seat entertainment system
VENZA_U (OM73013U)
NOTICE
■Cleaning the display
Wipe the display with a dry soft cloth.
If the screen is wiped with a rough cloth, the surface of the screen may be
scratched.
■ To prevent damage to the remote controller
● Keep the remote controller away from direct sunlight, high temperature
and high humidity.
● Do not drop or knock the remote controller against hard objects.
● Do not sit on or place heavy objects on the remote controller.
■ Discs and adapters that cannot be used
 P. 317
■ Player precautions
Failure to follow the precautions below may result in damage to the discs or
the player itself.
● Do not insert anything other than discs into the disc slot.
● Do not apply oil to the player.
● Store discs away from direct sunlight.
● Never try to disassemble any part of the player.
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.
