1-2. Opening, closing and locking the doors
1
Before driving
VENZA_U (OM73013U)
■

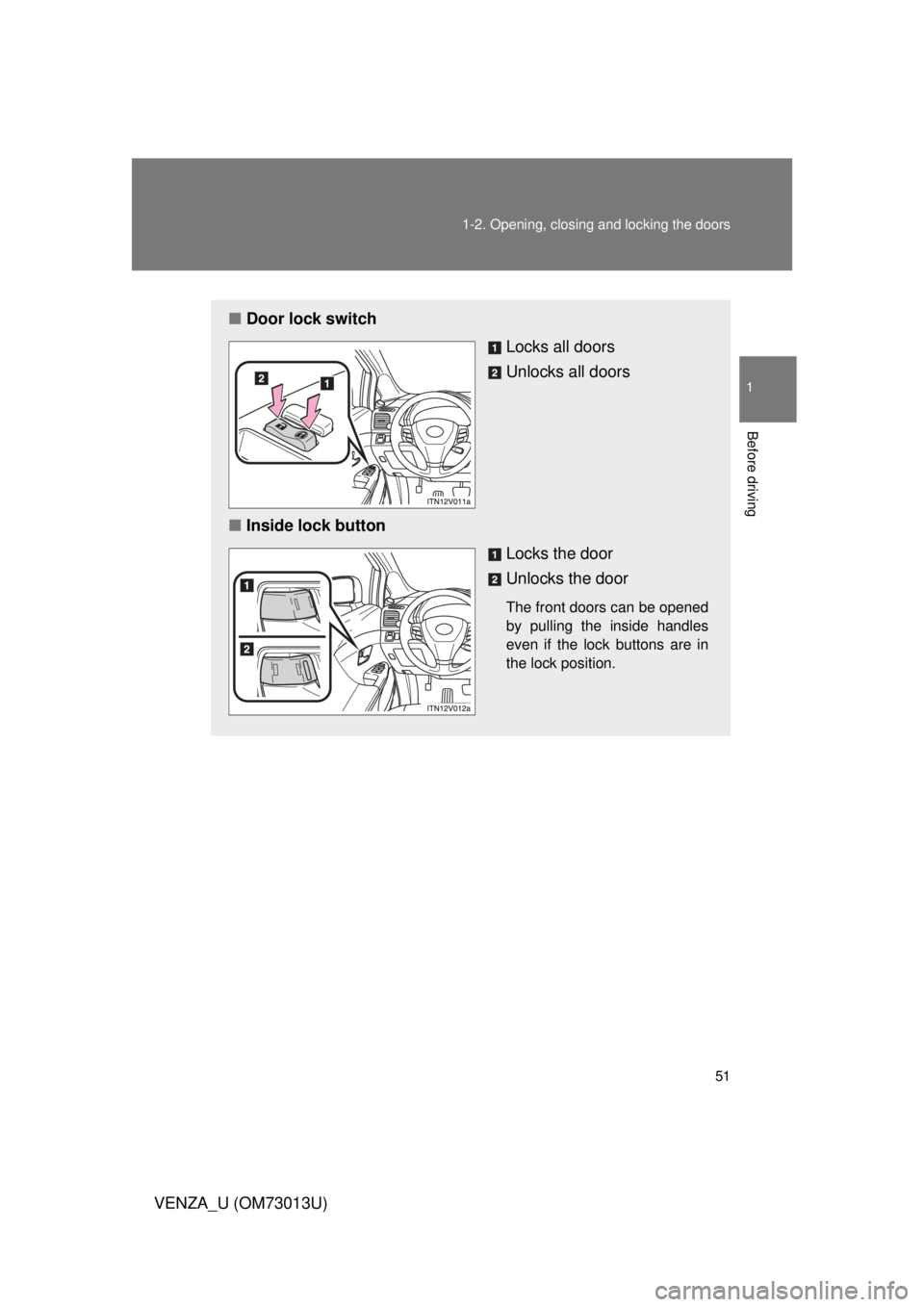

Door lock switch
Locks all doors
Unlocks all doors
■ Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.

52 1-2. Opening, closing and locking the doors
VENZA_U (OM73013U)
Locking the driver’s doors from the outside without a keyMove the inside lock button to the lock position.
Close the door.
Vehicles with smart key system
The door cannot be locked if the “ENGINE START STOP” switch is
in ACCESSORY or IGNITION ON mode, or the electronic key is
left inside the vehicle.
Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.
Vehicles without smart key system
The door cannot be locked if either front door is open and the key
is in the engine switch.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock
is set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP1
STEP2

53
1-2. Opening, closing and locking the doors
1
Before driving
VENZA_U (OM73013U)
Automatic door locking and unlocking systems
The following functions can be set or canceled:
■ Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Vehicles with TFT type mu lti-information display
The function settings can be ch anged by operating the multi-
information display. ( P. 657)
Vehicles with smart key system:
Close all the doors and switch the “ENGINE START STOP”
switch to IGNITION ON mode. (Perform within 20 sec-
onds.)
Vehicles without smart key system:
Close all the doors and switch the engine switch to the “ON”
position. (Perform within 20 seconds.)
FunctionOperation
Shift position linked
door locking function Shifting the shift lever out of “P” locks all
doors.
Shift position linked
door unlocking function Shifting the shift lever to “P” unlocks all
doors.
Speed linked door lock-
ing function All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
“ENGINE START STOP” switch OFF.
STEP1
STEP2
STEP2

54 1-2. Opening, closing and locking the doors
VENZA_U (OM73013U)Shift the shift lever to “P” or “N”,
press and hold the door lock
switch (
or ) for about 5 sec-
onds then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown as follows.
Use the same procedure to can-
cel the function.
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
STEP2
FunctionShift lever positionDoor lock switch position
Shift position linked door lock-
ing function “P”
Shift position linked door
unlocking function
Speed linked door locking func-
tion “N”
Driver’s door linked door unlock-
ing function

55
1-2. Opening, closing and locking the doors
1
Before driving
VENZA_U (OM73013U)
■
Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked.
Depending on the force of the impact or the type of accident, however, the
system may not operate.
■ Customization that can be configured at Toyota dealer or by the TFT
type multi-information display
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 657)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock all doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in death or serious injury.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seat.

56
1-2. Opening, closing and locking the doors
VENZA_U (OM73013U)

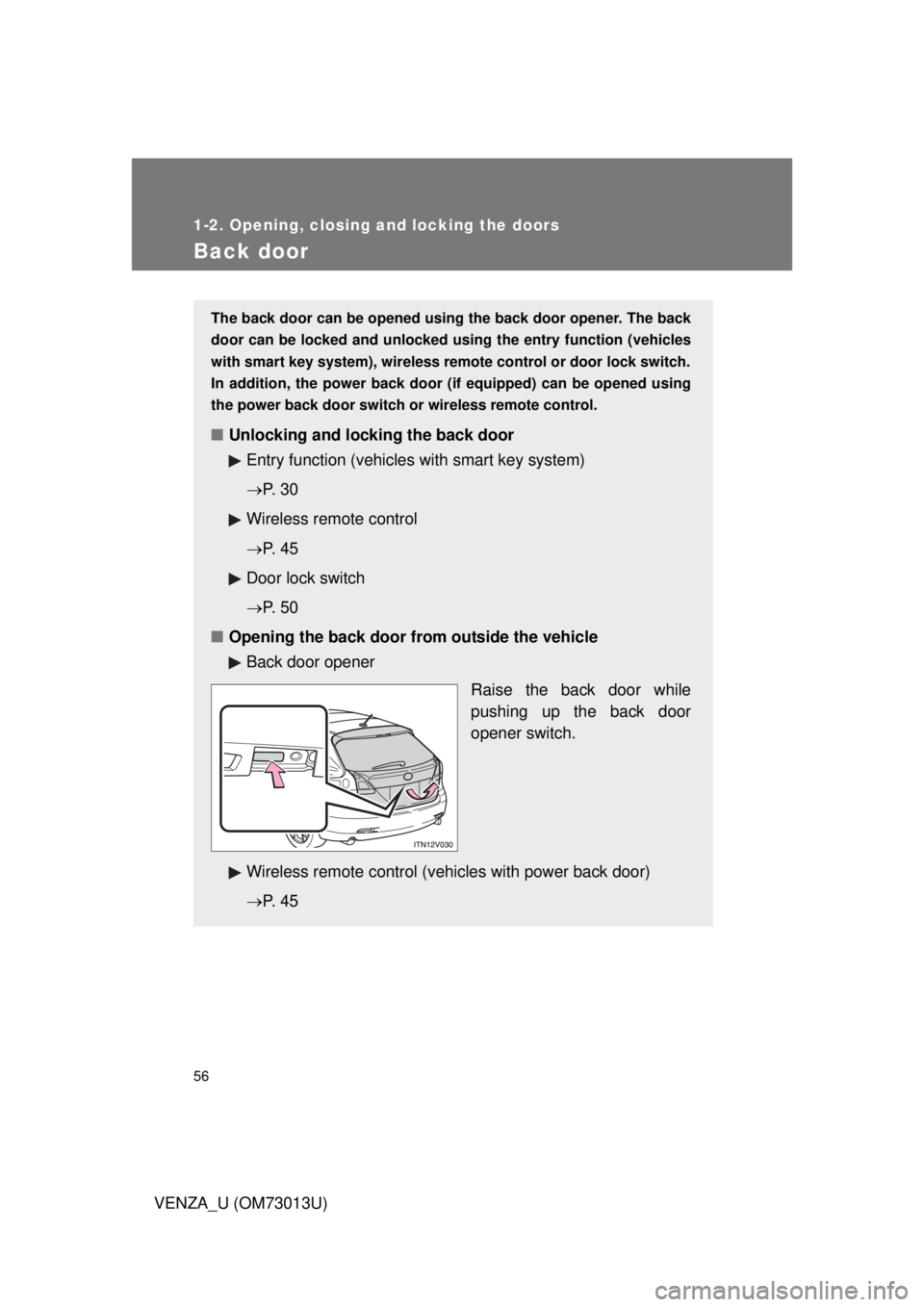

Back door
The back door can be opened using the back door opener. The back
door can be locked and unlocked us ing the entry function (vehicles
with smart key system), wireless remote control or door lock switch.
In addition, the power back door (i f equipped) can be opened using
the power back door switch or wireless remote control.
■Unlocking and locking the back door
Entry function (vehicles with smart key system)
 P. 3 0
Wireless remote control
 P. 4 5
Door lock switch
 P. 5 0
■ Opening the back door from outside the vehicle
Back door opener
Raise the back door while
pushing up the back door
opener switch.
Wireless remote control (vehicles with power back door)
 P. 4 5

57
1-2. Opening, closing and locking the doors
1
Before driving
VENZA_U (OM73013U)
Power back door switch (veh
icles with power back door)
Push the switch to close.
Pressing the switch again while
the power back door is closing
will cause it to open again.
However, the reverse operation
cannot be performed for the first
second after pressing the switch
to close the door.
The back door can be opened even if it is locked. Lock the back door
again when you l eave the vehicle. The back door will not lock auto-
matically after it has been opened and then closed.
A buzzer sounds and the emergency flashers flash twice to indicate
that the back door has been opened/closed.
■ Opening the back door from inside the vehicle (vehicles
with power back door)
Push and hold the switch to
open/close.
Pressing the switch again
while the power back door is
operating will cause the opera-
tion to reverse.
However, the reverse opera-
tion cannot be performed for
the first second after pressing
the switch to operate the door.

58 1-2. Opening, closing and locking the doors
VENZA_U (OM73013U)
Canceling the power back door system (vehicles with power
back door)
Turn the main switch to disable
the power back door system.Inoperative
Operative
The back door cannot be oper-
ated even with the wireless
remote control or power back
door switch.
A buzzer will sound twice if the
power back door switch is
pressed while the power back
door system is inoperative.
■When closing the back door
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.
Be careful not to pull the back door side-
ways when closing the back door with the
handle.

59
1-2. Opening, closing and locking the doors
1
Before driving
VENZA_U (OM73013U)
■
The power back door can be opened/closed when
Vehicles with smart key system
●The “ENGINE START STOP” switch is in IGNITION ON mode, and
the shift lever is in “P”.
● The “ENGINE START STOP” switch is in OFF or ACCESSORY
mode.
Vehicles without smart key system
● The engine switch is in the “ON” position, and the shift lever is in “P”.
● The engine switch is in the “LOCK” or “ACC” position.
■ Jam protection function (vehicles with power back door)
If anything obstructs the power back door while it is closing/opening, the
back door will automatically operate in the opposite direction.
■ If the power back door does not work
The back door must be initialized. To initialize, close the back door com-
pletely by hand.
■ Back door closer
In the event that the back door is left slightly open, the back door closer will
automatically close it to the fully closed position.

60 1-2. Opening, closing and locking the doors
VENZA_U (OM73013U)
CAUTION
■While driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
