TOYOTA VENZA 2012 Owners Manual (in English)

5
When trouble arises
621
5-2. Steps to take in an emergency
VENZA_U (OM73013U)
CAUTION
■
If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: Stop the engine by press-
ing and holding the “ENGINE
START STOP” switch for 3
consecutive seconds or more.
Stop the vehicle in a safe place by the road.STEP4
Press and hold for 3 seconds or more
STEP5

622 5-2. Steps to take in an emergency
VENZA_U (OM73013U)

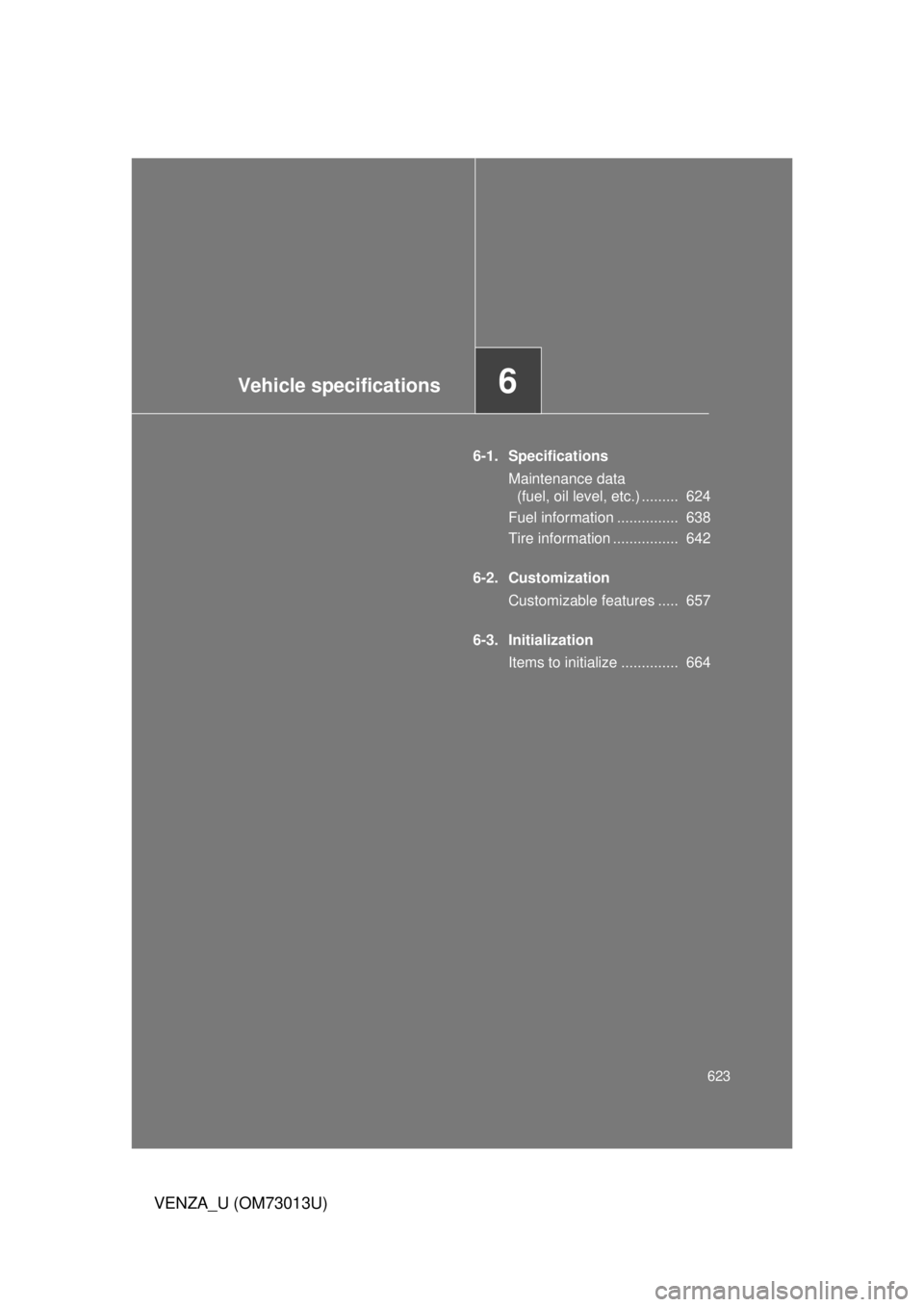

Vehicle specifications6
623
VENZA_U (OM73013U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 624
Fuel information ............... 638
Tire information ................ 642
6-2. Customization Customizable features ..... 657
6-3. Initialization Items to initialize .............. 664

624
VENZA_U (OM73013U)
6-1. Specifications

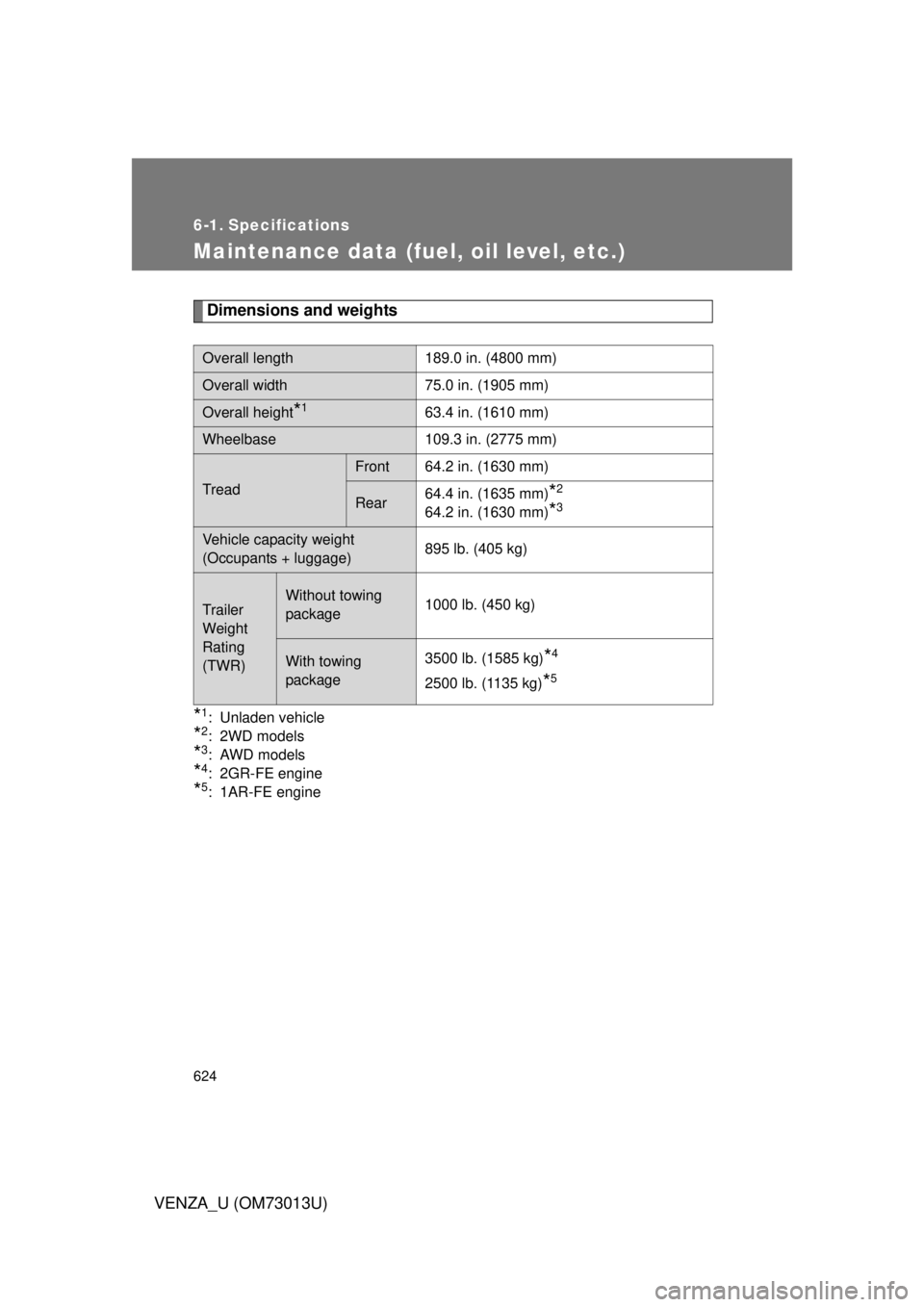

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicle
*2: 2WD models
*3: AWD models
*4: 2GR-FE engine
*5: 1AR-FE engine
Overall length189.0 in. (4800 mm)
Overall width75.0 in. (1905 mm)
Overall height*163.4 in. (1610 mm)
Wheelbase109.3 in. (2775 mm)
Tread
Front64.2 in. (1630 mm)
Rear64.4 in. (1635 mm)*2
64.2 in. (1630 mm)*3
Vehicle capacity weight
(Occupants + luggage)895 lb. (405 kg)
Trailer
Weight
Rating
(TWR)Without towing
package1000 lb. (450 kg)
With towing
package3500 lb. (1585 kg)*4
2500 lb. (1135 kg)*5

625
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73013U)
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.

626 6-1. Specifications
VENZA_U (OM73013U)■
Engine number
2GR-FE engine
The engine number is stamped
on the engine block as shown.
1AR-FE engine

627
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73013U)

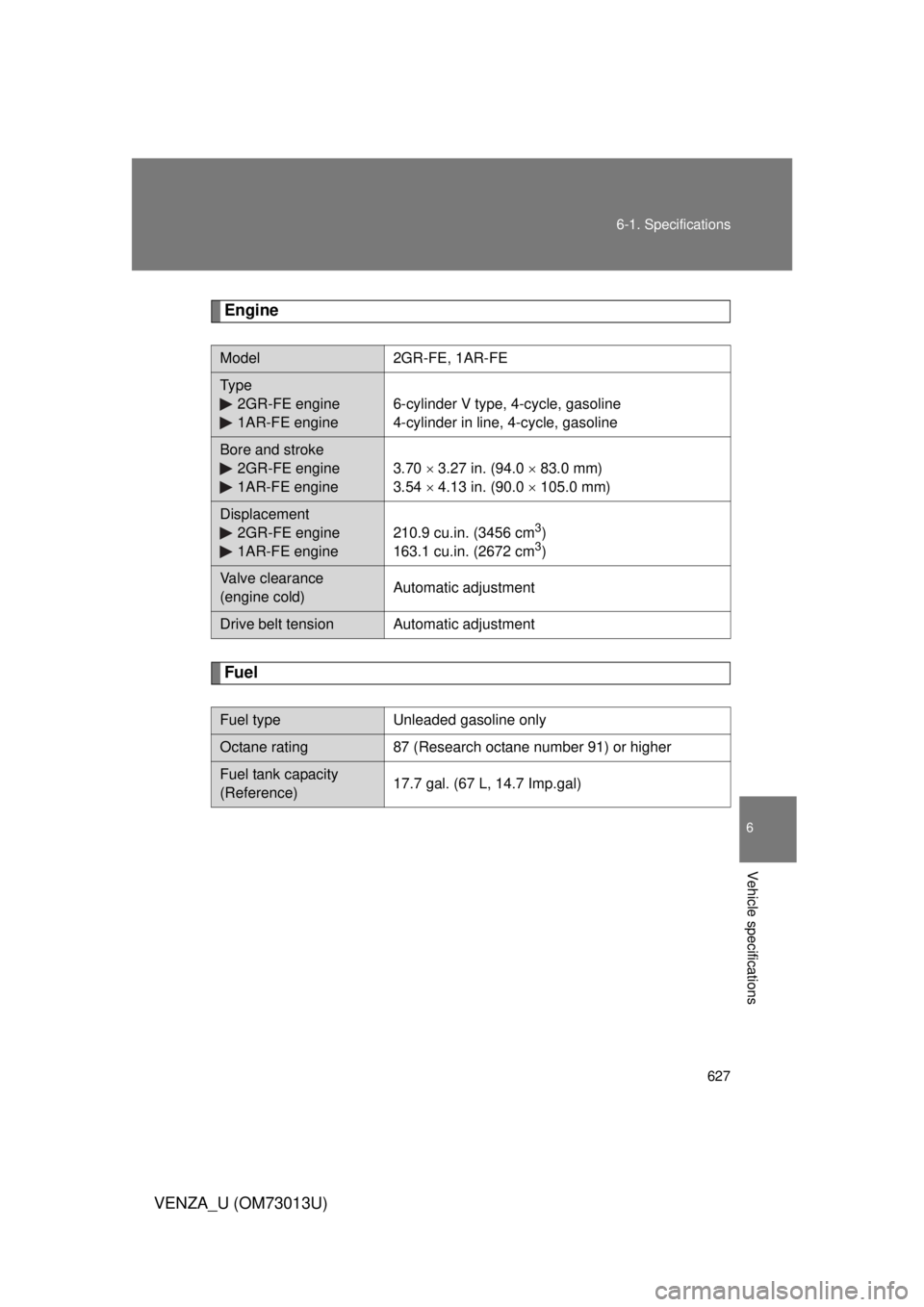

Engine
Fuel
Model2GR-FE, 1AR-FE
Ty p e
2GR-FE engine
1AR-FE engine
6-cylinder V type, 4-cycle, gasoline
4-cylinder in line, 4-cycle, gasoline
Bore and stroke2GR-FE engine
1AR-FE engine
3.70  3.27 in. (94.0  83.0 mm)
3.54  4.13 in. (90.0  105.0 mm)
Displacement
2GR-FE engine
1AR-FE engine
210.9 cu.in. (3456 cm3)
163.1 cu.in. (2672 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)17.7 gal. (67 L, 14.7 Imp.gal)

628 6-1. Specifications
VENZA_U (OM73013U)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing theengine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
2GR-FE engine
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill 
reference
*)
1AR-FE engine
2GR-FE engine Without filter: 4.2 qt. (4.0 L, 3.5 Imp.qt.)
With filter: 4.7 qt. (4.4 L, 3.9 Imp.qt.)
Without filter: 6.0 qt. (5.7 L, 5.0 Imp.qt.)
With filter: 6.4 qt. (6.1 L, 5.4 Imp.qt.)
Outside temperature

629
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73013U)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubric ant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
1AR-FE engine
Recommended viscosity: SAE 5W-20 or 0W-20
SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
Outside temperature

630 6-1. Specifications
VENZA_U (OM73013U)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allowscold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
