TOYOTA VENZA 2012 Owners Manual (in English)

631
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73013U)

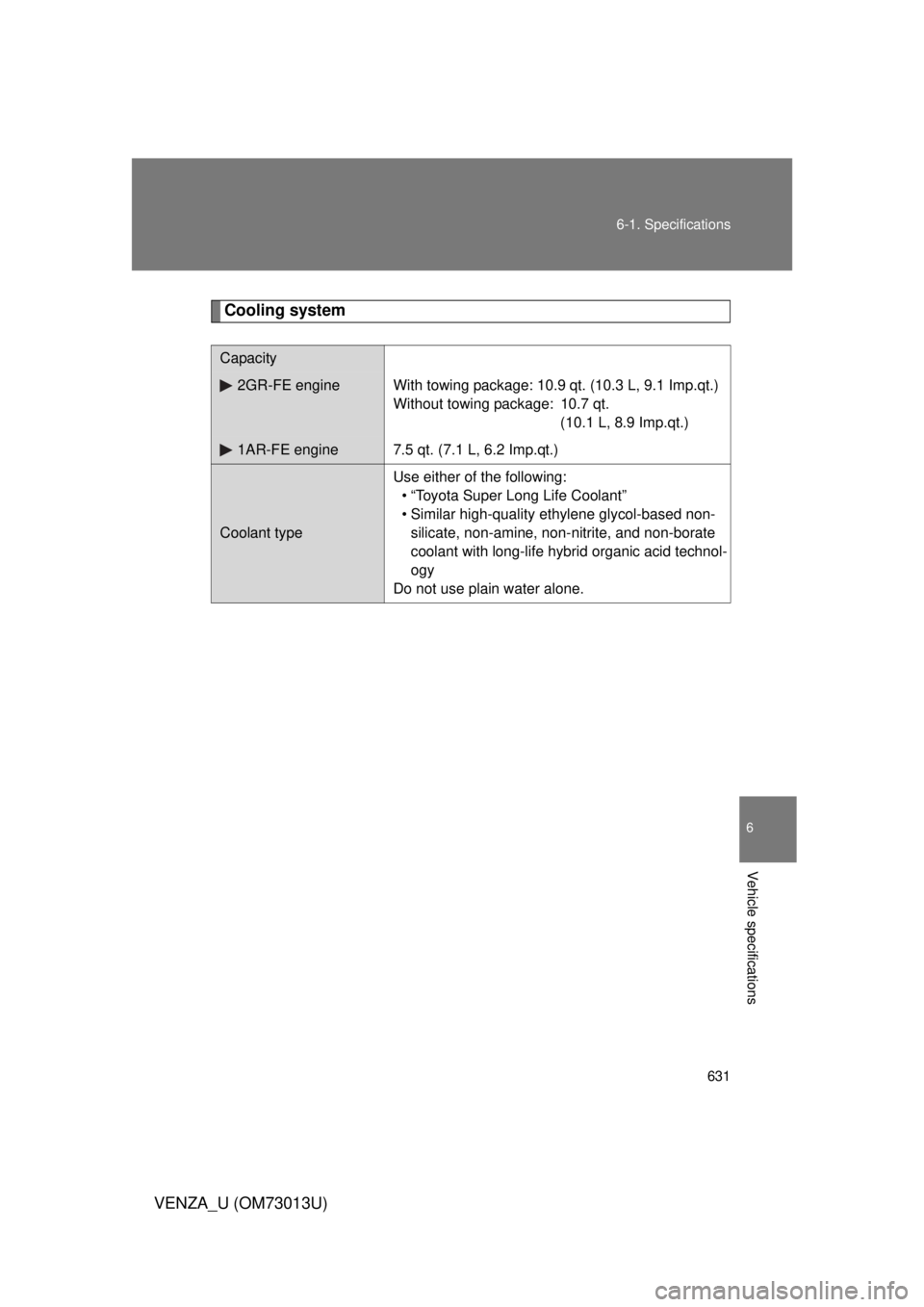

Cooling system
Capacity
2GR-FE engineWith towing package: 10.9 qt. (10.3 L, 9.1 Imp.qt.)
Without towing package: 10.7 qt.
(10.1 L, 8.9 Imp.qt.)
1AR-FE engine7.5 qt. (7.1 L, 6.2 Imp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

632 6-1. Specifications
VENZA_U (OM73013U)
Ignition system
Electrical system
Rear differential (AWD models)
Spark plug
Make DENSO2GR-FE engine
1AR-FE engine
Gap
FK20HR11
SK16HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5 A max.
Oil capacity0.52 qt. (0.50 L, 0.44 Imp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosity
Above 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or
SAE 80W-90

633
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73013U)
Automatic transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, con-
tact your Toyota dealer.
Transfer (AWD models)
Fluid capacity*
2GR-FE engine
1AR-FE engine2WD models: 6.9 qt. (6.5 L, 5.7 Imp.qt.)
AWD models: 7.1 qt. (6.7 L, 5.9 Imp.qt.)
6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transaxle fluid type
Using transaxle fluid other than “Toyota Genuine ATF WS” may cause dete-
rioration in shift quality, locking up of your transaxle accompanied by vibra-
tion, and ultimately damage the transaxle of your vehicle.
Oil capacity0.84 qt. (0.80 L, 0.70 Imp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosityAbove 0 F (-18 C): SAE 90
Below 0 F (-18 C): SAE 80W or 80W-90

634 6-1. Specifications
VENZA_U (OM73013U)

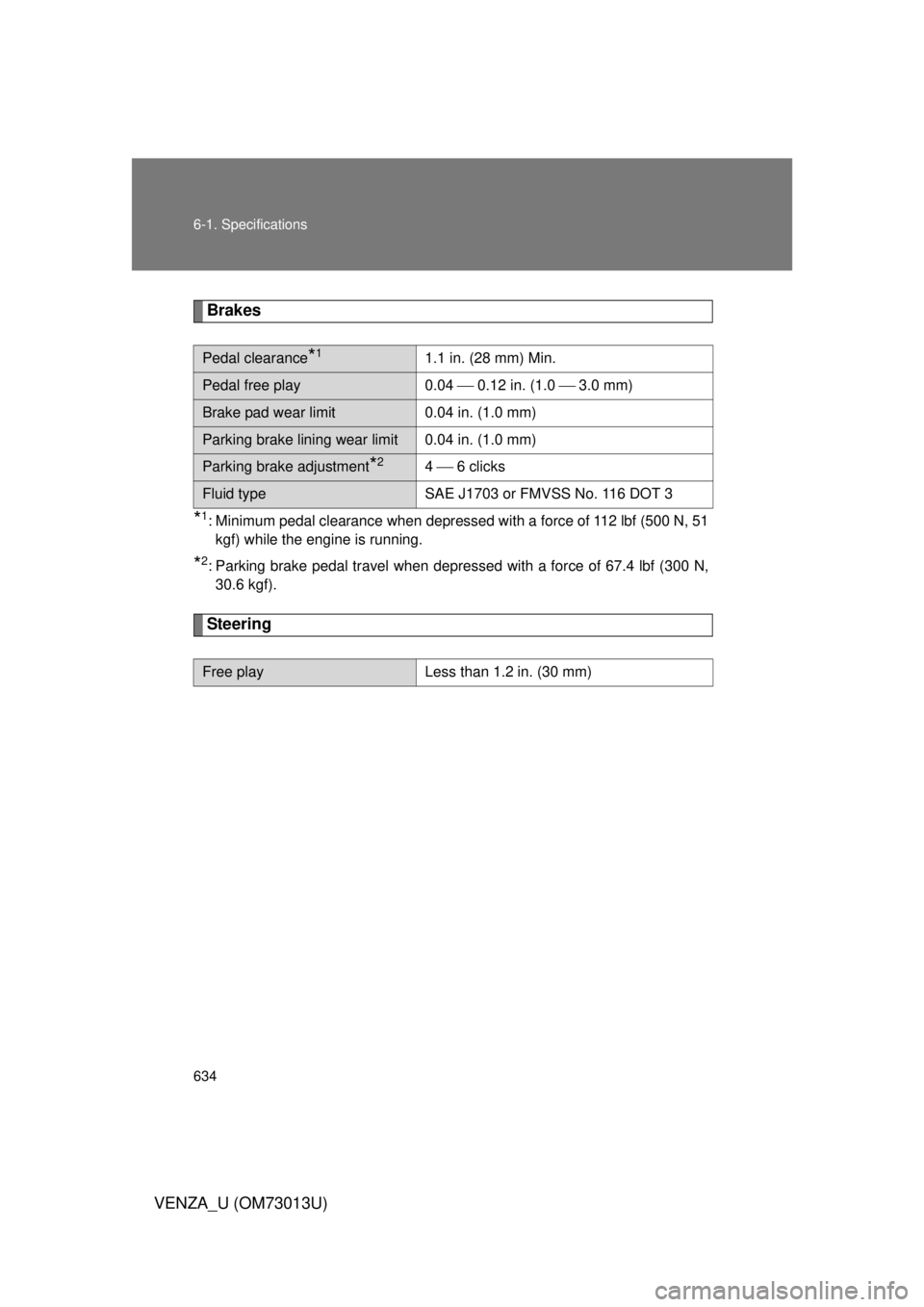

Brakes
*1: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
Steering
Pedal clearance*11.1 in. (28 mm) Min.
Pedal free play0.04  0.12 in. (1.0  3.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake adjustment*24  6 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)

635
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73013U)

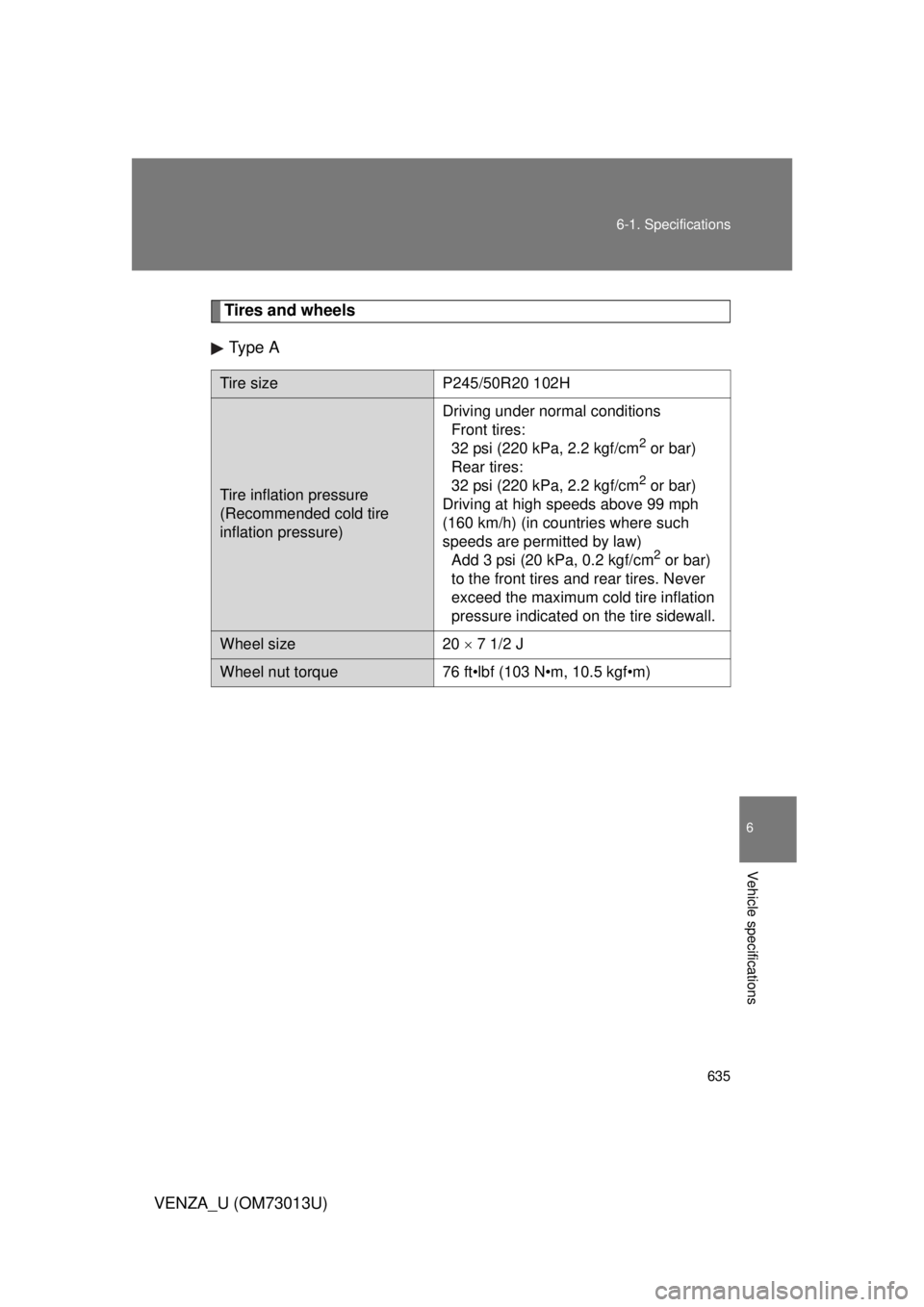

Tires and wheels
Type A
Tire sizeP245/50R20 102H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law) Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size20  7 1/2 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

636 6-1. Specifications
VENZA_U (OM73013U)Type B

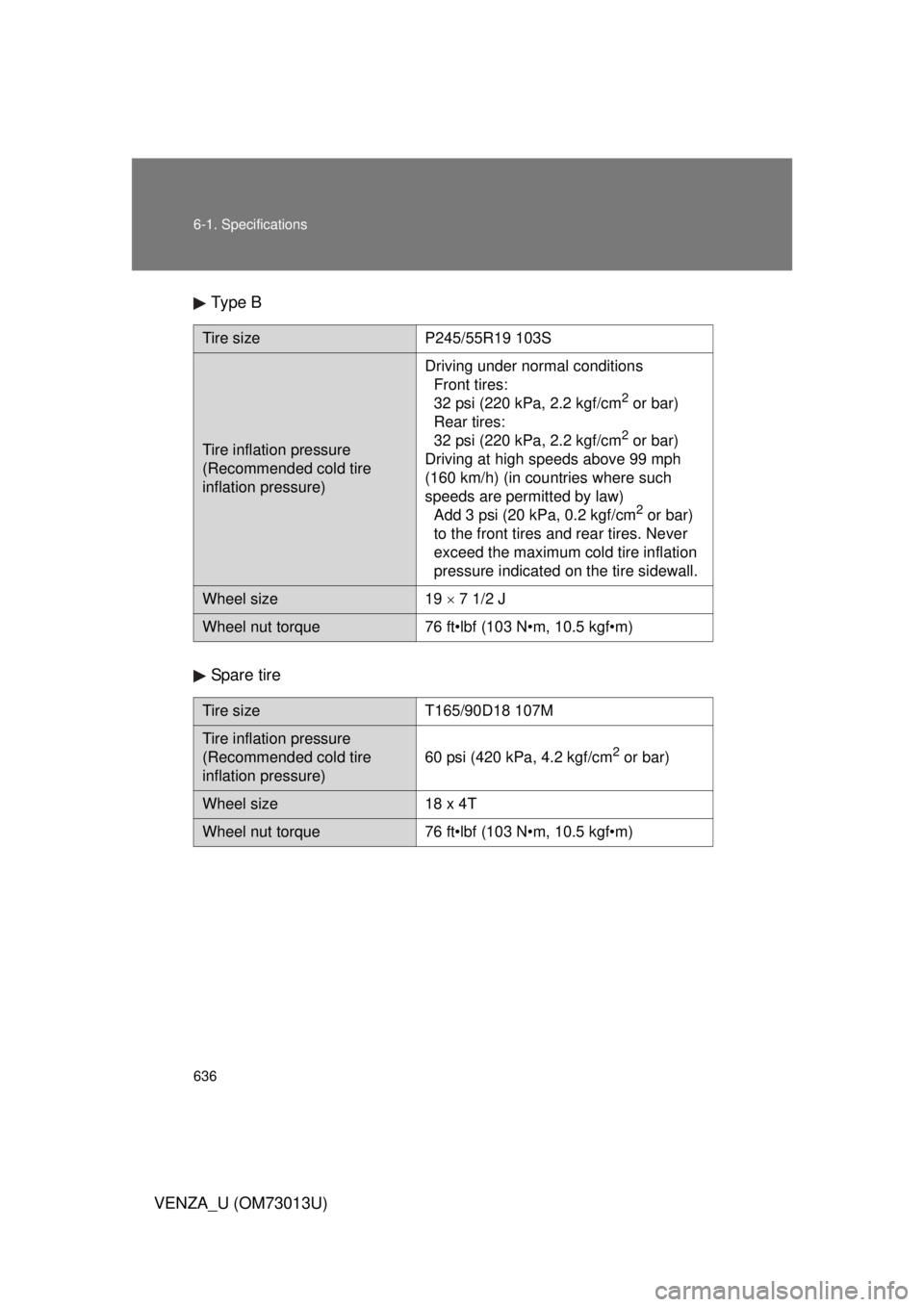

Spare tire
Tire sizeP245/55R19 103S
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions
Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law) Add 3 psi (20 kPa, 0.2 kgf/cm
2 or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size19  7 1/2 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeT165/90D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size18 x 4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

637
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73013U)

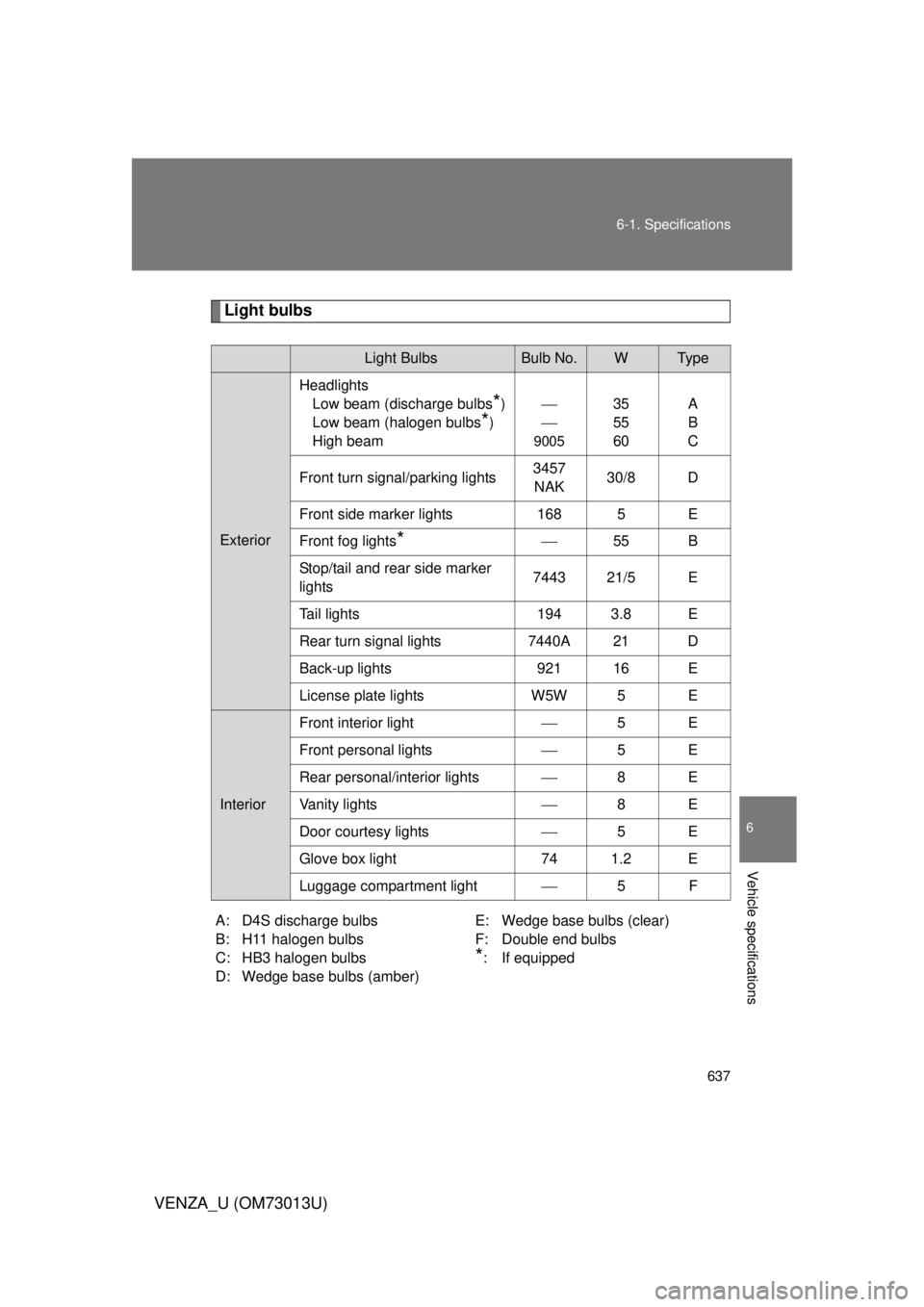

Light bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
Low beam (discharge bulbs
*)
Low beam (halogen bulbs
*)
High beam


9005
35
55
60A
B
C
Front turn signal/parking lights3457 NAK30/8D
Front side marker lights1685E
Front fog lights*55B
Stop/tail and rear side marker
lights744321/5E
Tail lights1943.8E
Rear turn signal lights7440A21D
Back-up lights92116E
License plate lightsW5W5E
Interior
Front interior light5E
Front personal lights5E
Rear personal/interior lights8E
Vanity lights8E
Door courtesy lights5E
Glove box light741.2E
Luggage compartment light5F
A: D4S discharge bulbs
B: H11 halogen bulbs
C: HB3 halogen bulbs
D: Wedge base bulbs (amber) E: Wedge base bulbs (clear)
F: Double end bulbs
*: If equipped

638
6-1. Specifications
VENZA_U (OM73013U)

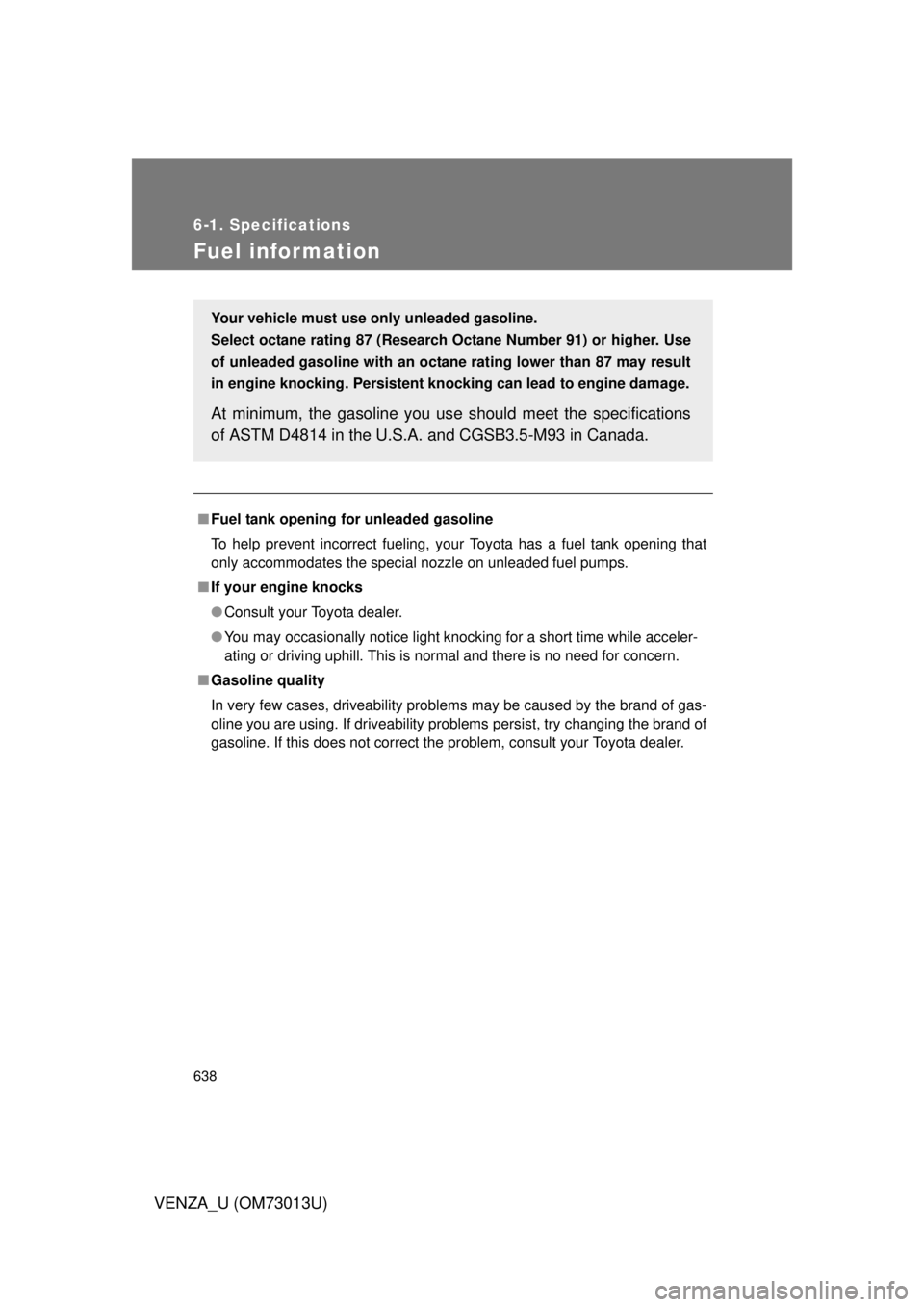

Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
Your vehicle must use only unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

639
6-1. Specifications
6
Vehicle specifications
VENZA_U (OM73013U)
■
Gasoline quality standards
● Automotive manufacturers in the US, Europe and Japan have developed
a specification for fuel quality called World-Wide Fuel Charter (WWFC)
that is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the US, category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and customer satisfaction through better performance.
■ Toyota recommends the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the US contains detergent additives to clean and/or
keep clean intake systems.
■ Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.

640 6-1. Specifications
VENZA_U (OM73013U)
■Toyota does not recomm end blended gasoline
● If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
● Toyota DOES NOT recommend the use of gasoline containing methanol.
■ Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy
clopentadienyl Manganese Tricarbonyl).
Toyota DOES NOT recommend the use of gasoline that contains MMT. If
fuel containing MMT is used, your emission control system may be
adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
● Use only gasoline containing a maxi-
mum of 10% ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 10% etha-
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
some examples of fuel containing more
than 10% ethanol).DO NOT use gasoline
containing more than
10% ethanol.
(15% ethanol)
(50% ethanol)
(85% ethanol)
