Page 401 of 556

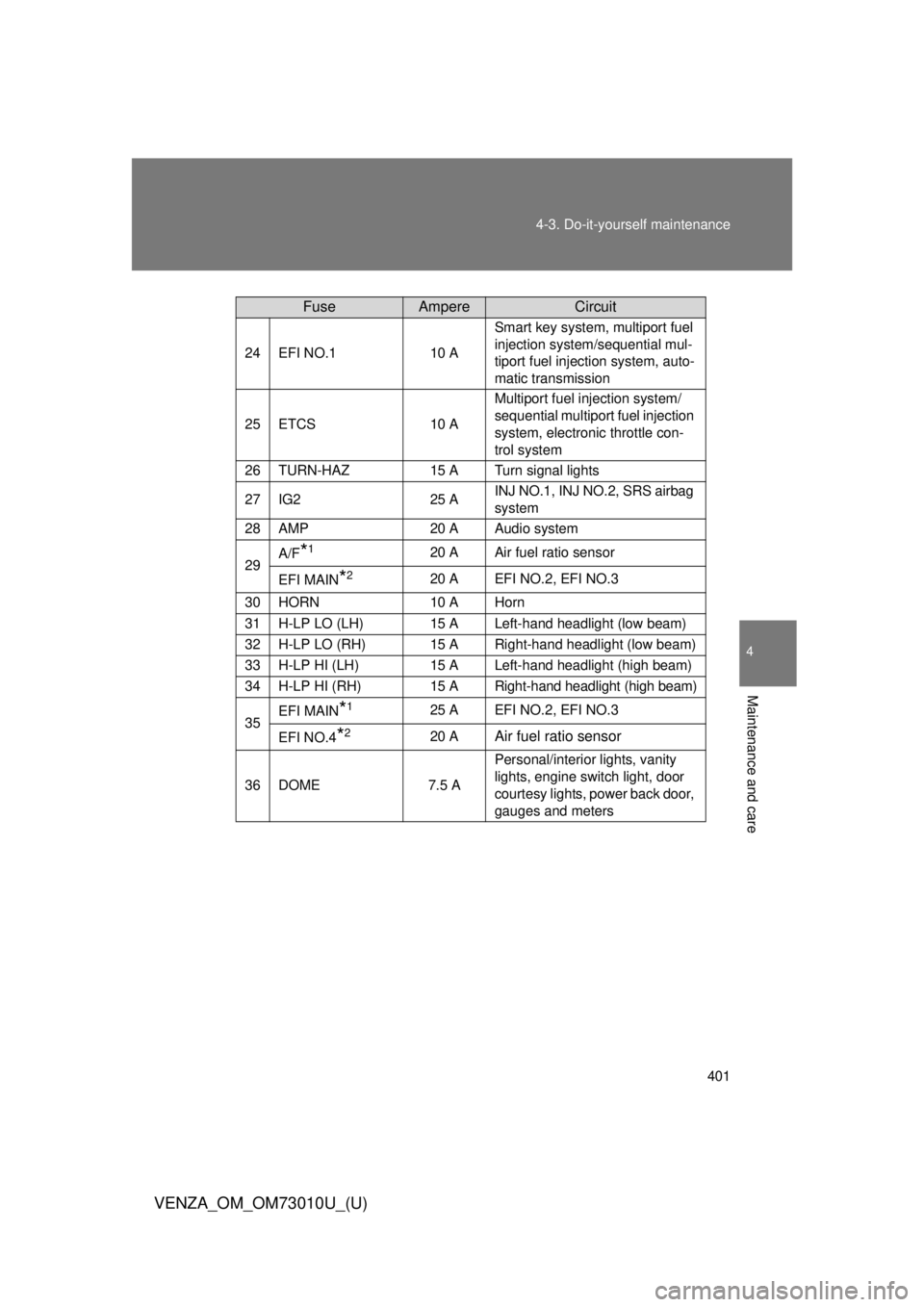

401
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73010U_(U)
24EFI NO.110 A
Smart key system, multiport fuel
injection system/sequential mul-
tiport fuel inje
ction system, auto-
matic transmission
25ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle con-
trol system
26TURN-HAZ15 ATurn signal lights
27IG225 AINJ NO.1, INJ NO.2, SRS airbag
system
28AMP20 AAudio system
29A/F*120 AAir fuel ratio sensor
EFI MAIN*220 AEFI NO.2, EFI NO.3
30HORN10 AHorn
31H-LP LO (LH)15 ALeft-hand headlight (low beam)
32H-LP LO (RH)15 ARight-hand headlight (low beam)
33H-LP HI (LH)15 ALeft-hand headlight (high beam)
34H-LP HI (RH)15 ARight-hand headlight (high beam)
35EFI MAIN*125 AEFI NO.2, EFI NO.3
EFI NO.4*220 AAir fuel ratio sensor
36DOME7.5 A
Personal/interior lights, vanity
lights, engine switch light, door
courtesy lights, power back door,
gauges and meters
FuseAmpereCircuit

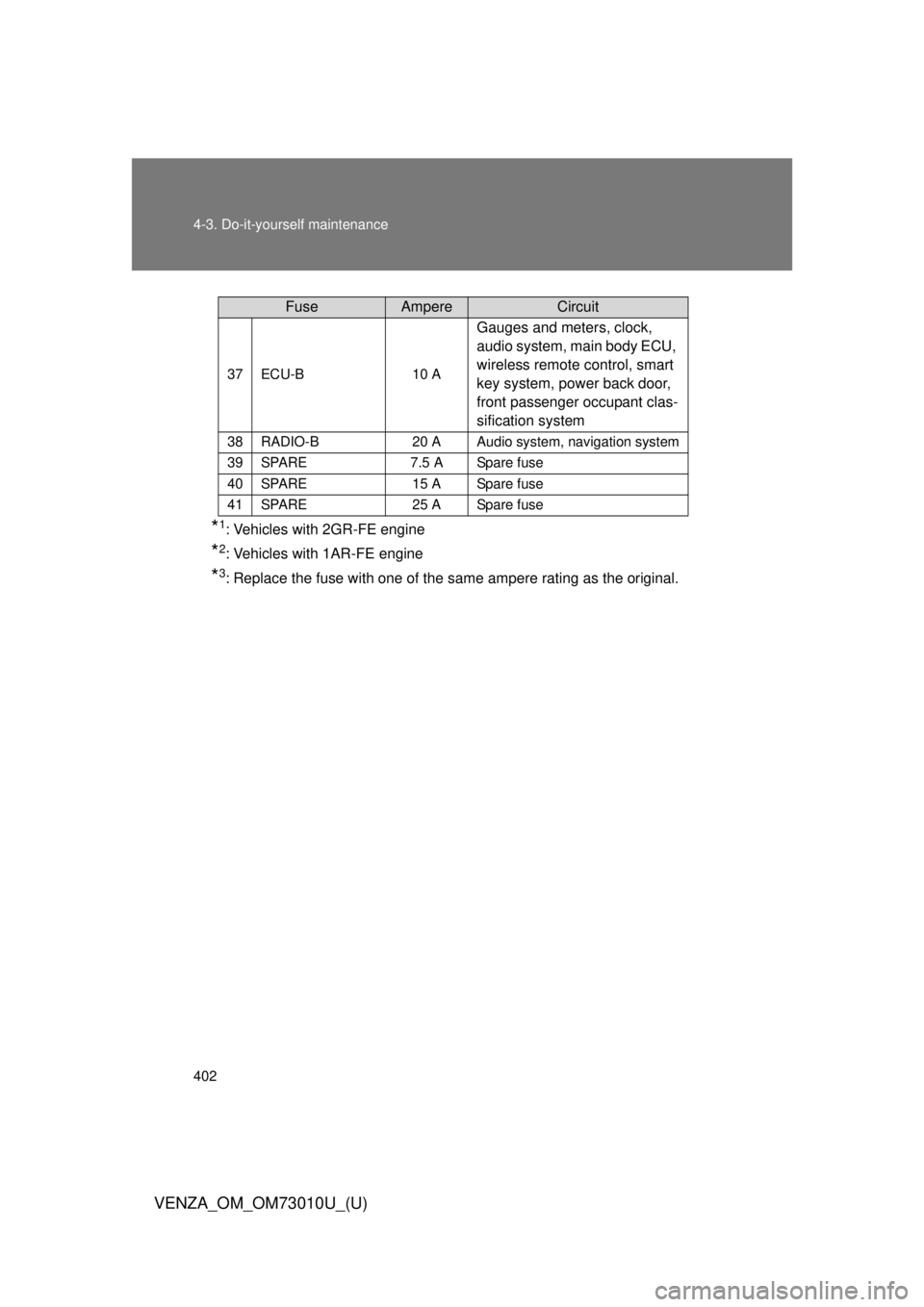

Page 402 of 556
402 4-3. Do-it-yourself maintenance
VENZA_OM_OM73010U_(U)
*1: Vehicles with 2GR-FE engine
*2: Vehicles with 1AR-FE engine
*3: Replace the fuse with one of the same ampere rating as the original.
37ECU-B10 A
Gauges and meters, clock,
audio system, main body ECU,
wireless remote control, smart
key system, power back door,
front passenger occupant clas-
sification system
38RADIO-B20 AAudio system, navigation system
39SPARE7.5 ASpare fuse
40SPARE15 ASpare fuse
41SPARE25 ASpare fuse
FuseAmpereCircuit
Page 403 of 556
403
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73010U_(U)
■

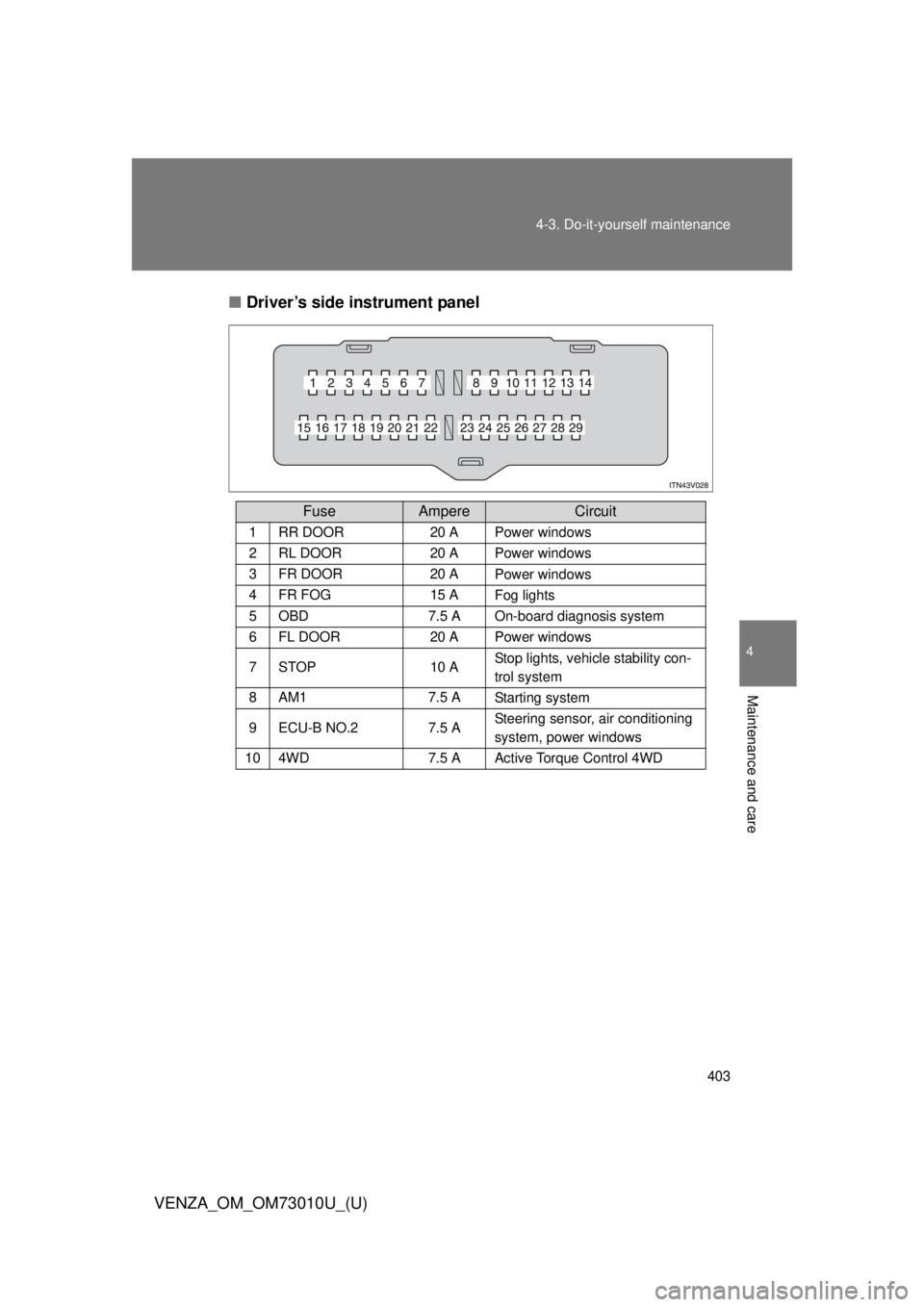

Driver’s side instrument panel
FuseAmpereCircuit
1RR DOOR20 APower windows
2RL DOOR20 APower windows
3FR DOOR20 APower windows
4FR FOG15 AFog lights
5OBD7.5 AOn-board diagnosis system
6FL DOOR20 APower windows
7STOP10 AStop lights, vehicle stability con-
trol system
8AM17.5 AStarting system
9ECU-B NO.27.5 ASteering sensor, air conditioning
system, power windows
104WD7.5 AActive Torque Control 4WD
Page 404 of 556

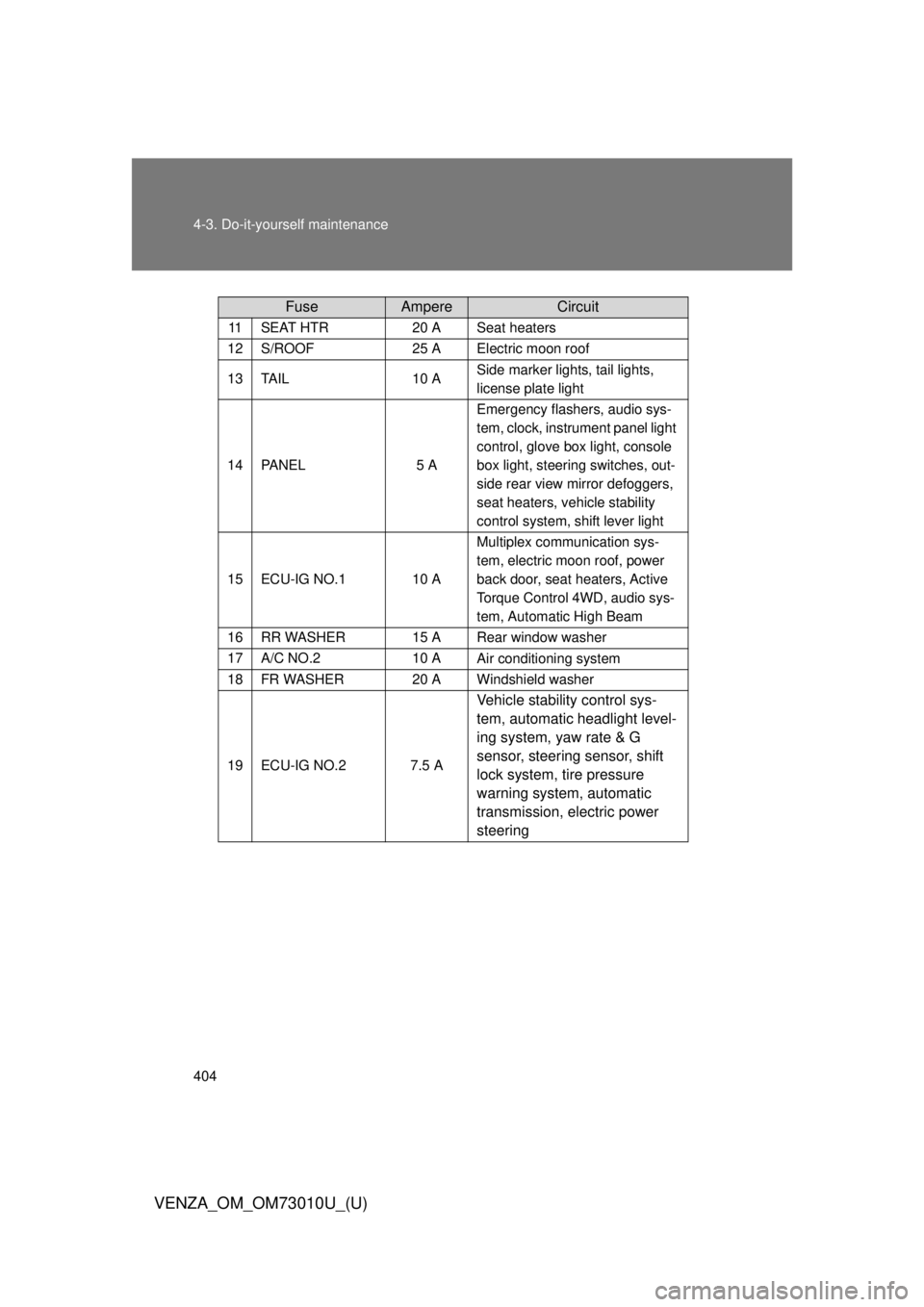

404 4-3. Do-it-yourself maintenance
VENZA_OM_OM73010U_(U)
11SEAT HTR20 ASeat heaters
12S/ROOF25 AElectric moon roof
13TA I L10 ASide marker lights, tail lights,
license plate light
14PA N E L5 A
Emergency flashers, audio sys-
tem, clock, instrument panel light
control, glove box light, console
box light, steering switches, out-
side rear view mirror defoggers,
seat heaters, vehicle stability
control system, shift lever light
15ECU-IG NO.110 A
Multiplex communication sys-
tem, electric moon roof, power
back door, seat heaters, Active
Torque Control 4WD, audio sys-
tem, Automatic High Beam
16RR WASHER15 ARear window washer
17A/C NO.210 AAir conditioning system
18FR WASHER20 AWindshield washer
19ECU-IG NO.27.5 A
Vehicle stability control sys-
tem, automatic headlight level-
ing system, yaw rate & G
sensor, steering sensor, shift
lock system, tire pressure
warning system, automatic
transmission, electric power
steering
FuseAmpereCircuit

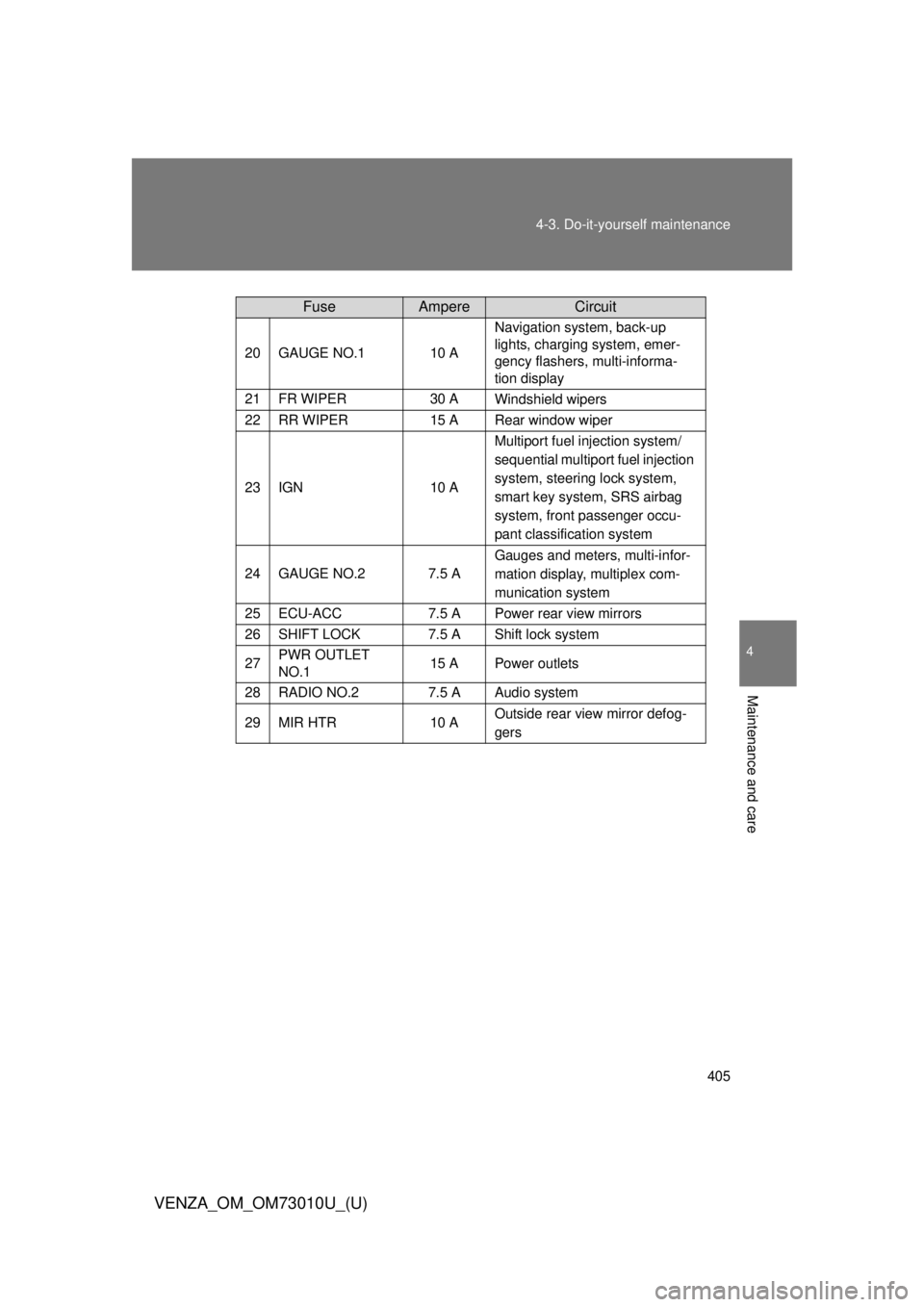

Page 405 of 556
405
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73010U_(U)
20GAUGE NO.110 A
Navigation system, back-up
lights, charging system, emer-
gency flashers, multi-informa-
tion display
21FR WIPER30 AWindshield wipers
22RR WIPER15 ARear window wiper
23IGN10 A
Multiport fuel
injection system/
sequential multiport fuel injection
system, steering lock system,
smart key system, SRS airbag
system, front passenger occu-
pant classification system
24GAUGE NO.27.5 A
Gauges and meters, multi-infor-
mation display, multiplex com-
munication system
25ECU-ACC7.5 APower rear view mirrors
26SHIFT LOCK7.5 AShift lock system
27PWR OUTLET
NO.115 APower outlets
28RADIO NO.27.5 AAudio system
29MIR HTR10 AOutside rear view mirror defog-
gers
FuseAmpereCircuit
Page 406 of 556
406 4-3. Do-it-yourself maintenance
VENZA_OM_OM73010U_(U)
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 407)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.
Page 407 of 556
407
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73010U_(U)

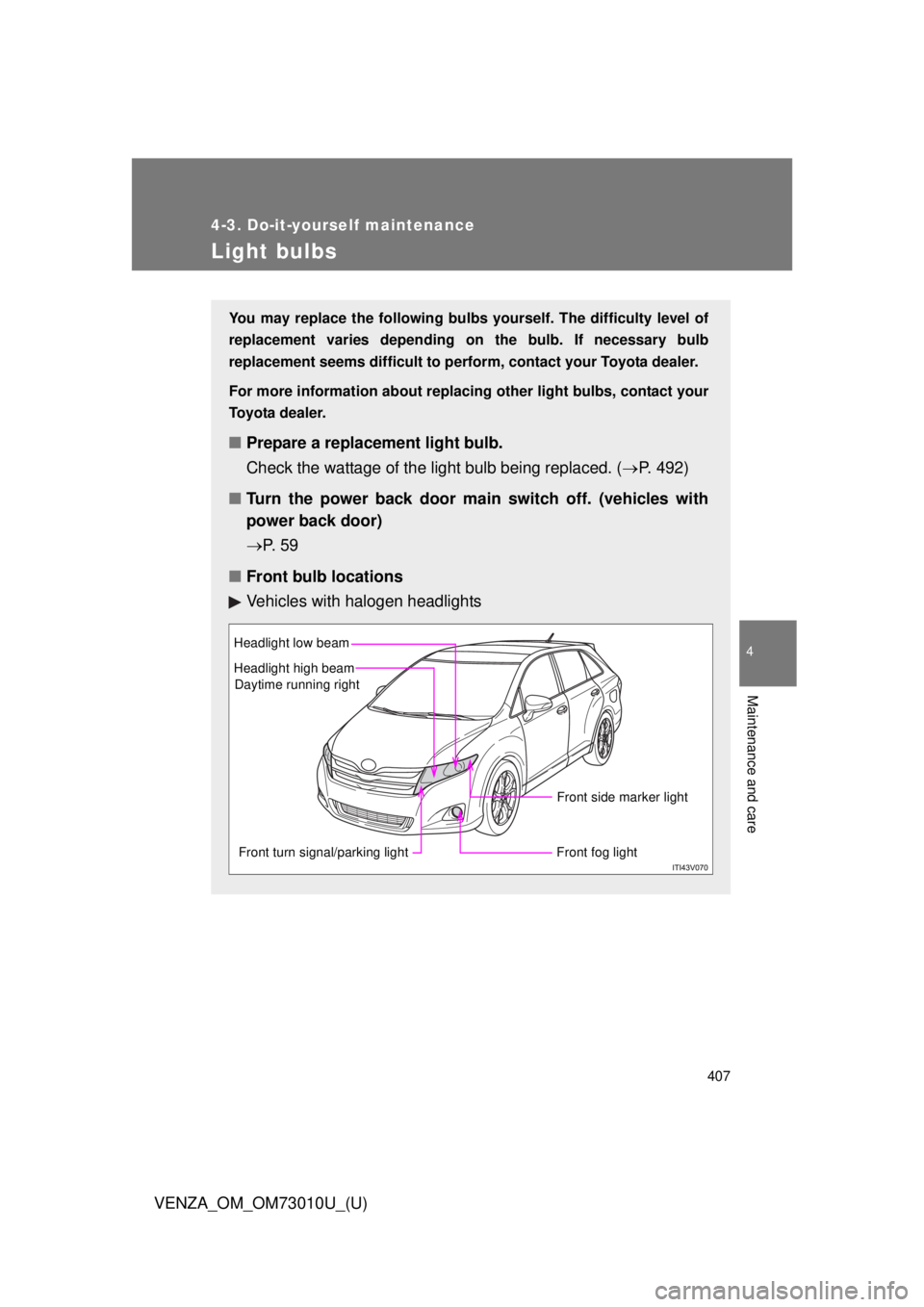

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 492)
■ Turn the power back door main switch off. (vehicles with
power back door)
P. 5 9
■ Front bulb locations
Vehicles with halogen headlights
Headlight low beam
Headlight high beam
Front turn signal/parking light Front fog light Front side marker light
Daytime running right
Page 408 of 556
408 4-3. Do-it-yourself maintenance
VENZA_OM_OM73010U_(U)

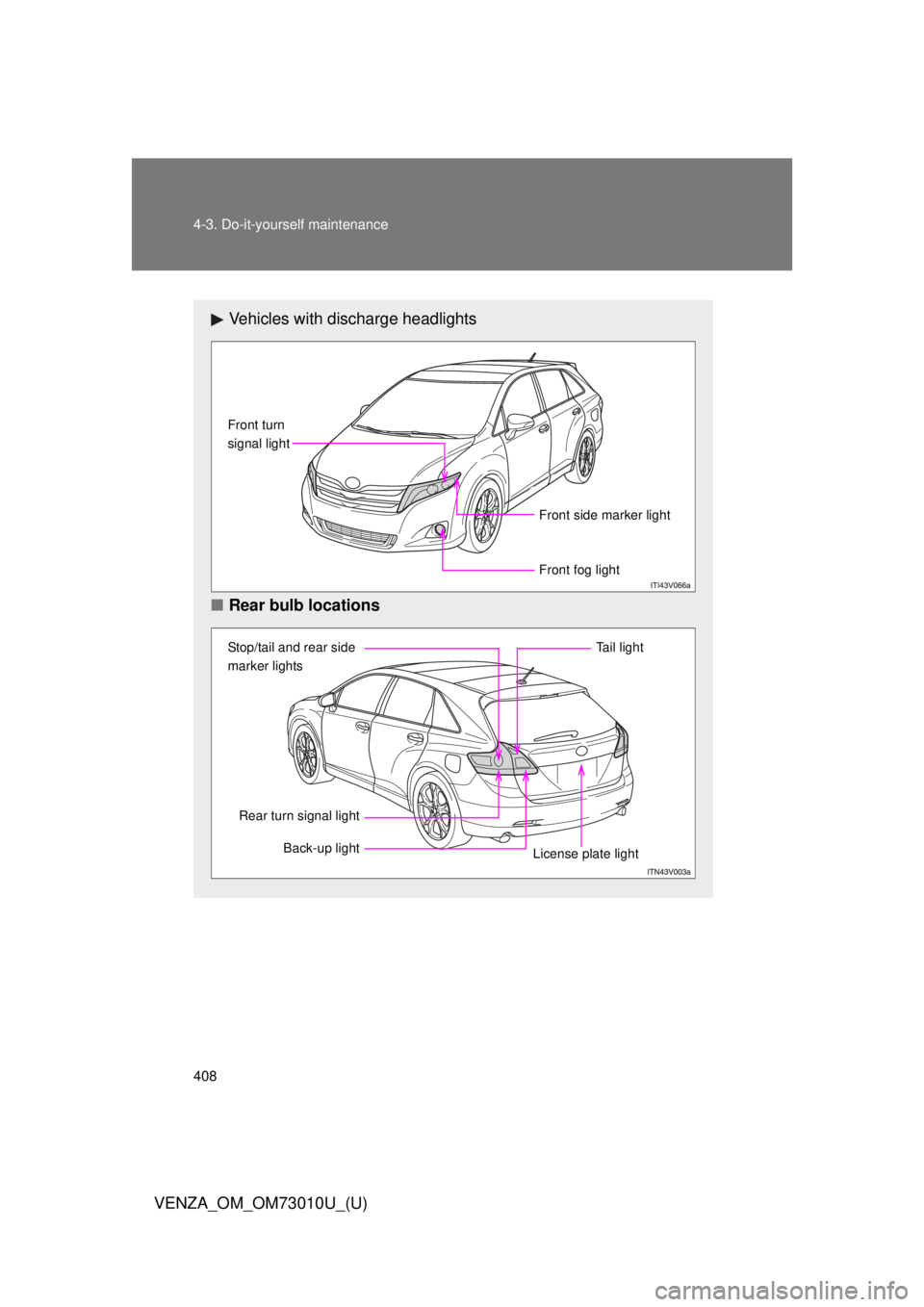

Vehicles with discharge headlights
■ Rear bulb locations
Front fog light
Front turn
signal light
Front side marker light
Stop/tail and rear side
marker lights
Back-up light Tail light
License plate light
Rear turn signal light
Page 409 of 556
409
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73010U_(U)

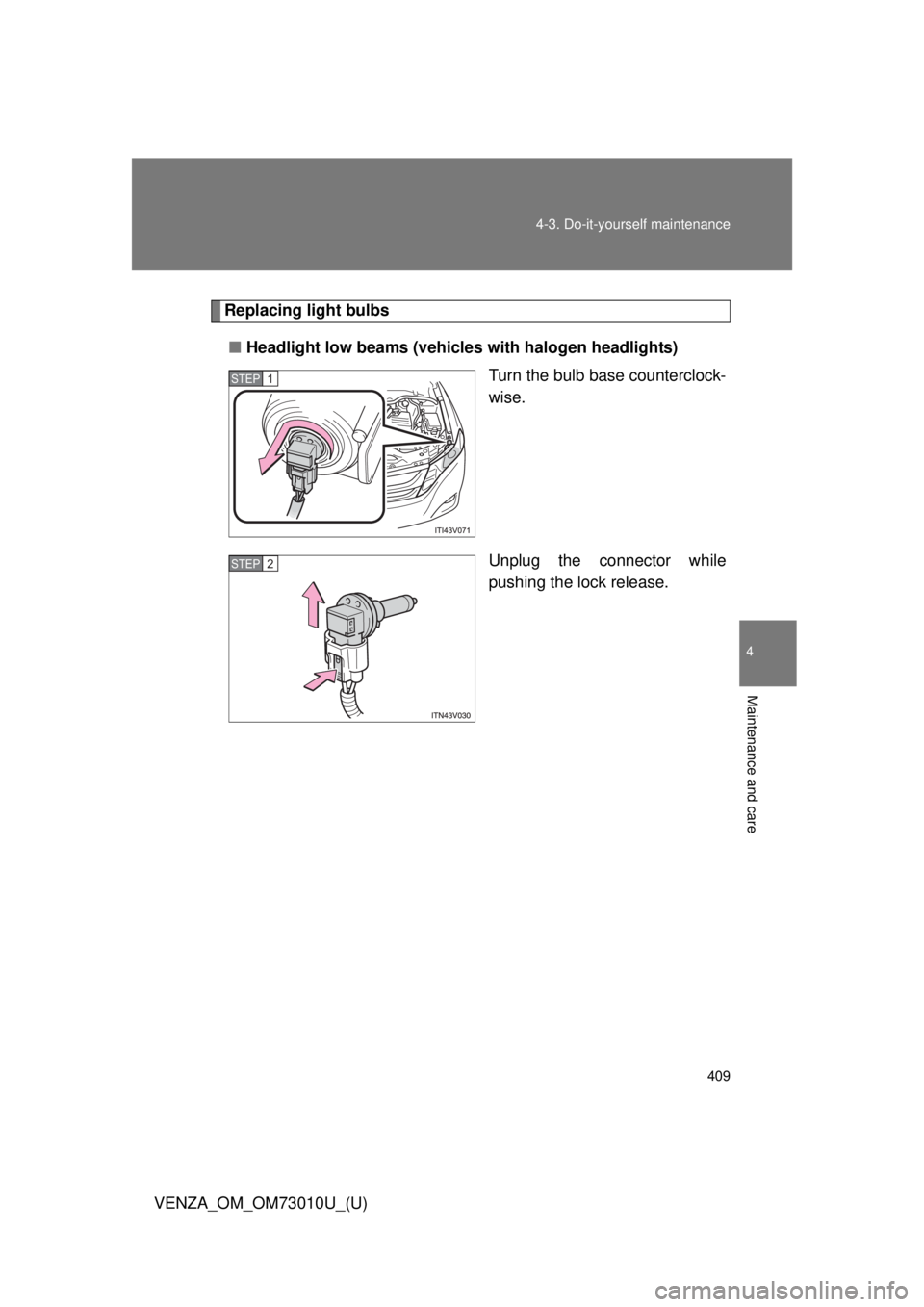

Replacing light bulbs
■ Headlight low beams (vehicle s with halogen headlights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.
STEP1
STEP2
Page 410 of 556

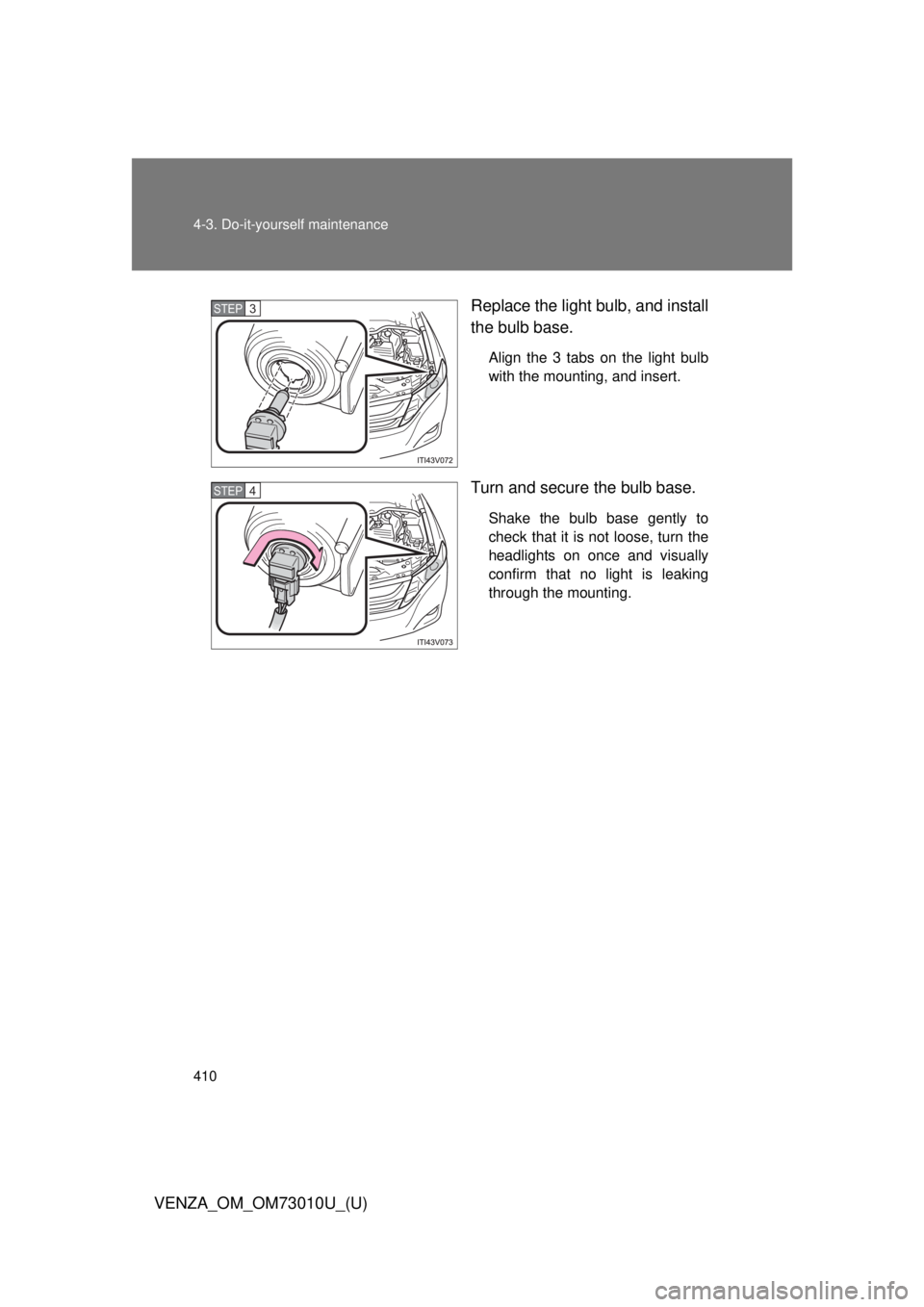

410 4-3. Do-it-yourself maintenance
VENZA_OM_OM73010U_(U)Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
STEP3
STEP4
