TOYOTA VENZA 2014 Accessories, Audio & Navigation (in English)

281
1. VOICE COMMAND SYSTEM OPERATION
6
VOICE COMMAND SYSTEM
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
“Get Information”
Select audio mode
When Expanded Voice Commands are turned “On”. (See page 278.)
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

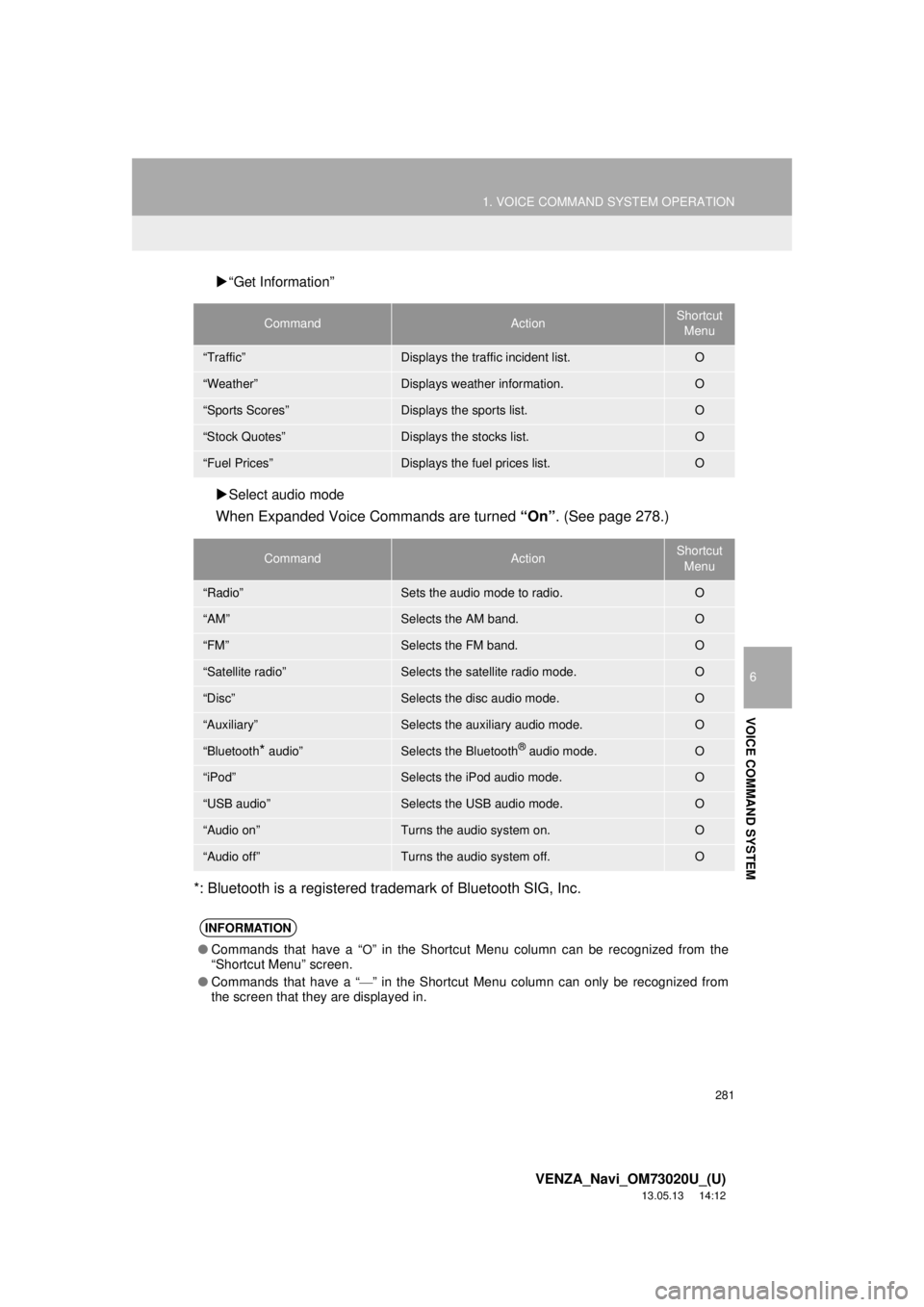

CommandActionShortcut
Menu
“Traffic”Displays the traffic incident list.O
“Weather”Displays weather information.O
“Sports Scores”Displays the sports list.O
“Stock Quotes”Displays the stocks list.O
“Fuel Prices”Displays the fuel prices list.O
CommandActionShortcut
Menu
“Radio”Sets the audio mode to radio.O
“AM”Selects the AM band.O
“FM”Selects the FM band.O
“Satellite radio”Selects the satellite radio mode.O
“Disc”Selects the disc audio mode.O
“Auxiliary”Selects the auxiliary audio mode.O
“Bluetooth* audio”Selects the Bluetooth® audio mode.O
“iPod”Selects the iPod audio mode.O
“USB audio”Selects the USB audio mode.O
“Audio on”Turns the audio system on.O
“Audio off”Turns the audio system off.O
INFORMATION
●Commands that have a “O” in the Shortcut Menu column can be recognized from the
“Shortcut Menu” screen.
●Commands that have a “
” in the Shortcut Menu column can only be recognized from
the screen that they are displayed in.

282
1. VOICE COMMAND SYSTEM OPERATION
VENZA_Navi_OM73020U_(U)
13.05.13 14:12

7
283
1
2
3
4
5
6
7
8
9
VENZA_Navi_OM73020U_(U)
13.05.09 20:08

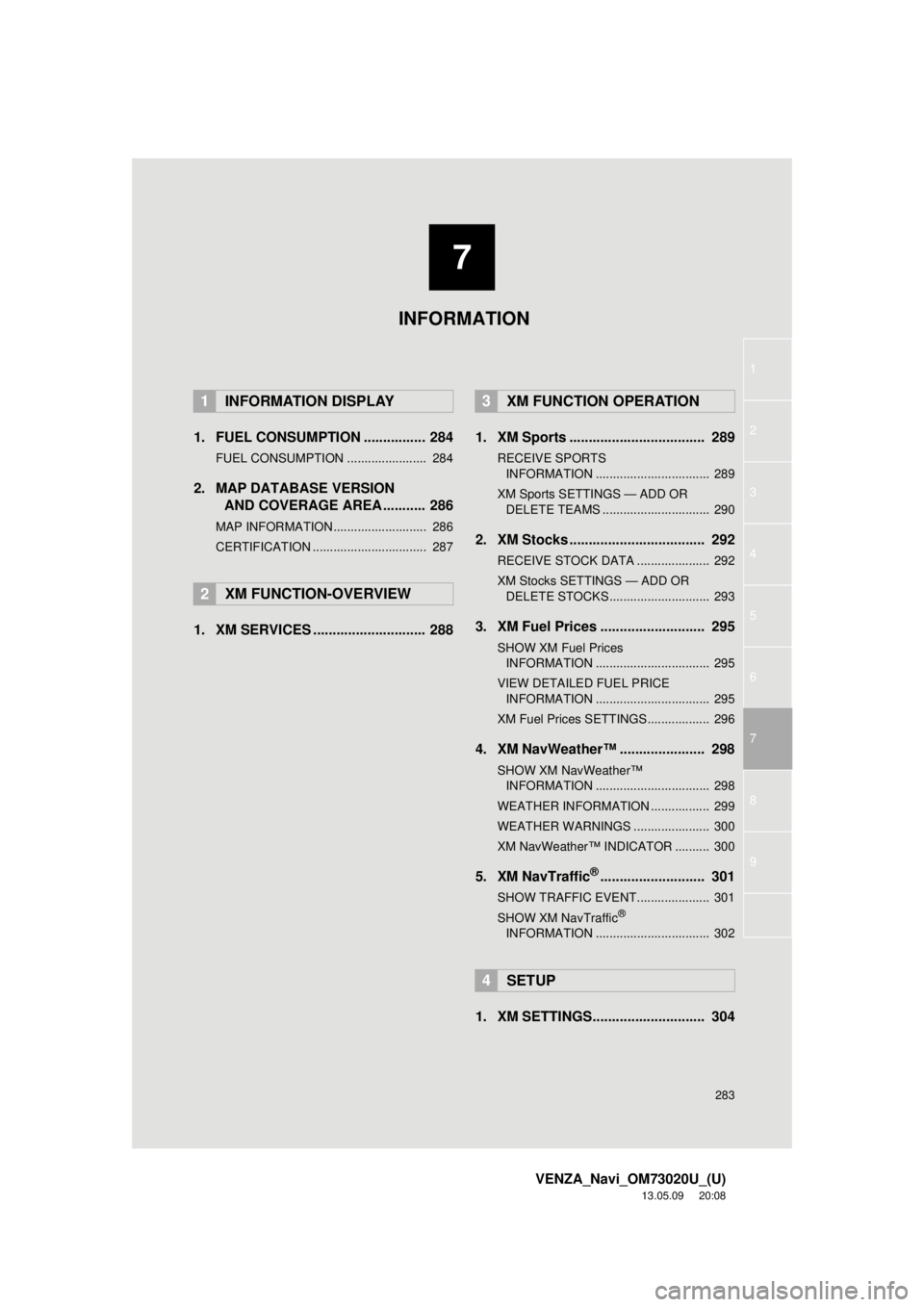

1. FUEL CONSUMPTION ................ 284
FUEL CONSUMPTION ....................... 284
2. MAP DATABASE VERSION
AND COVERAGE AREA ........... 286
MAP INFORMATION........................... 286
CERTIFICATION ................................. 287
1. XM SERVICES ............................. 2881. XM Sports ................................... 289
RECEIVE SPORTS
INFORMATION ................................. 289
XM Sports SETTINGS —ADD OR
DELETE TEAMS ............................... 290
2. XM Stocks ................................... 292
RECEIVE STOCK DATA ..................... 292
XM Stocks SETTINGS —ADD OR
DELETE STOCKS ............................. 293
3. XM Fuel Prices ........................... 295
SHOW XM Fuel Prices
INFORMATION ................................. 295
VIEW DETAILED FUEL PRICE
INFORMATION ................................. 295
XM Fuel Prices SETTINGS.................. 296
4. XM NavWeather™ ...................... 298
SHOW XM NavWeather™
INFORMATION ................................. 298
WEATHER INFORMATION ................. 299
WEATHER WARNINGS ...................... 300
XM NavWeather™ INDICATOR .......... 300
5. XM NavTraffic®........................... 301
SHOW TRAFFIC EVENT..................... 301
SHOW XM NavTraffic®
INFORMATION ................................. 302
1. XM SETTINGS............................. 304
1INFORMATION DISPLAY
2XM FUNCTION-OVERVIEW
3XM FUNCTION OPERATION
4SETUP
INFORMATION

284
VENZA_Navi_OM73020U_(U)
13.05.09 20:08
1. INFORMATION DISPLAY
1. FUEL CONSUMPTION
1Press the “INFO/APPS” button.
2Touch “Fuel Consumption”.
3The “Past Record” screen will be dis-
played.
If the “Past Record” screen does not
appear, touch “Past Record” on the
“Consumption” screen.
The average fuel consumption history is
divided by color into past averages and
the average fuel consumption since the
last update.
Reset the average fuel consumption by
pressing and holding the “SELECT
RESET” (vehicles with TFT type multi-
information display) or “RESET-H” (vehi-
cles with LCD type multi-information dis-
play) button on the instrument panel to
measure the current fuel consumption
again.
Past record data can be deleted by touch-
ing “Clear”.
FUEL CONSUMPTION
PAST RECORD
Fuel consumption information from re-
cent resets can be displayed.
No.Function
Previous fuel economy record
Current fuel economy
Best recorded fuel economy

285
1. INFORMATION DISPLAY
7
INFORMATION
VENZA_Navi_OM73020U_(U)
13.05.09 20:08
1Press the “INFO/APPS” button.
2Touch “Fuel Consumption” on the
“Information” screen.
3The “Consumption” screen will be dis-
played.
If the “Consumption” screen does not
appear, touch “Consumption” on the
“Past Record” screen.
Consumption data can be deleted by
touching “Clear”.
Vehicles with a smart key system
Average fuel consumption for the past 30
minutes is divided by color into past aver-
ages and averages attained since the
“ENGINE START STOP” switch was last
turned to IGNITION ON mode. Use the
displayed average fuel consumption as a
reference.
Vehicles without a smart key system
Average fuel consumption for the past 30
minutes is divided by color into past aver-
ages and averages attained since the
engine switch was last turned to the ON
position. Use the displayed average fuel
consumption as a reference.
CONSUMPTION
The average fuel consumption of the
last 30 minutes can be displayed in
one-minute blocks.
No.Function
Previous fuel consumption per
minute
Current fuel consumption per
minute
Cruising range

286
1. INFORMATION DISPLAY
VENZA_Navi_OM73020U_(U)
13.05.09 20:08
2. MAP DATABASE VERSION AND COVERAGE AREA
1Press the “INFO/APPS” button.
2Touch “Map Data”.
The “Map Information” screen will be dis-
played.
1Press the “INFO/APPS” button.
2Touch “Map Data” on the “Informa-
tion” screen.
3Touch “Legal Info.”.
The “Legal Information” screen will be dis-
played.
MAP INFORMATION
Coverage areas and legal information
can be displayed and map data can be
updated.
INFORMATION
●Map data updates are available for a
fee. Contact your Toyota dealer for fur-
ther information.
●The “Map Information” screen displays
“Map Version” and “Map Update
ID”. This data is needed to perform a
map data update.
LEGAL INFORMATION
Legal information related to the map
data can be displayed.

287
1. INFORMATION DISPLAY
7
INFORMATION
VENZA_Navi_OM73020U_(U)
13.05.09 20:08
1Press the “INFO/APPS” button.
2Touch “Map Data” on the “Informa-
tion” screen.
3Touch “Map Coverage”.
The “Map Data Coverage” screen will be
displayed.
For vehicles sold in Canada
MAP COVERAGE
Map data coverage areas can be dis-
played.CERTIFICATION
Operation is subject to the following two
conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device. This Category II
radiocommunication device complies
with Industry Canada Standard RSS-
310.
L’utilisation de ce dispositif est autorisée
seulement aux deux conditions suivan-
tes: (1) il ne doit pas produire de
brouillage, et (2) l’utilisateur du dispositif
doit être prêt à accepter tout brouillage
radioélectrique reçu, même si ce
brouillage est susceptible de compro-
mettre le fonctionnement du dispositif.
Ce dispositif de radiocommunication de
catégorie II respecte la norme CNR-310
d’Industrie Canada.

288
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
2. XM FUNCTION-OVERVIEW
1. XM SERVICES
With an active XM subscription, the follow-
ing features are available:
•XM Sports
*1 (See page 289.)
•XM Stocks
*1 (See page 292.)
• XM Fuel Prices
*2 (See page 295.)
•XM NavWeather™
*2 (See page 298.)
•XM NavTraffic®*2 (See page 301.)
*1: Available at no extra charge with an ac-
tive XM Satellite Radio subscription.
*2: Available via separate XM subscrip-
tion(s).
XM NavTraffic®, XM NavWeather™ and
XM TravelLink require separate XM sub-
scription(s). XM Sports
*, XM Stocks* and
XM Fuel Prices are available with an XM
TravelLink subscription. After a 90-day
trial, you must contact XM and set up the
appropriate XM subscription(s) to continue
receiving these services.
*: XM Sports and XM Stocks are included
with an XM Satellite Radio subscription.
The XM NavTraffic® service is available in
the contiguous 48 U.S. states and
Canada.
The XM NavWeather™, XM Sports, XM
Stocks and XM Fuel Prices services are
available in the contiguous 48 U.S. states. To receive XM NavTraffic
®, XM
NavWeather™, XM Sports, XM Stocks
and XM Fuel Prices services, the XM
service must be activated. To activate the
service, call the XM Listener Care Center
at 1-800-967-2346 (U.S.A.) or 1-877-209-
0079 (Canada).
Customers should have their radio ID
ready. The radio ID can be found by
selecting “CH 000” on the radio. For
details, see “DISPLAYING THE RADIO
ID” on page 209.
XM services are subscription-based
XM Satellite Radio services to provide
convenient features to subscribers.
SUBSCRIPTION(S)
AVAILABILITY OF SERVICE(S)
ACTIVATION OF SERVICE(S)
INFORMATION
●For details about the XM service cover-
age areas, refer to www.siriusxm.com
(U.S.A.) or www.xmradio.ca (Canada),
or call XM Listener Care Center at 1-
800-967-2346 (U.S.A.) or 1-877-209-
0079 (Canada).
●For further details about the service,
contact your Toyota dealer.
●XM Satellite Radio is responsible for all
fees and services, which are subject to
change.

289
7
INFORMATION
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
3. XM FUNCTION OPERATION
1. XM Sports
1Press the “INFO/APPS” button.
2Touch “XM Sports”.
The “XM Sports” screen is displayed.
The following operations can be per-
formed:
• Sports information can be received. (See
page 289.)
• XM Sports settings can be set. (See
page 290.)
1Press the “INFO/APPS” button.
2Touch “XM Sports” on the “Informa-
tion” screen.
3Touch the desired team to receive in-
formation.
Teams for which there is no current data
available will be dimmed and you will not
be able to select them.
4Touch the individual information item
to hear it, or touch “Read All” to hear
all available information for that team.
The selected information will be read out
in its entirety.
XM Sports is a service included with an
XM Satellite Radio subscription. This
service is also available with an XM
TravelLink subscription. With this ser-
vice, you can receive updates via the
navigation system on your personally
selected sports teams.RECEIVE SPORTS
INFORMATION
The desired teams must be added in
order to receive information. (See
page 290.)

290
3. XM FUNCTION OPERATION
VENZA_Navi_OM73020U_(U)
13.05.13 14:12
1Press the “INFO/APPS” button.
2Touch “XM Sports” on the “Informa-
tion” screen.
3Touch “Options”.
4Perform each setting according to the
procedures outlined on the following
pages.
1Touch “Add Sports Team”.
Up to 5 teams can be added and saved in
the system for which information will be
received. The desired teams can be
changed at any time. Teams must be
added one at a time.
2Touch the desired sporting league of
the team.
3Touch the name of the desired team to
be added from the list that appears.
4Touch “Yes” to confirm or “No” to
cancel.
XM Sports SETTINGS —ADD
OR DELETE TEAMS
To input your personalized XM Sports
team.
Personalized XM Sports teams can also
be input from the “Setup” screen. (See
“XM SETTINGS” on page 304.)
ADD SPORTS TEAM
