Page 451 of 688
4513-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) Armrest
NOTICE■ To prevent damage to the armrest
Do not place too much strain on the armrest.Front
Lift the lever up and slide the
armrest.
Rear
Pull the armrest down for use.
Page 452 of 688
4523-5. Other interior features
VENZA_OM_OM73030U_(U)Assist grips (folding type)
CAUTION■ Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE■ To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.An assist grip installed on the cei ling can be used to support your
body while sitting on the seat.
Page 453 of 688
4533-5. Other interior features
3
Interior features

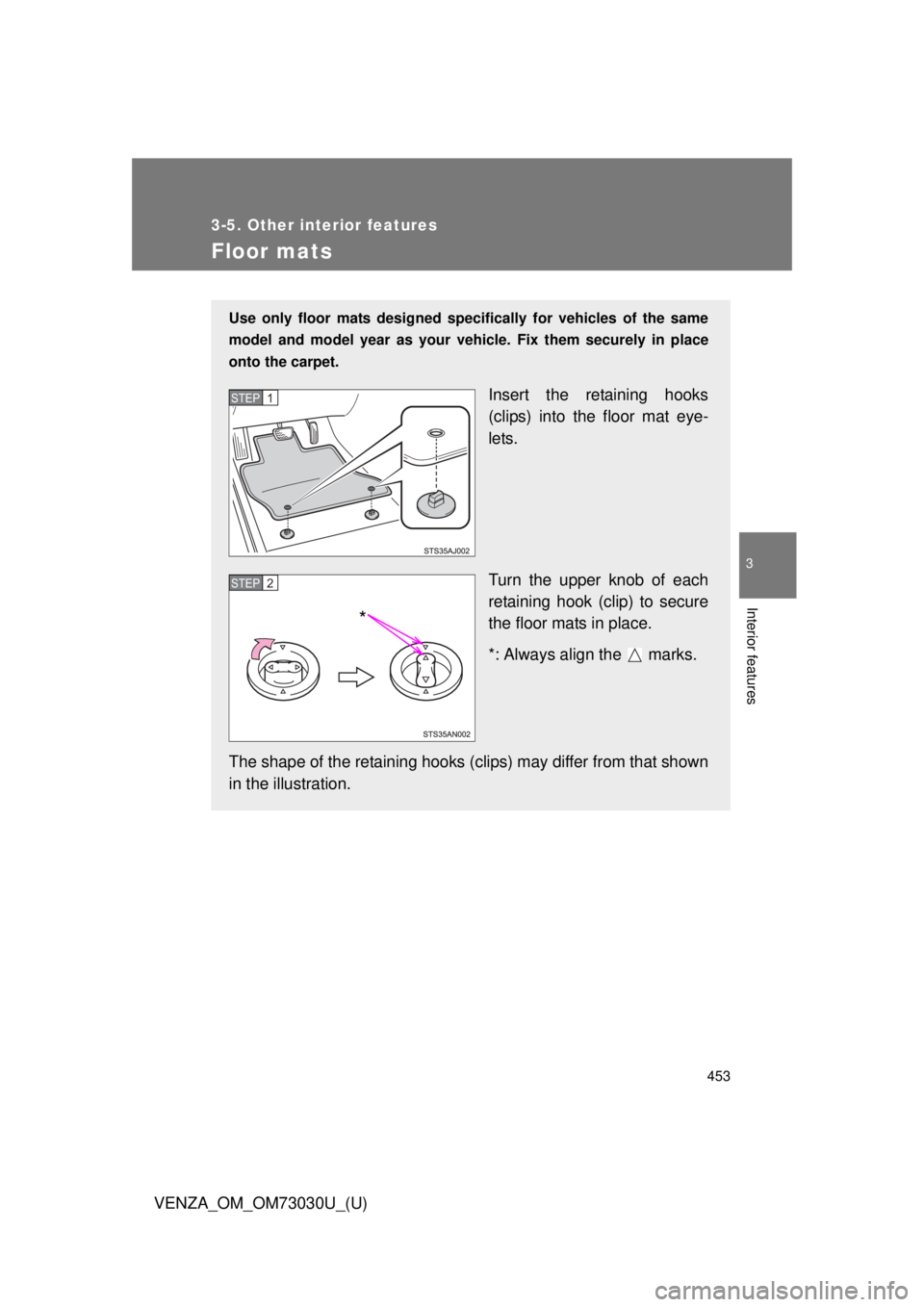

VENZA_OM_OM73030U_(U) Floor mats Use only floor mats designed speci fically for vehicles of the same
model and model year as your vehic le. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clip s) may differ from that shown
in the illustration. STEP 1
STEP 2
*
Page 454 of 688

4543-5. Other interior features
VENZA_OM_OM73030U_(U) CAUTIONObserve the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.
Page 455 of 688
4553-5. Other interior features
3
Interior features

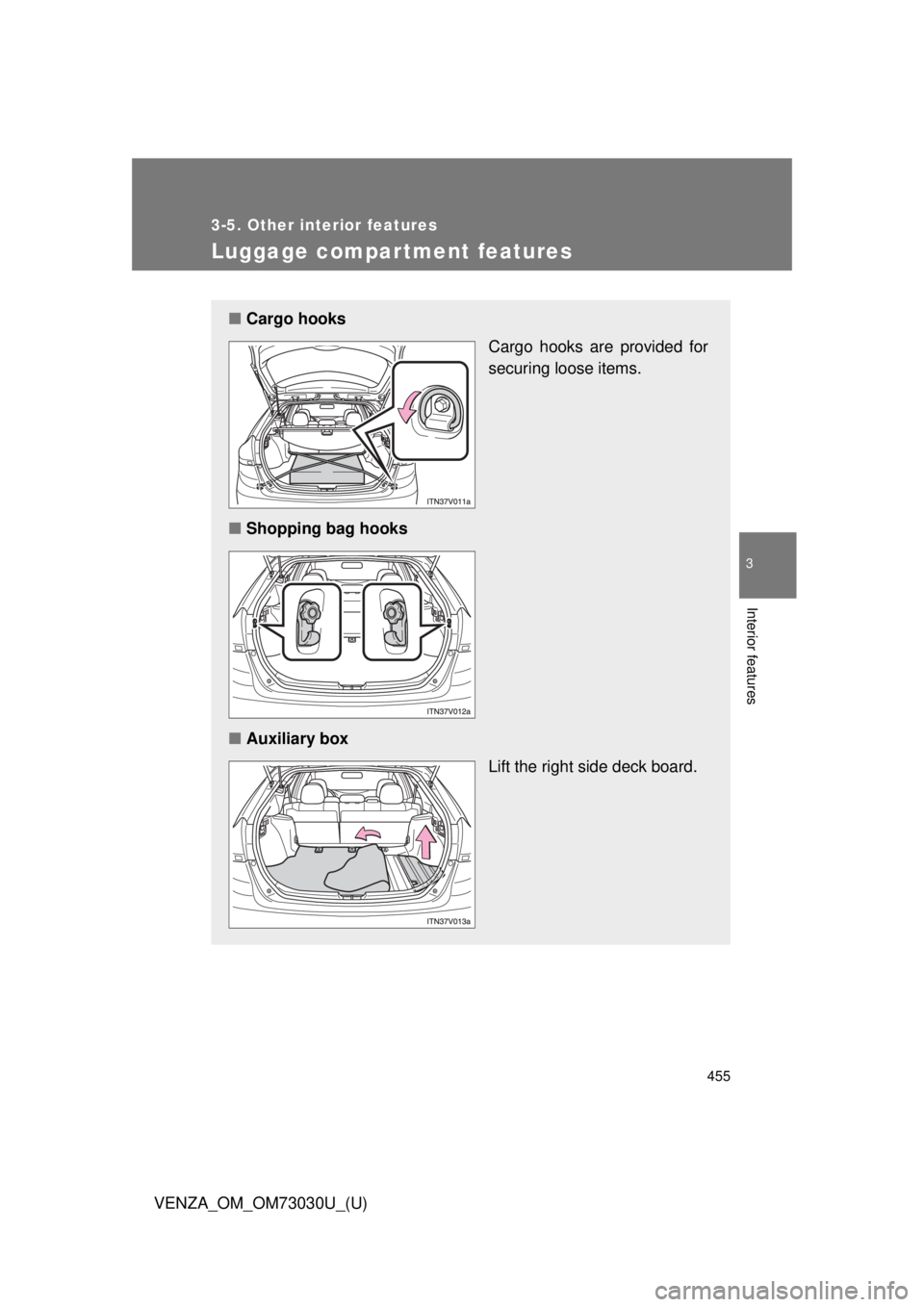

VENZA_OM_OM73030U_(U) Luggage compar tment features ■ Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Shopping bag hooks
■ Auxiliary box
Lift the right side deck board.
Page 456 of 688
4563-5. Other interior features
VENZA_OM_OM73030U_(U) Removing luggage cover
Retract the cover and release
both ends, then lift it out. After removing the luggage cover,
place it somewhere other than the
passenger compartment.■ Luggage cover
Pull out the luggage cover and
hook it on the anchors.
CAUTION■ When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
■ While driving
Do not place anything on the luggage cover. Such items may be thrown
about and possibly injure people in the vehicle during sudden braking, sud-
den swerving or an accident.
Page 457 of 688

4573-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) Garage door opener The garage door opener (HomeLink
Universal Transceiver) is manufac-
tured under license from HomeLink
.
Programming HomeLink ®
(for U.S.A. owners)To ensure correct programming into the HomeLink ®
, install a new bat-
tery in the hand-held transmitter prior to programming. Failure to
install a new battery into the hand-h eld transmitter will affect both the
range and accuracy of the HomeLink ®
in your vehicle.
The battery side of the hand-held transmitter must be pointed away
from the HomeLink ®
during the programming process.
The HomeLink
compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
ButtonsThe garage door opener can be programmed to operate garage
doors, gates, entry do ors, door locks, home lighting systems, secu-
rity systems, and other devices.
Page 458 of 688
4583-5. Other interior features
VENZA_OM_OM73030U_(U) ■ Programming HomeLink ®
Point the remote control trans-
mitter for the device 1 to 3 in. (25
to 75 mm) from the HomeLink
buttons. Keep the HomeLink
indicator
light in view while programming.
Press and hold one of the
HomeLink
buttons and the
transmitter button. When the
HomeLink
indicator light
changes from a slow to a rapid
flash within 20 seconds, you can
release both buttons.STEP 1
STEP 2
Page 459 of 688
4593-5. Other interior features
3
Interior features
VENZA_OM_OM73030U_(U) Test the HomeLink
operation
by pressing the newly pro-
grammed button. If a HomeLink
button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
remote control transmitter is of
the rolling code type. Press and
hold the programmed HomeLink
button. The remote control trans-
mitter is of the rolling code type if
the HomeLink
indicator light
flashes rapidly for 2 seconds and
then remains lit. If your transmit-
ter is of the rolling code type, pro-
ceed to the heading
“Programming a rolling code sys-
tem”.
Repeat the steps above to program another device for each of
the remaining HomeLink
buttons.STEP 3
STEP 4
Page 460 of 688

4603-5. Other interior features
VENZA_OM_OM73030U_(U) ■ Programming a rolling code system
If your device is rolling code e quipped, follow the steps under the
heading “Programming HomeLink
” before proceeding with the
steps listed below.
Locate the learn button on t he ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor. Refer to the operation manual supplied with the garage door opener
motor for the location of the learn button.
Press the learn button. Following this step, you have 30 seconds in which to initiate step 3
below.
Press and hold the vehicle’s programmed HomeLink
button
for 2 seconds and release it. Repeat this step once again. The
garage door may open. If the garage door opens, the programming process is complete. If
the door does not open, press and release the button a third time.
This third press and release will complete the programming process
by opening the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink
signal and operate the garage door.
Repeat the steps above to prog ram another rolling code sys-
tem for any of the remaining HomeLink
buttons.STEP 1
STEP 2
STEP 3
STEP 4
