TOYOTA VENZA 2016 Owners Manual

4814-2. Maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) Vehicle exterior Items Check points
Doors • Operate smoothly?
Engine hood • The lock system works properly?
Fluid leaks • Is there any leakage after parking?
Tire • Is the tire inflatio n pressure correct?
• The tires should not be damaged or
excessively worn.
• Have the tires been rotated according
to the maintenance schedule?
• The wheel nuts should not be loose.
Windshield wipers/rear
window wiper • The wiper blades should not show any
signs of cracking, splitting, wear, con-
tamination or deformation.
• The wiper blades should clear the
windshield/rear window without streak-
ing or skipping.
CAUTION■ If the engine is running
Turn off the engine and ensure that there is adequate ventilation before per-
forming maintenance checks.

4824-2. Maintenance

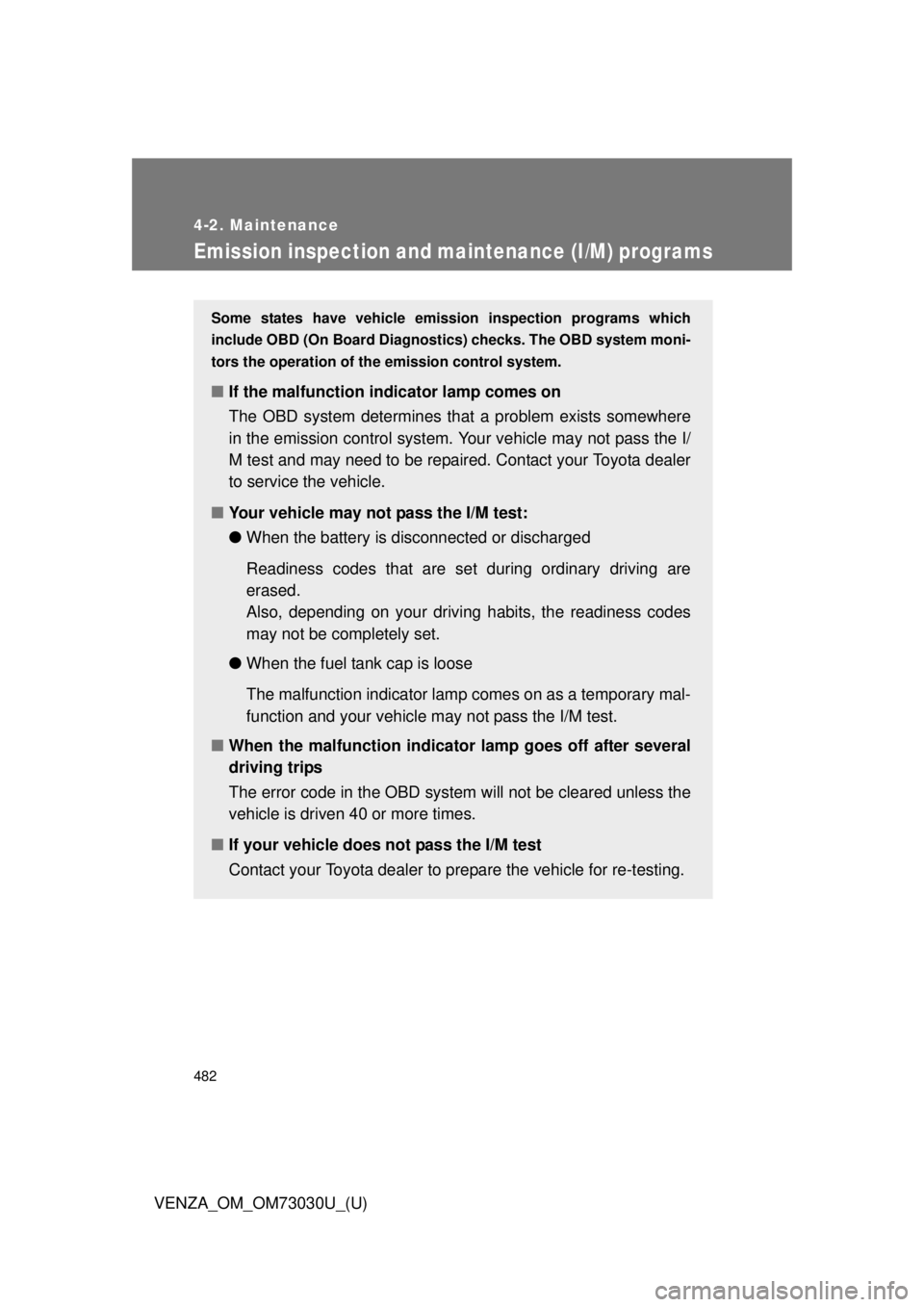

VENZA_OM_OM73030U_(U) Emission inspection and maintenance (I/M) programs Some states have vehicle emissi on inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni-
tors the operation of th e emission control system.
■ If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your Toyota dealer
to service the vehicle.
■ Your vehicle may not pass the I/M test:
● When the battery is disconnected or discharged
Readiness codes that are se t during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■ When the malfunction indicator lamp goes off after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Toyota dealer to prepare the vehicle for re-testing.

483 4
Maintenance and care
VENZA_OM_OM73030U_(U) 4-3. Do-it-yourself maintenance

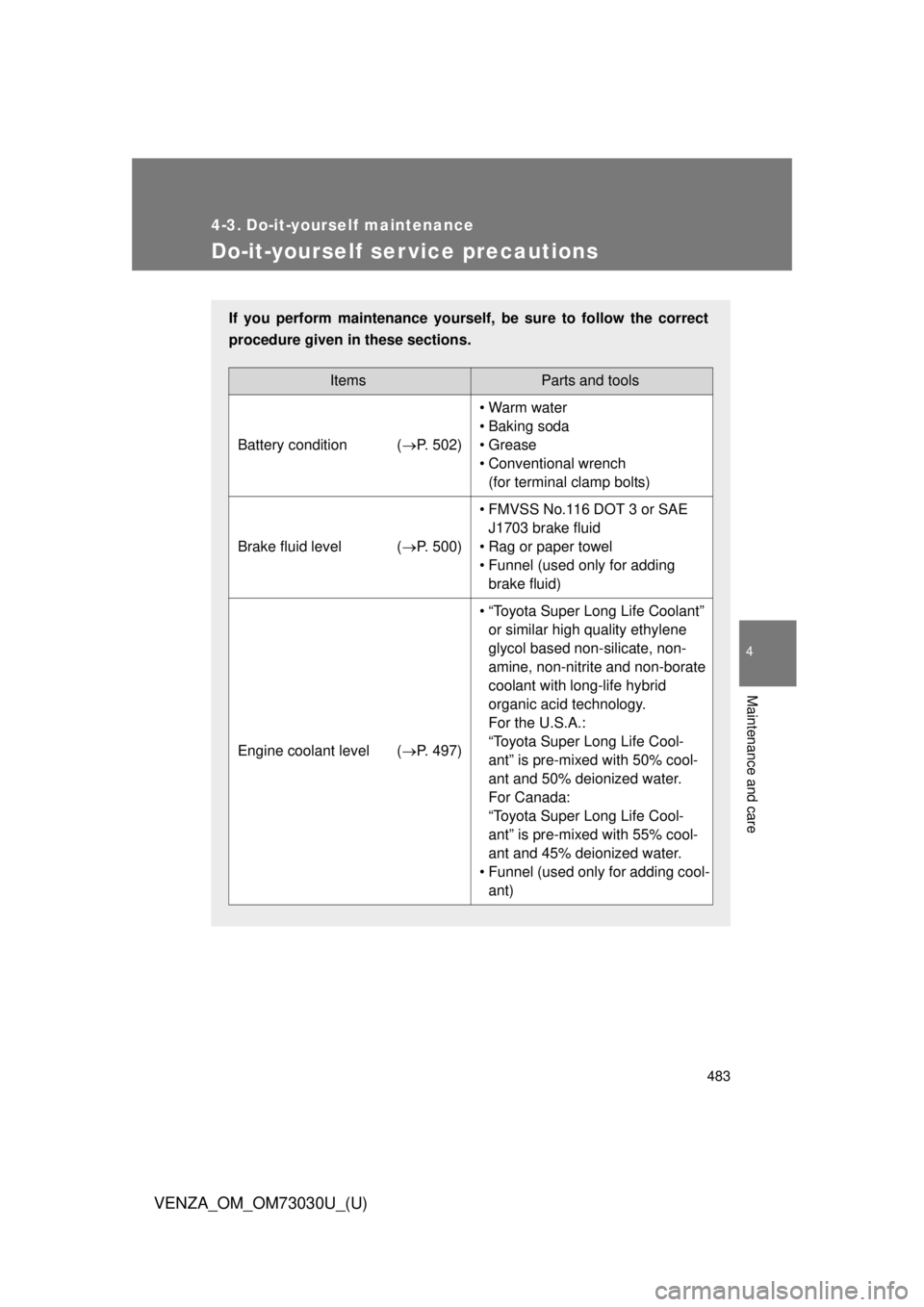

Do-it-yourself ser vice precautions If you perform maintenance yourself, be sure to follow the correct
procedure given in these sections.
Items Parts and tools
Battery condition (  P. 502) •Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level (  P. 500) • FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding
brake fluid)
Engine coolant level (  P. 497) • “Toyota Super Long Life Coolant”
or similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology.
For the U.S.A.:
“Toyota Super Long Life Cool-
ant” is pre-mixed with 50% cool-
ant and 50% deionized water.
For Canada:
“Toyota Super Long Life Cool-
ant” is pre-mixed with 55% cool-
ant and 45% deionized water.
• Funnel (used only for adding cool-
ant)

4844-3. Do-it-yourself maintenance

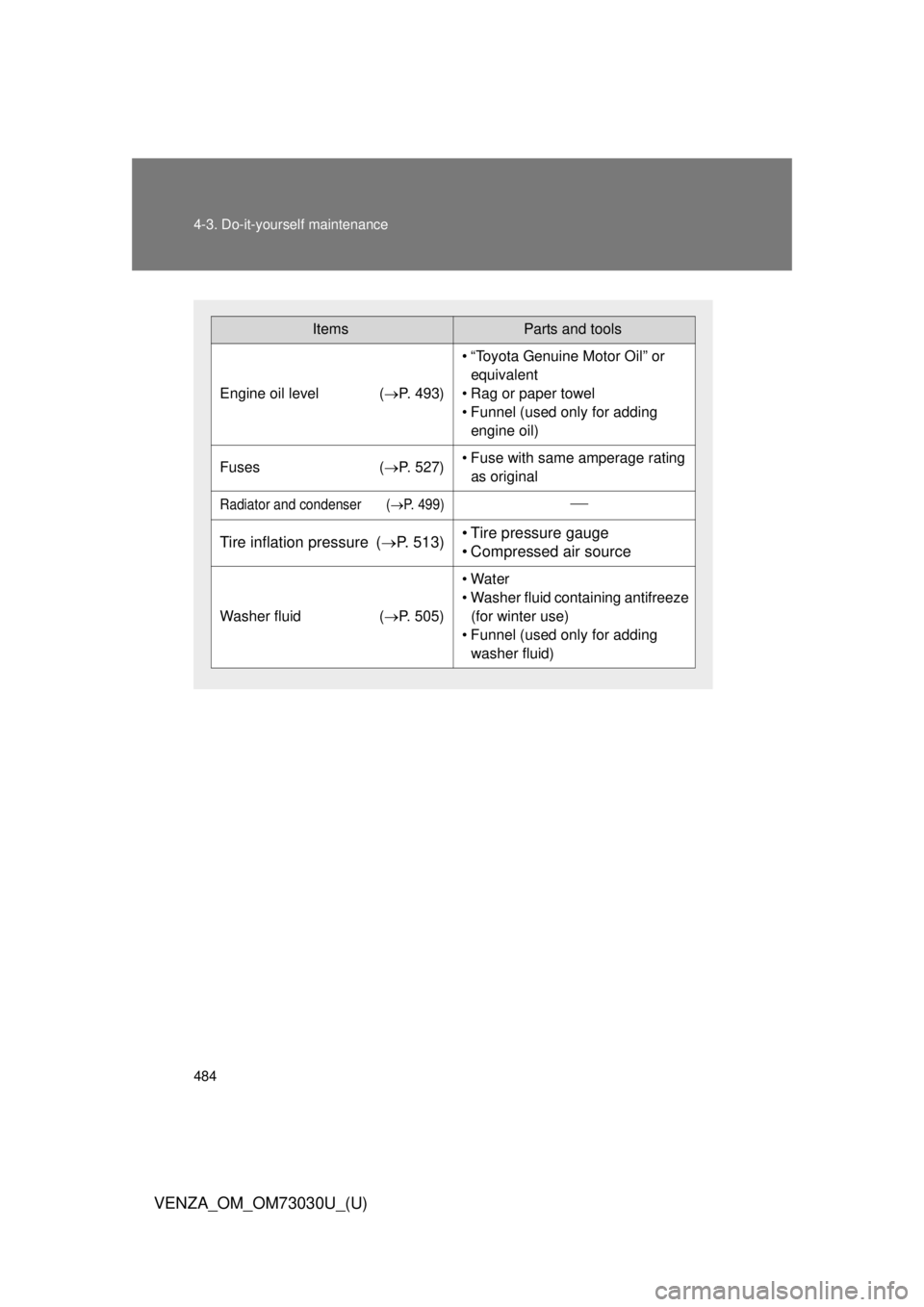

VENZA_OM_OM73030U_(U) Items Parts and tools
Engine oil level (  P. 493) • “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (  P. 527) • Fuse with same amperage rating
as original
Radiator and condenser (  P. 499)
Tire inflation pressure (  P. 513) • Tire pressure gauge
• Compressed air source
Washer fluid (  P. 505) • Water
• Washer fluid containing antifreeze
(for winter use)
• Funnel (used only for adding
washer fluid)

4854-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) CAUTIONThe engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury observe the following precautions.
■ When working on the engine compartment
● Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, inverter, radiator, exhaust manifold, etc.
right after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper or rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.

4864-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) CAUTION■ When working near the electric cooling fan or radiator grille
Vehicles with smart key system
Be sure the “ENGINE START STOP” switch is off. With the “ENGINE
START STOP” switch in IGNITION ON mode, the electric cooling fan may
automatically start to run if the air conditioning is on and/or if the coolant
temperature is high. (  P. 499)
Vehicles without smart key system
Be sure the engine switch is in the “LOCK” position. With the engine
switch in the “ON” position, the electric cooling fan may automatically
start to run if the air conditioning is on and/or if the coolant temperature is
high. (  P. 499)
■ When working on or under the vehicle
Do not get under the vehicle with just the jack supporting it.
Always use automotive jack stands or other solid supports.
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE■ If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air. Also a backfire could cause a fire in the engine compart-
ment.

4874-3. Do-it-yourself maintenance
4
Maintenance and care

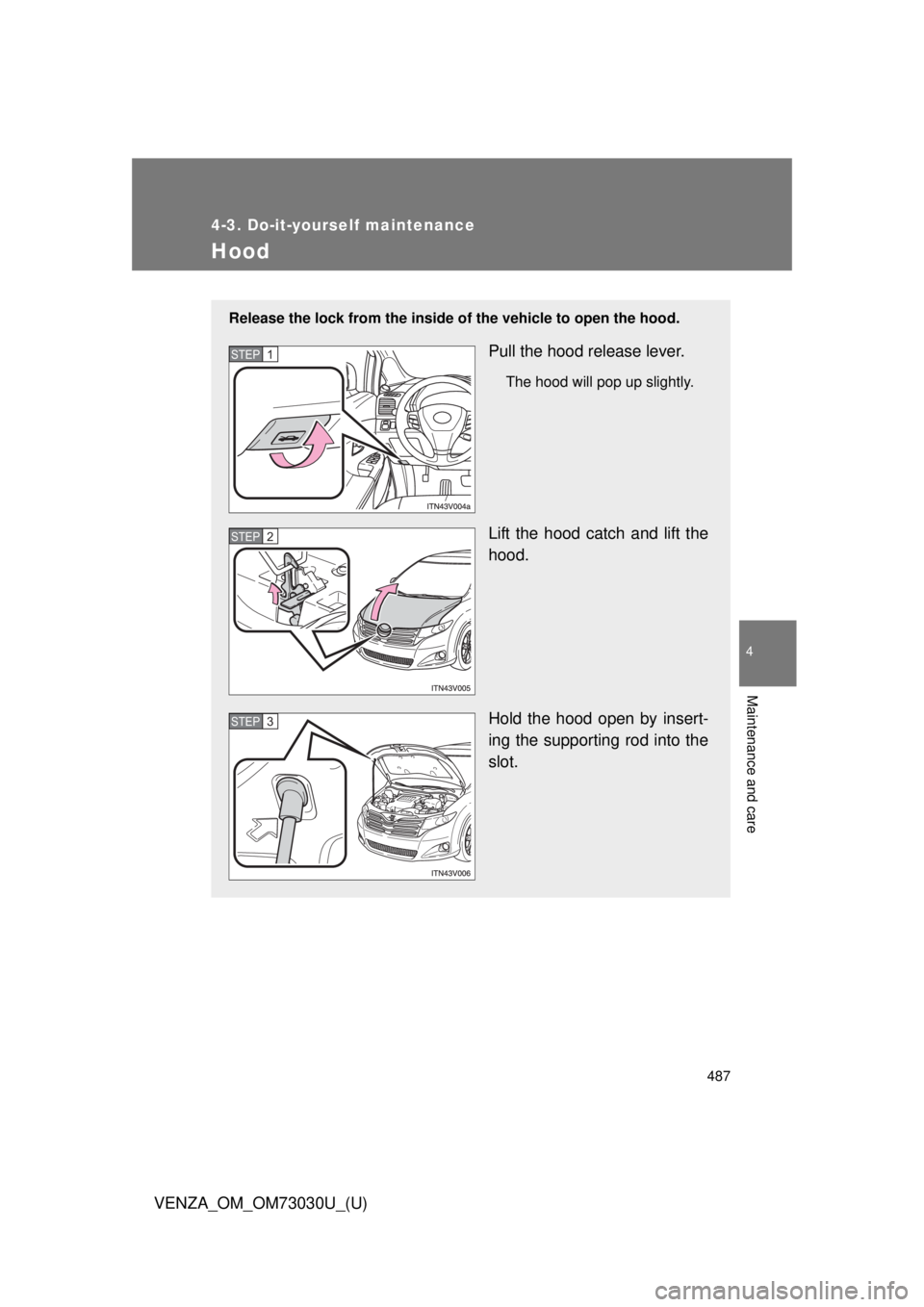

VENZA_OM_OM73030U_(U) Hood Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever. The hood will pop up slightly.
Lift the hood catch and lift the
hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.STEP 1
STEP 2
STEP 3

4884-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) CAUTION■ Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE■ When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

4894-3. Do-it-yourself maintenance
4
Maintenance and care

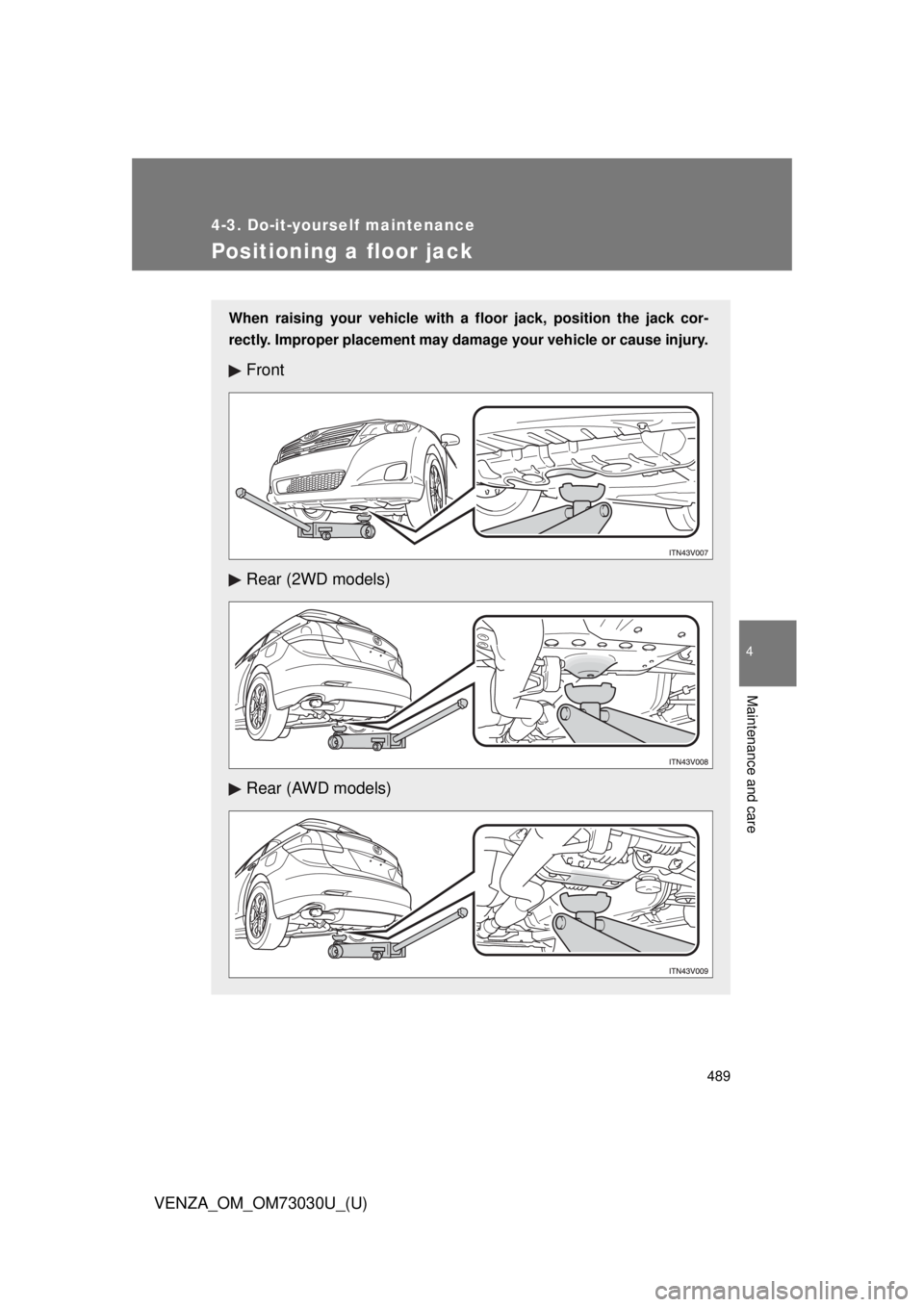

VENZA_OM_OM73030U_(U) Positioning a floor jack When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
Rear (2WD models)
Rear (AWD models)

4904-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) CAUTION■ When raising your vehicle
Make sure to observe the following to reduce the possibility of death or seri-
ous injury.
● When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
● Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level firm ground, firmly set the parking brake and put
the shift lever in “P”.
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the floor jack. ● Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.
