TOYOTA VENZA 2016 Owners Manual

4914-3. Do-it-yourself maintenance
4
Maintenance and care

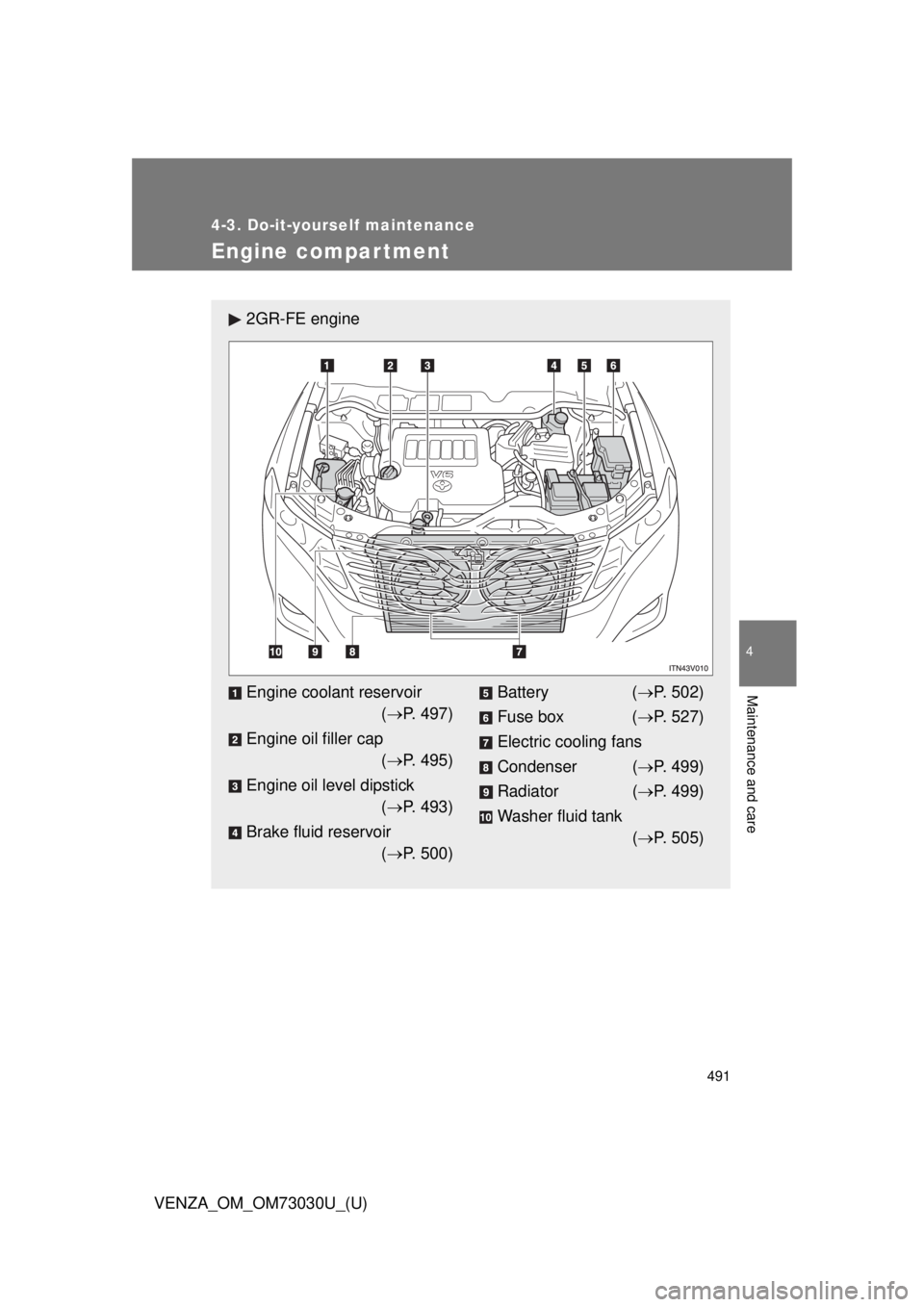

VENZA_OM_OM73030U_(U) Engine compar tment 2GR-FE engine
Engine coolant reservoir
(  P. 497)
Engine oil filler cap
(  P. 495)
Engine oil level dipstick
(  P. 493)
Brake fluid reservoir
(  P. 500) Battery (  P. 502)
Fuse box (  P. 527)
Electric cooling fans
Condenser (  P. 499)
Radiator (  P. 499)
Washer fluid tank
(  P. 505)

4924-3. Do-it-yourself maintenance

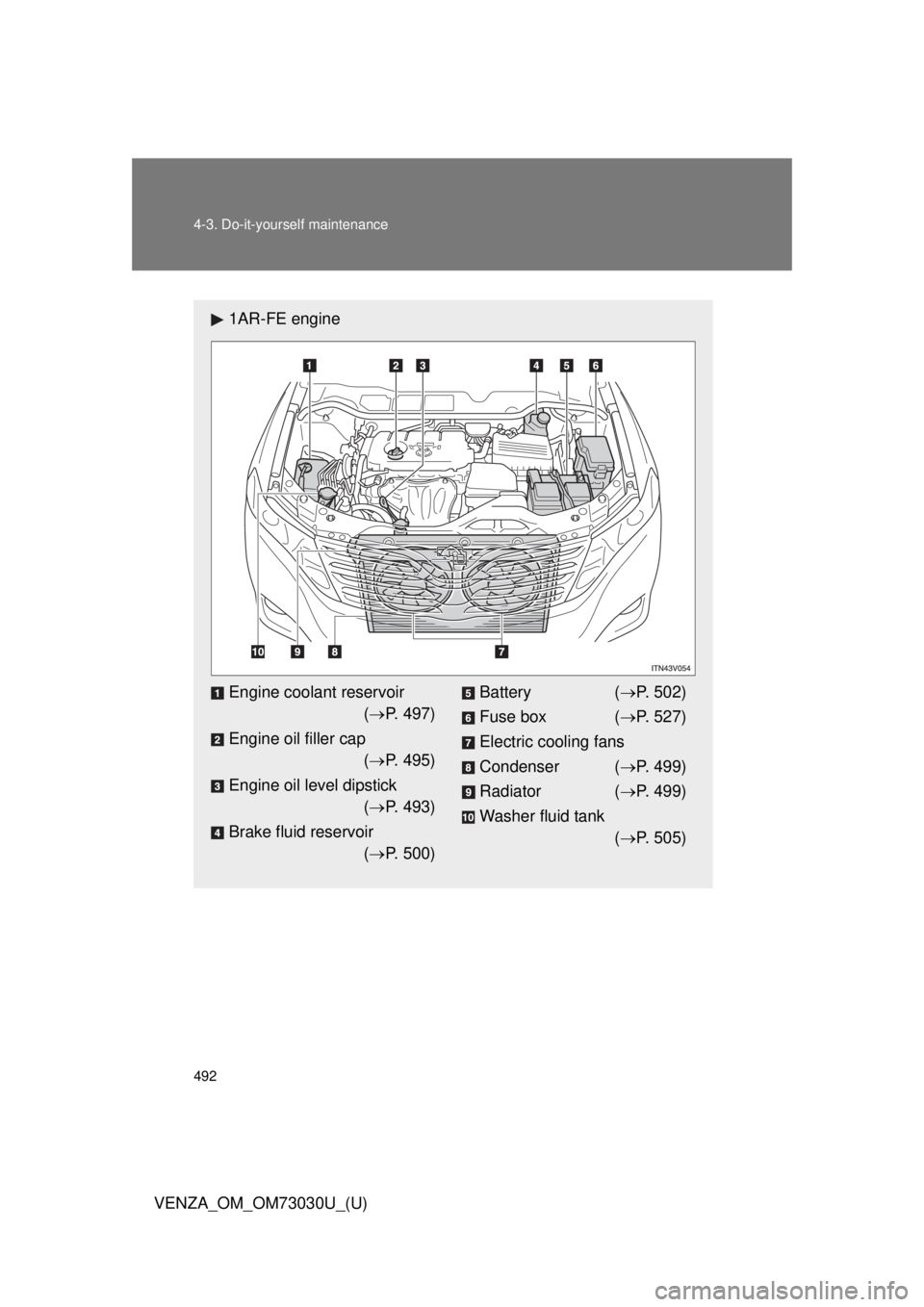

VENZA_OM_OM73030U_(U) 1AR-FE engine
Engine coolant reservoir
(  P. 497)
Engine oil filler cap
(  P. 495)
Engine oil level dipstick
(  P. 493)
Brake fluid reservoir
(  P. 500) Battery (  P. 502)
Fuse box (  P. 527)
Electric cooling fans
Condenser (  P. 499)
Radiator (  P. 499)
Washer fluid tank
(  P. 505)

4934-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.

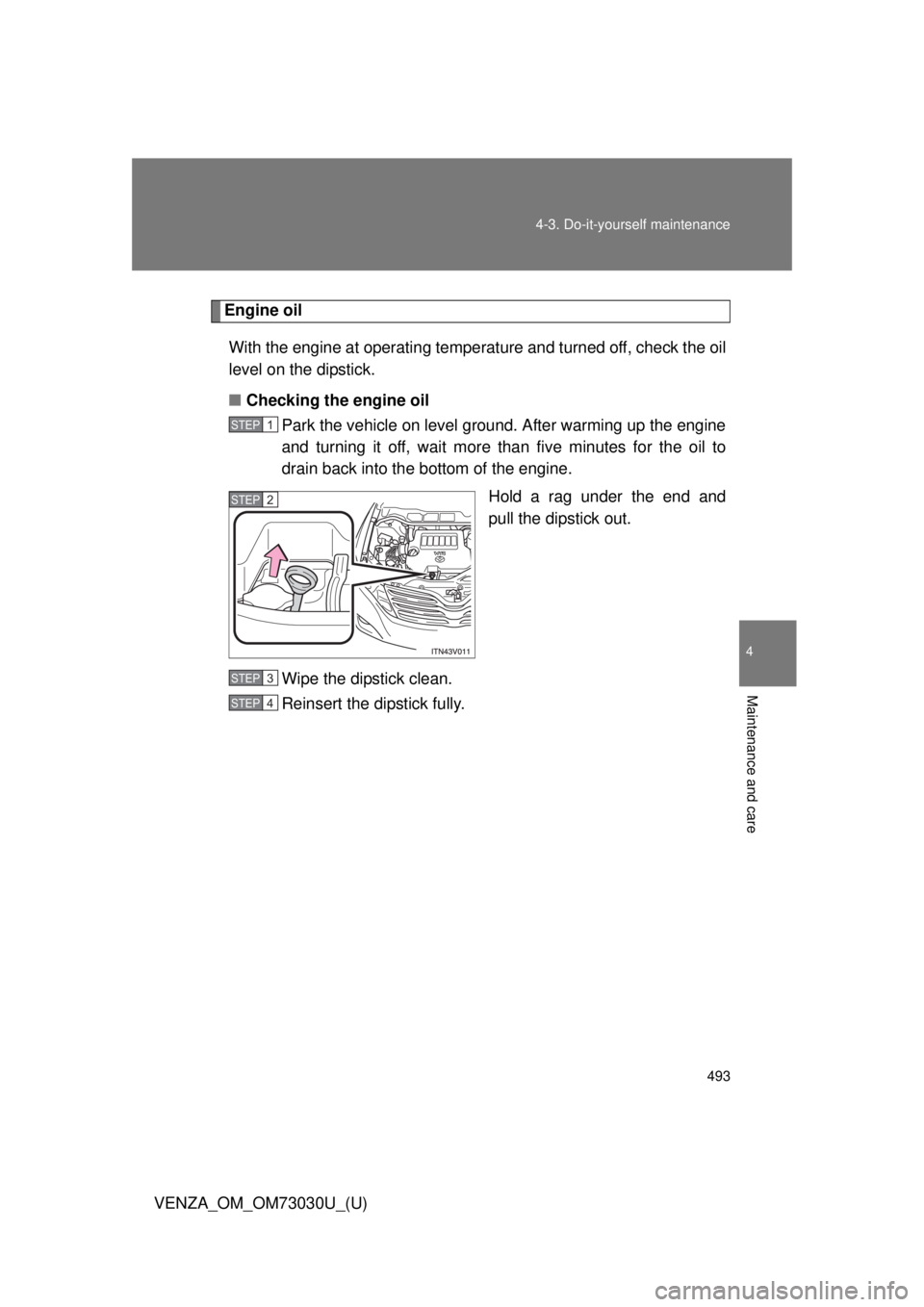

■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than five minutes for the oil to
drain back into the bottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully. STEP 1
STEP 2
STEP 3
STEP 4

4944-3. Do-it-yourself maintenance

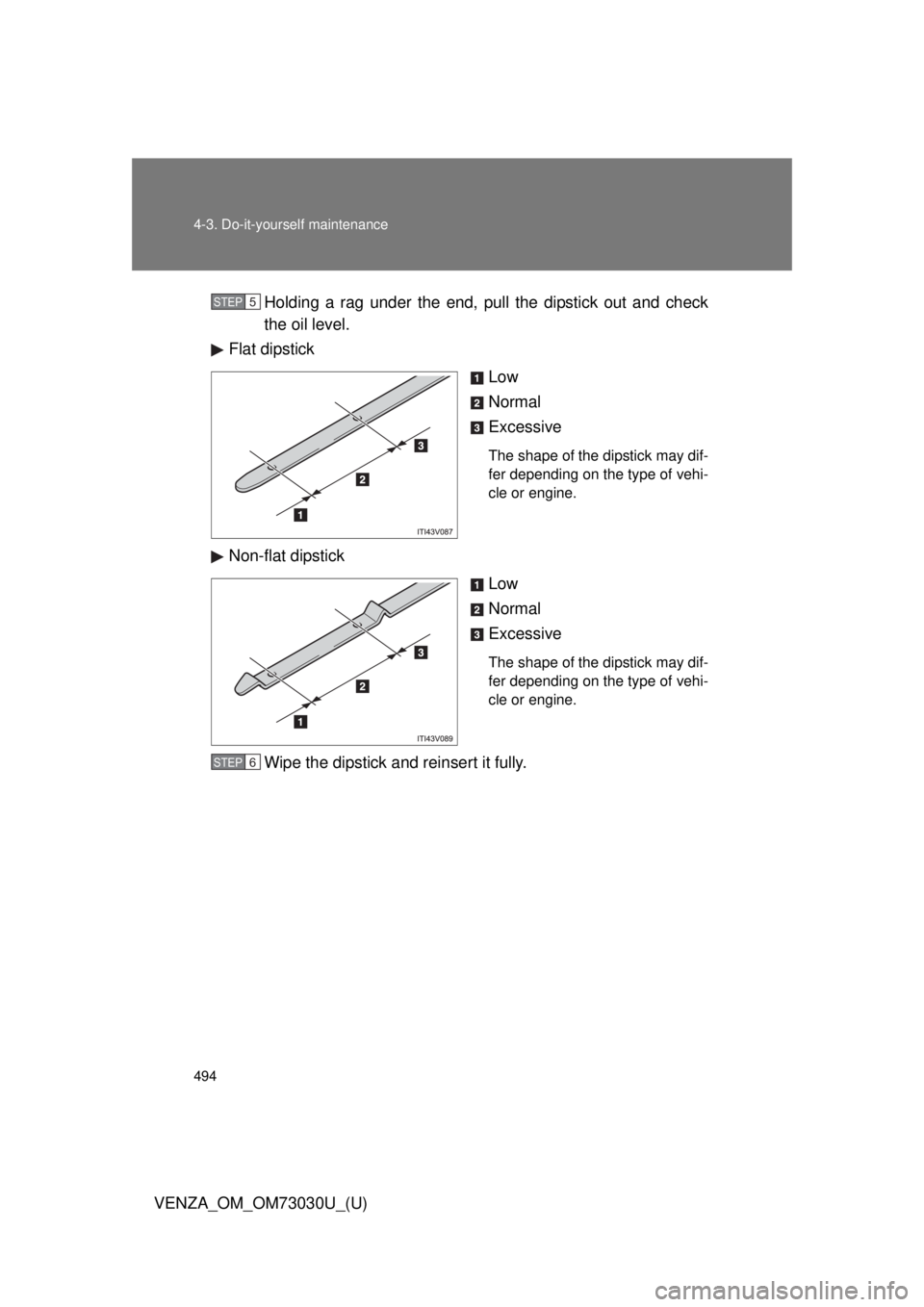

VENZA_OM_OM73030U_(U) Holding a rag under the end, pull the dipstick out and check
the oil level.
Flat dipstick
Low
Normal
Excessive The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Non-flat dipstick
Low
Normal
Excessive The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully. STEP 5
STEP 6

4954-3. Do-it-yourself maintenance
4
Maintenance and care

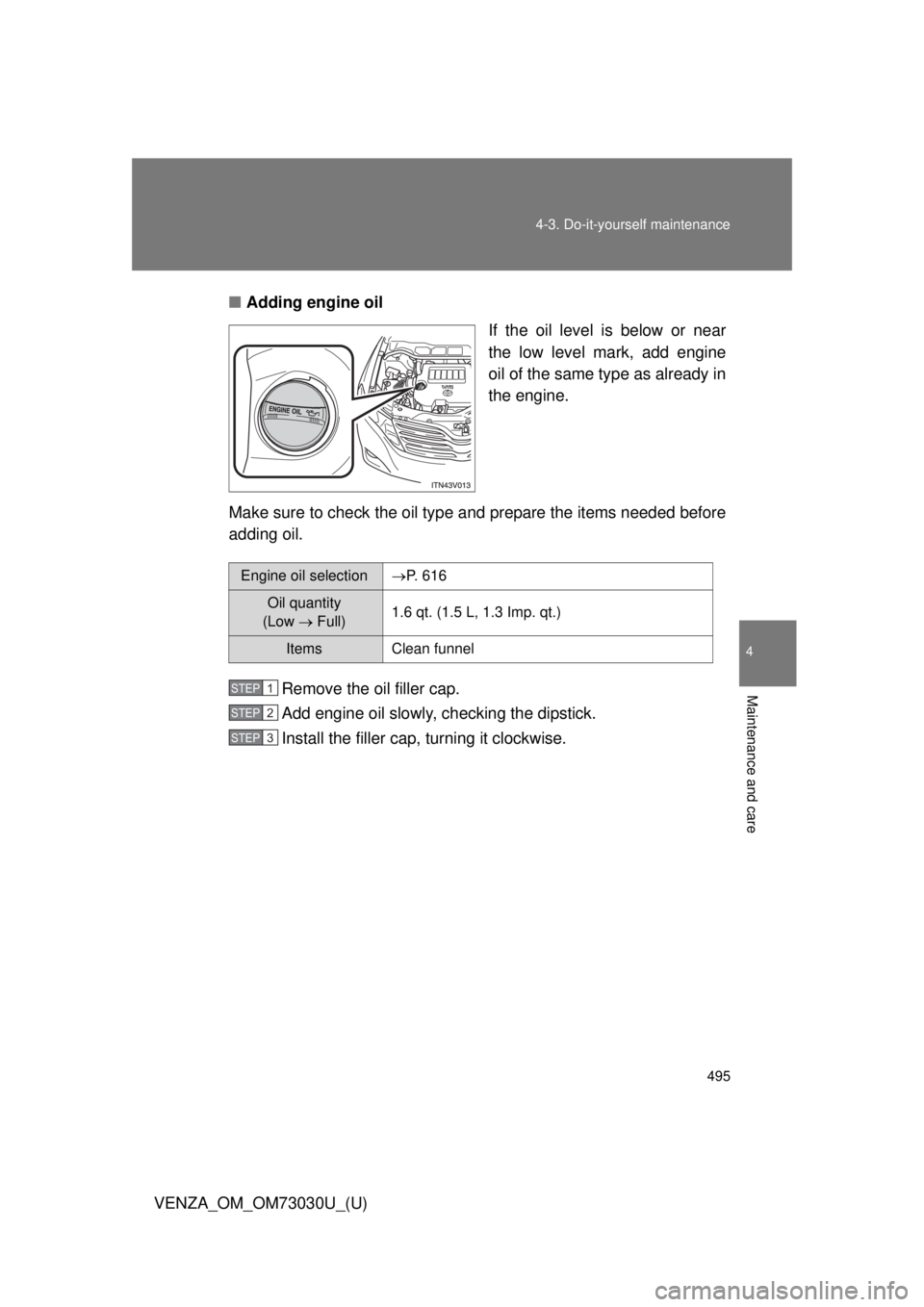

VENZA_OM_OM73030U_(U) ■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.Engine oil selection  P. 616
Oil quantity
(Low  Full) 1.6 qt. (1.5 L, 1.3 Imp. qt.)
Items Clean funnelSTEP 1
STEP 2
STEP 3

4964-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) ■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle
or after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing,
or when driving while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
CAUTION■ Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call your Toyota dealer, service station or auto parts store for information
concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.

4974-3. Do-it-yourself maintenance
4
Maintenance and care

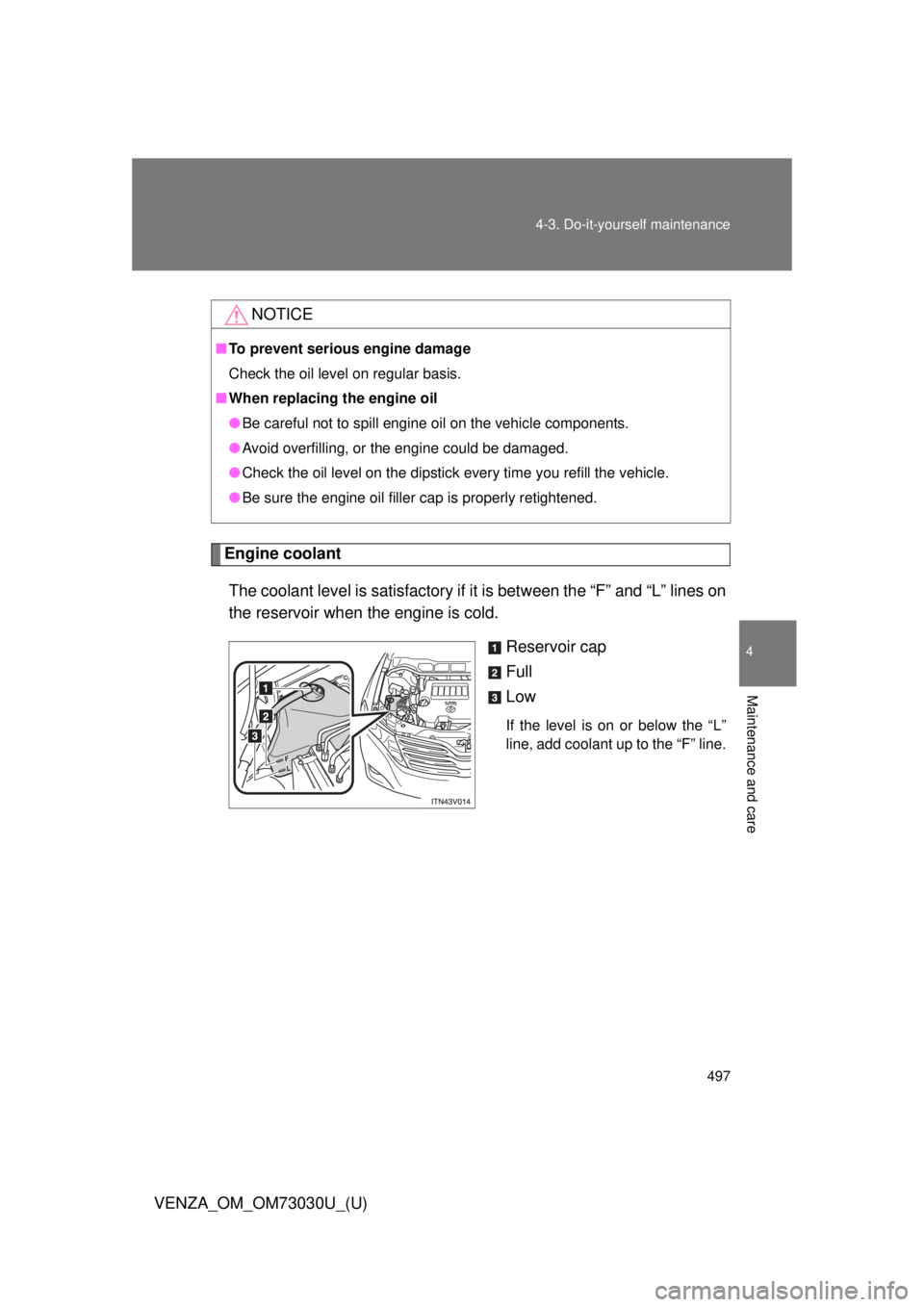

VENZA_OM_OM73030U_(U) Engine coolant
The coolant level is sati sfactory if it is betw een the “F” and “L” lines on
the reservoir when the engine is cold.
Reservoir cap
Full
Low If the level is on or below the “L”
line, add coolant up to the “F” line.NOTICE■ To prevent serious engine damage
Check the oil level on regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly retightened.

4984-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) ■ If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer pressure test the cap and
check for leaks in the cooling system.
■ Coolant selection
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and
50% deionized water. (Enabled: -31  F [-35  C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant
and 45% deionized water. (Enabled: -44  F [-42  C])
For more details about engine coolant, contact your Toyota dealer.
CAUTION■ When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

4994-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_OM_OM73030U_(U) Radiator and condenser
Check the radiator and condenser and clear any foreign objects.
If either of the above parts are extremely dirty or you are not sure of
their condition, have your vehicl e checked by your Toyota dealer.NOTICE■ When adding the engine coolant
Coolant is neither plain water nor stra ight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent damage to parts or paint.
CAUTION■ When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

5004-3. Do-it-yourself maintenance

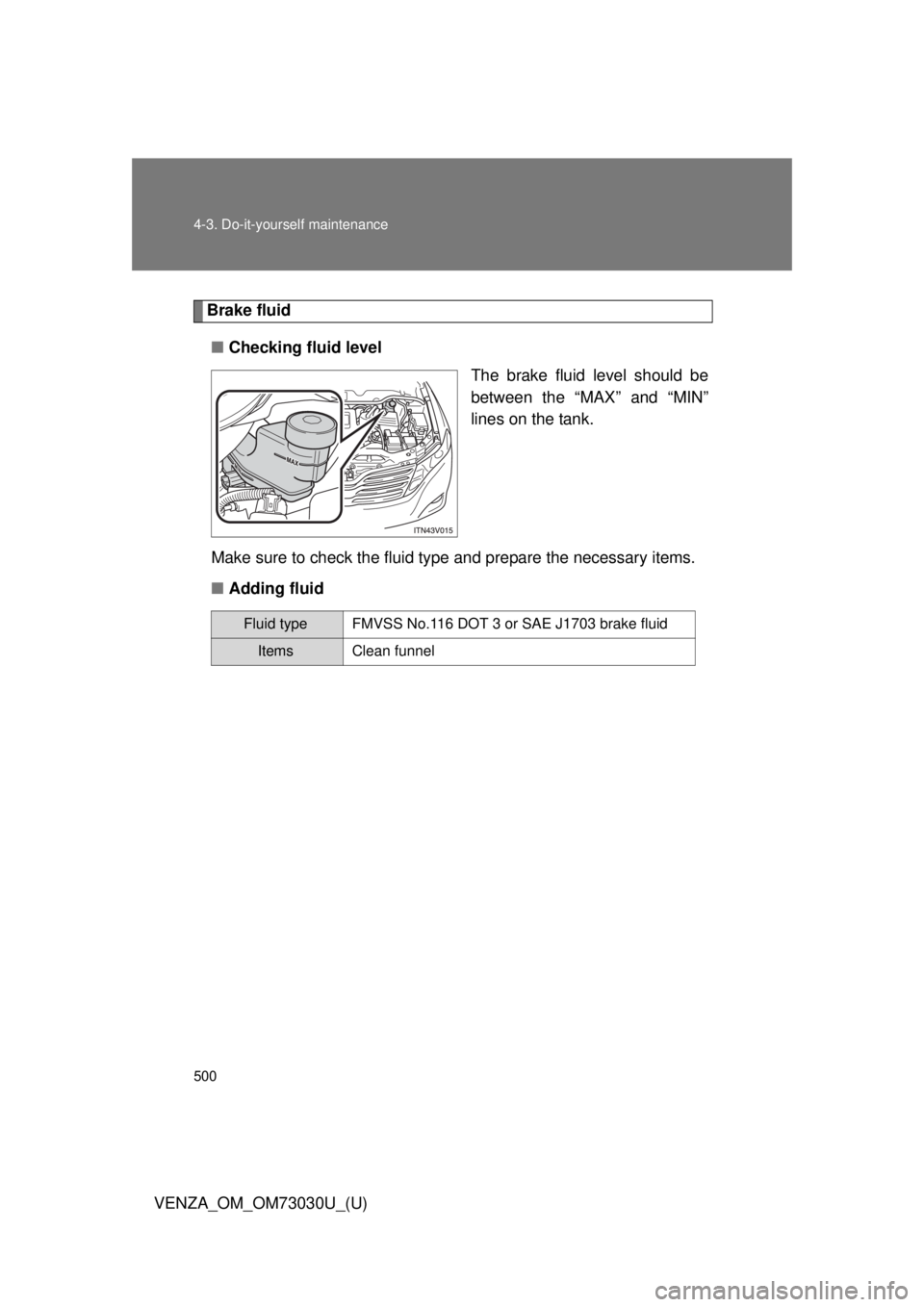

VENZA_OM_OM73030U_(U) Brake fluid
■ Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.
Make sure to check the fluid type and prepare the necessary items.
■ Adding fluid Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid
Items Clean funnel
