9

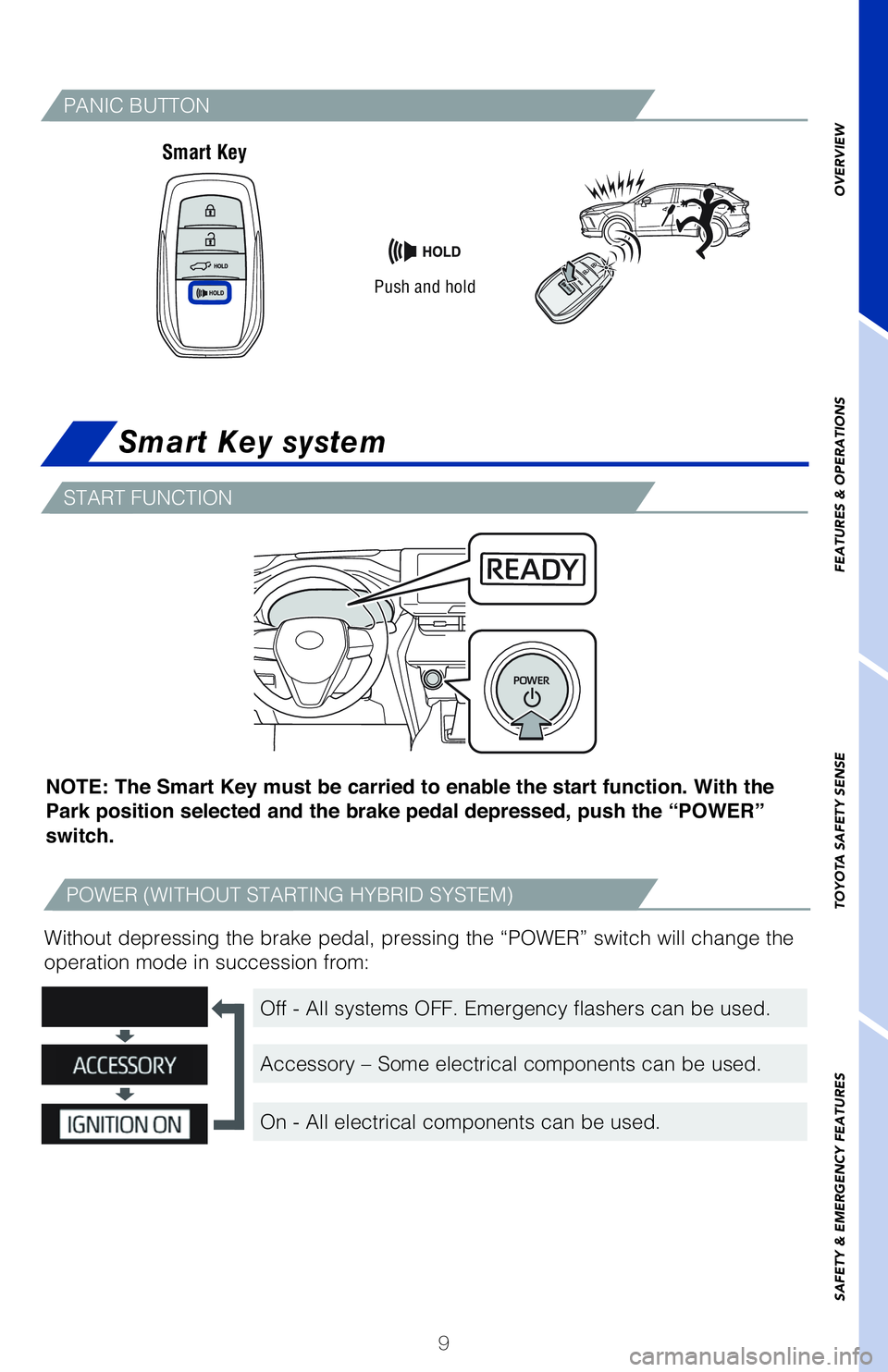

Smart Key system
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
PANIC BUTTON
Smart Key
Push and hold
NOTE: The Smart Key must be carried to enable the start function. With the
Park position selected and the brake pedal depressed, push the “POWER”
switch.
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
START FUNCTION
POWER 8*5)06545"35*/():#3*%4:45&.

10
OVERVIEW
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, check Engine “
”
indicator may illuminate.
Push lever to the
left and raise hood
Insert rod to hold
hood open Pull
Push
Driver seat
Turn to open
Store
Close

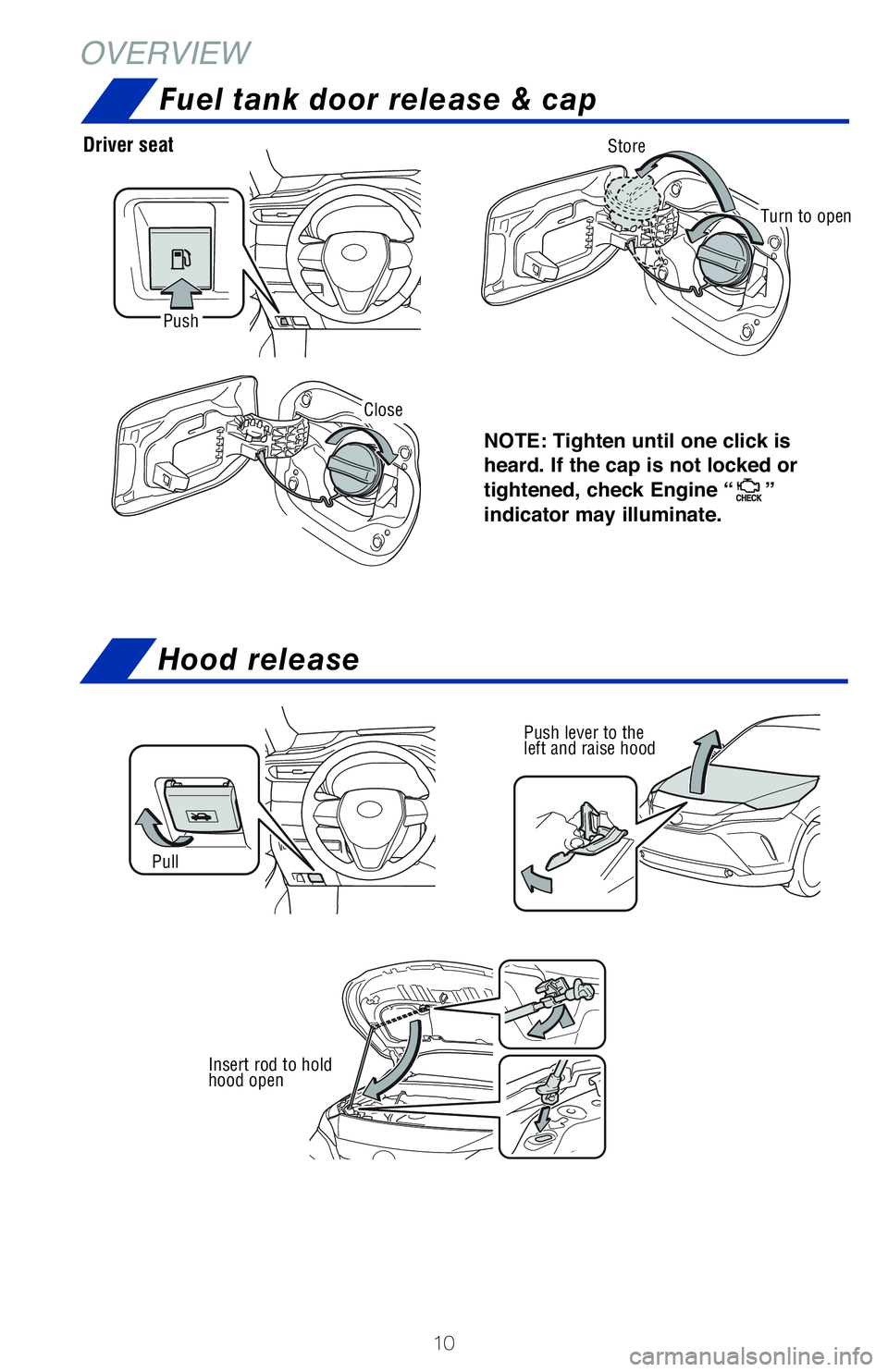

Fuel tank door release & cap
Hood release

11 NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Washer fluid tank Engine coolant reservoir Engine oil filler cap
Engine oil level dipstick

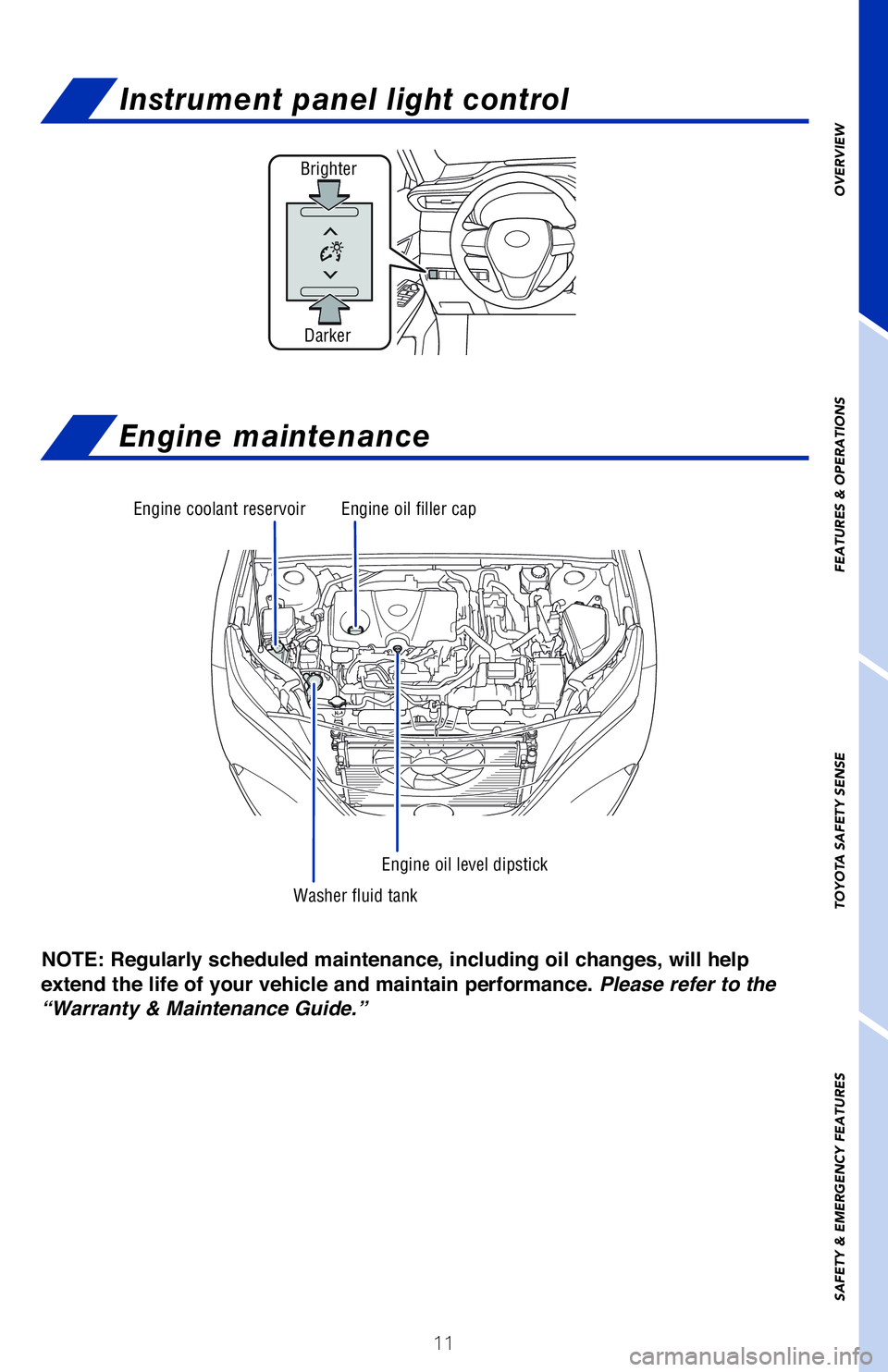

Instrument panel light control
Brighter
Darker
Engine maintenance

12

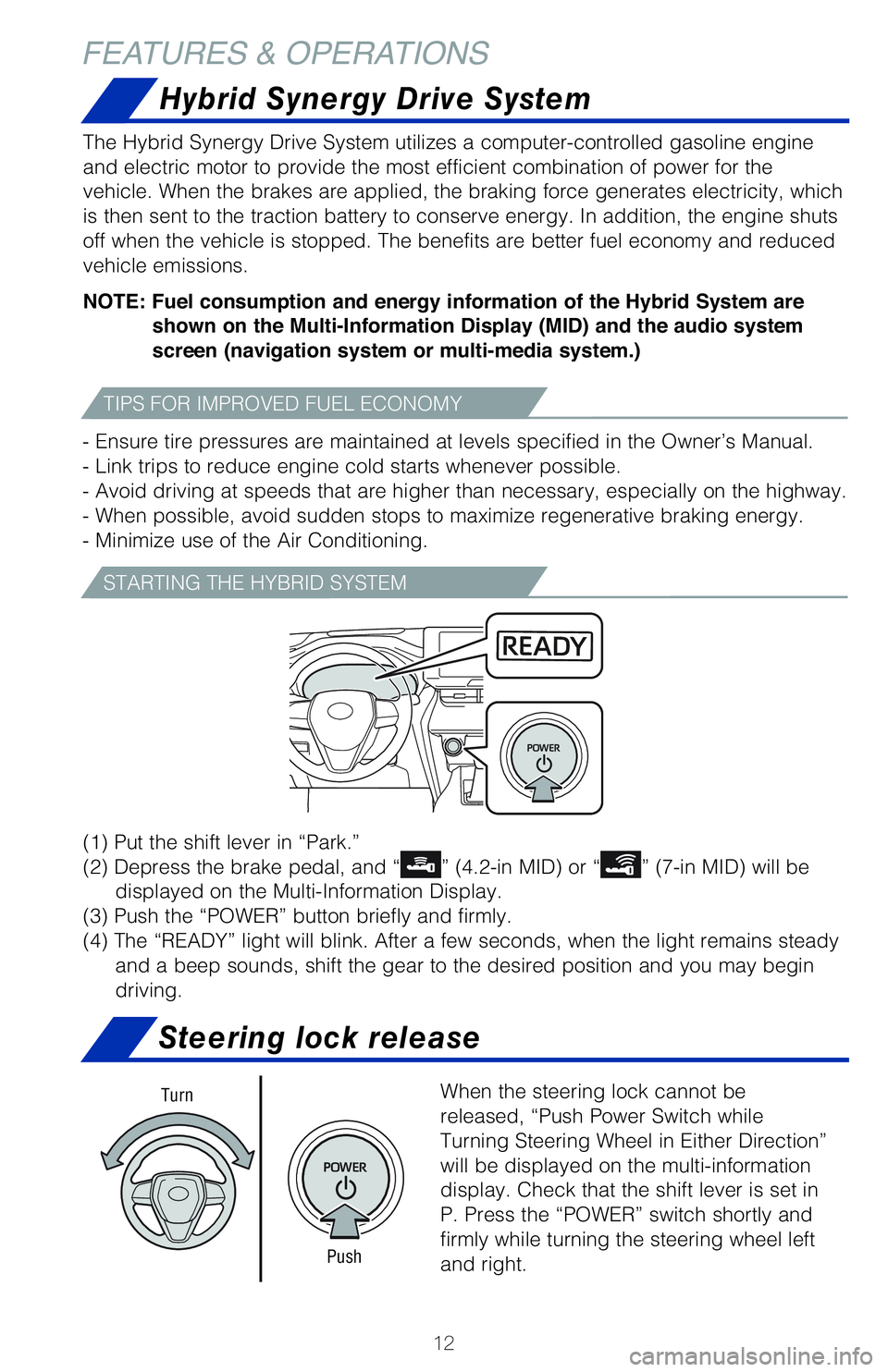

Hybrid Synergy Drive System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. When the brakes are applied, the braking force generates electricity, which
is then sent to the traction battery to conserve energy. In addition, the engine shuts
off when the vehicle is stopped. The benefits are better fuel economy and reduced
vehicle emissions.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Multi-Information Display (MID) and the audio system
screen (navigation system or multi-media system.)
- Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
- Link trips to reduce engine cold starts whenever possible.
- Avoid driving at speeds that are higher than necessary, especially on the highway.
- When possible, avoid sudden stops to maximize regenerative braking energy.
- Minimize use of the Air Conditioning.

Put the shift lever in “Park.”

Depress the brake pedal, and “
w JO.*%
PSiw JO.*%
XJMMCF
displayed on the Multi-Information Display.

1VTIUIFi108&3wCVUUPOCSJFGMZBOEGJSNMZ

The “READY” light will blink. After a few seconds, when the light remains steady
and a beep sounds, shift the gear to the desired position and you may begin
driving.
FEATURES & OPERATIONS
TIPS FOR IMPROVED FUEL ECONOMY
STARTING THE HYBRID SYSTEM
Steering lock release
Push Turn
When the steering lock cannot be
released, “Push Power Switch while
Turning Steering Wheel in Either Direction”
will be displayed on the multi-information
display. Check that the shift lever is set in
P. Press the “POWER” switch shortly and
firmly while turning the steering wheel left
and right.

13
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

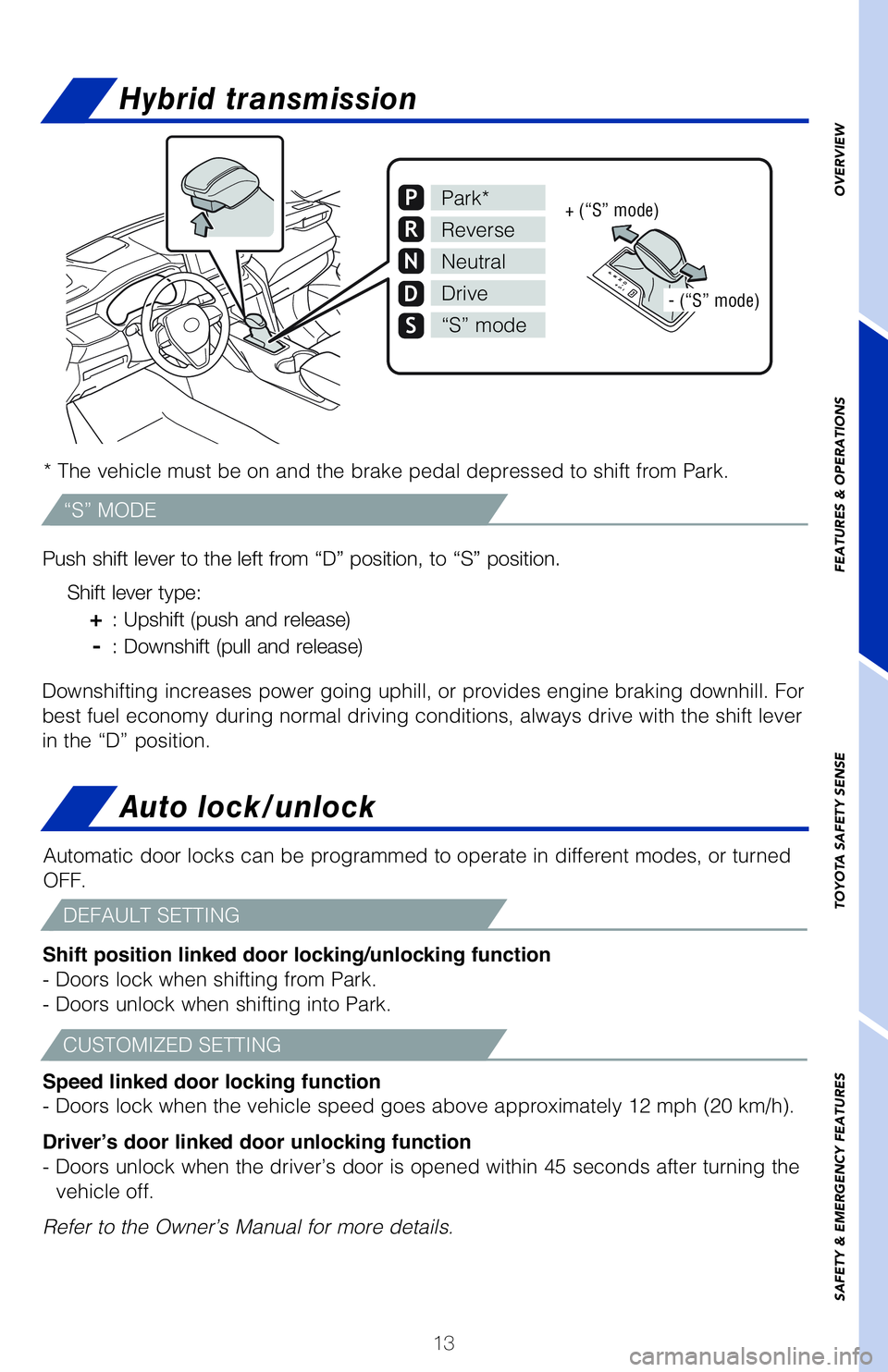

Hybrid transmission
* The vehicle must be on and the brake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
P
R
N
D
S
“S” MODE
+ (“S” mode)
- (“S” mode)
Park*
Reverse
Neutral
Drive
“S” mode
Push shift lever to the left from “D” position, to “S” position.
Shift lever type:
+ : Upshift (push and release)
- : Downshift (pull and release)
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Speed linked door locking function
- %PPSTMPDLXIFOUIFWFIJDMFTQFFEHPFTBCPWFBQQSPYJNBUFMZNQI LNI

'ULYHU

14

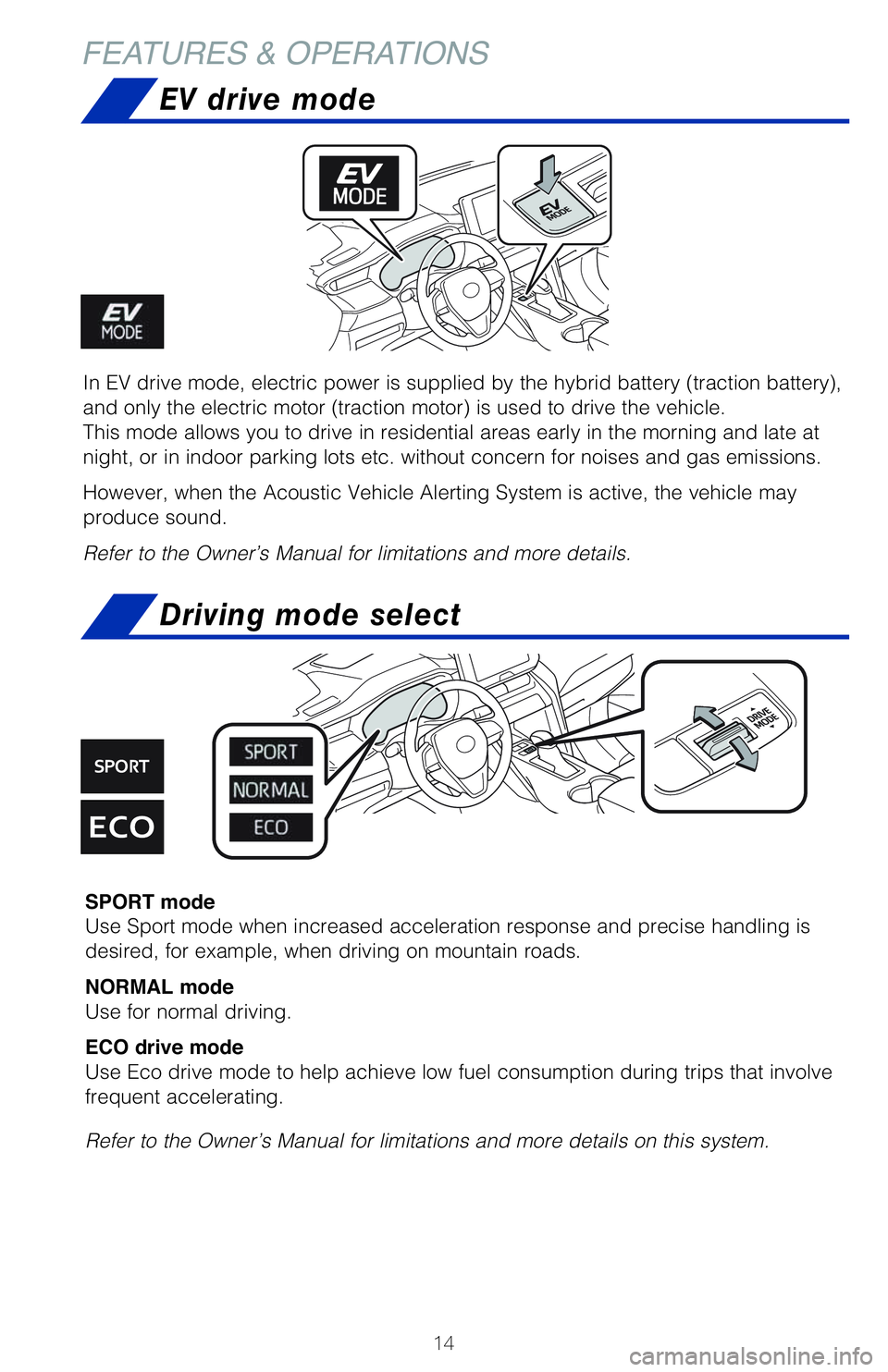

EV drive mode
*O&7ESJWFNPEF
FMFDUSJDQPXFSJTTVQQMJFECZUIFIZCSJECBUUFSZ USBDUJPOCBUUFSZ

BOEPOMZUIFFMFDUSJDNPUPS USBDUJPONPUPS
JTVTFEUPESJWFUIFWFIJDMF
This mode allows you to drive in residential areas early in the morning and late at
night, or in indoor parking lots etc. without concern for noises and gas emissions.
However, when the Acoustic Vehicle Alerting System is active, the vehicle may
produce sound.
Refer to the Owner’s Manual for limitations and more details.
FEATURES & OPERATIONS
Driving mode select
SPORT mode
Use Sport mode when increased acceleration response and precise handling is
desired, for example, when driving on mountain roads.
NORMAL mode
Use for normal driving.
ECO drive mode
Use Eco drive mode to help achieve low fuel consumption during trips that involve
frequent accelerating.
Refer to the Owner’s Manual for limitations and more details on this system.

15
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

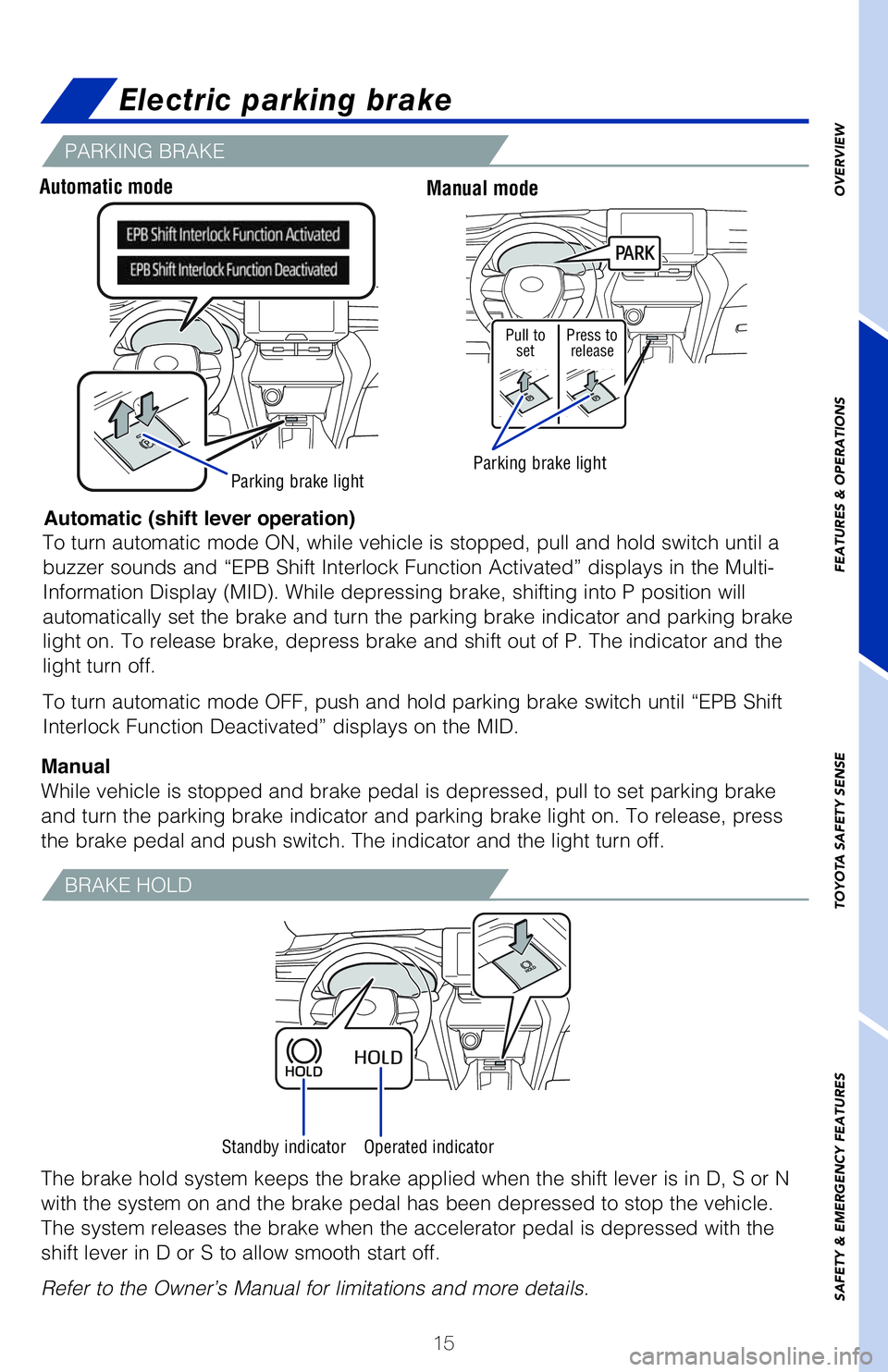

Electric parking brake
Automatic (shift lever operation)
ManualTo turn automatic mode ON, while vehicle is stopped, pull and hold switch until a
buzzer sounds and “EPB Shift Interlock Function Activated” displays in the Multi-
*OGPSNBUJPO%JTQMBZ .*%
8IJMFEFQSFTTJOHCSBLF
TIJGUJOHJOUP1QPTJUJPOXJMM
automatically set the brake and turn the parking brake indicator and parking brake
light on. To release brake, depress brake and shift out of P. The indicator and the
light turn off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated” displays on the MID.
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake light on. To release, press
the brake pedal and push switch. The indicator and the light turn off.
The brake hold system keeps the brake applied when the shift lever is in D, S or N
with the system on and the brake pedal has been depressed to stop the vehicle.
The system releases the brake when the accelerator pedal is depressed with the
shift lever in D or S to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Parking brake light
Press to
release Pull to
set
Standby indicatorOperated indicator
Driver sideAutomatic modeManual mode
BRAKE HOLD
PARKING BRAKE
Parking brake light

16
FEATURES & OPERATIONS
1. When the liftgate reaches the desired height, push the rear liftgate close-button
POUIFEPPSKBNPGUIFMJGUHBUF
PODF1SFTTBOEIPMEUIFCVUUPOVOUJMUIFCV[[FS
TPVOET UJNFT

2. To reset the height, with the liftgate open and not moving, press and hold the rear
liftgate close-button until the buzzer sounds 4 times, and continue to hold until it
buzzes again, then let go. Push the same button to close the liftgate. When you
next open the liftgate, it will open to the maximum height.
3. To set the height using the Multi-Information Display, press “
” or “ ”
of the meter control switches and select “Vehicle settings” from “
” screen.
Press “
” or “ ” and select “ 1#%
wBOEUIFOQSFTTi.” Select
“Opening Adjustment,” then press “
w4FMFDUEFTJSFEQPTJUJPO IFJHIUPQUJPOT
UPDIPPTFGSPN

UIFOQSFTTi
.”
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Instrument panel
Power Liftgate (back door)
Open: Push and hold
Close: Push and hold again
(close only)(open only)
HEIGHT ADJUSTABLE FUNCTION

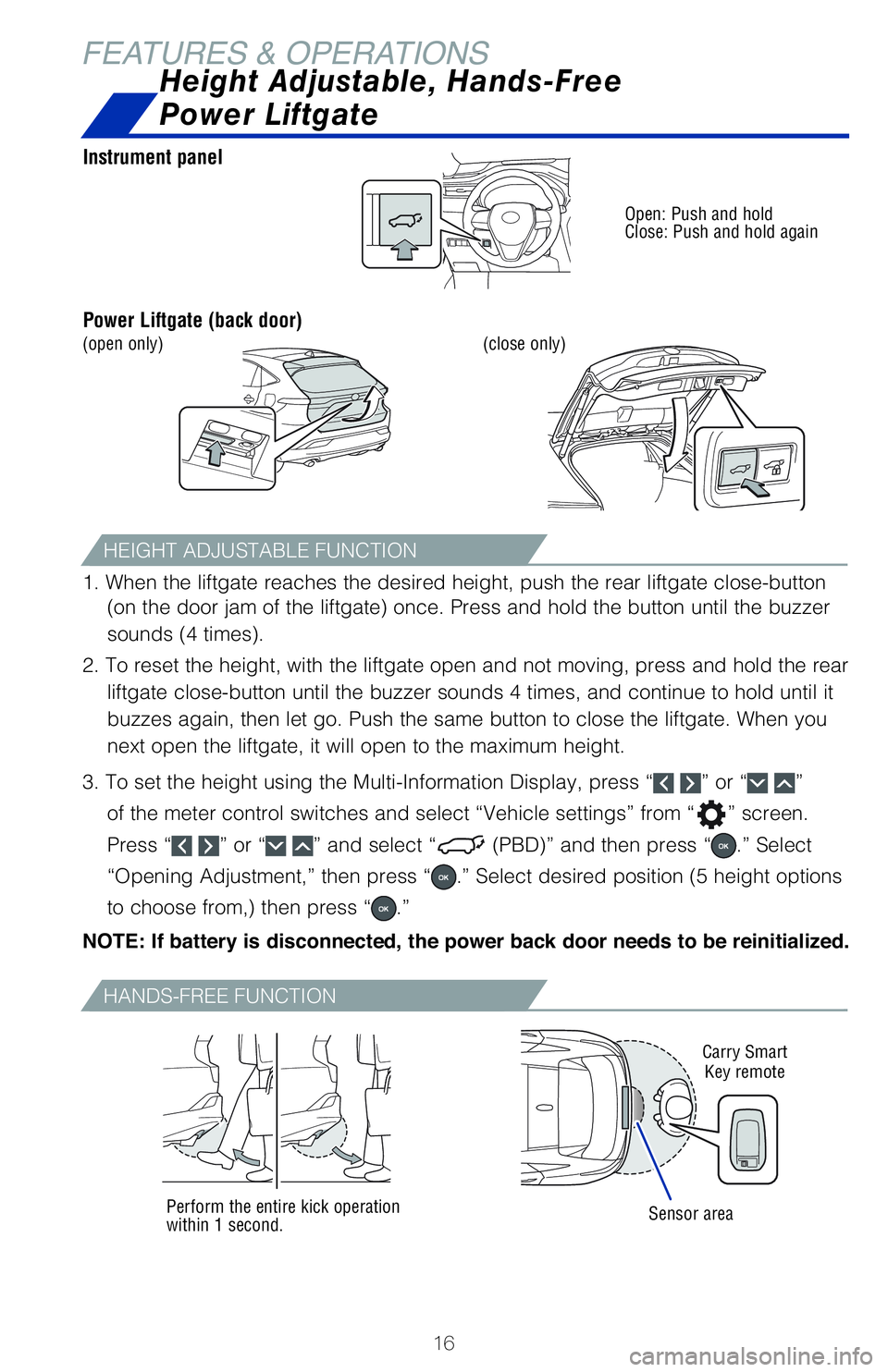

Height Adjustable, Hands-Free
Power Liftgate
Sensor areaPerform the entire kick operation
within 1 second.
Carry Smart
Key remote
HANDS-FREE FUNCTION

17
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
)"/%4'3&&'6/$5*0/ $0/5*/6&%

Power tilt & telescopic steering wheel
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Power easy access system (if equipped): The steering wheel and driver’s seat
move in accordance with power switch mode and the driver’s seat belt condition.
Up
Control switch
Away from
the driverToward
the driver
DownAngleLength
Power windows
All window auto up/down
Push the switch completely down or pull it completely up and release to fully open
or close. To stop window partway, lightly push the switch in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
Driver side
UpDown
Indicator
Window lock switch
To automatically open/close Power Liftgate Quickly swipe your foot near the
lower center part of the rear bumper for within 1 second to trigger sensor. To
operate, make sure that the touchless sensor operation is enabled, the vehicle is
OFF and that you are carrying the remote.
Press “
” or “ ” of the meter control switches and select “ 1#%
w from
the “Vehicle Settings” in the “
” screen JOUIF.VMUJ*OGPSNBUJPO%JTQMBZ .*%
UP
access hands-free settings. And push “
” to enter selection.
NOTE: Use the same gear and “
” icons from the HUD section.
For more details, refer to the Owner’s Manual.

18
Information display area
Driving support system information
Driving support system
informationRSA (Road Sign Assist) Menu icons
Menu iconsInformation
display area

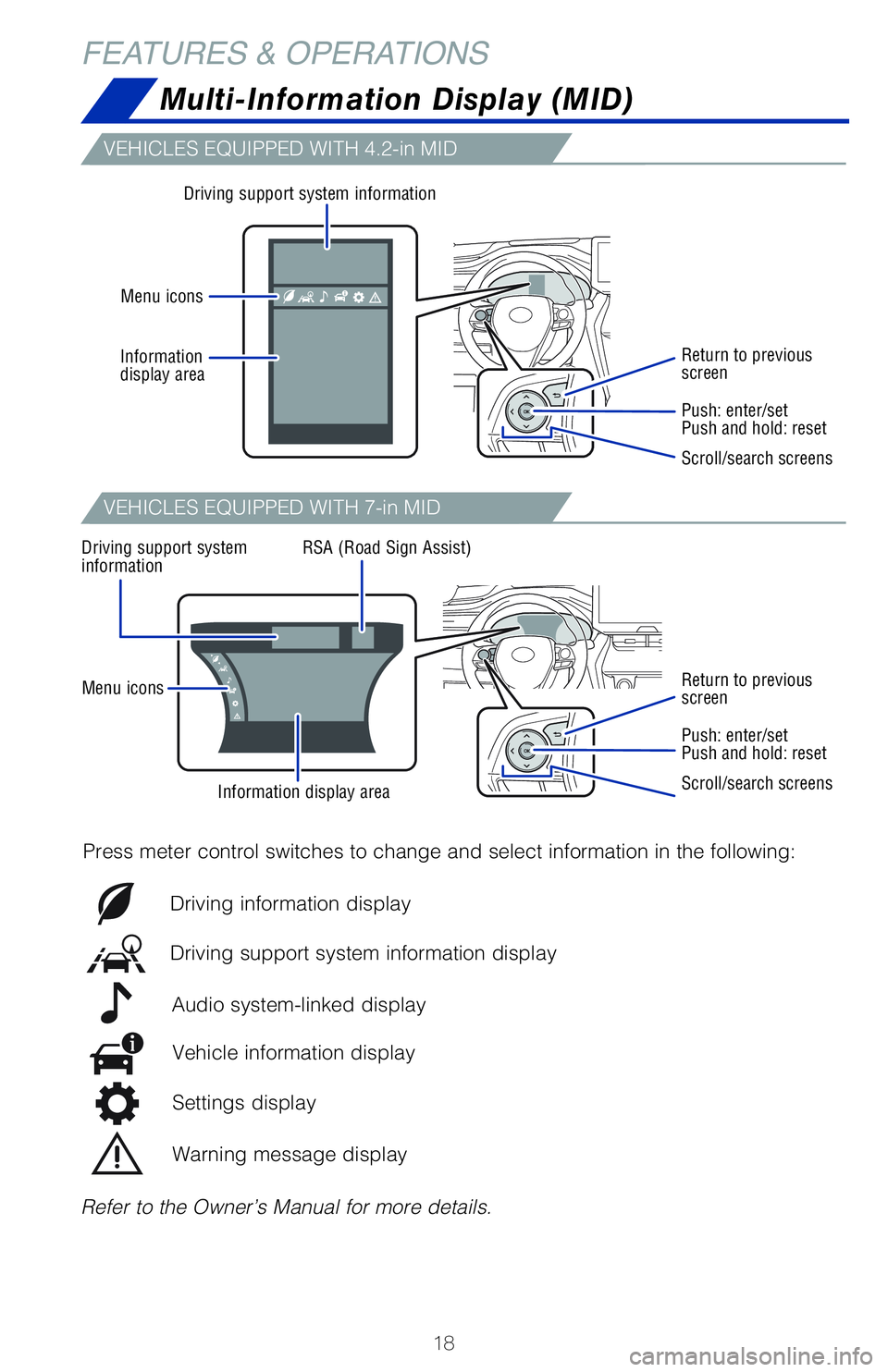

Multi-Information Display (MID)
Refer to the Owner’s Manual for more details.
Press meter control switches to change and select information in the following:
Return to previous
screen
Return to previous
screen
Push: enter/set
Push and hold: reset
Push: enter/set
Push and hold: reset
Scroll/search screens
Scroll/search screens
Driving support system information display Driving information display
Vehicle information display Audio system-linked display
Settings display
Warning message display
VEHICLES EQUIPPED WITH 4.2-in MID
VEHICLES EQUIPPED WITH 7-in MID
FEATURES & OPERATIONS
