Page 221 of 588

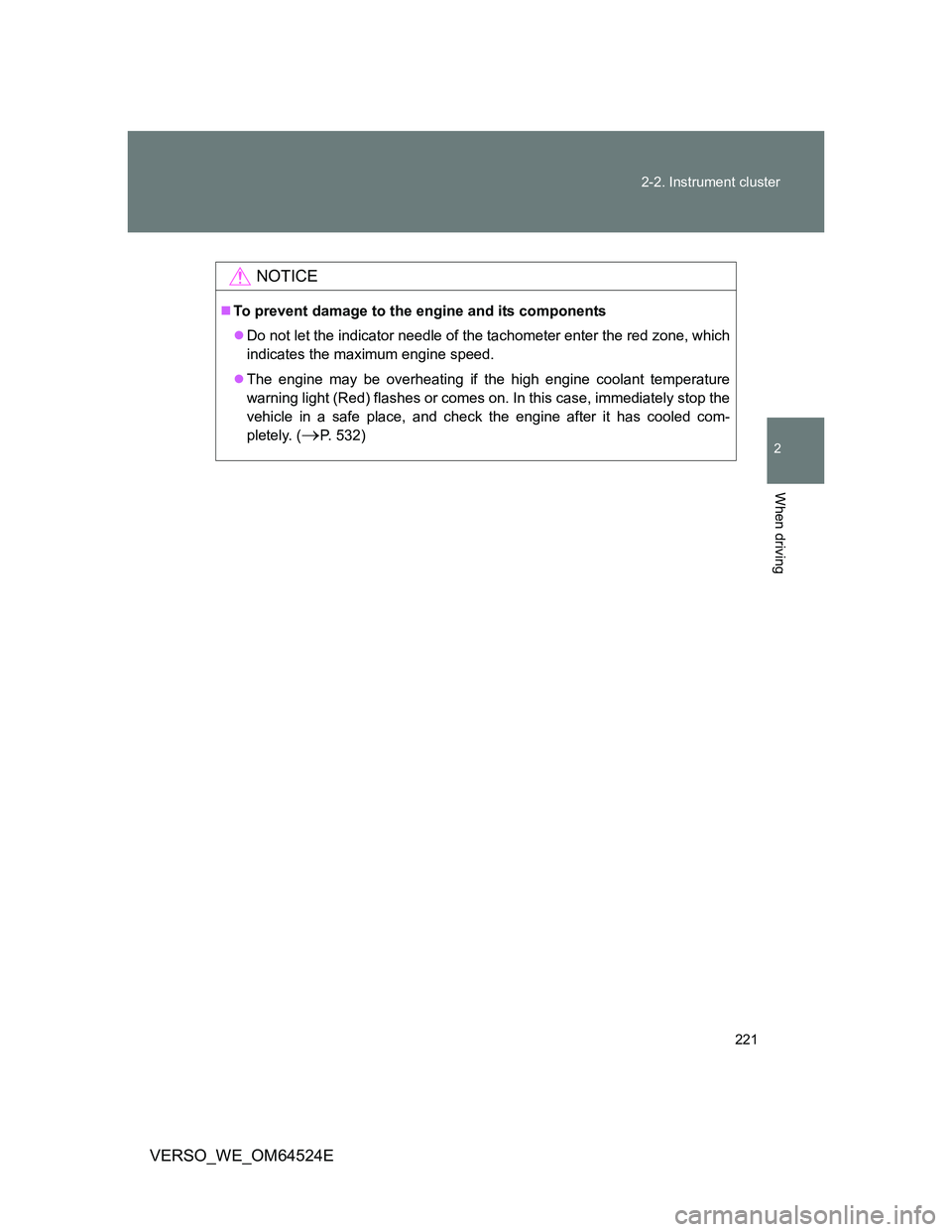

221 2-2. Instrument cluster
2
When driving
VERSO_WE_OM64524E
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light (Red) flashes or comes on. In this case, immediately stop the
vehicle in a safe place, and check the engine after it has cooled com-
pletely. (
P. 532)
Page 222 of 588

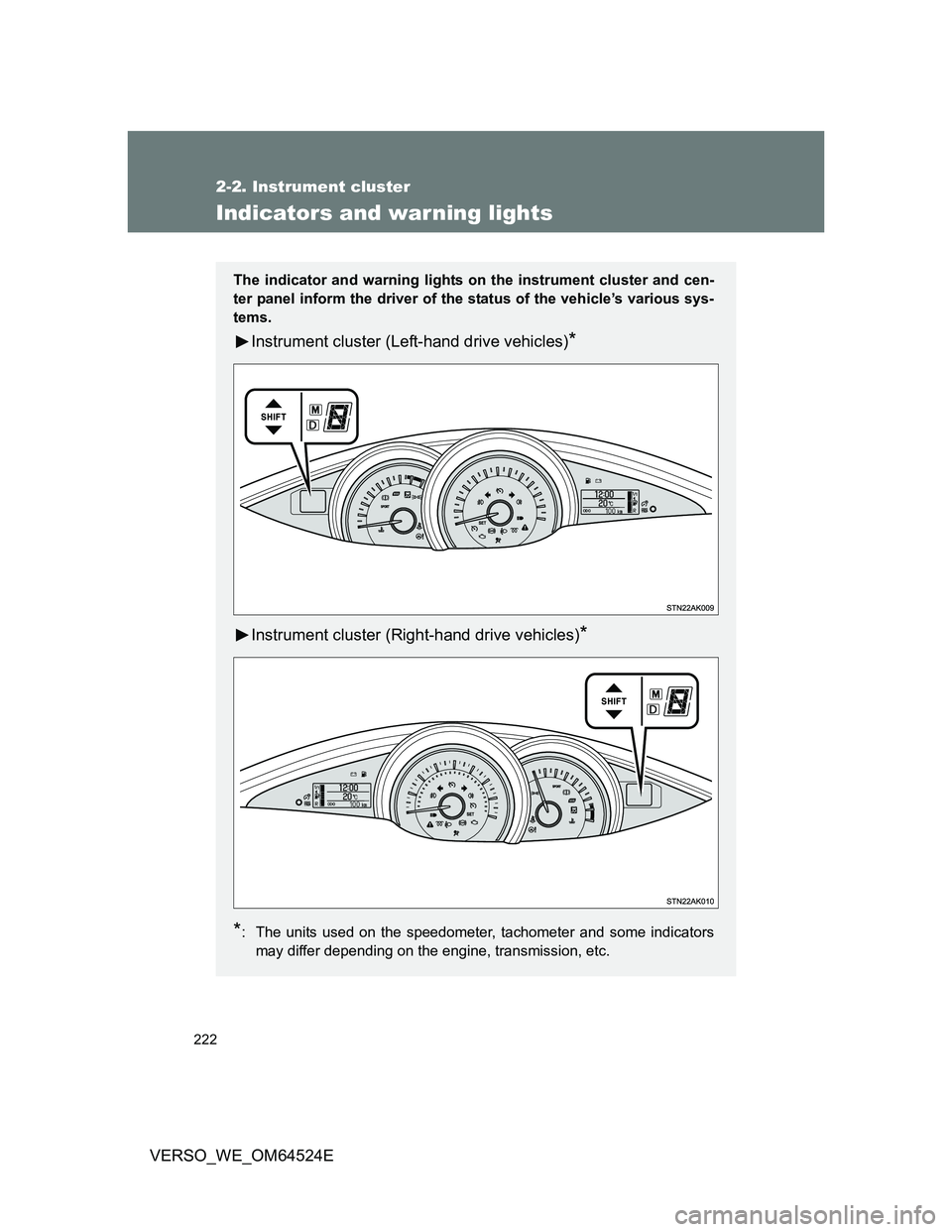

222
2-2. Instrument cluster
VERSO_WE_OM64524E
Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster (Left-hand drive vehicles)*
Instrument cluster (Right-hand drive vehicles)*
*
: The units used on the speedometer, tachometer and some indicators
may differ depending on the engine, transmission, etc.
Page 223 of 588

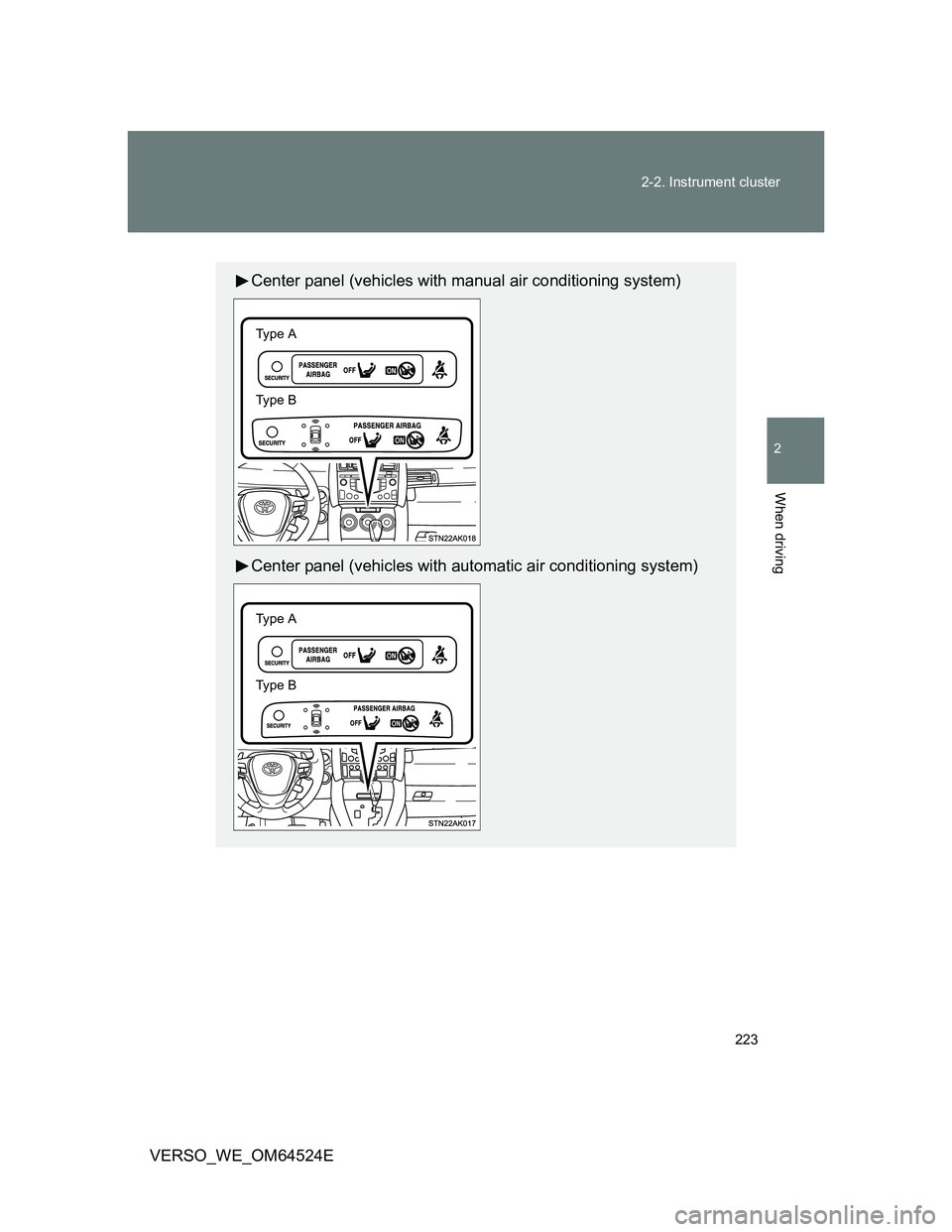

223 2-2. Instrument cluster
2
When driving
VERSO_WE_OM64524E
Center panel (vehicles with manual air conditioning system)
Center panel (vehicles with automatic air conditioning system)
Ty pe A
Ty pe B
Ty pe A
Ty pe B
Page 224 of 588

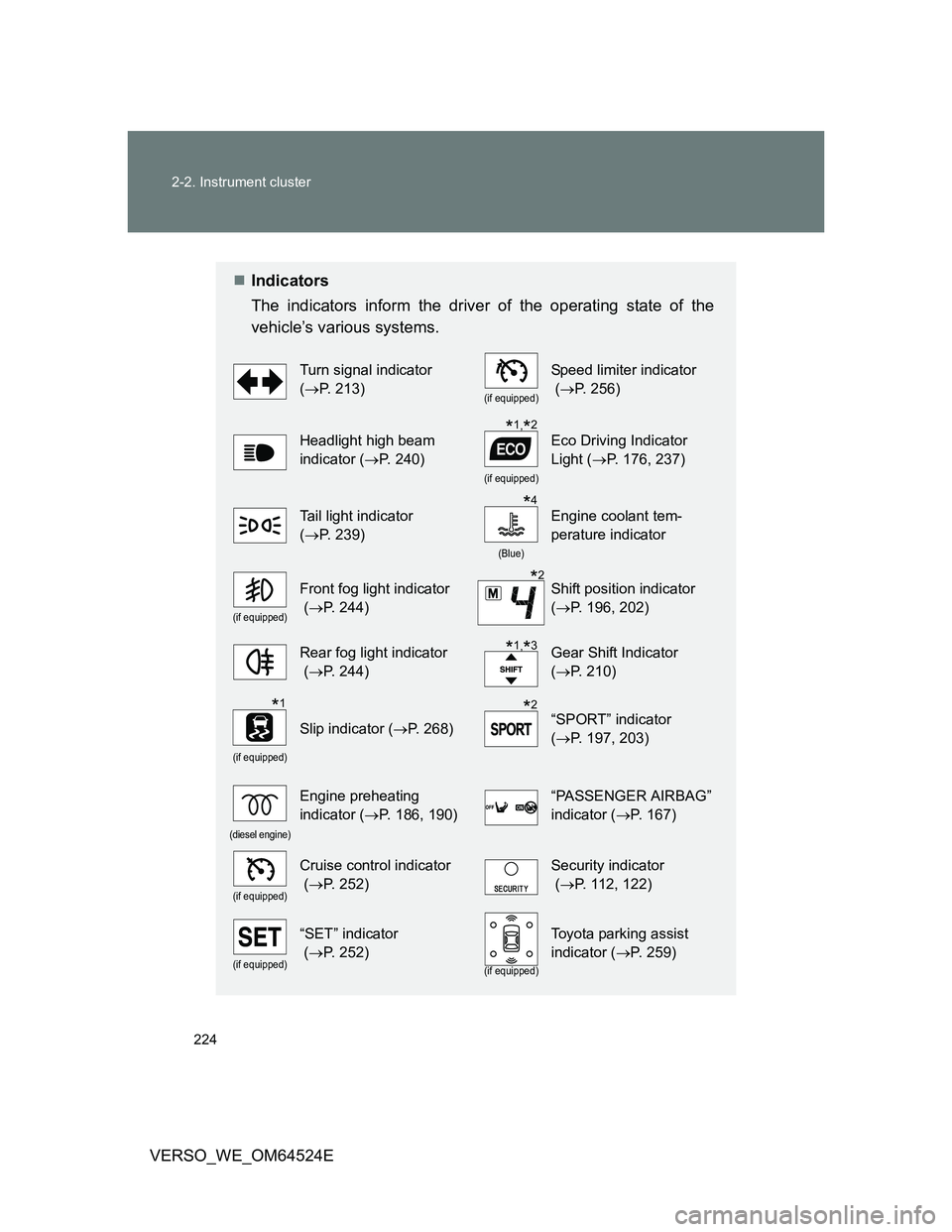

224 2-2. Instrument cluster
VERSO_WE_OM64524E
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 213)
(if equipped)
Speed limiter indicator
(P. 256)
Headlight high beam
indicator (P. 240)
(if equipped)
Eco Driving Indicator
Light (P. 176, 237)
Tail light indicator
(P. 239)
(Blue)
Engine coolant tem-
perature indicator
(if equipped)
Front fog light indicator
(P. 244)Shift position indicator
(P. 196, 202)
Rear fog light indicator
(P. 244)Gear Shift Indicator
(P. 210)
(if equipped)
Slip indicator (P. 268)“SPORT” indicator
(P. 197, 203)
(diesel engine)
Engine preheating
indicator (P. 186, 190)“PASSENGER AIRBAG”
indicator (P. 167)
(if equipped)
Cruise control indicator
(P. 252)Security indicator
(P. 112, 122)
(if equipped)
“SET” indicator
(P. 252)
(if equipped)
Toyota parking assist
indicator (P. 259)
*1,*2
*4
*2
*1,*3
*1*2
Page 225 of 588

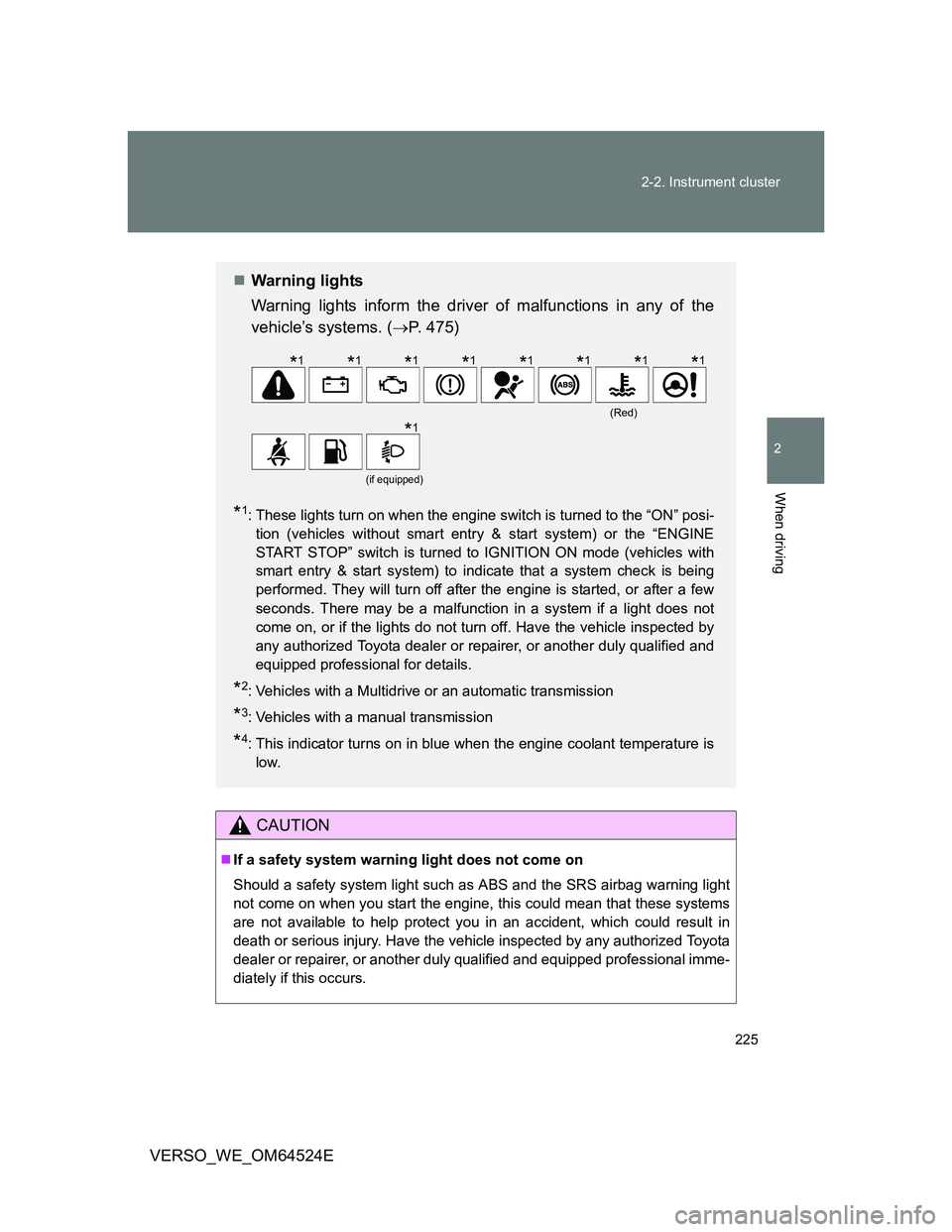

225 2-2. Instrument cluster
2
When driving
VERSO_WE_OM64524E
CAUTION
If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional imme-
diately if this occurs.
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 475)
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion (vehicles without smart entry & start system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles with
smart entry & start system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
*2: Vehicles with a Multidrive or an automatic transmission
*3: Vehicles with a manual transmission
*4: This indicator turns on in blue when the engine coolant temperature is
low.
(Red)
(if equipped)
*1*1*1*1*1*1*1*1
*1
Page 226 of 588
226
2-2. Instrument cluster
VERSO_WE_OM64524E

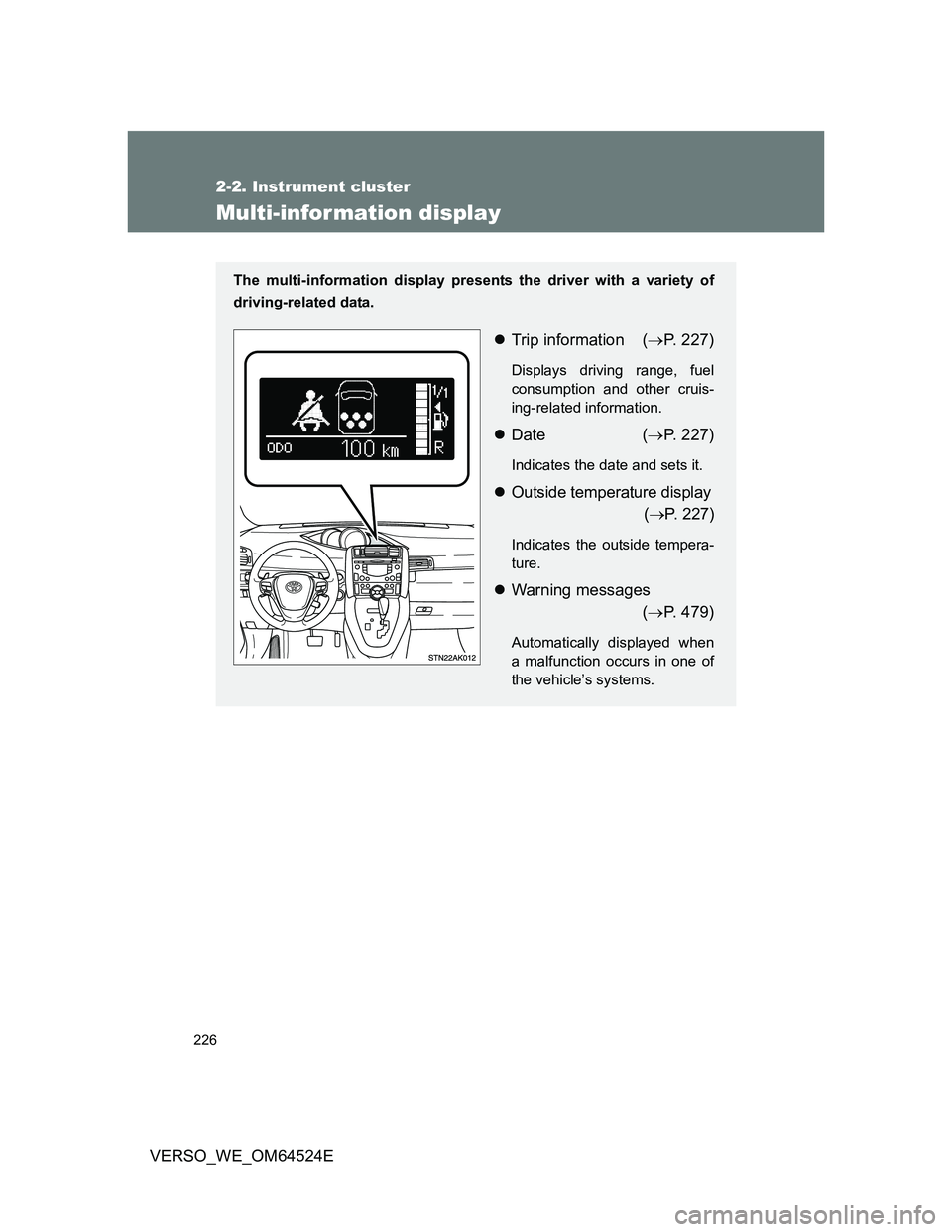

Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data.
Trip information (P. 227)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Date (P. 227)
Indicates the date and sets it.
Outside temperature display
(P. 227)
Indicates the outside tempera-
ture.
Warning messages
(P. 479)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s systems.
Page 227 of 588

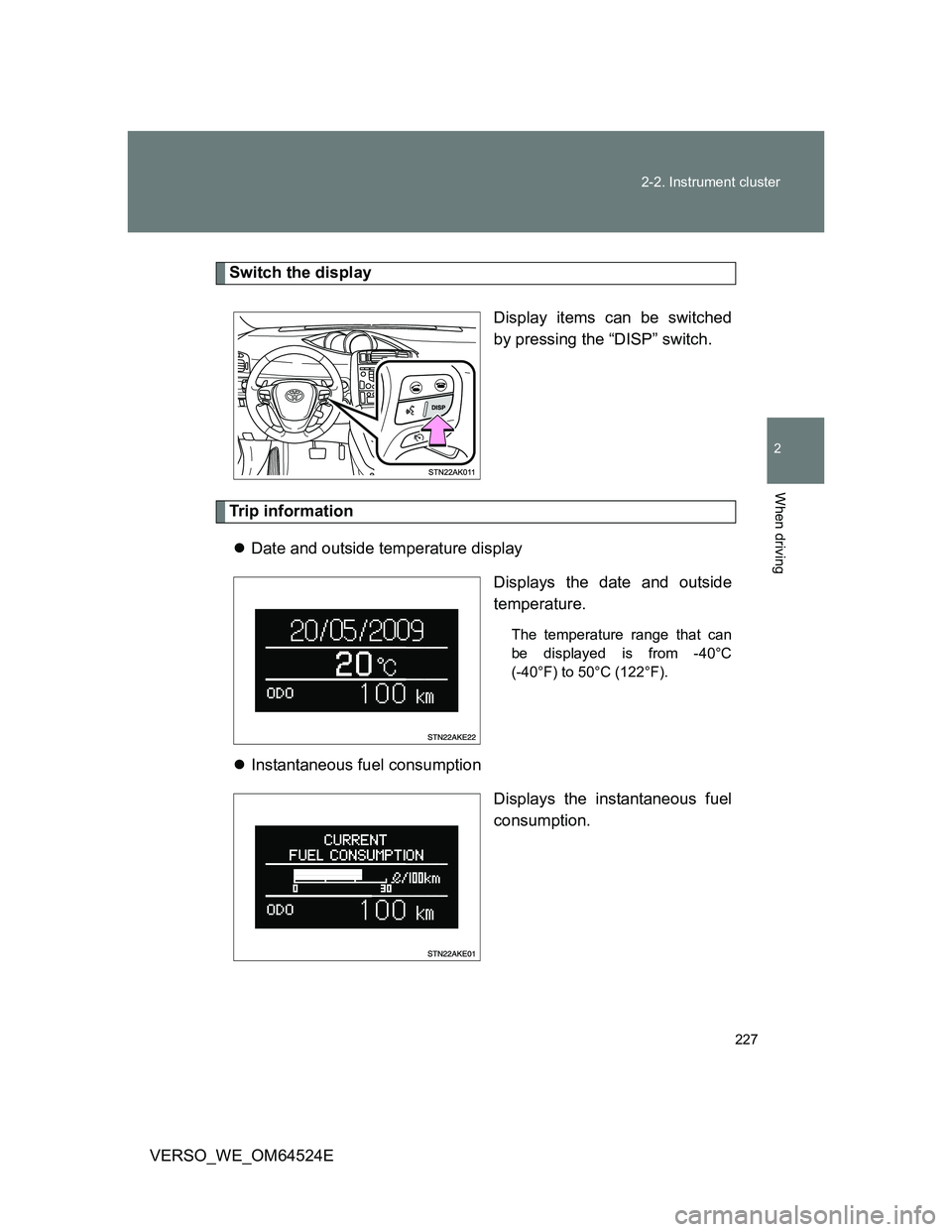

227 2-2. Instrument cluster
2
When driving
VERSO_WE_OM64524E
Switch the display
Display items can be switched
by pressing the “DISP” switch.
Trip information
Date and outside temperature display
Displays the date and outside
temperature.
The temperature range that can
be displayed is from -40°C
(-40°F) to 50°C (122°F).
Instantaneous fuel consumption
Displays the instantaneous fuel
consumption.
Page 228 of 588
228 2-2. Instrument cluster

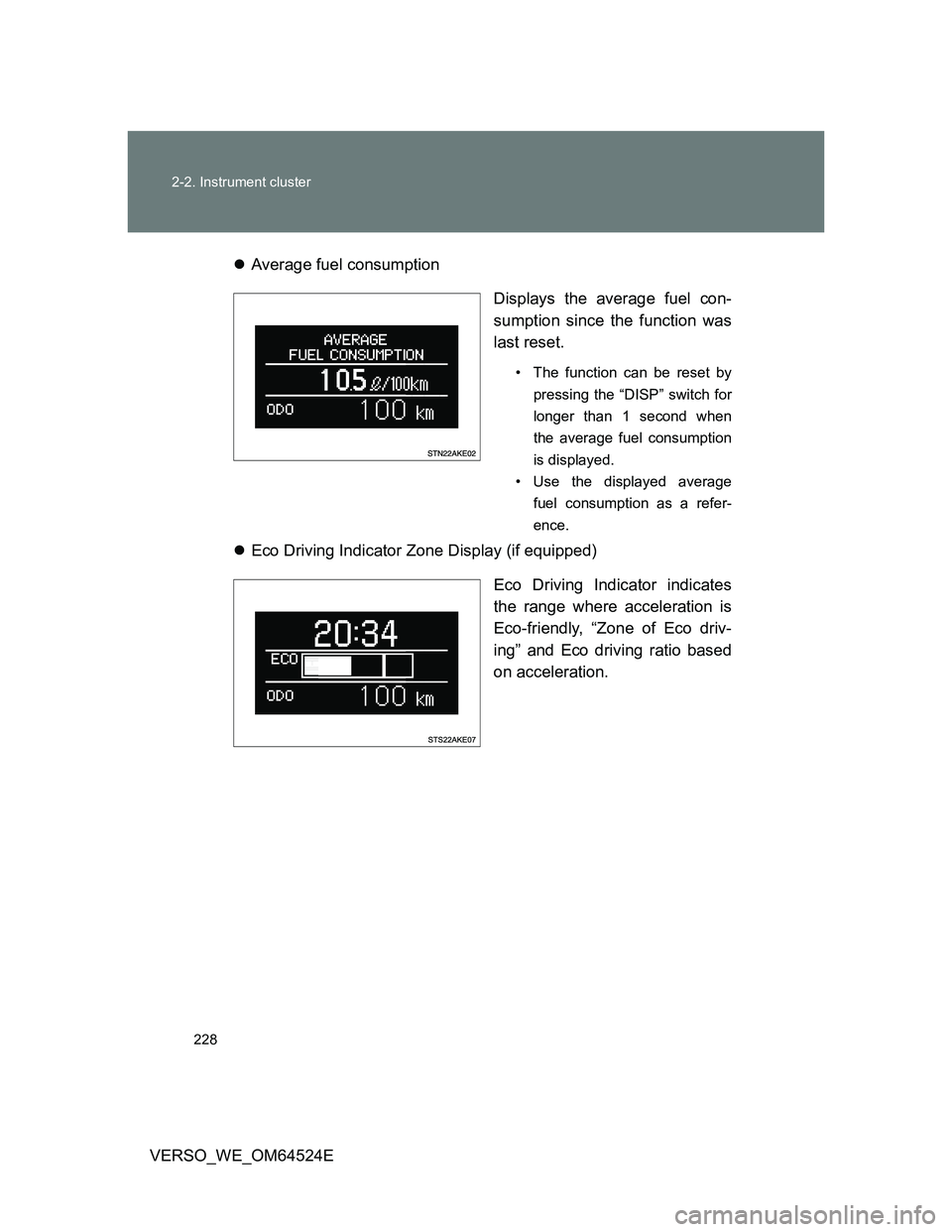

VERSO_WE_OM64524EAverage fuel consumption
Displays the average fuel con-
sumption since the function was
last reset.
• The function can be reset by
pressing the “DISP” switch for
longer than 1 second when
the average fuel consumption
is displayed.
• Use the displayed average
fuel consumption as a refer-
ence.
Eco Driving Indicator Zone Display (if equipped)
Eco Driving Indicator indicates
the range where acceleration is
Eco-friendly, “Zone of Eco driv-
ing” and Eco driving ratio based
on acceleration.
Page 229 of 588

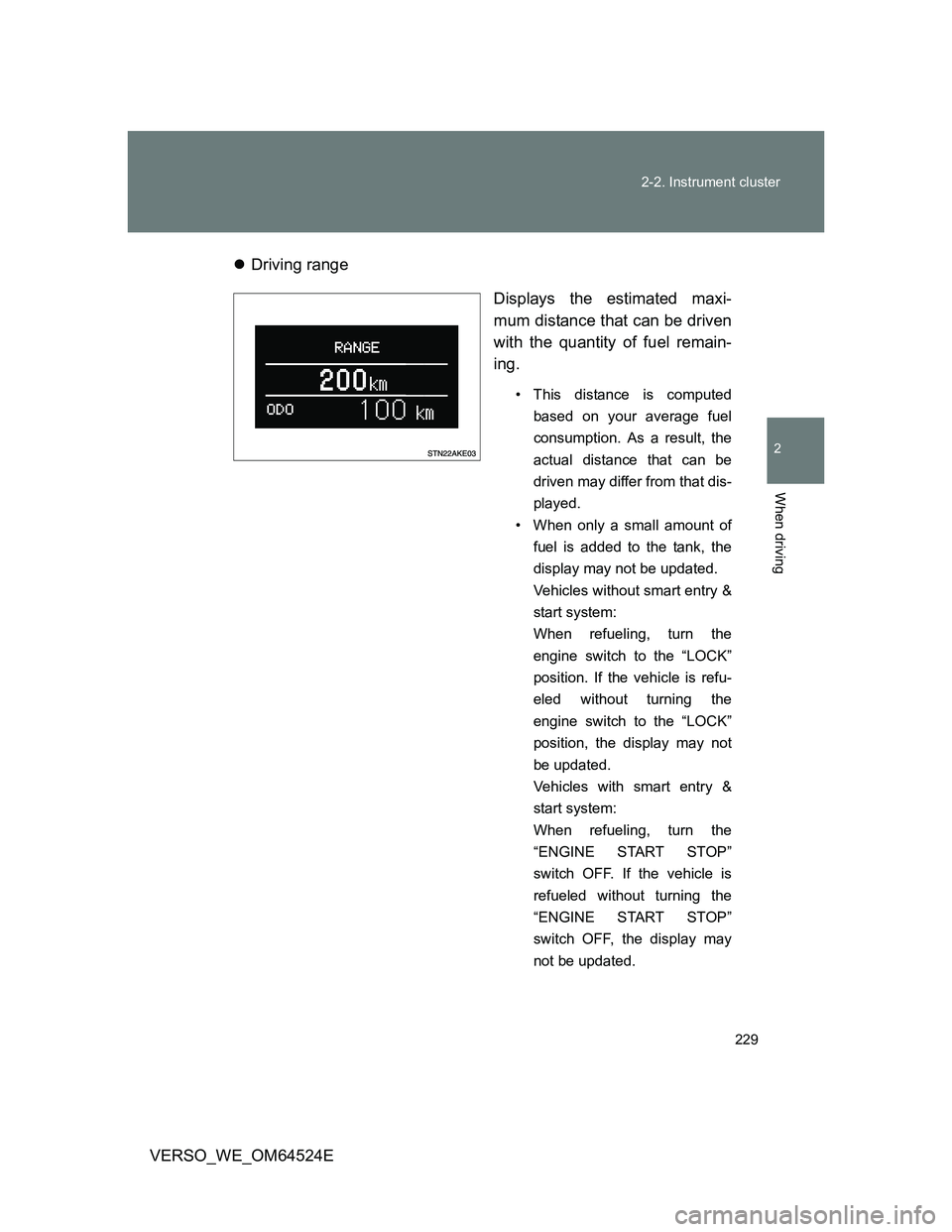

229 2-2. Instrument cluster
2
When driving
VERSO_WE_OM64524EDriving range
Displays the estimated maxi-
mum distance that can be driven
with the quantity of fuel remain-
ing.
• This distance is computed
based on your average fuel
consumption. As a result, the
actual distance that can be
driven may differ from that dis-
played.
• When only a small amount of
fuel is added to the tank, the
display may not be updated.
Vehicles without smart entry &
start system:
When refueling, turn the
engine switch to the “LOCK”
position. If the vehicle is refu-
eled without turning the
engine switch to the “LOCK”
position, the display may not
be updated.
Vehicles with smart entry &
start system:
When refueling, turn the
“ENGINE START STOP”
switch OFF. If the vehicle is
refueled without turning the
“ENGINE START STOP”
switch OFF, the display may
not be updated.
Page 230 of 588

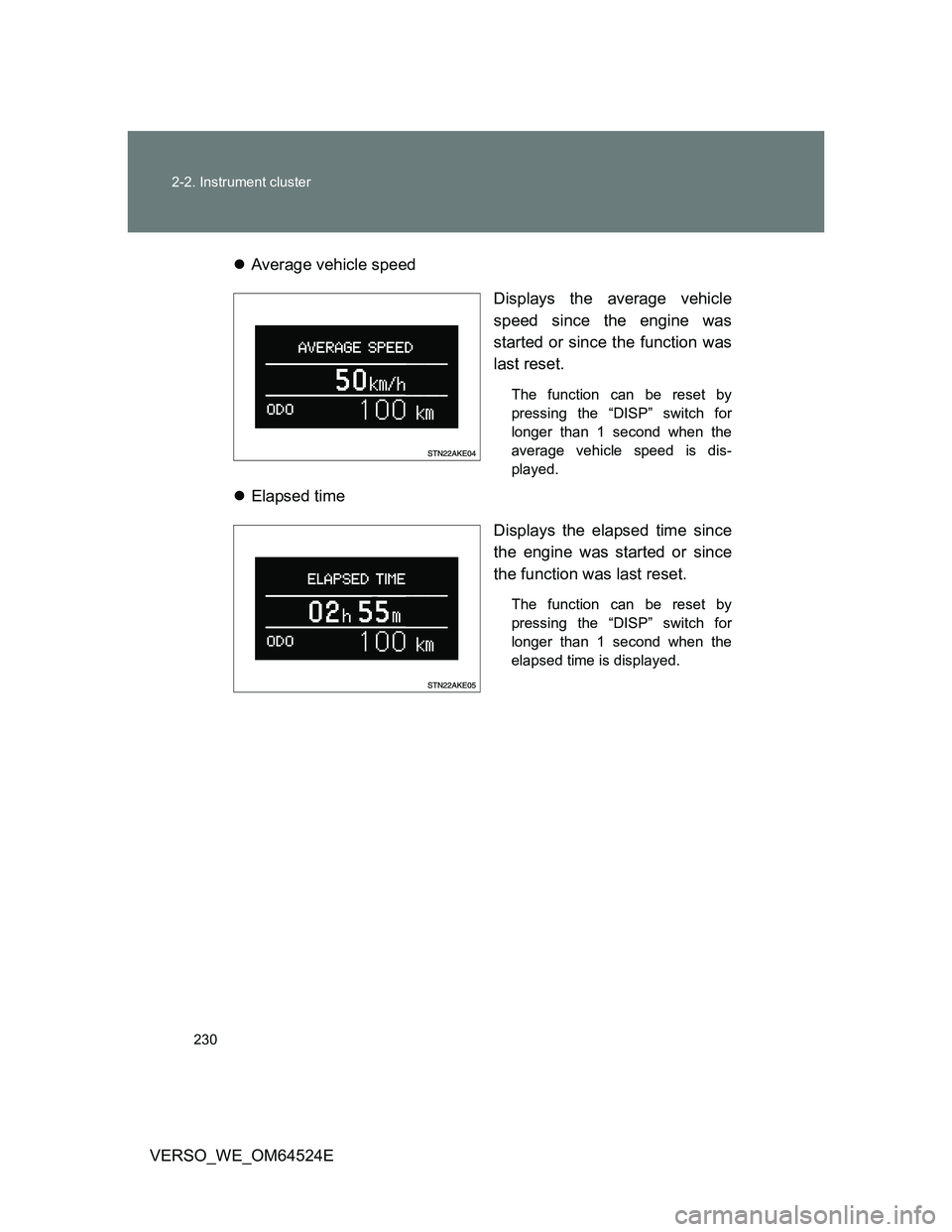

230 2-2. Instrument cluster
VERSO_WE_OM64524EAverage vehicle speed
Displays the average vehicle
speed since the engine was
started or since the function was
last reset.
The function can be reset by
pressing the “DISP” switch for
longer than 1 second when the
average vehicle speed is dis-
played.
Elapsed time
Displays the elapsed time since
the engine was started or since
the function was last reset.
The function can be reset by
pressing the “DISP” switch for
longer than 1 second when the
elapsed time is displayed.
