TOYOTA VERSO 2011 Owners Manual

231 2-2. Instrument cluster
2
When driving

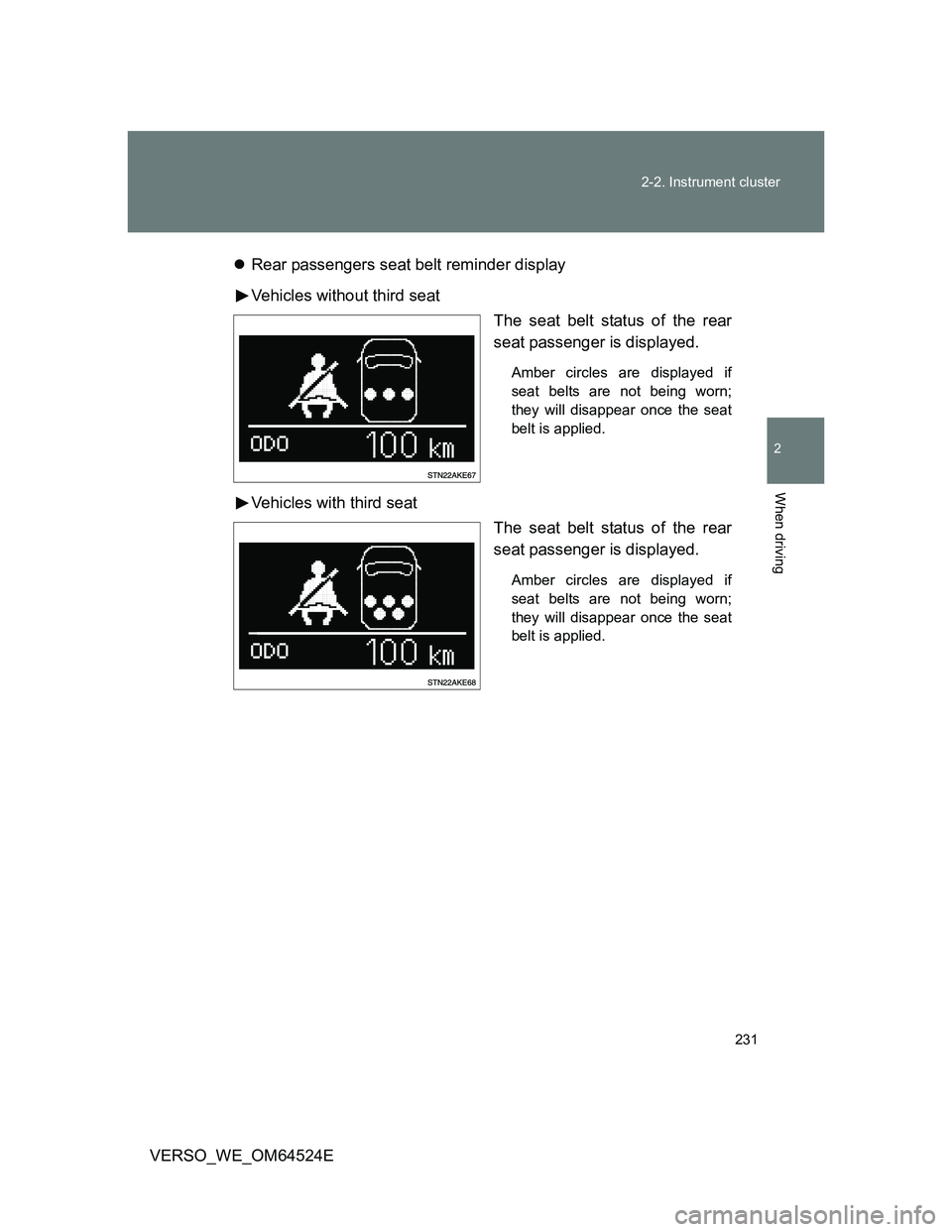

VERSO_WE_OM64524ERear passengers seat belt reminder display
Vehicles without third seat
The seat belt status of the rear
seat passenger is displayed.
Amber circles are displayed if
seat belts are not being worn;
they will disappear once the seat
belt is applied.
Vehicles with third seat
The seat belt status of the rear
seat passenger is displayed.
Amber circles are displayed if
seat belts are not being worn;
they will disappear once the seat
belt is applied.

232 2-2. Instrument cluster
VERSO_WE_OM64524E

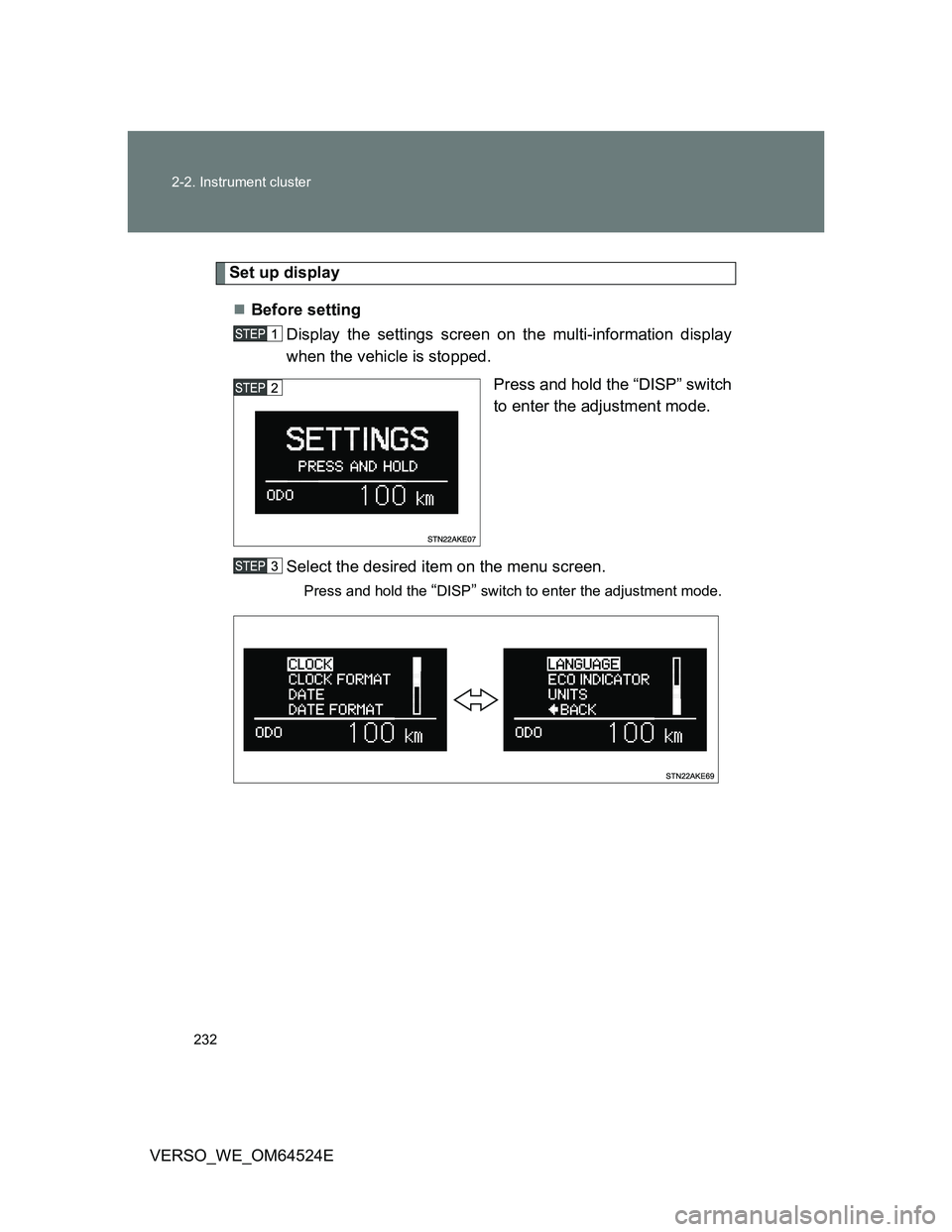

Set up display
Before setting
Display the settings screen on the multi-information display
when the vehicle is stopped.
Press and hold the “DISP” switch
to enter the adjustment mode.
Select the desired item on the menu screen.
Press and hold the “DISP” switch to enter the adjustment mode.

233 2-2. Instrument cluster
2
When driving

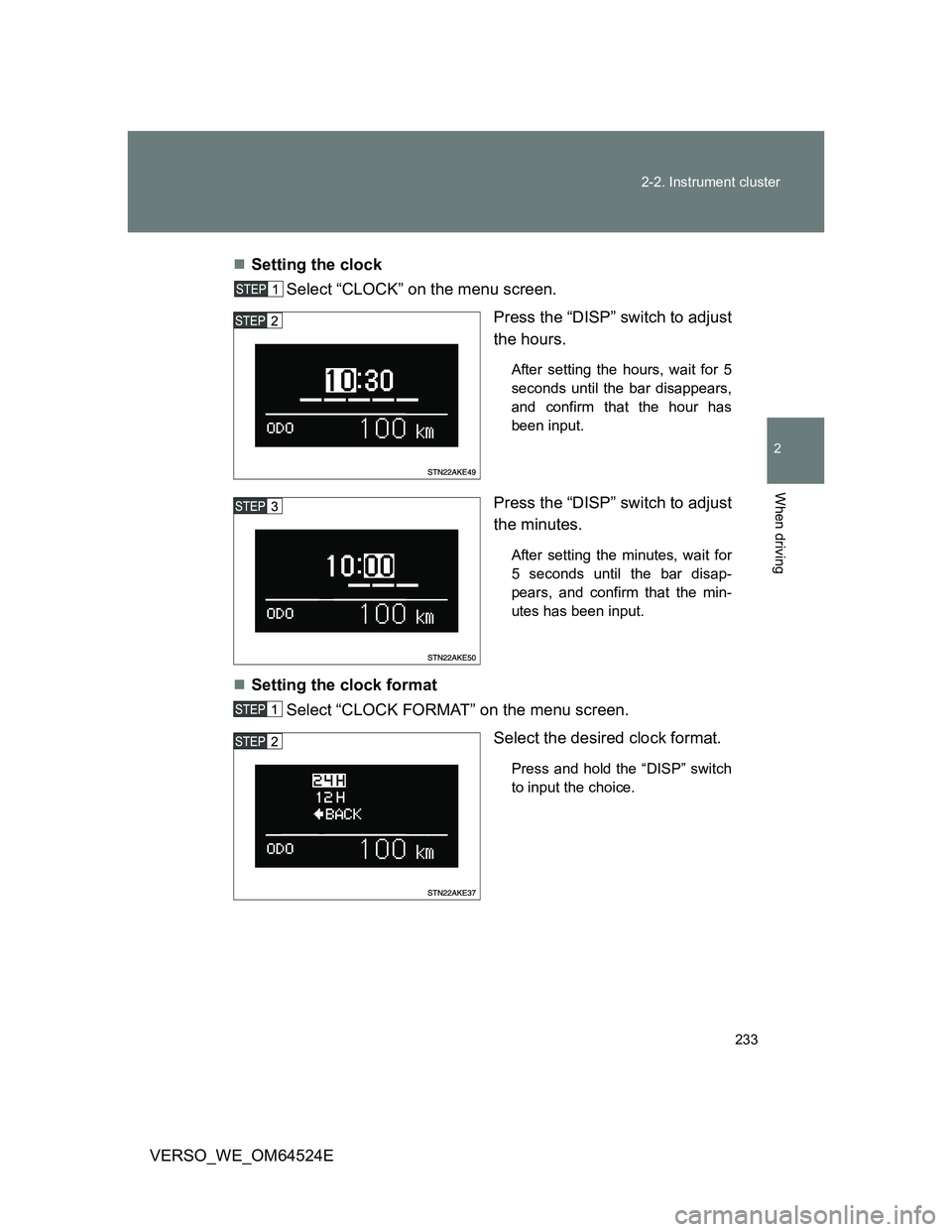

VERSO_WE_OM64524ESetting the clock
Select “CLOCK” on the menu screen.
Press the “DISP” switch to adjust
the hours.
After setting the hours, wait for 5
seconds until the bar disappears,
and confirm that the hour has
been input.
Press the “DISP” switch to adjust
the minutes.
After setting the minutes, wait for
5 seconds until the bar disap-
pears, and confirm that the min-
utes has been input.
Setting the clock format
Select “CLOCK FORMAT” on the menu screen.
Select the desired clock format.
Press and hold the “DISP” switch
to input the choice.

234 2-2. Instrument cluster

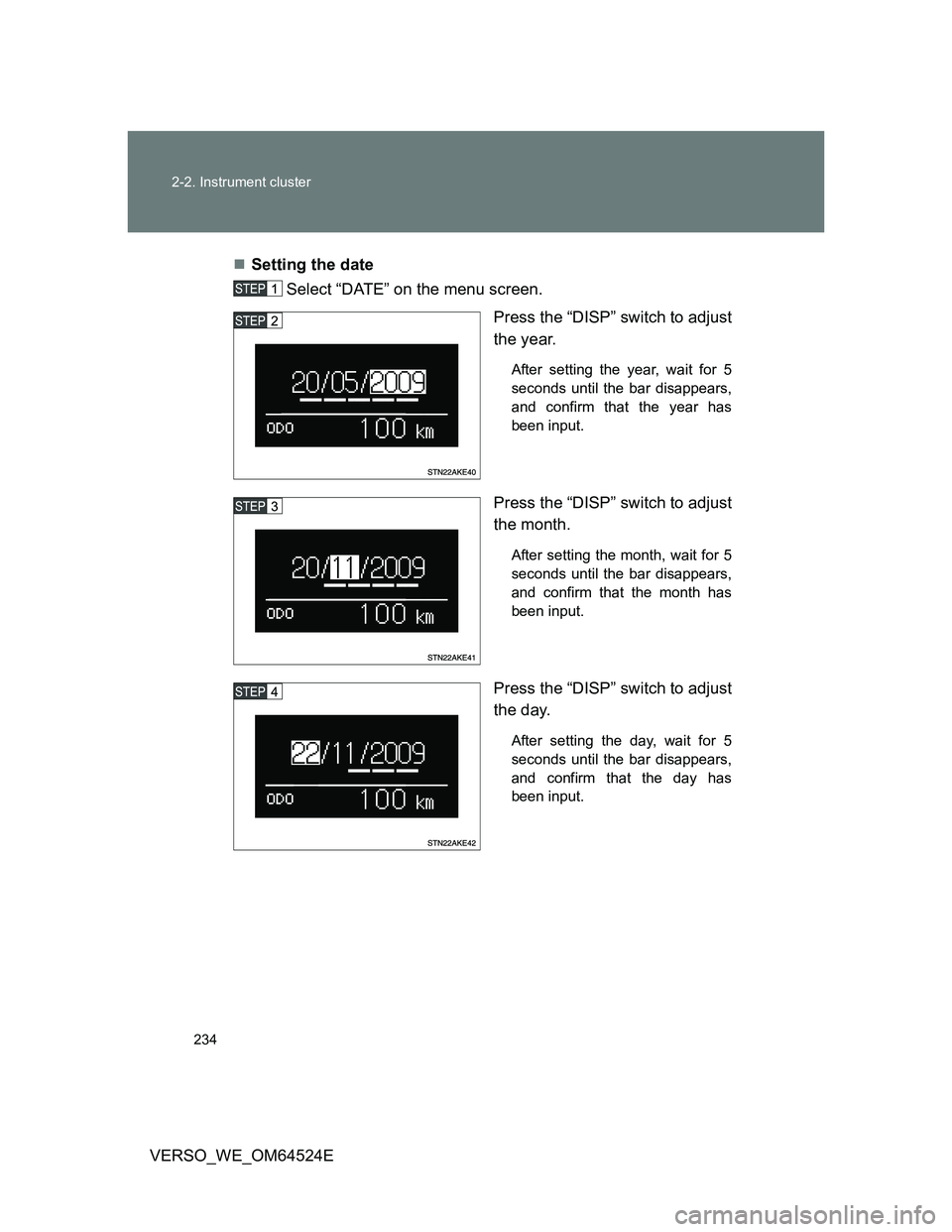

VERSO_WE_OM64524ESetting the date
Select “DATE” on the menu screen.
Press the “DISP” switch to adjust
the year.
After setting the year, wait for 5
seconds until the bar disappears,
and confirm that the year has
been input.
Press the “DISP” switch to adjust
the month.
After setting the month, wait for 5
seconds until the bar disappears,
and confirm that the month has
been input.
Press the “DISP” switch to adjust
the day.
After setting the day, wait for 5
seconds until the bar disappears,
and confirm that the day has
been input.

235 2-2. Instrument cluster
2
When driving

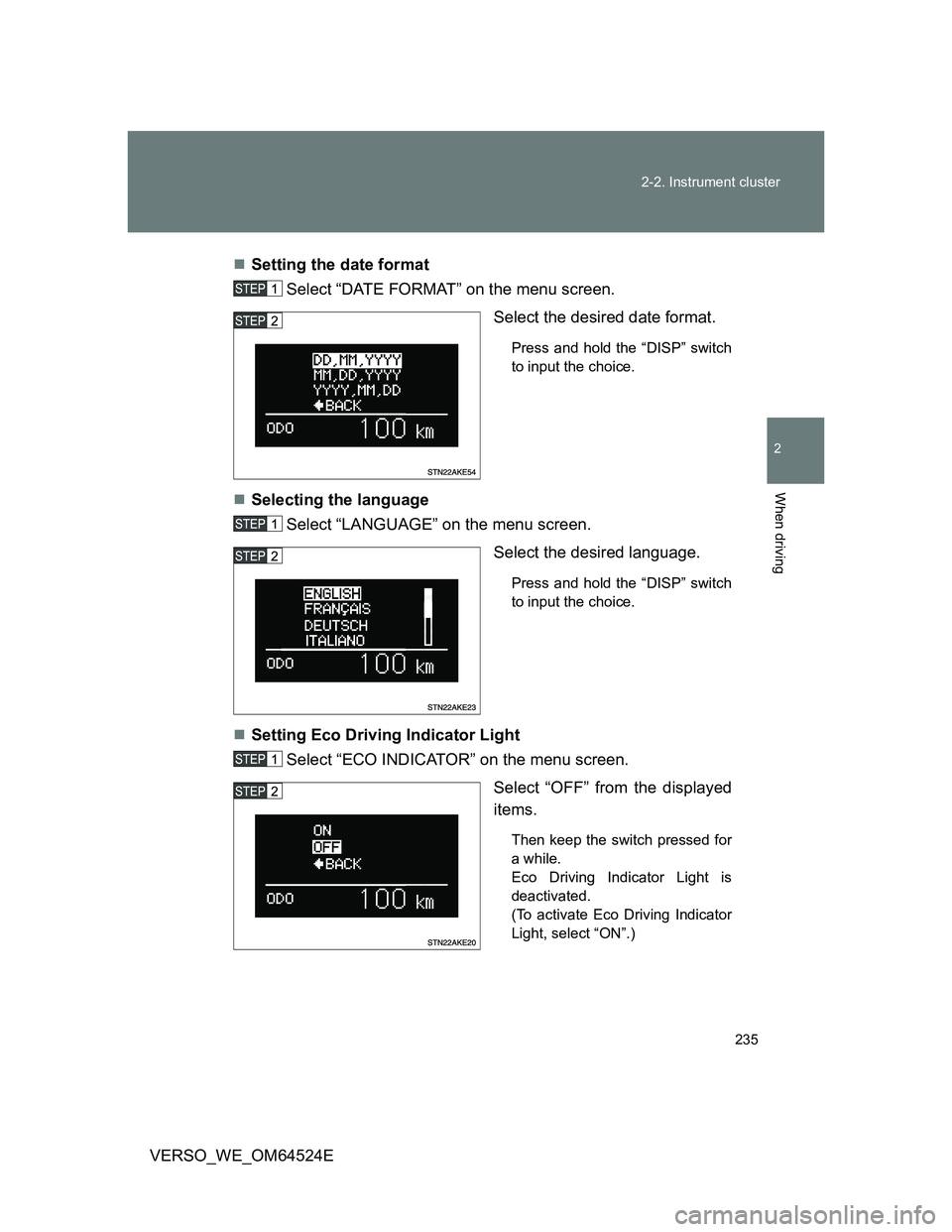

VERSO_WE_OM64524ESetting the date format
Select “DATE FORMAT” on the menu screen.
Select the desired date format.
Press and hold the “DISP” switch
to input the choice.
Selecting the language
Select “LANGUAGE” on the menu screen.
Select the desired language.
Press and hold the “DISP” switch
to input the choice.
Setting Eco Driving Indicator Light
Select “ECO INDICATOR” on the menu screen.
Select “OFF” from the displayed
items.
Then keep the switch pressed for
a while.
Eco Driving Indicator Light is
deactivated.
(To activate Eco Driving Indicator
Light, select “ON”.)

236 2-2. Instrument cluster

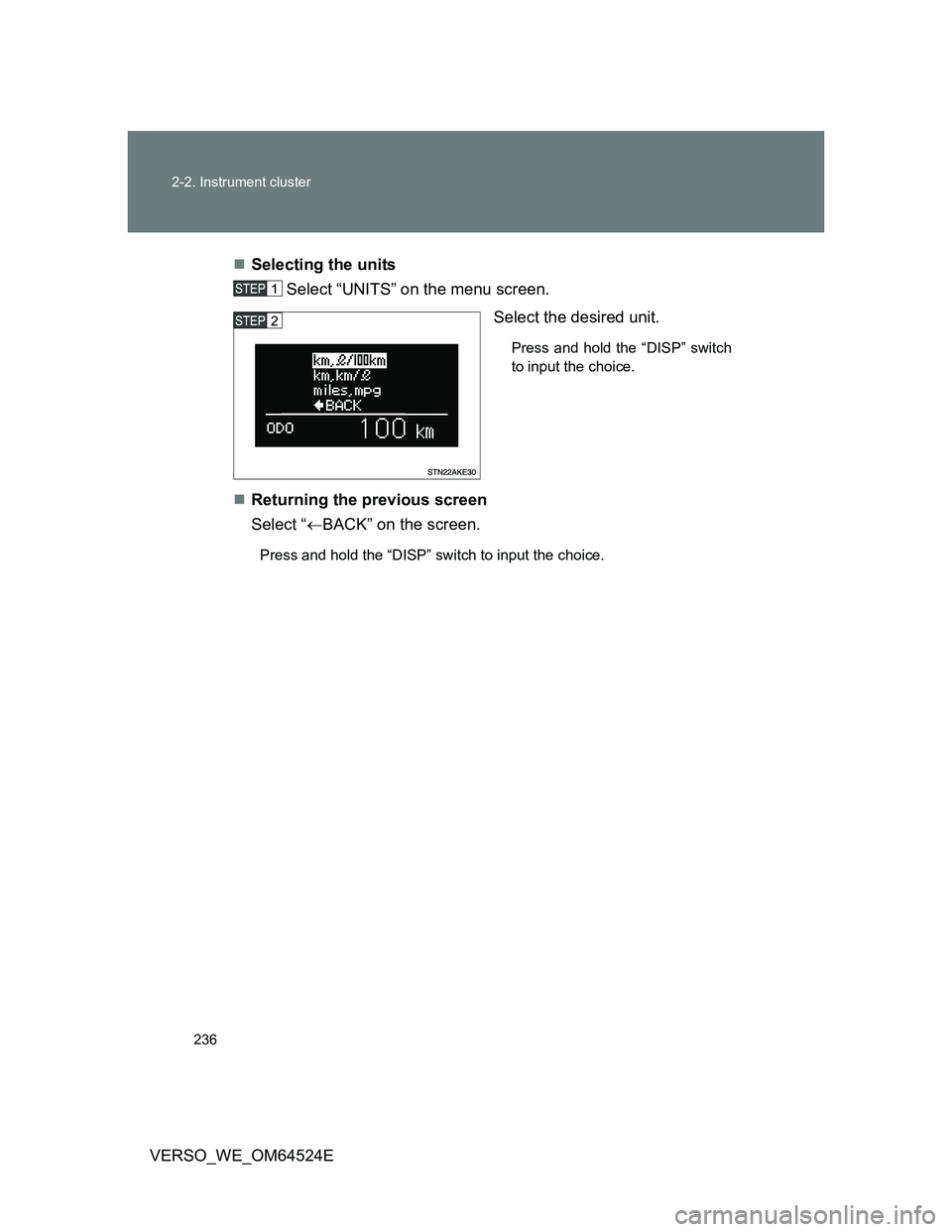

VERSO_WE_OM64524ESelecting the units
Select “UNITS” on the menu screen.
Select the desired unit.
Press and hold the “DISP” switch
to input the choice.
Returning the previous screen
Select “BACK” on the screen.
Press and hold the “DISP” switch to input the choice.

237 2-2. Instrument cluster
2
When driving
VERSO_WE_OM64524E

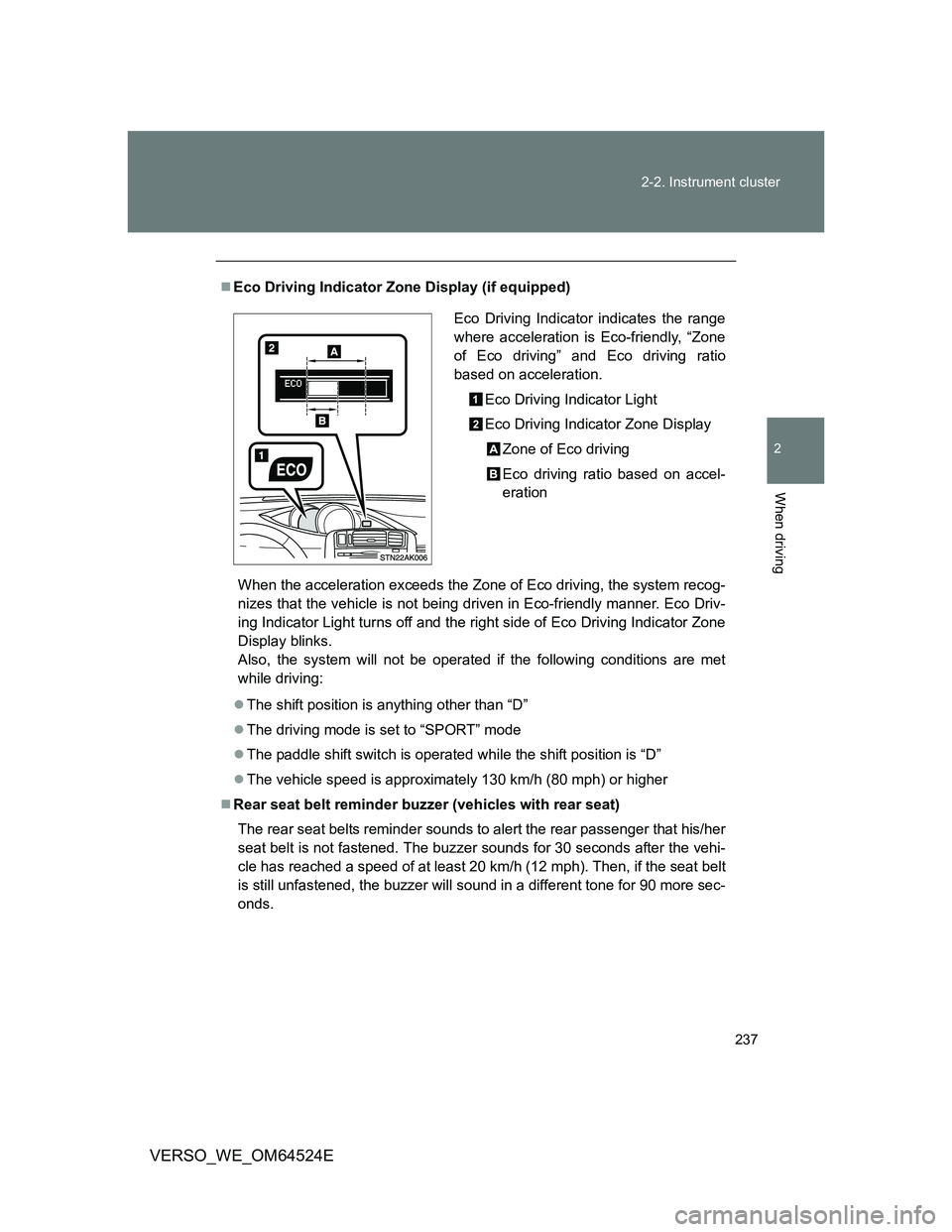

Eco Driving Indicator Zone Display (if equipped)
When the acceleration exceeds the Zone of Eco driving, the system recog-
nizes that the vehicle is not being driven in Eco-friendly manner. Eco Driv-
ing Indicator Light turns off and the right side of Eco Driving Indicator Zone
Display blinks.
Also, the system will not be operated if the following conditions are met
while driving:
The shift position is anything other than “D”
The driving mode is set to “SPORT” mode
The paddle shift switch is operated while the shift position is “D”
The vehicle speed is approximately 130 km/h (80 mph) or higher
Rear seat belt reminder buzzer (vehicles with rear seat)
The rear seat belts reminder sounds to alert the rear passenger that his/her
seat belt is not fastened. The buzzer sounds for 30 seconds after the vehi-
cle has reached a speed of at least 20 km/h (12 mph). Then, if the seat belt
is still unfastened, the buzzer will sound in a different tone for 90 more sec-
onds.
Eco Driving Indicator indicates the range
where acceleration is Eco-friendly, “Zone
of Eco driving” and Eco driving ratio
based on acceleration.
Eco Driving Indicator Light
Eco Driving Indicator Zone Display
Zone of Eco driving
Eco driving ratio based on accel-
eration

238 2-2. Instrument cluster
VERSO_WE_OM64524E

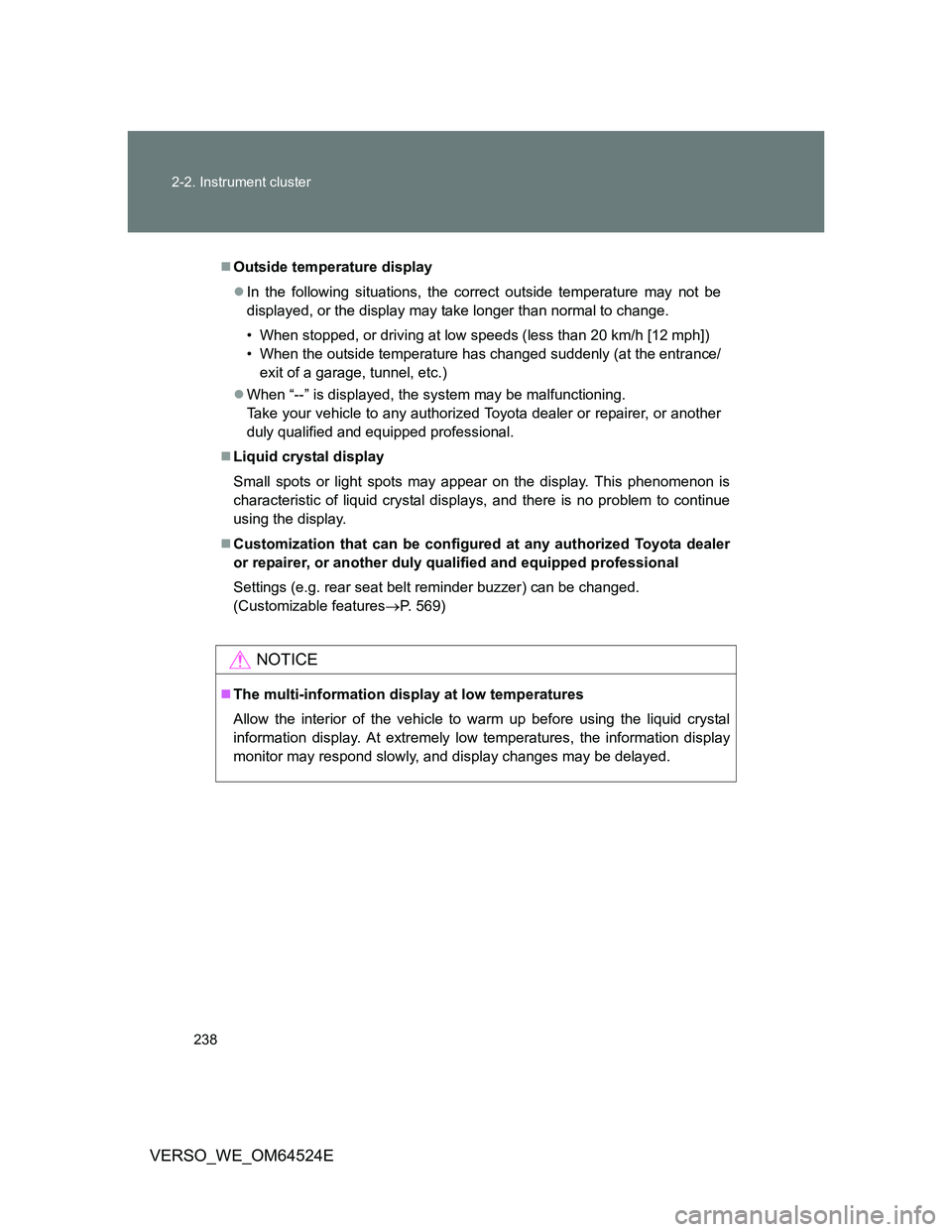

Outside temperature display
In the following situations, the correct outside temperature may not be
displayed, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem to continue
using the display.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. rear seat belt reminder buzzer) can be changed.
(Customizable featuresP. 569)
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

239
2
When driving
VERSO_WE_OM64524E
2-3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually or automatically.
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights and all
lights listed above turn
on and off automati-
cally.
(When the engine
switch is in the “ON”
position [vehicles with-
out smart entry & start
system] or the
“ENGINE START
STOP” switch is in
IGNITION ON mode
[vehicles with smart
entry & start system].)
(if equipped)

240 2-3. Operating the lights and wipers
VERSO_WE_OM64524E

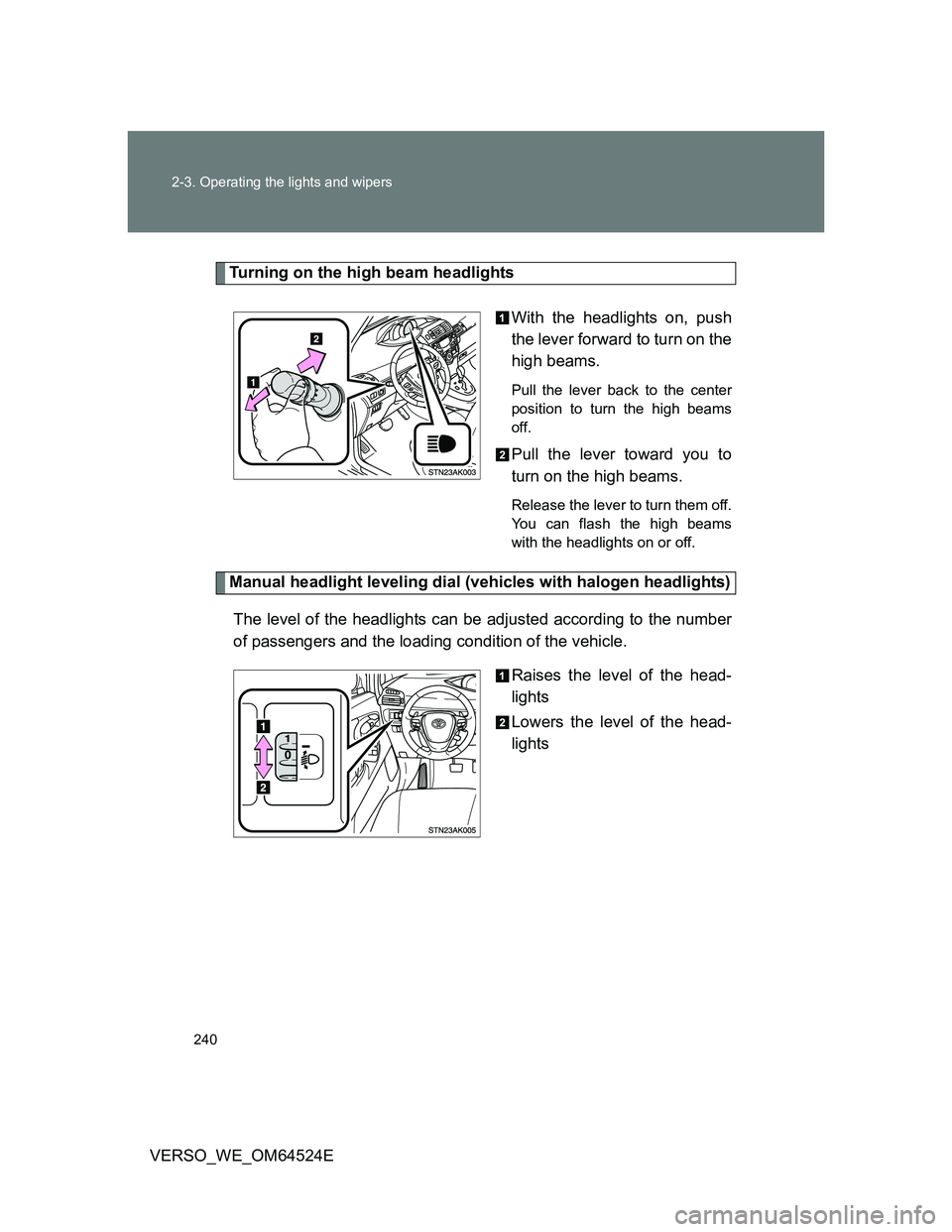

Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
Manual headlight leveling dial (vehicles with halogen headlights)
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
