Page 451 of 588
451 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E

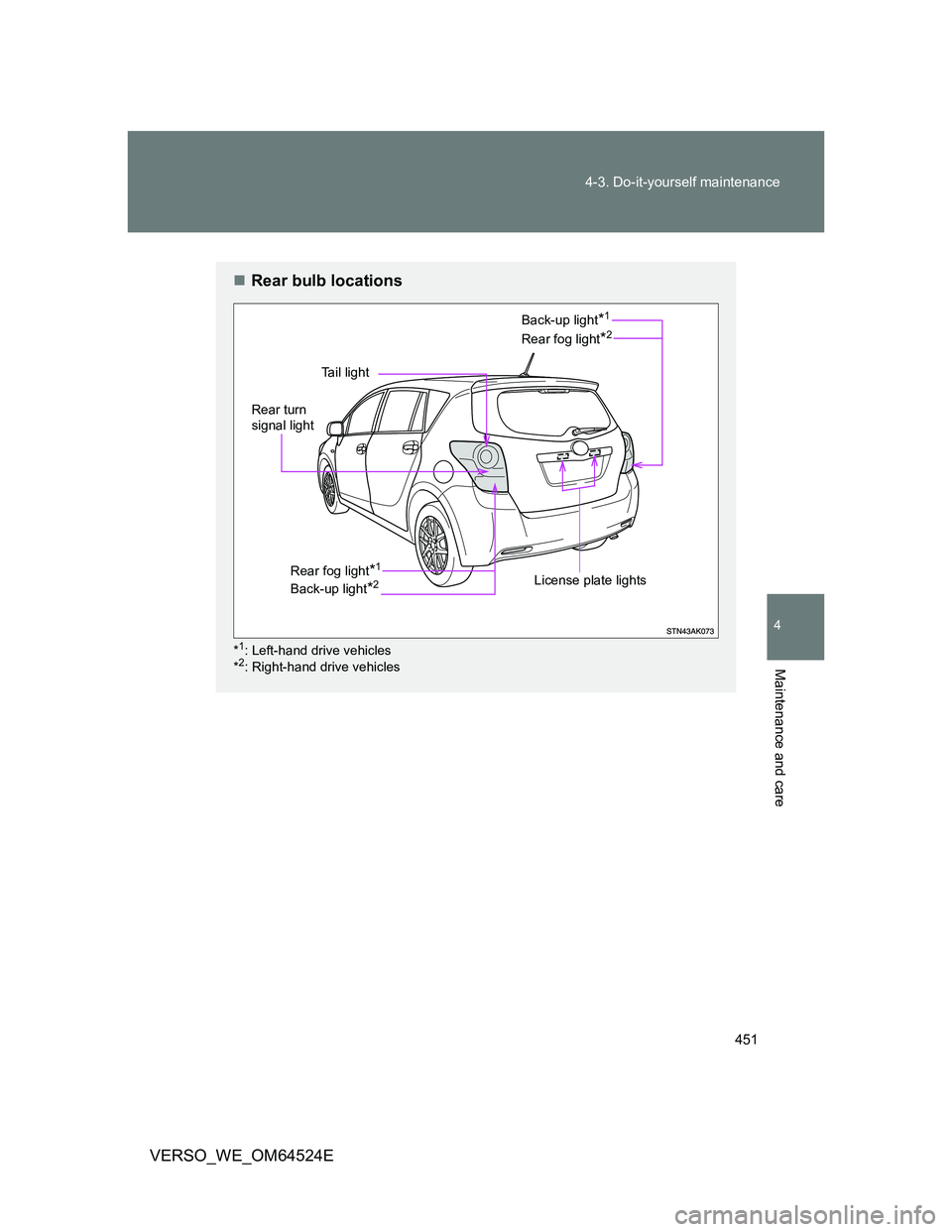

Rear bulb locations
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Tail light
Rear fog light*2
License plate lights Rear turn
signal light
Back-up light*1
Rear fog light*1
Back-up light*2
Page 452 of 588
452 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E

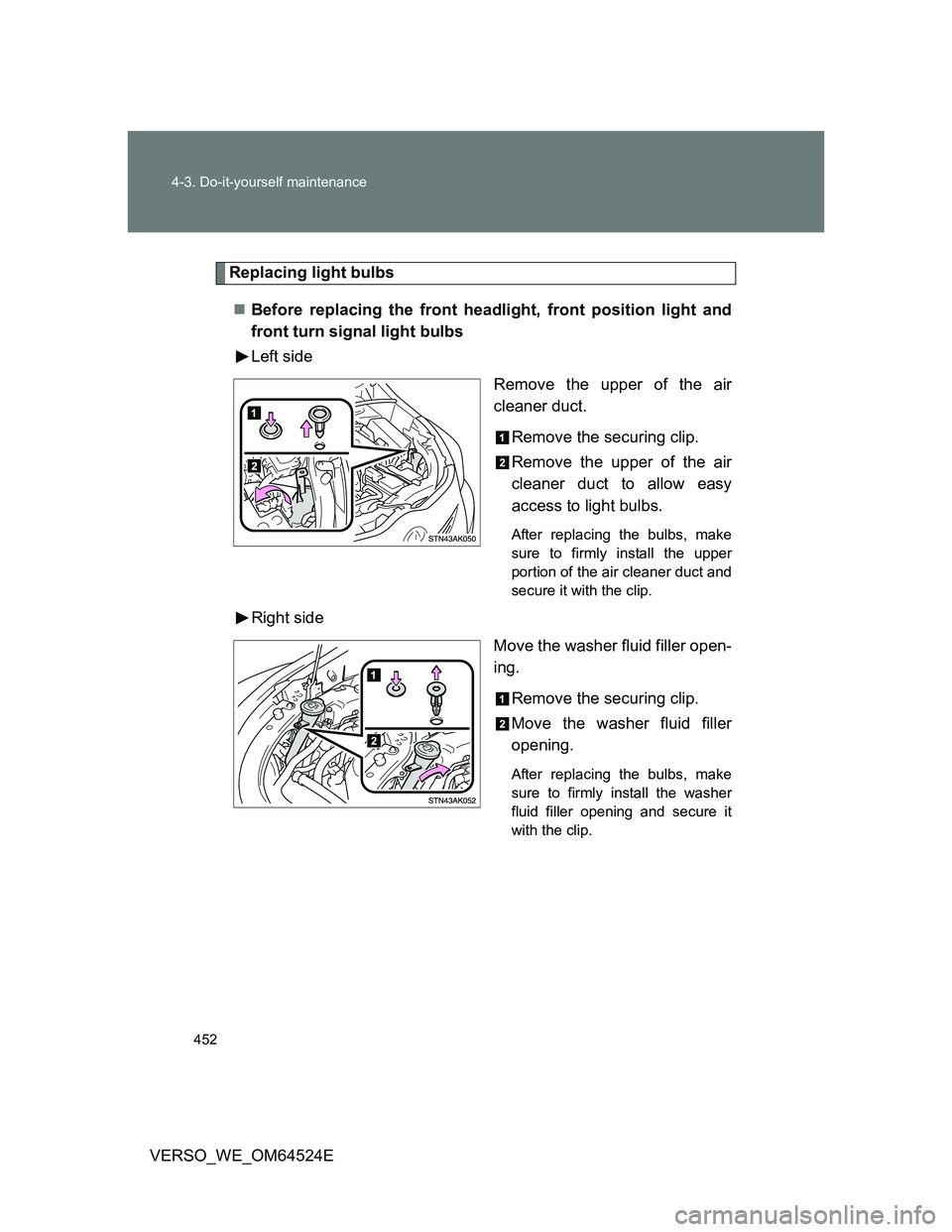

Replacing light bulbs
Before replacing the front headlight, front position light and
front turn signal light bulbs
Left side
Remove the upper of the air
cleaner duct.
Remove the securing clip.
Remove the upper of the air
cleaner duct to allow easy
access to light bulbs.
After replacing the bulbs, make
sure to firmly install the upper
portion of the air cleaner duct and
secure it with the clip.
Right side
Move the washer fluid filler open-
ing.
Remove the securing clip.
Move the washer fluid filler
opening.
After replacing the bulbs, make
sure to firmly install the washer
fluid filler opening and secure it
with the clip.
Page 453 of 588
453 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524EHeadlight low beam (vehicles with the halogen bulbs)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
Page 454 of 588
454 4-3. Do-it-yourself maintenance

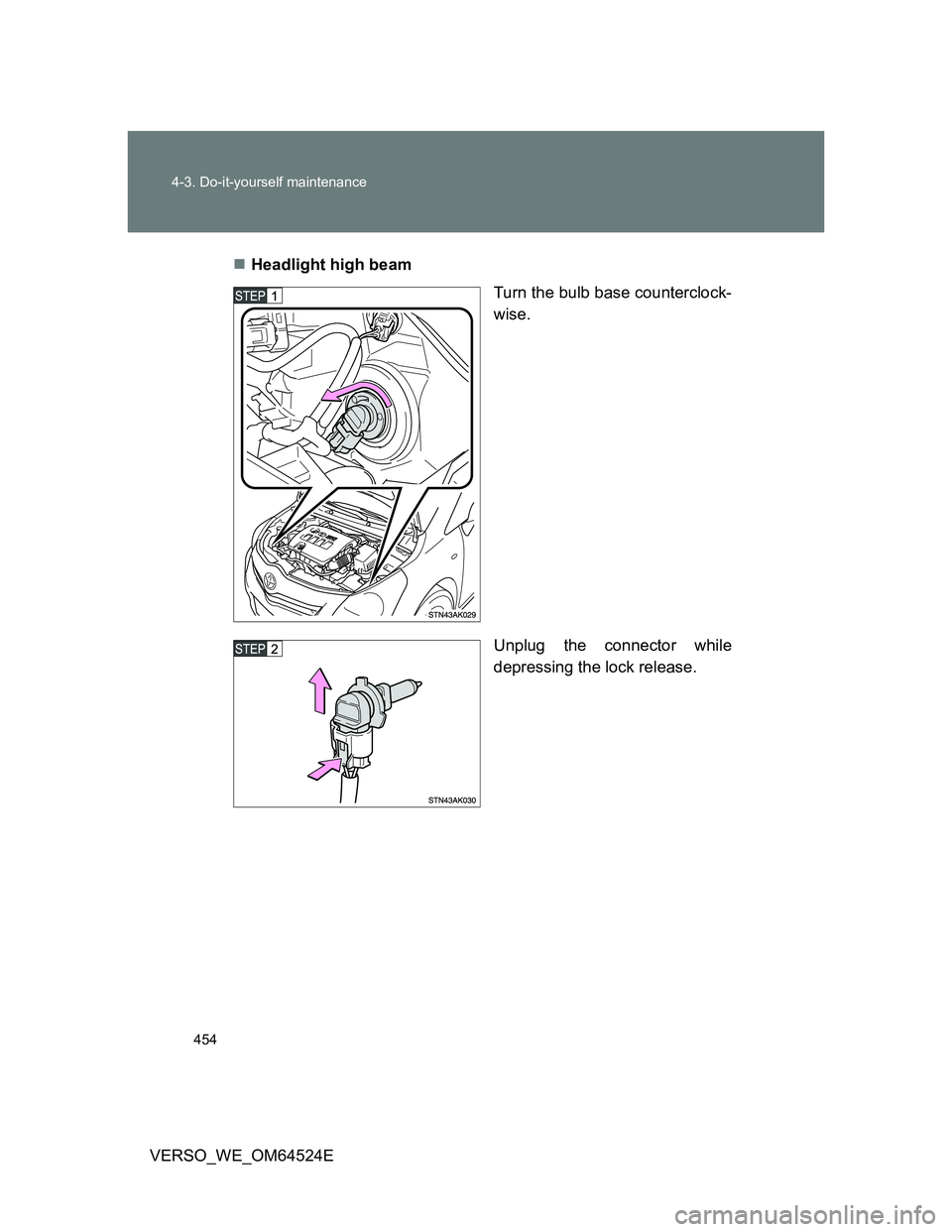

VERSO_WE_OM64524EHeadlight high beam
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
Page 455 of 588
455 4-3. Do-it-yourself maintenance
4
Maintenance and care

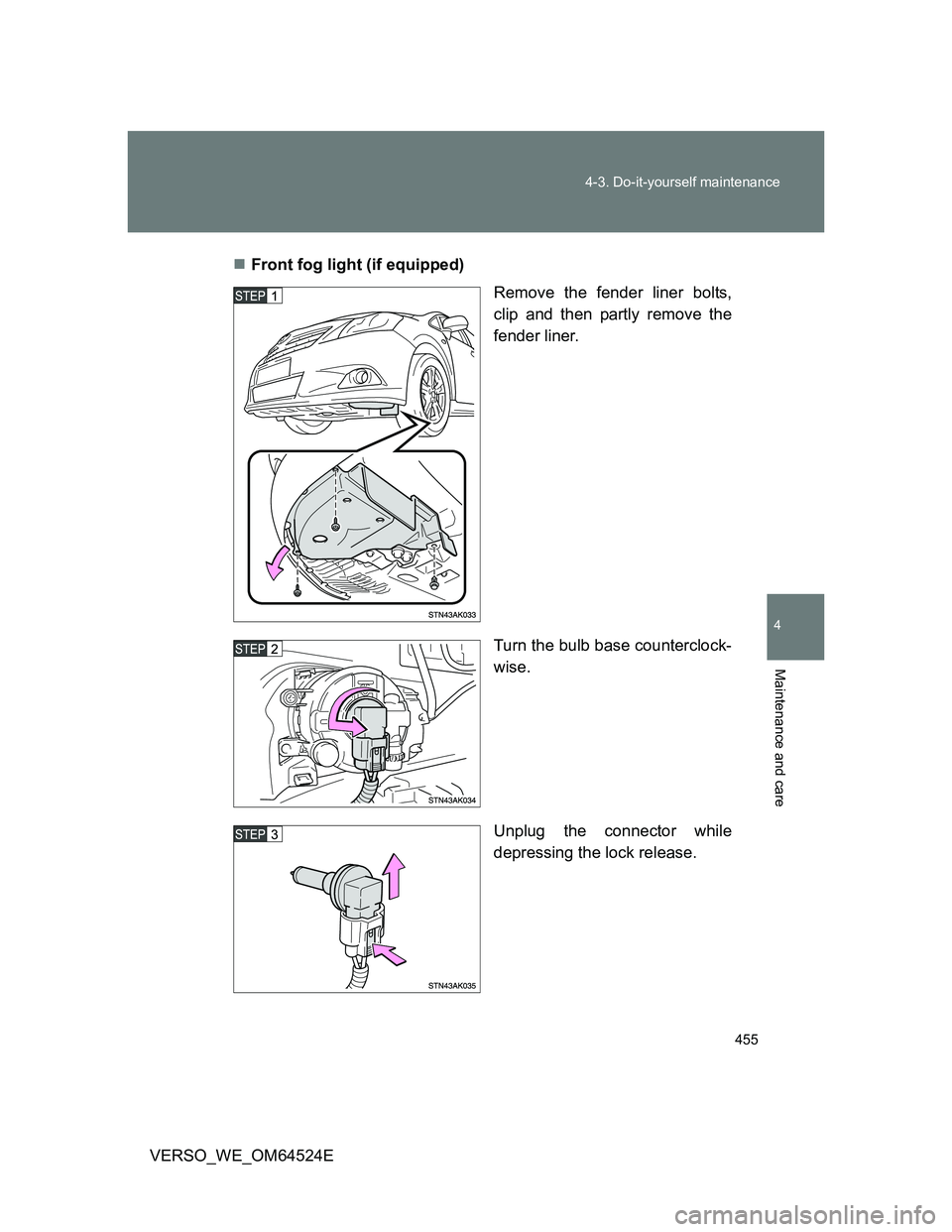

VERSO_WE_OM64524EFront fog light (if equipped)
Remove the fender liner bolts,
clip and then partly remove the
fender liner.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
Page 456 of 588
456 4-3. Do-it-yourself maintenance

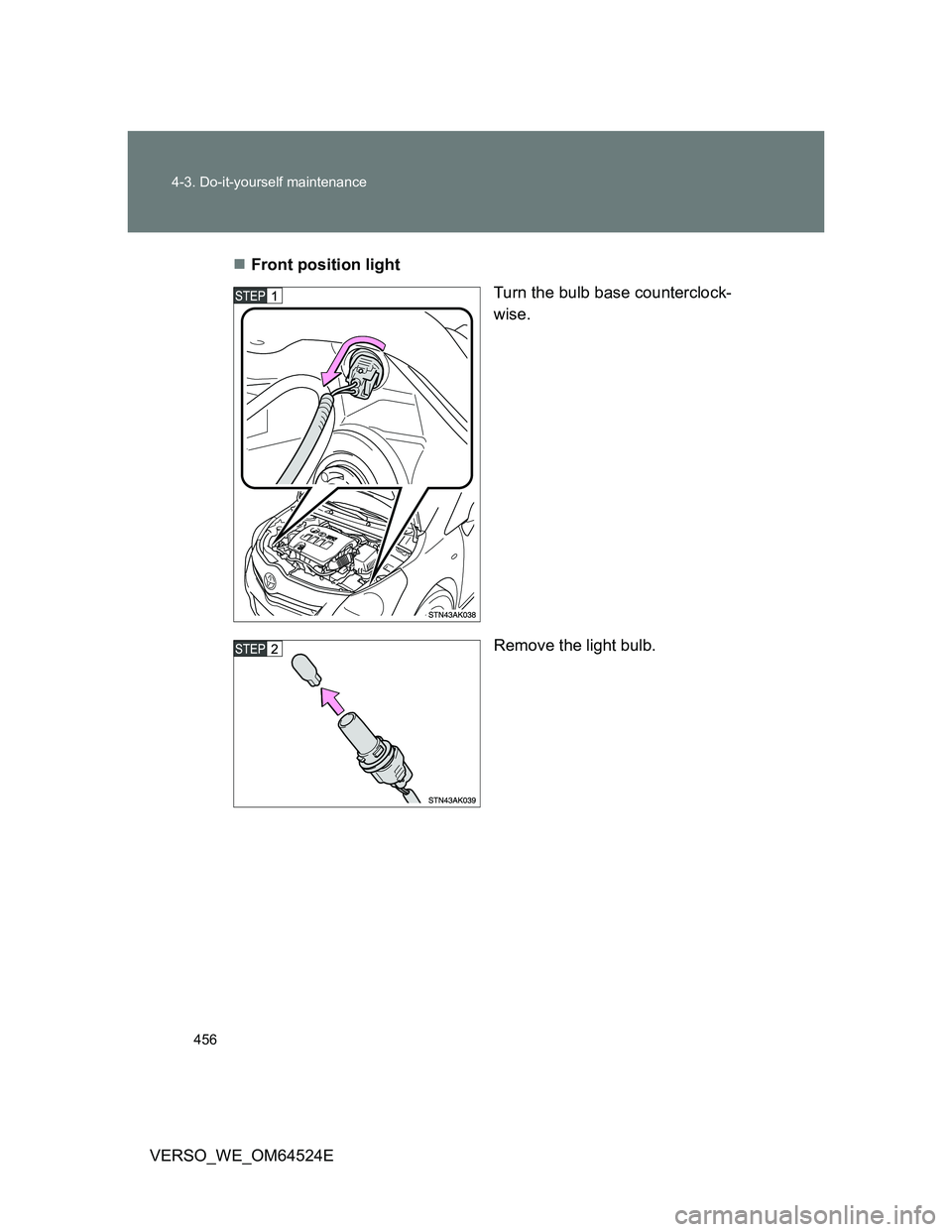

VERSO_WE_OM64524EFront position light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Page 457 of 588
457 4-3. Do-it-yourself maintenance
4
Maintenance and care

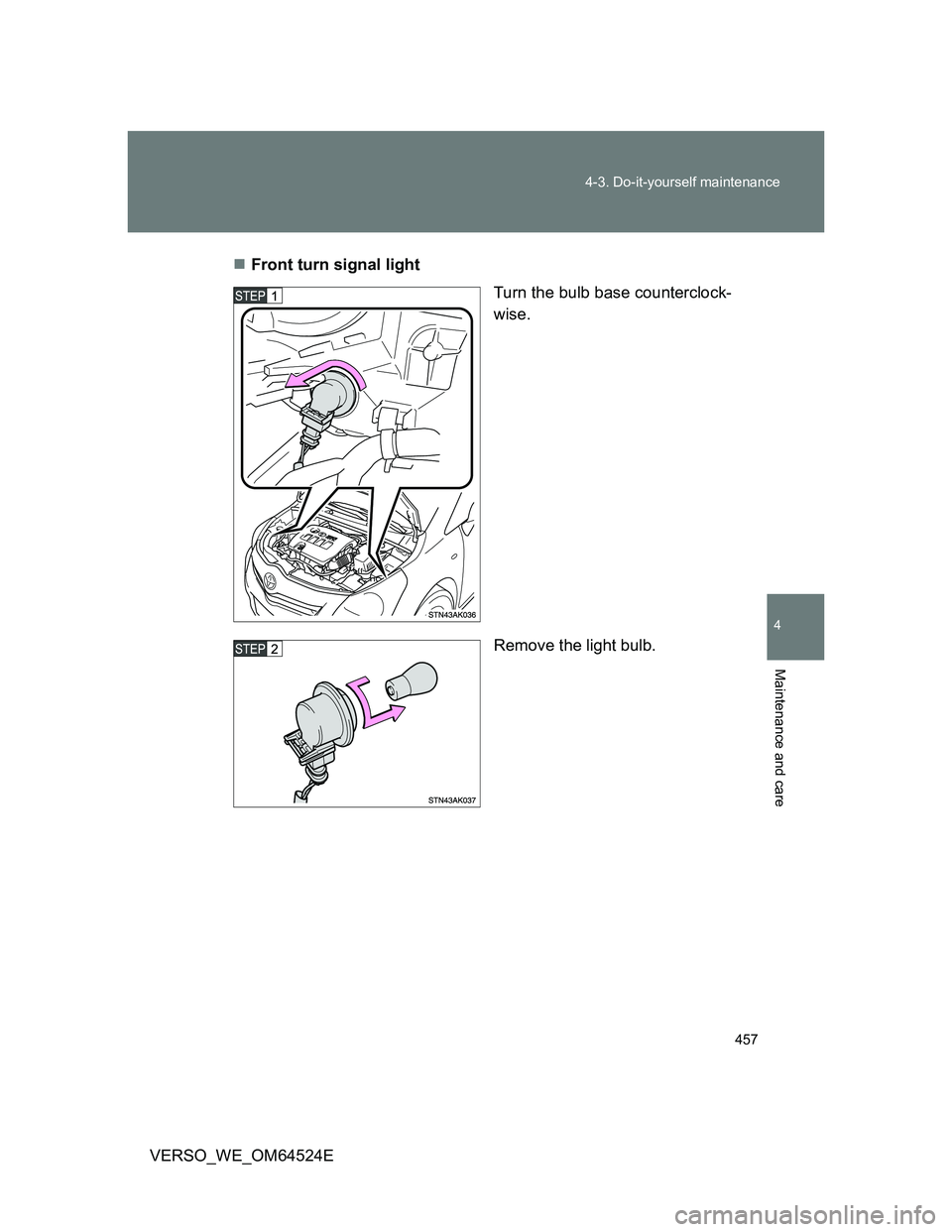

VERSO_WE_OM64524EFront turn signal light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Page 458 of 588
458 4-3. Do-it-yourself maintenance

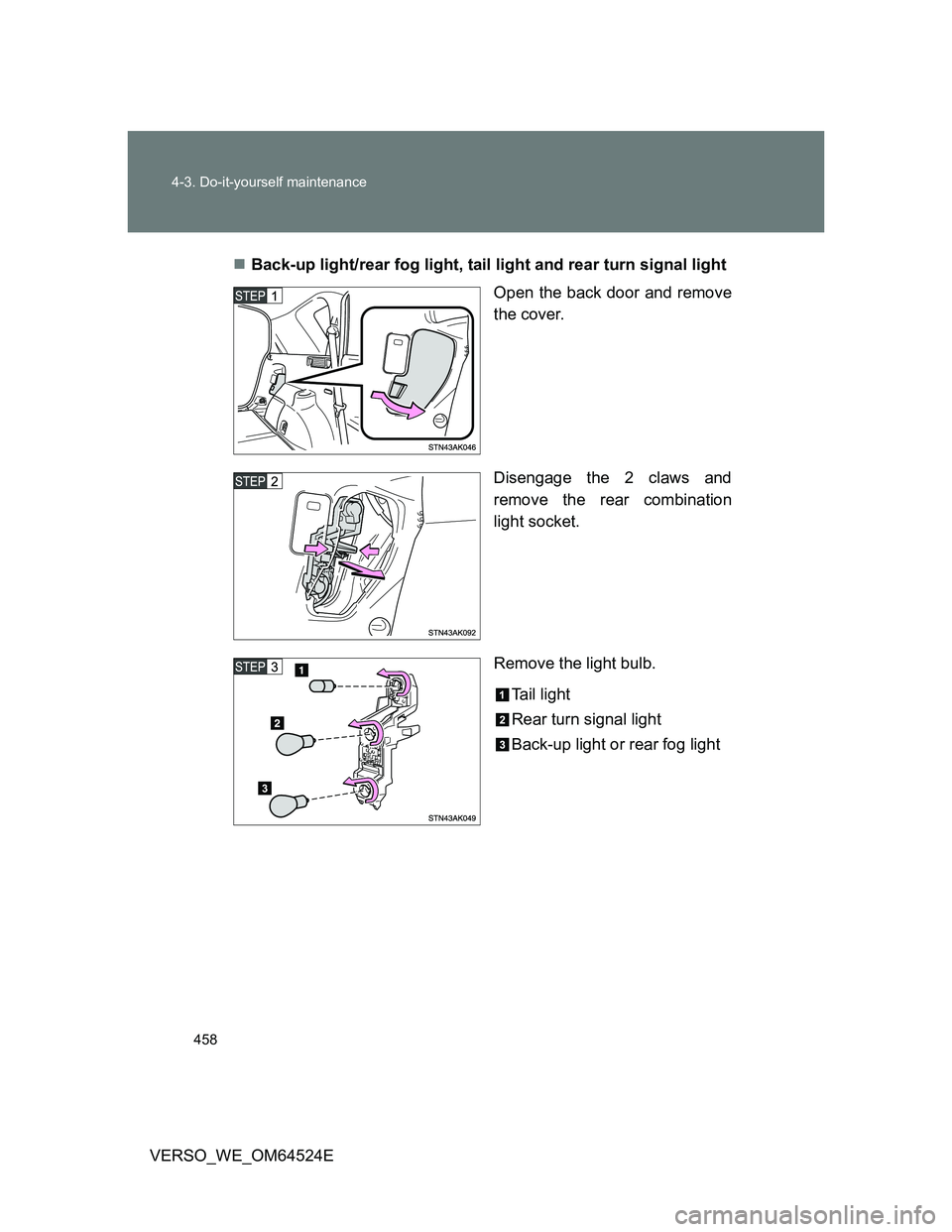

VERSO_WE_OM64524EBack-up light/rear fog light, tail light and rear turn signal light
Open the back door and remove
the cover.
Disengage the 2 claws and
remove the rear combination
light socket.
Remove the light bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light
Page 459 of 588

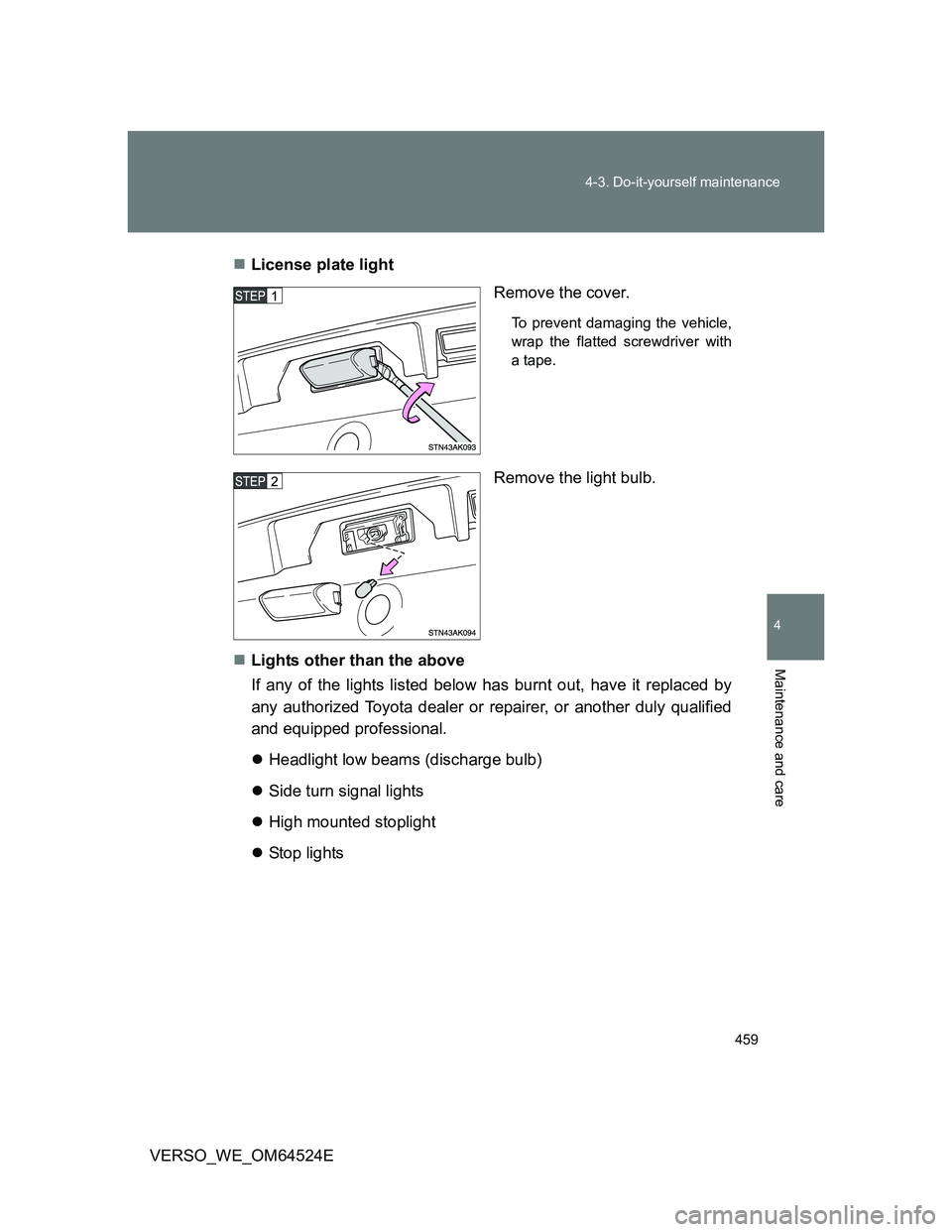

459 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524ELicense plate light
Remove the cover.
To prevent damaging the vehicle,
wrap the flatted screwdriver with
a tape.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlight low beams (discharge bulb)
Side turn signal lights
High mounted stoplight
Stop lights
Page 460 of 588

460 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E

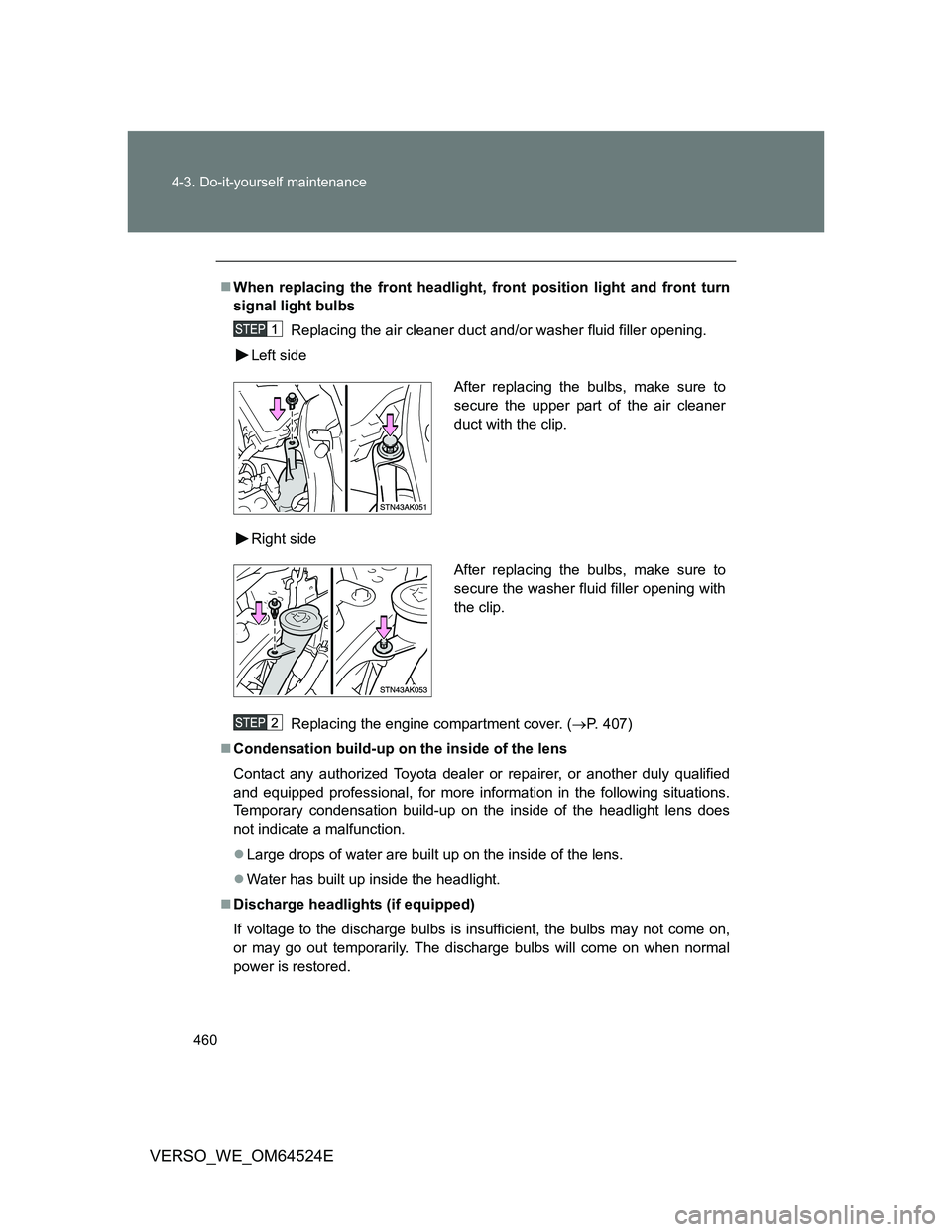

When replacing the front headlight, front position light and front turn
signal light bulbs
Replacing the air cleaner duct and/or washer fluid filler opening.
Left side
Right side
Replacing the engine compartment cover. (P. 407)
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
After replacing the bulbs, make sure to
secure the upper part of the air cleaner
duct with the clip.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with
the clip.
